Rustic Barndominium House Plan with Party Room, Home Office, Flex Space, and Expansive Covered Porch
4.8
Plan Number:

AB8304-A

Rated 4.8
Plan Number:

AB8304-A

✔ Best Price Guarantee | ✔ Free Cost to Build Calculator
Or order by phone: (888) 890-2353
Safe and Secure
SafePay icons
LOW PRICE GUARANTEE
Free Cost to Build Calculator

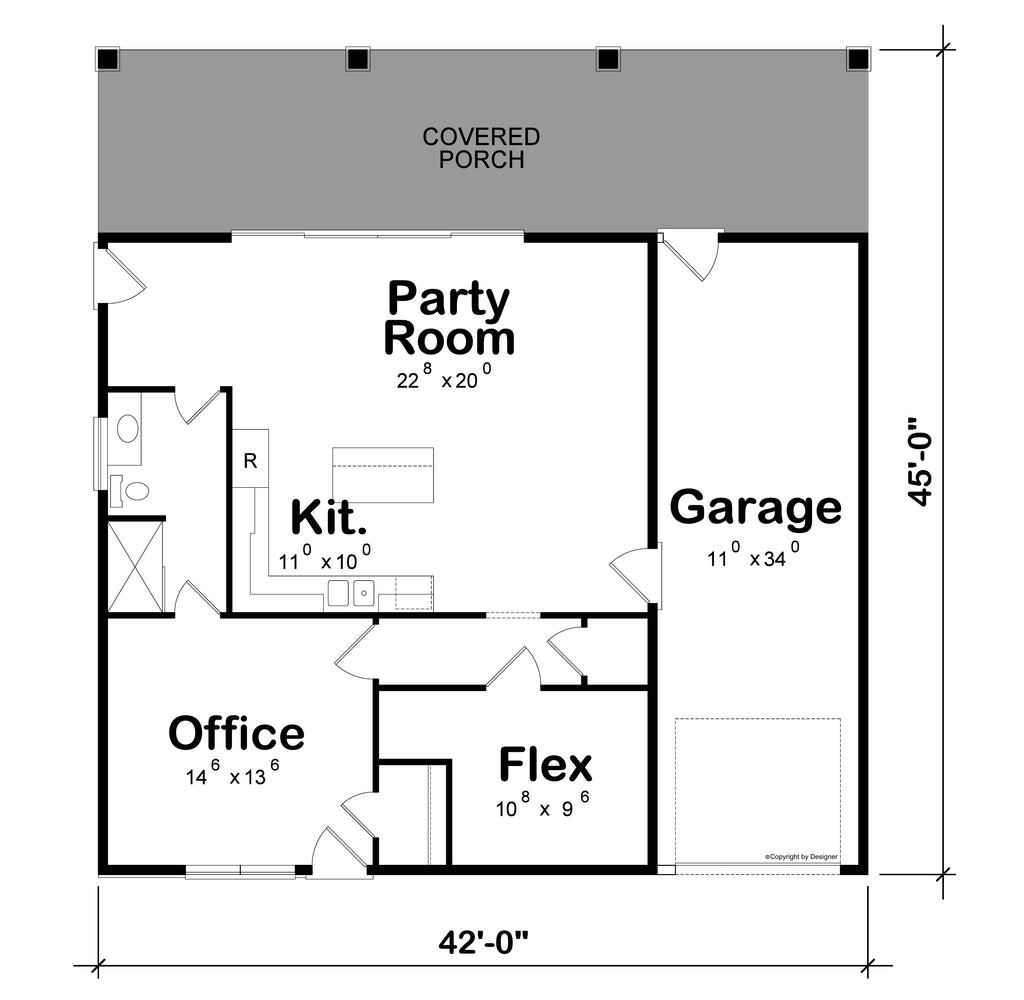

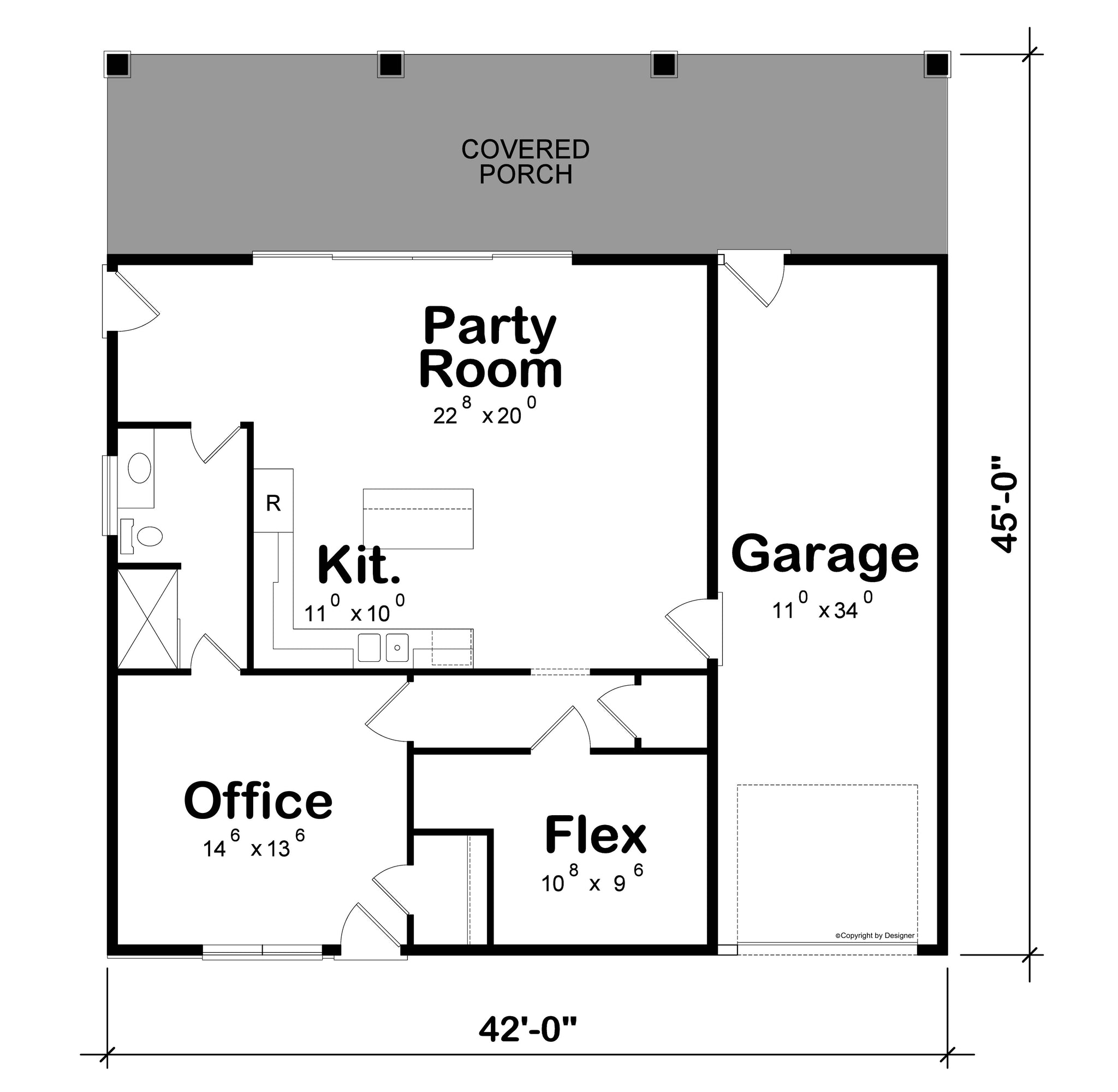

Floor Plan
ab8304-a barndominium house floor plan, 1 bedroom, 1 bathroom | maple house plan

Rustic Barndominium House Plan with Party Room, Home Office, Flex Space, and Expansive Covered Porch

Designed for entertaining, working, and relaxed country living, this rustic barndominium house combines the practicality of a modern workshop-inspired structure with the comfort of an open-concept home. Featuring 1,068 sq. ft. of heated living space and a total structure size of 1,891 sq. ft., this thoughtfully planned residence offers exceptional versatility within a compact and efficient footprint.

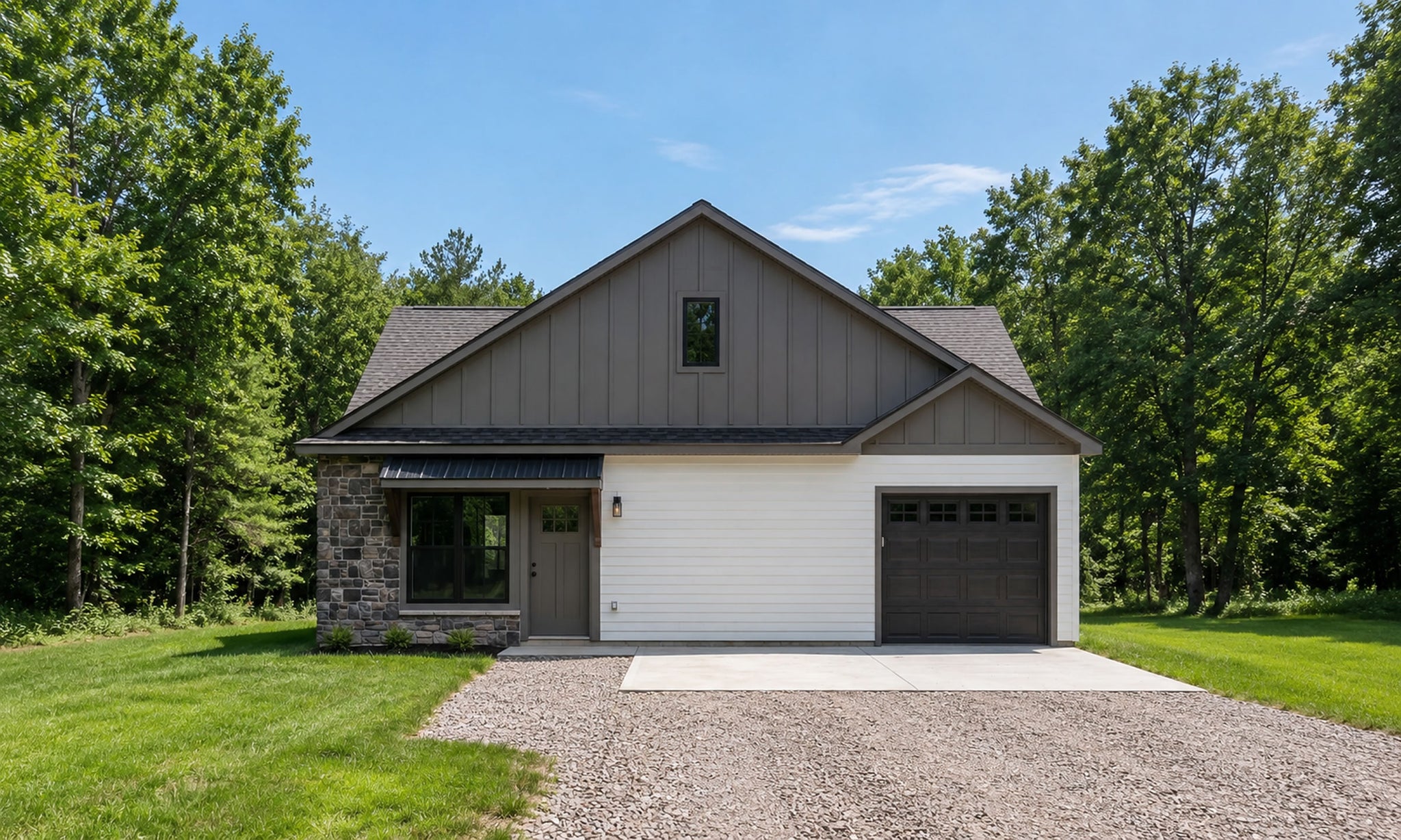

The exterior embraces the timeless appeal of rural architecture with attractive board-and-batten siding, creating a clean and distinctive appearance that complements both countryside and suburban settings. Measuring 42 feet wide by 45 feet deep, the home presents a balanced profile enhanced by varied roof pitches of 8:12 and 5:12, delivering visual interest while maintaining the authentic character associated with classic barndominium design. Rising to a height of 23 feet 6 inches, the structure offers an impressive presence without overwhelming the surrounding landscape.

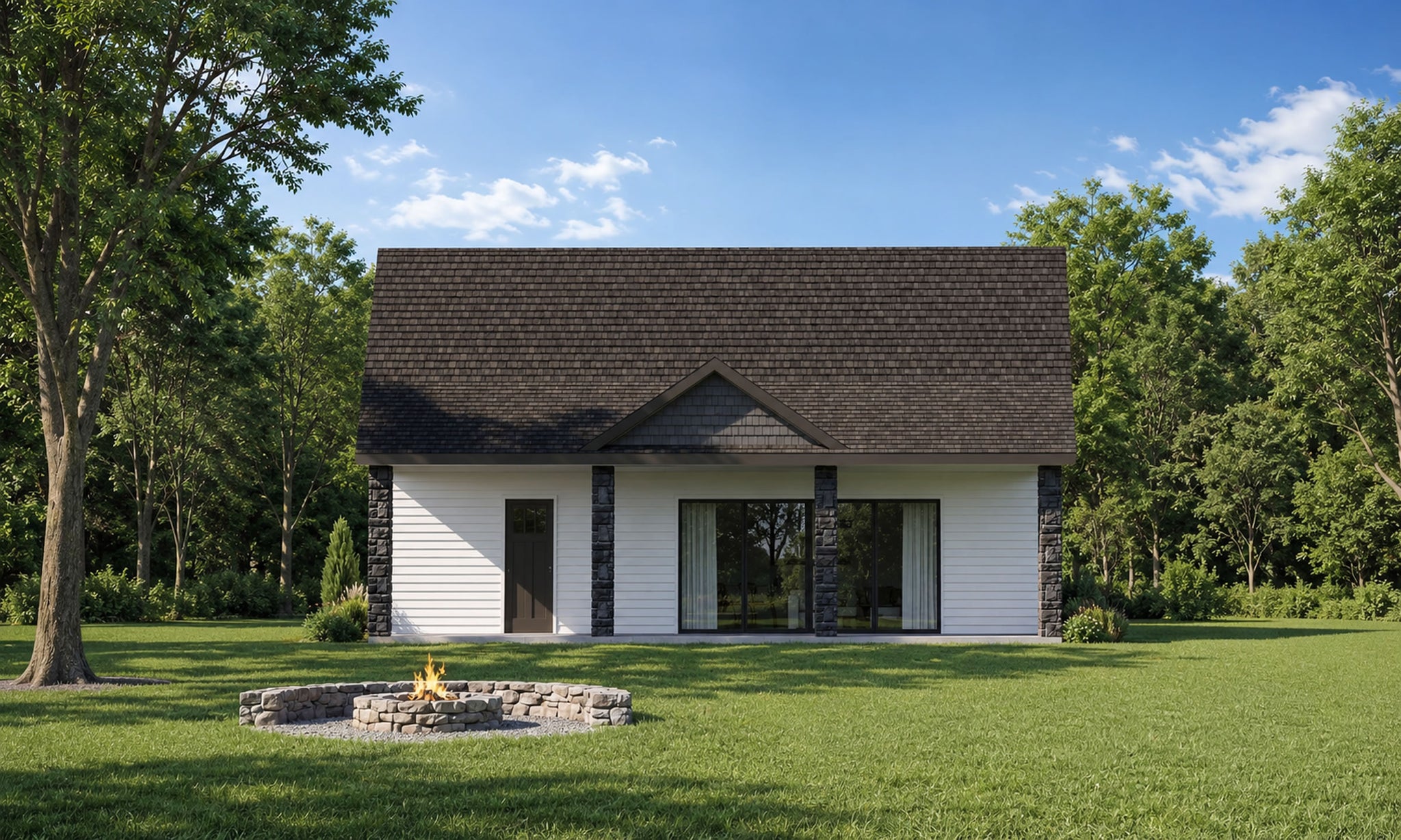

At the rear of the home, a spacious covered porch totaling 420 sq. ft. serves as an extension of the interior living space. This generous outdoor area provides an ideal setting for entertaining guests, hosting family gatherings, outdoor dining, or simply enjoying peaceful evenings surrounded by nature. Multiple access points connect the porch directly to the home's main living areas, strengthening the relationship between indoor and outdoor living.

Inside, the entire 1,068 sq. ft. of living space is arranged on a single level, maximizing accessibility and convenience. The centerpiece of the design is the expansive recreation and party room measuring approximately 22 feet 8 inches by 20 feet, creating an impressive gathering space capable of accommodating social events, game nights, family celebrations, or casual everyday living. The open layout encourages flexibility and allows homeowners to adapt the space to their unique lifestyle needs.

Adjacent to the main gathering area is a well-equipped kitchen measuring approximately 11 feet by 10 feet. Designed with functionality in mind, the kitchen features a central island and eating bar that encourage interaction between the cook and guests while providing additional seating and workspace. The open arrangement ensures that meal preparation remains connected to activities taking place throughout the main living area.

A dedicated home office measuring approximately 14 feet 6 inches by 13 feet 6 inches offers a quiet and productive environment for remote work, business operations, creative pursuits, or study. As more homeowners seek flexible work-from-home solutions, this spacious office adds tremendous value and practicality to the overall design.

Further enhancing the home's adaptability is a flex room measuring approximately 10 feet 8 inches by 9 feet 6 inches. This versatile space can serve as a guest room, hobby area, fitness room, media room, craft studio, or additional workspace depending on the evolving needs of the homeowner. The inclusion of a flex room ensures that the residence can easily adapt to changing lifestyles over time.

The home includes 1 bedroom and 1 full bathroom, creating a comfortable living arrangement suitable for individuals, couples, retirees, weekend retreats, or guest accommodations. The efficient floor plan prioritizes spacious shared living areas while maintaining privacy within the bedroom suite.

One of the home's most notable architectural features is its impressive 11-foot ceiling height throughout the main level. These elevated ceilings create an open and airy atmosphere while enhancing natural light and reinforcing the spacious character commonly associated with modern barndominiums.

Additional functionality is provided by the attached front-load garage, which offers 403 sq. ft. of space and accommodates 1 vehicle. Beyond secure parking, the garage provides valuable storage for tools, outdoor equipment, recreational gear, or workshop activities.

Constructed with durable 2x4 wall framing, this barndominium is designed to deliver long-term performance and efficiency. The combination of practical design, open-concept living, dedicated workspaces, and exceptional entertaining areas makes this residence a distinctive choice for homeowners seeking flexibility and character.

Blending rustic charm with modern convenience, this barndominium house plan offers a unique living experience where work, recreation, and hospitality come together under one thoughtfully designed roof.

View Sample Plan
What's Included in the House Plan:
  • Cover Page – Front elevation, general notes, design criteria, abbreviations, and symbols

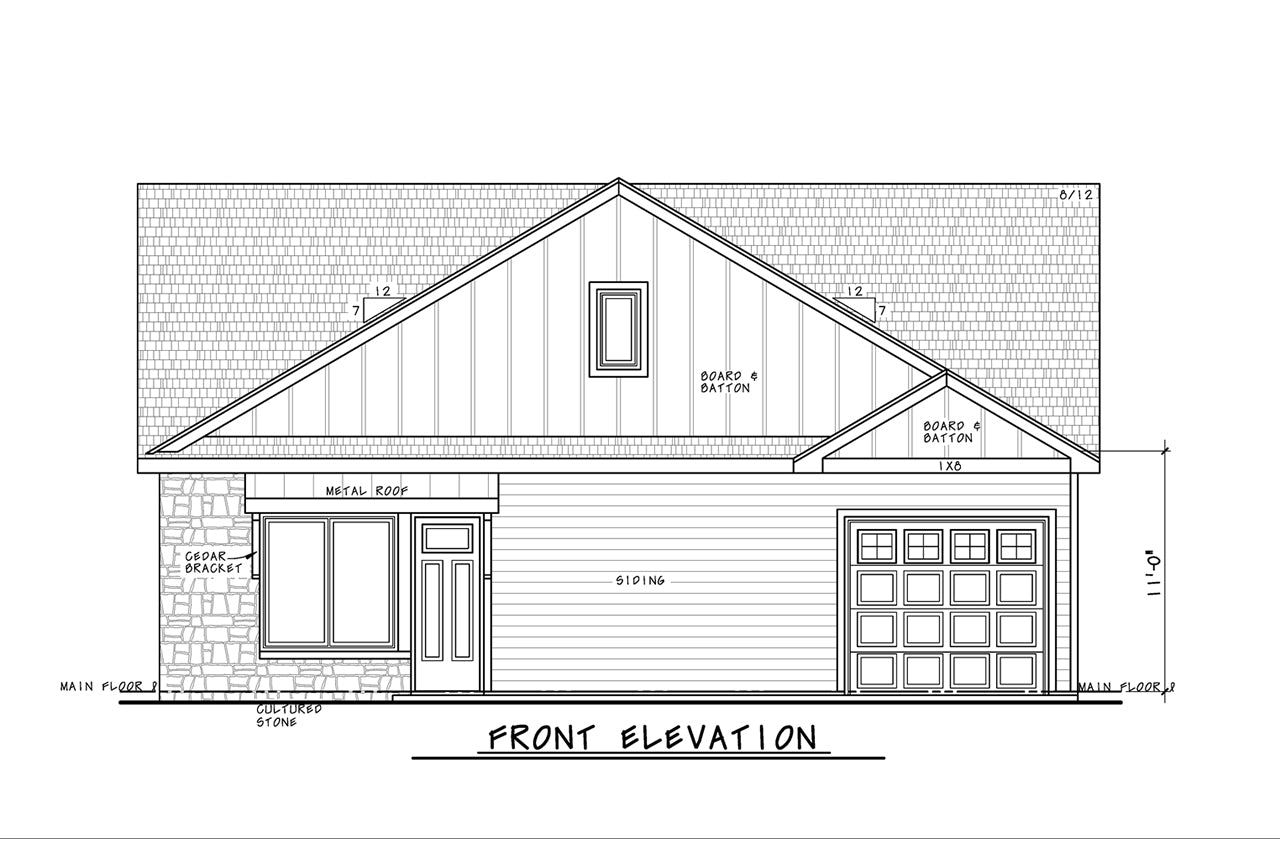

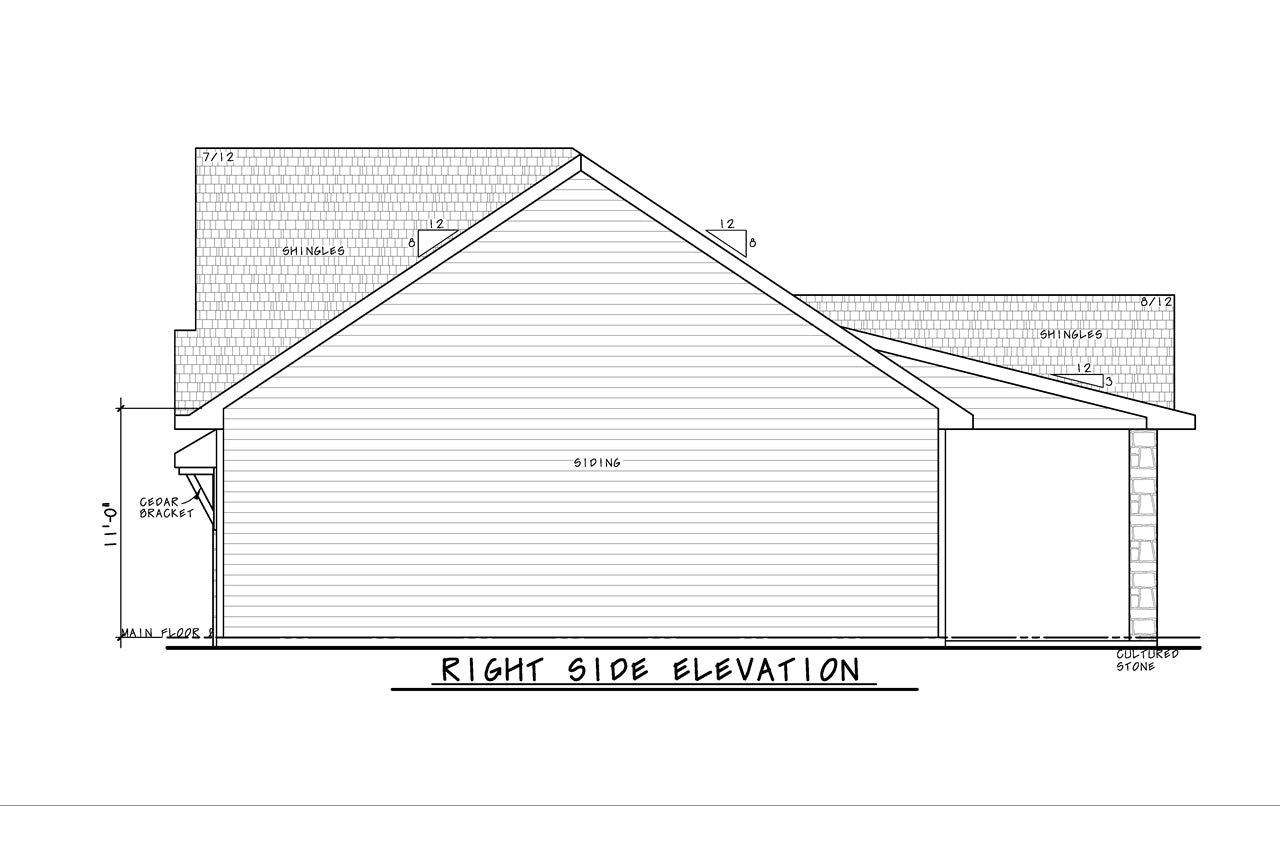

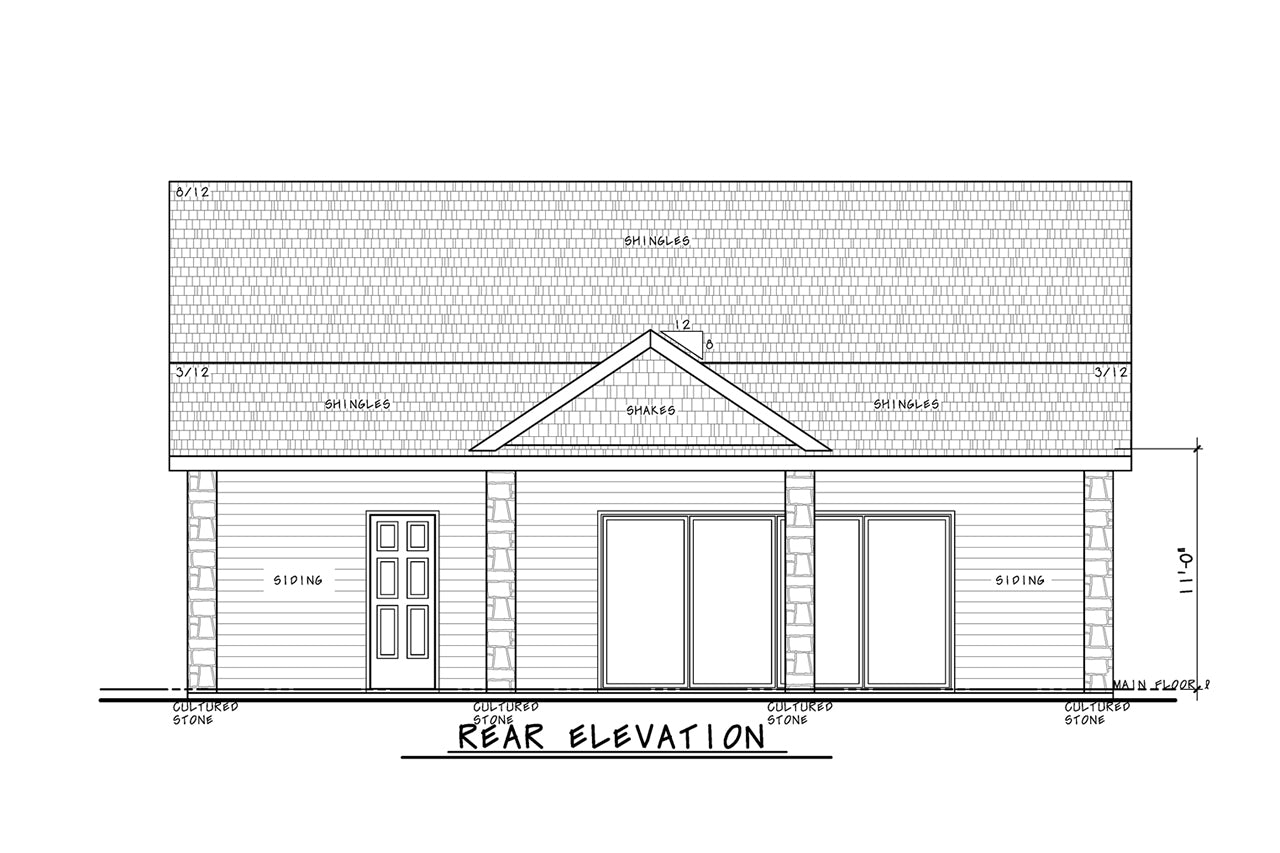

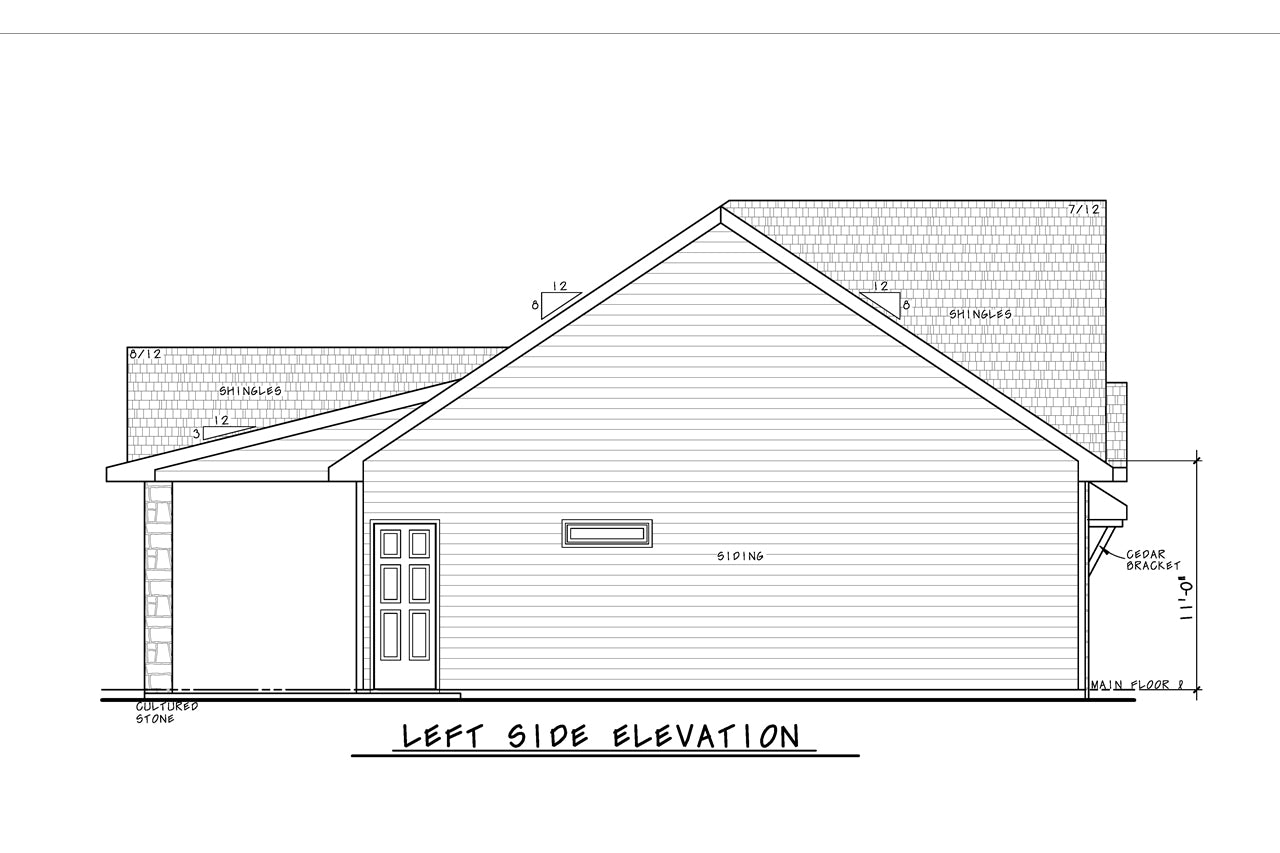

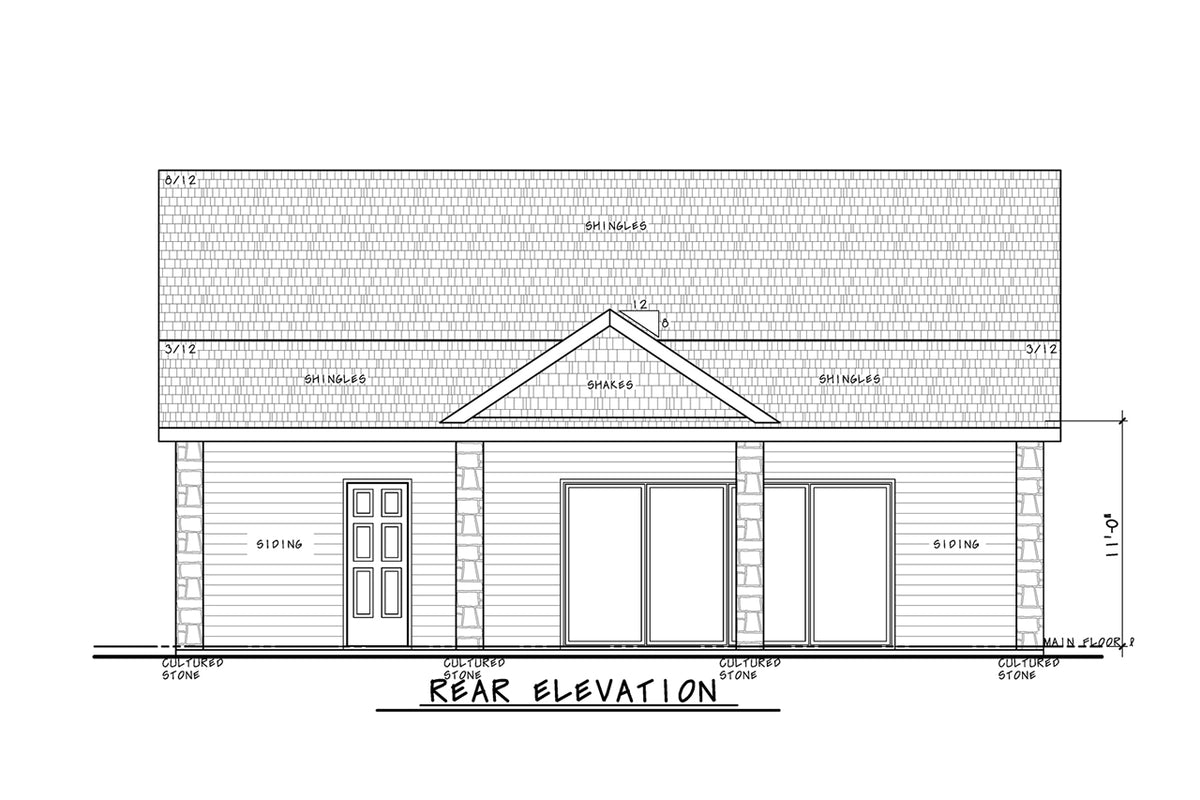

  • Elevations – Scaled front, rear, and side views, plus roof aerial
  • Foundation Plans – Engineered for slab or basement
  • Main Floor Plan – Fully dimensioned for framing, with wall thickness notes
  • Second Floor Plan – Same detail as main floor
  • Electrical & Sections – Separate page with electrical layout and typical wall/stair sections
  • Technical Support – Plan-related assistance included
What's Not Included:
  • Architectural or Engineering Stamp: Handled locally if required.
  • Site Plan: Created locally when needed.
  • Mechanical Drawings: Heating, air equipment, and ductwork to be designed by subcontractors.
  • Plumbing Drawings: Pipe sizes and locations to be determined by subcontractors.
  • Energy Calculations: Handled locally if required.

House Plan Specifications

  • Total Living (heated area):  1068 sq ft
    All Unheated Under-Roof Areas  823 sq ft
    Total Structure  1891 sq ft
    1st Floor:  1068 sq ft
    Rear Porch:  420 sq ft
  • Garage:  403 sq ft
    Garage Bays:   1
    Garage Load:   Front
  • Bedrooms:   1
    Bathrooms:   1
  • Wall Framing:   2x4
    Roof Pitch:  8:12 and 5:12
    Exterior Siding:   Board and Batten
  • Width of House:  42'
    Depth of House:  45'
    Building Height:  23'6''
  • First Floor Ceiling Height:  11'

Key Features

  • Eating Bar
  • Flex Room
  • Home Office/Study
  • Kitchen Island
  • Open Floor Plan
  • Rear Porch
  • Recreation Room
Modify this plan to make it perfect
Our hassle-free process makes it easy to modify your dream home. To receive an estimate please submit your request using the link below.
Submit a Modification Request
Cost to build estimate
$0.00
$40.00
100% discount for new customers this month!
Receive a personal estimate in two minutes instead of 2 days as many competitors offer. Just submit your request using the link below.
Get Your Estimate
Plan Number: AB8304-A
Rustic Barndominium House Plan with Party Room, Home Office, Flex Space, and Expansive Covered Porch
1 Bedrooms
1 Full Baths
1068 SQ FT
1 Stories
Product print image
AB8304-A Barndominium House Floor Plan, 1 Bedroom, 1 Bathroom | Maple House Plan
House Plan Formats Explained

PDF (Single Build)

A complete set of working drawings delivered in digital PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

CAD + PDF (Single Build)

A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

5 or 8 Prints (Single Build)

Five or eight printed sets of working drawings shipped to you. This option comes with a license to build ONE home.

5 Prints + PDF (Single Build)

Five printed sets of working drawings shipped to you, plus a digital version in PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

PDF (Multi Build)

A complete set of working drawings delivered in digital PDF format. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.

CAD + PDF (Multi Build)

A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.

Choose a building foundation for your home. The foundation provides stability to a home's structure from the ground up.

Slab - This concrete foundation is reinforced with steel rods and suitable for flat ground.

Crawl Space - This foundation is raised off the ground with low walls resting on footings, providing space for wiring, plumbing, and storage.

Basement - This foundation is entirely or partially below ground and offers storage or living areas.

Walkout Basement - This foundation is typically suited for rear-sloping lots and provides storage or living areas. Walkout basements have doors that provide access to the outside.

Readable Reverse
An option to reverse the plan including texts and dimensions to make them readable.
2x4 or 2x6 Conversion
Convert the exterior framing other than the standard framing included in the plan.
Multi Build Licence (CAD required) Gives the buyer the legal right to build the house plan multiple times
