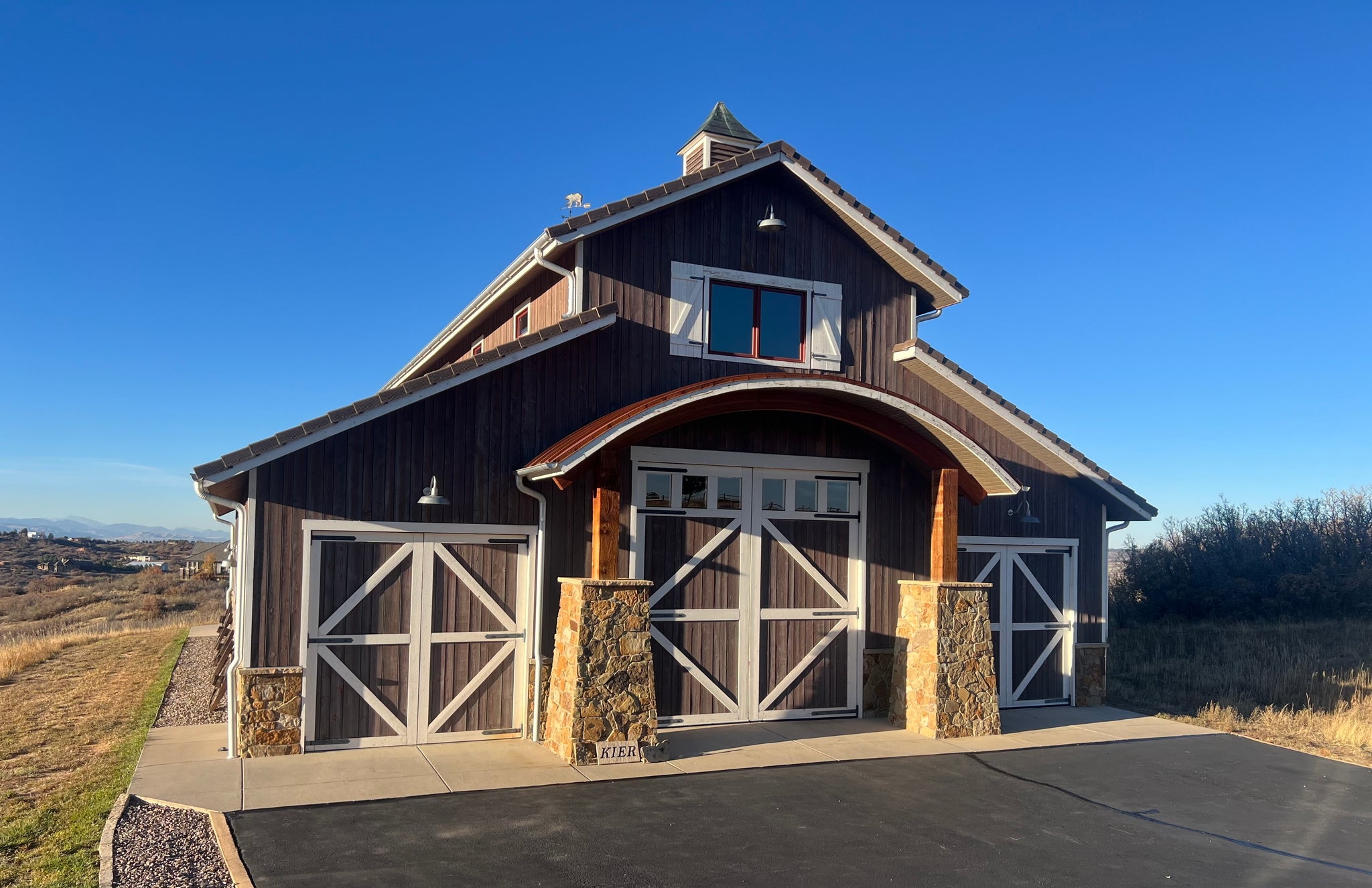

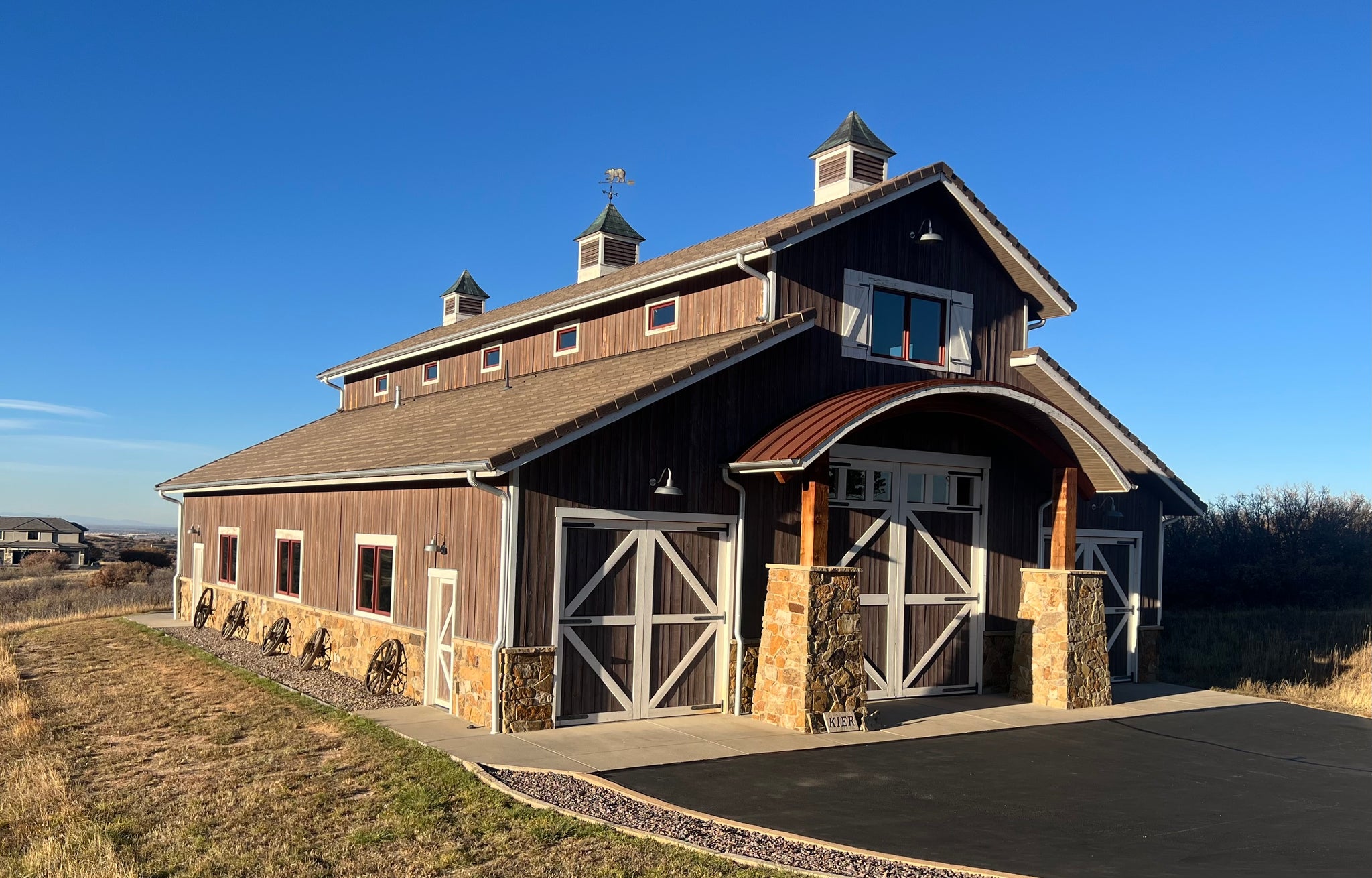

This barn house garage plan offers a highly functional and spacious structure designed to accommodate a wide range of storage and workshop needs. With a total structure size of 3,500 sq ft, this versatile building is ideal for homeowners, hobbyists, or property owners seeking a durable and flexible space for vehicles, equipment, or recreational use.
Unlike traditional homes, this design focuses entirely on unheated space, providing 0 sq ft of heated living area and maximizing utility with 3,500 sq ft of unheated under-roof area. The entire structure is dedicated to garage and storage functionality, making it perfect for those in need of a large, adaptable workspace.

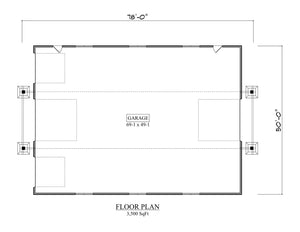

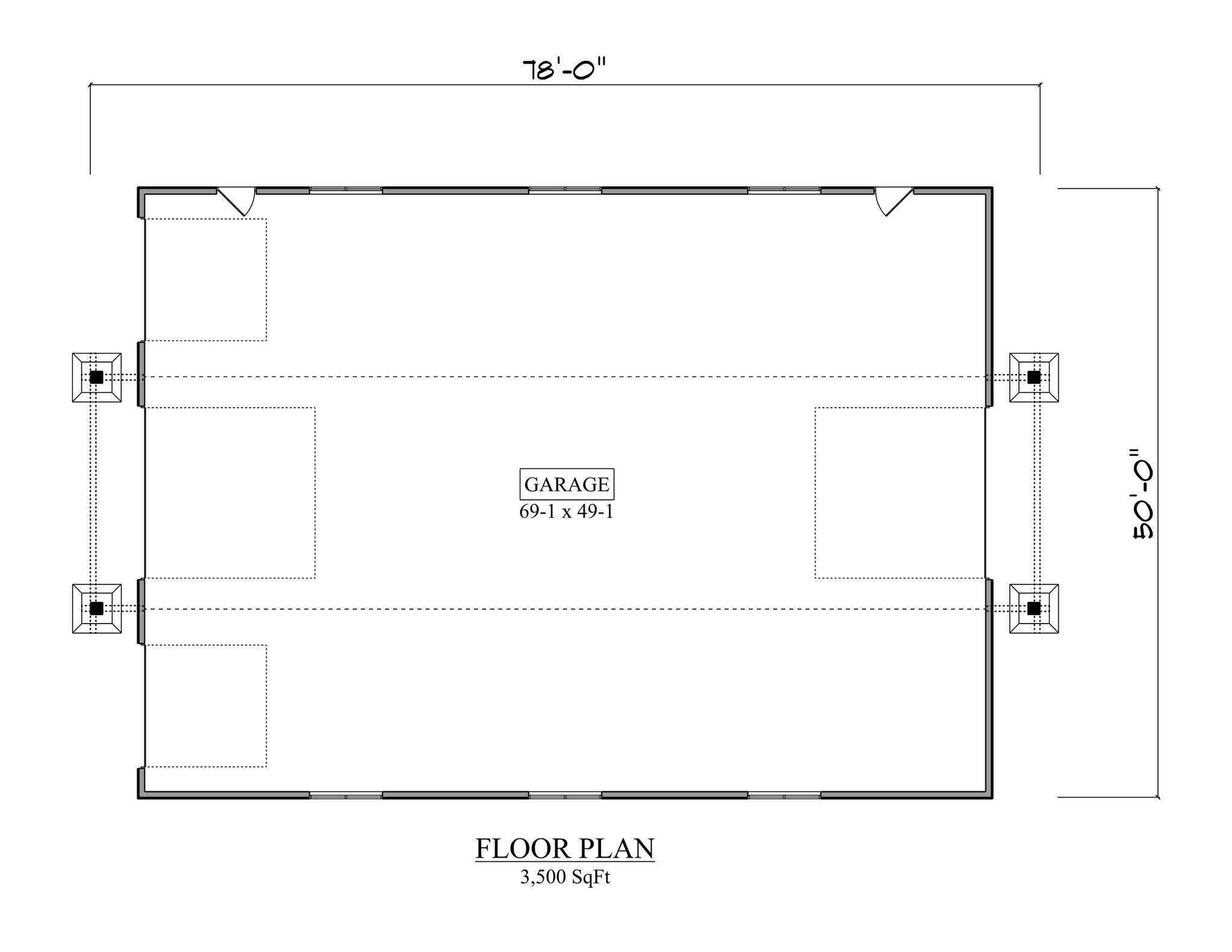

The building features a generous footprint with a width of 50' and a depth of 78', creating ample room for multiple vehicles and equipment. With a building height of 30'1'' and a garage ceiling height of 12', the structure easily accommodates larger vehicles such as trucks, boats, or even RVs, while also allowing for overhead storage or workshop installations.
A standout feature of this barn house design is its dual-access garage configuration, with both front and rear loading capabilities. This setup allows for convenient drive-through access, making it easy to maneuver vehicles, trailers, or equipment without the need for tight turns or reversing. It’s an especially valuable feature for those using the space for commercial purposes, farming equipment, or large-scale storage.
The garage includes 4 spacious bays, each designed to provide flexibility for different uses. Whether you need space for multiple cars, a dedicated workshop, or storage for tools and machinery, the layout can easily be customized to suit your specific needs.
Constructed on a slab foundation, the building offers durability and low maintenance, making it a practical choice for long-term use. The use of 2x6 wall framing enhances structural strength and insulation potential, even though the space is currently unheated. This allows for future upgrades should you wish to convert part of the structure into a conditioned space.
The 6:12 roof pitch provides a classic barn-style appearance while also allowing for efficient water runoff and potential attic or loft storage. The design balances traditional agricultural aesthetics with modern construction standards, making it suitable for both rural and suburban settings.
With its expansive interior and thoughtful design, this barn house garage can serve multiple purposes. It can function as a workshop, storage facility, hobby space, or even a base for future expansion. The open layout ensures that the space can be easily adapted over time as needs evolve.
Overall, this barn house garage plan delivers exceptional value through its size, flexibility, and practical features. Whether used for personal storage, business purposes, or recreational needs, it provides a reliable and spacious solution that can accommodate a wide variety of uses.
The construction drawings will include detailed, dimensioned floor plans, exterior elevations, roof plan, foundation plan, basic electrical layout, cross-section(s), foundation plan, and other general specifications. Some plans will include interior cabinet layouts.
View Sample Plan
Archival Designs brings you over 40 years of experience in the house plan design business. We offer the best value for your money by offering the highest quality home designs.
We offer a 10% military & first responder discount, as well as builder discounts for life! Archival Designs guarantees the lowest prices anywhere online. Learn more about our Best Price Guarantee.
All house plans sold by Archival Designs have been designed to comply with the International Residential Code (IRC) and to the local codes in the area where the designer resides or where the house was built.
All house plans are designed to meet or exceed the national building standards required by the International Residential Code (IRC). Due to differences in climate and geography throughout North America, every city, local municipality and county has unique building codes and regulations that must be followed to obtain a building permit. Prior to purchasing a set of house plans, we recommend that you meet with your local building officials in order to determine the building requirements for your area. It is the responsibility of the purchaser(s) and/or builder to ensure that the structure is constructed to meet the codes of their local area.
Important Note:
House plans do not come stamped or signed by an architect or engineer. Additionally, house plans typically will not include structural engineering notes/calculations. Please check with your local building officials to determine if a stamp is required. If required, the building department will only accept a stamp from a licensed professional in the state where the home will be built.
Depending on your city, county, and state building requirements, house plans may need to be reviewed by a local licensed architect or engineer for structural details and code standards before construction begins. This is particularly true in coastal areas and those facing seismic events, extreme winds, and heavy snow. If you are building in any of these areas, a licensed structural engineer will likely be needed to provide the necessary calculations and additional drawings. We authorize the use of our plans conditioned on your obligation and agreement to strictly comply with all local building codes, ordinances, regulations, and requirements, including permits and inspections at the time of and during construction. We recommend checking with your local building department for the most current requirements. The purchaser(s) and/or builder are responsible for additional expenses incurred through meeting municipality requirements or other requirements for construction.
Our foundation plans have been designed for universal conditions and may need to be adjusted to fit your specific site conditions. The foundation should be modified by a local structural engineer to comply with soil testing laboratory findings and local building requirements.
Our house plans will include schematic electrical drawings; however, circuiting or wire sizing will not be included. Your electrical subcontractor will typically provide these drawings.
HVAC and plumbing drawings are not included. Your mechanical and plumbing subcontractors will determine the best layout for your site. Local HVAC codes, climatic requirements and commonly used systems vary throughout the country. The direction of how water flow will enter the home vary from case to case. For this reason, it is impossible to provide universal plans.
