Armando is a multi-family duplex house plan spanning 3,230 sq ft of total heated living area, designed with a traditional aesthetic and symmetrical gabled rooflines. This two-story residence measures 76 ft in width and 54 ft in depth, requiring a lot size sufficient for its dual-entry footprint. The structure is configured to maximize rental income potential or accommodate multi-generational living through its mirror-image layout.
The interior architecture centers on two distinct great rooms, each featuring vaulted volume ceilings that enhance the vertical scale of the common areas. These rooms remain adjacent to the eat-in kitchens, maintaining direct sightlines for daily utility. Each primary suite measures 12 ft by 15 ft and is positioned to provide rearward views, while including an attached bathroom and walk-in closet for private access.

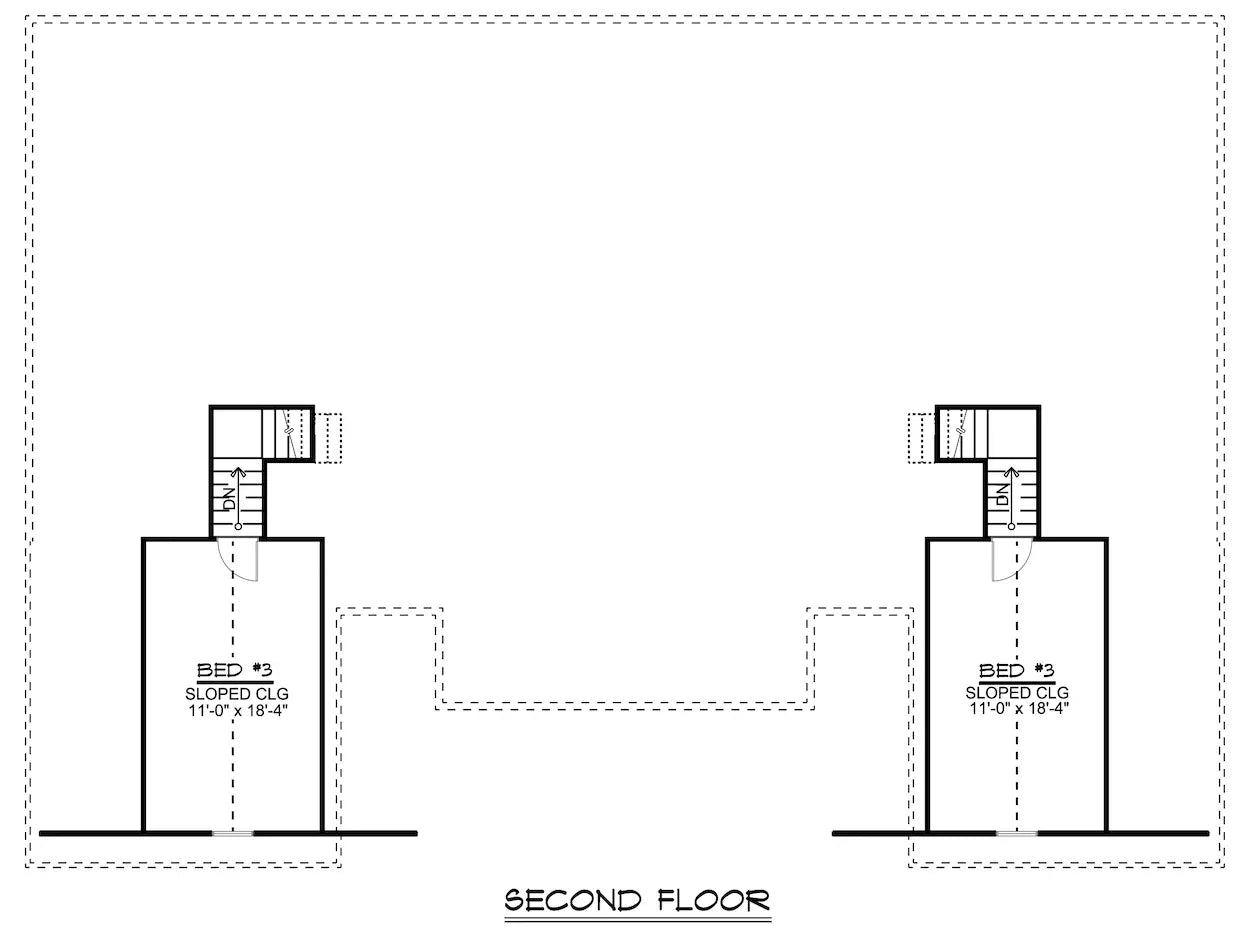

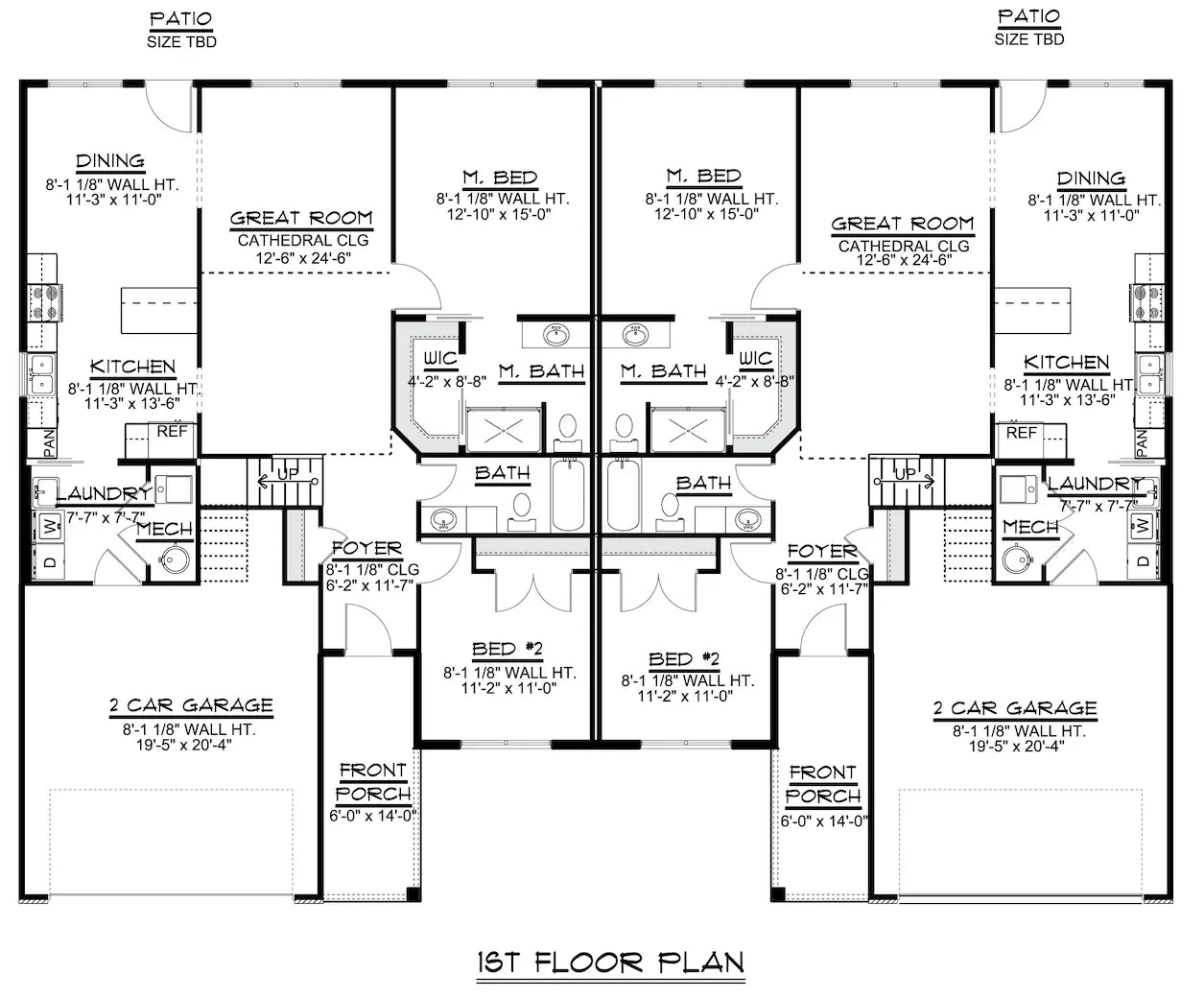

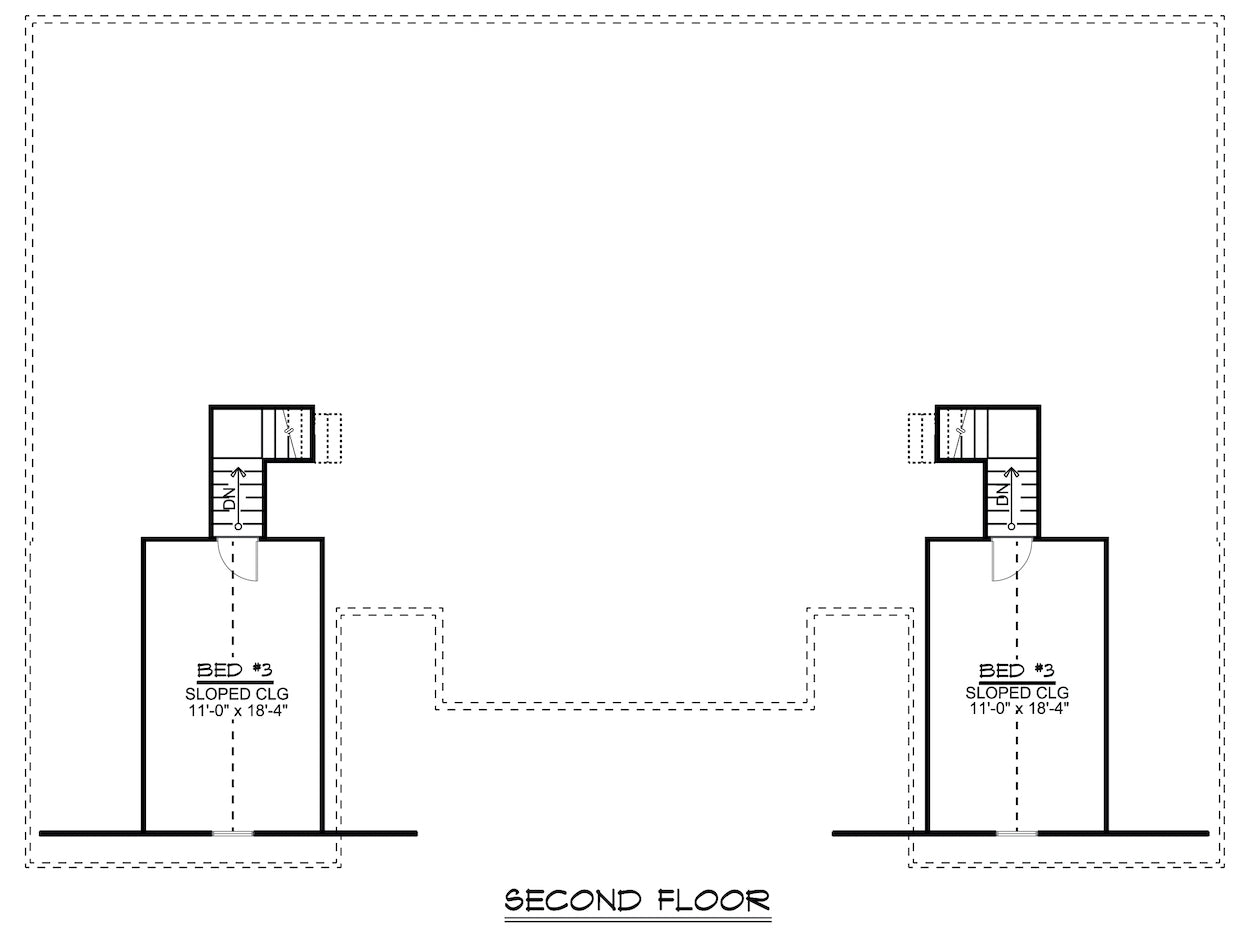

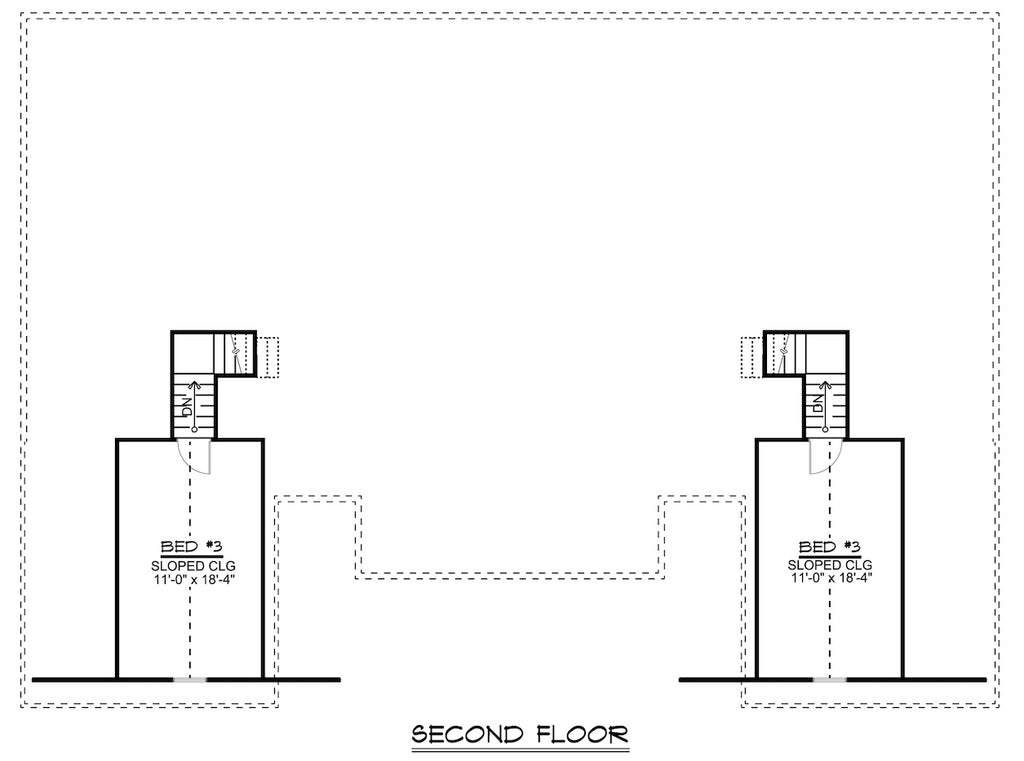

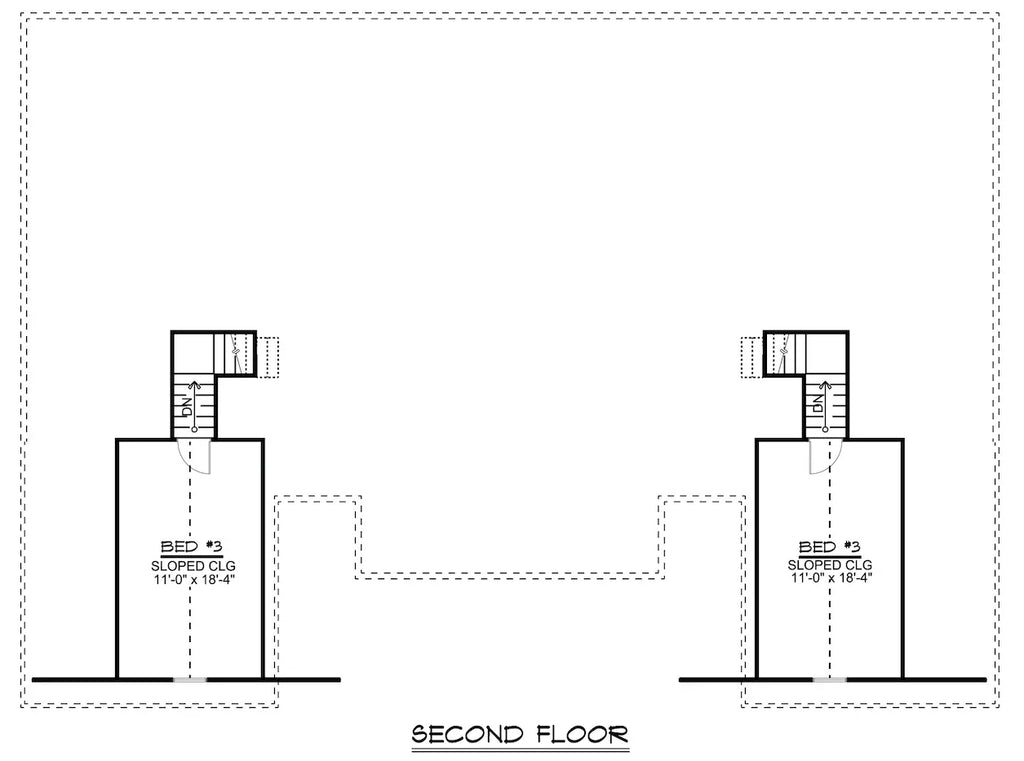

Spanning 2,790 sq ft on the first floor and 440 sq ft on the second floor, the design utilizes 8-foot ceiling heights throughout both levels. The floor plan incorporates 6 total bedrooms and 4 full bathrooms, effectively distributing space between the two residential units. Practical zones such as the laundry room are accessed via pocket doors off the kitchen, which also provides direct entry to the dual 2-car garages.

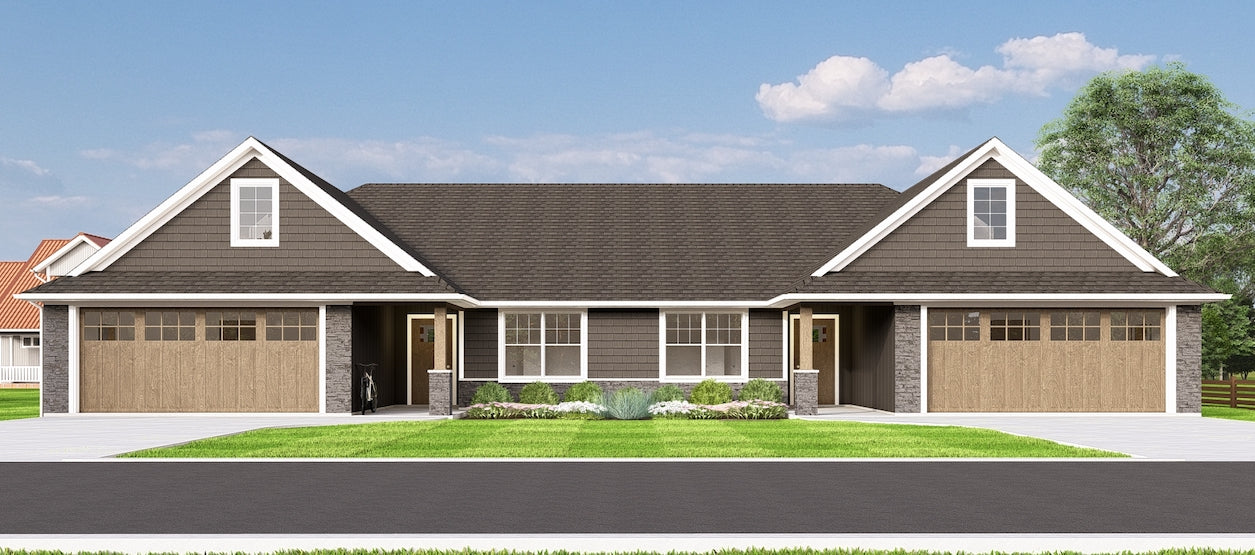

Structural specifications include a combined 878 sq ft of garage space, supporting a 4-car total capacity. The exterior profile is defined by a maximum building height of 19 ft 7 in and a roof pitch configuration of 9:12 and 6:12, contributing to the traditional colonial-style rooflines. A 200 sq ft front porch area provides sheltered access to both entries, further emphasizing the duality of the structure.
Key Features: 6 bedrooms, 4 bathrooms, multi-family duplex layout, dual 2-car garages, vaulted ceiling volumes, master bedroom on main, walk-in closets, laundry room with utility sink, two kitchens, 3,230 sq ft total living area.
Explore floor plans, available formats, and modification options for this design.
