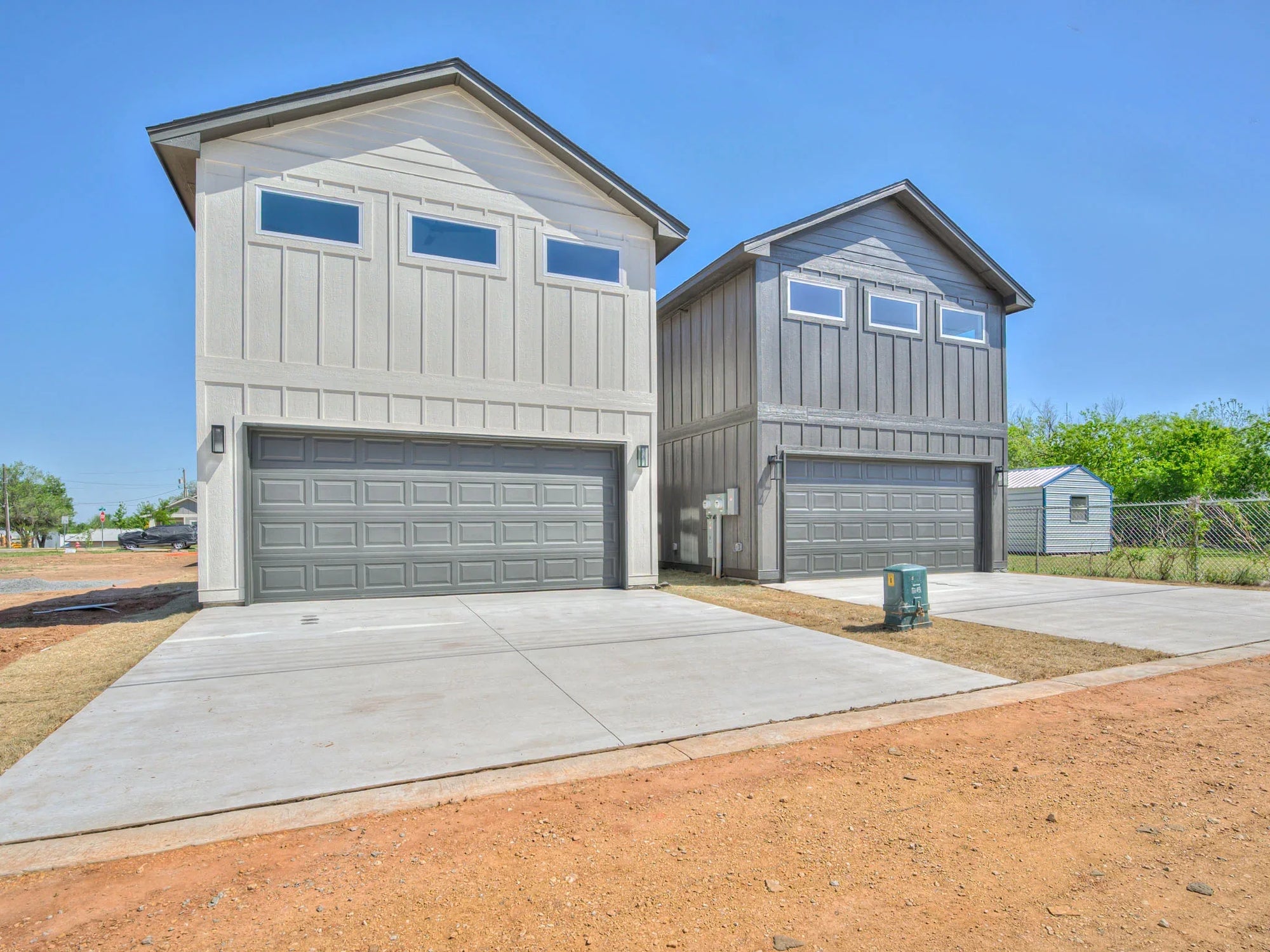

Designed for efficiency, flexibility, and long-term value, this compact ADU garage apartment plan delivers smart living space above a full two-car garage. With 418 square feet of heated living area and an equally sized garage below, the design maximizes functionality within a modest footprint—making it an ideal solution for accessory dwelling use, rental income, guest accommodations, or private studio living.
At just 19 feet wide and under 26 feet deep, this plan is well-suited for tight lots, backyard placements, or properties with zoning requirements for secondary dwellings. The clean, straightforward exterior is capped with a 6:12 roof pitch, offering classic proportions while maintaining compatibility with a wide range of architectural styles. Built on a slab foundation with durable 2x4 wall framing, the structure balances cost efficiency with long-term reliability.
The ground level is dedicated entirely to parking and storage, featuring a front-load, two-car garage with an 8-foot ceiling height. This generous clearance allows for everyday vehicle use, workshop potential, or additional storage for recreational gear. The garage layout keeps the living space elevated and private—an especially valuable feature for rental or multi-generational living scenarios.
Accessed via a dedicated stairway, the second floor opens into a thoughtfully planned one-bedroom living area designed to feel open and comfortable despite its compact size. The layout prioritizes everyday convenience, with no wasted square footage and a natural flow between spaces. Windows provide ample daylight, creating a bright, welcoming environment that feels larger than its footprint suggests.
The bedroom is positioned as a true second-floor primary suite, offering privacy and comfort above the garage. A full bathroom serves the suite and includes all essential amenities in a streamlined layout. Laundry access from the bedroom enhances daily functionality, eliminating the need for shared or remote laundry facilities and making the unit completely self-contained.
Second-floor laundry is a standout feature for an ADU of this size, adding convenience for full-time occupants while increasing appeal for long-term or short-term renters. This thoughtful inclusion reflects a design approach focused on real-world living rather than bare-minimum accommodations.
The compact scale of this ADU makes it especially attractive for homeowners looking to add value without overwhelming their property. It works equally well as a rental unit, guest house, home office with living quarters, or private residence for adult children, aging parents, or caretakers. Its separation from the main home ensures independence while maintaining proximity.
From an investment perspective, this garage apartment plan offers excellent return potential. The two-car garage alone adds functional value, while the finished living space above creates an income-generating opportunity or flexible-use dwelling that adapts as needs change over time.
Whether used as an accessory dwelling unit, backyard rental, or private living suite, this ADU garage apartment plan delivers efficient design, practical amenities, and lasting versatility. Its compact footprint, smart layout, and everyday conveniences make it a strong solution for modern living—proving that thoughtful architecture doesn’t require excessive square footage to make a meaningful impact.
The construction drawings will include detailed, dimensioned floor plans, exterior elevations, roof plan, foundation plan, basic electrical layout, cross-section(s), foundation plan, and other general specifications. Some plans will include interior cabinet layouts.
View Sample Plan
Archival Designs brings you over 40 years of experience in the house plan design business. We offer the best value for your money by offering the highest quality home designs.
We offer a 10% military & first responder discount, as well as builder discounts for life! Archival Designs guarantees the lowest prices anywhere online. Learn more about our Best Price Guarantee.
All house plans sold by Archival Designs have been designed to comply with the International Residential Code (IRC) and to the local codes in the area where the designer resides or where the house was built.
All house plans are designed to meet or exceed the national building standards required by the International Residential Code (IRC). Due to differences in climate and geography throughout North America, every city, local municipality and county has unique building codes and regulations that must be followed to obtain a building permit. Prior to purchasing a set of house plans, we recommend that you meet with your local building officials in order to determine the building requirements for your area. It is the responsibility of the purchaser(s) and/or builder to ensure that the structure is constructed to meet the codes of their local area.
Important Note:
House plans do not come stamped or signed by an architect or engineer. Additionally, house plans typically will not include structural engineering notes/calculations. Please check with your local building officials to determine if a stamp is required. If required, the building department will only accept a stamp from a licensed professional in the state where the home will be built.
Depending on your city, county, and state building requirements, house plans may need to be reviewed by a local licensed architect or engineer for structural details and code standards before construction begins. This is particularly true in coastal areas and those facing seismic events, extreme winds, and heavy snow. If you are building in any of these areas, a licensed structural engineer will likely be needed to provide the necessary calculations and additional drawings. We authorize the use of our plans conditioned on your obligation and agreement to strictly comply with all local building codes, ordinances, regulations, and requirements, including permits and inspections at the time of and during construction. We recommend checking with your local building department for the most current requirements. The purchaser(s) and/or builder are responsible for additional expenses incurred through meeting municipality requirements or other requirements for construction.
Our foundation plans have been designed for universal conditions and may need to be adjusted to fit your specific site conditions. The foundation should be modified by a local structural engineer to comply with soil testing laboratory findings and local building requirements.
Our house plans will include schematic electrical drawings; however, circuiting or wire sizing will not be included. Your electrical subcontractor will typically provide these drawings.
HVAC and plumbing drawings are not included. Your mechanical and plumbing subcontractors will determine the best layout for your site. Local HVAC codes, climatic requirements and commonly used systems vary throughout the country. The direction of how water flow will enter the home vary from case to case. For this reason, it is impossible to provide universal plans.
