Achasta

Plan Number:

A846-A

Achasta
Achasta
Achasta
Achasta
Achasta
Free Cost to Build
Free Cost to Build
Photographs may reflect modified homes. Click above to view all images available.
Free Cost TO
Build Estimate
Say goodbye to the guesswork of construction costs with our custom cost estimator. Receive a cost to build estimate in two minutes instead of 2 days as many competitors offer.... plus its Free!
INSTANT
ACCURATE
FREE
Cost To Build
Cost to build your dream home

Achasta

Plan Number:

A846-A

6
Bedrooms
5
Full Baths
1
Half Baths
5247
SQ FT
2
Stories
Liquid error (snippets/product line 278): Could not find asset snippets/price-new-ui-templates.liquid
LOW PRICE GUARANTEE
Find a lower price and we'll beat it by 10%.
See details

House Plan Specifications

  • Total Living:  5247
    1st Floor:  3080
    2nd Floor:  2167
    Basement:  2782
  • Garage:  838
    Garage Bays:   3
    Garage Load:   Front
  • Bedrooms:   6
    Bathrooms:   5
    Half Bathrooms:   1
  • Foundation:   Basement
    Wall Framing:   2x4
    Exterior Siding:   Stone Exterior
  • Width of House:  100'-9''
    Depth of House:  83'-9''
    Building Height:  30'
  • First Floor Ceiling Height:  10'
    Second Floor Ceiling Height:  9'
    Basement Ceiling Height:  10'

Key Features:

  • Breakfast Area
  • Covered Back Porch
  • Covered Front Porch
  • Eating Bar
  • Fireplace
  • First Floor Master Suite
  • Formal Dining Room
  • Game Room
  • Kitchen Island
  • Laundry 2nd Floor
  • Master Bath-Double Vanity Sink
  • Mud Room
  • Outdoor Fireplace
  • Outdoor Kitchen
  • Walk In Closets
  • Walk-in Closet
  • Walk-in Pantry
Modify this plan to make it perfect
Our hassle-free process makes it easy to modify your dream home. To receive an estimate please submit your request using the link below.
Submit a Modification Request
Free Cost TO
Build Estimate
Say goodbye to the guesswork of construction costs with our custom cost estimator. Receive a cost to build estimate in two minutes instead of 2 days as many competitors offer.... plus its Free!
INSTANT
ACCURATE
FREE
Cost To Build
Cost to build your dream home
Plan Number: A846-A
Achasta
Liquid error (snippets/product_print line 83): Could not find asset snippets/price-print-ui-templates.liquid
6 Bedrooms
5 Full Baths
1 Half Baths
5247 SQ FT
2 Stories

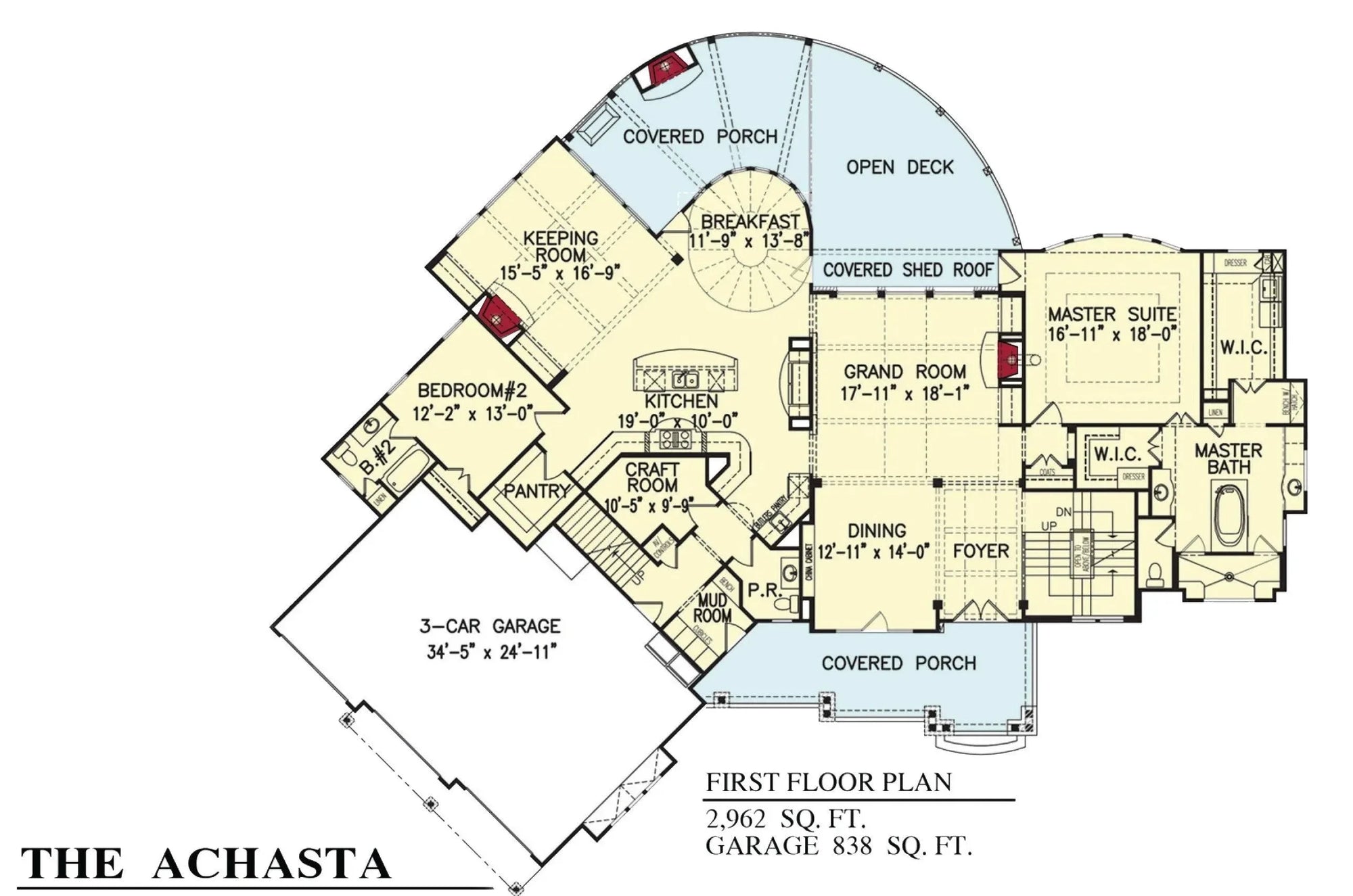

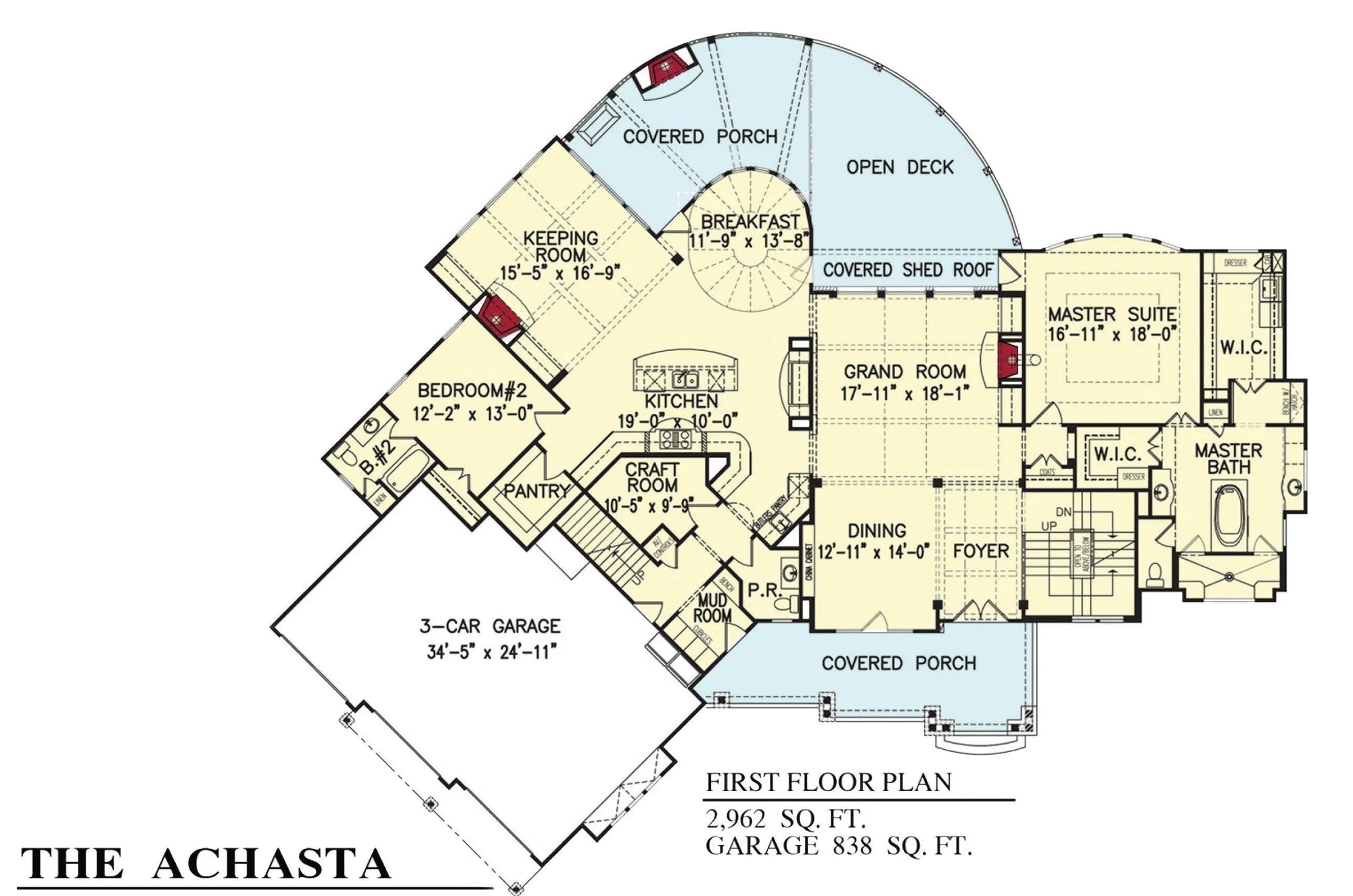

Main Level

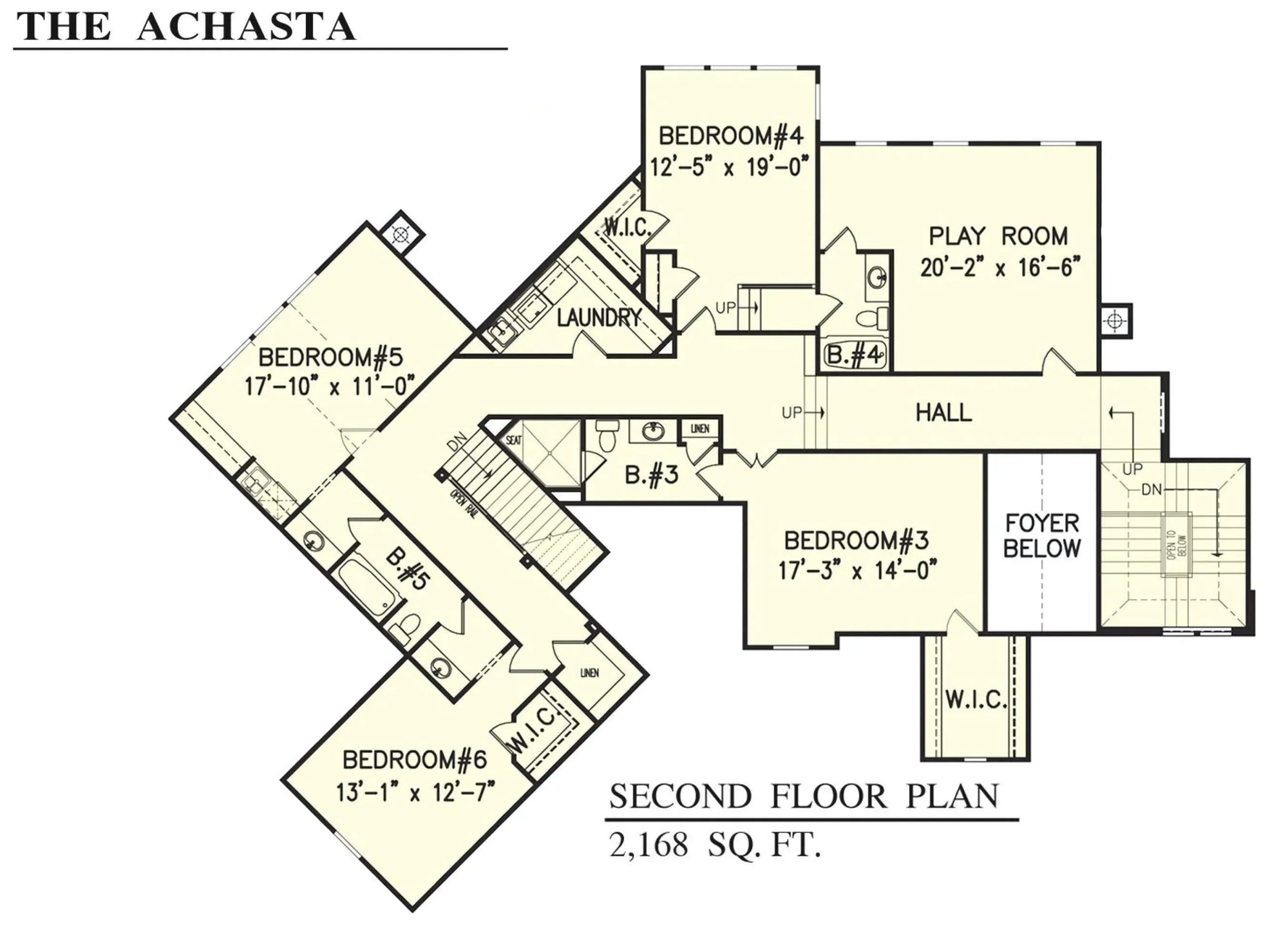

Second Floor
Archival Designs, Inc.1245 Buford Hwy,
Ste 306 Suwanee, GA 30024
https://archivaldesigns.com/
+1 (888) 890 - 2353
+1 (770) 831 - 6363
orders@archivaldesigns.com
House Plan Formats Explained

PDF (Single Build)

A complete set of working drawings delivered in digital PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

CAD + PDF (Single Build)

A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

5 or 8 Prints (Single Build)

Five or eight printed sets of working drawings shipped to you. This option comes with a license to build ONE home.

5 Prints + PDF (Single Build)

Five printed sets of working drawings shipped to you, plus a digital version in PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

PDF (Multi Build)

A complete set of working drawings delivered in digital PDF format. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.

CAD + PDF (Multi Build)

A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.

Choose a building foundation for your home. The foundation provides stability to a home's structure from the ground up.

Slab - This concrete foundation is reinforced with steel rods and suitable for flat ground.

Crawl Space - This foundation is raised off the ground with low walls resting on footings, providing space for wiring, plumbing, and storage.

Basement - This foundation is entirely or partially below ground and offers storage or living areas.

Walkout Basement - This foundation is typically suited for rear-sloping lots and provides storage or living areas. Walkout basements have doors that provide access to the outside.

FAQ

Why choose Archival Designs?

Archival Designs brings you over 35 years of experience in the house plan design business. We offer the best value for your money by offering the highest quality home designs.

We offer a 10% military & first responder discount, as well as builder discounts for life! Archival Designs guarantees the lowest prices anywhere online. Learn more about our Best Price Guarantee.

All house plans sold by Archival Designs have been designed to comply with the International Residential Code (IRC) and to the local codes in the area where the designer resides or where the house was built.

Do your plans meet building codes in my area?
Do your plans meet building codes in my area?
What is included in the construction drawings?
What is included in the construction drawings?
Will the plans be stamped or signed by an architect or engineer?
Will the plans be stamped or signed by an architect or engineer?
Will the foundation included in the construction drawings work for my site?
Will the foundation included in the construction drawings work for my site?
Do your plans include electrical, plumbing and mechanical drawings?
Do your plans include electrical, plumbing and mechanical drawings?
Read all

Our Bestsellers...

A true mountain/craftsman facade,this home consists of various roof pitches, carved gable peaks and combinations of stone, shake and timber accents. The foyer is accented with elegant wooden trusses and welcome you to this Mountain style house plan. The beautiful grand room cathedral ceiling is graced with gorgeous ornate wooden trusses. Enjoy the warmth of the grand room fireplace and a view to the deck and covered porch at the rear of this home. The center island kitchen flows to the breakfast area and the keeping room highlighted with a cozy fireplace and built in cabinetry. The breakfast area has a curved wall of windows to enjoy breathtaking views and has access to the deck. The spacious master suite showcases a spa type tub and an over-sized walk through shower. A secondary bedroom and a three car garage complete the first floor. The second floor of this Mountain style house plan is comprised of four additional bedrooms and a play room.
