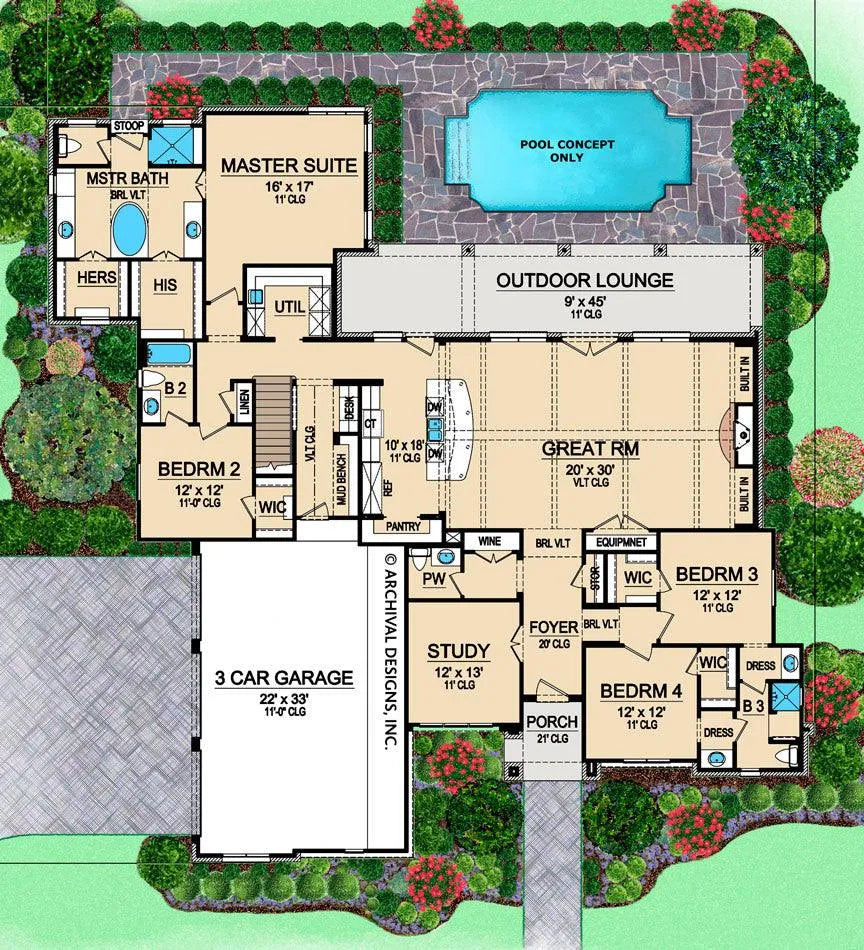

Main Level – (click floor plan to reverse)

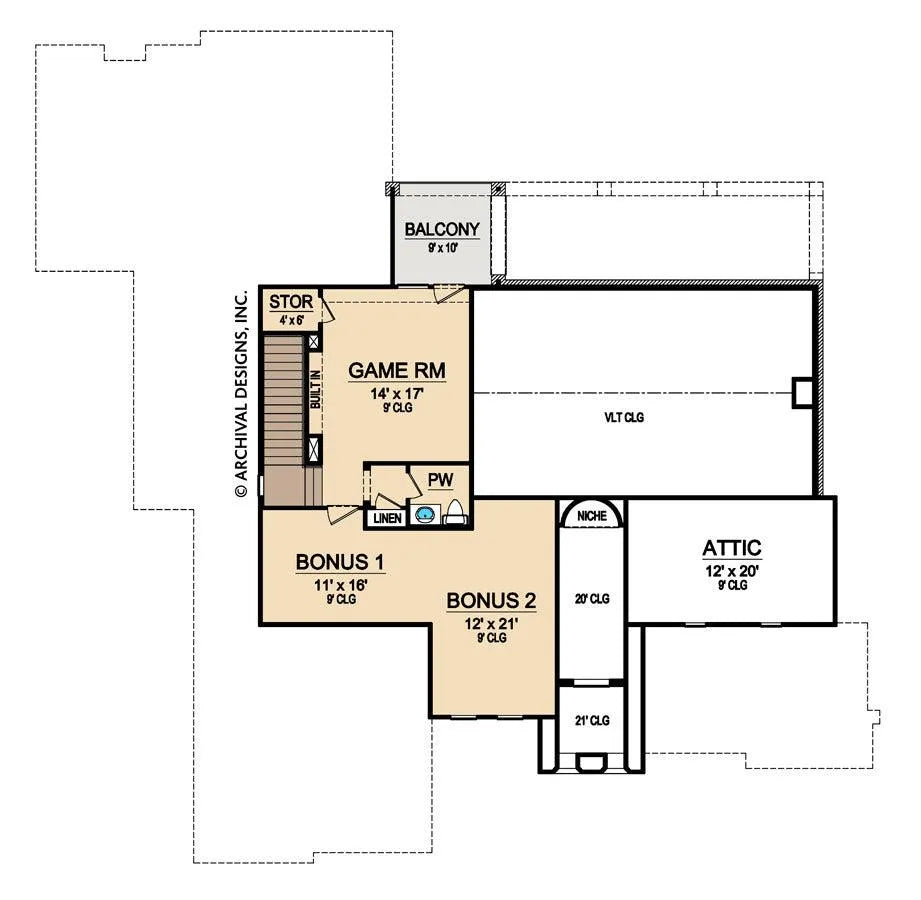

Second Floor – (click floor plan to reverse)

Abston Lane House Plan

4 Bedrooms • 3 Full Baths • Slab Foundation

Select to Purchase

$1,250.00

Maximum quantity available reached.

HOUSE PLAN SPECS

Ceiling Heights:

First Floor: 11'
Second Floor: 9'

Key Features:

Master Suite on the 1st Floor

House Plan Description

This luxury Mediterranean villa offers a split-bedroom plan! Entering the two-story porch, your eyes will be drawn to the 21 foot high foyer, flanked by a quiet study and two family bedrooms with a Jack and Jill bath and each with its own walk-in closet. Beyond the foyer and through the barrel vaulted ceiling is a powder room, a wine room, and the vaulted great room. A warming fireplace with built-in bookcases and floor to ceiling windows offer bright, welcoming vibes. The free standing eating bar/island separates this great room from the gourmet kitchen with built ins and large pantry. The mud room offers a vaulted ceiling, and stairs leading to the second floor. A third bedroom with walk-in closet and full bath sits between the three-car garage and master suite. The master suite boasts large his and hers walk-in closets with built ins, a luxurious master bath with his and hers vanities, separate shower, and garden tub centered and sitting under a bold barrel vaulted ceiling. An outdoor lounge, defined by decorative pillars, is accessible via the kitchen and great room. Upstairs, two bonus rooms, a game room with half-bath, storage, an attic, and balcony offer great "get away" areas for the kids, or just for entertaining.
