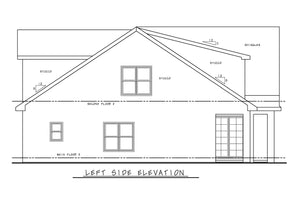

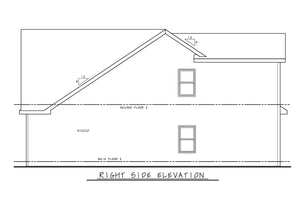

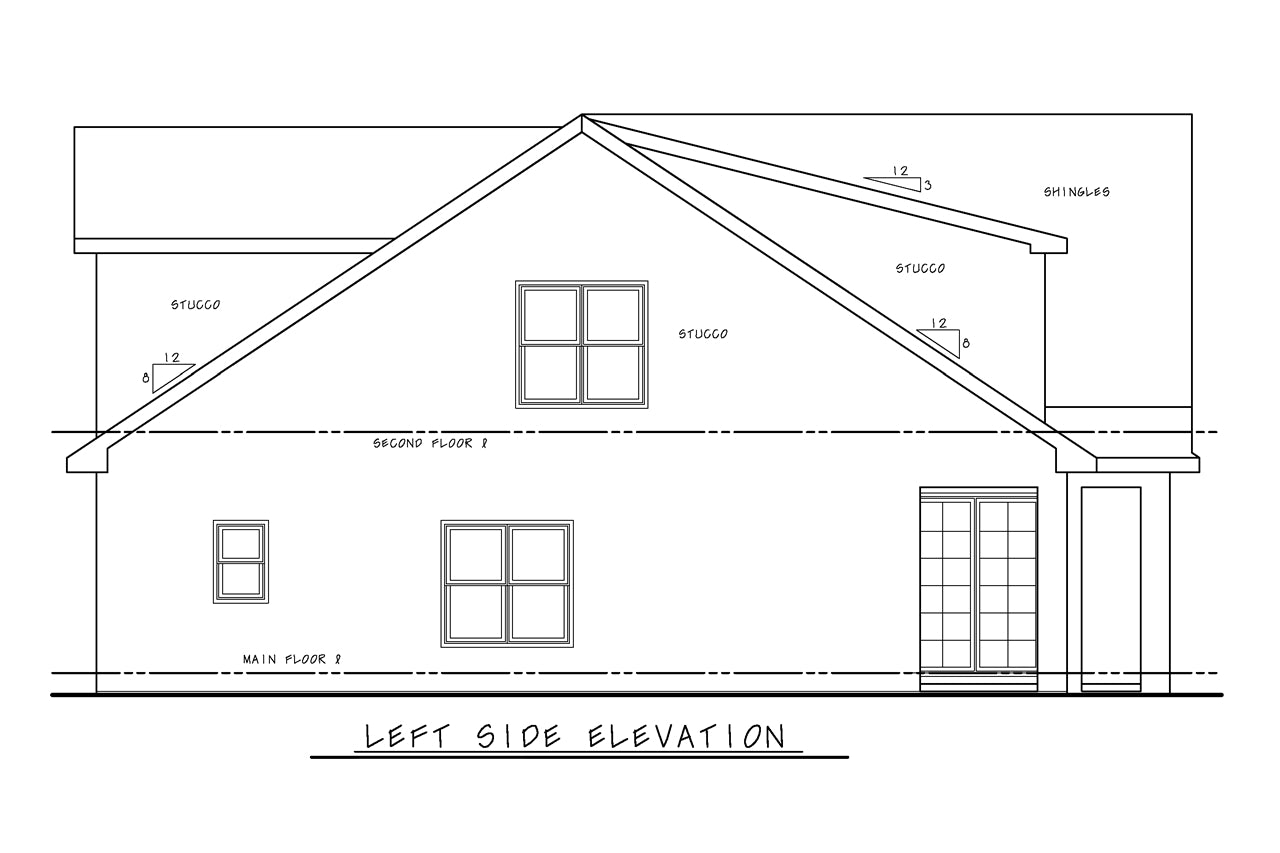

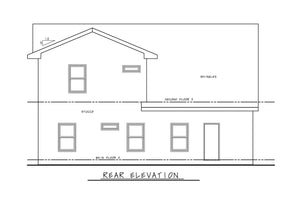

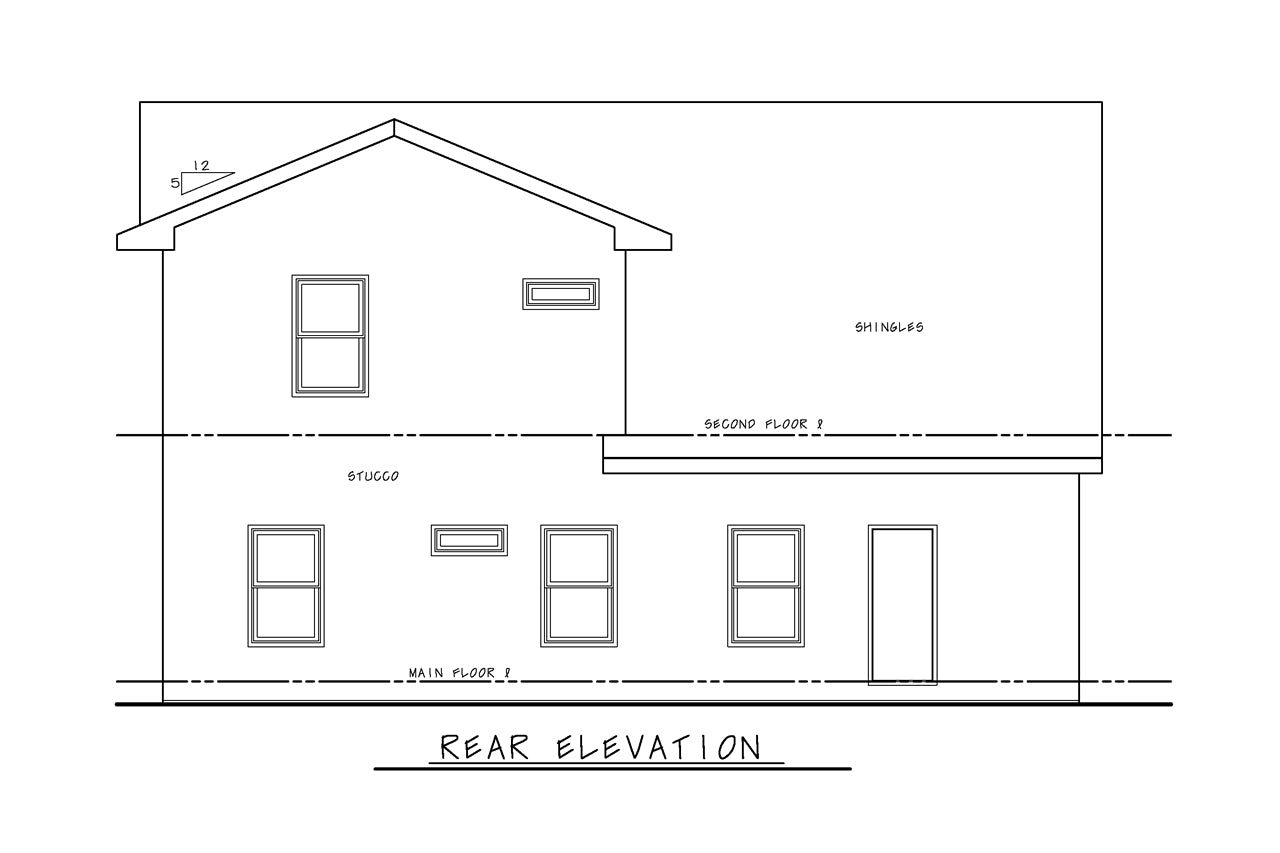

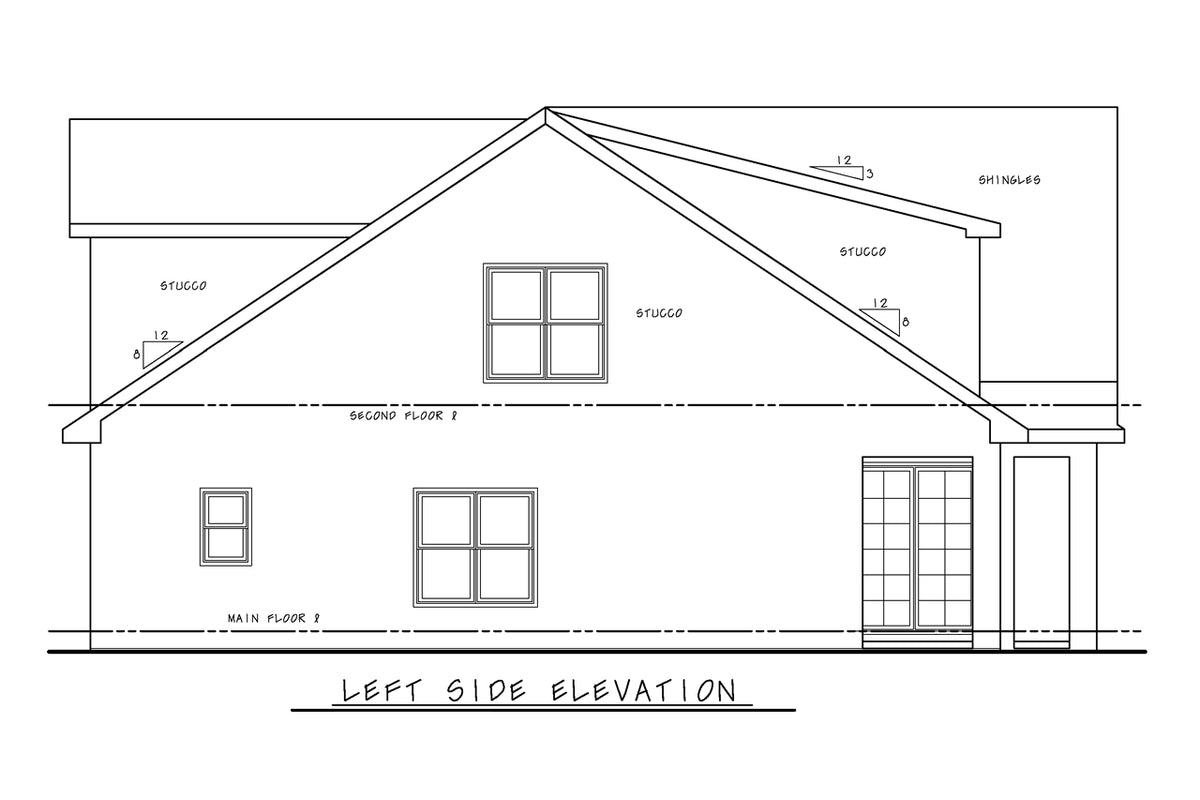

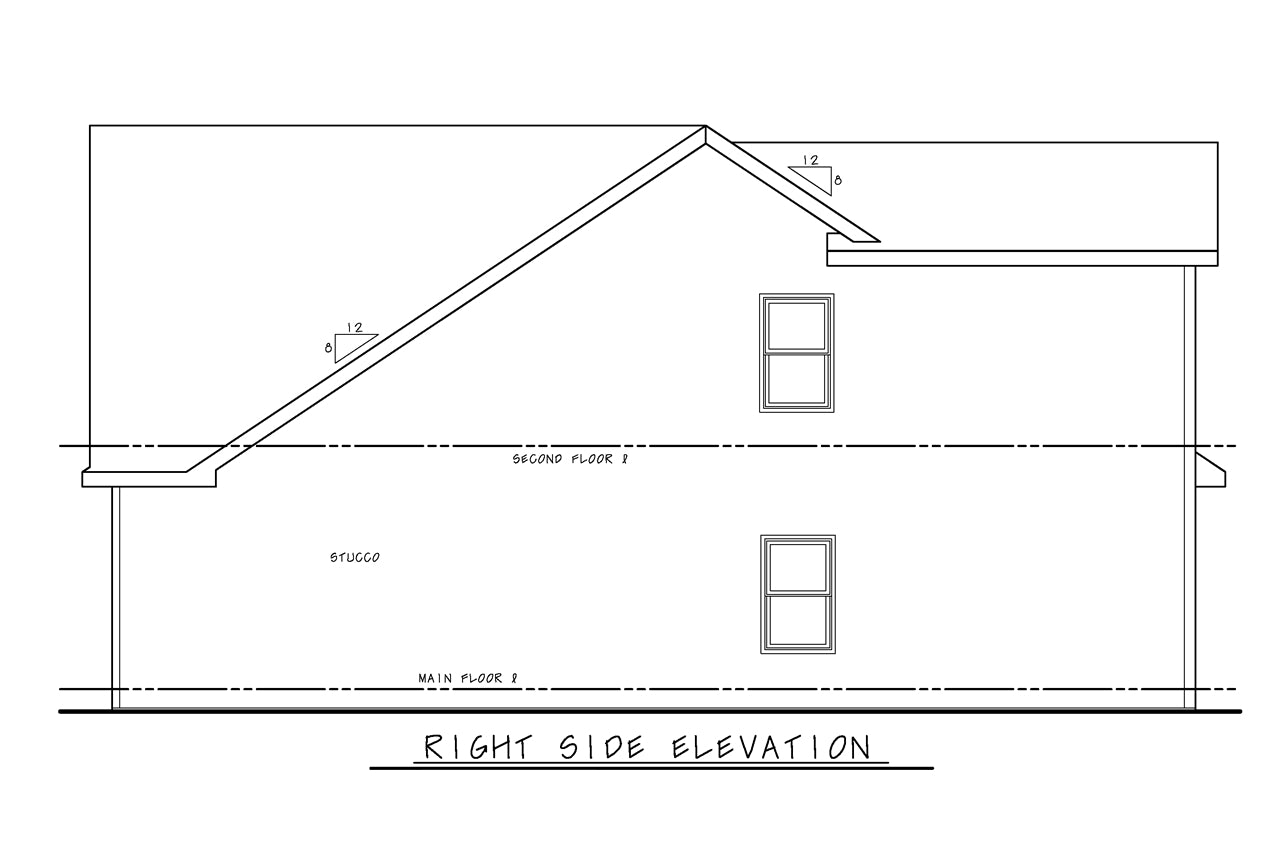

42503 Maywood Grove is a two-story modern transitional home offering 1,872 sq ft of total heated living area. Measuring 40 ft in width and 48 ft 8 in in depth, this design utilizes a compact footprint to provide a high-density layout. The exterior features a 136 sq ft covered front porch and a complex roof structure with 8:12 and 14:12 pitches, reaching a maximum building height of 26 ft 4 in.
The main level encompasses 1,324 sq ft, centered around a two-story grand room that enhances the interior volume. A 10-foot ceiling height on this floor creates a clear vertical axis between the kitchen, which includes a walk-in pantry, and the adjacent keeping room. The primary suite is positioned on the first floor to provide separation from secondary sleeping quarters, supported by a dedicated flex room that serves as a home office or study.

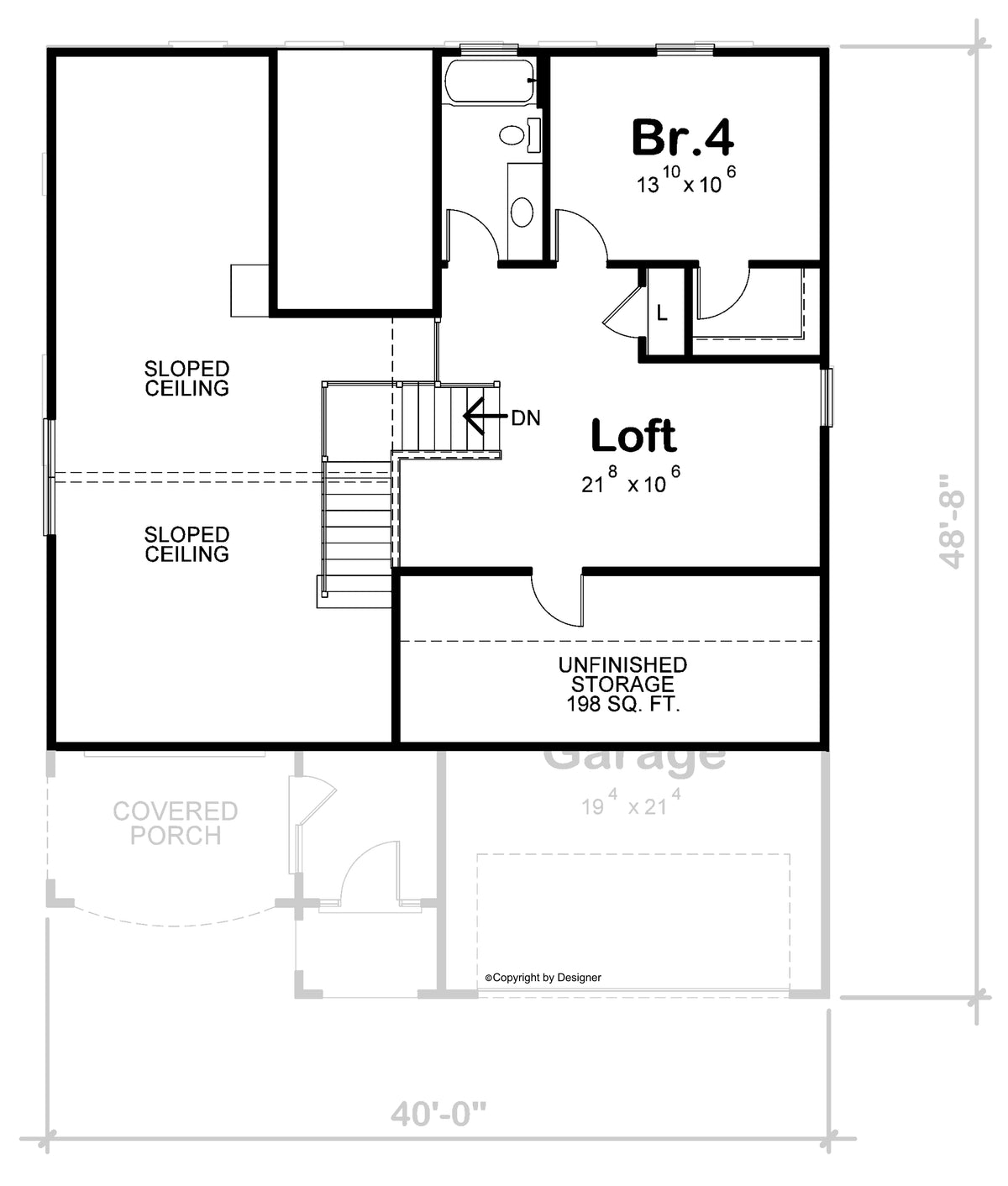

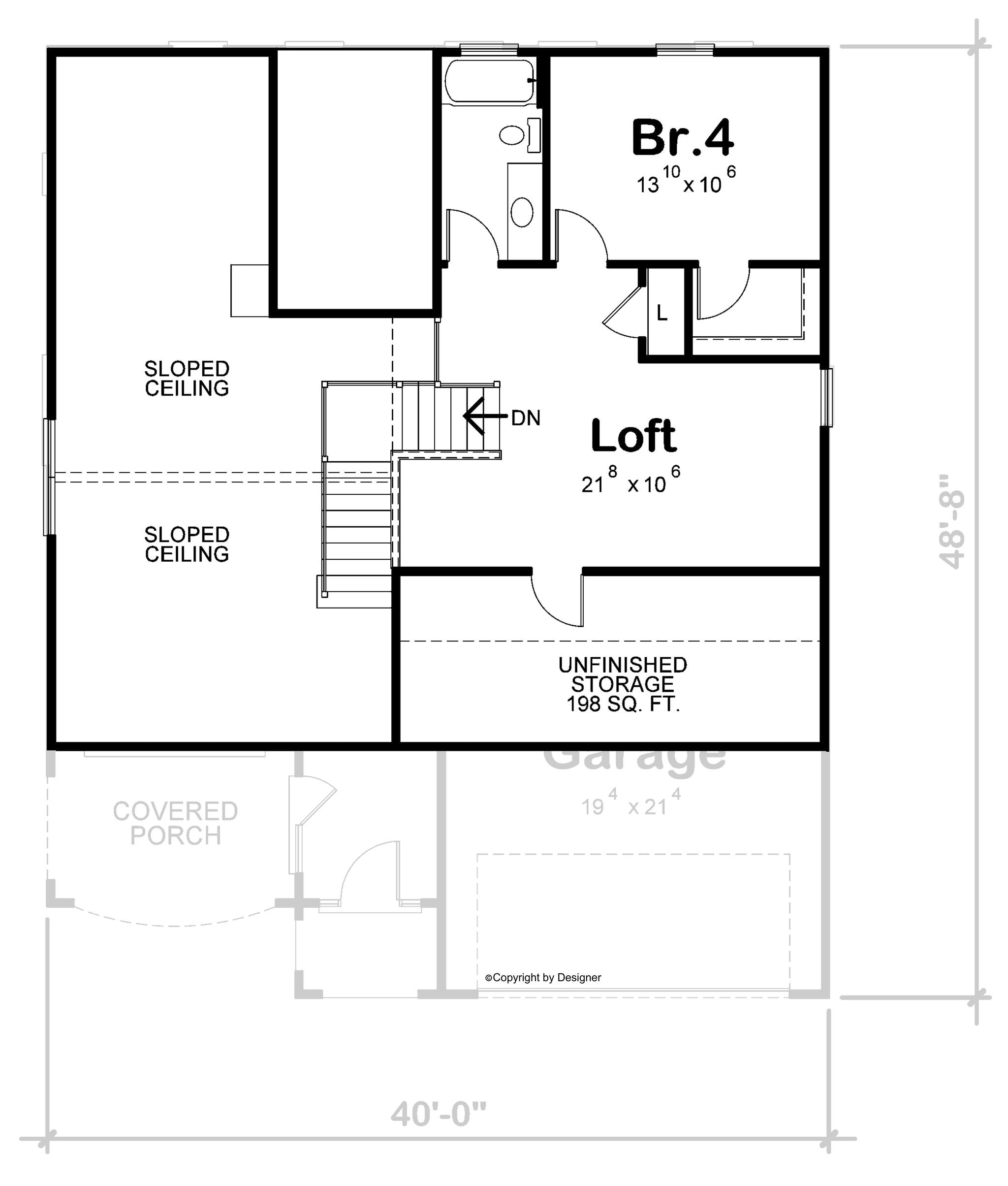

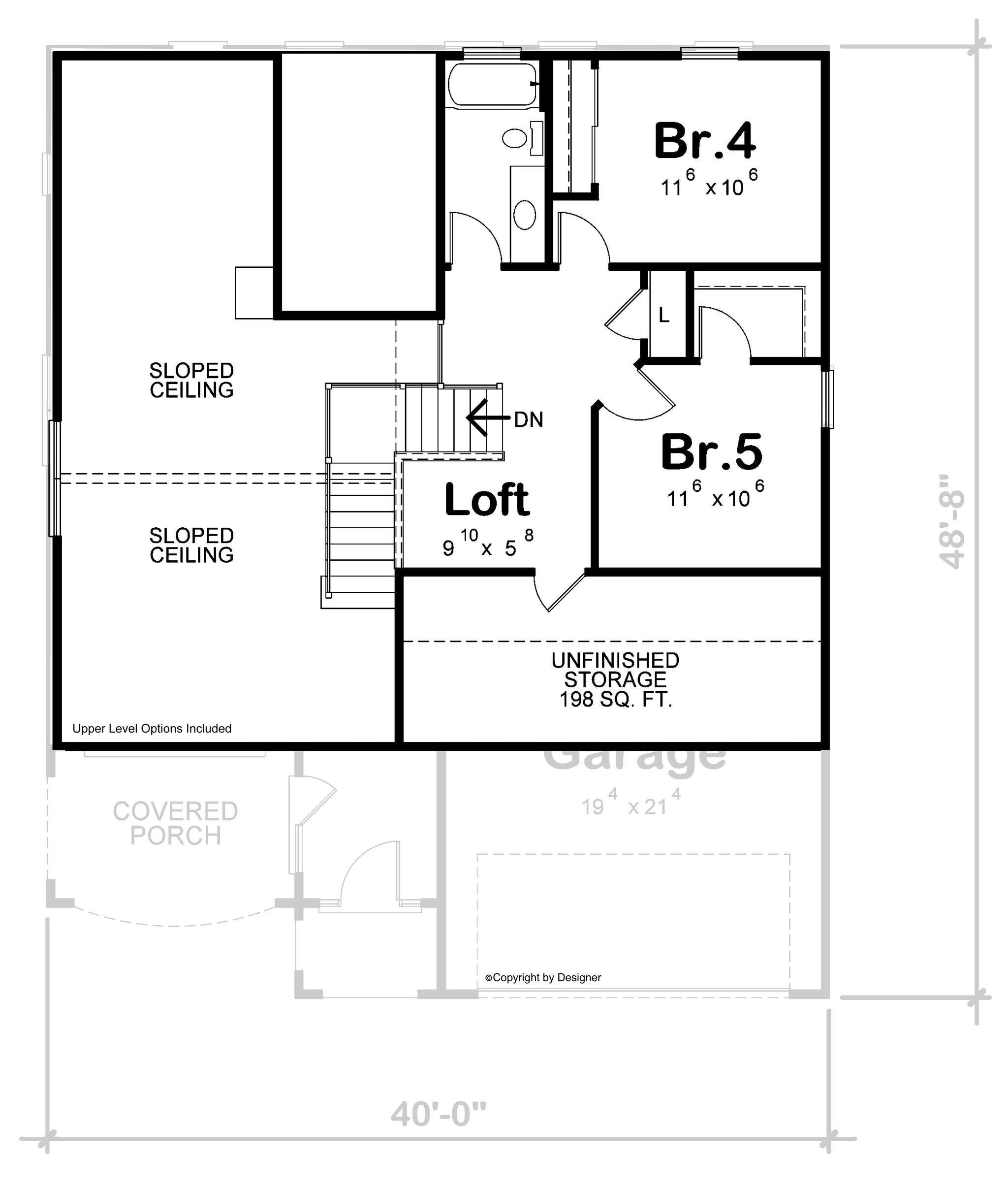

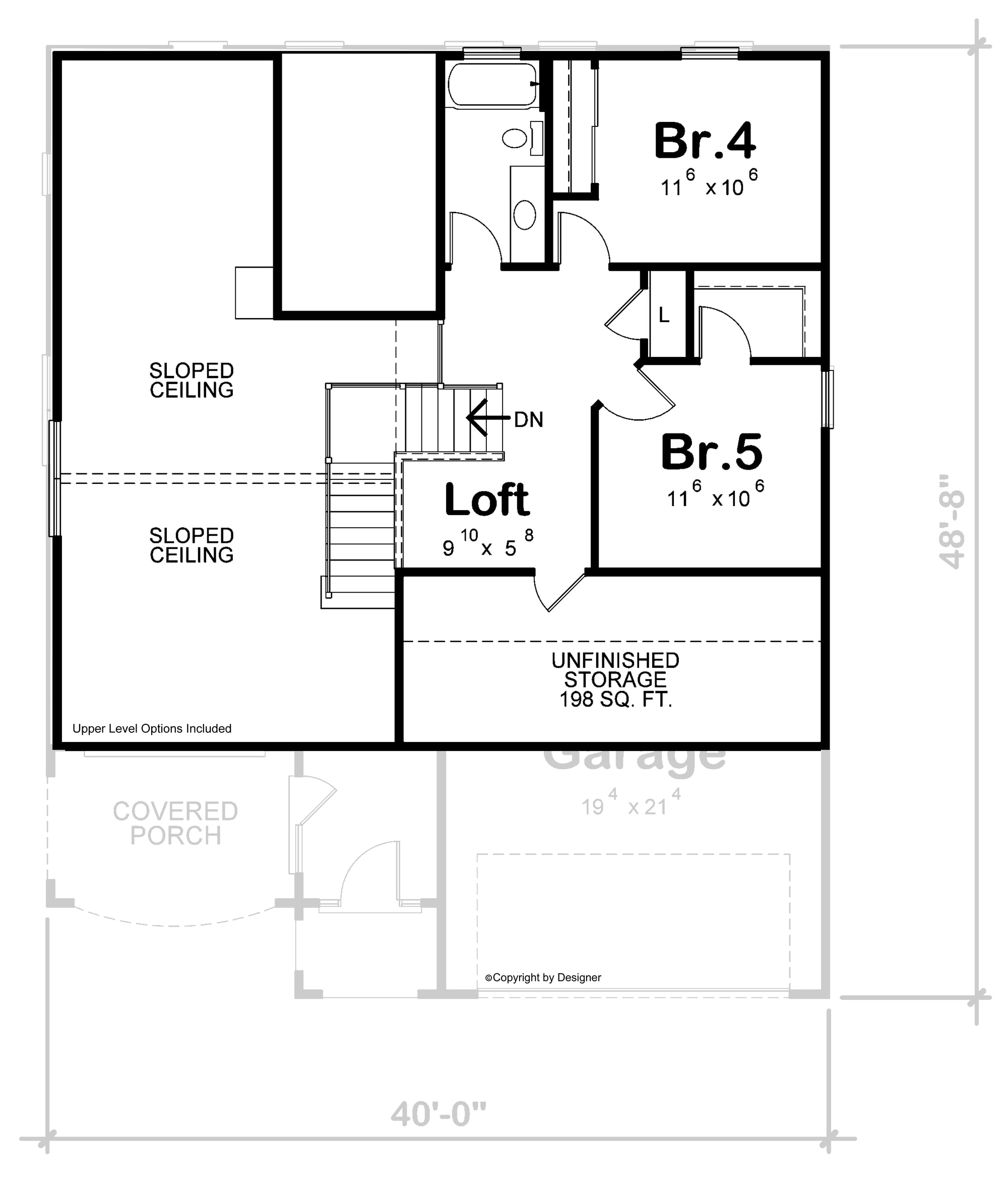

Occupying 548 sq ft, the second floor features 9-foot ceilings and offers two distinct layout configurations to accommodate varying household needs. Owners may choose between a setup that emphasizes a large loft with two bedrooms or an alternative that prioritizes additional bedroom capacity with a smaller loft area. Both options integrate full bathrooms and additional storage, ensuring efficient use of the upper level.
Structural integrity is provided by a 2-car garage spanning 428 sq ft, which maintains a clean street-facing profile. The integration of this garage with the main living zones allows for efficient circulation throughout the floor plan. This design is optimized for narrow lots while providing the square footage necessary for a 4-bedroom, 3-bathroom configuration.
Key Features: two-story house plan, 1,872 sq ft, 4 bedrooms, 3 bathrooms, first-floor primary suite, two-story grand room, 10-foot main floor ceilings, walk-in pantry, home office, 2-car garage, covered front porch.
Review plan layouts, CAD packages, and customization options for this home.
