AB6305-A

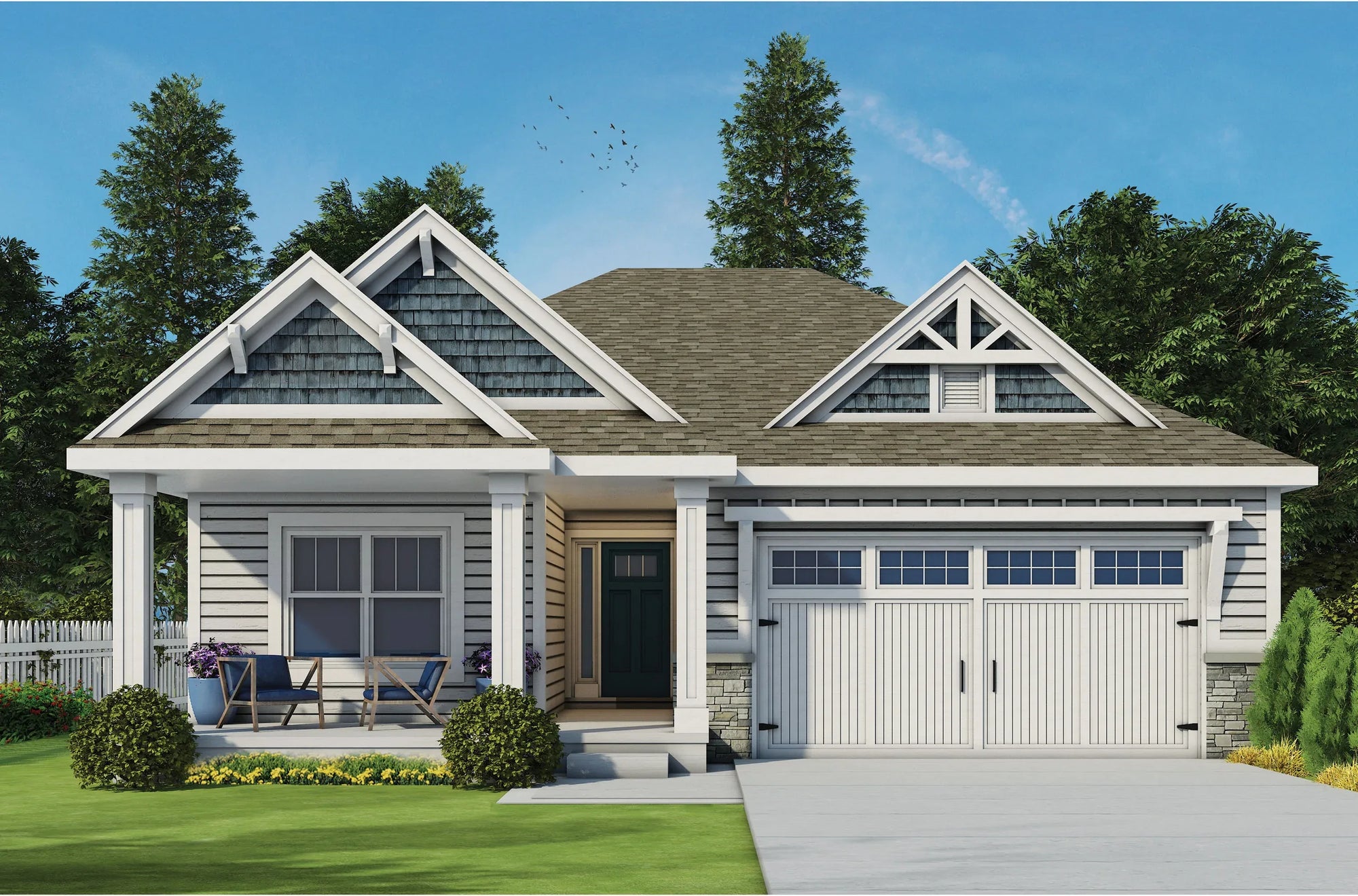

42333 Jolene Falls is a 1,886 sq ft single-story residence designed with a 40 ft width and 70'8" depth, making it an efficient choice for moderate lot sizes. The exterior profile is defined by an 8:12 roof pitch and a 24'1" maximum building height, providing a consistent aesthetic consistent with traditional Craftsman cottage influences. Access is provided through a 189 sq ft covered front porch, which serves as the primary entry point to the home.

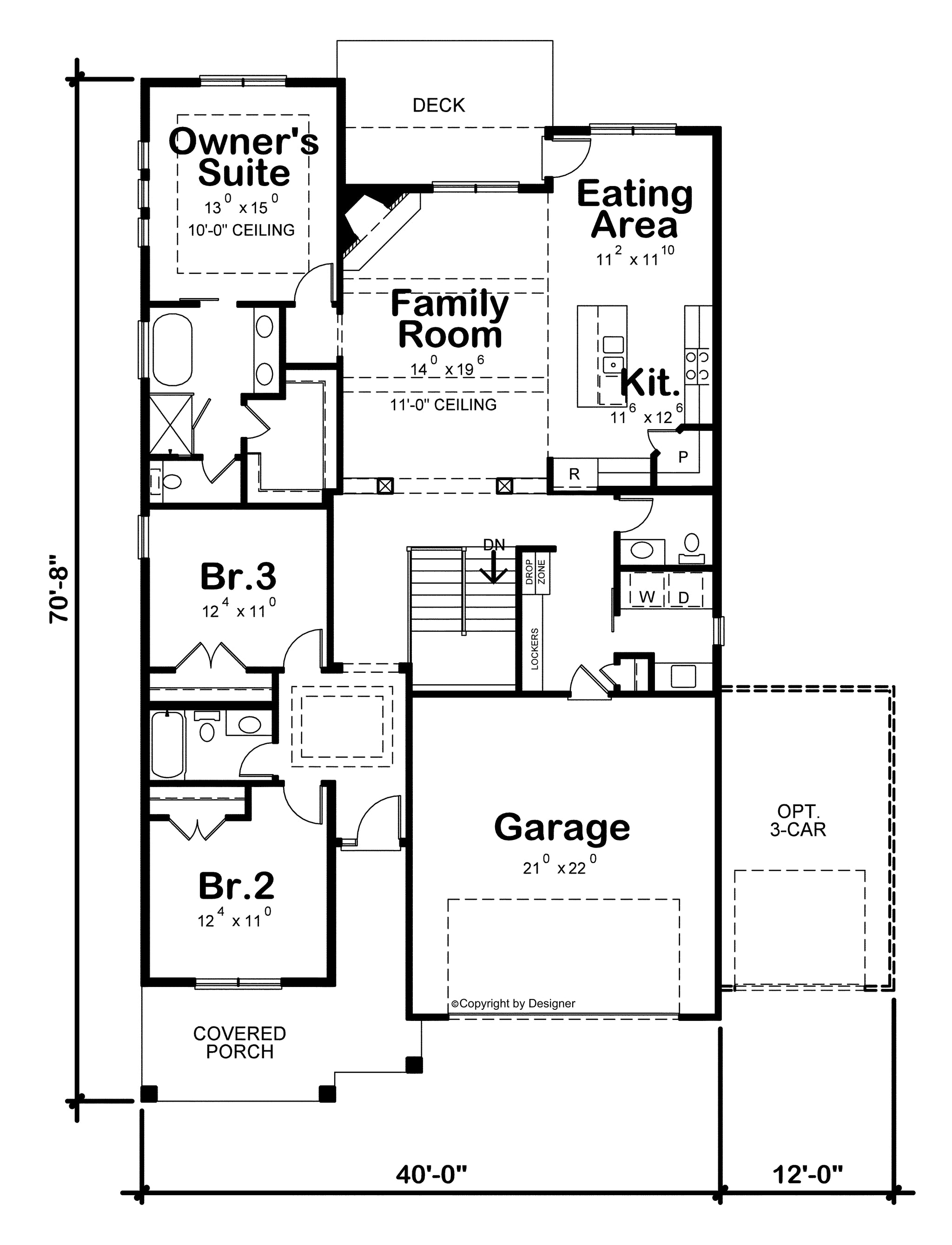

The interior layout centers on an open-concept core that integrates the kitchen, dining area, and a keeping/family room. This central zone is anchored by a kitchen island that maintains clear lines of sight across the living space. The 9-foot ceiling height throughout the first floor enhances the perceived volume of the main living areas, while the 2x6 exterior wall framing provides a robust structural foundation for the home.

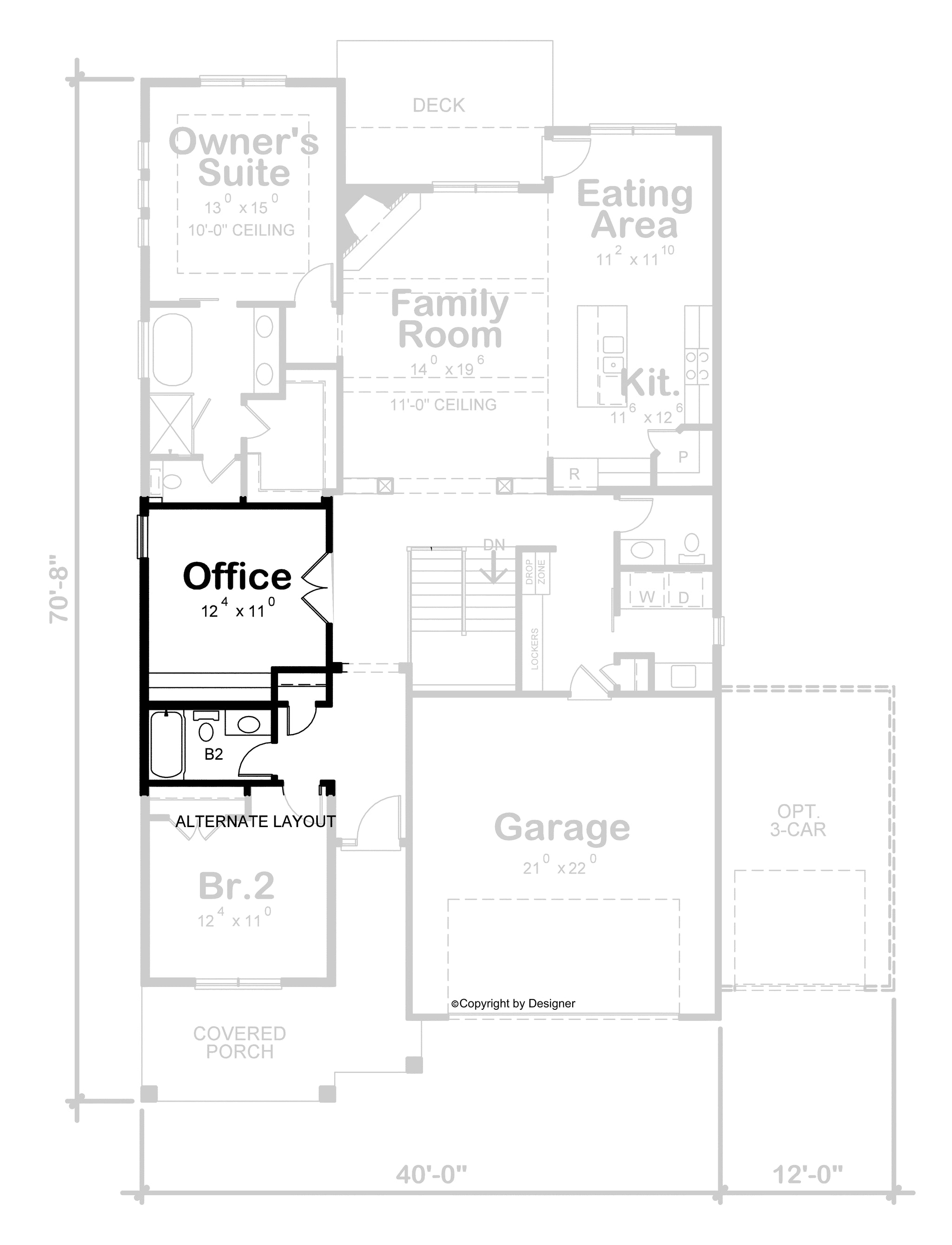

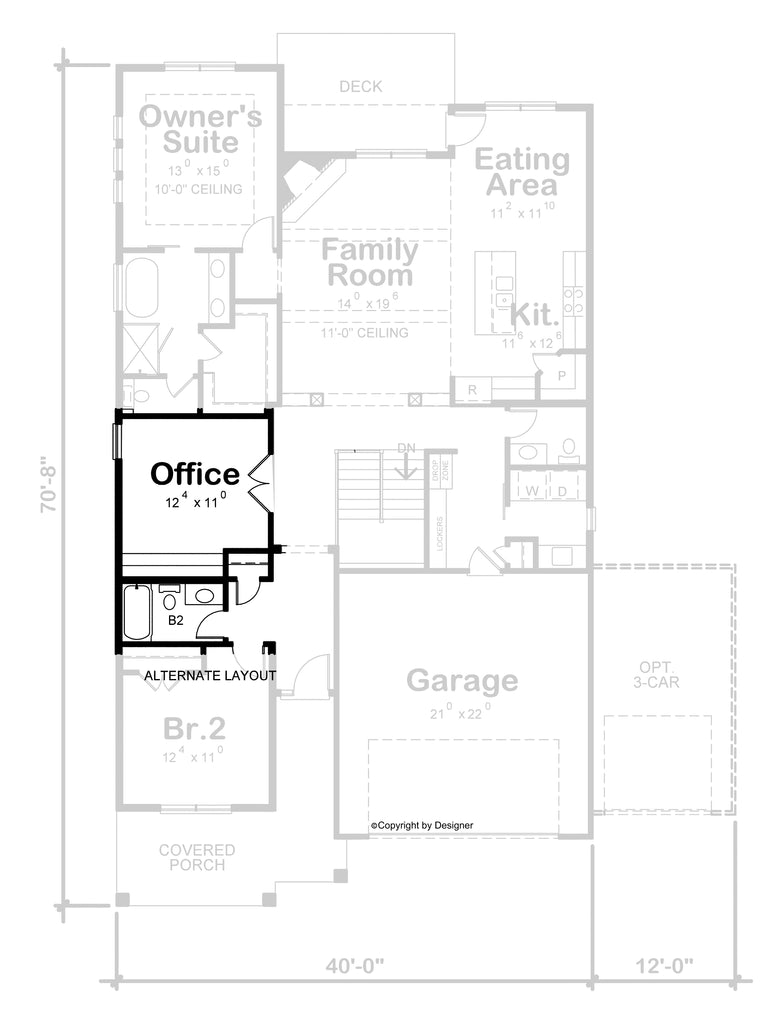

Privacy is managed through a split-bedroom configuration that separates the primary suite from the two secondary bedrooms. The primary suite is positioned for seclusion and includes a dedicated bathroom. A designated home office or study is integrated into the floor plan, providing a quiet area for remote work, separate from the high-traffic social zones of the house.

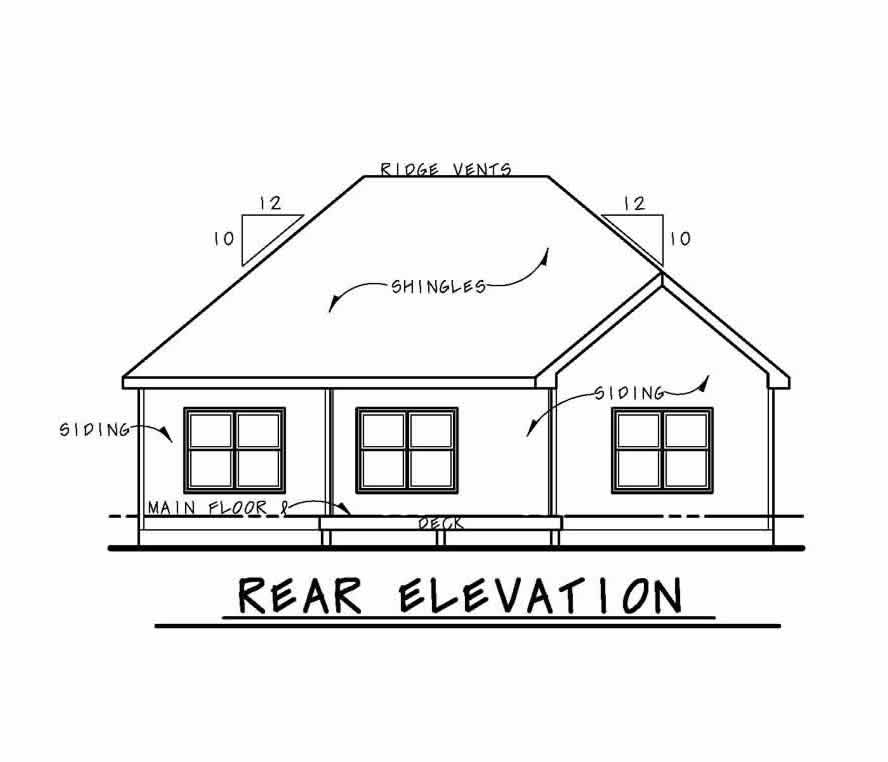

Practical utility is addressed through a 481 sq ft front-load 2-car garage that connects to the home via a mud room. This transition space serves as a buffer between the vehicle storage and the living quarters. The exterior footprint includes a 56 sq ft rear deck, facilitating direct movement between the indoor living areas and the backyard for outdoor access.
Key Features: 3 bedrooms, 2 full bathrooms, 1 half bathroom, 1,886 sq ft heated living area, split-bedroom layout, home office, front-load 2-car garage, mud room, 9-foot ceilings, 8:12 roof pitch, slab foundation.
Review floor plans, CAD packages, and customization options for this home.




PDF (Single Build)
A complete set of working drawings delivered in digital PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.
CAD + PDF (Single Build)
A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.
5 or 8 Prints (Single Build)
Five or eight printed sets of working drawings shipped to you. This option comes with a license to build ONE home.
5 Prints + PDF (Single Build)
Five printed sets of working drawings shipped to you, plus a digital version in PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.
PDF (Multi Build)
A complete set of working drawings delivered in digital PDF format. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.
CAD + PDF (Multi Build)
A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.
Choose a building foundation for your home. The foundation provides stability to a home's structure from the ground up.
Slab - This concrete foundation is reinforced with steel rods and suitable for flat ground.
Crawl Space - This foundation is raised off the ground with low walls resting on footings, providing space for wiring, plumbing, and storage.
Basement - This foundation is entirely or partially below ground and offers storage or living areas.
Walkout Basement - This foundation is typically suited for rear-sloping lots and provides storage or living areas. Walkout basements have doors that provide access to the outside.
