Charming Wraparound Porch Home with Spacious Single-Level Living Comfort
4.8
Plan Number:

AB6558-A

Rated 4.8
Plan Number:

AB6558-A

✔ Best Price Guarantee | ✔ Free Cost to Build Calculator
Or order by phone: (888) 890-2353
Safe and Secure
SafePay icons
LOW PRICE GUARANTEE
Free Cost to Build Calculator

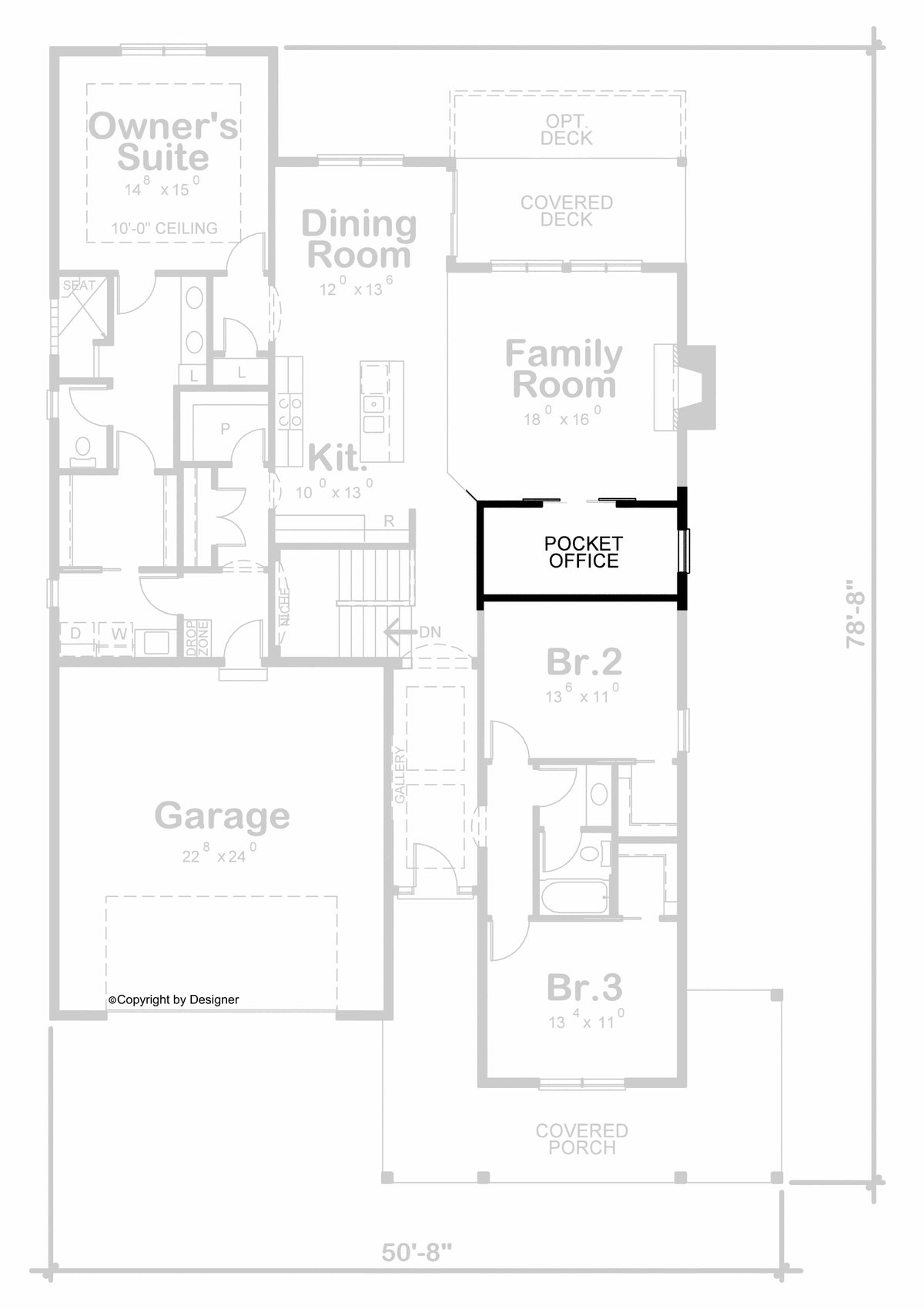

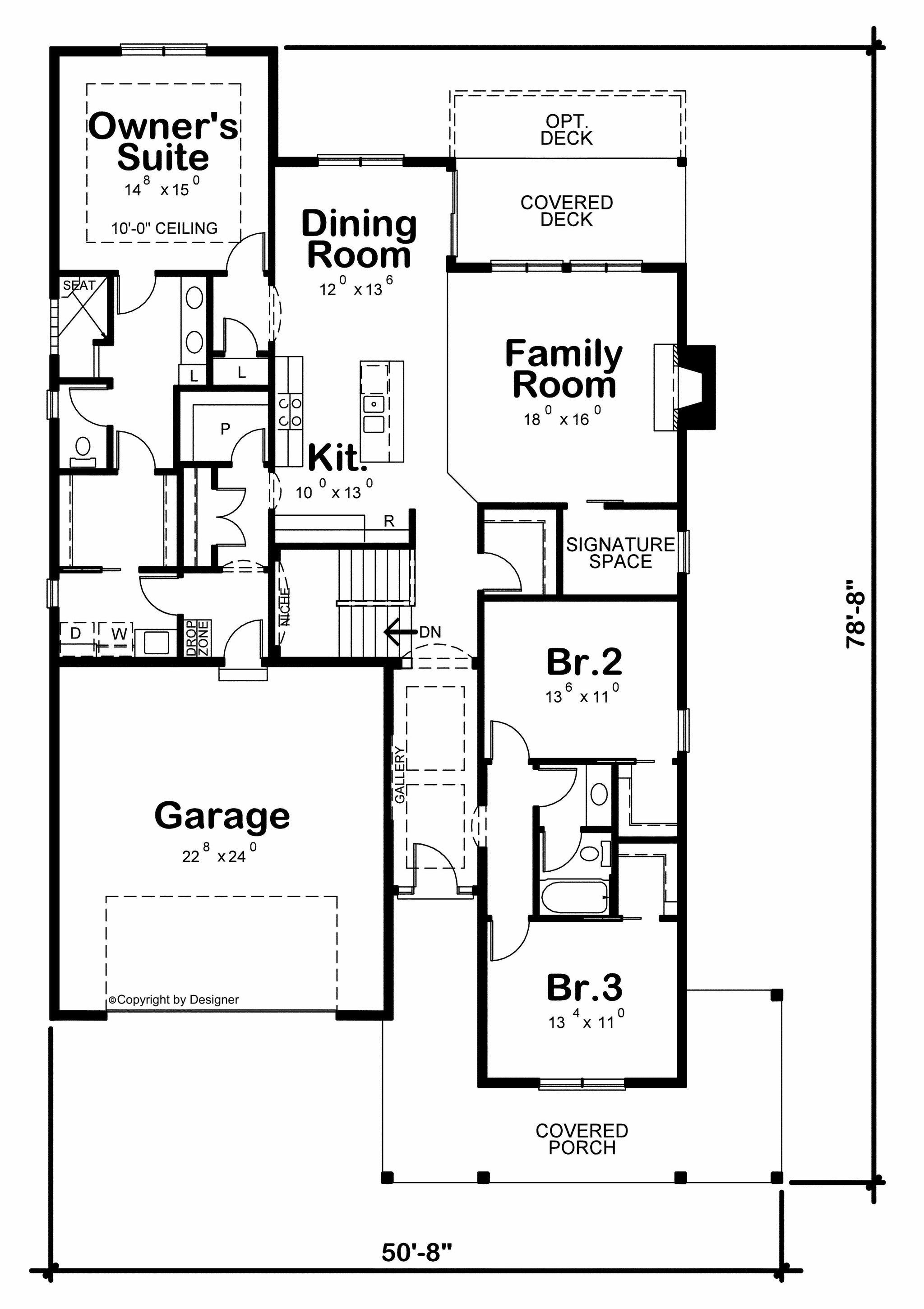

Floor Plan
floor plan
floor plan

Charming Wraparound Porch Home with Spacious Single-Level Living Comfort

42327 Kinsey Farm is a single-level home offering 2,071 sq ft of heated living space, defined by a substantial 500 sq ft wraparound porch that anchors the exterior design. Measuring 50'8" in width and 78'8" in depth, this residence maximizes lot coverage while providing a classic profile with a 5:12 roof pitch and a maximum building height of 22'10".

The interior layout prioritizes an open-concept core, where the kitchen, keeping room, and breakfast area share a unified space. A large kitchen island serves as the central workstation, complemented by a walk-in pantry for storage efficiency. The main level also includes a formal home office or study, providing a dedicated space for remote work, alongside a den that offers additional square footage for quiet activities.

A split-bedroom configuration ensures privacy, placing the owner's suite on one side of the home away from the two secondary bedrooms. The primary bathroom includes dual vanities and direct access to the laundry room through the walk-in closet, streamlining daily routines. The two secondary bedrooms share a full bathroom, maintaining a clear separation between private zones and communal living areas.

Construction specifications include 9-foot ceiling heights throughout the main level to maintain a consistent scale. The structure is supported by a 572 sq ft front-load 2-car garage, which integrates a mudroom entry to keep transitional areas organized. The combination of front and rear covered porches provides 500 sq ft of outdoor living space, suitable for rural or suburban settings requiring external circulation.

Key Features: 3 bedrooms, 2 full bathrooms, 2,071 sq ft living area, split-bedroom layout, 500 sq ft wraparound porch, 2-car front-load garage, dedicated home office, walk-in pantry, mudroom, laundry access from master closet, 9-foot ceilings.

Review floor plans, dimensions, and customization options for this 42327 Kinsey Farm design today.

View Sample Plan
What's Included in the House Plan:
  • Cover Page – Front elevation, general notes, design criteria, abbreviations, and symbols

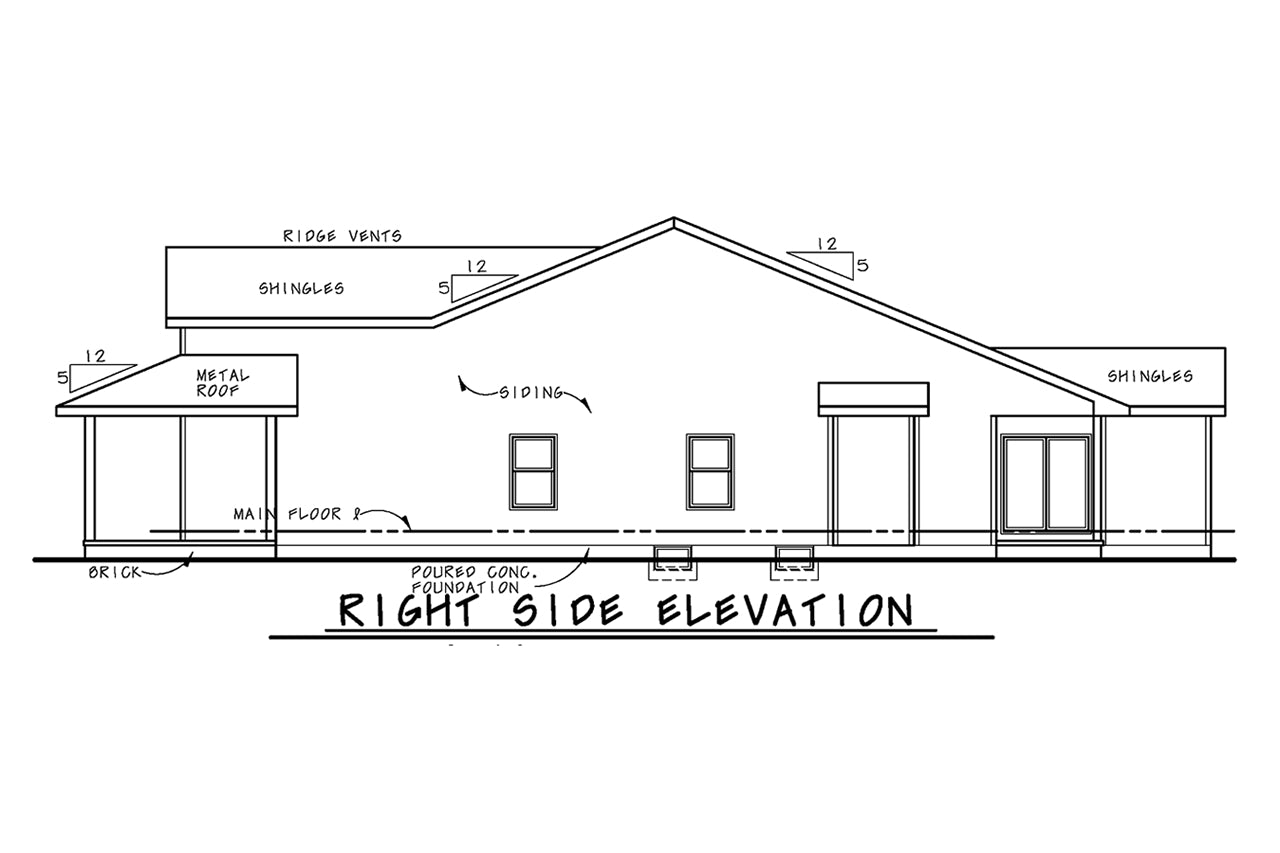

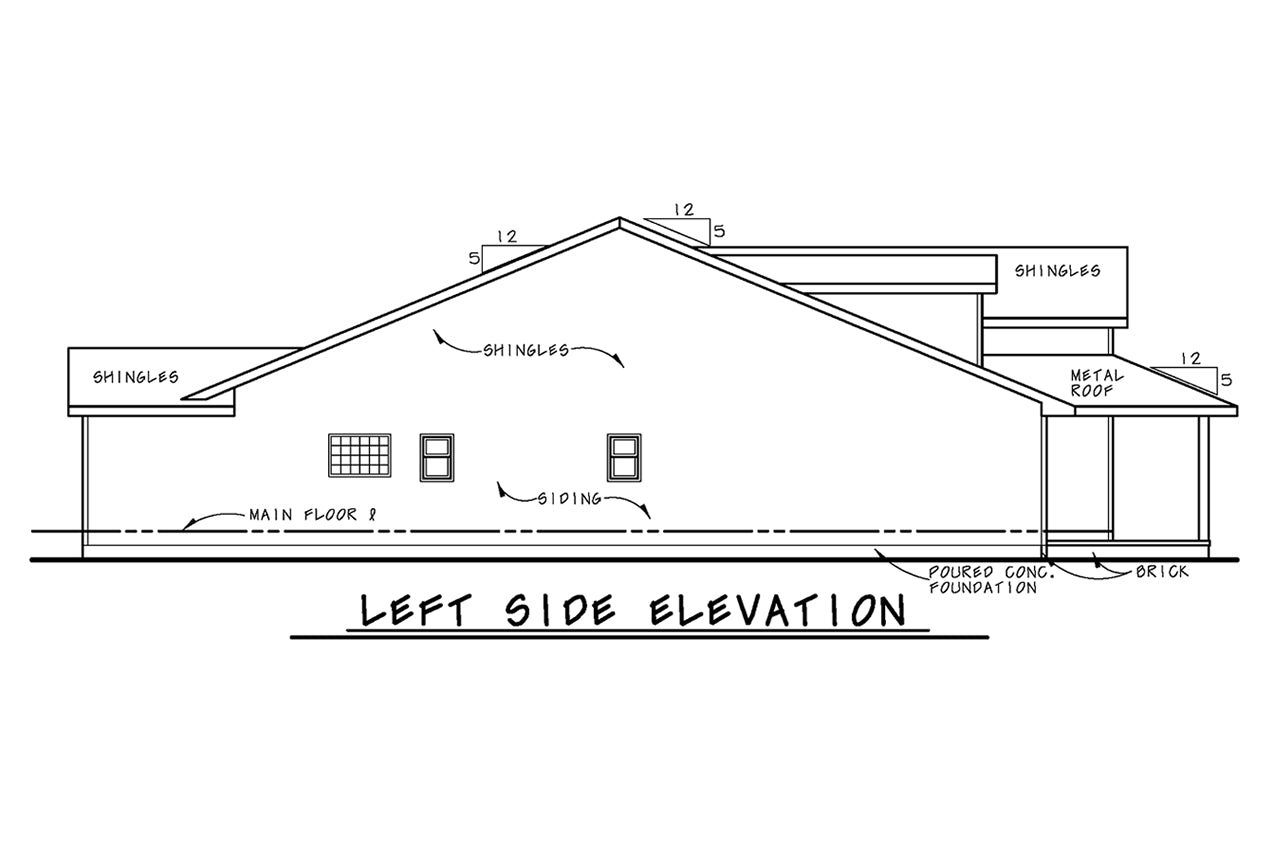

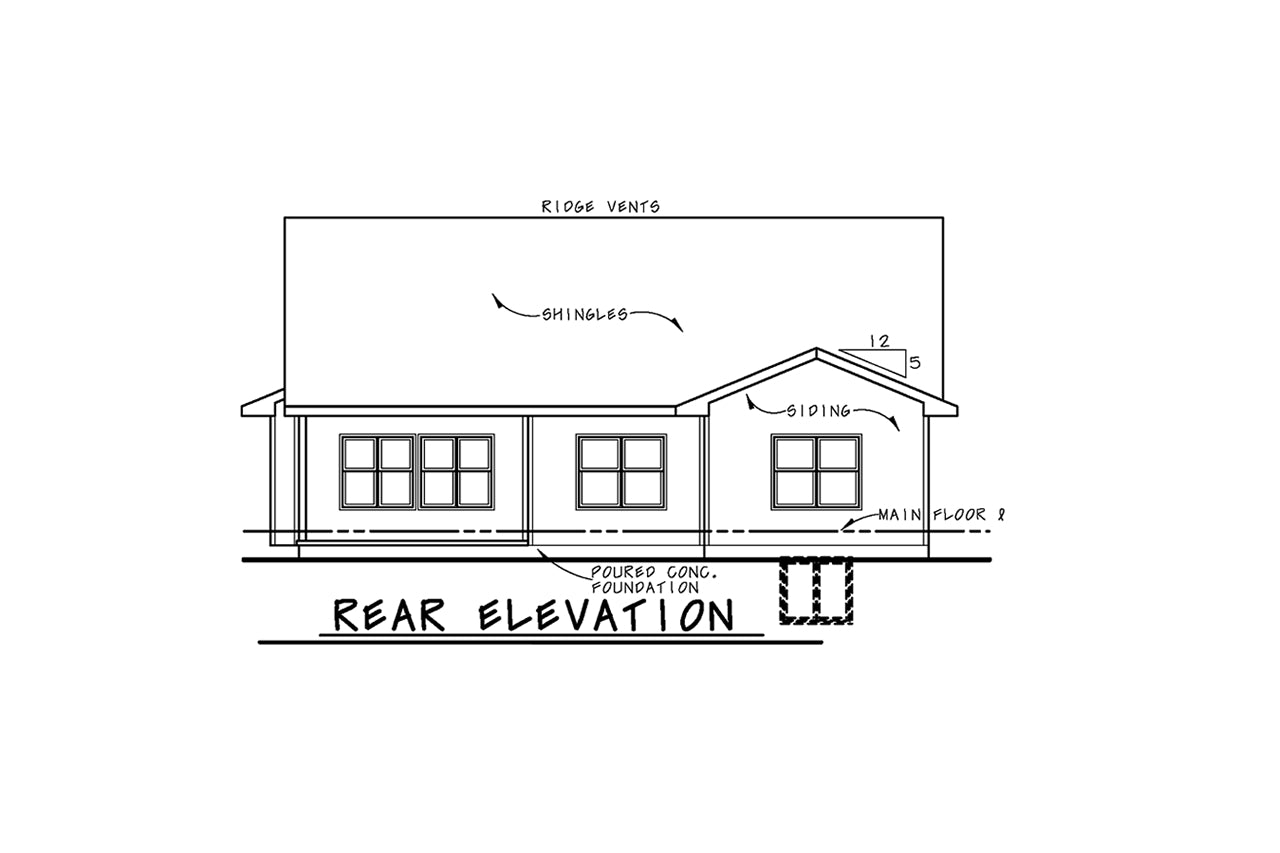

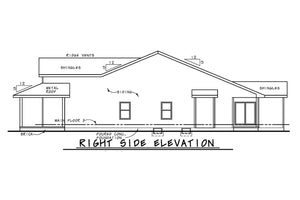

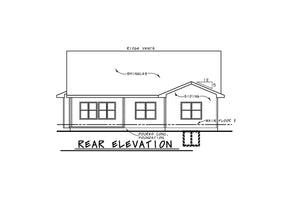

  • Elevations – Scaled front, rear, and side views, plus roof aerial
  • Foundation Plans – Engineered for slab or basement
  • Main Floor Plan – Fully dimensioned for framing, with wall thickness notes
  • Second Floor Plan – Same detail as main floor
  • Electrical & Sections – Separate page with electrical layout and typical wall/stair sections
  • Technical Support – Plan-related assistance included
What's Not Included:
  • Architectural or Engineering Stamp: Handled locally if required.
  • Site Plan: Created locally when needed.
  • Mechanical Drawings: Heating, air equipment, and ductwork to be designed by subcontractors.
  • Plumbing Drawings: Pipe sizes and locations to be determined by subcontractors.
  • Energy Calculations: Handled locally if required.

House Plan Specifications

  • Total Living (heated area):  2071 sq ft
    All Unheated Under-Roof Areas  1072 sq ft
    Total Structure  3143 sq ft
    1st Floor:  2071 sq ft
    Front Porch:  224 sq ft
    Rear Porch:  276 sq ft
  • Garage:  572 sq ft
    Garage Bays:   2
    Garage Load:   Front
  • Bedrooms:   3
    Bathrooms:   2
  • Foundation:   Unfinished Basement
    Wall Framing:   2x6
    Roof Pitch:  5:12
  • Width of House:  50'8''
    Depth of House:  78'8''
    Building Height:  22'10''
  • First Floor Ceiling Height:  9'

Key Features

  • Breakfast Area
  • Covered Back Porch
  • Covered Front Porch
  • Den
  • First Floor Laundry
  • First Floor Master Suite
  • Home Office/Study
  • Keeping/Family Room
  • Kitchen Island
  • Laundry Access from Master
  • Mud Room
  • Split Bedroom
  • Walk-in Pantry
  • Wraparound Porch
Modify this plan to make it perfect
Our hassle-free process makes it easy to modify your dream home. To receive an estimate please submit your request using the link below.
Submit a Modification Request
Cost to build estimate
$0.00
$40.00
100% discount for new customers this month!
Receive a personal estimate in two minutes instead of 2 days as many competitors offer. Just submit your request using the link below.
Get Your Estimate
Plan Number: AB6558-A
Charming Wraparound Porch Home with Spacious Single-Level Living Comfort
3 Bedrooms
2 Full Baths
2071 SQ FT
1 Stories
Product print image

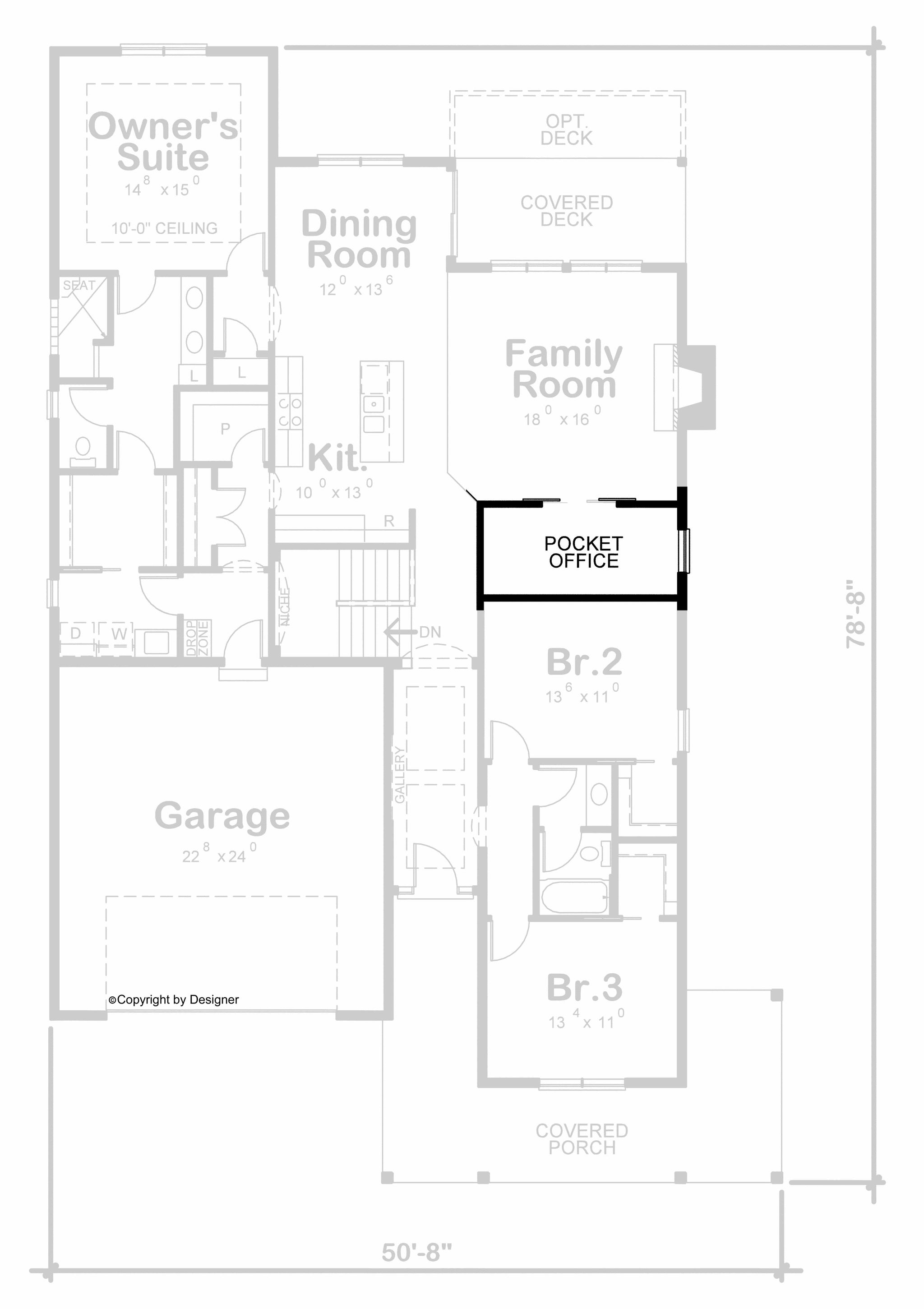

Main Level
floor plan
floor plan
House Plan Formats Explained

PDF (Single Build)

A complete set of working drawings delivered in digital PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

CAD + PDF (Single Build)

A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

5 or 8 Prints (Single Build)

Five or eight printed sets of working drawings shipped to you. This option comes with a license to build ONE home.

5 Prints + PDF (Single Build)

Five printed sets of working drawings shipped to you, plus a digital version in PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

PDF (Multi Build)

A complete set of working drawings delivered in digital PDF format. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.

CAD + PDF (Multi Build)

A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.

Choose a building foundation for your home. The foundation provides stability to a home's structure from the ground up.

Slab - This concrete foundation is reinforced with steel rods and suitable for flat ground.

Crawl Space - This foundation is raised off the ground with low walls resting on footings, providing space for wiring, plumbing, and storage.

Basement - This foundation is entirely or partially below ground and offers storage or living areas.

Walkout Basement - This foundation is typically suited for rear-sloping lots and provides storage or living areas. Walkout basements have doors that provide access to the outside.

Readable Reverse
An option to reverse the plan including texts and dimensions to make them readable.
2x4 or 2x6 Conversion
Convert the exterior framing other than the standard framing included in the plan.
Multi Build Licence (CAD required) Gives the buyer the legal right to build the house plan multiple times
