Charming 2,196 Sq Ft Two-Story with Grand Living Spaces
4.8
Plan Number:

AB6534-A

Rated 4.8
Plan Number:

AB6534-A

✔ Best Price Guarantee | ✔ Free Cost to Build Calculator
Or order by phone: (888) 890-2353
Safe and Secure
SafePay icons
LOW PRICE GUARANTEE
Free Cost to Build Calculator
Floor Plan
floor plan
floor plan

Charming 2,196 Sq Ft Two-Story with Grand Living Spaces

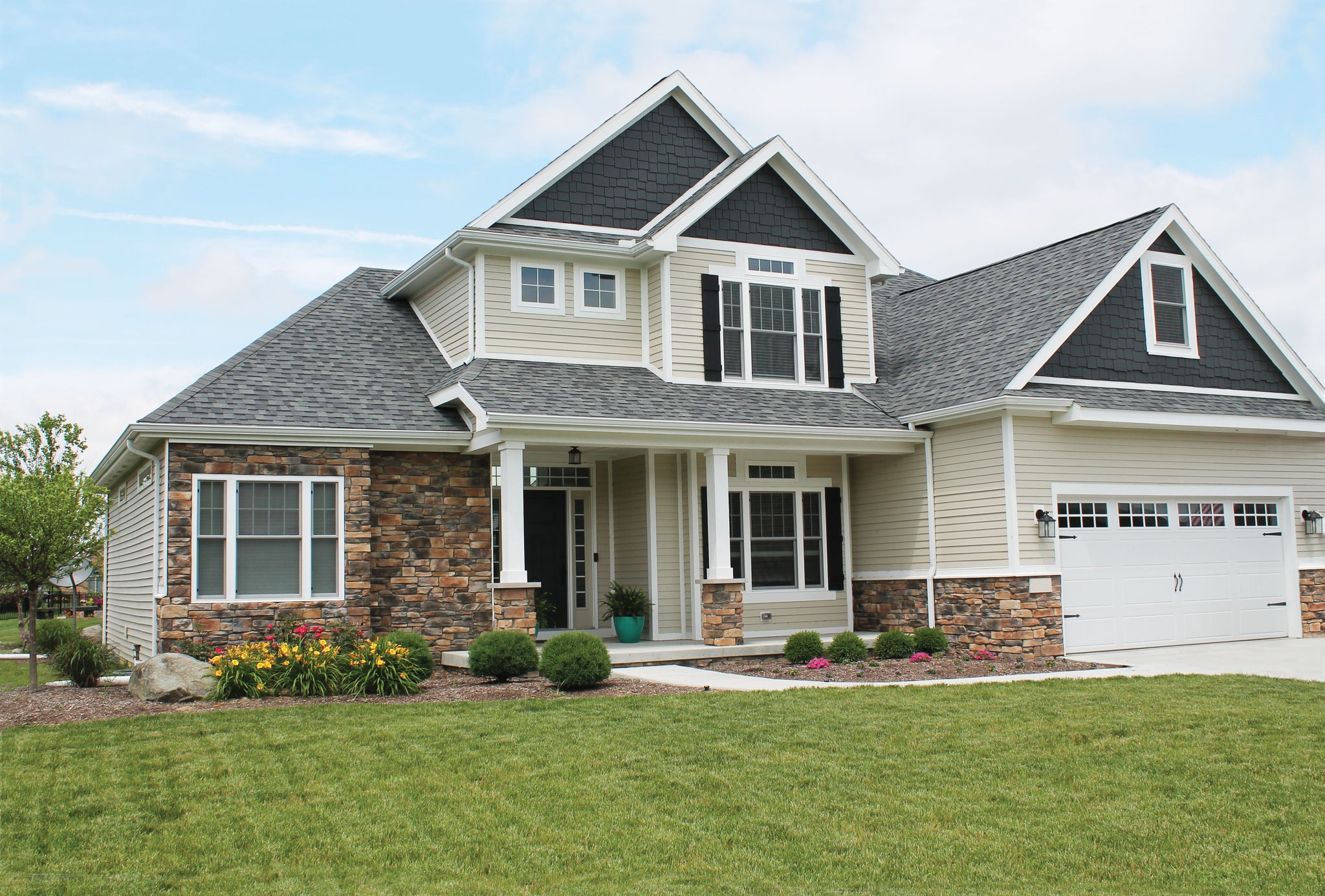

42050 Flockhart is a 2,196 square foot, two-story Craftsman home designed to maximize vertical volume on a footprint measuring 54 ft 4 in wide by 47 ft 4 in deep. The exterior is defined by a distinct 8:12 roof pitch and 152 square feet of covered porch area, providing a structured profile that complements the traditional aesthetic. With a maximum building height of 29 ft, the home maintains a balanced presence on the lot while offering substantial interior height.

The main level encompasses 1,497 square feet, anchored by a two-story great room that facilitates direct sightlines and natural light penetration. The kitchen layout includes a dedicated walk-in pantry and a breakfast area, establishing a clear connection to the formal dining space. The primary suite is located on the first floor to ensure privacy, supported by a full bathroom and a half bathroom for guest use. Nine-foot ceilings on this level contribute to the sense of scale within the primary social zones.

Occupying 699 square feet, the second floor houses three secondary bedrooms that share a full bathroom. A central loft area serves as a flexible zone for a home office or study, maintaining separation from the high-traffic areas of the main floor. The eight-foot ceiling height on the upper level creates a more intimate atmosphere for the bedroom wing.

Structural support is provided by a design that includes an unfinished basement, offering potential for expansion or additional storage. The 480-square-foot front-load 2-car garage is integrated into the primary structure, keeping the driveway footprint efficient. The home utilizes standard framing techniques to ensure long-term durability and structural integrity.

Key Features: 4 bedrooms, 2 full bathrooms, 1 half bathroom, primary suite on main, two-story great room, walk-in pantry, home office loft, front-load 2-car garage, unfinished basement, covered front and rear porches.

Review plan layouts, available formats, and customization options for this home.

View Sample Plan
What's Included in the House Plan:
  • Cover Page – Front elevation, general notes, design criteria, abbreviations, and symbols

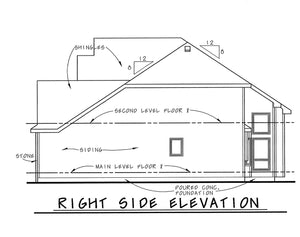

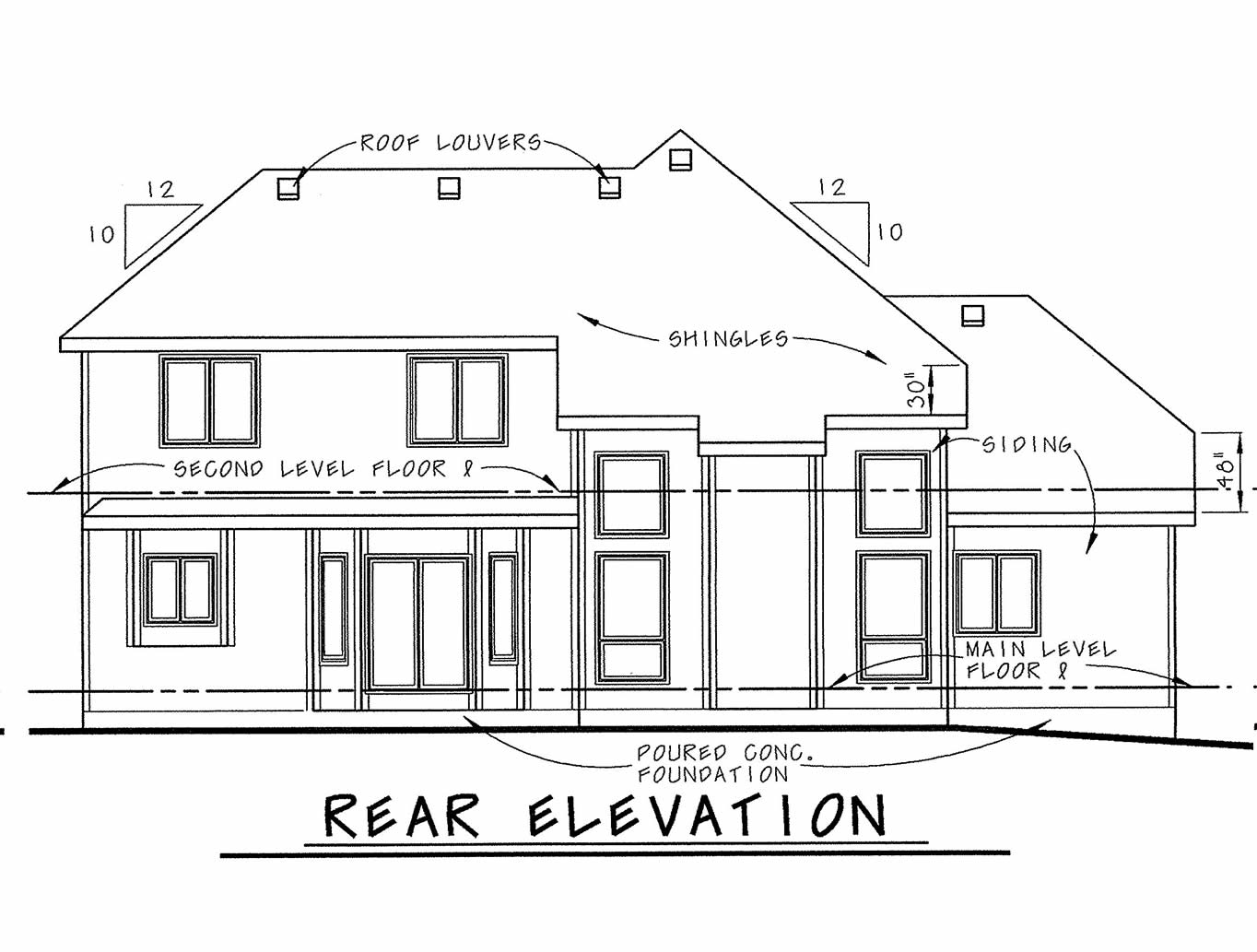

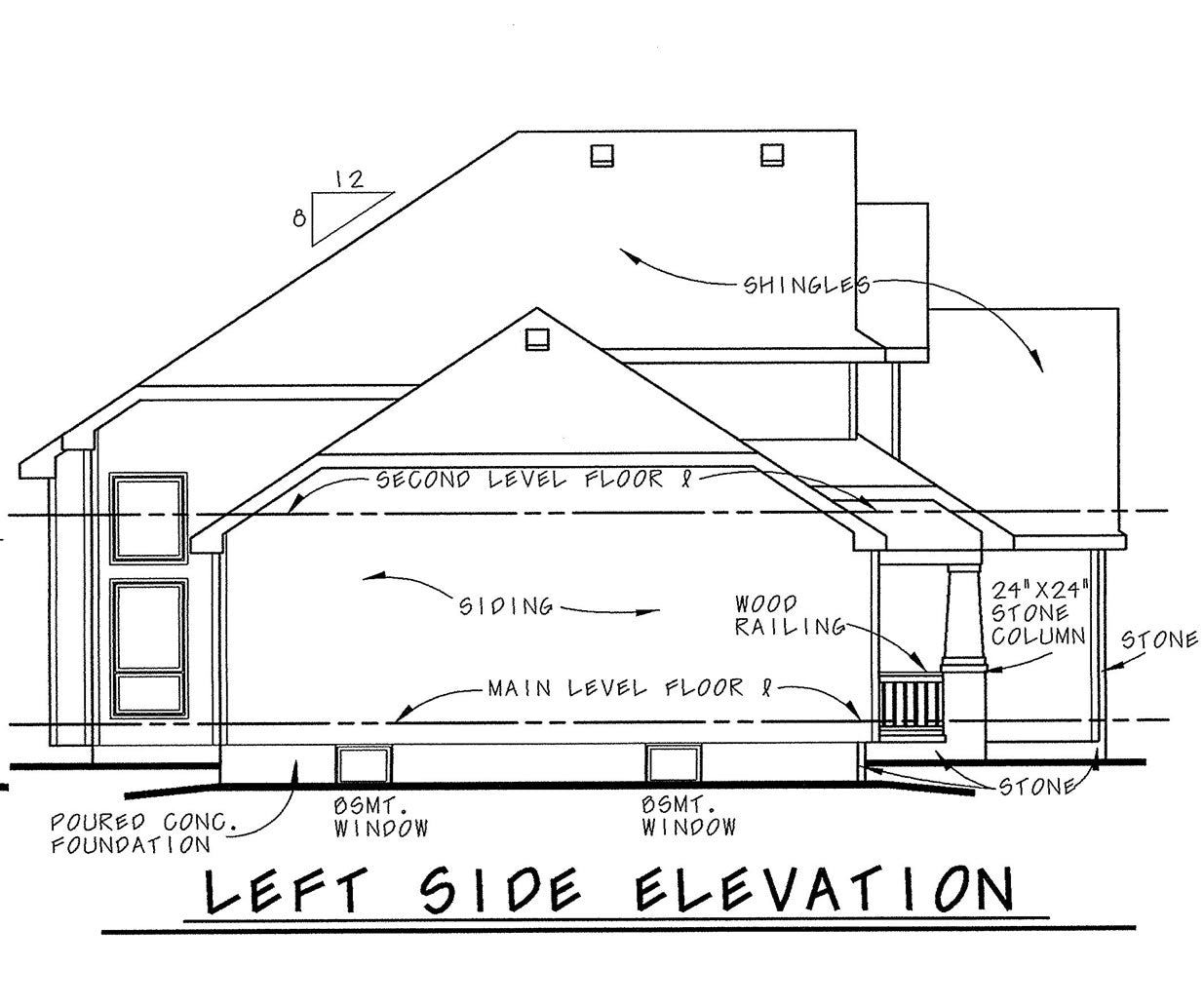

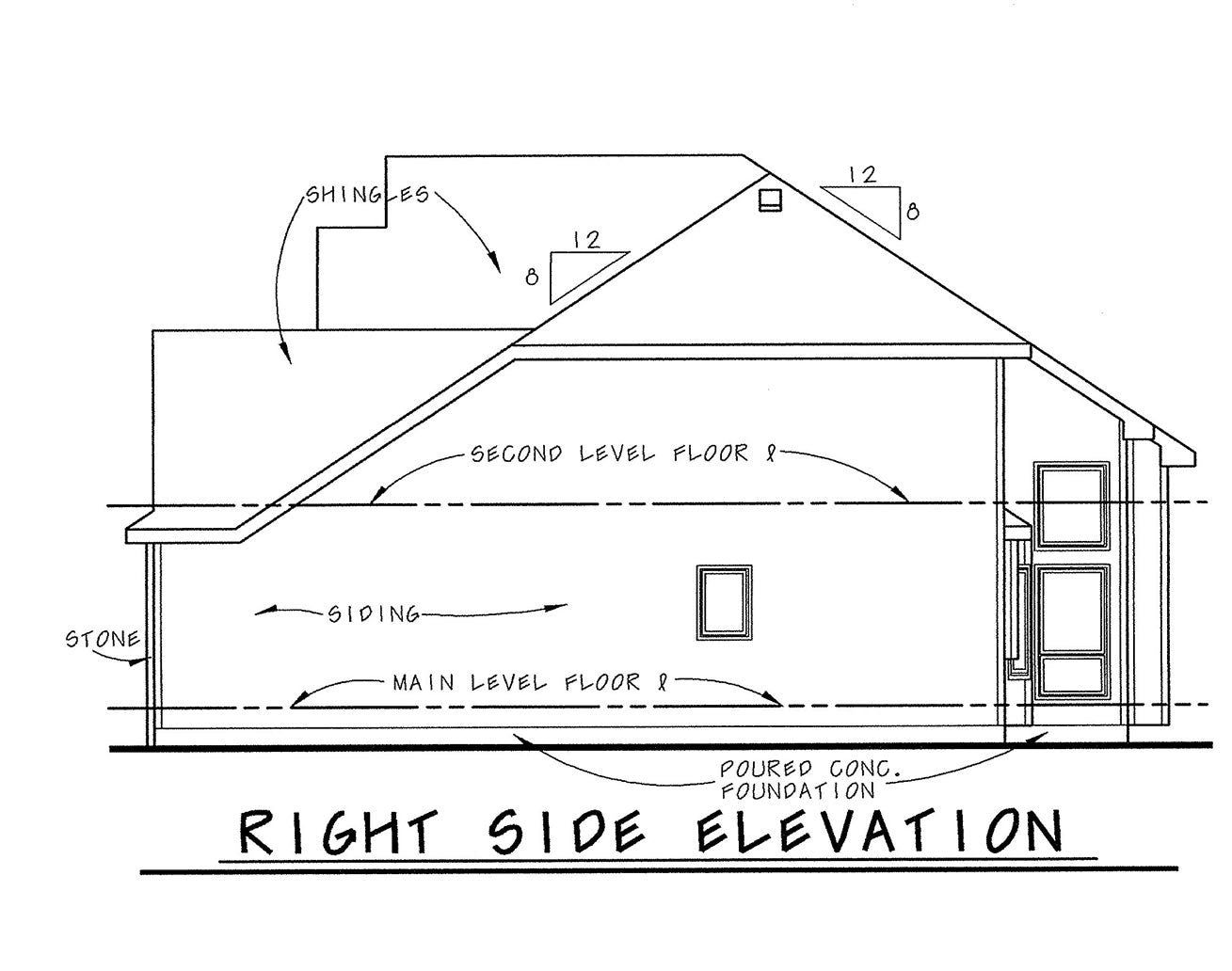

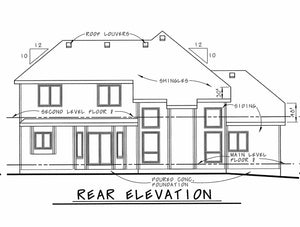

  • Elevations – Scaled front, rear, and side views, plus roof aerial
  • Foundation Plans – Engineered for slab or basement
  • Main Floor Plan – Fully dimensioned for framing, with wall thickness notes
  • Second Floor Plan – Same detail as main floor
  • Electrical & Sections – Separate page with electrical layout and typical wall/stair sections
  • Technical Support – Plan-related assistance included
What's Not Included:
  • Architectural or Engineering Stamp: Handled locally if required.
  • Site Plan: Created locally when needed.
  • Mechanical Drawings: Heating, air equipment, and ductwork to be designed by subcontractors.
  • Plumbing Drawings: Pipe sizes and locations to be determined by subcontractors.
  • Energy Calculations: Handled locally if required.

House Plan Specifications

  • Total Living (heated area):  2196 sq ft
    All Unheated Under-Roof Areas  480 sq ft
    Total Structure  2676 sq ft
    1st Floor:  1497 sq ft
    2nd Floor:  699 sq ft
  • Garage:  480 sq ft
    Garage Bays:   2
    Garage Load:   Front
  • Bedrooms:   4
    Bathrooms:   2
    Half Bathrooms:   1
  • Foundation:   Unfinished Basement
    Wall Framing:   2x4
    Roof Pitch:  8:12
  • Width of House:  54'4''
    Depth of House:  47'4''
    Building Height:  29'
  • First Floor Ceiling Height:  9'
    Second Floor Ceiling Height:  8'

Key Features

  • Breakfast Area
  • Covered Back Porch
  • Covered Front Porch
  • First Floor Laundry
  • First Floor Master Suite
  • Formal Dining Room
  • Great Room
  • Home Office/Study
  • Storage Space
  • Two-Story Grand Room
  • Walk-in Pantry
Modify this plan to make it perfect
Our hassle-free process makes it easy to modify your dream home. To receive an estimate please submit your request using the link below.
Submit a Modification Request
Cost to build estimate
$0.00
$40.00
100% discount for new customers this month!
Receive a personal estimate in two minutes instead of 2 days as many competitors offer. Just submit your request using the link below.
Get Your Estimate
Plan Number: AB6534-A
Charming 2,196 Sq Ft Two-Story with Grand Living Spaces
4 Bedrooms
2 Full Baths
1 Half Baths
2196 SQ FT
2 Stories
Product print image

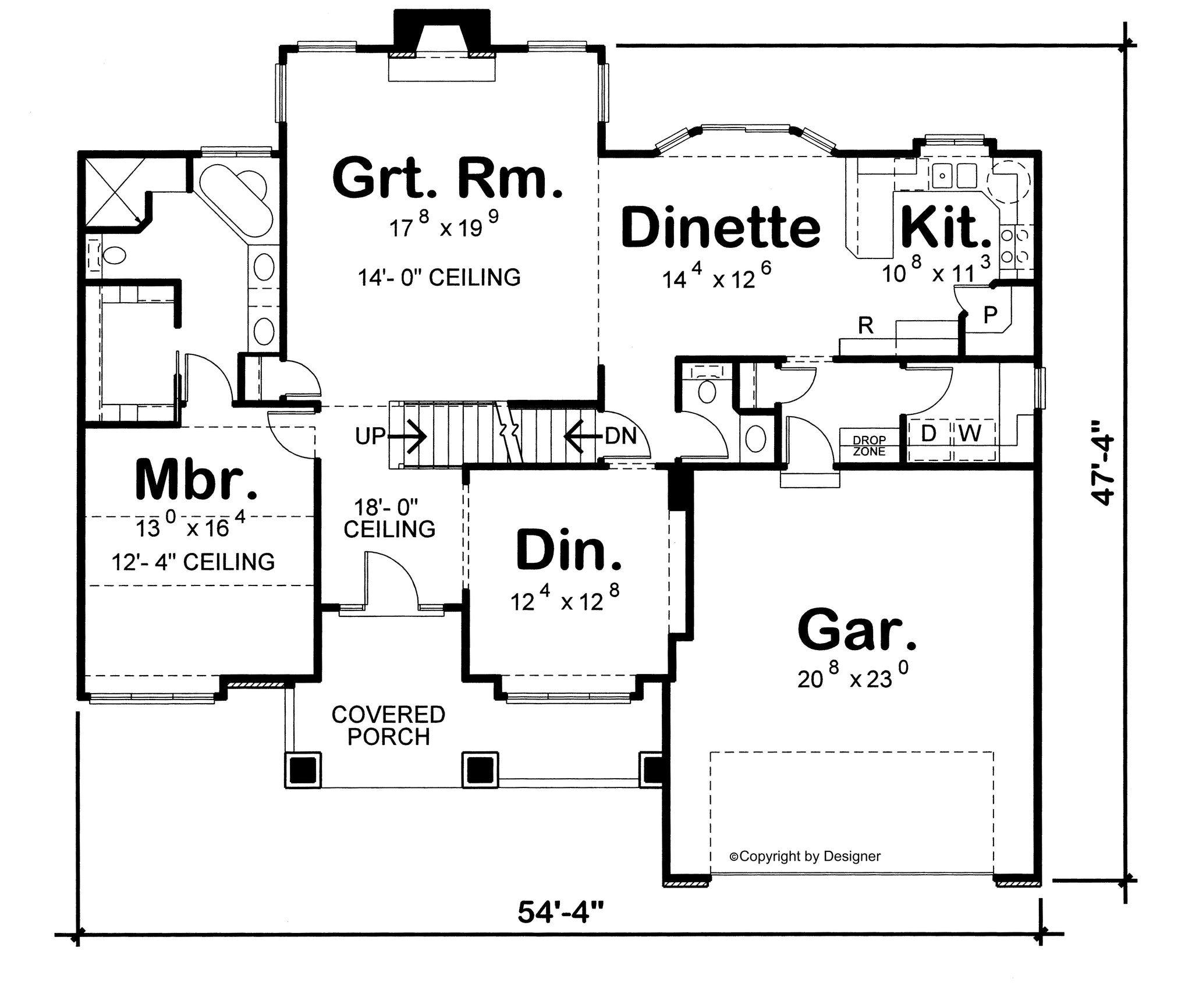

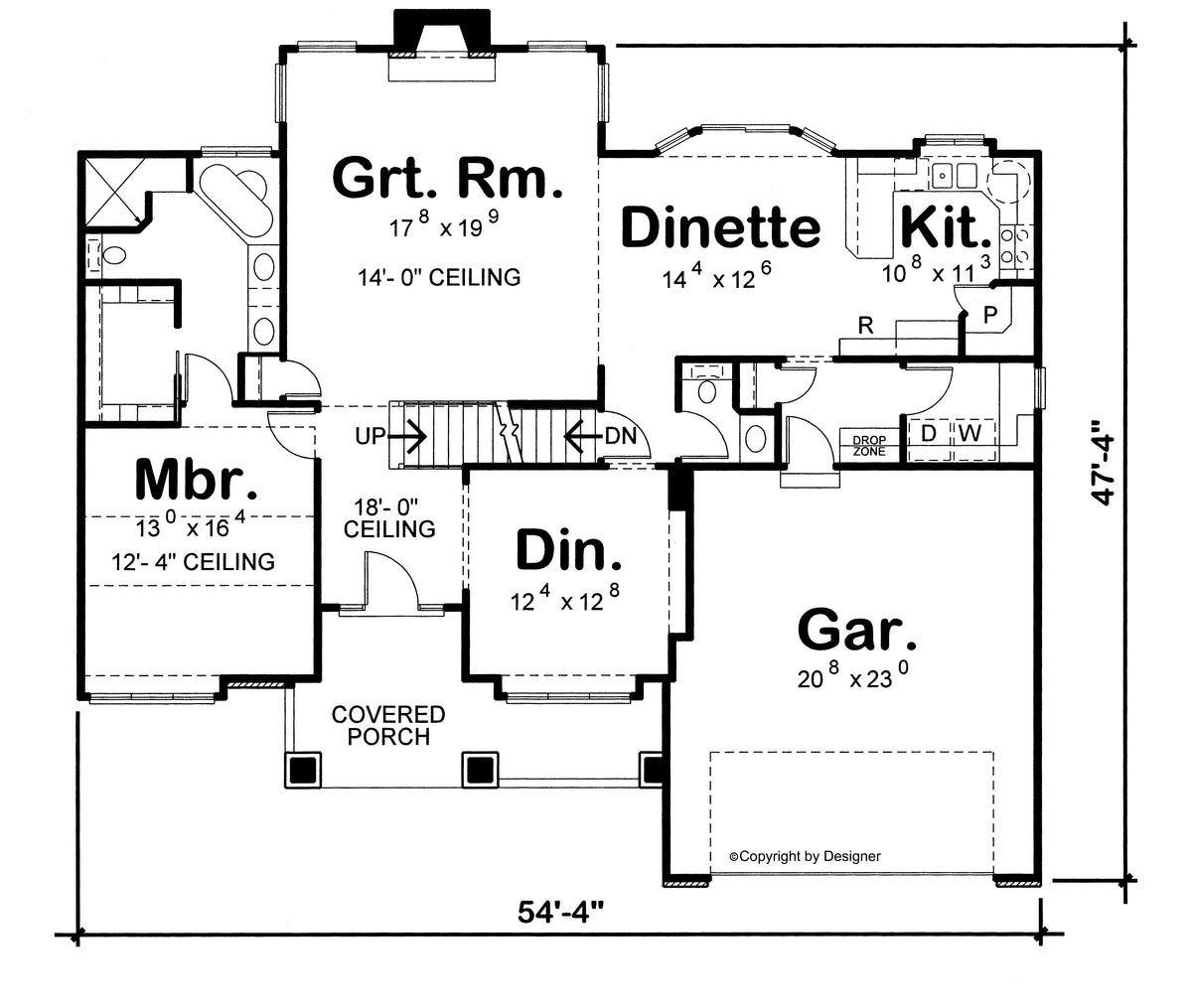

Main Level
floor plan

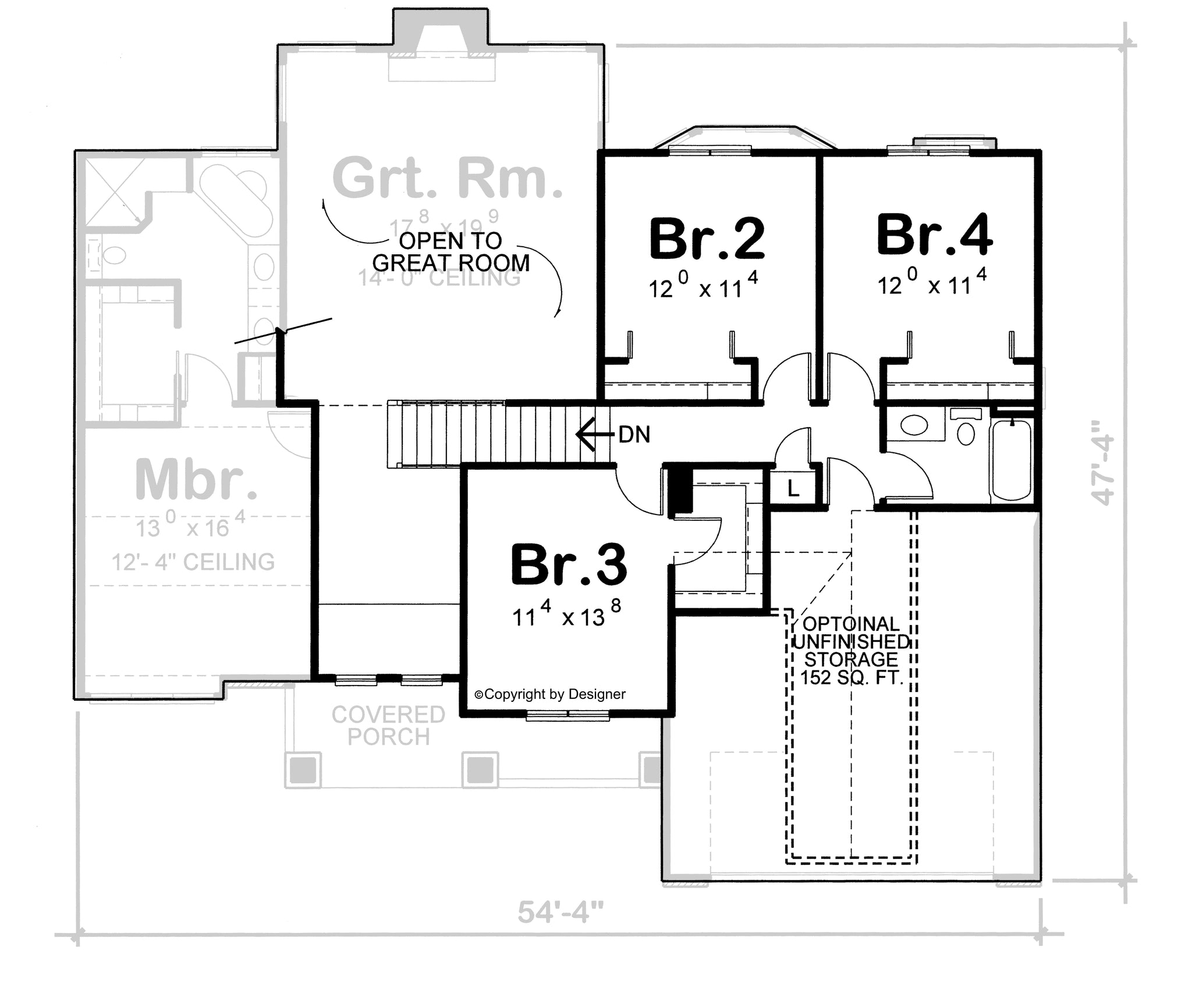

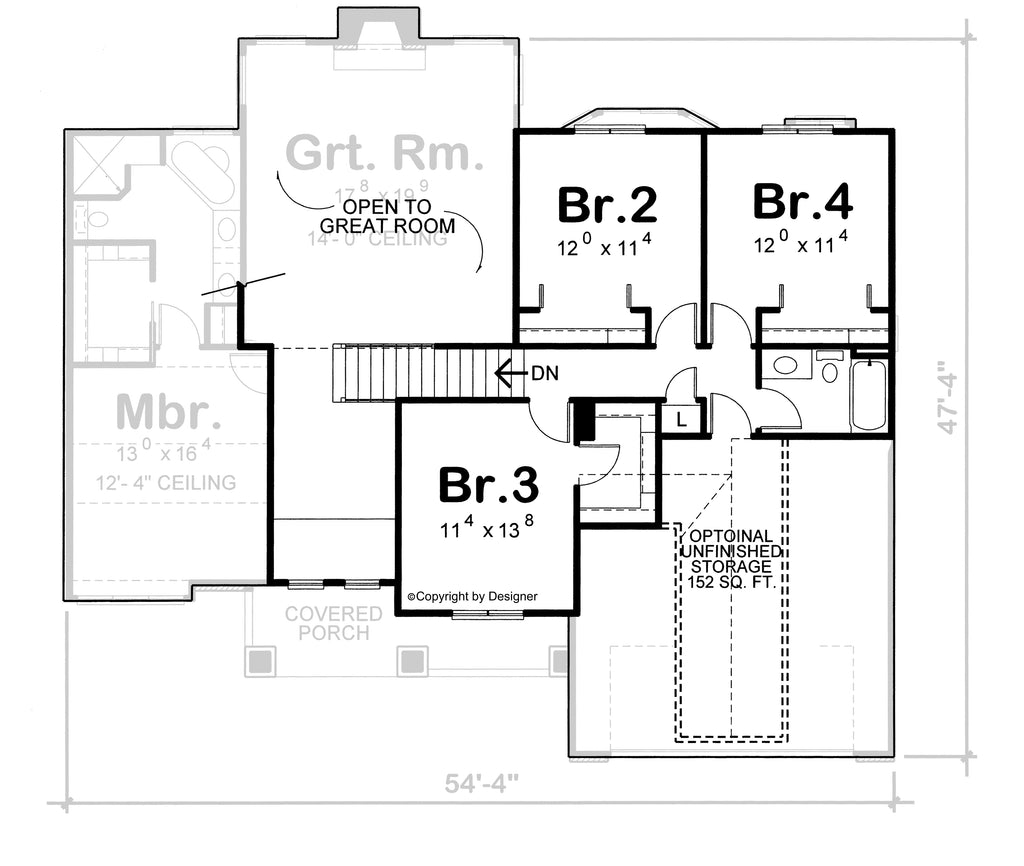

Second Floor
floor plan
House Plan Formats Explained

PDF (Single Build)

A complete set of working drawings delivered in digital PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

CAD + PDF (Single Build)

A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

5 or 8 Prints (Single Build)

Five or eight printed sets of working drawings shipped to you. This option comes with a license to build ONE home.

5 Prints + PDF (Single Build)

Five printed sets of working drawings shipped to you, plus a digital version in PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

PDF (Multi Build)

A complete set of working drawings delivered in digital PDF format. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.

CAD + PDF (Multi Build)

A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.

Choose a building foundation for your home. The foundation provides stability to a home's structure from the ground up.

Slab - This concrete foundation is reinforced with steel rods and suitable for flat ground.

Crawl Space - This foundation is raised off the ground with low walls resting on footings, providing space for wiring, plumbing, and storage.

Basement - This foundation is entirely or partially below ground and offers storage or living areas.

Walkout Basement - This foundation is typically suited for rear-sloping lots and provides storage or living areas. Walkout basements have doors that provide access to the outside.

Readable Reverse
An option to reverse the plan including texts and dimensions to make them readable.
2x4 or 2x6 Conversion
Convert the exterior framing other than the standard framing included in the plan.
Multi Build Licence (CAD required) Gives the buyer the legal right to build the house plan multiple times
What Makes Us Different
Them
Cost to Build
$30+
Shipping
Free
on physical blueprints
$20+
Price Guarantee
By 10%
beat competitor
Only Price Match
Purchase
Direct
from the Architect
Middleman

Recently Viewed Plans

Why Our Clients Trust Us

Our client image
Our client image
Our client image
Our client image
Our client image
Icon
0
+
Homes
Designed
Icon
0
Homes
Built
Icon
0
Years of
Experience

See What Our Happy Customers Are Saying

Review image
JoAnne and the entire staff was extremely helpful and patient with us while we decided between 2 homes. This home has outstanding curb appeal and a great layout perfect for us. I work from home so having the home office off the foyer is fantastic. I converted the wet bar into a storage closet for my office. We also extended the laundry room into the porch and created a multipurpose laundry/mud room. I would buy from archival designs again and again.
Rita Long
Milwaukee, WI
Review image
It took almost a year to pick a plan. Since my husband and I retired a few years ago we wanted this last house had to have everything we wanted and needed. The kitchen is my favorite part of the house. I can see what’s happening in my neighborhood through my kitchen window and watch my husband garden in the back yard. Our children think we made a smart decision when we picked this house for our senior years.
Elaine SmithsonPierre
South Dakotaomer
Review image
We’ve had an amazing experience with our new home and are excited to be moved in. The customer service we received during our modifications was exceptional. We are loving the open layout of the kitchen and family room. It feels spacious and I’m already planning on hosting holiday dinners at home. We recommend Archival Designs to anyone interested in building the home they’ve always wanted!
Sandra Hawkins
Montgomery, AL
Review image
We absolutely adore the Kildare Place house plan. Made some modifications to make this home ours! Our house is the talk of the neighborhood. We host big parties every holiday and still get compliments from our friends and family. We searched for months and looked through hundreds of floor plans and this one had almost everything we wanted, and with the help of the great staff at Archival Designs we got exactly what we wanted!
Nick Lazzari
Bakersfeild, CA
Cost TO Build Estimate
$0.00
$40.00
100% discount for new customers this month! Receive a personal estimate in two minutes instead of 2 days as many competitors offer. Just submit your request using the link below.
Give us zip/postal code INSTANT
Get a FREE Instant quote! ACCURATE
Sent to your email FREE
Request a Cost To Build
Cost to build your dream home

FAQ

Can I modify this Charming 2,196 Sq Ft Two-Story with Grand Living Spaces now or later?

Absolutely. We offer in-house modification services to adjust layouts, room sizes, or expand garages before purchase. If you prefer to make adjustments during the construction phase, purchasing the CAD file package allows your local builder or architect to make on-site changes. Simply click 'Request a Modification' for a free quote.

How much will it cost to build this Charming 2,196 Sq Ft Two-Story with Grand Living Spaces and why aren't exact costs shown?

Construction costs vary significantly ($150–$300+ per sq. ft.) based on your location, material choices, and local labor rates. Because site preparation and regional codes differ, it is hard to provide a universal cost always.

Will this Charming 2,196 Sq Ft Two-Story with Grand Living Spaces fit my lot, and can I add a basement or flip the layout?

You can check the 'Modifications' tab for width and depth requirements. To fit your site's orientation, most plans are available in a 'Right Reading Reverse' (mirrored) format. We also offer slab, crawlspace, and basement foundation adjustments for every design.

Do your plans meet building codes in my area and do I need a professional stamp?

Our plans meet or exceed national IRC (International Residential Code) standards. However, due to varying local requirements regarding seismic, wind (hurricane), or snow loads, house plans do not come with a professional architect’s or engineer’s seal. Most municipalities require a review and stamp by a local licensed professional to obtain a building permit.

Are plumbing, HVAC, and mechanical drawings included?

We provide the architectural and schematic electrical framework, but HVAC and plumbing layouts are not included. Because local codes and climate-specific systems vary significantly across the country, these are best finalized by your local subcontractors to ensure your home’s systems are optimized for your specific site and energy requirements.

Why should I choose Archival Designs and are the plans guaranteed?

With over 40 years of experience, Archival Designs provides high-quality, builder-ready designs that balance aesthetic elegance with structural integrity. We offer a Best Price Guarantee, a 10% discount for military and first responders, as well as builder discounts for life. And loyalty perks for pro builders. All plans are designed to comply with the IRC codes at the time of their creation. Learn more about our Best Price Guarantee.
