Bright One-Story Home with Cathedral Family Room and Bay Window
4.8
Plan Number:

AB6298-A

Rated 4.8
Plan Number:

AB6298-A

✔ Best Price Guarantee | ✔ Free Cost to Build Calculator
Or order by phone: (888) 890-2353
Safe and Secure
SafePay icons
LOW PRICE GUARANTEE
Free Cost to Build Calculator

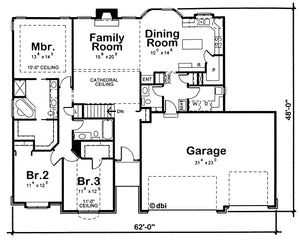

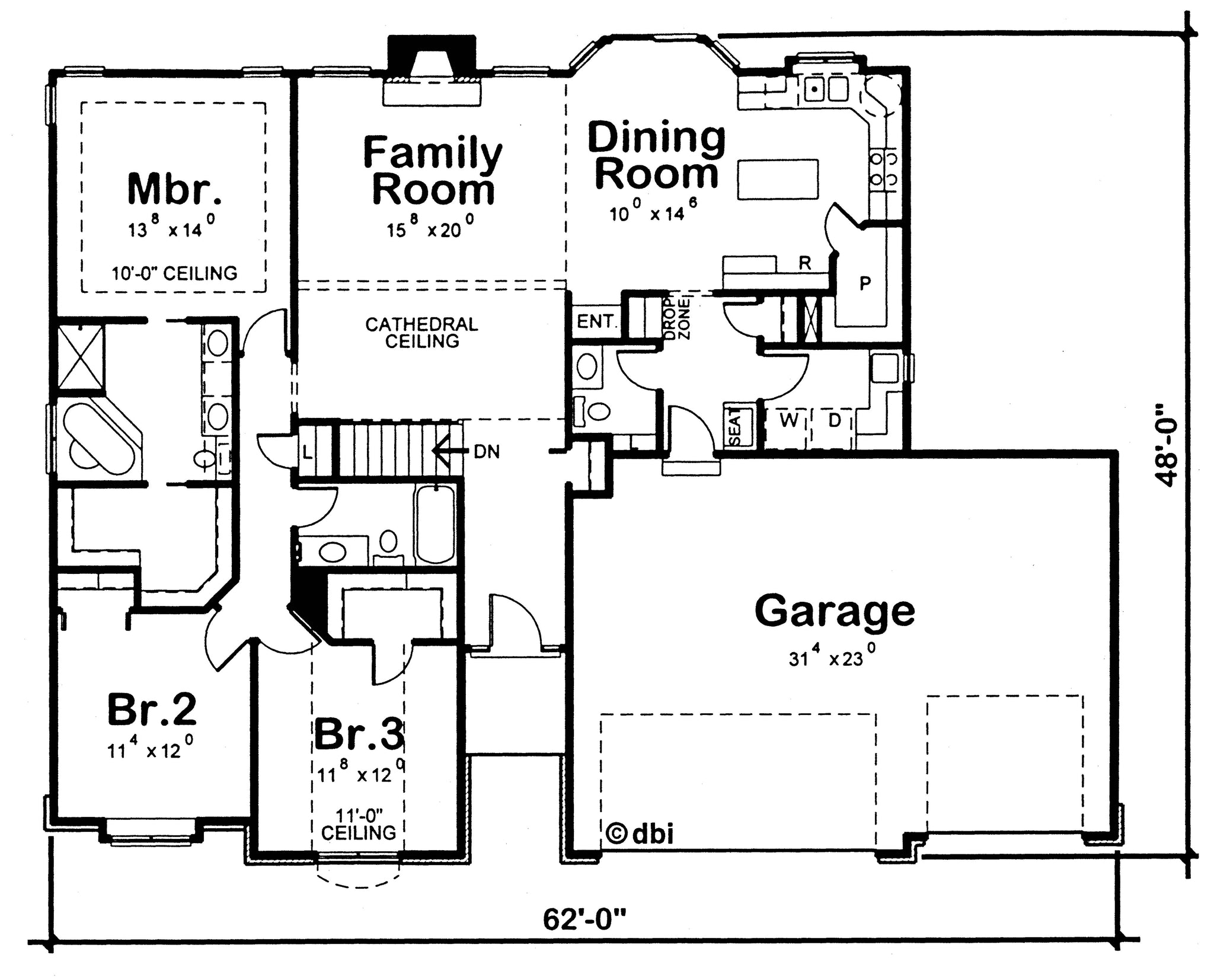

Floor Plan
floor plan

Bright One-Story Home with Cathedral Family Room and Bay Window

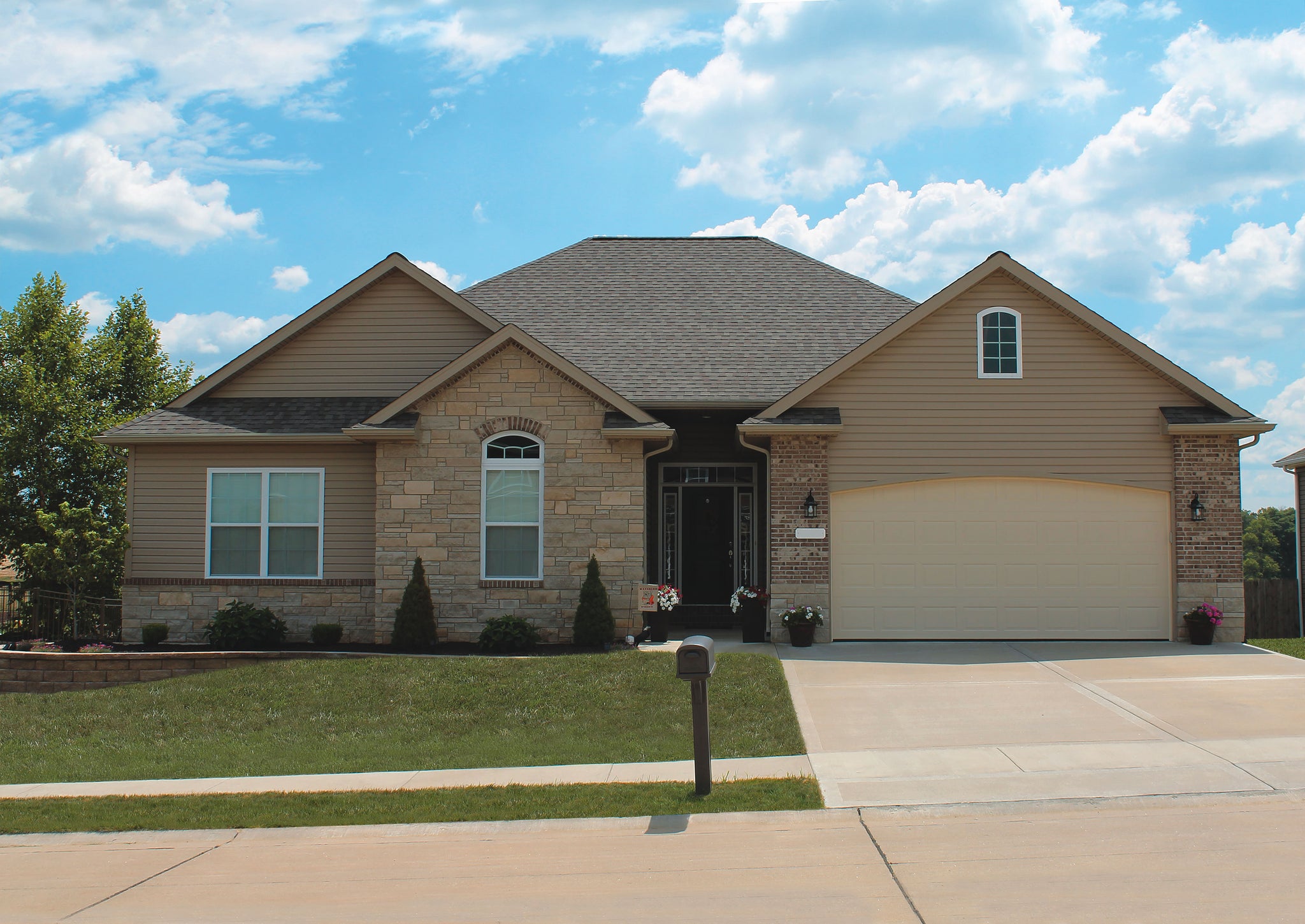

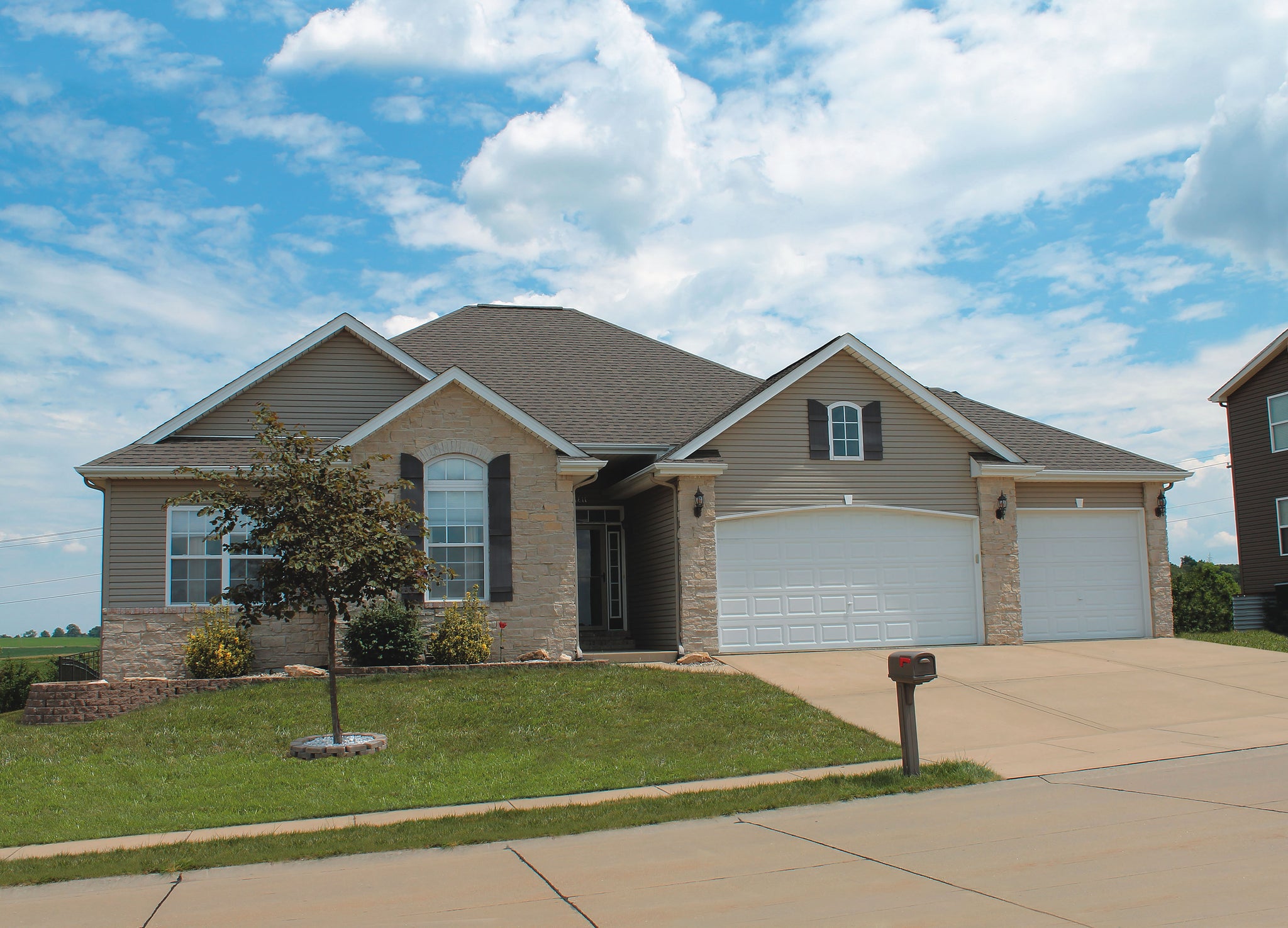

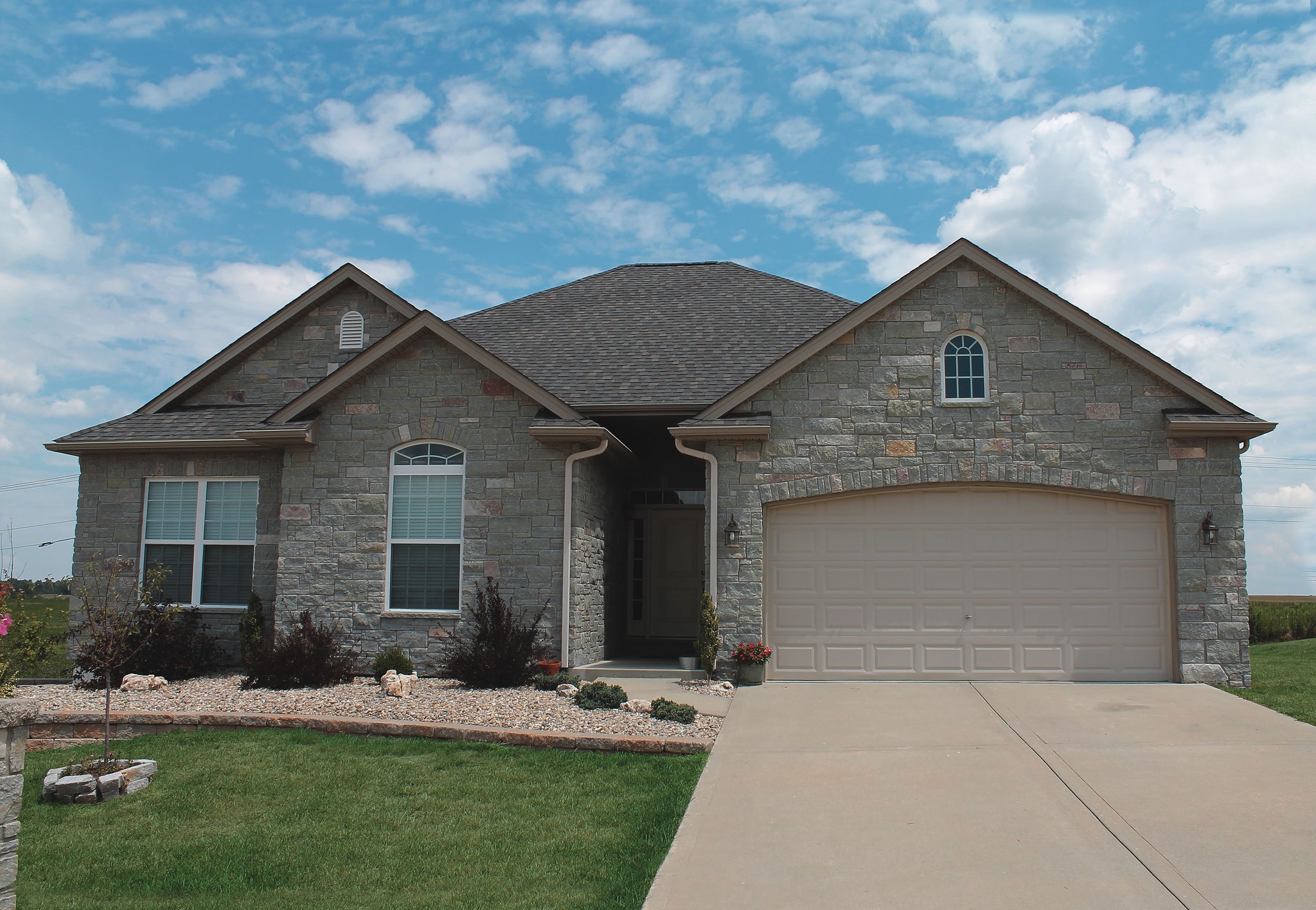

42035 Saffron is a 1,763 sq ft one-story residence defined by an 8:12 roof pitch and a 62-foot width that fits compact lots while maximizing interior volume. The exterior profile reaches a maximum building height of 25 ft 10 in, featuring a 36 sq ft covered porch that provides a clear transition into the main living quarters.

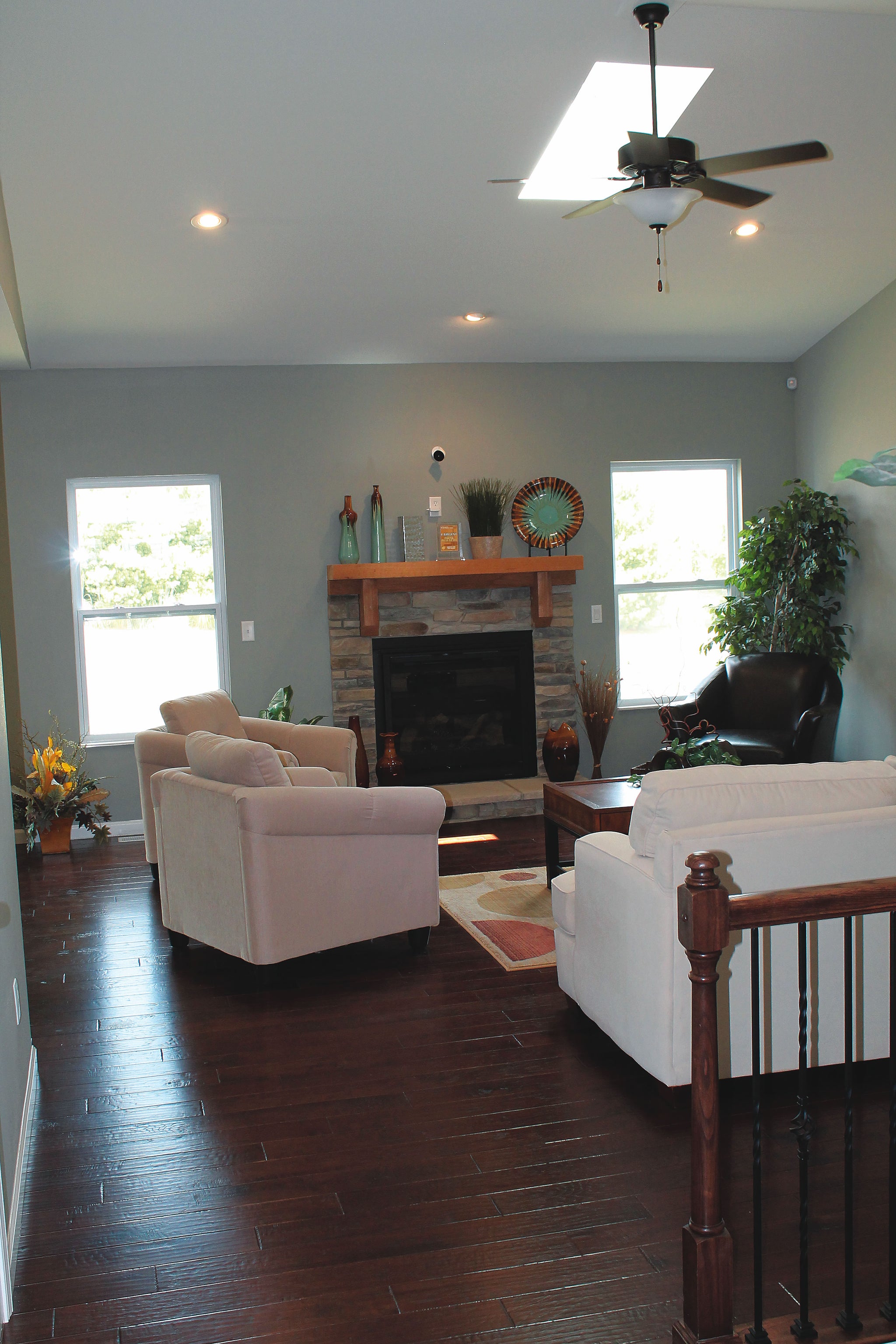

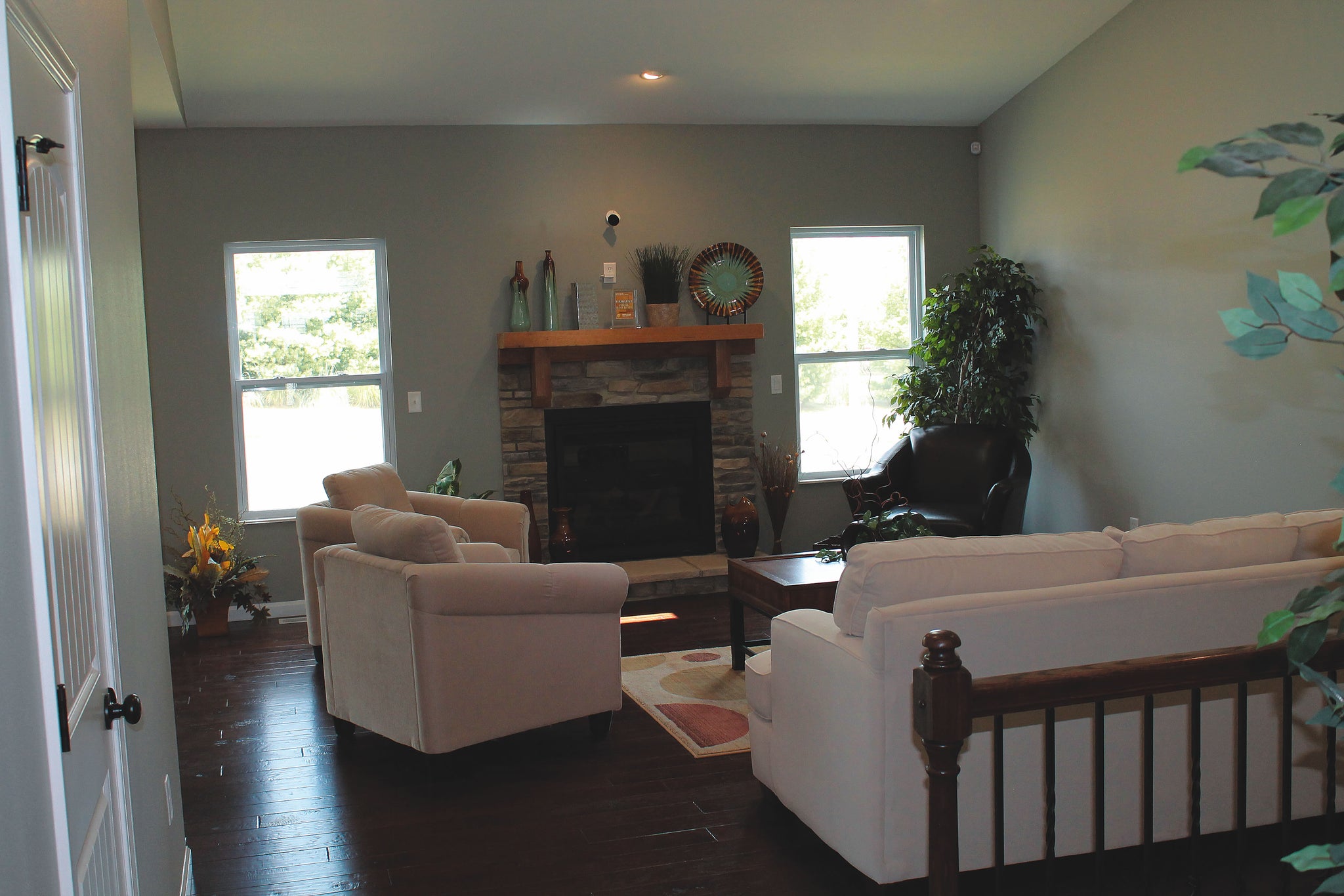

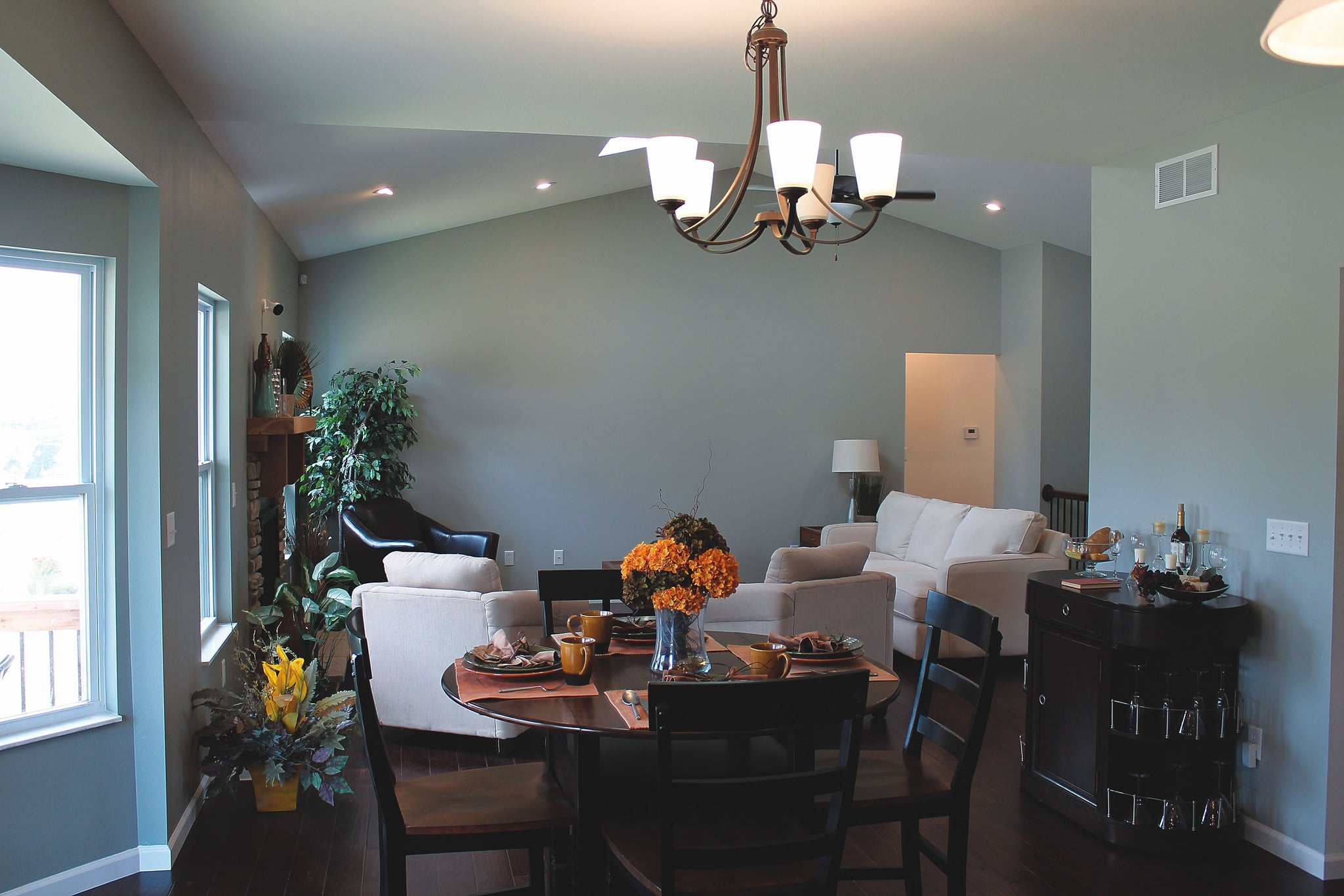

The interior architecture centers on a great room with a cathedral ceiling, creating a vertical focal point that draws light into the heart of the home. A formal dining area utilizes a bay window to expand the floor plan's footprint, while the kitchen includes a dedicated walk-in pantry to consolidate storage. With 1,763 sq ft of heated living space on the first floor, the layout provides 3 bedrooms and 2 full bathrooms plus a half bathroom.

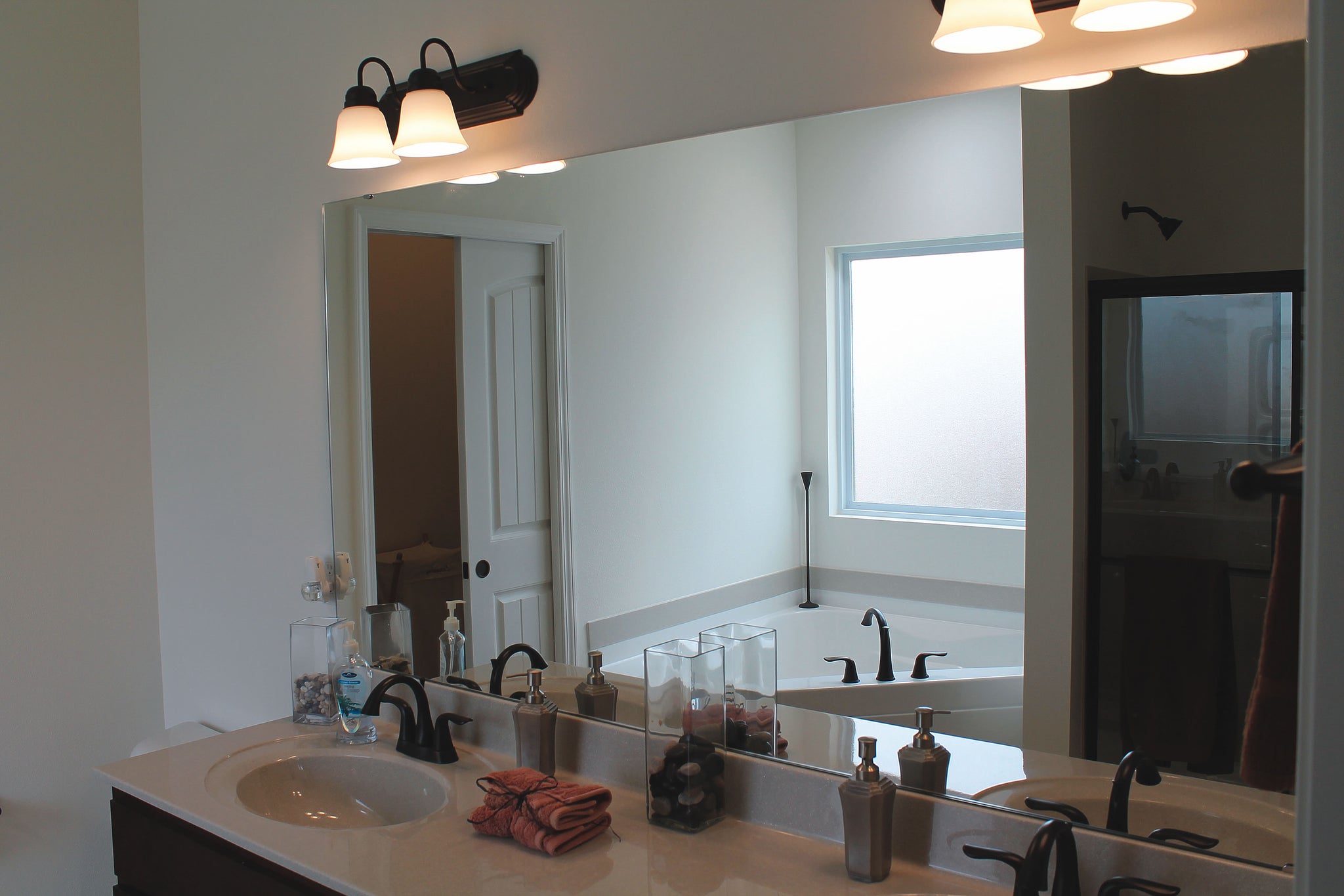

Privacy is managed through a split-bedroom configuration that separates the primary suite from the secondary sleeping quarters. The primary suite features a 10-foot ceiling height, providing a distinct volume compared to the standard 9-foot ceilings found throughout the remainder of the first floor. This arrangement creates a clear division between communal social zones and private retreats.

Structural utility is supported by a 730 sq ft front-load garage with a 2-car capacity, providing substantial space for vehicles and additional storage. The home includes an unfinished basement area of 1,763 sq ft, offering the potential for future expansion or climate-controlled utility space. The foundation and framing are engineered to support the 8:12 roof slope, ensuring a consistent traditional aesthetic across the entire building envelope.

Key Features: 3 bedrooms, 2.5 bathrooms, split-bedroom layout, cathedral ceiling great room, bay window, walk-in pantry, first-floor primary suite, 2-car front-load garage, unfinished basement, 8:12 roof pitch.

Explore floor plans, available formats, and customization options for the 42035 Saffron home design.

View Sample Plan
What's Included in the House Plan:
  • Cover Page – Front elevation, general notes, design criteria, abbreviations, and symbols

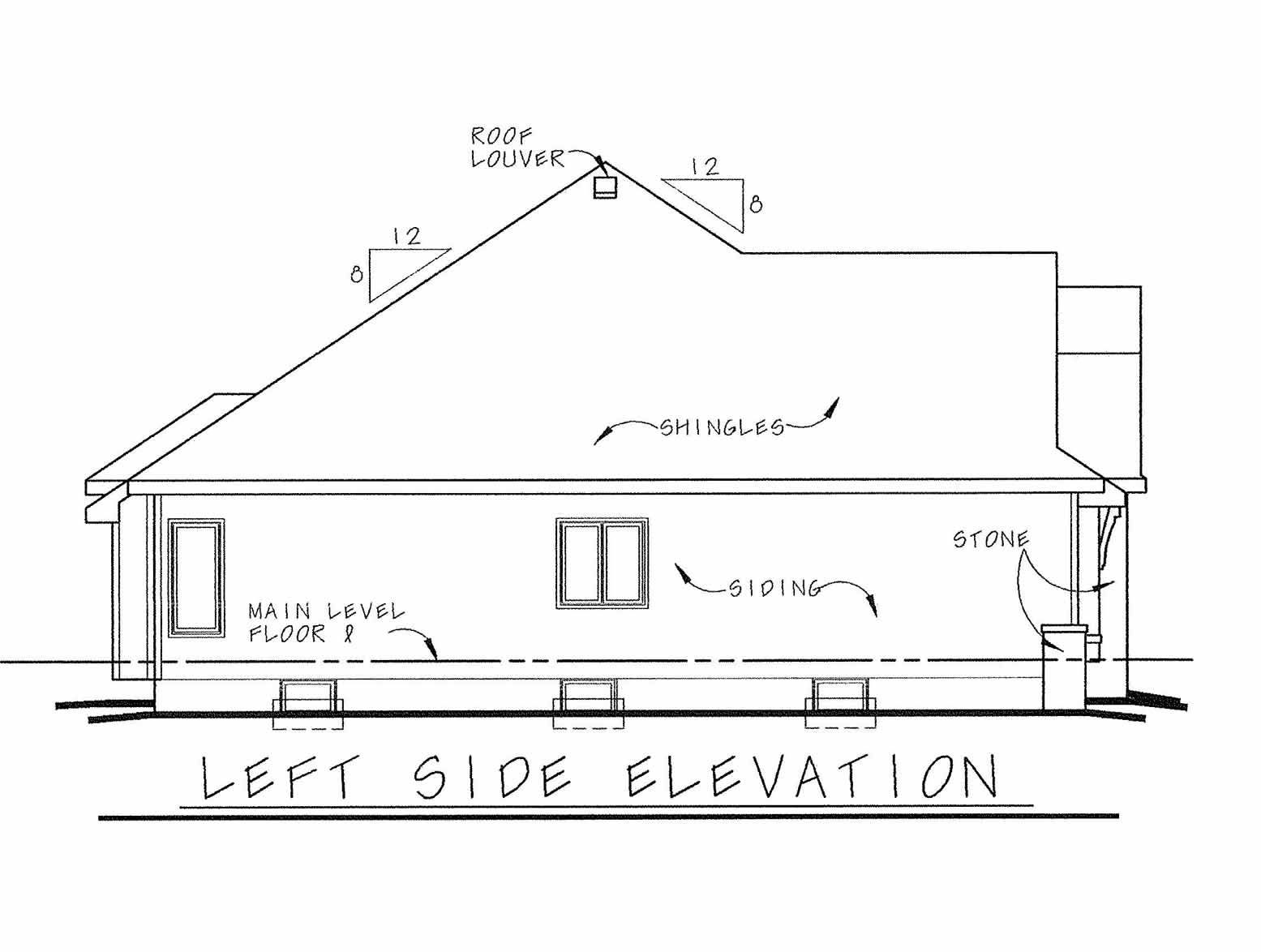

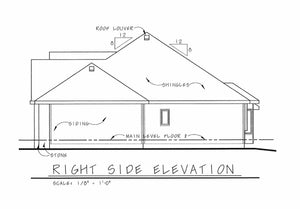

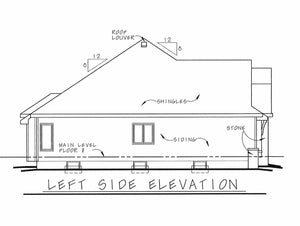

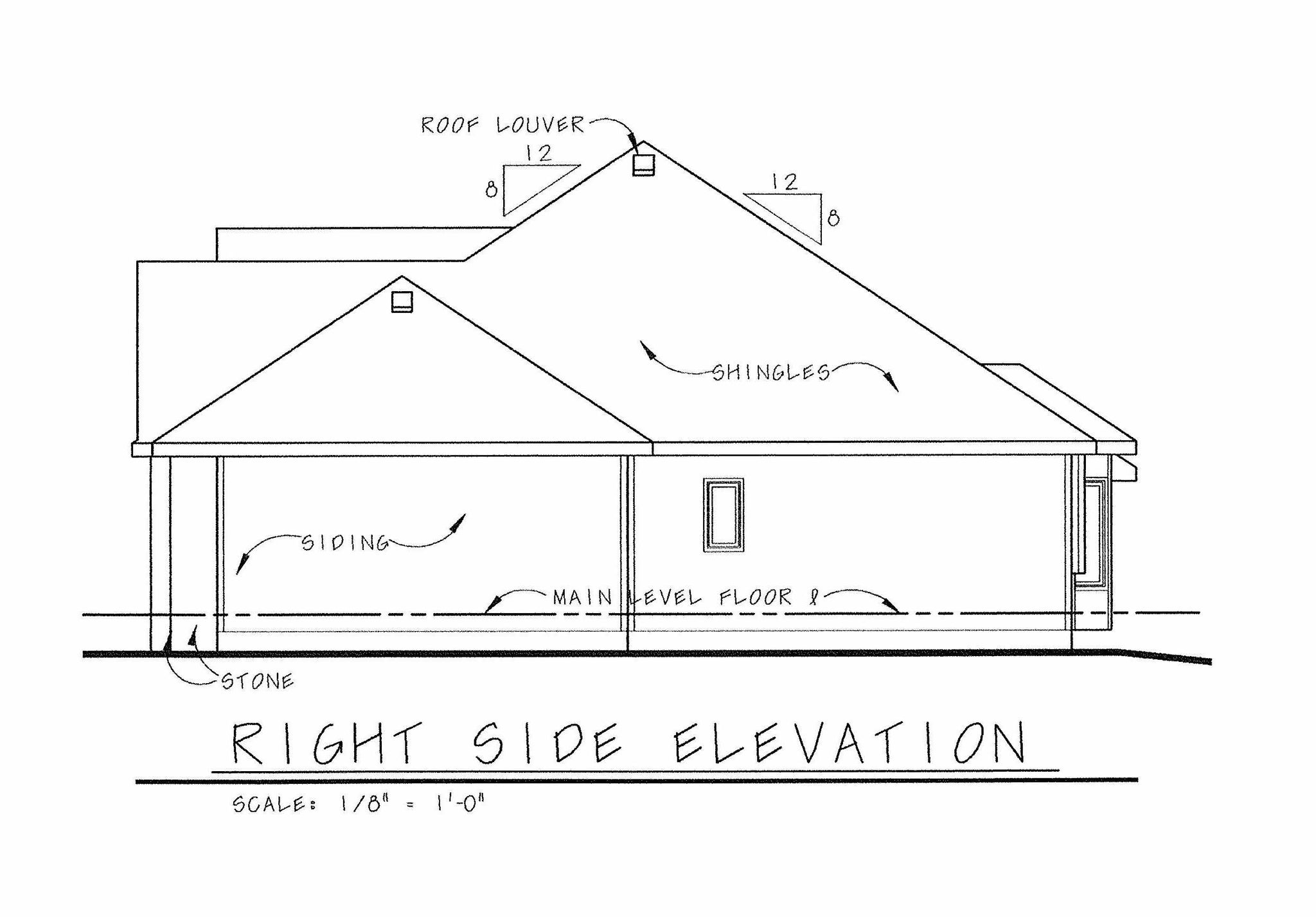

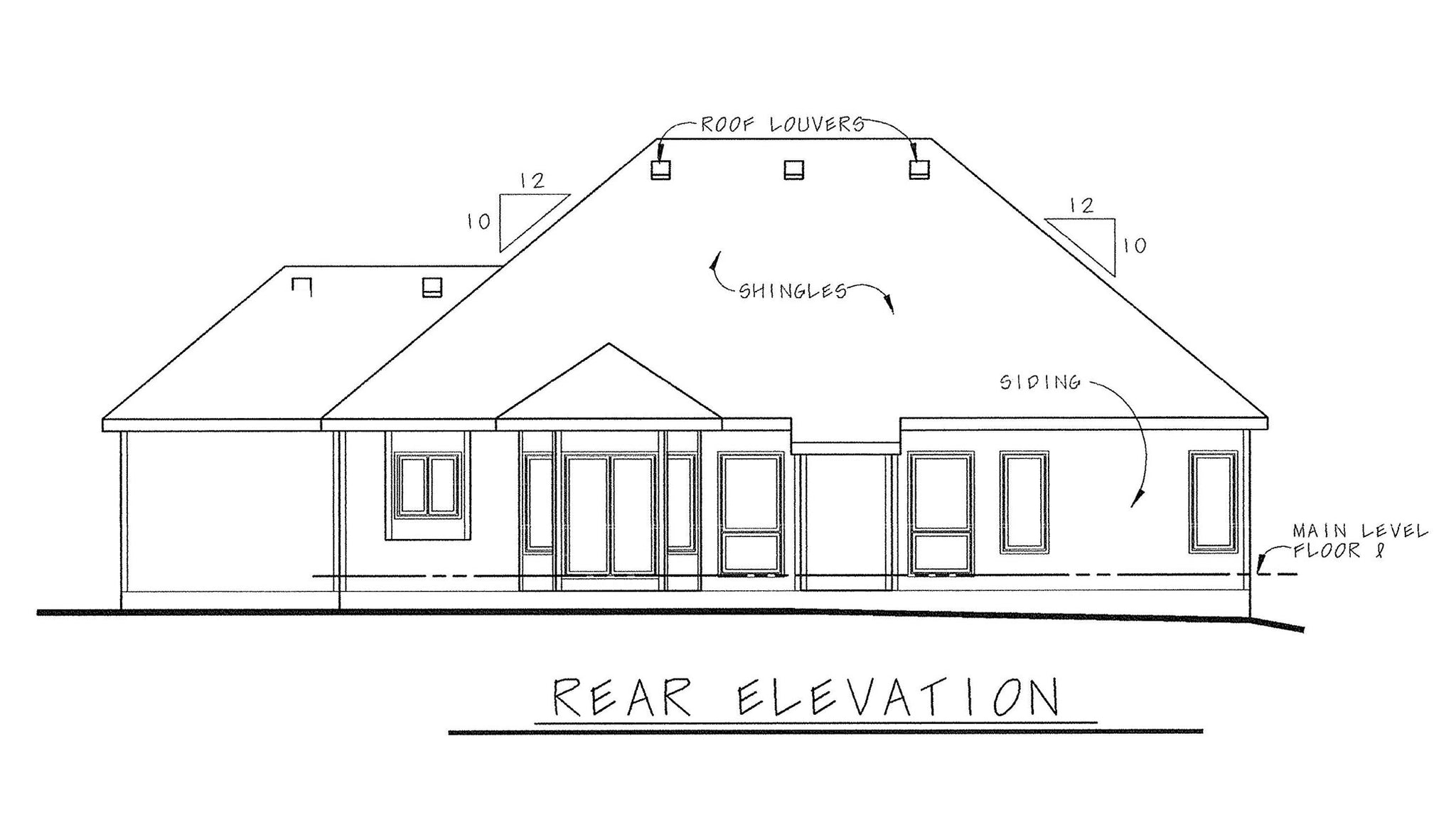

  • Elevations – Scaled front, rear, and side views, plus roof aerial
  • Foundation Plans – Engineered for slab or basement
  • Main Floor Plan – Fully dimensioned for framing, with wall thickness notes
  • Second Floor Plan – Same detail as main floor
  • Electrical & Sections – Separate page with electrical layout and typical wall/stair sections
  • Technical Support – Plan-related assistance included
What's Not Included:
  • Architectural or Engineering Stamp: Handled locally if required.
  • Site Plan: Created locally when needed.
  • Mechanical Drawings: Heating, air equipment, and ductwork to be designed by subcontractors.
  • Plumbing Drawings: Pipe sizes and locations to be determined by subcontractors.
  • Energy Calculations: Handled locally if required.

House Plan Specifications

  • Total Living (heated area):  1763 sq ft
    All Unheated Under-Roof Areas  766 sq ft
    Total Structure  2529 sq ft
    1st Floor:  1763 sq ft
    Front Porch:  36 sq ft
  • Garage:  730 sq ft
    Garage Bays:   3
    Garage Load:   Front
  • Bedrooms:   3
    Bathrooms:   2
    Half Bathrooms:   1
  • Foundation:   Unfinished Basement
    Wall Framing:   2x4
    Roof Framing:   Stick
    Roof Pitch:  8:12
  • Width of House:  62'
    Depth of House:  48'
    Building Height:  25'10''
  • First Floor Ceiling Height:  9'
    Second Floor Ceiling Height:  8'

Key Features

  • Cluster Bedroom
  • Fireplace
  • First Floor Laundry
  • First Floor Master Suite
  • Formal Dining Room
  • Great Room
  • Private Master Bath

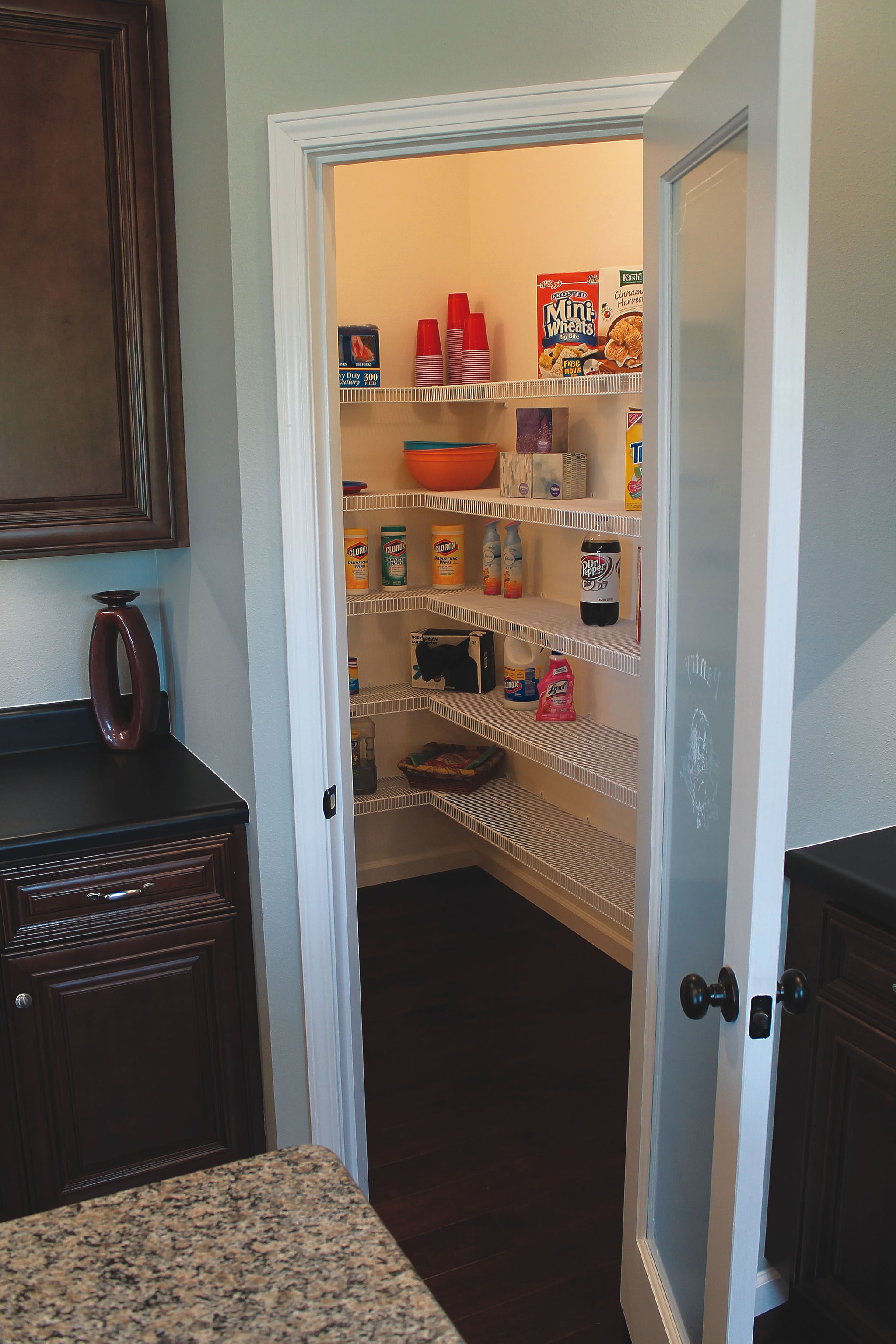

  • Walk-in Pantry
Modify this plan to make it perfect
Our hassle-free process makes it easy to modify your dream home. To receive an estimate please submit your request using the link below.
Submit a Modification Request
Cost to build estimate
$0.00
$40.00
100% discount for new customers this month!
Receive a personal estimate in two minutes instead of 2 days as many competitors offer. Just submit your request using the link below.
Get Your Estimate
Plan Number: AB6298-A
Bright One-Story Home with Cathedral Family Room and Bay Window
3 Bedrooms
2 Full Baths
1 Half Baths
1763 SQ FT
1 Stories
Product print image
Main Level
floor plan
House Plan Formats Explained

PDF (Single Build)

A complete set of working drawings delivered in digital PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

CAD + PDF (Single Build)

A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

5 or 8 Prints (Single Build)

Five or eight printed sets of working drawings shipped to you. This option comes with a license to build ONE home.

5 Prints + PDF (Single Build)

Five printed sets of working drawings shipped to you, plus a digital version in PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

PDF (Multi Build)

A complete set of working drawings delivered in digital PDF format. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.

CAD + PDF (Multi Build)

A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.

Choose a building foundation for your home. The foundation provides stability to a home's structure from the ground up.

Slab - This concrete foundation is reinforced with steel rods and suitable for flat ground.

Crawl Space - This foundation is raised off the ground with low walls resting on footings, providing space for wiring, plumbing, and storage.

Basement - This foundation is entirely or partially below ground and offers storage or living areas.

Walkout Basement - This foundation is typically suited for rear-sloping lots and provides storage or living areas. Walkout basements have doors that provide access to the outside.

Readable Reverse
An option to reverse the plan including texts and dimensions to make them readable.
2x4 or 2x6 Conversion
Convert the exterior framing other than the standard framing included in the plan.
Multi Build Licence (CAD required) Gives the buyer the legal right to build the house plan multiple times
