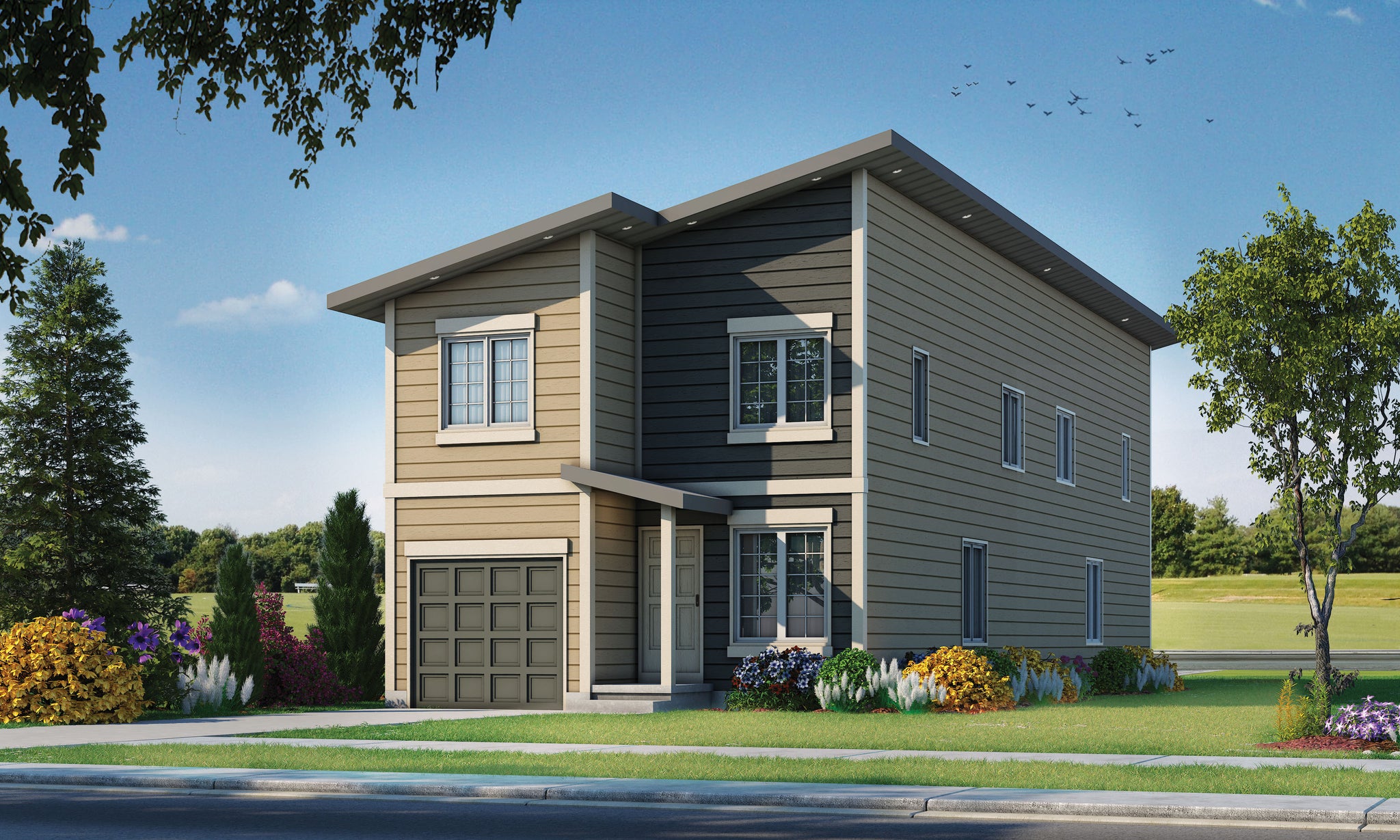

29380 Mcadoo is a contemporary duplex architecture designed for narrow urban lots, measuring 22 feet in width and 76 feet in depth. This multi-family plan offers a total of 2,554 sq ft of heated living space, with each of the two units providing 1,277 sq ft across a two-story vertical configuration. The design prioritizes individual unit privacy, incorporating separate front-load garage access and distinct entry points for each residence.

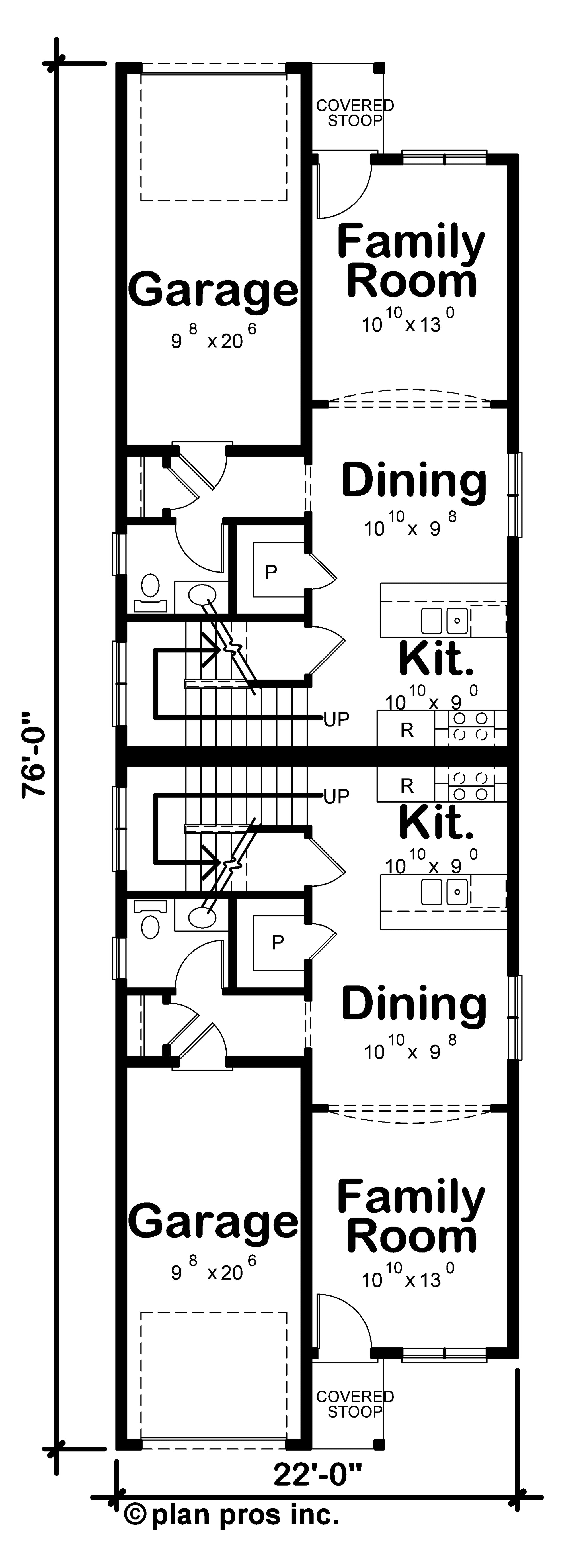

The first floor of each unit encompasses 1,124 sq ft, organized around an open-concept core that integrates the kitchen, formal dining area, and a keeping room. A central kitchen island serves as the primary workspace, complemented by a dedicated walk-in pantry. A half bathroom is positioned on this level for guest access, maintaining the separation between social zones and private quarters.

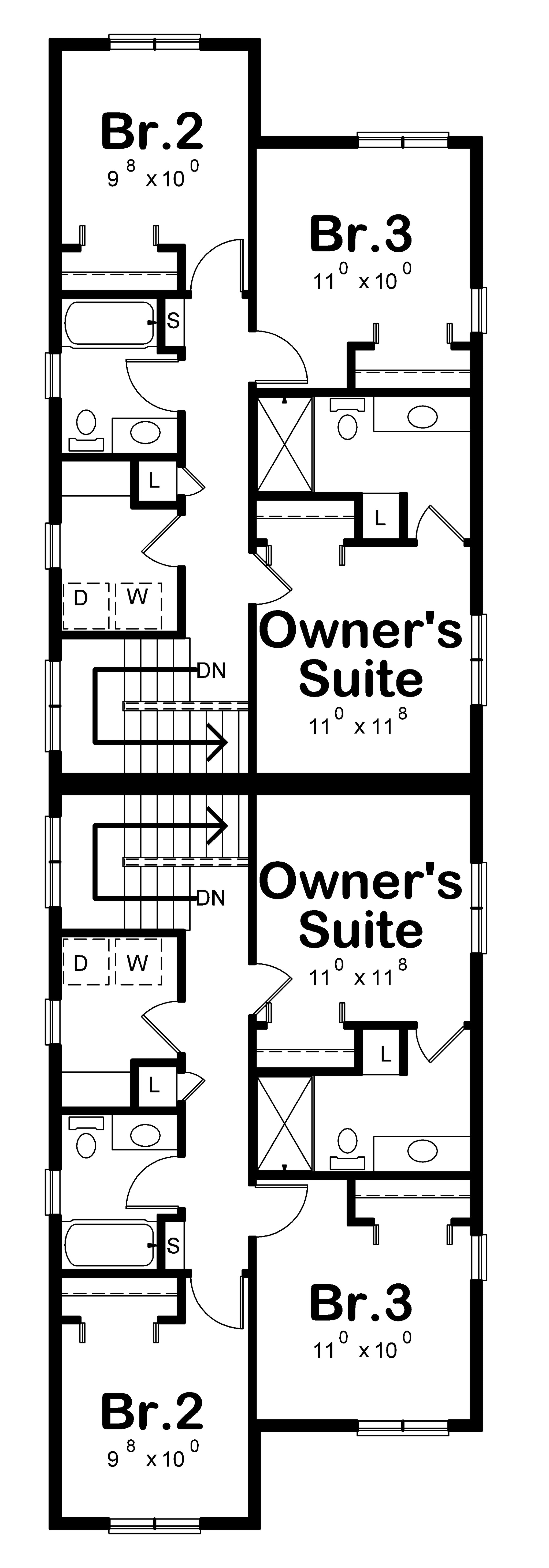

The second floor provides 1,430 sq ft of living space, accommodating the private master suite, additional bedrooms, and a laundry area. With 8-foot ceiling heights throughout both levels, the design maintains consistent volume and efficiency. The bedrooms are arranged to maximize floor plate utility, ensuring that the total of 4 full bathrooms and 2 half bathrooms are distributed effectively across the duplex structure.
Structural integrity is defined by an 8:12 roof pitch and a maximum building height of 26 ft 3 in, suitable for restricted zoning envelopes. The duplex features a combined 434 sq ft garage area, allowing for two-car capacity. The building footprint is optimized to provide high-density housing without sacrificing individual unit functionality or exterior proportions.
Key Features: duplex-house-plans, two-story configuration, narrow-lot design, open-concept floor plan, kitchen island, walk-in pantry, first-floor half bathroom, second-floor laundry, front-load garage, multi-generational living, investment property.
