29331 Tarkenton is a two-story duplex house plan offering a total of 2,836 square feet of heated living area, divided into two mirrored units. Each unit provides 1,418 square feet of space, measuring 52 feet in width and 47 feet 8 inches in depth. This layout is engineered for rental income or multi-generational living, featuring a symmetrical design that maximizes site efficiency on standard residential lots.

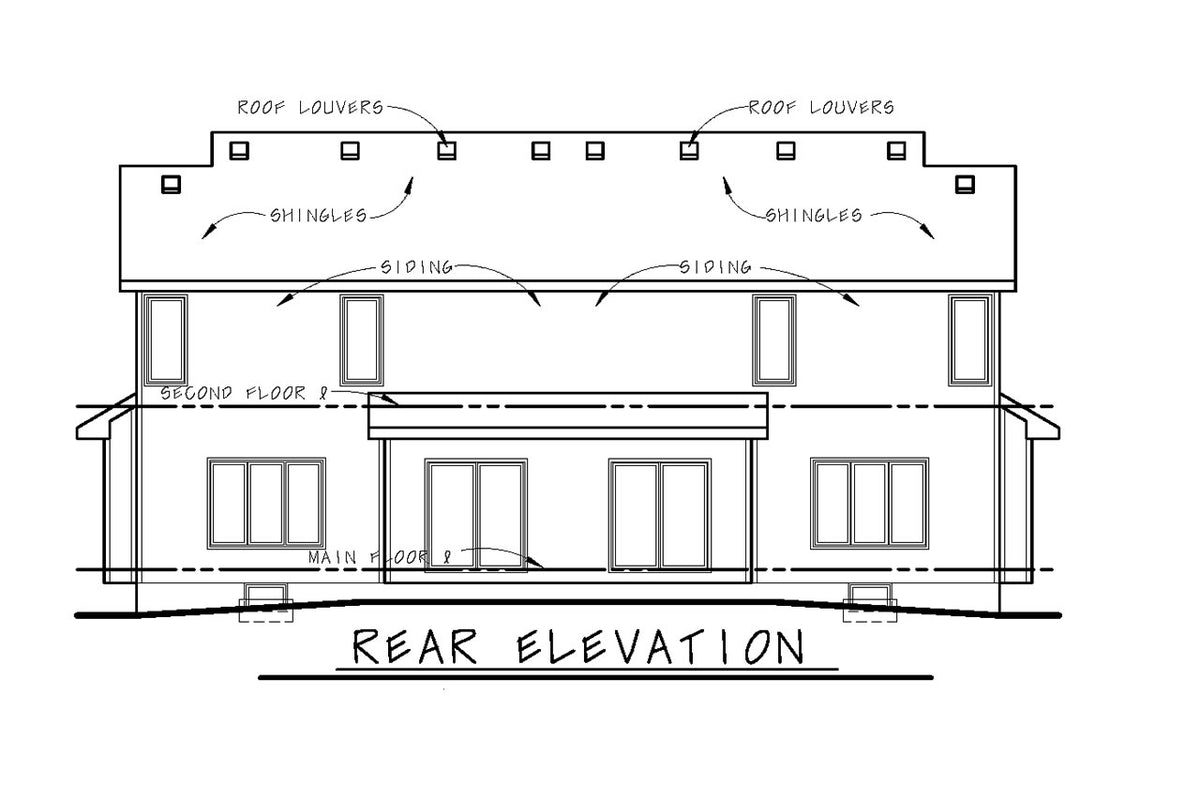

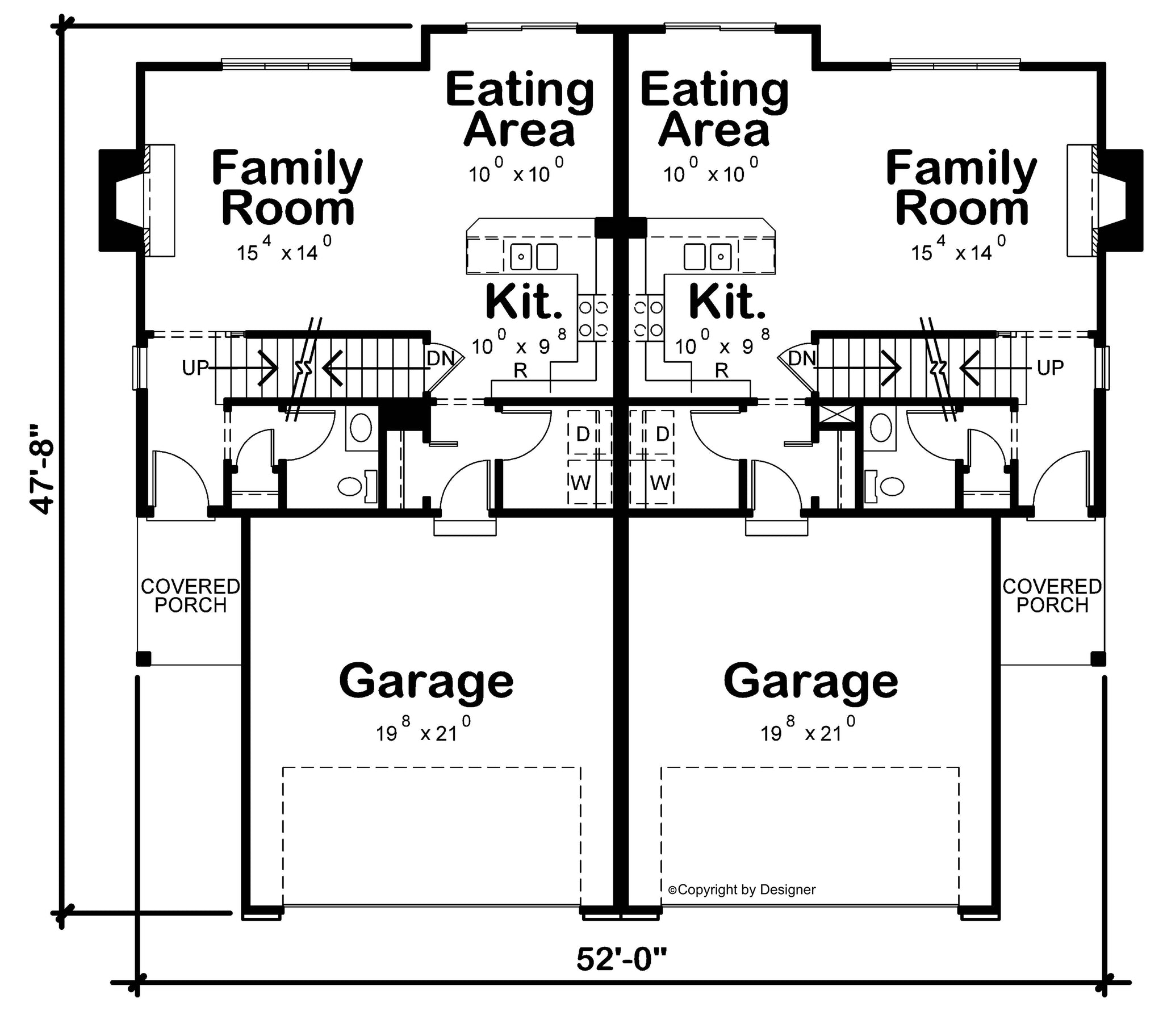

The main level of each unit encompasses 1,308 square feet, anchored by an open-concept living zone. The ground floor layout prioritizes utility with a mudroom and a central kitchen configuration that facilitates direct sightlines into the living and dining spaces. Nine-foot ceiling heights on this level increase the perceived volume, while sliding glass doors provide egress to the rear of the property, enhancing natural light penetration throughout the social core.

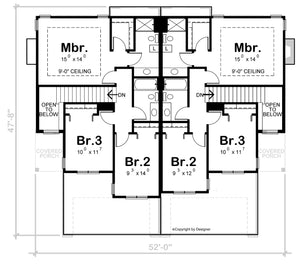

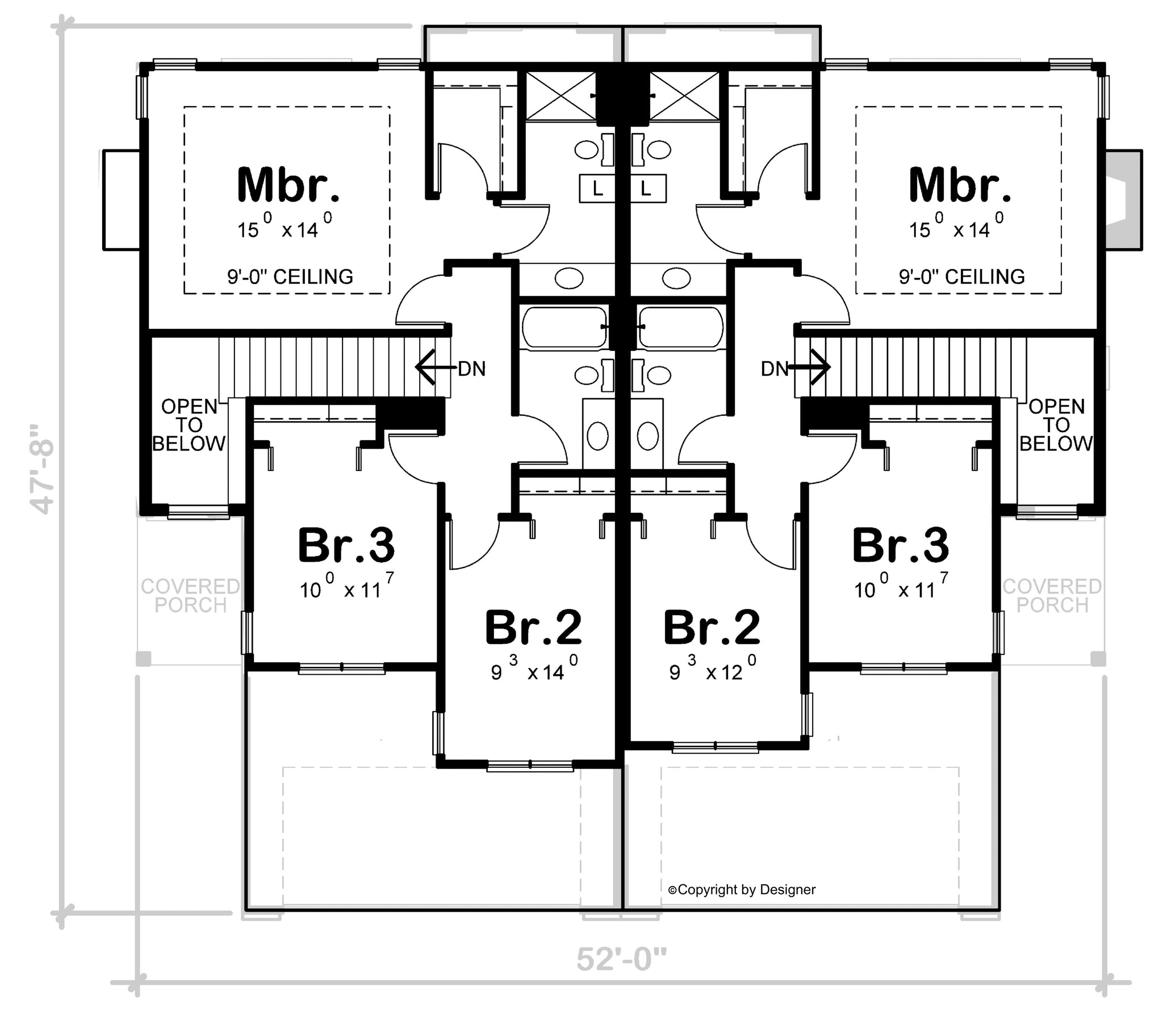

The second floor offers 1,528 square feet of upper-level living space, housing the sleeping quarters. With eight-foot ceilings, this level contains the bedroom suites, providing separation from the primary activity areas on the main floor. The cluster-bedroom arrangement ensures that all private zones are contained within a single vertical footprint, which simplifies plumbing runs and structural load paths.

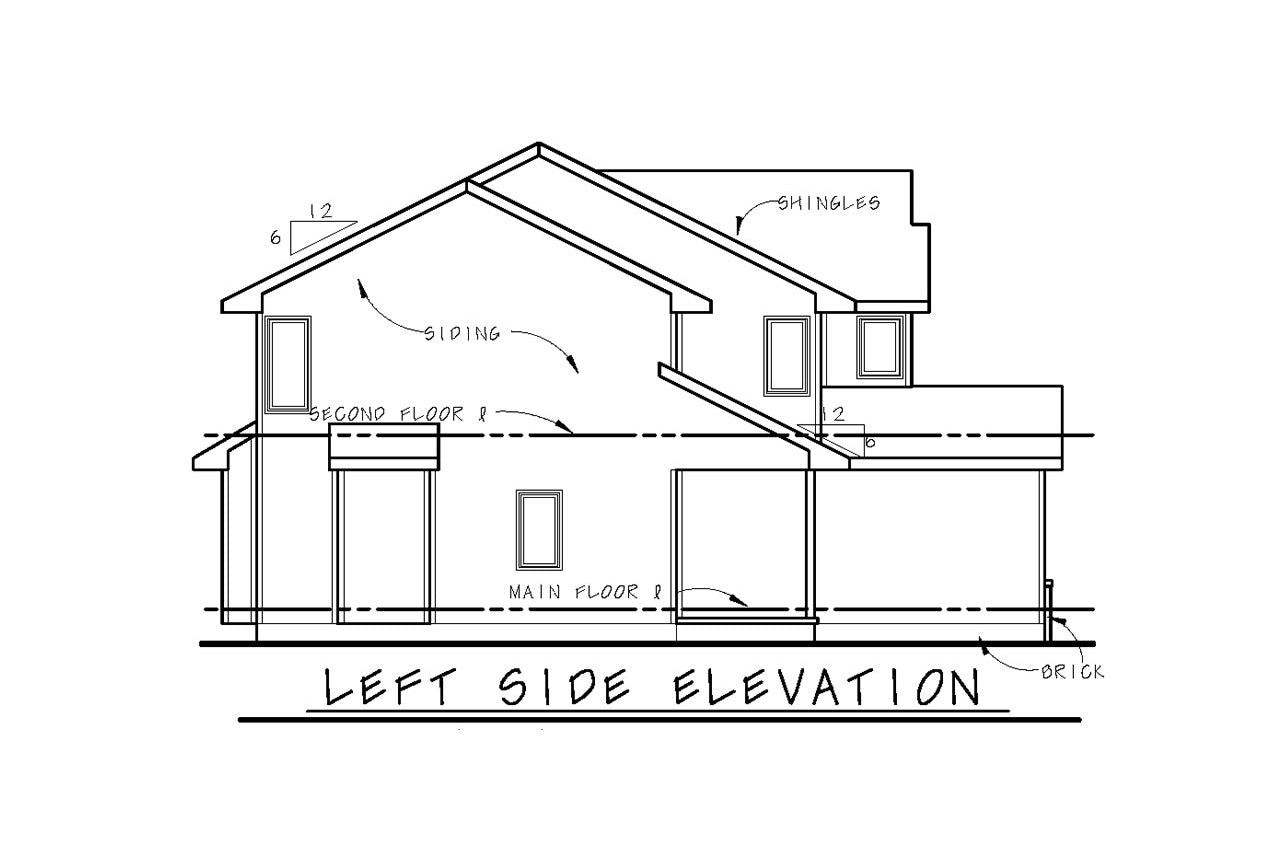

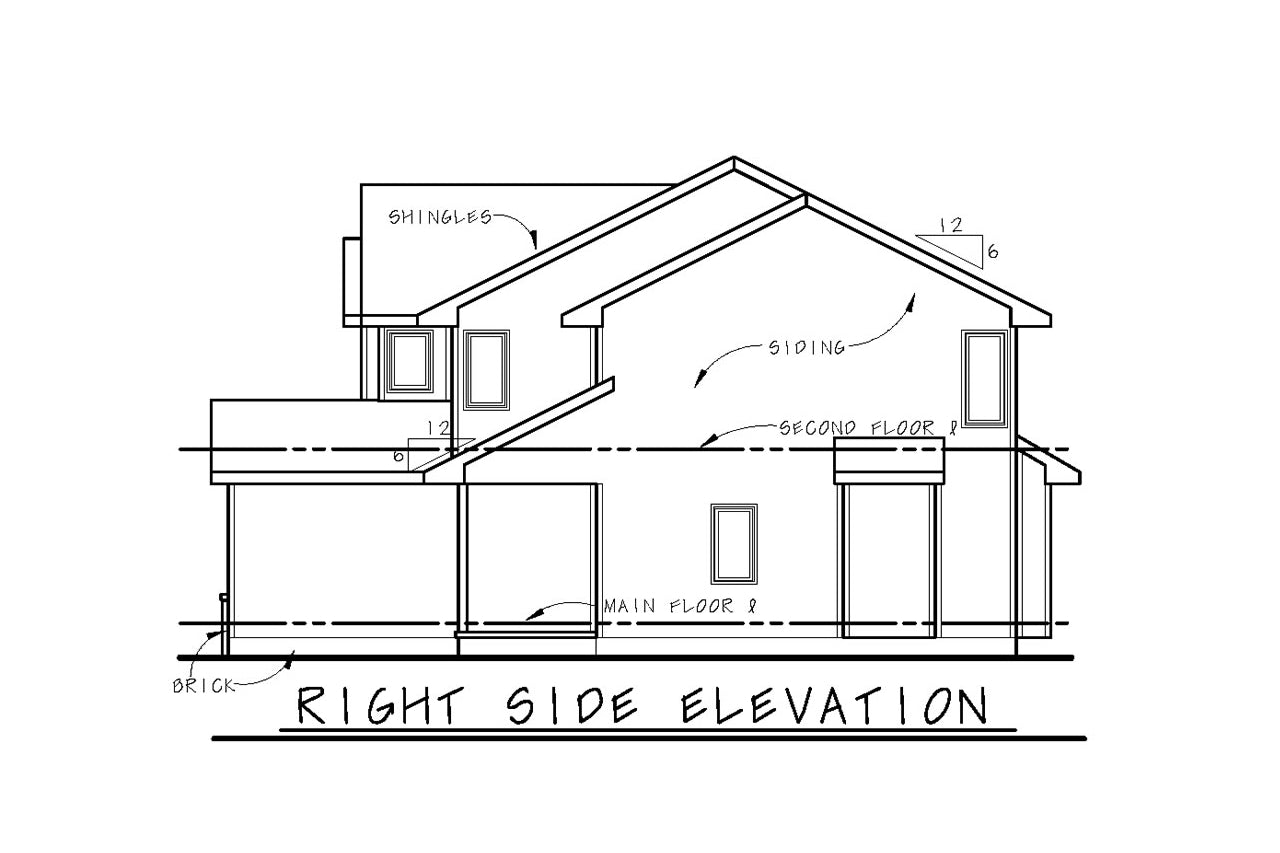

Construction specifications include a 6:12 roof pitch and a maximum building height of 29 feet 1 inch. The structure is designed to accommodate a total of four vehicles within the 868 square foot garage area, split between the two units. This density-focused approach allows for significant parking and storage capacity without compromising the building's exterior proportions or street-facing curb appeal.
Key Features: 3 bedroom suites, 4 total full bathrooms, 2 total half bathrooms, 4-car garage, dual kitchen layout, open-concept floor plan, covered front porch, mudroom, 6:12 roof pitch, duplex configuration. Explore floor plans, available formats, and modification options for this design.
