AB5824-A

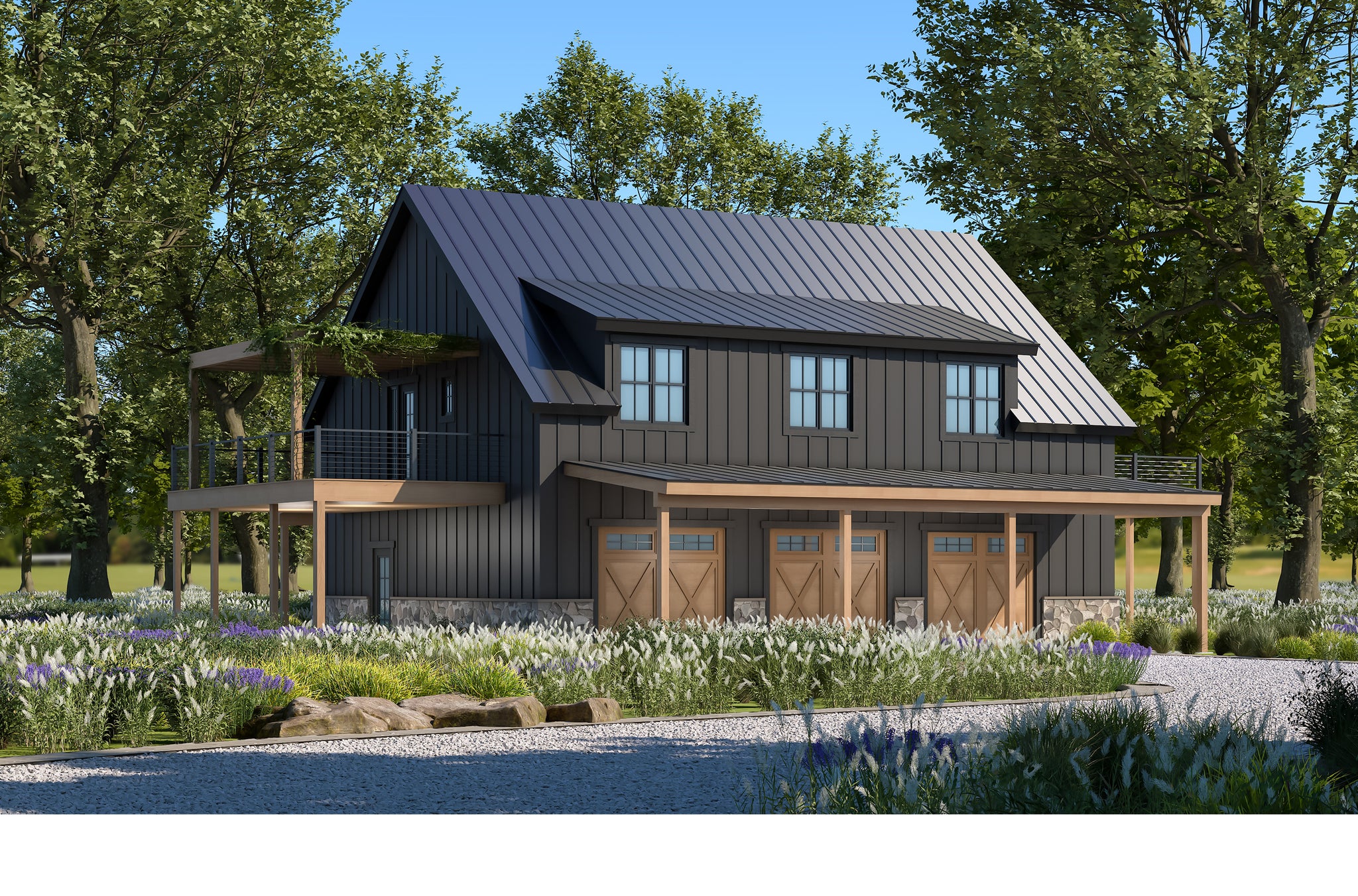

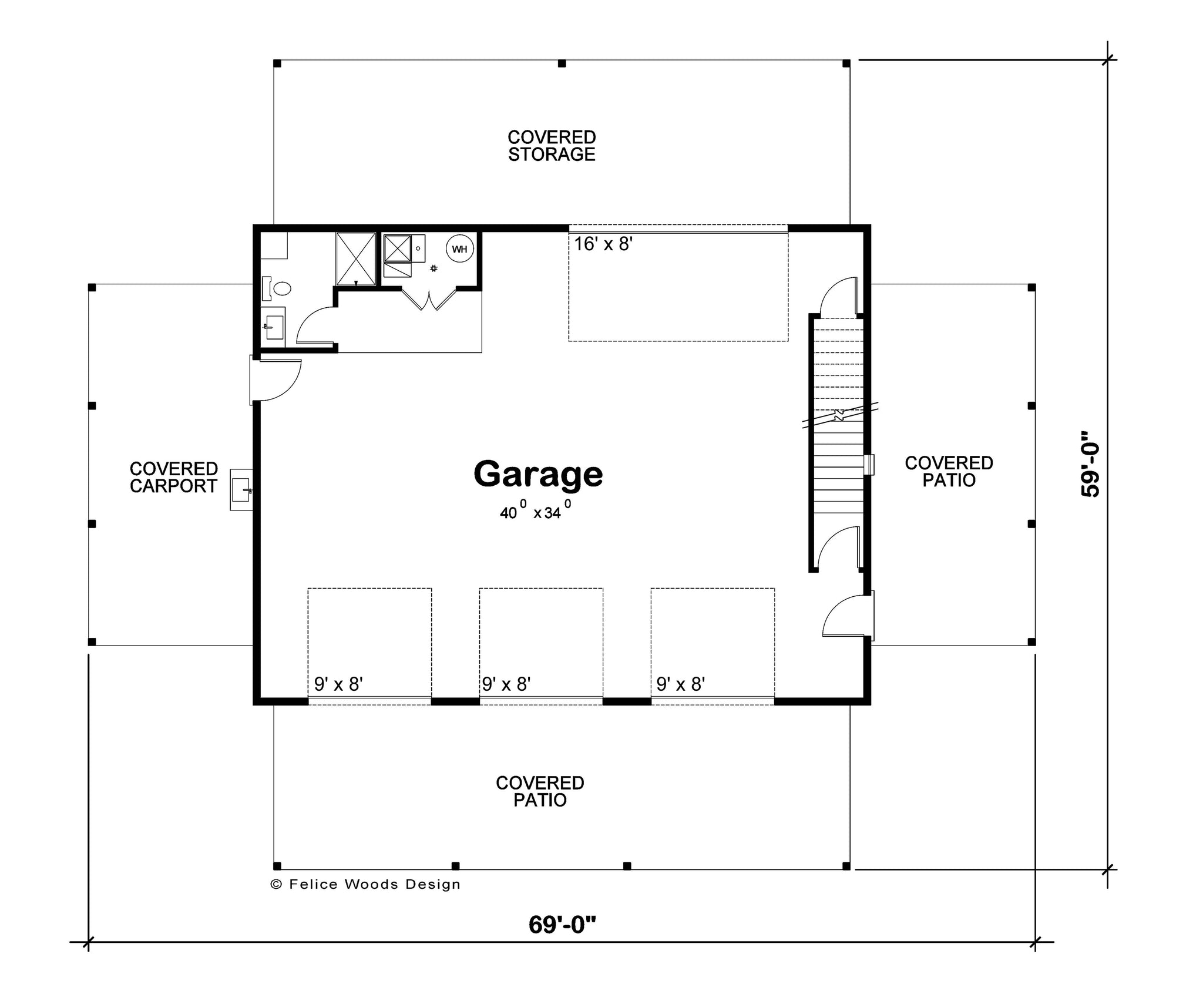

This versatile garage apartment design features a spacious 3-car garage on the main level and 1,619 sq. ft. of total living space. With a slab foundation and front-facing garage bays, the ground floor offers plenty of room for vehicles, hobbies, or even a workshop setup. A carport adds extra covered parking, while a small first-floor finished area provides entry access.

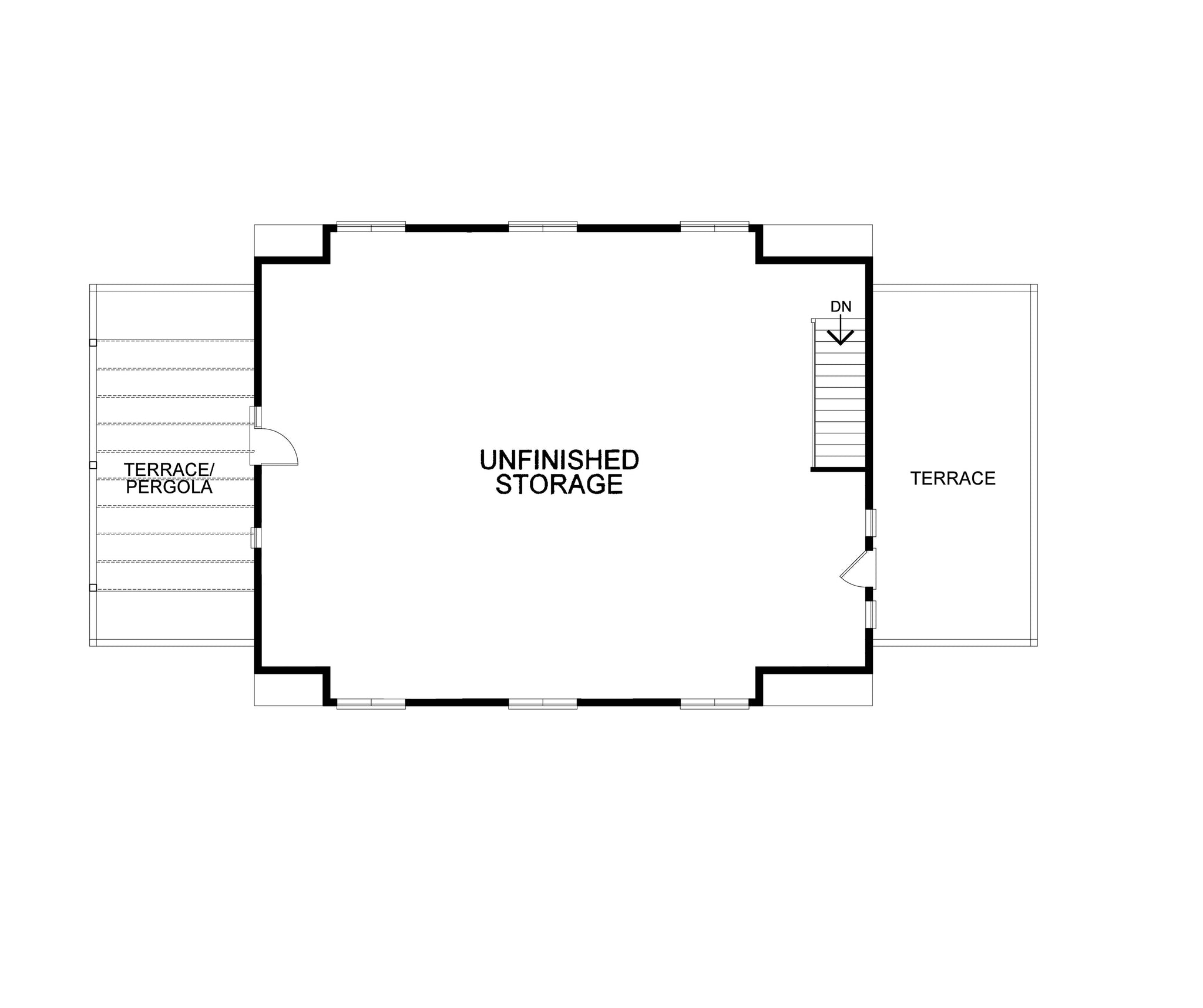

Upstairs, the second floor boasts high 9’ ceilings and includes a large portion of unfinished space—perfect for storage, future expansion, or a bonus room. The included patio offers outdoor enjoyment, and the open layout above allows for flexible living arrangements. This plan is ideal for those seeking a garage with apartment potential or a live-work setup with built-in convenience.




PDF (Single Build)
A complete set of working drawings delivered in digital PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.
CAD + PDF (Single Build)
A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.
5 or 8 Prints (Single Build)
Five or eight printed sets of working drawings shipped to you. This option comes with a license to build ONE home.
5 Prints + PDF (Single Build)
Five printed sets of working drawings shipped to you, plus a digital version in PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.
PDF (Multi Build)
A complete set of working drawings delivered in digital PDF format. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.
CAD + PDF (Multi Build)
A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.
Choose a building foundation for your home. The foundation provides stability to a home's structure from the ground up.
Slab - This concrete foundation is reinforced with steel rods and suitable for flat ground.
Crawl Space - This foundation is raised off the ground with low walls resting on footings, providing space for wiring, plumbing, and storage.
Basement - This foundation is entirely or partially below ground and offers storage or living areas.
Walkout Basement - This foundation is typically suited for rear-sloping lots and provides storage or living areas. Walkout basements have doors that provide access to the outside.





This versatile garage apartment design features a spacious 3-car garage on the main level and 1,619 sq. ft. of total living space. With a slab foundation and front-facing garage bays, the ground floor offers plenty of room for vehicles, hobbies, or even a workshop setup. A carport adds extra covered parking, while a small first-floor finished area provides entry access.
Upstairs, the second floor boasts high 9’ ceilings and includes a large portion of unfinished space—perfect for storage, future expansion, or a bonus room. The included patio offers outdoor enjoyment, and the open layout above allows for flexible living arrangements. This plan is ideal for those seeking a garage with apartment potential or a live-work setup with built-in convenience.
