2,118 Sq Ft Ranch Home with Walkout Basement and Expansive Porch
4.8
Plan Number:

I5417-A

Rated 4.8
Plan Number:

I5417-A

✔ Best Price Guarantee | ✔ Free Cost to Build Calculator
Or order by phone: (888) 890-2353
Safe and Secure
SafePay icons
LOW PRICE GUARANTEE
Free Cost to Build Calculator
Floor Plan
floor plan
floor plan

2,118 Sq Ft Ranch Home with Walkout Basement and Expansive Porch

Spanning 2,118 square feet of heated living area, the Flathead Trail is a ranch-style residence engineered for a 100-foot 6-inch width and 63-foot 6-inch depth. This one-story design maximizes site utility through a walkout basement configuration, providing a total footprint that integrates 3,435 square feet of combined living space across two levels. The exterior profile is defined by a 23-foot maximum building height and a steep roof pitch profile featuring a combination of 9:12 and 10:12 slopes.

The main level centers on an open-concept core that includes a great room anchored by a fireplace and a kitchen equipped with a central island. A dedicated home office provides a quiet work-from-home zone, while the primary suite occupies the main floor with a private bath and walk-in closet. The floor plan incorporates a mudroom and laundry space to manage transition points, maintaining 10-foot ceiling heights throughout the primary level to enhance interior volume.

A 1,317 square foot finished walkout basement expands the home's utility, housing a media room and an exercise room to separate recreational zones from the main living quarters. This lower level benefits from 9-foot ceilings, which ensure the space remains airy and accessible. The structure utilizes 2x6 exterior wall framing for increased thermal performance and durability in varied climates.

Outdoor connectivity is established via an expansive 825 square foot porch area, which includes both covered front porch access and a rear deck. The vehicle storage consists of a 1,183 square foot 3-car side-load garage, which keeps the front elevation clear of door obstructions while providing significant room for workshop or storage needs.

Key Features: 2 bedrooms, 2 full bathrooms, 1 half bathroom, walkout basement, 3-car side-load garage, home office, media room, exercise room, 2x6 wall framing, covered front porch, rear deck, 10-foot main level ceilings.

Review plan layouts, CAD packages, and customization options for this home.

What's Included in the House Plan:
  • Cover Page: Project details, drawing index, and abbreviations.
  • 4 Elevations: Exterior views of the building, showing all sides.
  • Floor Plans: Layout of rooms, doors, windows, and dimensions.
  • Foundation Plan (without structural specifications): Layout of the foundation, showing walls and footings.
  • Roof Plan (without structural specifications): Layout of the roof, including slopes and features.
  • Typical Wall Sections: Cross-section drawings showing wall construction details.
  • Electrical Plan: Locations of outlets, switches, light fixtures, and panels.
What's Not Included:
  • Architectural or Engineering Stamp: Handled locally if required.
  • Site Plan: Created locally when needed.
  • Mechanical Drawings: Heating, air equipment, and ductwork to be designed by subcontractors.
  • Plumbing Drawings: Pipe sizes and locations to be determined by subcontractors.
  • Energy Calculations: Handled locally if required.

House Plan Specifications

  • Total Living (heated area):  2118 sq ft
    All Unheated Under-Roof Areas  2008 sq ft
    Total Structure With Basement  5443 sq ft
    Total Structure without Basement  4126 sq ft
    1st Floor:  2118 sq ft
    Basement:  1317 sq ft
    Total Porch:  825 sq ft
  • Garage:  1183 sq ft
    Garage Bays:   3
    Garage Load:   Side
  • Bedrooms:   2
    Bathrooms:   2
    Half Bathrooms:   1
  • Foundation:   Walkout Basement
    Wall Framing:   2x6
    Roof Pitch:  9:12 and 10:12
  • Width of House:  100'6''
    Depth of House:  63'6''
    Building Height:  23'0''
  • First Floor Ceiling Height:  10''
    Basement Ceiling Height:  9''

Key Features

  • Covered Front Porch
  • Deck
  • Exercise Room
  • Fireplace
  • First Floor Laundry
  • First Floor Master Suite
  • Great Room
  • Home Office/Study
  • Kitchen Island
  • Media Room
  • Mud Room
  • Rear Porch
  • Storage Space
Modify this plan to make it perfect
Our hassle-free process makes it easy to modify your dream home. To receive an estimate please submit your request using the link below.
Submit a Modification Request
Cost to build estimate
$0.00
$40.00
100% discount for new customers this month!
Receive a personal estimate in two minutes instead of 2 days as many competitors offer. Just submit your request using the link below.
Get Your Estimate
Plan Number: I5417-A
2,118 Sq Ft Ranch Home with Walkout Basement and Expansive Porch
2 Bedrooms
2 Full Baths
1 Half Baths
2118 SQ FT
1 Stories

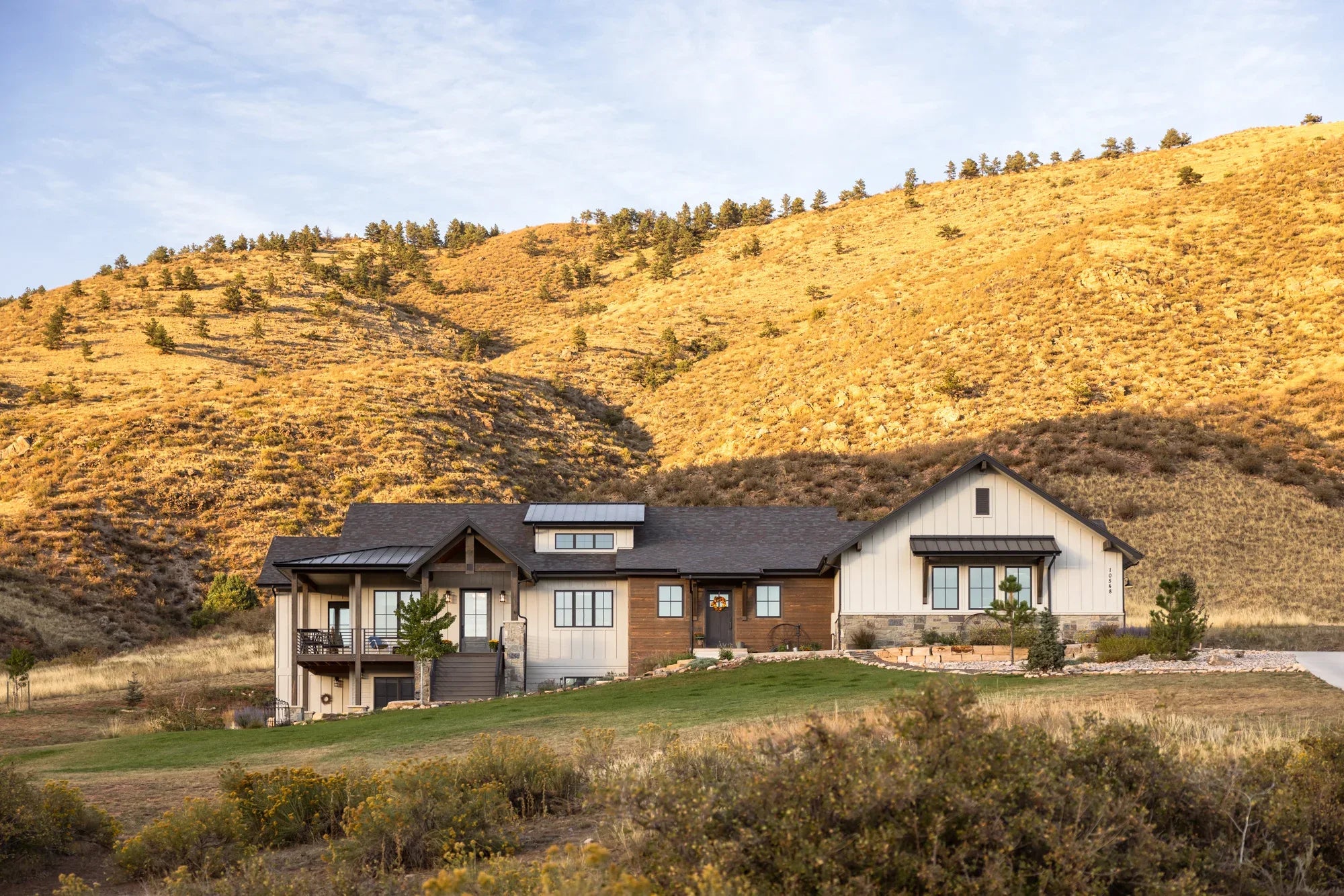

Product print image

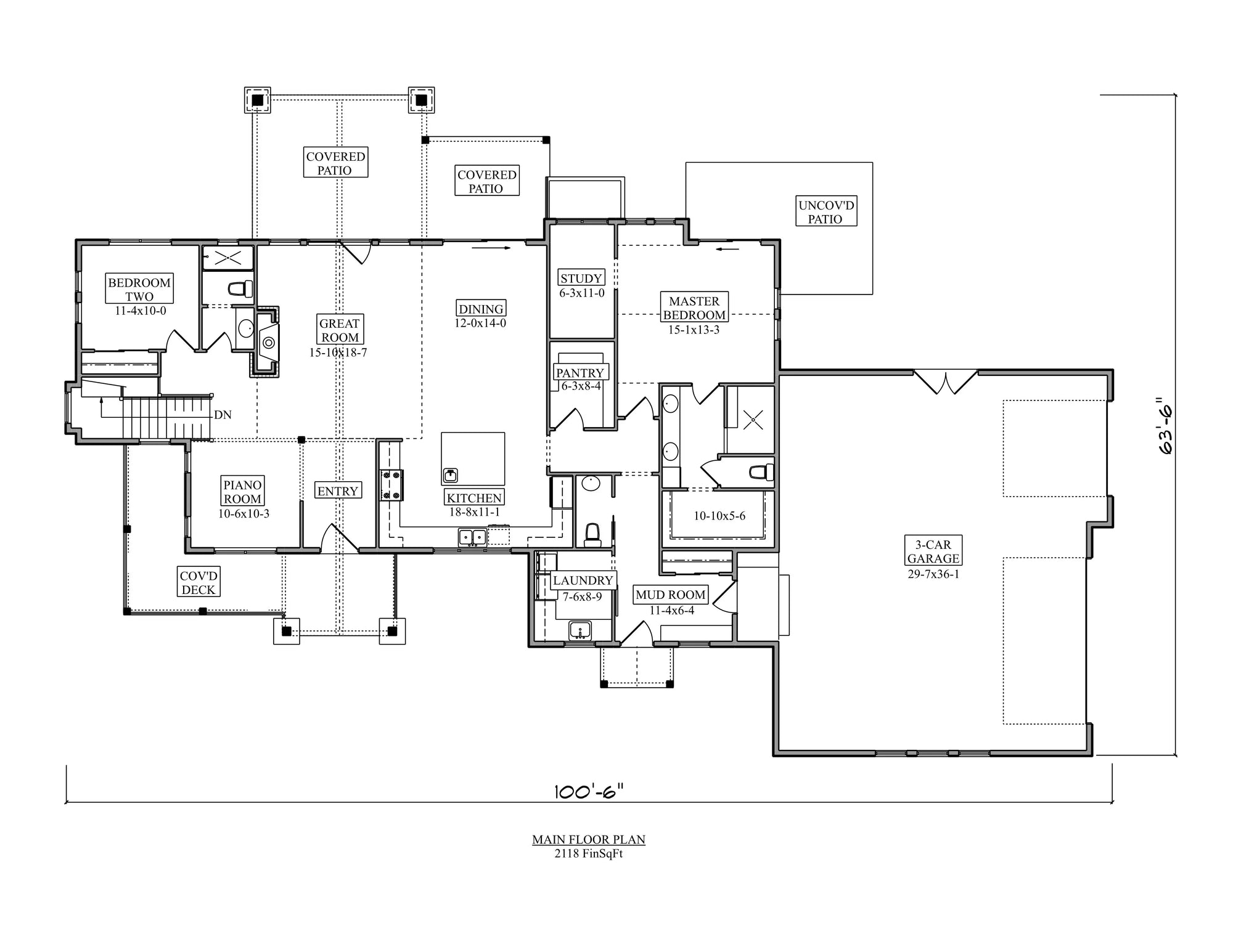

Main Level
floor plan

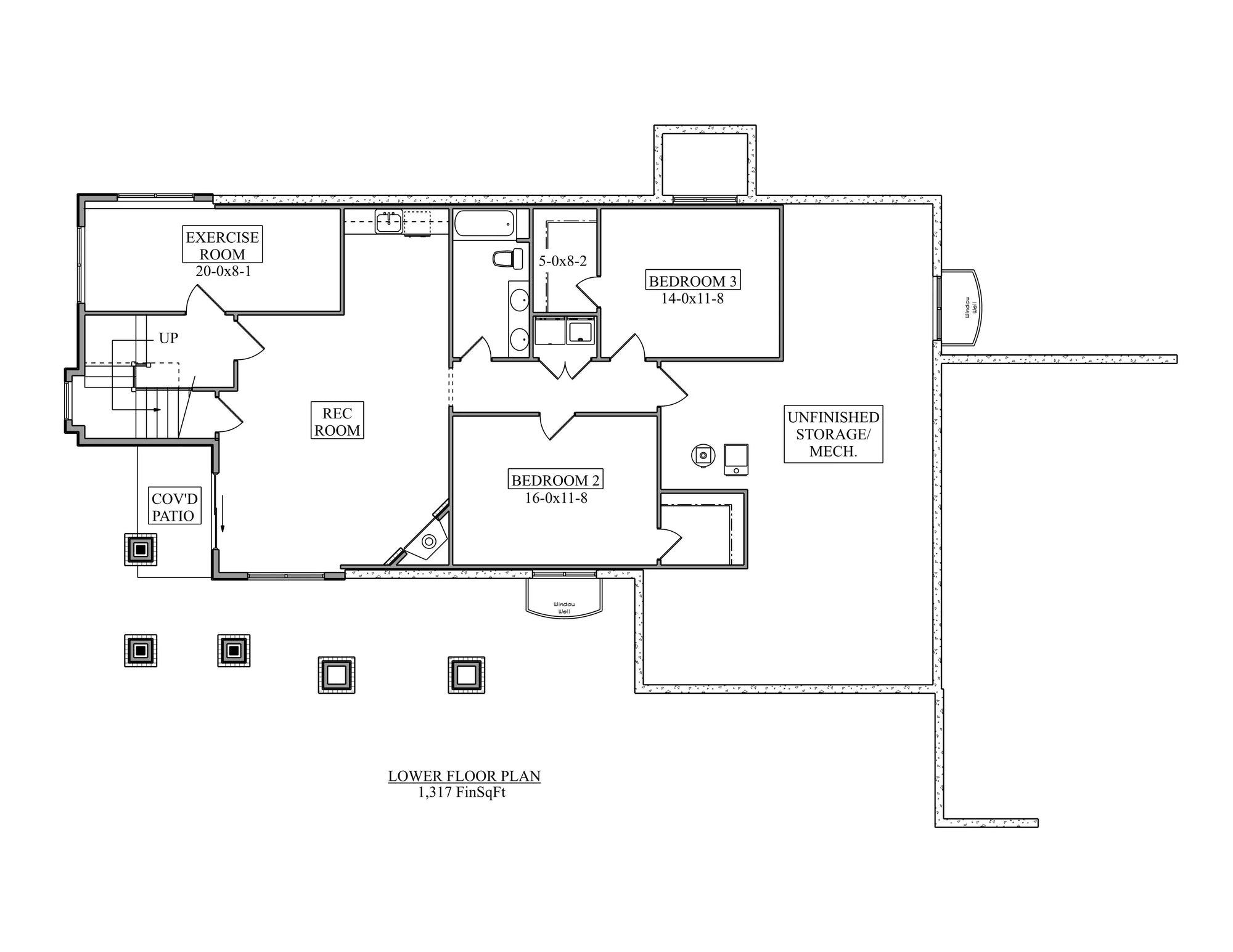

Basement
floor plan
House Plan Formats Explained

PDF (Single Build)

A complete set of working drawings delivered in digital PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

CAD + PDF (Single Build)

A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

5 or 8 Prints (Single Build)

Five or eight printed sets of working drawings shipped to you. This option comes with a license to build ONE home.

5 Prints + PDF (Single Build)

Five printed sets of working drawings shipped to you, plus a digital version in PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

PDF (Multi Build)

A complete set of working drawings delivered in digital PDF format. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.

CAD + PDF (Multi Build)

A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.

Choose a building foundation for your home. The foundation provides stability to a home's structure from the ground up.

Slab - This concrete foundation is reinforced with steel rods and suitable for flat ground.

Crawl Space - This foundation is raised off the ground with low walls resting on footings, providing space for wiring, plumbing, and storage.

Basement - This foundation is entirely or partially below ground and offers storage or living areas.

Walkout Basement - This foundation is typically suited for rear-sloping lots and provides storage or living areas. Walkout basements have doors that provide access to the outside.

Readable Reverse
An option to reverse the plan including texts and dimensions to make them readable.
2x4 or 2x6 Conversion
Convert the exterior framing other than the standard framing included in the plan.
