Elegant 3-Bedroom Craftsman Home with Bonus Room and Porches

4.8

Plan Number:

J7253-E

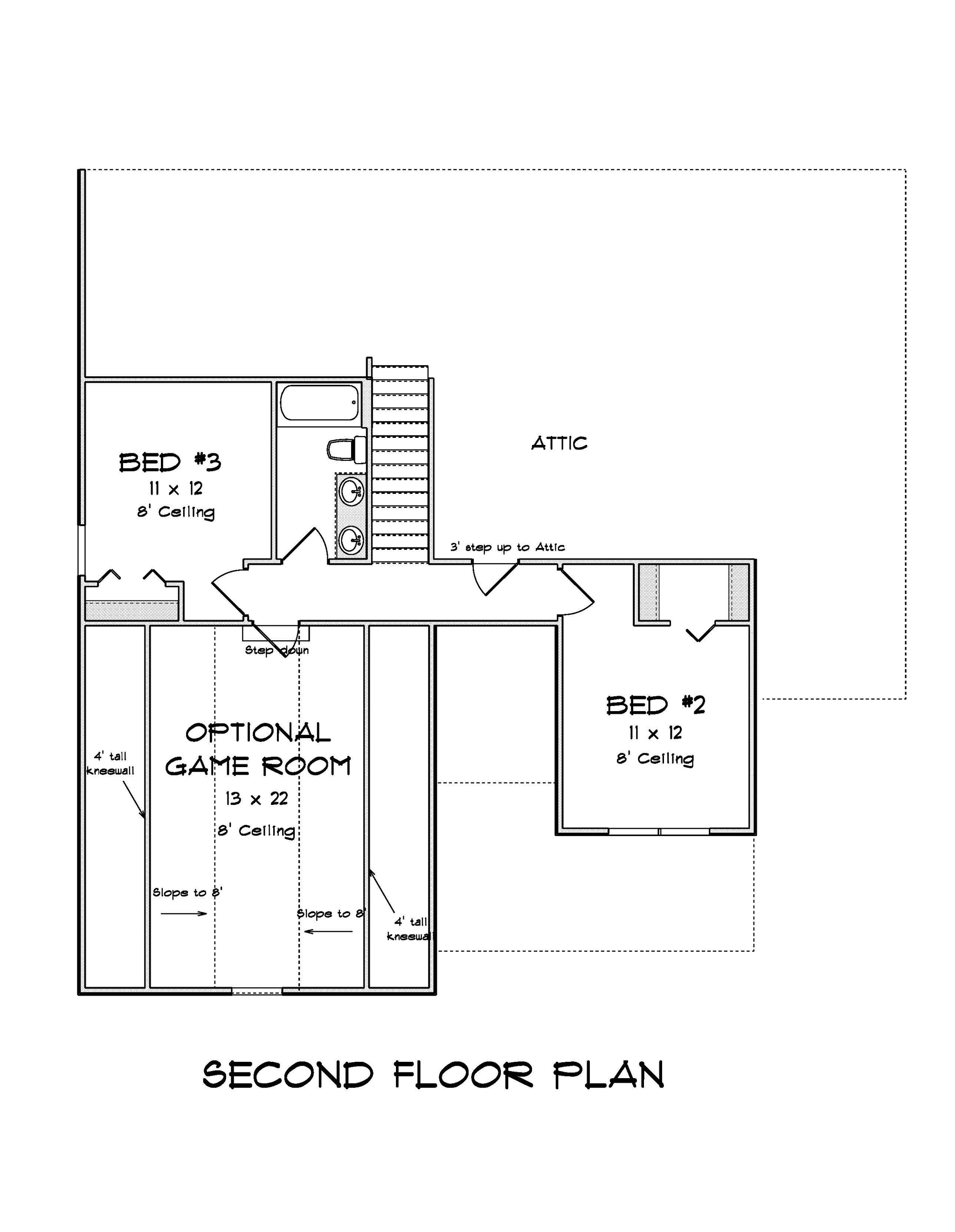

J7253-E Orchard Park House Second Floor Plan 3 Bed and 2.5 Bath

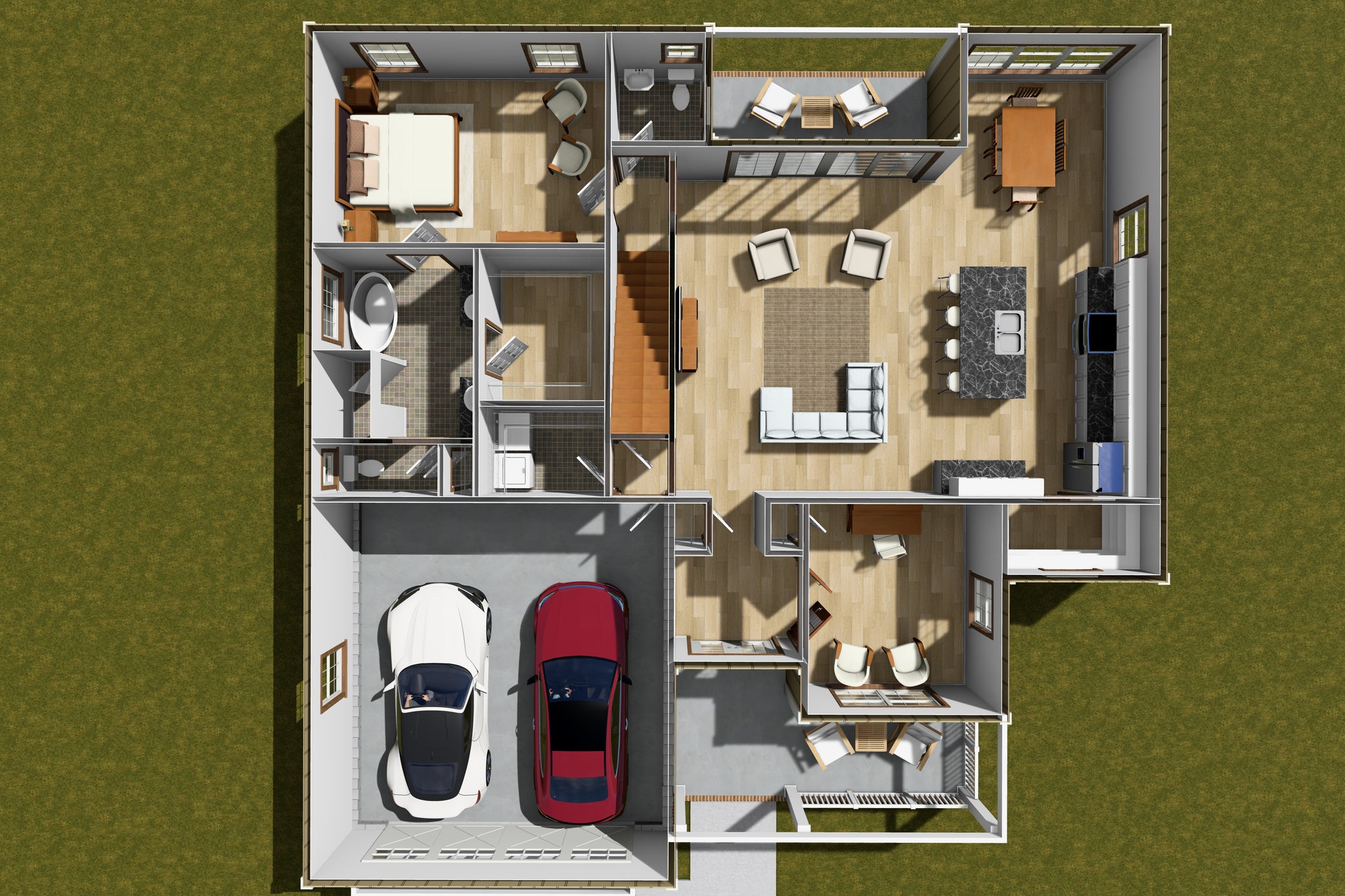

J7253-E Orchard Park House 3D First Floor

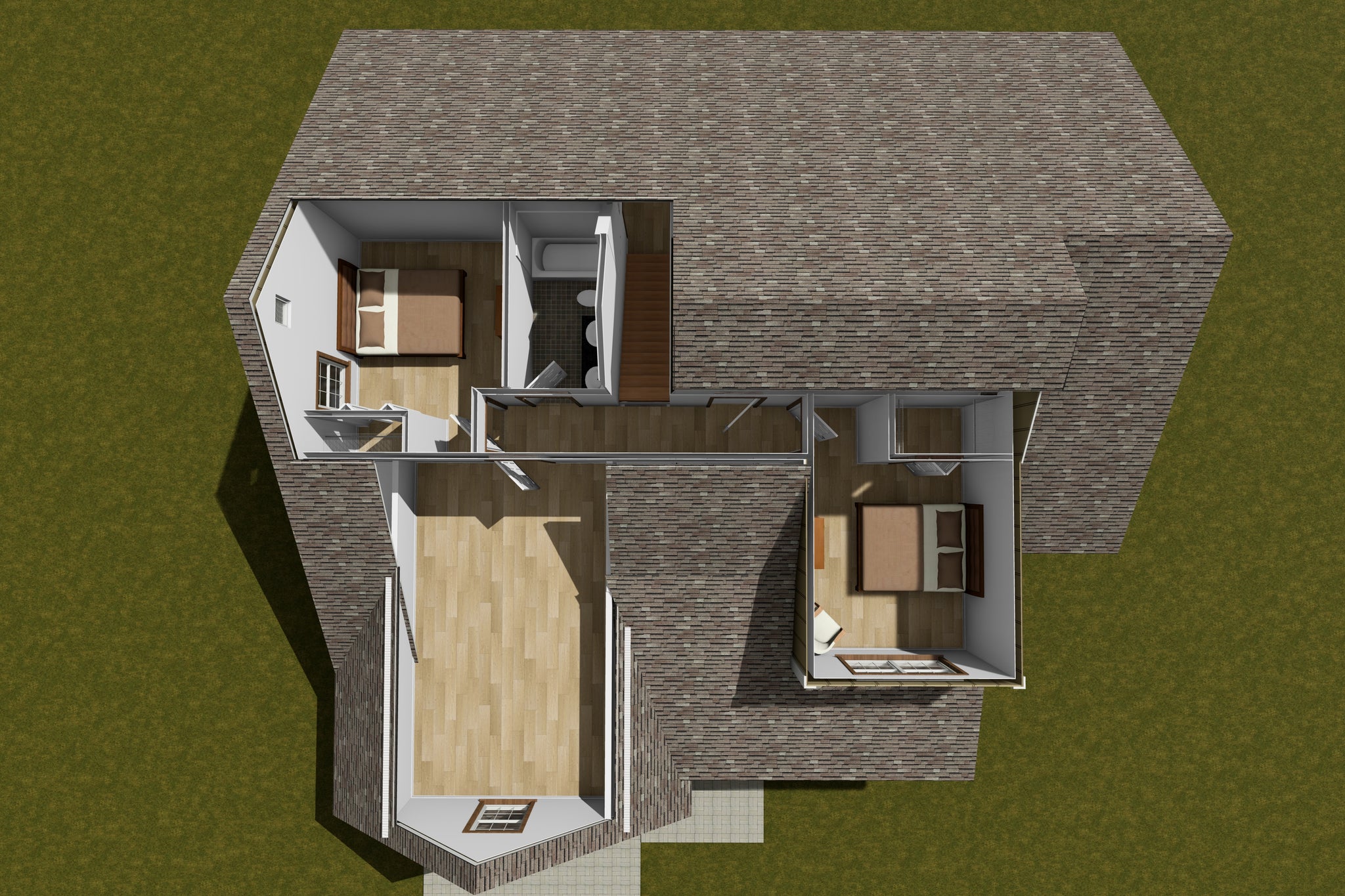

J7253-E Orchard Park House 3D Second Floor

Photographs may reflect modified homes. Click above to view all images available.

Photographs may reflect modified homes

Main Level

1976

SQ FT

Bedrooms

Full Baths

Half Baths

Garage

Cost TO Build Estimate

$0.00

$40.00

100% discount for new customers this month! Receive a personal estimate in two minutes instead of 2 days as many competitors offer. Just submit your request using the link below.

Give us zip/postal code INSTANT

Get a FREE Instant quote! ACCURATE

Sent to your email FREE

Request a Cost To Build

All specifications

House Plans with a Bonus Room

Rated 4.8

Plan Number:

J7253-E

Safe and Secure

LOW PRICE GUARANTEE

Find a lower price and we'll beat it by 10%.

See details

.price-ui--loading { display: block !important; opacity: 1 !important; }

Liquid error (snippets/product-new2 line 341): Could not find asset snippets/price-new-ui-templates.liquid

Safe and Secure

Modify This Plan

Free Cost to Build Calculator

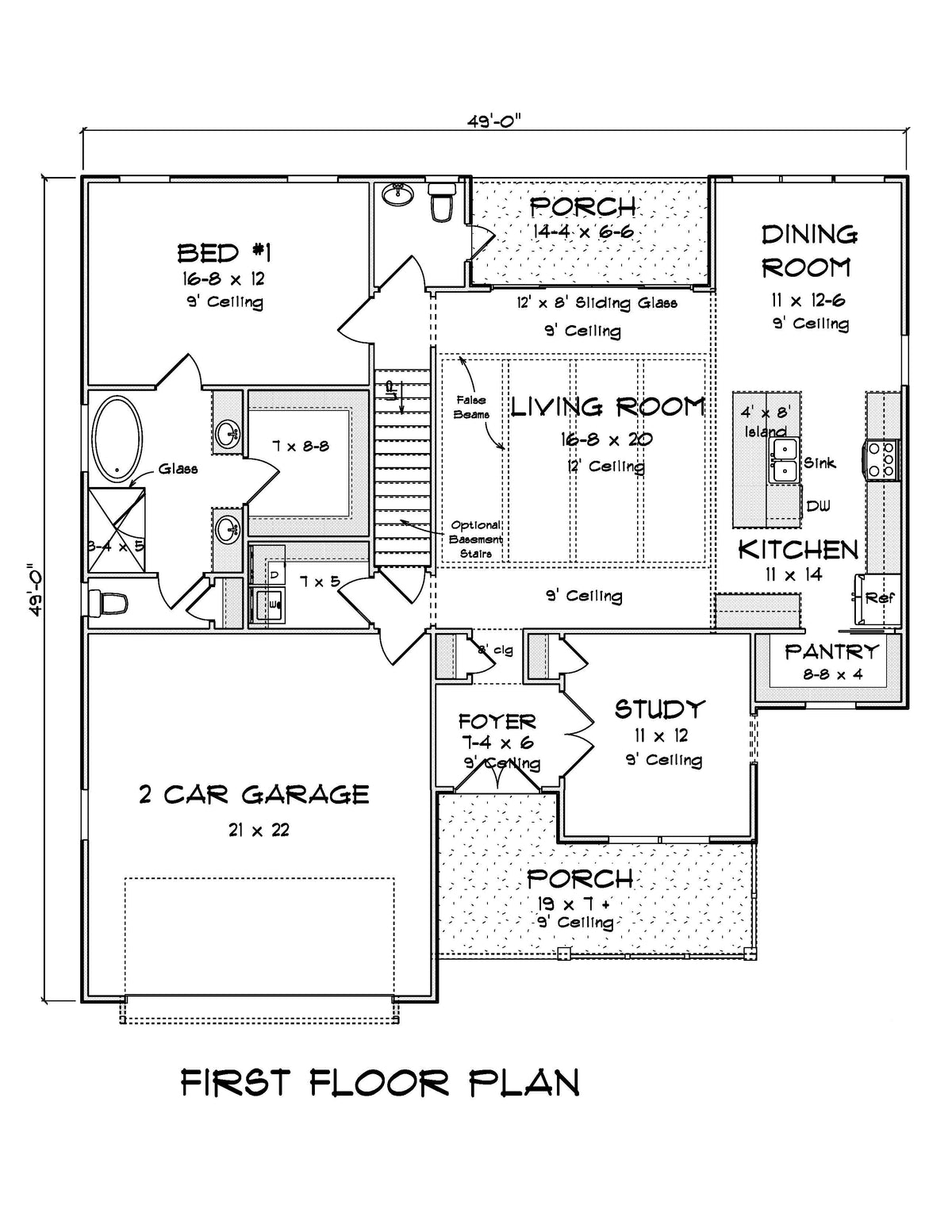

Floor Plan

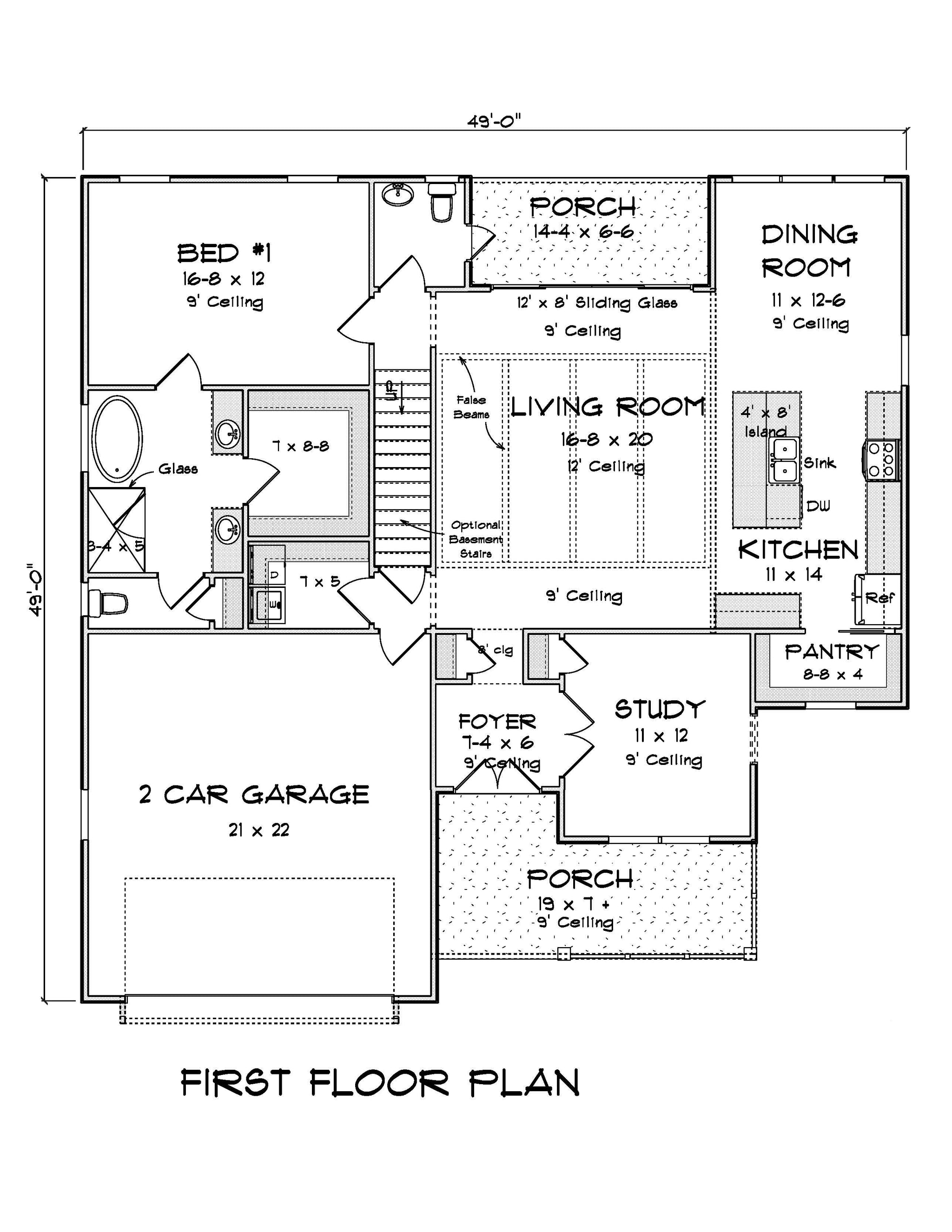

Main Level - (click floor plan to reverse)

Second Floor – (click floor plan to reverse)

Elegant 3-Bedroom Craftsman Home with Bonus Room and Porches

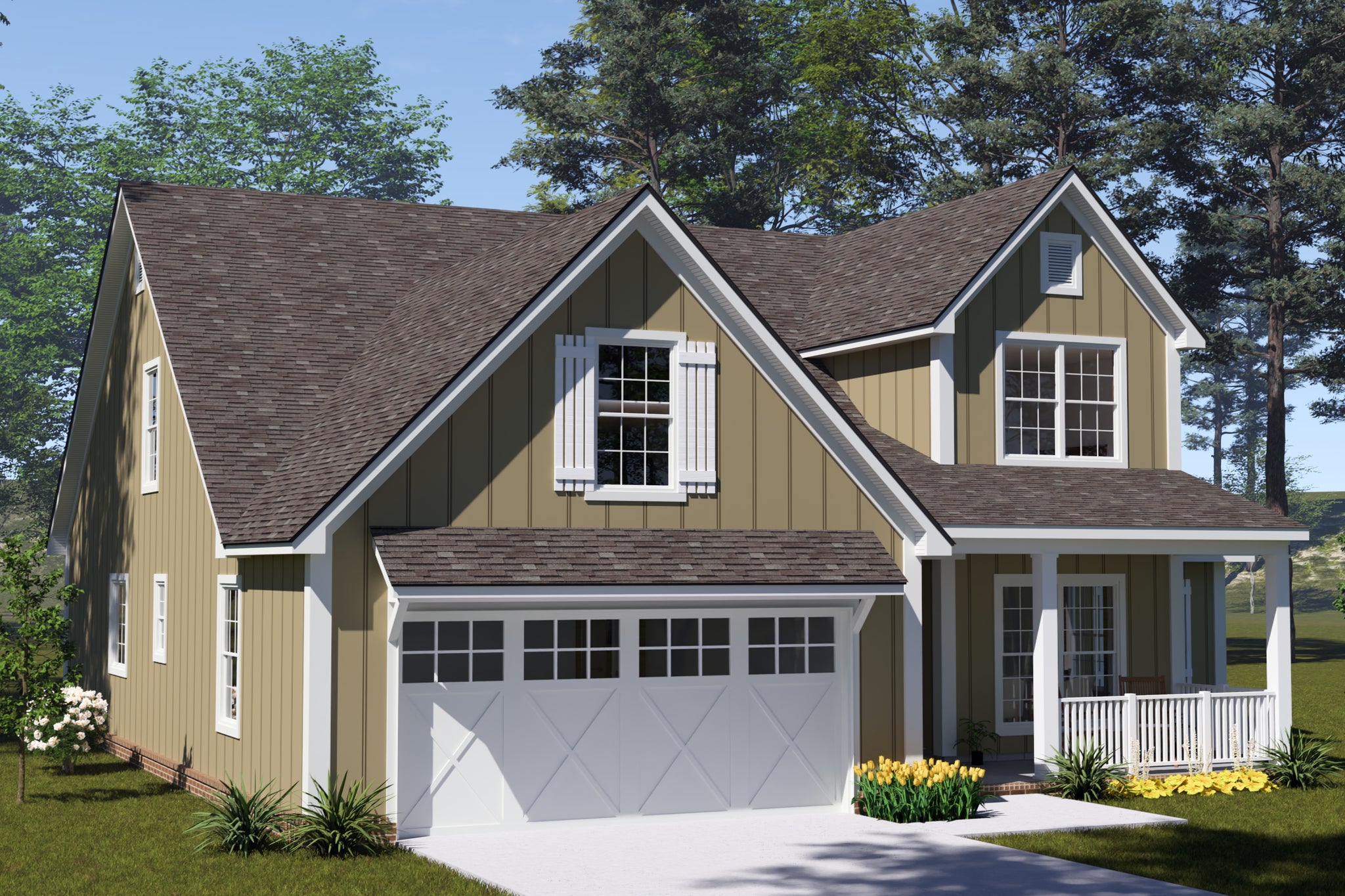

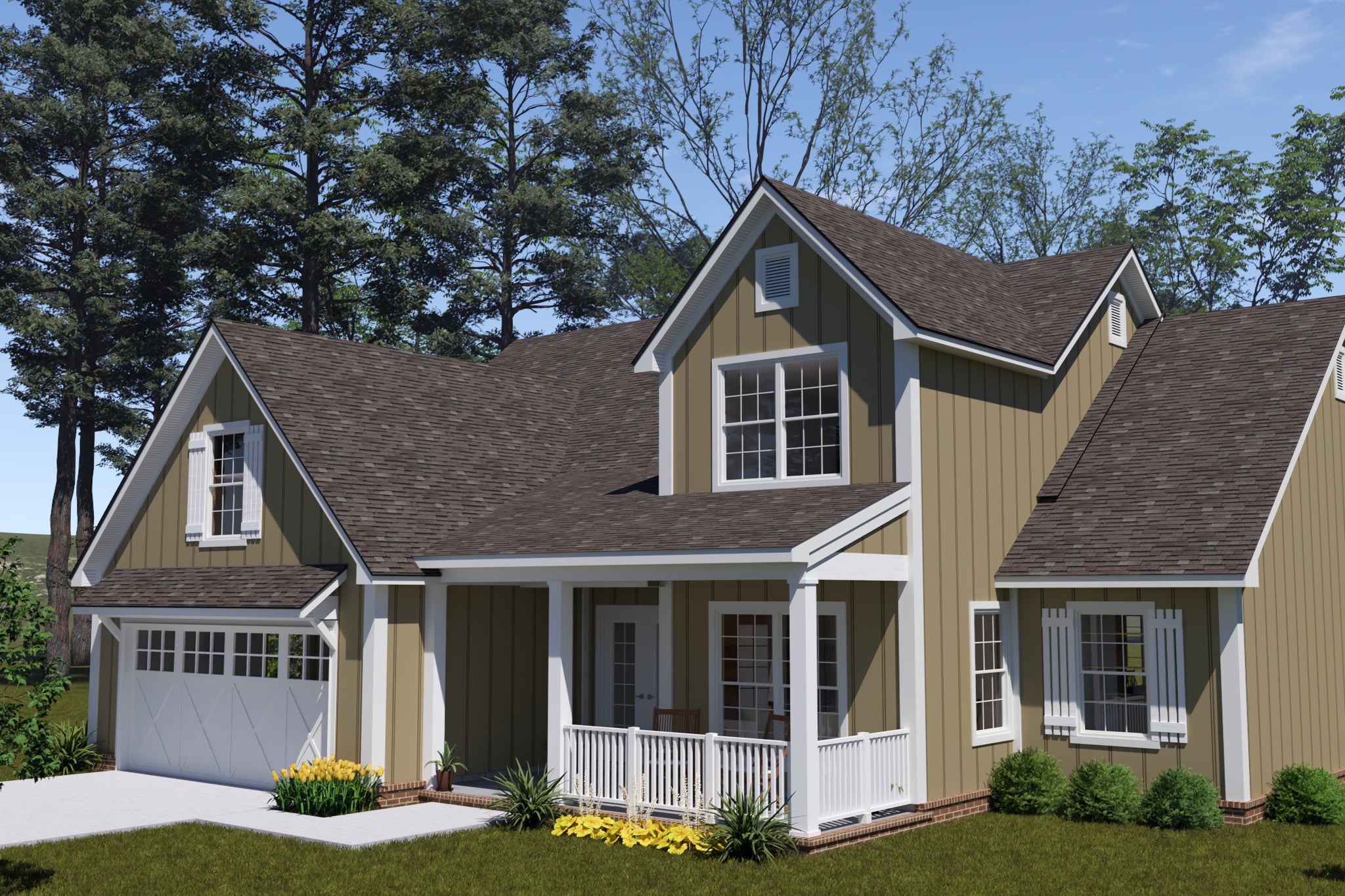

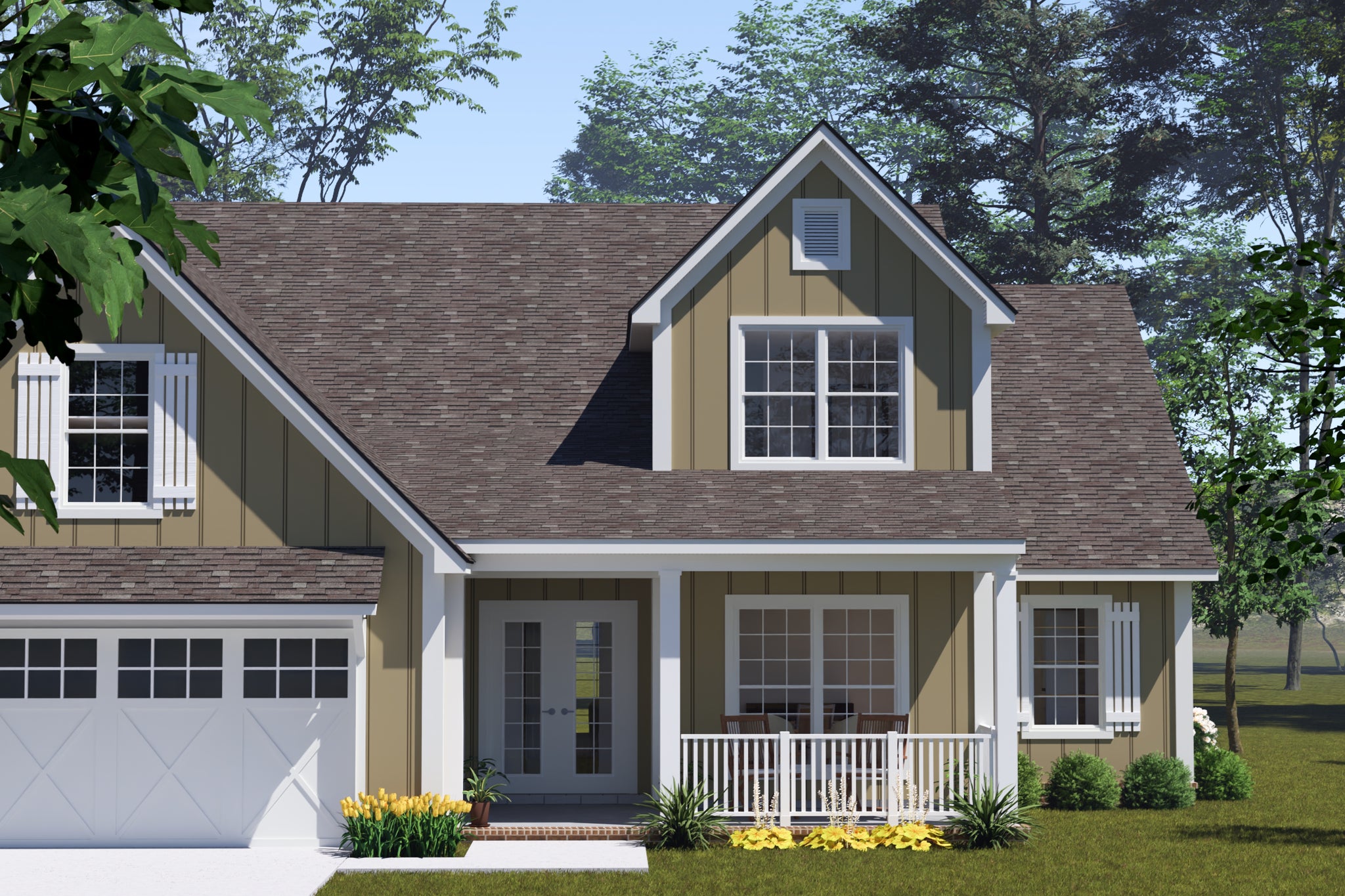

This 1,976 sq ft craftsman-style house plan blends traditional charm with modern functionality. The inviting covered front porch welcomes you into a bright and airy open floor plan, perfect for entertaining or everyday comfort.

The first-floor master suite offers a private bath with double vanity sinks and a spacious walk-in closet, creating a peaceful retreat. The kitchen island opens to the keeping/family room and breakfast area, enhancing the home’s easy flow.

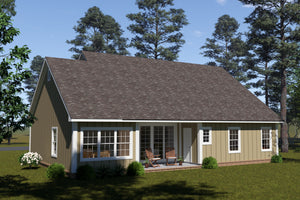

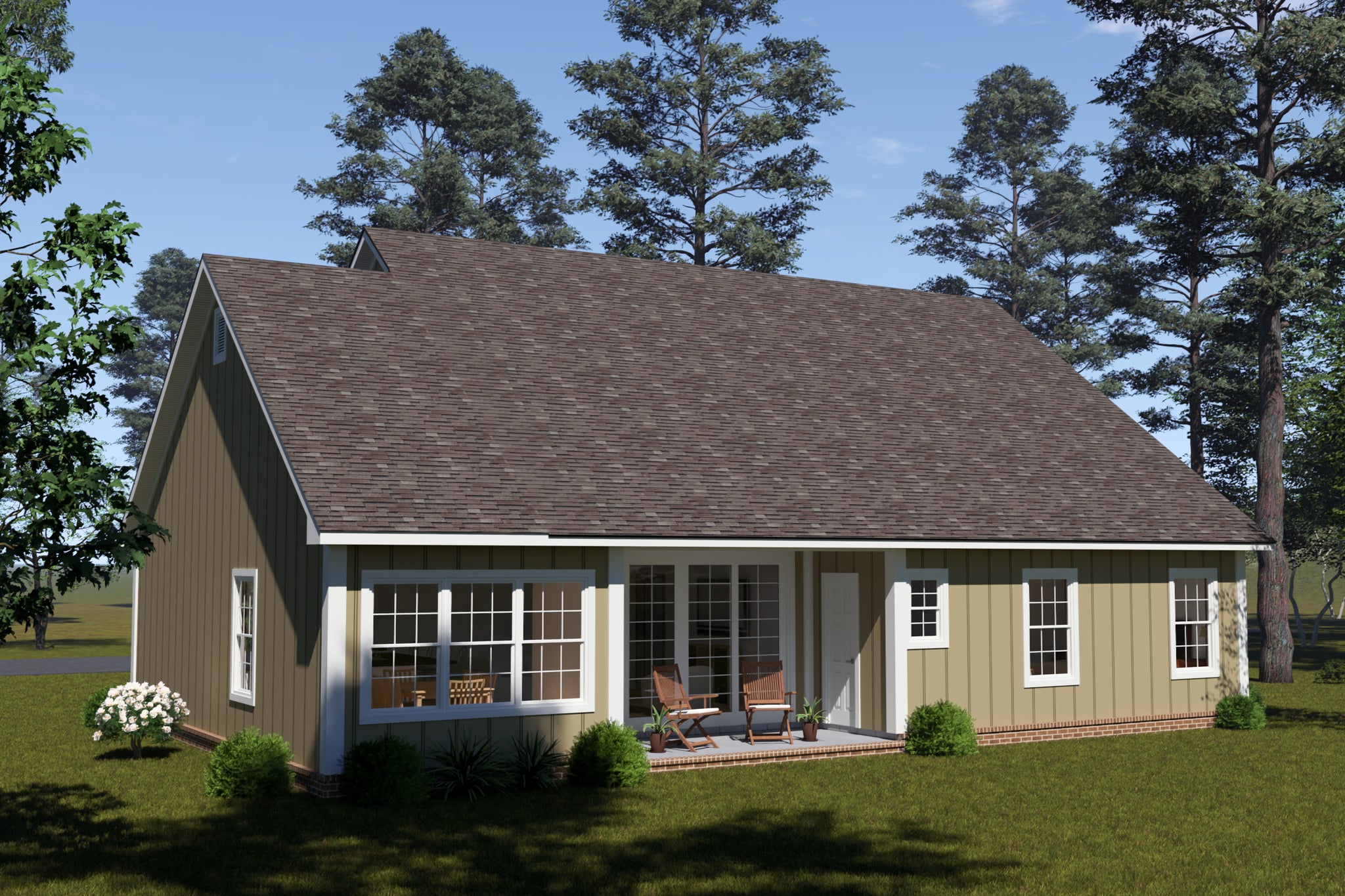

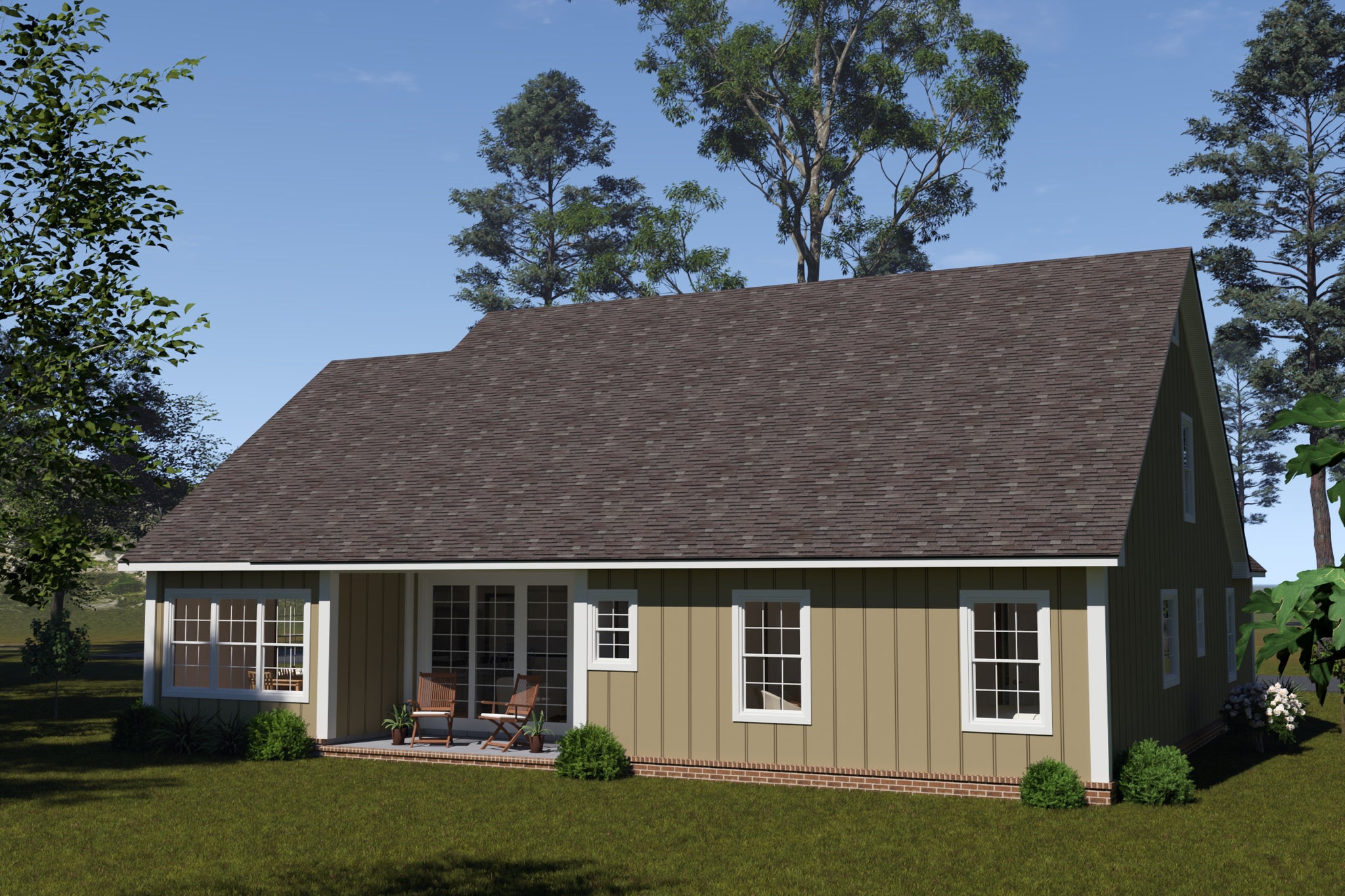

Upstairs, a bonus room and attic space add flexibility—ideal for a home office, playroom, or guest suite. Additional highlights include first-floor laundry, covered rear porch, and vaulted ceilings for added volume and light.

This home’s craftsman details, balanced rooflines, and cozy porches make it perfect for families seeking timeless style with modern conveniences.

What's Included in the House Plan:

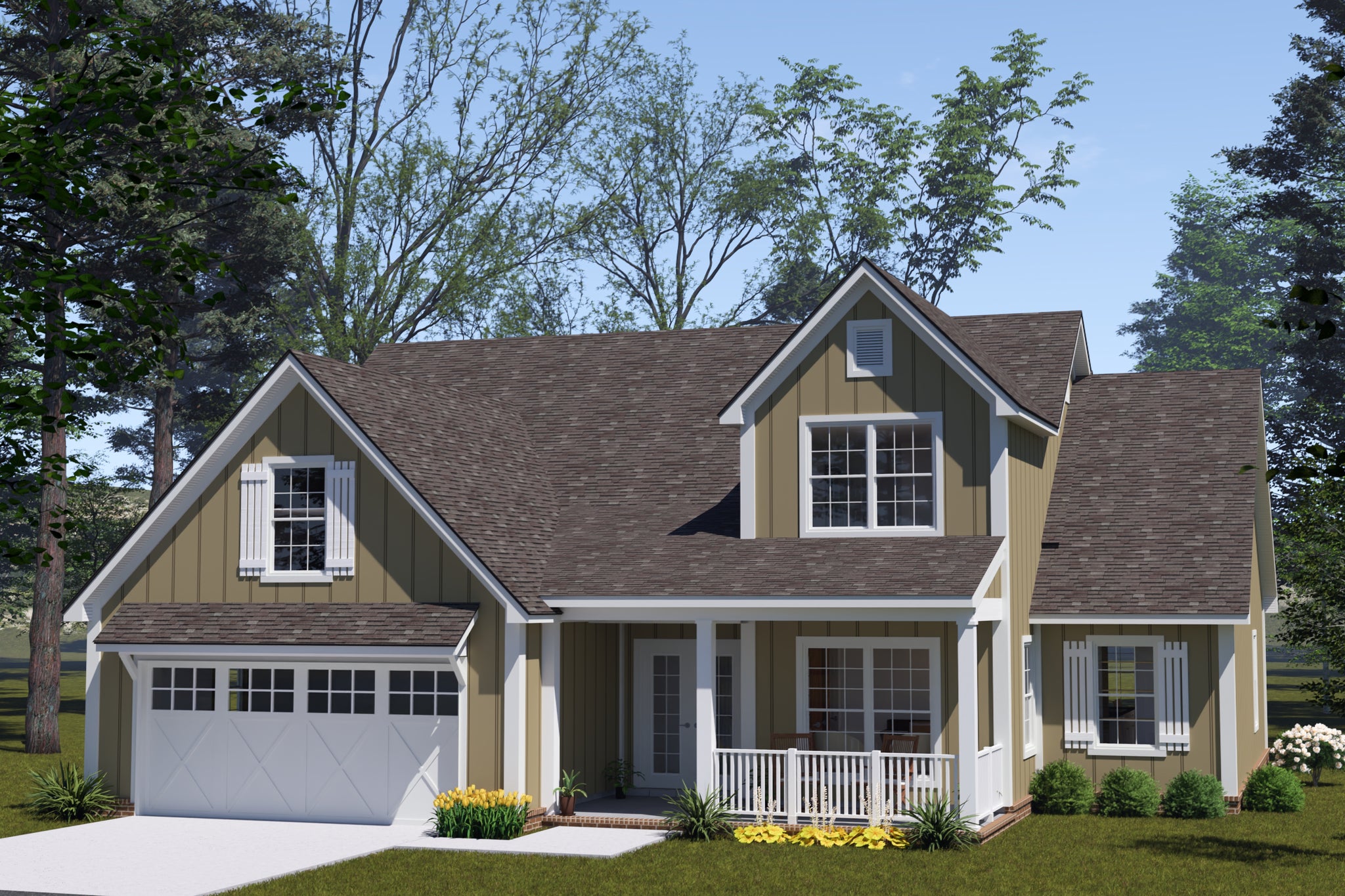

Front Elevation and Construction Notes: Drawing of the front view with construction details and notes.

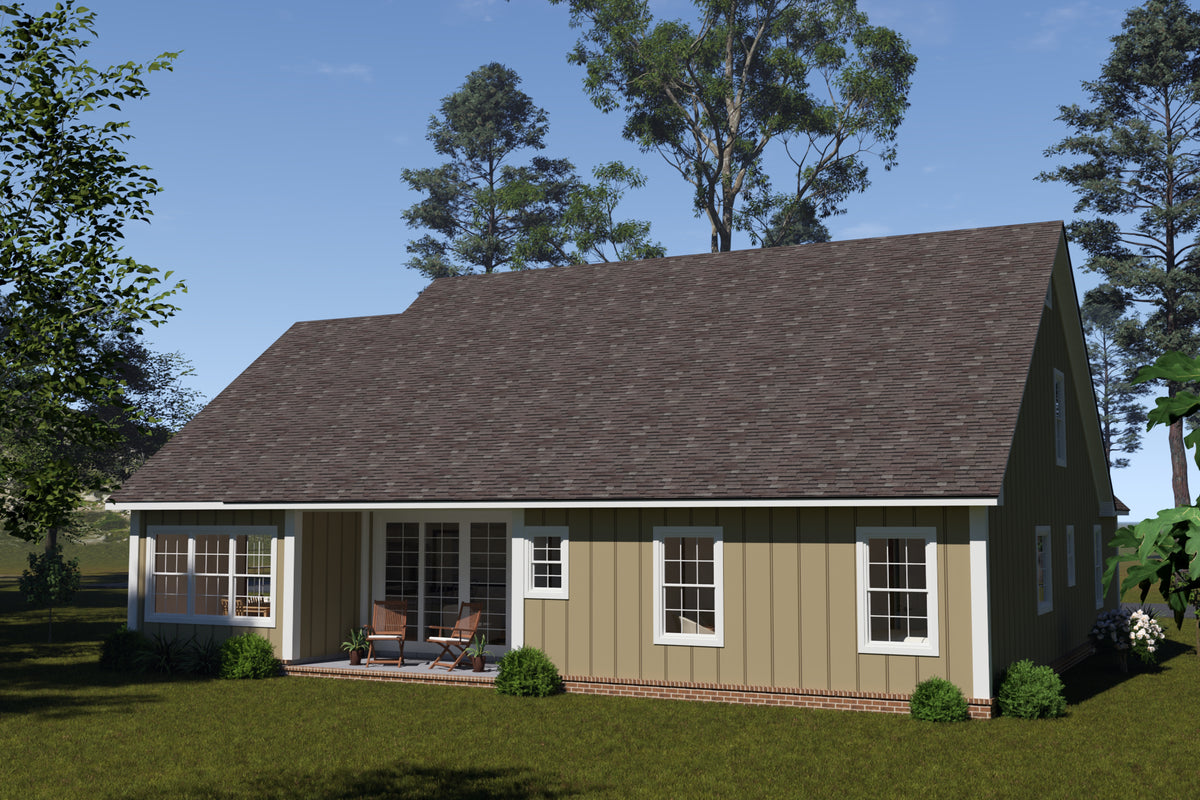

Rear and Side Elevations: Drawings of the rear and side views of the building.
Floor Plan: Includes electrical layout, window/door sizes, floor joist span direction, and ceiling type notes (e.g., 9' ceiling, vault).
Second Floor Plan: Details similar to the first level, if applicable.
Typical Wall Section: Cross-section showing wall construction details.
Typical Foundation Details: Construction details for the foundation.

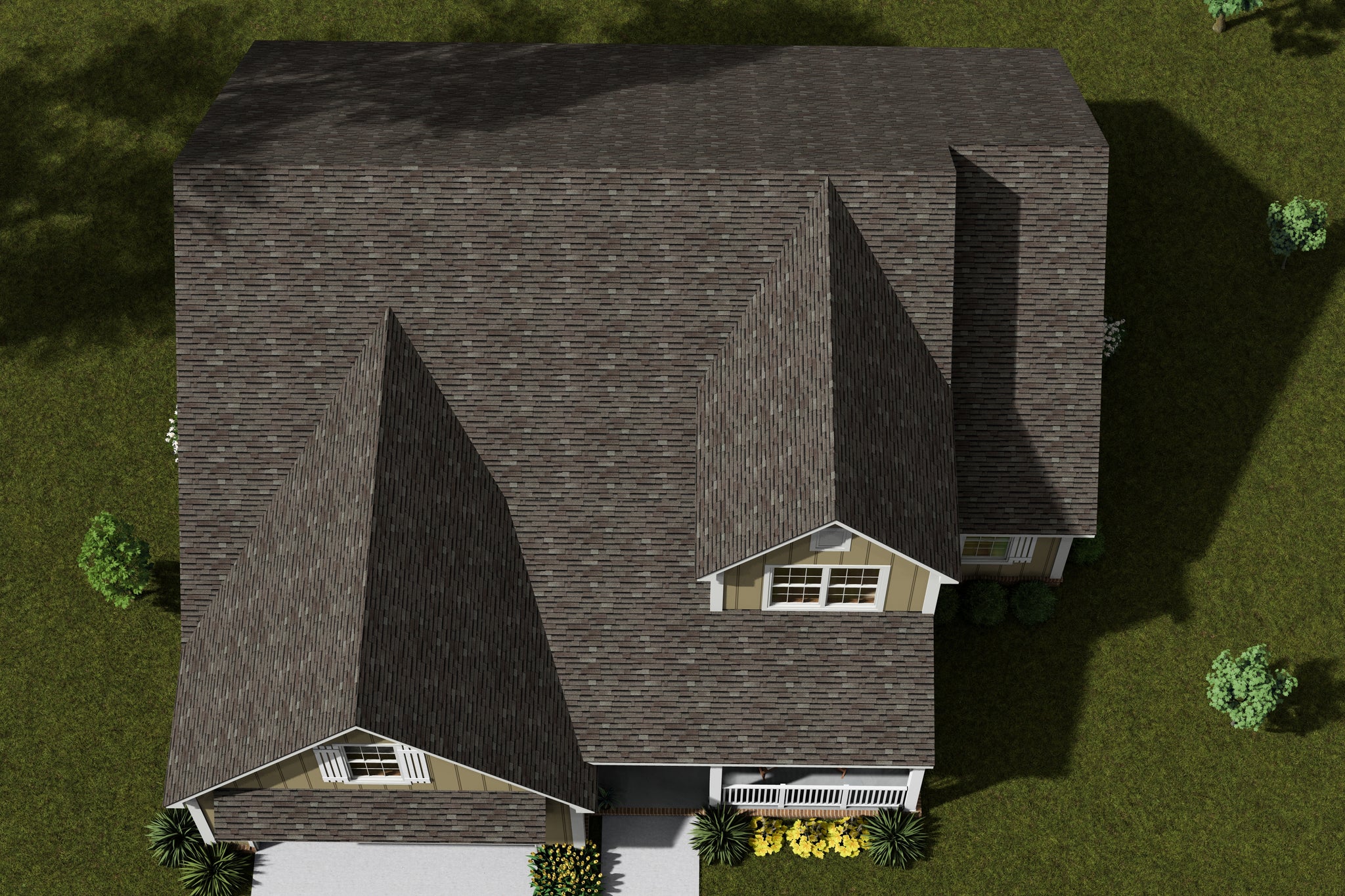

Roof Plan: Includes roof pitches, ridges, valleys, with details noting 2" x 8" rafters or optional roof trusses.
Foundation Plan: Layout detailing the foundation, including footings, slabs, and walls.
Full Building Section (Optional): Available upon request at no extra cost, typically not required in the US but may be necessary in Canada.

What's Not Included:

Architectural or Engineering Stamp: Handled locally if required.
Site Plan: Created locally when needed.
Mechanical Drawings: Heating, air equipment, and ductwork to be designed by subcontractors.
Plumbing Drawings: Pipe sizes and locations to be determined by subcontractors.
Energy Calculations: Handled locally if required.

House Plan Specifications

Total Living (heated area): 1976 sq ft

All Unheated Under-Roof Areas 710 sq ft

Total Structure 2686 sq ft

1st Floor: 1486 sq ft

2nd Floor: 490 sq ft

Front Porch: 155 sq ft

Rear Porch: 93 sq ft
Garage: 462 sq ft

Garage Bays: 2

Garage Load: Front
Bedrooms: 3

Bathrooms: 2

Half Bathrooms: 1
Wall Framing: 2x4

Roof Pitch: 12:12 and 9:12
Width of House: 49'

Depth of House: 49'

Building Height: 24'8''
First Floor Ceiling Height: 9'

Second Floor Ceiling Height: 8'

Key Features

Attic Space
Bonus Room
Breakfast Area
Covered Back Porch
Covered Front Porch
First Floor Laundry
First Floor Master Suite
Home Office/Study
Keeping/Family Room
Kitchen Island
Master Bath-Double Vanity Sink
Open Floor Plan
Private Master Bath
Rear Porch
Vaulted/Volume Ceilings
Walk-in Closet
Walk-in Pantry

Modify this plan to make it perfect

Our hassle-free process makes it easy to modify your dream home. To receive an estimate please submit your request using the link below.

Submit a Modification Request

Cost to build estimate

$0.00

$40.00

100% discount for new customers this month!
Receive a personal estimate in two minutes instead of 2 days as many competitors offer. Just submit your request using the link below.

Get Your Estimate

https://archivaldesigns.com/

Plan Number: J7253-E

Elegant 3-Bedroom Craftsman Home with Bonus Room and Porches

.price-ui--loading { display: block !important; opacity: 1 !important; }

Liquid error (snippets/product_print line 84): Could not find asset snippets/price-print-ui-templates.liquid

3 Bedrooms

2 Full Baths

1 Half Baths

1976 SQ FT

Main Level

Second Floor

Archival Designs, Inc.1245 Buford Hwy,
Ste 306 Suwanee, GA 30024

https://archivaldesigns.com/

+1 (888) 890 - 2353
+1 (770) 831 - 6363

orders@archivaldesigns.com

House Plan Formats Explained

PDF (Single Build)

A complete set of working drawings delivered in digital PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

CAD + PDF (Single Build)

5 or 8 Prints (Single Build)

Five or eight printed sets of working drawings shipped to you. This option comes with a license to build ONE home.

5 Prints + PDF (Single Build)

Five printed sets of working drawings shipped to you, plus a digital version in PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

PDF (Multi Build)

A complete set of working drawings delivered in digital PDF format. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.

CAD + PDF (Multi Build)

A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.

Choose a building foundation for your home. The foundation provides stability to a home's structure from the ground up.

Slab - This concrete foundation is reinforced with steel rods and suitable for flat ground.

Crawl Space - This foundation is raised off the ground with low walls resting on footings, providing space for wiring, plumbing, and storage.

Basement - This foundation is entirely or partially below ground and offers storage or living areas.

Walkout Basement - This foundation is typically suited for rear-sloping lots and provides storage or living areas. Walkout basements have doors that provide access to the outside.

Readable Reverse
An option to reverse the plan including texts and dimensions to make them readable.
2x4 or 2x6 Conversion
Convert the exterior framing other than the standard framing included in the plan.
Multi Build Licence (CAD required) Gives the buyer the legal right to build the house plan multiple times
