Woodhaven House Plan

Plan Number:

C720-A

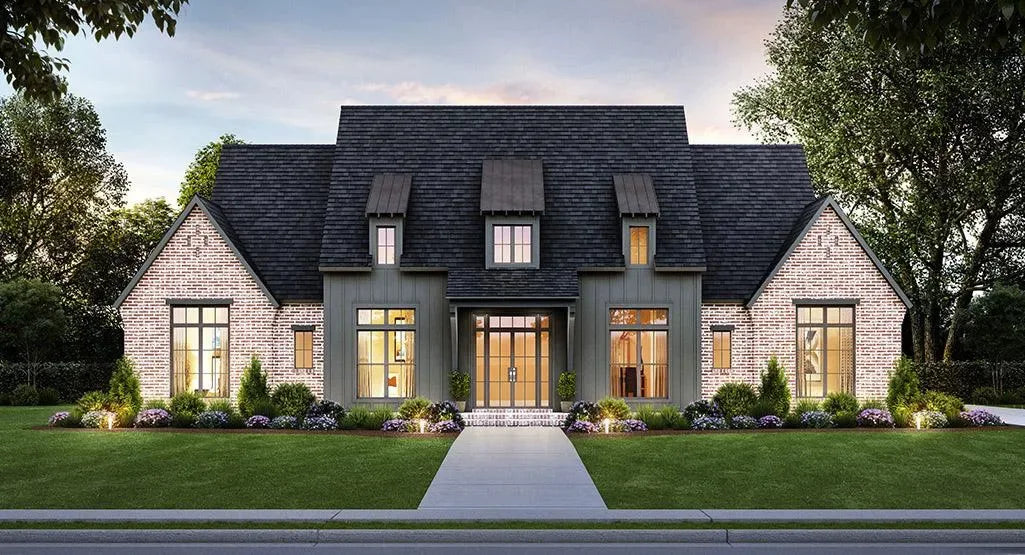

Woodhaven / Modern Farmhouse / Transitional House Plan
Woodhaven / Transitional House Plan / Modern Farmhouse
Woodhaven House Plan / Rear Elevation
Free Cost to Build
Free Cost to Build
Photographs may reflect modified homes. Click above to view all images available.
Free Cost TO
Build Estimate
Say goodbye to the guesswork of construction costs with our custom cost estimator. Receive a cost to build estimate in two minutes instead of 2 days as many competitors offer.... plus its Free!
INSTANT
ACCURATE
FREE
Cost To Build
Cost to build your dream home

Woodhaven House Plan

Plan Number:

C720-A

4
Bedrooms
3
Full Baths
1
Half Baths
3229
SQ FT
1
Stories
Liquid error (snippets/product line 278): Could not find asset snippets/price-new-ui-templates.liquid
LOW PRICE GUARANTEE
Find a lower price and we'll beat it by 10%.
See details

House Plan Specifications

  • Total Living:  3229
    1st Floor:  3229
    Total Porch:  1292
    Storage:  308
    Total Area Under Roof:  5491
  • Garage:  662
    Garage Bays:   2
    Garage Load:   Side
  • Bedrooms:   4
    Bathrooms:   3
    Half Bathrooms:   1
  • Foundation:   Slab
    Wall Framing:   2x4
    Roof Framing:   Stick
    Roof Pitch:  10:12
  • Width of House:  82'-7''
    Depth of House:  97'
    Building Height:  33'-5''
  • First Floor Ceiling Height:  10'
    Garage Ceiling Height:  10'

Key Features:

  • Grilling Terrace
  • Home Office/Study
  • Kitchen Island
  • Laundry Access from Master
  • Mud Room
  • Open Floor Plan
  • Outdoor Kitchen
  • Vaulted/Volume Ceilings
  • Walk-in Pantry
Modify this plan to make it perfect
Our hassle-free process makes it easy to modify your dream home. To receive an estimate please submit your request using the link below.
Submit a Modification Request
Free Cost TO
Build Estimate
Say goodbye to the guesswork of construction costs with our custom cost estimator. Receive a cost to build estimate in two minutes instead of 2 days as many competitors offer.... plus its Free!
INSTANT
ACCURATE
FREE
Cost To Build
Cost to build your dream home
Plan Number: C720-A
Woodhaven House Plan
Liquid error (snippets/product_print line 83): Could not find asset snippets/price-print-ui-templates.liquid
4 Bedrooms
3 Full Baths
1 Half Baths
3229 SQ FT
1 Stories

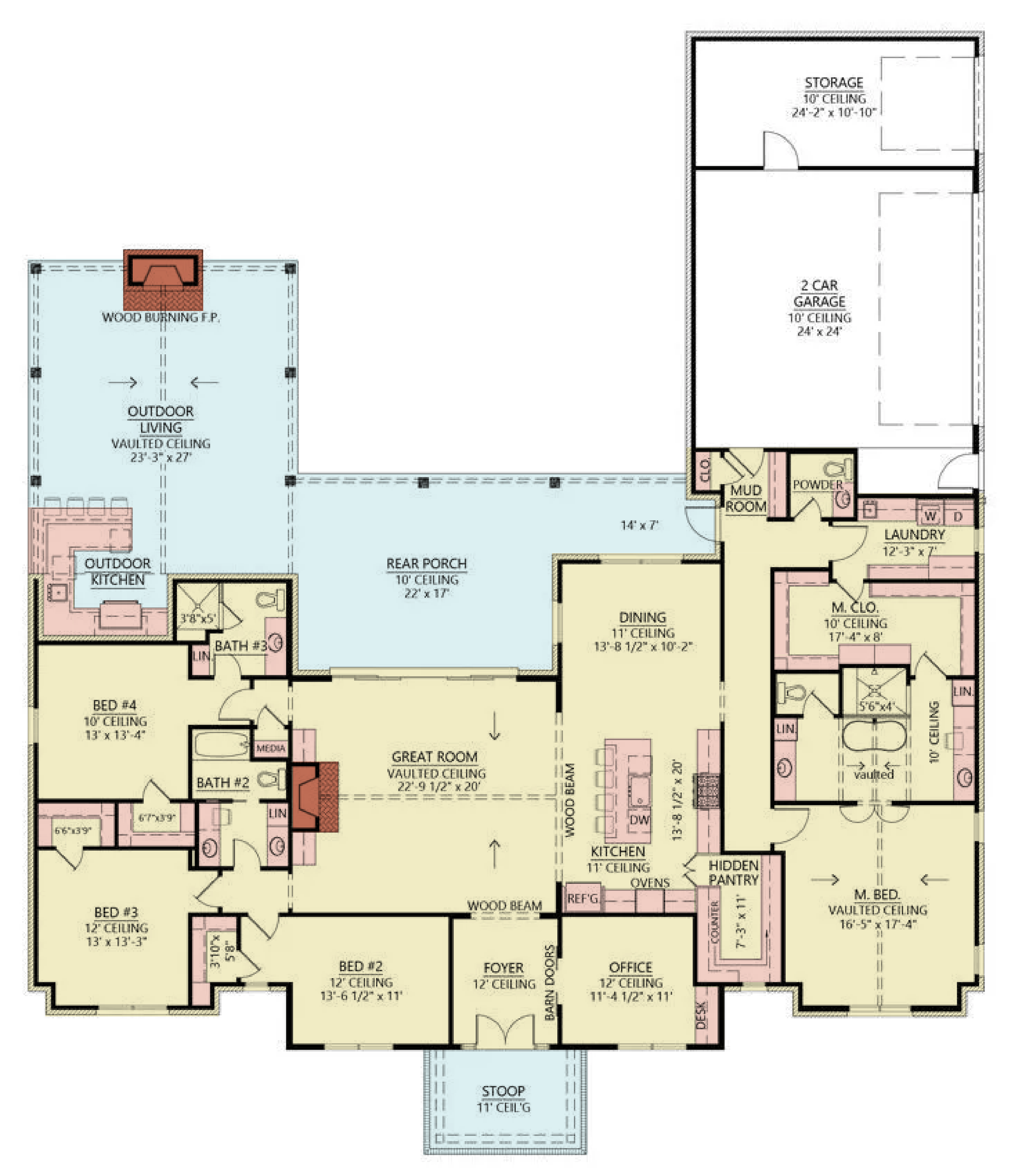

Main Level
Archival Designs, Inc.1245 Buford Hwy,
Ste 306 Suwanee, GA 30024
https://archivaldesigns.com/
+1 (888) 890 - 2353
+1 (770) 831 - 6363
orders@archivaldesigns.com
House Plan Formats Explained

PDF (Single Build)

A complete set of working drawings delivered in digital PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

CAD + PDF (Single Build)

A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

5 or 8 Prints (Single Build)

Five or eight printed sets of working drawings shipped to you. This option comes with a license to build ONE home.

5 Prints + PDF (Single Build)

Five printed sets of working drawings shipped to you, plus a digital version in PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

PDF (Multi Build)

A complete set of working drawings delivered in digital PDF format. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.

CAD + PDF (Multi Build)

A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.

Choose a building foundation for your home. The foundation provides stability to a home's structure from the ground up.

Slab - This concrete foundation is reinforced with steel rods and suitable for flat ground.

Crawl Space - This foundation is raised off the ground with low walls resting on footings, providing space for wiring, plumbing, and storage.

Basement - This foundation is entirely or partially below ground and offers storage or living areas.

Walkout Basement - This foundation is typically suited for rear-sloping lots and provides storage or living areas. Walkout basements have doors that provide access to the outside.

FAQ

Why choose Archival Designs?

Archival Designs brings you over 35 years of experience in the house plan design business. We offer the best value for your money by offering the highest quality home designs.

We offer a 10% military & first responder discount, as well as builder discounts for life! Archival Designs guarantees the lowest prices anywhere online. Learn more about our Best Price Guarantee.

All house plans sold by Archival Designs have been designed to comply with the International Residential Code (IRC) and to the local codes in the area where the designer resides or where the house was built.

Do your plans meet building codes in my area?
Do your plans meet building codes in my area?
What is included in the construction drawings?
What is included in the construction drawings?
Will the plans be stamped or signed by an architect or engineer?
Will the plans be stamped or signed by an architect or engineer?
Will the foundation included in the construction drawings work for my site?
Will the foundation included in the construction drawings work for my site?
Do your plans include electrical, plumbing and mechanical drawings?
Do your plans include electrical, plumbing and mechanical drawings?
