West Haven House Plan

Plan Number:

D1019-A

3
Bedrooms
2
Full Baths
1
Half Baths
2277
SQ FT
LOW PRICE GUARANTEE

House Plan Specifications

  • Total Living:  2277
    1st Floor:  2277
    Bonus Room:  299
    Total Porch:  416
  • Garage:  495
    Garage Bays:   2
    Garage Load:   Front
  • Bedrooms:   3
    Bathrooms:   2
    Half Bathrooms:   1
  • Foundation:   Crawl Space
    Wall Framing:   2x6
    Roof Framing:   Truss
  • Width of House:  65'-4''
    Depth of House:  58'
    Building Height:  27'-4''
  • First Floor Ceiling Height:  10'
    Second Floor Ceiling Height:  8'

Key Features:

  • Bonus Room
  • Covered Back Porch
  • Covered Front Porch
  • Eating Bar
  • Fireplace
  • First Floor Laundry
  • First Floor Master Suite
  • Great Room
  • Home Office/Study
  • Jack and Jill Bathroom
  • Kitchen Island
  • Laundry 1st Floor
  • Master Bath-Double Vanity Sink
  • Mud Room
  • Open Floor Plan
  • Rear Porch
  • Walk-in Closet
  • Walk-in Pantry
Modify this plan to make it perfect
Our hassle-free process makes it easy to modify your dream home. To receive an estimate please submit your request using the link below.
Submit a Modification Request
Free Cost TO
Build Estimate
Say goodbye to the guesswork of construction costs with our custom cost estimator. Receive a cost to build estimate in two minutes instead of 2 days as many competitors offer.... plus its Free!
INSTANT
ACCURATE
FREE
Cost to build your dream home
Plan Number: D1019-A
West Haven House Plan
3 Bedrooms
2 Full Baths
1 Half Baths
2277 SQ FT

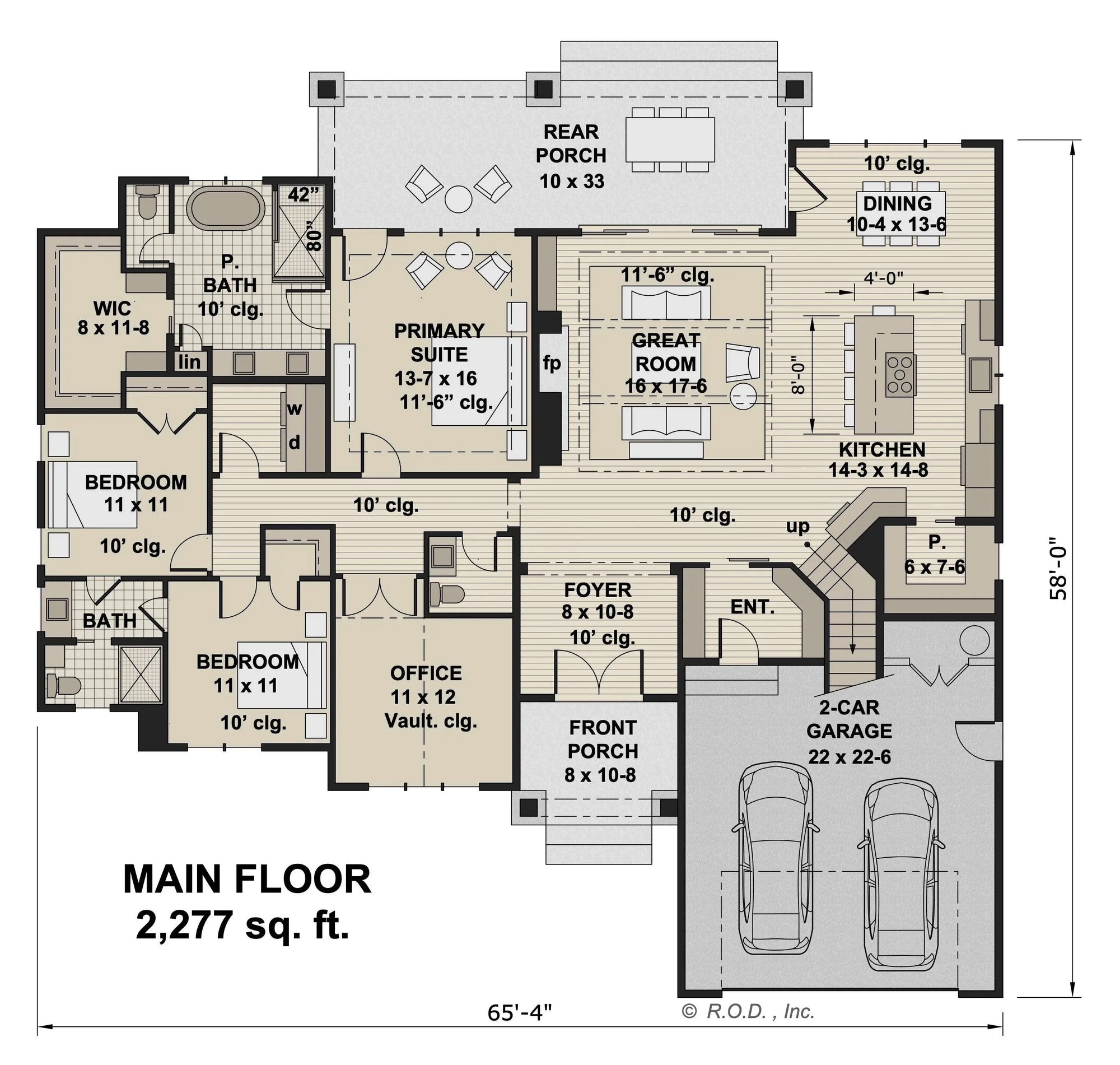

Main Level

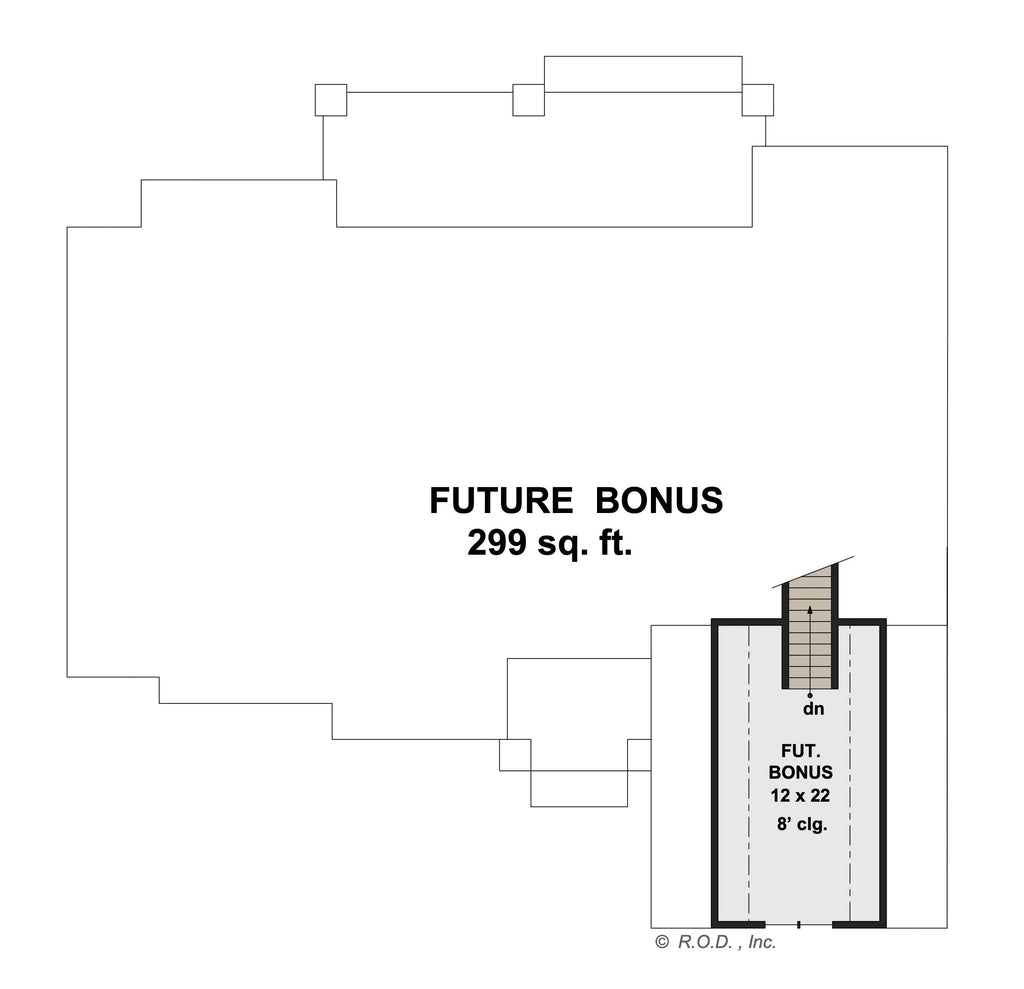

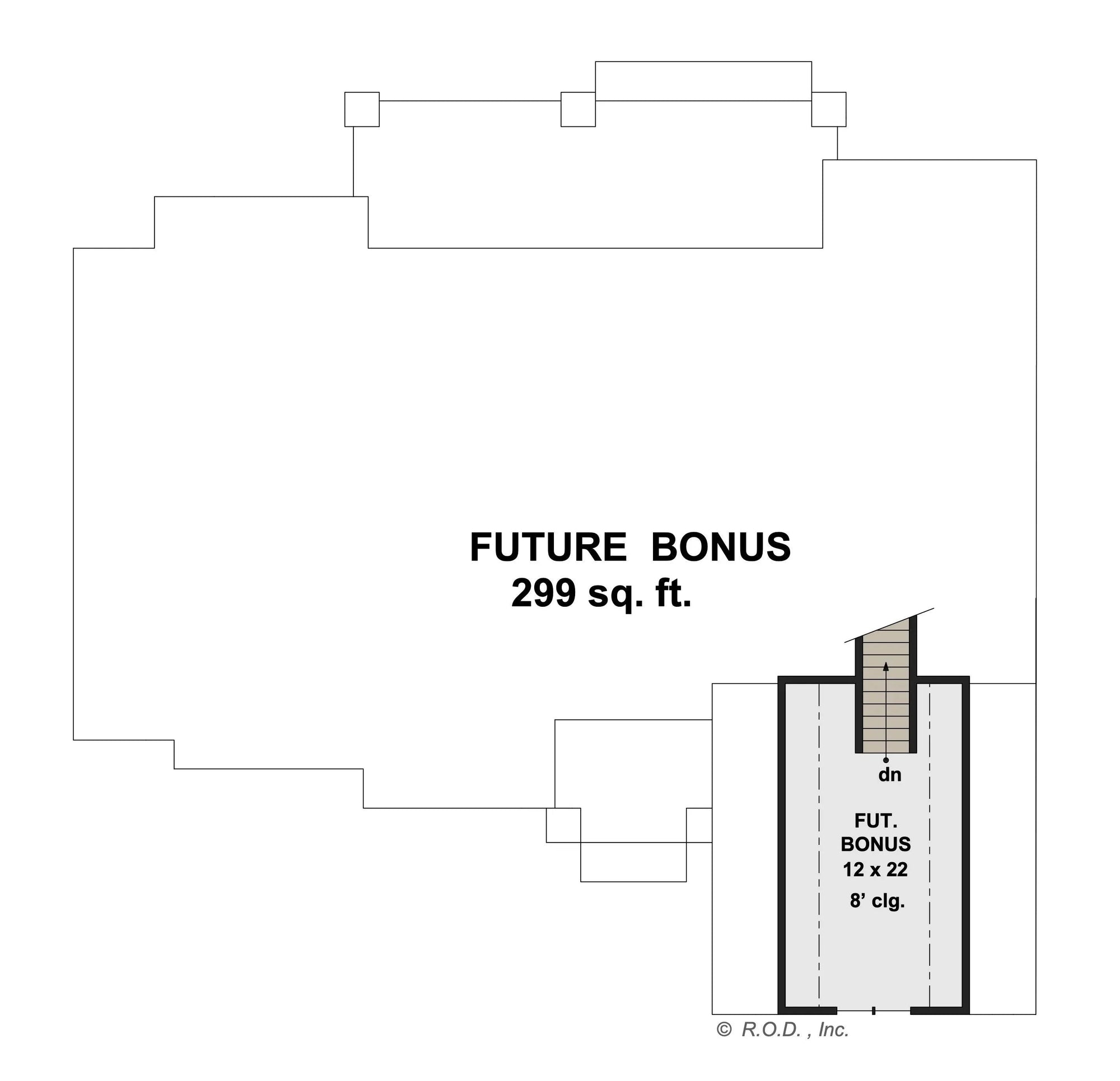

Bonus Room
House Plan Formats Explained

PDF (Single Build)

A complete set of working drawings delivered in digital PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

CAD + PDF (Single Build)

A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

5 or 8 Prints (Single Build)

Five or eight printed sets of working drawings shipped to you. This option comes with a license to build ONE home.

5 Prints + PDF (Single Build)

Five printed sets of working drawings shipped to you, plus a digital version in PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

PDF (Multi Build)

A complete set of working drawings delivered in digital PDF format. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.

CAD + PDF (Multi Build)

A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.

Choose a building foundation for your home. The foundation provides stability to a home's structure from the ground up.

Slab - This concrete foundation is reinforced with steel rods and suitable for flat ground.

Crawl Space - This foundation is raised off the ground with low walls resting on footings, providing space for wiring, plumbing, and storage.

Basement - This foundation is entirely or partially below ground and offers storage or living areas.

Walkout Basement - This foundation is typically suited for rear-sloping lots and provides storage or living areas. Walkout basements have doors that provide access to the outside.

FAQ

Why choose Archival Designs?

Archival Designs brings you over 35 years of experience in the house plan design business. We offer the best value for your money by offering the highest quality home designs.

We offer a 10% military & first responder discount, as well as builder discounts for life! Archival Designs guarantees the lowest prices anywhere online. Learn more about our Best Price Guarantee.

All house plans sold by Archival Designs have been designed to comply with the International Residential Code (IRC) and to the local codes in the area where the designer resides or where the house was built.

Do your plans meet building codes in my area?
Do your plans meet building codes in my area?
What is included in the construction drawings?
What is included in the construction drawings?
Will the plans be stamped or signed by an architect or engineer?
Will the plans be stamped or signed by an architect or engineer?
Will the foundation included in the construction drawings work for my site?
Will the foundation included in the construction drawings work for my site?
Do your plans include electrical, plumbing and mechanical drawings?
Do your plans include electrical, plumbing and mechanical drawings?

Welcome to your dream home- a stunning transitional farmhouse that seamlessly blends modern and traditional design elements. From the moment you see the exterior, you’ll be amazed by the beautiful use of stone, wood and steel that create a truly remarkable curb appeal.

As you enter the home, you’ll be welcomed by an open floor plan with sight lines throughout, creating a seamless flow from room to room. The large kitchen island, perfect for entertaining or family gatherings, provides seating for up to 5 people and is accompanied by a walk-in pantry with a pocket door and numerous cabinets to meet all your storage needs.

The expansive great room with fireplace provides the perfect place to relax and unwind, while the main level master suite features a seating area, access to the rear porch, a generous walk-in closet and private bath.

The covered front and rear porches offer a perfect space to enjoy the fresh air and scenery, while the dedicated laundry room and front office provided added convenience and functionality.

The two additional bedrooms, each with their own unique features, share a Jack and Jill bathroom, creating an added level of comfort for family and friends.

With a 2-car garage and 2282 sq ft of living space, this home is perfect for families or those who love to entertain. This transitional farmhouse is the perfect combination of luxury, functionality and beauty- truly the perfect place to call home.
