Vaughn 2 is a one-story ranch house plan providing 1,334 sq ft of heated living area, optimized for a 44 ft width and 48 ft depth footprint. This traditional design emphasizes efficient circulation and a compact structure suitable for small-lot development. The exterior features a 121 sq ft covered front porch that establishes a clear entry point, while the 120 sq ft rear deck provides a direct transition to outdoor living zones.

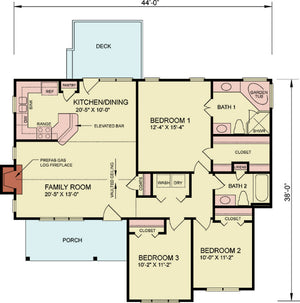

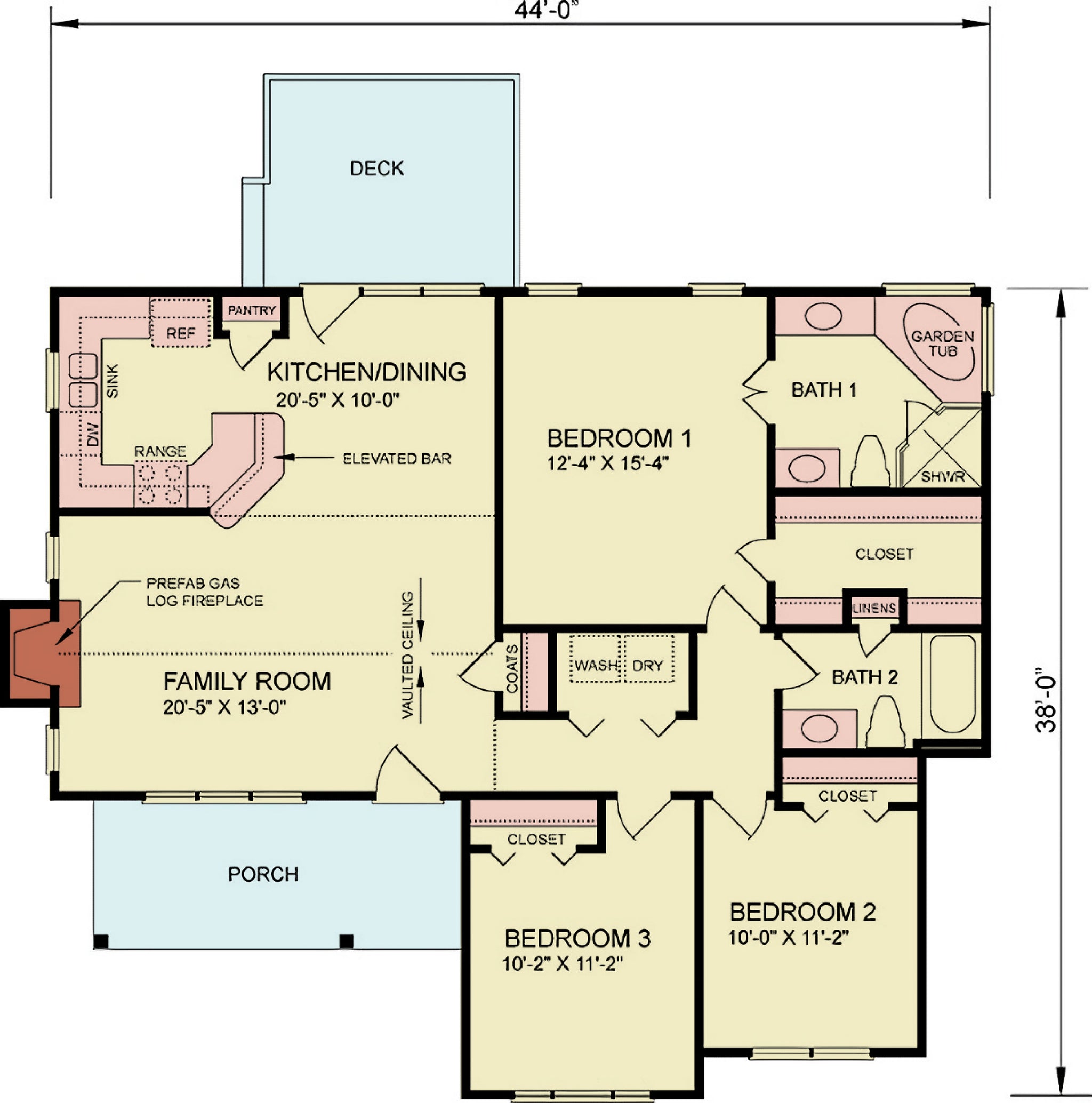

The interior architecture centers on an open-concept core, where the kitchen island and eating bar maintain sightlines into the family room. By utilizing 9-foot ceilings throughout the main level, the design maximizes the perception of volume within the 1,334 sq ft floor plate. This layout includes a primary bedroom suite positioned on the main floor, ensuring accessibility and separation from the secondary bedrooms.
Construction details for the Vaughn 2 include 2x4 exterior wall framing and stick roof framing with a 9:12 roof pitch, resulting in a maximum building height of 19 ft 4 in. The roof profile contributes to the classic aesthetic of the ranch-style architecture while maintaining structural simplicity. This combination of materials and framing techniques supports long-term durability and simplified building processes.
The plan incorporates essential utility zones, including a dedicated laundry area and a functional floor plan that minimizes hallways to prioritize usable square footage. With its 3-bedroom, 2-bathroom configuration, the layout addresses the requirements for age-in-place living and multi-generational flexibility. The integration of a rear deck and front porch balances the interior living space with exterior access, providing a complete residential design for standard lot sizes.
Key Features: 1,334 sq ft, 3 bedrooms, 2 bathrooms, one-story ranch design, 9-foot ceilings, kitchen island, covered front porch, rear deck, 9:12 roof pitch, 2x4 exterior wall framing, first-floor primary suite.
Review plan layouts, CAD packages, and customization options for this home.
