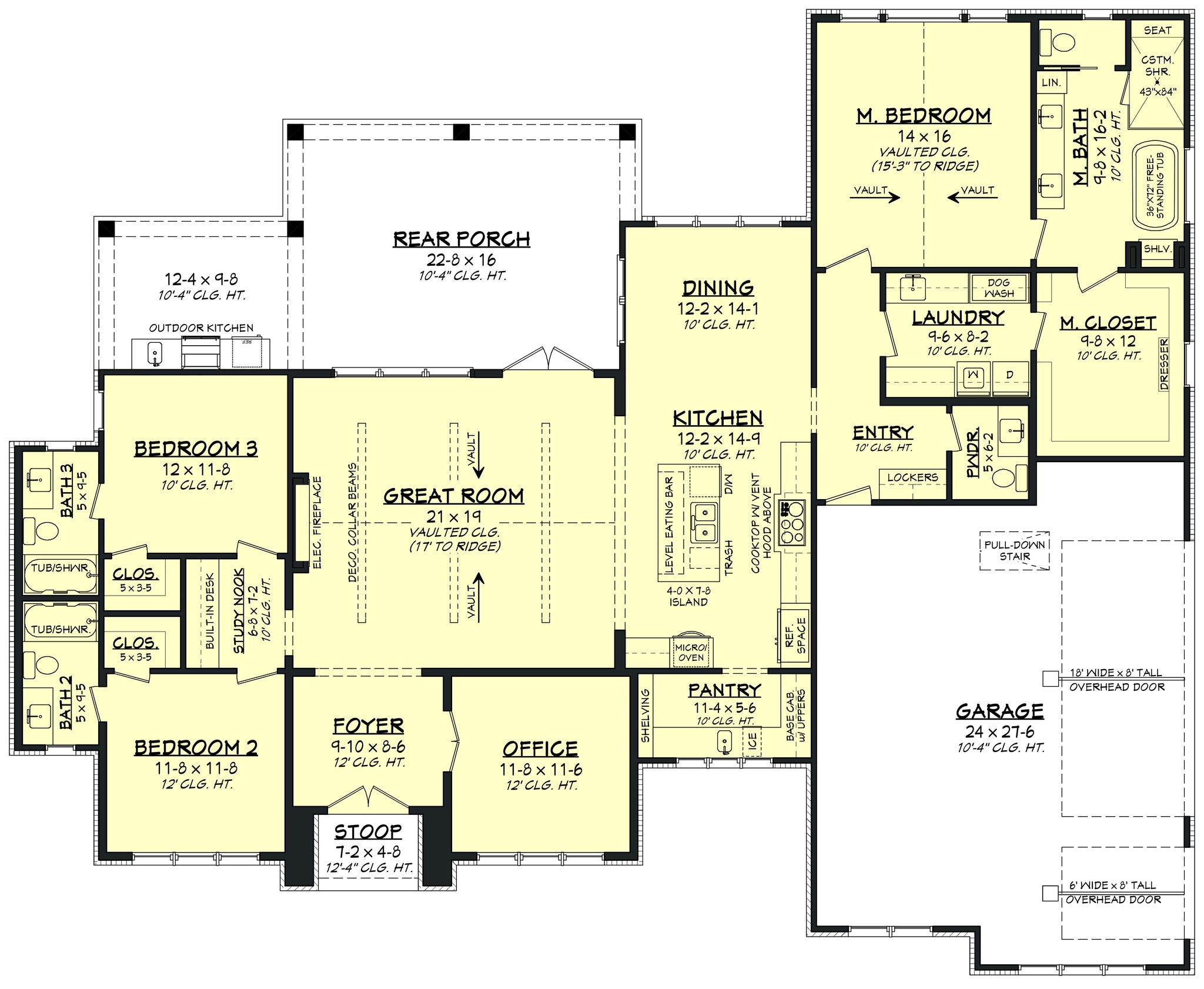

h8123-a transitional house first floor plan, 3 bedrooms, 3.5 bathrooms | haney house plan

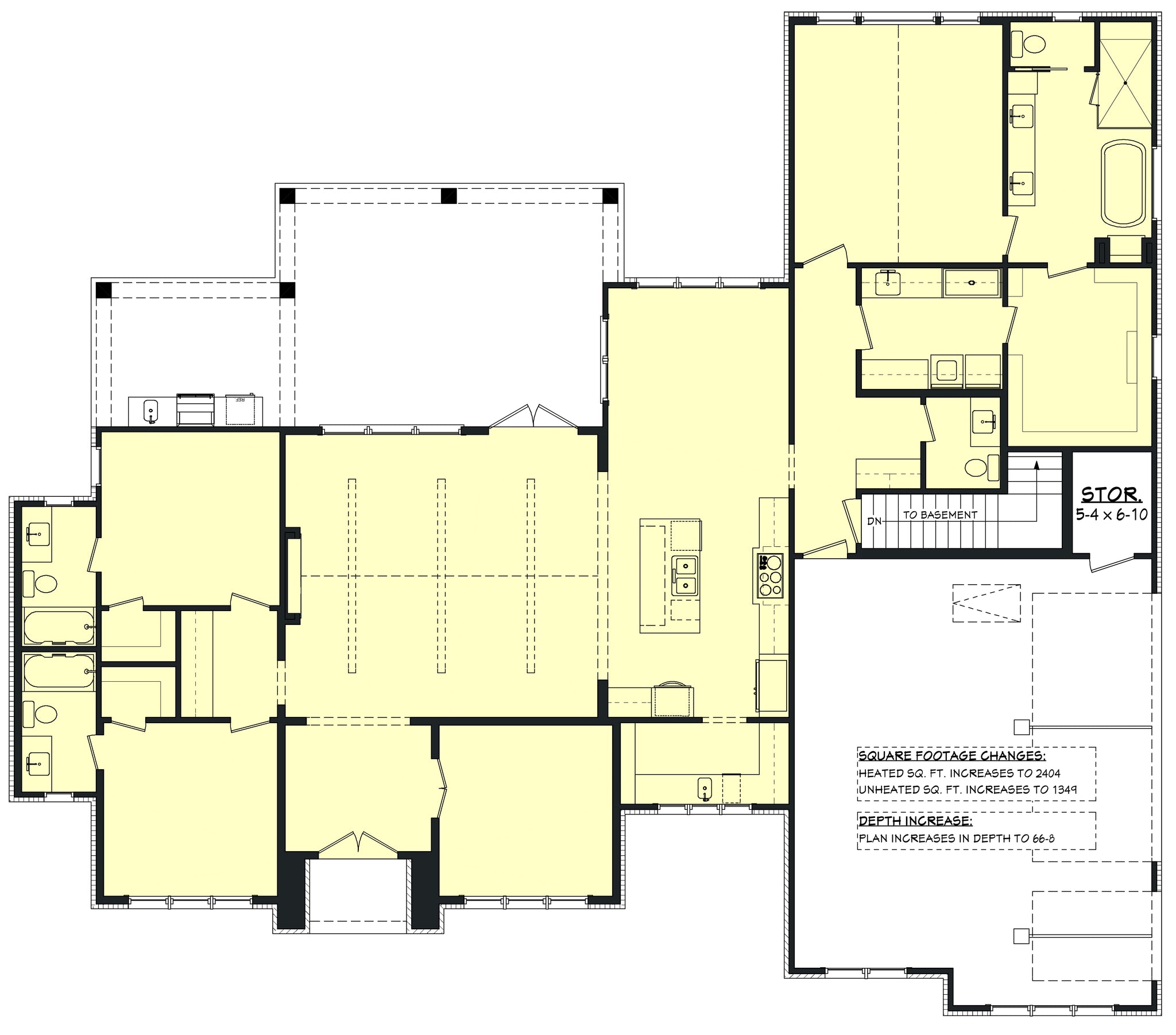

h8123-a transitional house basement stair location floor plan, 3 bedrooms, 3.5 bathrooms | haney house plan
transitional house plan with 3 bedrooms, outdoor kitchen & open floor plan – 2383 sq ft

Transitional House Plan with 3 Bedrooms, Outdoor Kitchen & Open Floor Plan – 2383 Sq Ft

This beautifully designed transitional house plan blends the clean sophistication of contemporary architecture with the warmth and familiarity of traditional residential design. Offering 2,383 square feet of heated living space and a total structure size of 3,646 square feet, the home delivers an elegant balance of openness, functionality, and refined architectural detail tailored for modern family living.

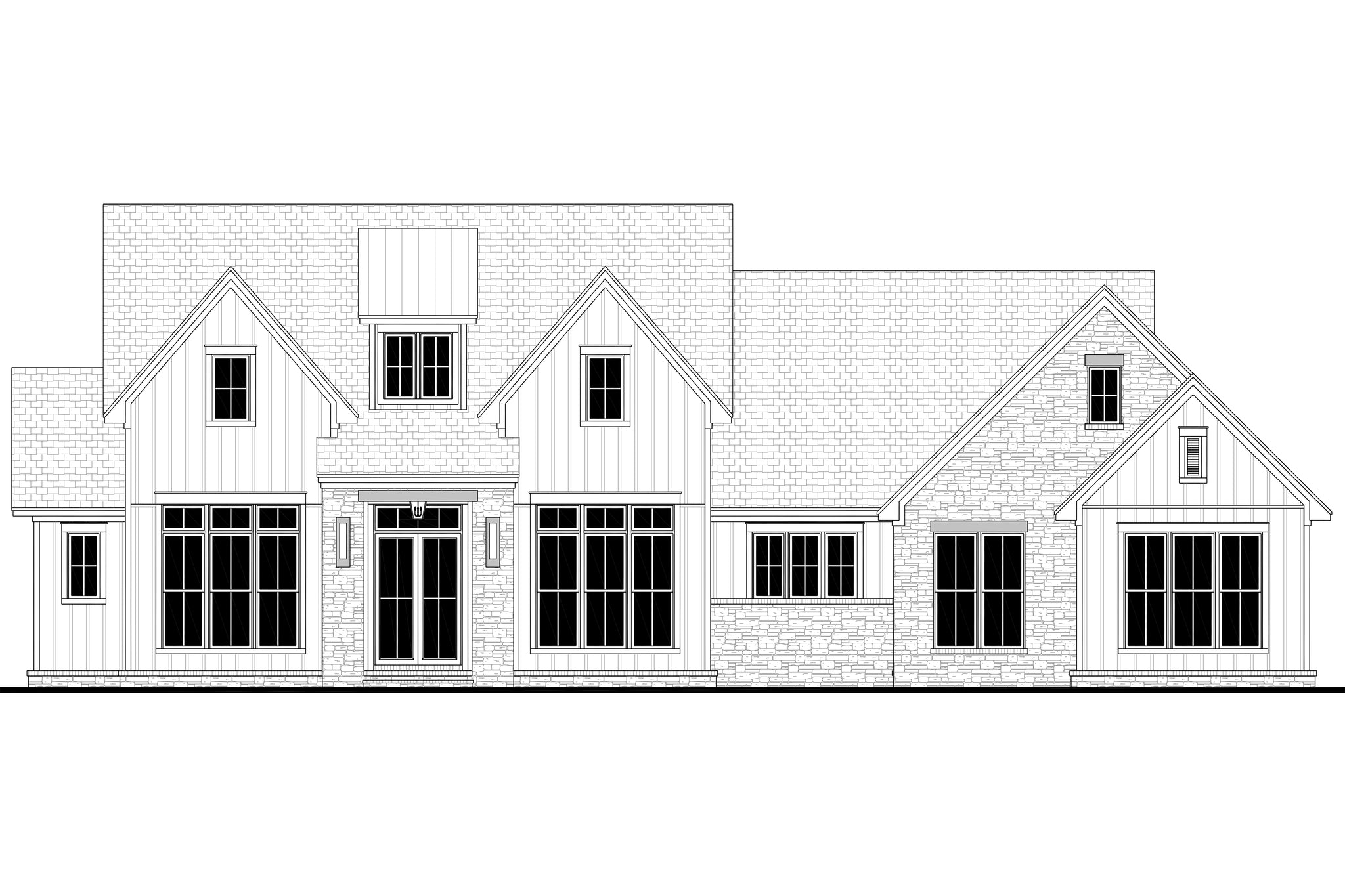

The exterior composition reflects the defining characteristics of transitional design through its harmonious combination of simple geometric forms, classic rooflines, and modern detailing. Board and batten siding introduces texture and timeless visual appeal, while the steep 9:12 roof pitch adds architectural presence and vertical emphasis. Measuring 76 feet 8 inches wide by 62 feet 4 inches deep, the home presents a broad, grounded profile that complements suburban, rural, and estate-style settings alike.

A modest front porch and stoop establish a welcoming entrance sequence that leads into a thoughtfully organized interior centered around spacious open-concept living. Ten-foot first-floor ceilings immediately enhance the sense of scale throughout the home, creating bright and airy living spaces reinforced by abundant natural light and seamless room transitions.

The foyer introduces the home with understated elegance and provides visual connection to the expansive great room beyond. Serving as the primary gathering space, the great room is anchored by a fireplace that adds warmth, comfort, and architectural definition. The open layout encourages interaction between living, dining, and kitchen spaces while maintaining distinct functional zones suited for both everyday living and entertaining.

At the heart of the home, the kitchen is carefully designed to balance efficiency and social engagement. A large kitchen island provides generous workspace and casual seating opportunities, while the adjacent eating bar further enhances the home’s informal dining flexibility. The nearby walk-in pantry supports organization and storage without compromising the kitchen’s clean visual presentation.

For more formal occasions, the dedicated dining room offers a refined setting for entertaining guests and hosting family gatherings. Positioned within the open layout yet subtly separated from the primary living spaces, the dining area preserves both accessibility and a sense of occasion.

The first-floor master suite functions as a private retreat thoughtfully integrated into the home’s single-level layout. Spacious and highly functional, the suite includes a walk-in closet and a luxurious private bath featuring dual vanity sinks. One of the home’s most convenient features is direct laundry room access from the master suite, supporting efficient daily routines and enhanced practicality.

Additional bedrooms are strategically positioned to maintain privacy and comfort for family members or guests, each supported by nearby full bath access. Altogether, the home includes 3 bedrooms, 3 full bathrooms, and a powder room, creating a highly livable arrangement suited for both growing families and empty nesters seeking spacious single-level living.

A dedicated home office or study provides valuable flexibility for remote work, creative pursuits, or quiet reading space. As modern lifestyles increasingly demand adaptable interiors, this feature significantly enhances the home’s long-term usability and appeal.

Outdoor living is a major focal point of the design. The expansive 472-square-foot rear porch creates a natural extension of the interior living environment and supports year-round relaxation and entertaining. An integrated outdoor kitchen further elevates the functionality of the exterior space, making it ideal for gatherings, outdoor dining, and casual weekend living.

Built on a slab foundation with durable stick roof framing and practical 2x4 wall construction, the home emphasizes efficient construction methods while maintaining architectural sophistication. The attached front-load two-car garage provides substantial parking and storage capacity while integrating cleanly into the home’s balanced façade.

This transitional house plan successfully merges contemporary openness with timeless residential comfort. Through its spacious single-level layout, refined architectural detailing, expansive outdoor living areas, and carefully integrated functional spaces, the home delivers a sophisticated yet highly approachable design ideal for modern homeowners seeking both elegance and everyday practicality.
