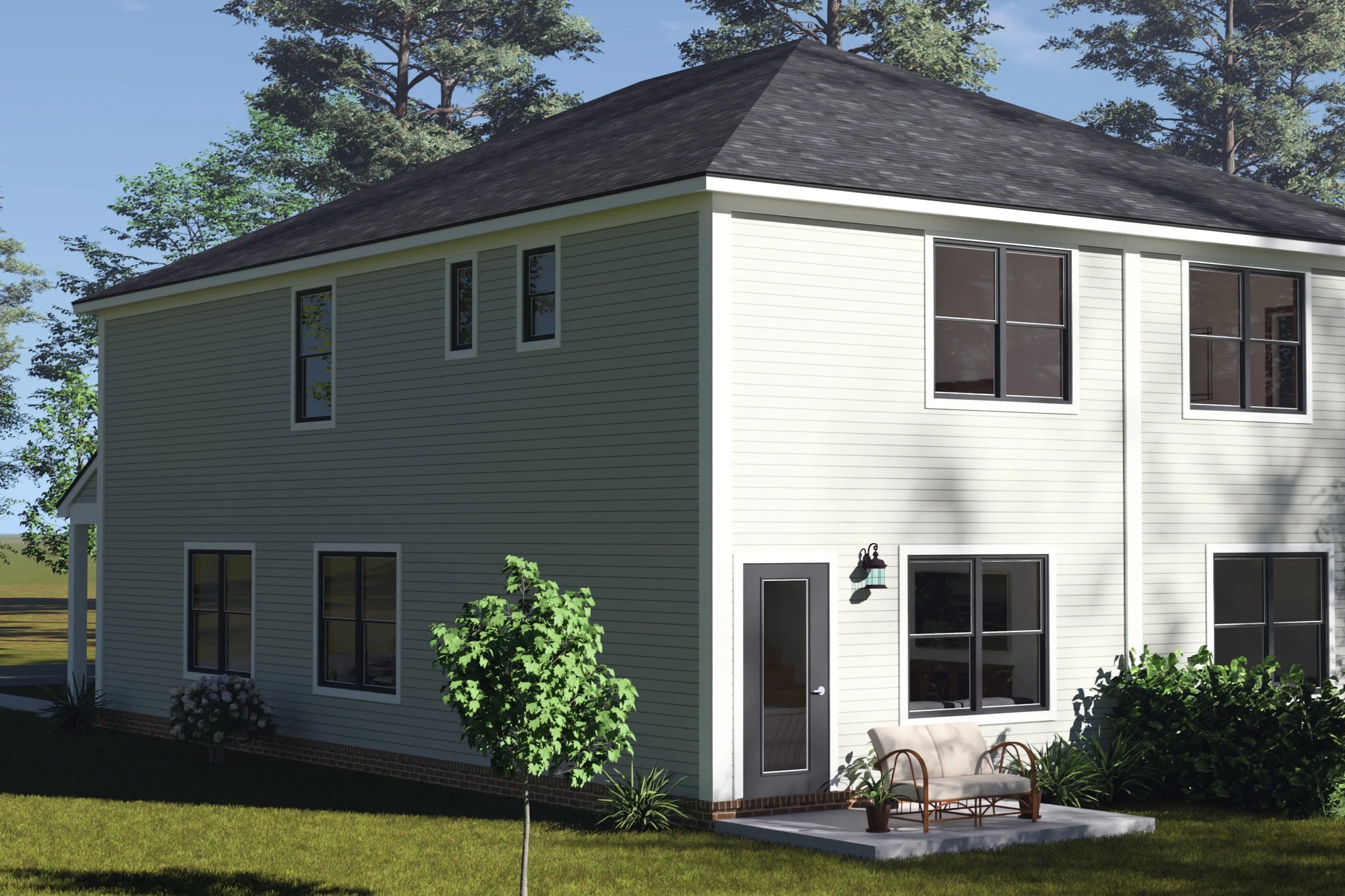

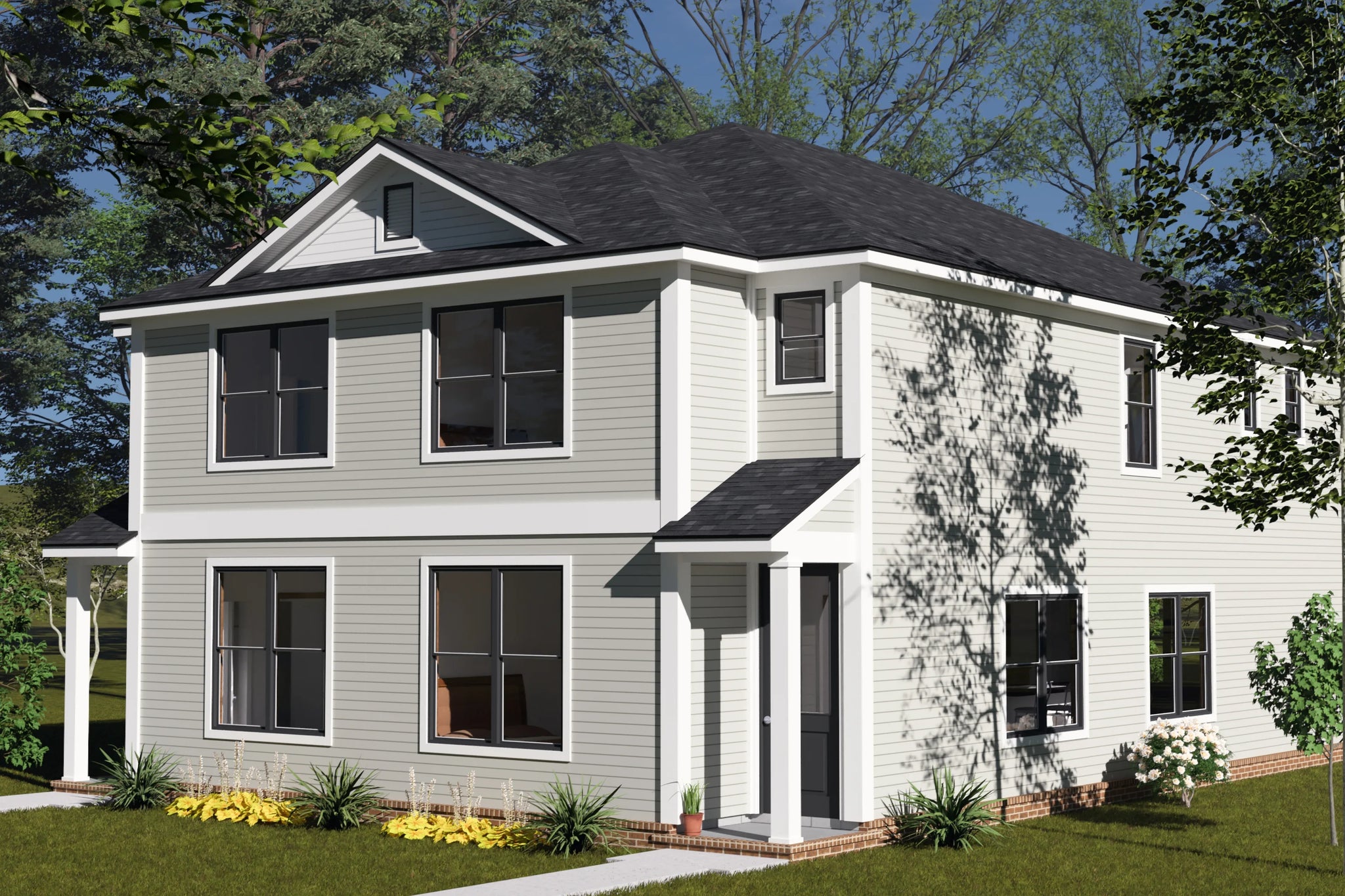

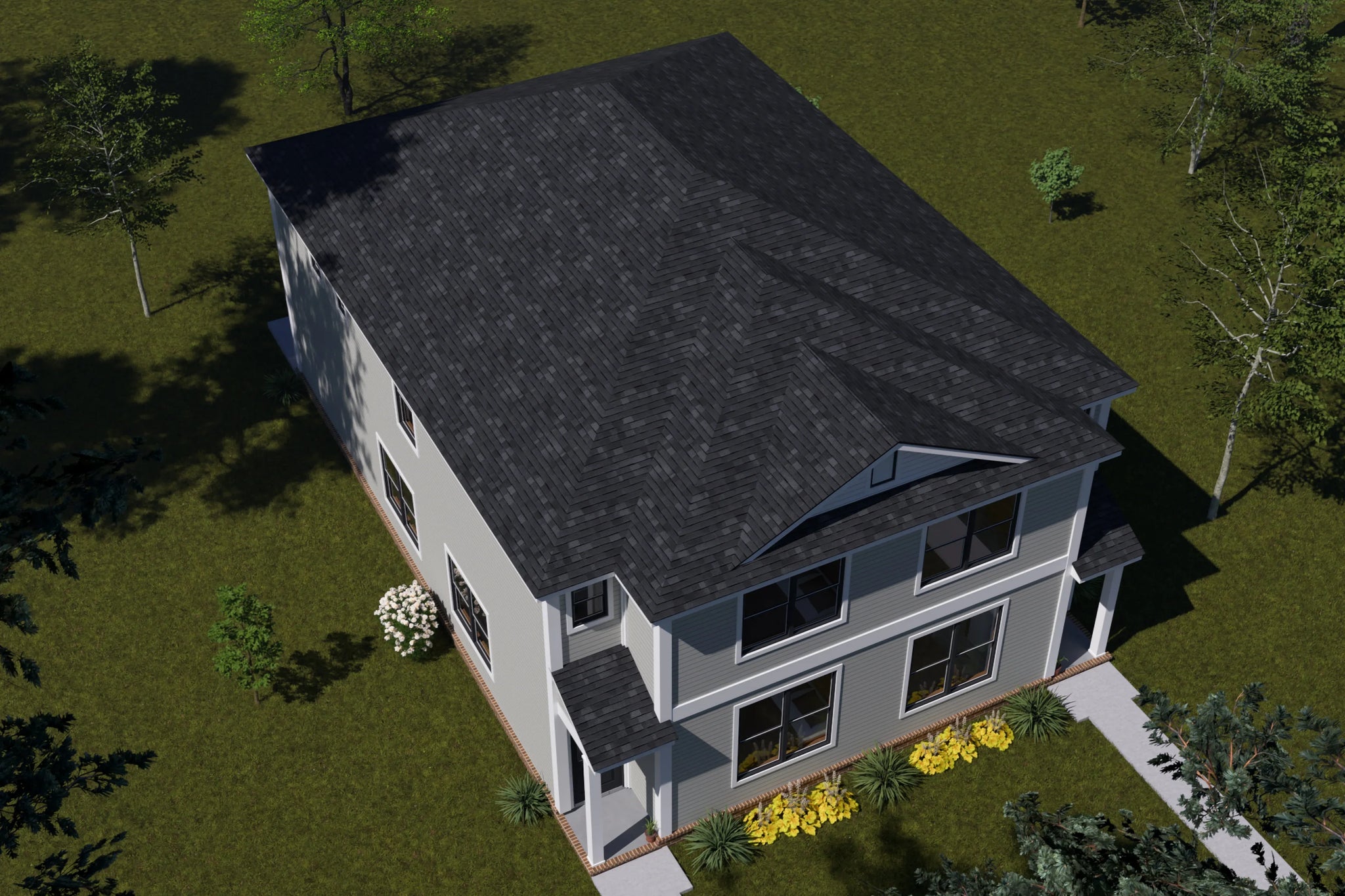

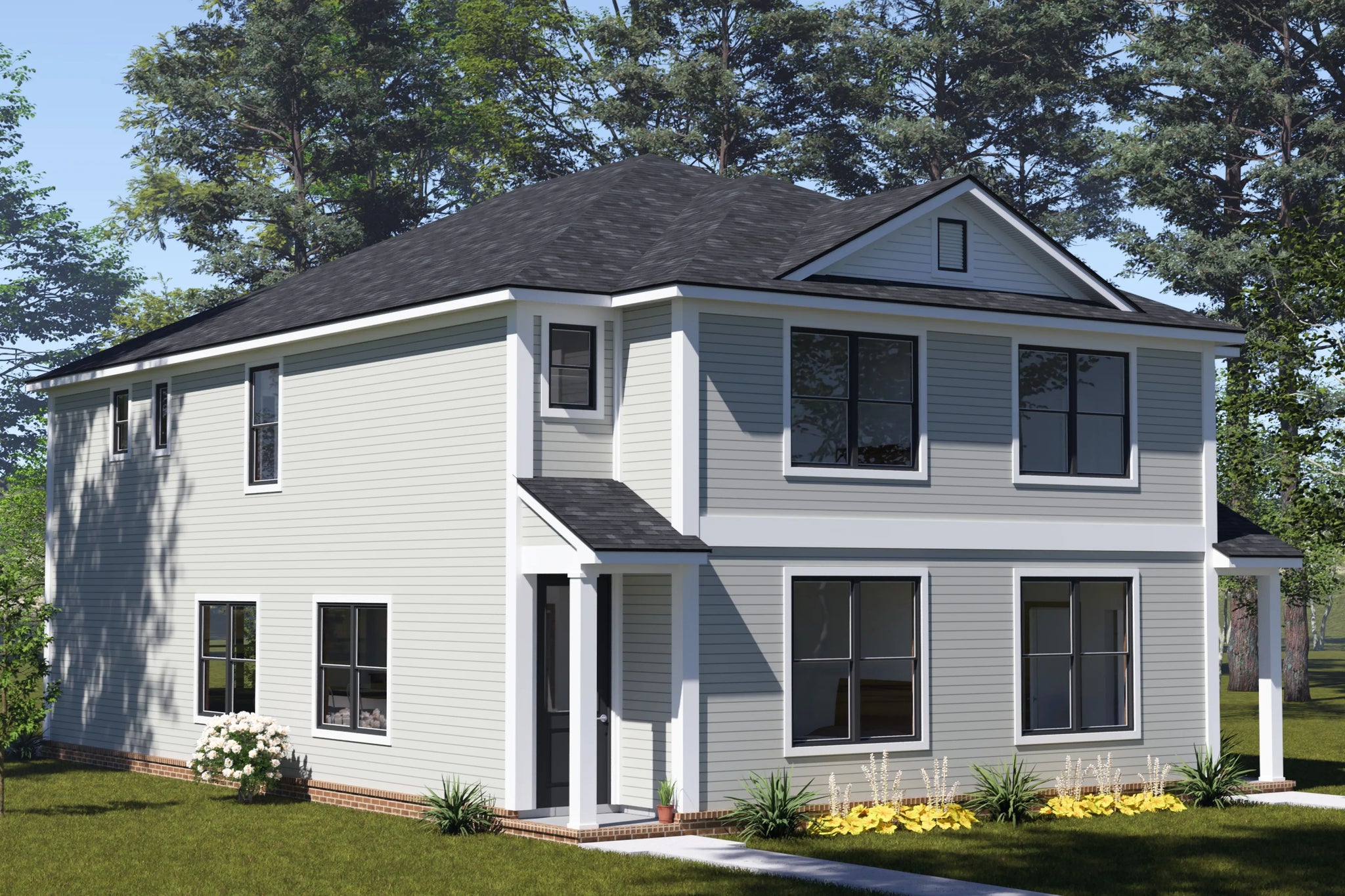

The Traditional Duplex House Plan provides 3,264 sq ft of total heated living space, configured as two identical units that maximize site utility on a 34 ft wide by 49 ft deep footprint. Designed with a 6:12 roof pitch and a 27 ft maximum building height, this structure balances traditional curb appeal with a compact, efficient profile suitable for urban infill or suburban rental developments.

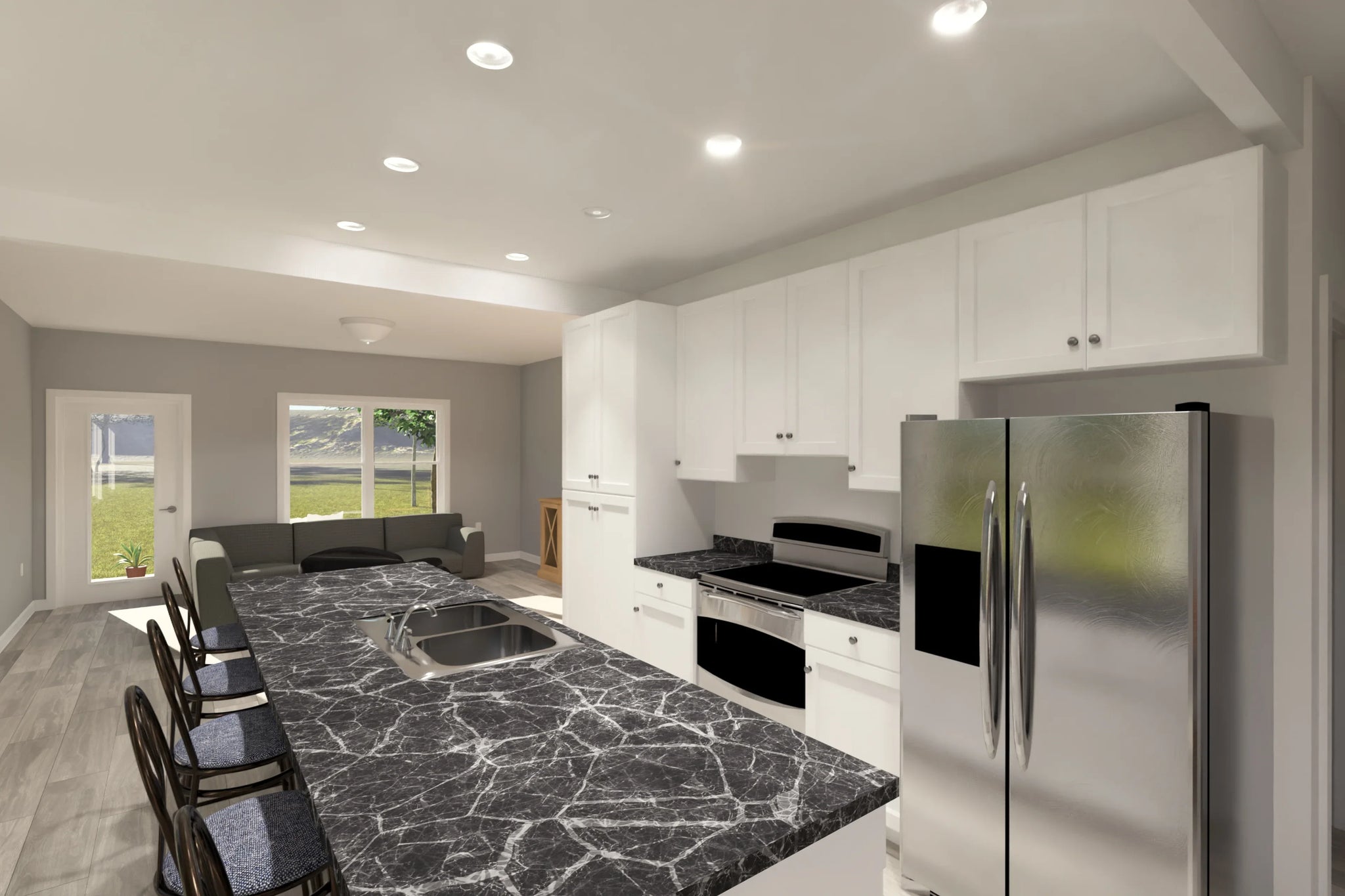

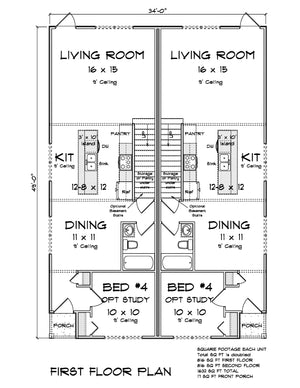

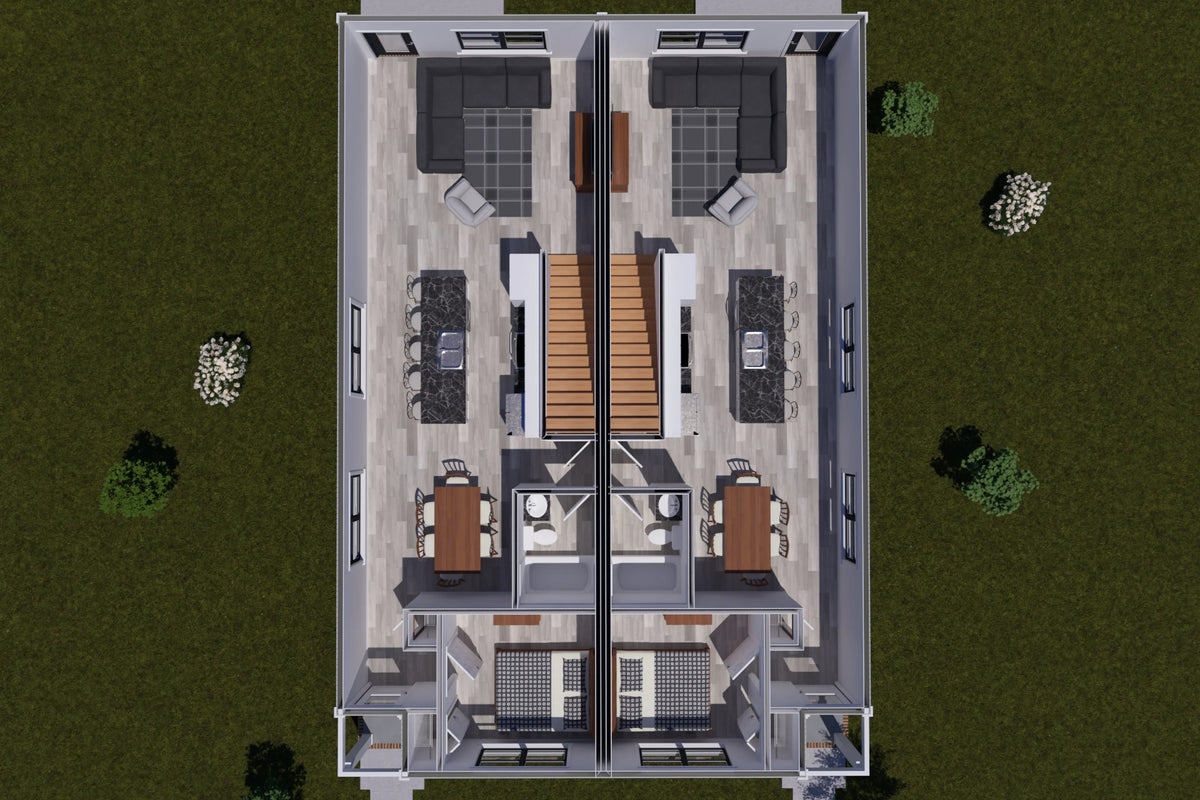

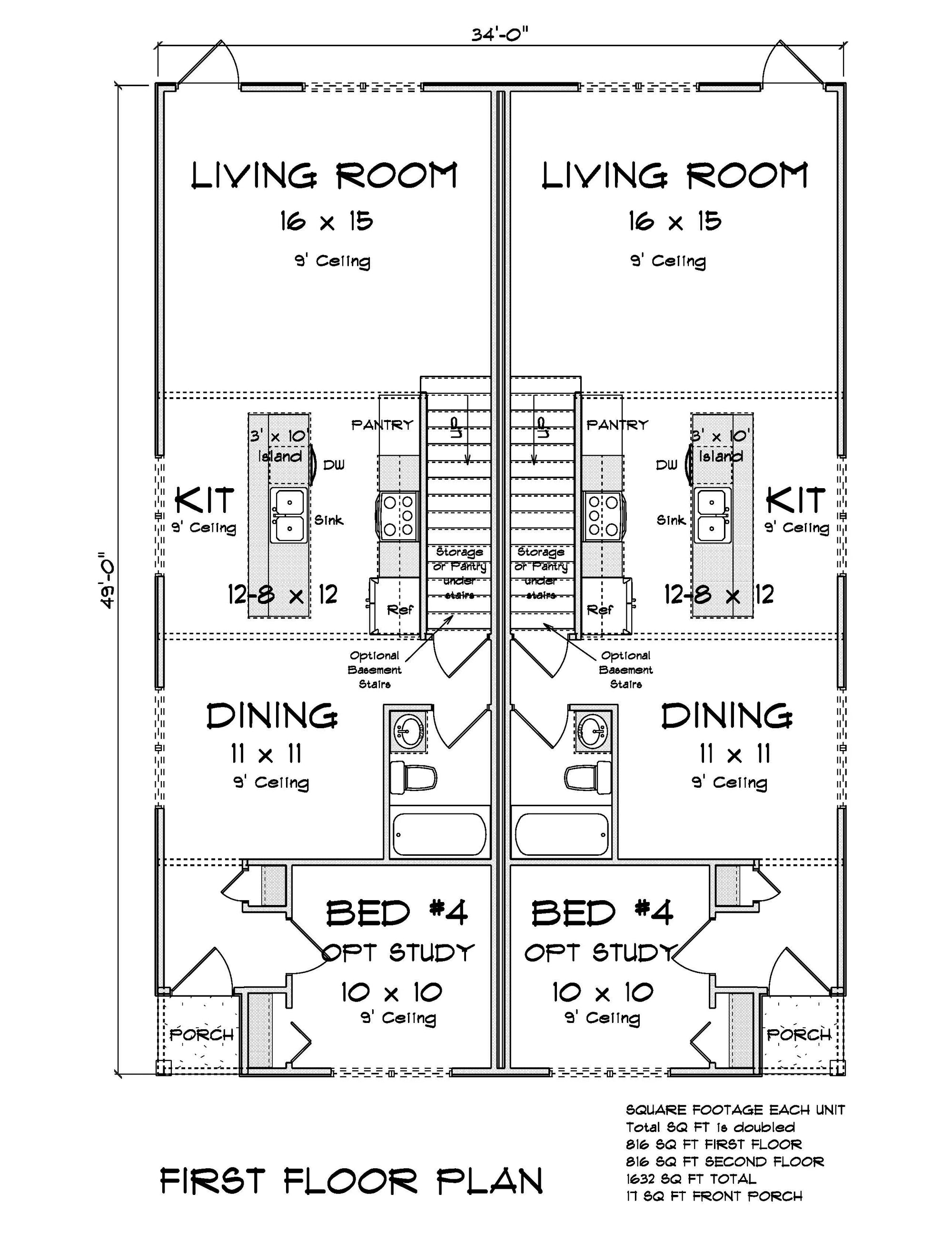

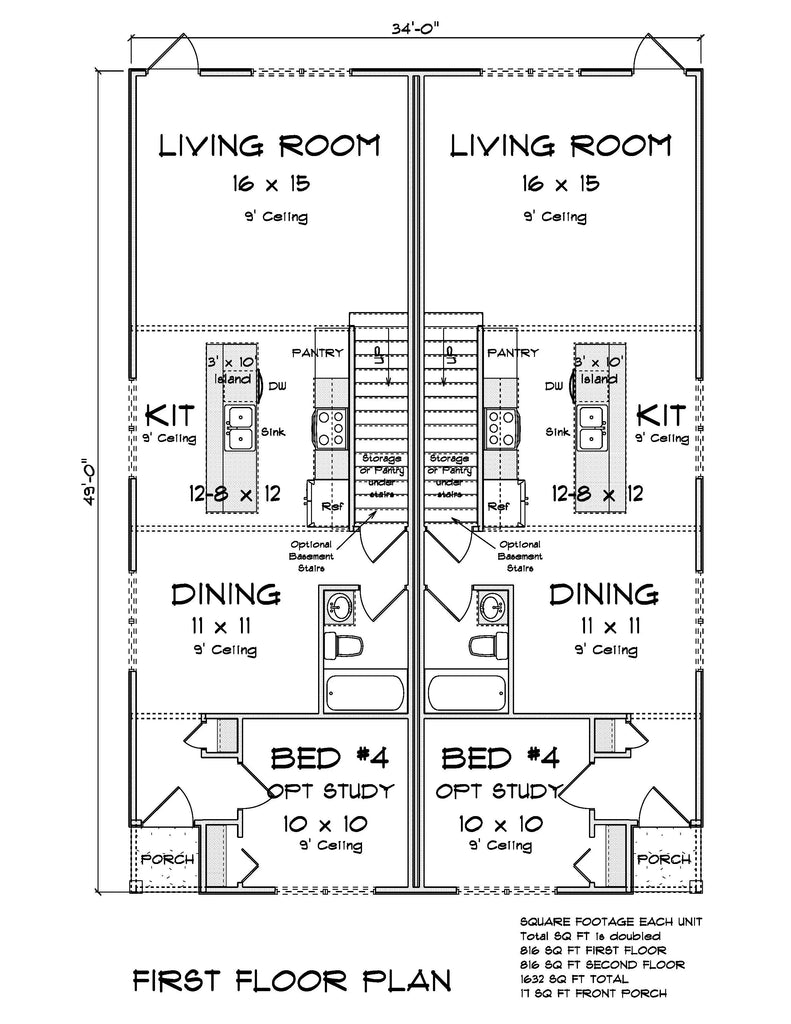

Each unit features an open-concept core on the main level, encompassing 1,632 sq ft per unit. The layout integrates a keeping room, dining area, and kitchen, anchored by a central kitchen island and an eating bar for informal dining. A formal dining area serves as a versatile flex space, while 9-foot ceilings on the first floor enhance the vertical volume and natural light penetration throughout the shared living zones.

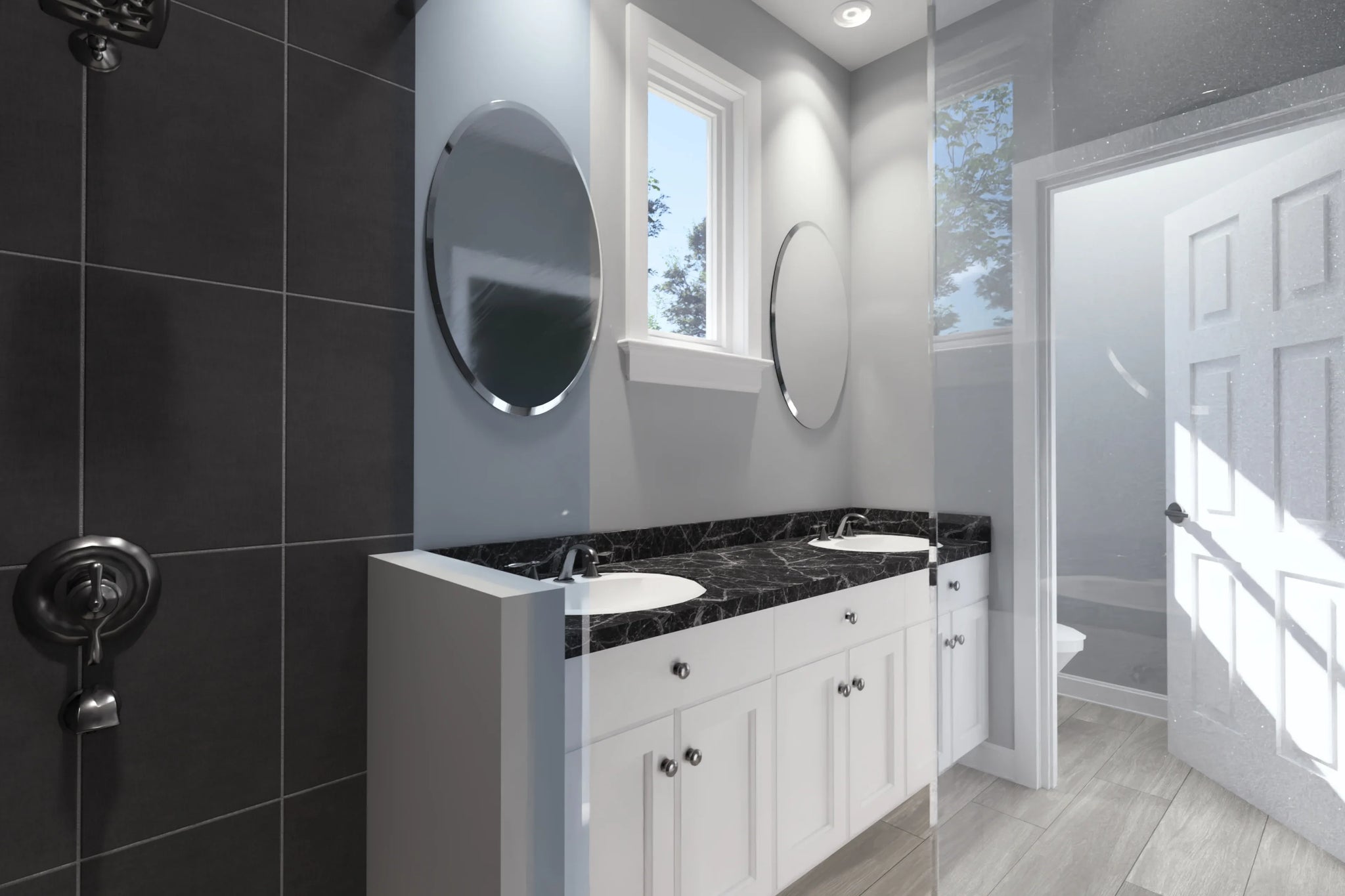

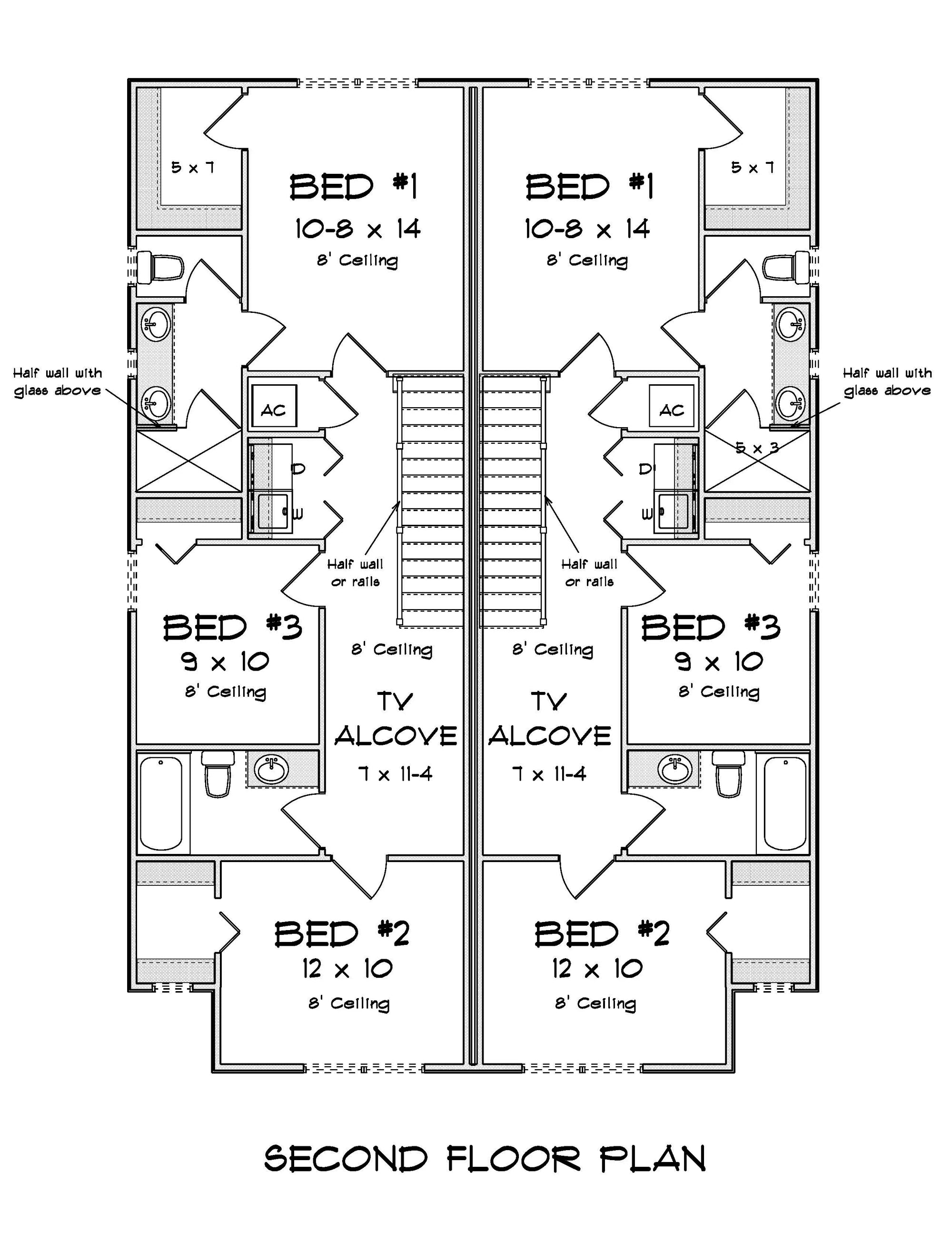

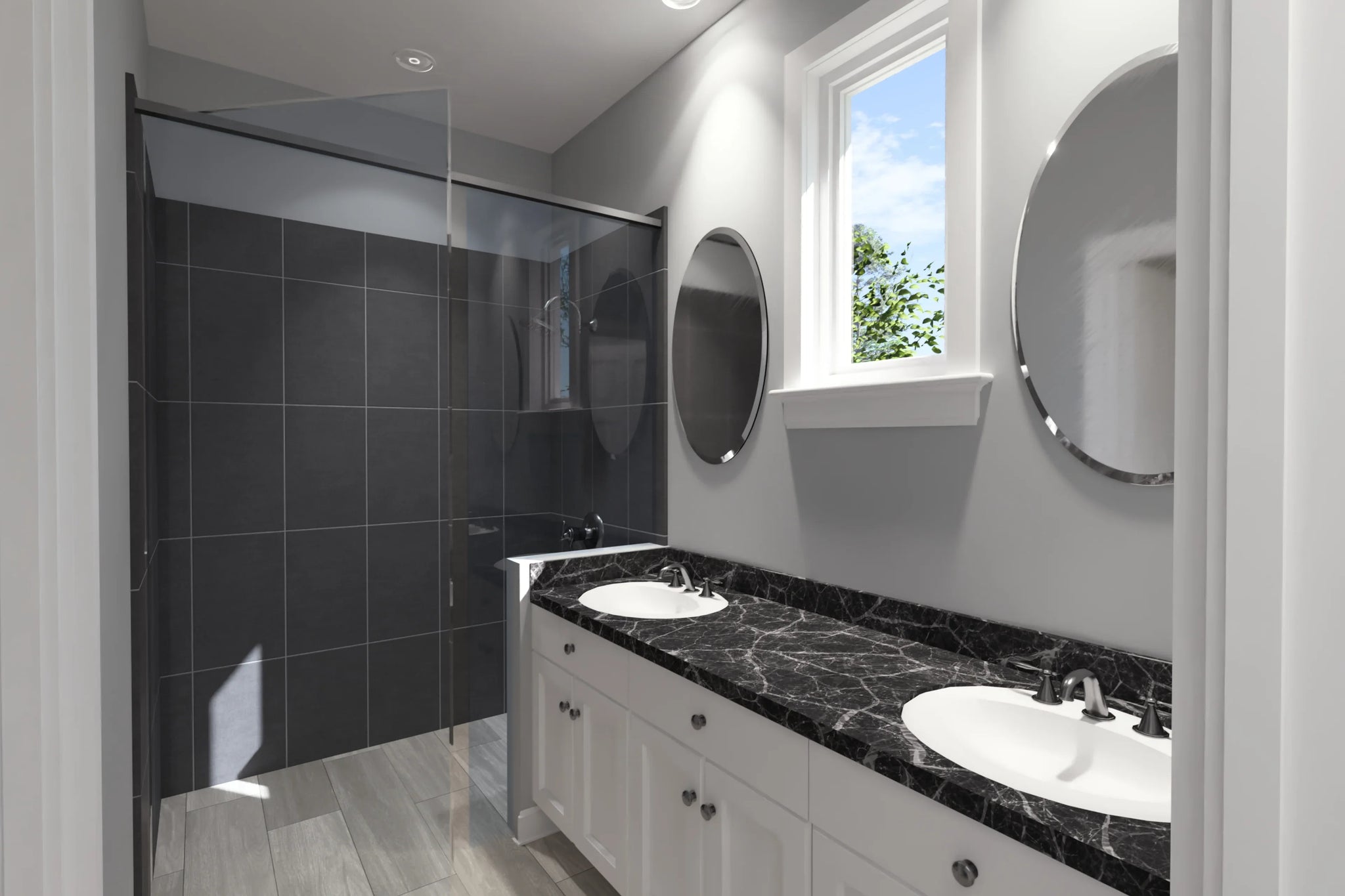

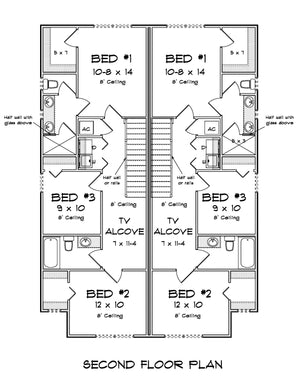

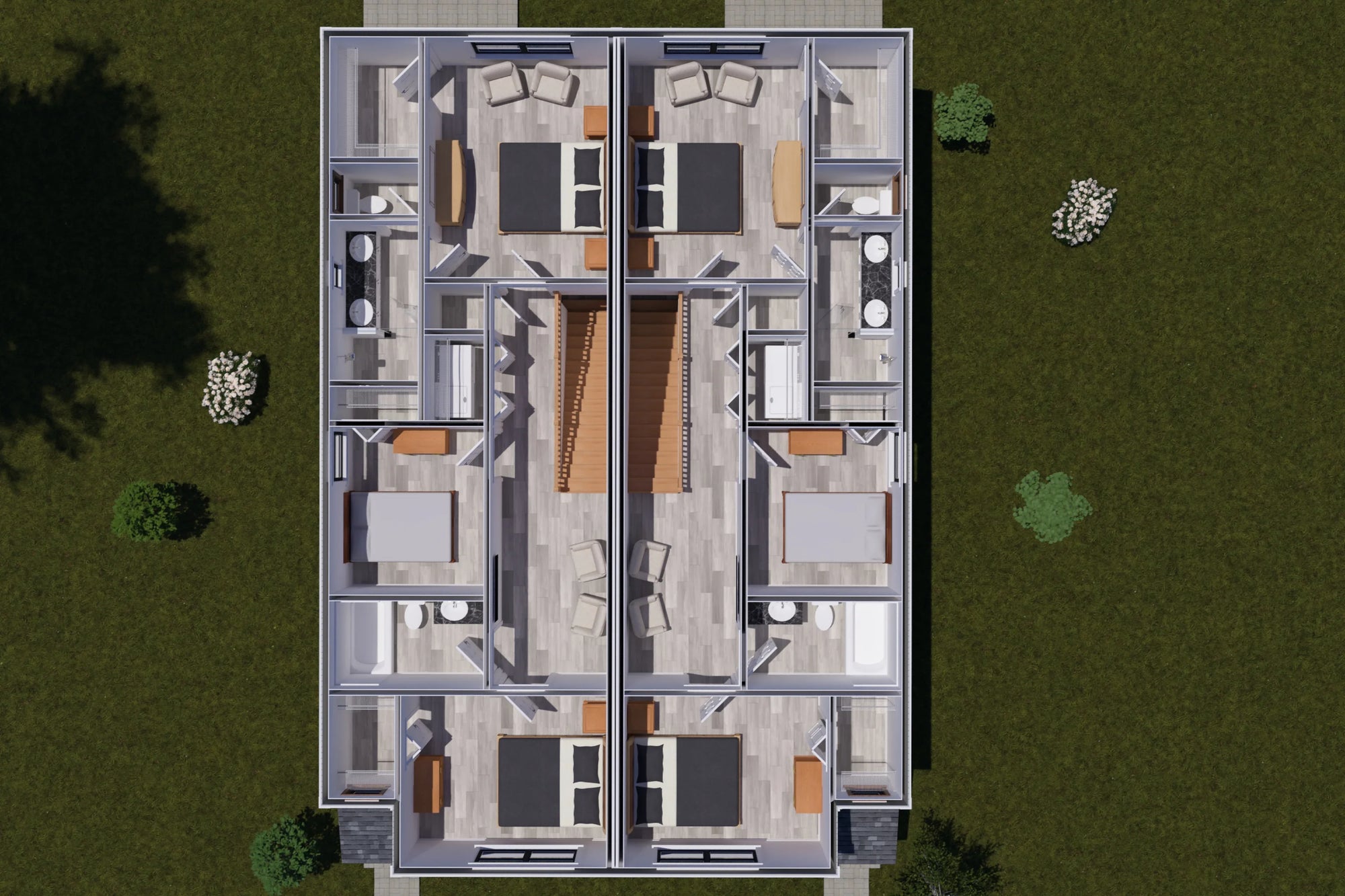

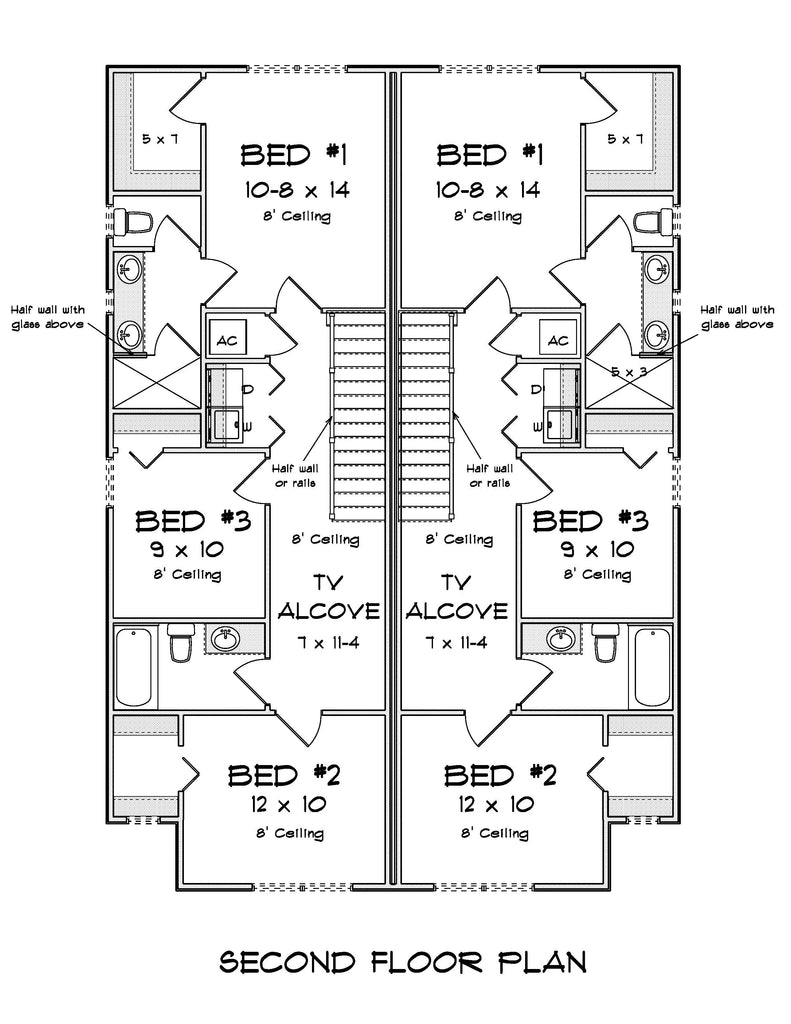

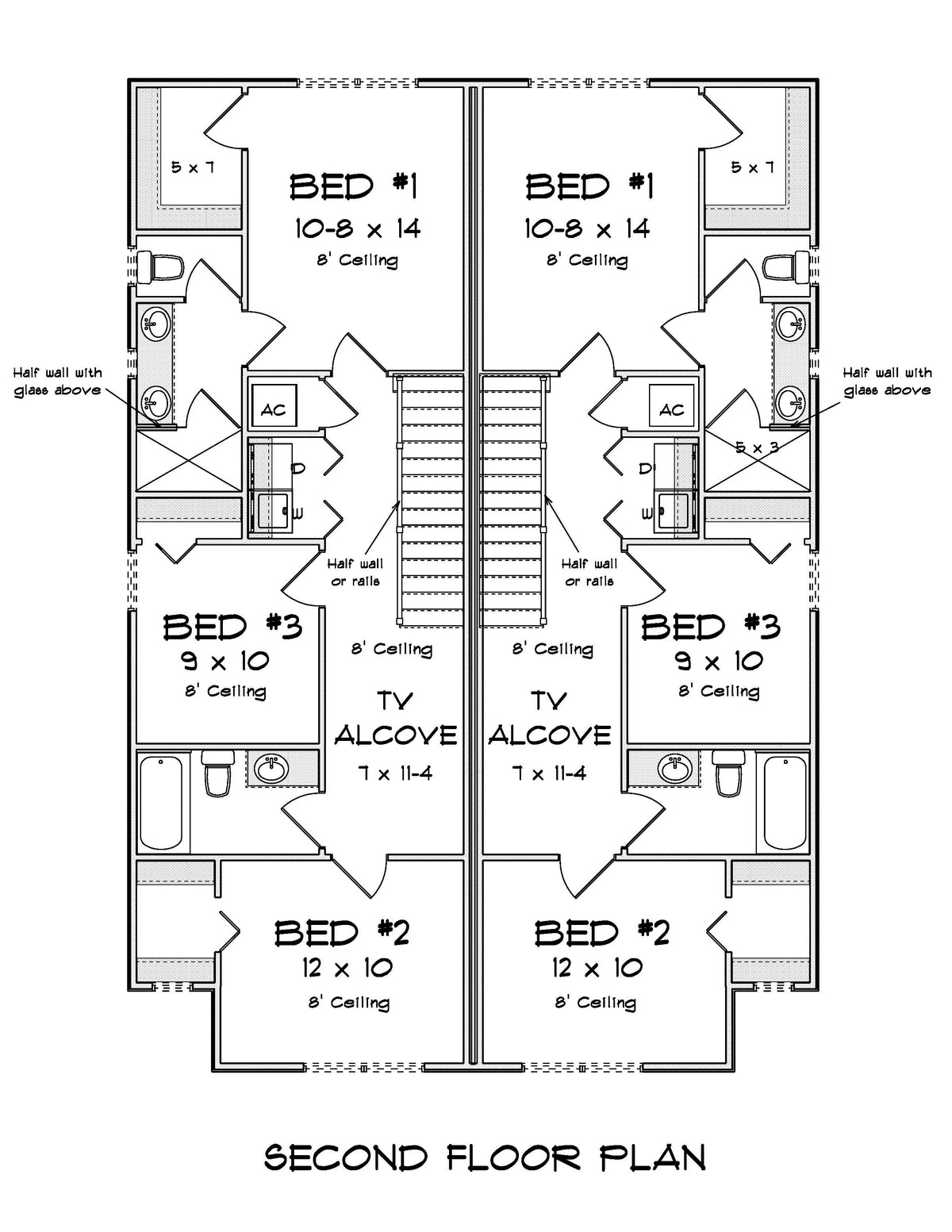

The second level of each unit, covering an additional 1,632 sq ft, houses the private quarters, including a primary suite equipped with a sitting area, walk-in closet, and a private master bath with double vanity sinks. The inclusion of a second-floor laundry area improves daily convenience for residents, while 8-foot ceiling heights maintain a consistent sense of enclosure and comfort across the upper level.
Structural integrity is provided by a slab foundation and 2x4 wall framing, ensuring a straightforward construction process for builders. With 4 bedrooms and 3 full bathrooms per unit, the floor plan supports a variety of living arrangements, from multi-generational households to short-term rental guests, offering adaptability in a high-demand market segment.
Key Features: 4 bedrooms per unit, 3 bathrooms per unit, dual kitchen layout, open floor plan, kitchen island, eating bar, primary suite with sitting area, second-floor laundry, slab foundation, 6:12 roof pitch.
