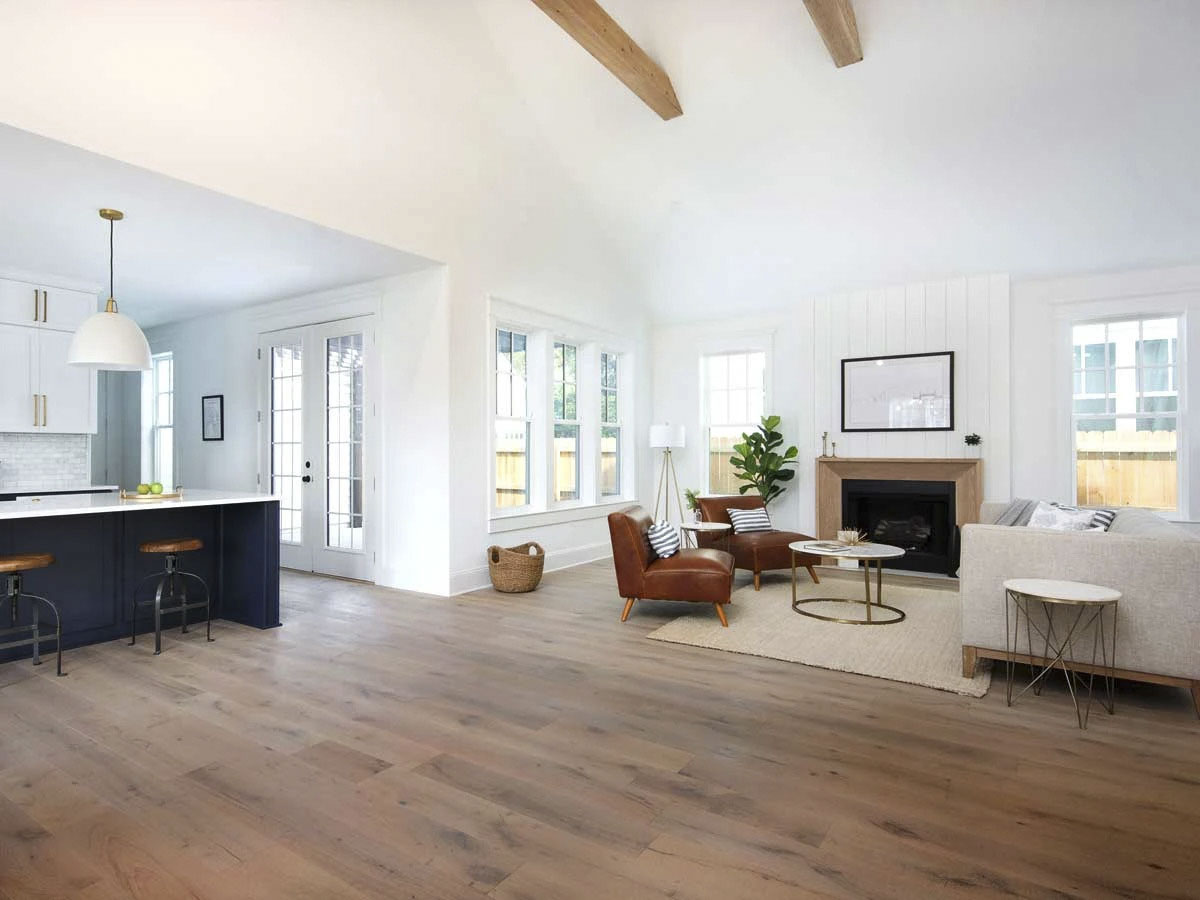

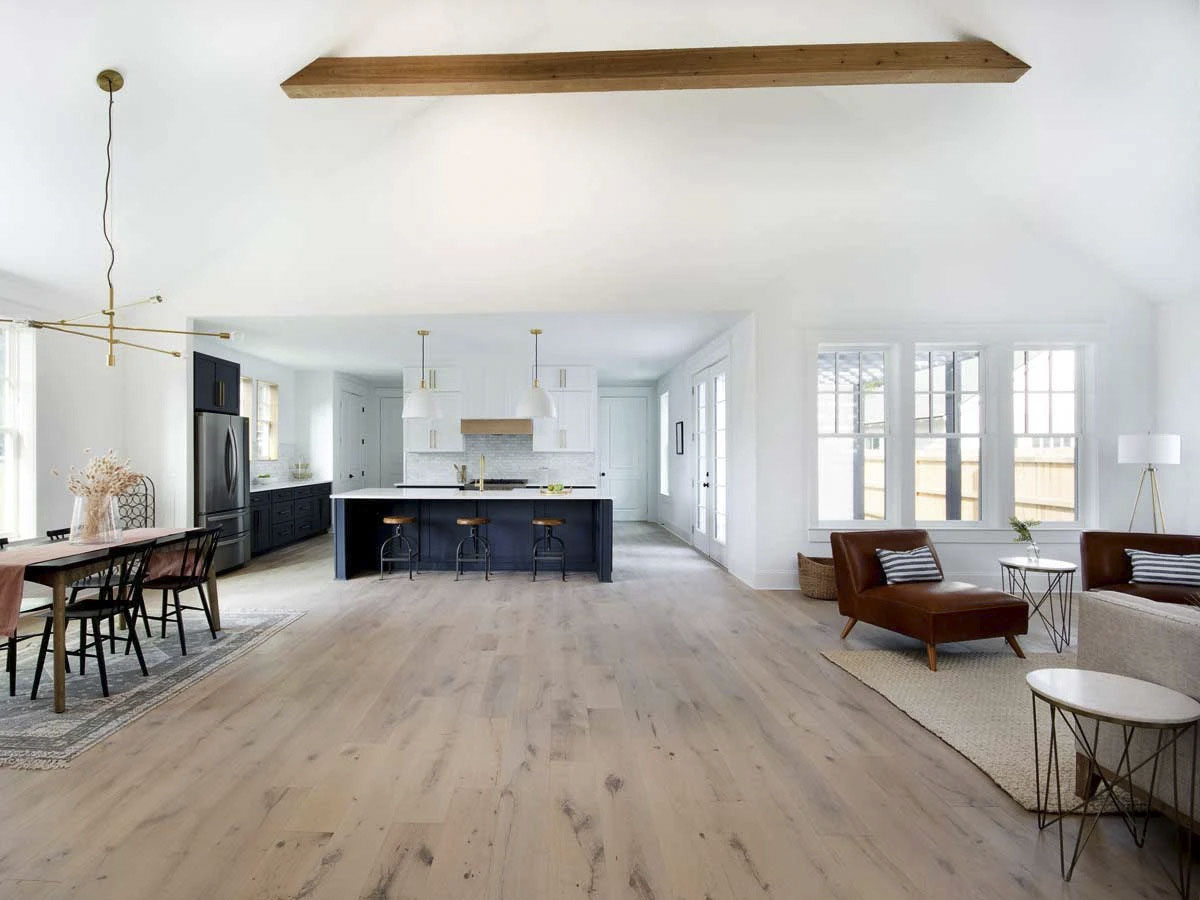

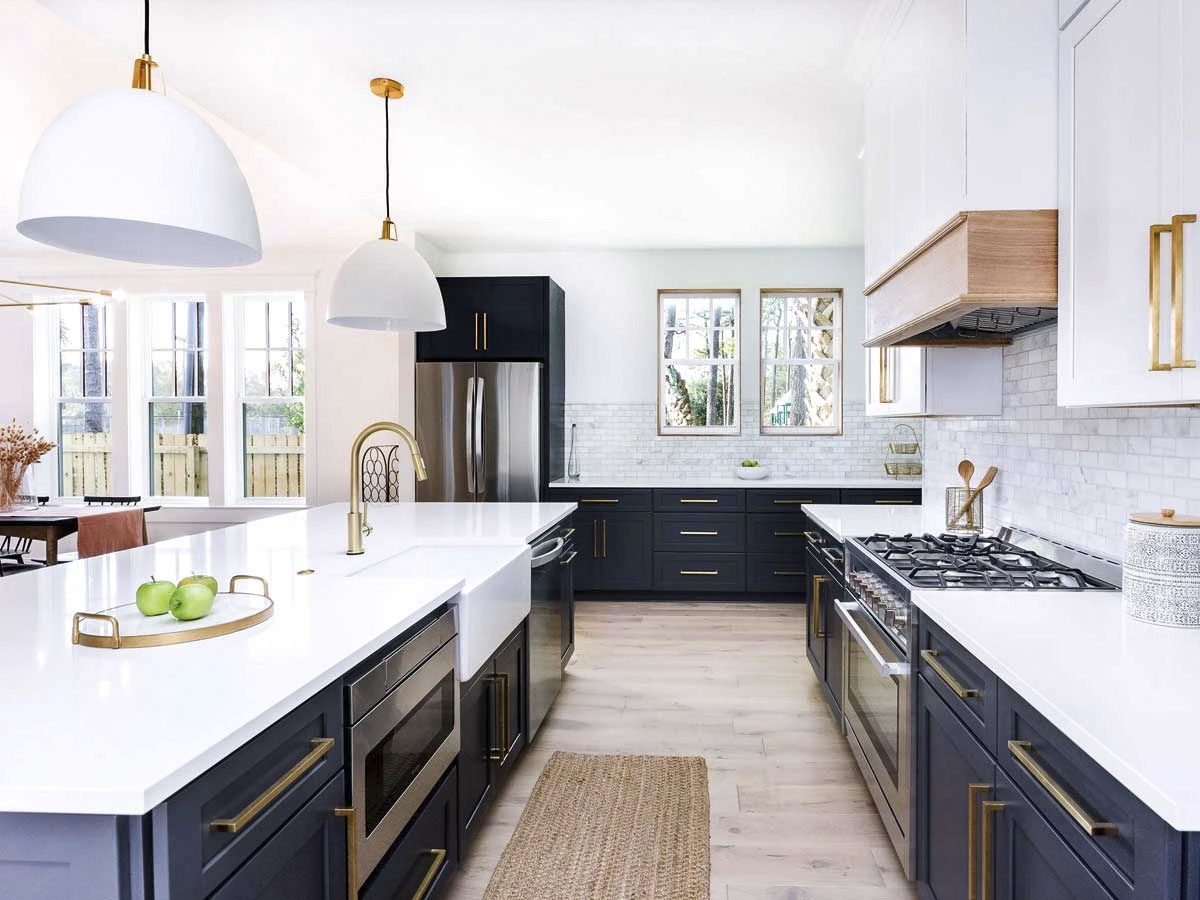

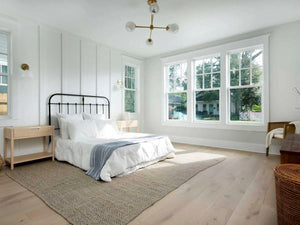

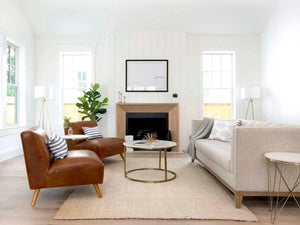

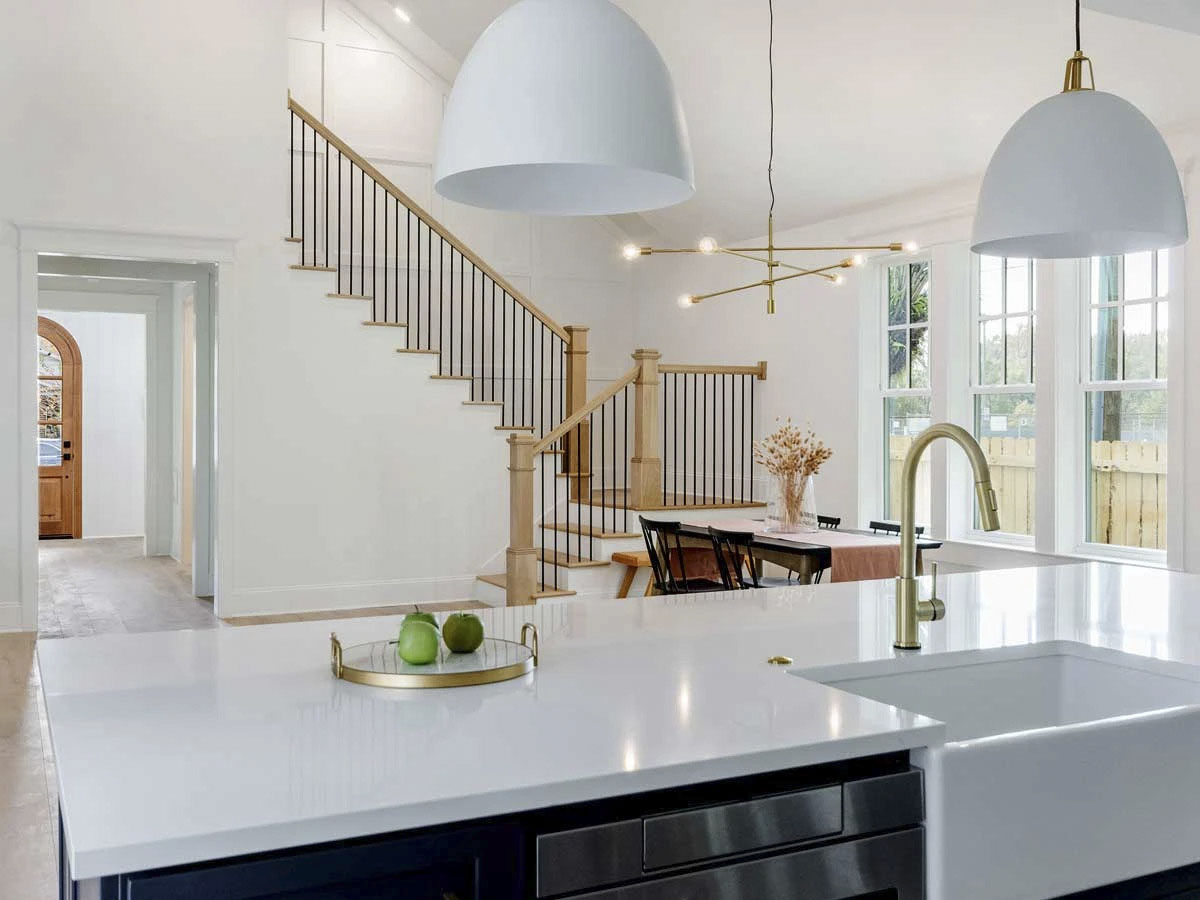

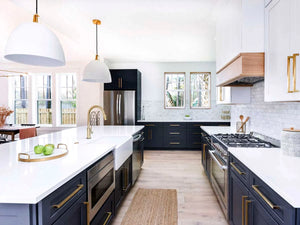

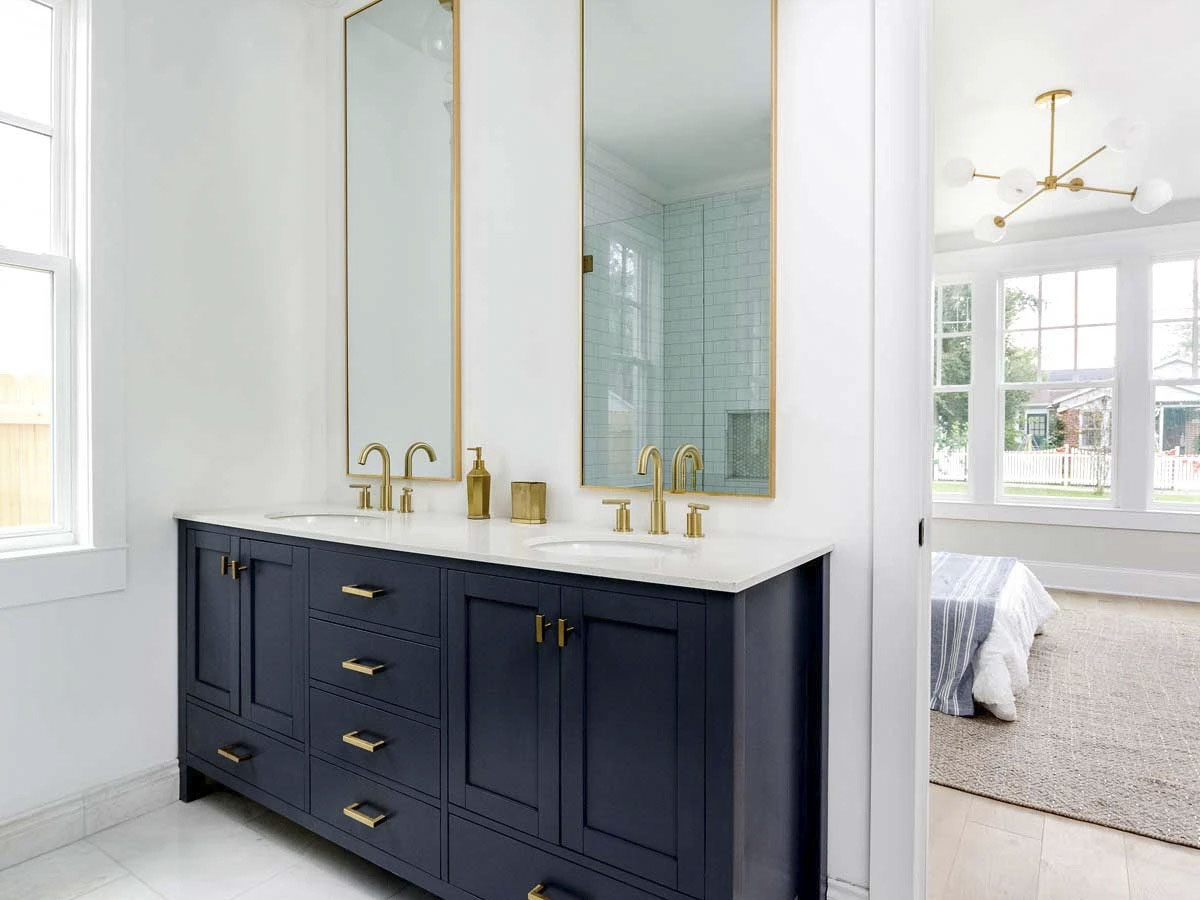

This elegant 2,799 sq ft Tudor-style cottage offers a timeless exterior with an interior layout tailored for modern living. The main level spans 2,002 sq ft and features a two-story grand room that creates a dramatic sense of space and light. The first-floor master suite is privately positioned for comfort and convenience, complete with a spacious walk-in closet and luxurious bath. A flex room near the front entry offers the perfect opportunity for a home office or formal sitting room. The open-concept kitchen includes a large walk-in pantry and flows effortlessly into the living and dining areas—ideal for everyday life or entertaining.

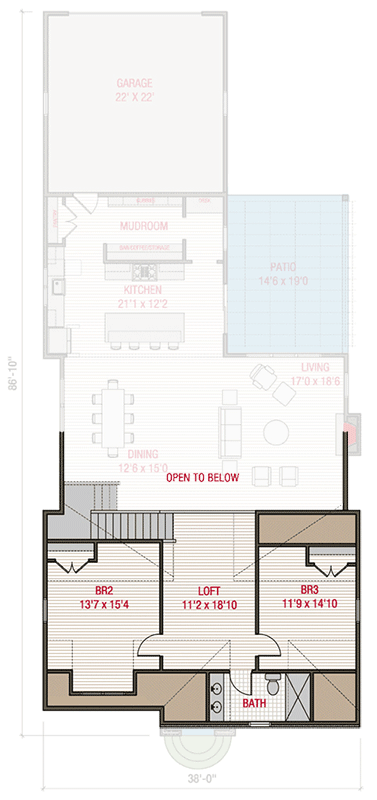

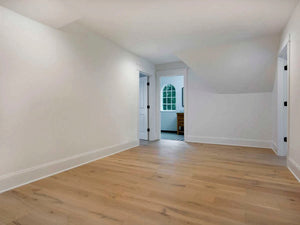

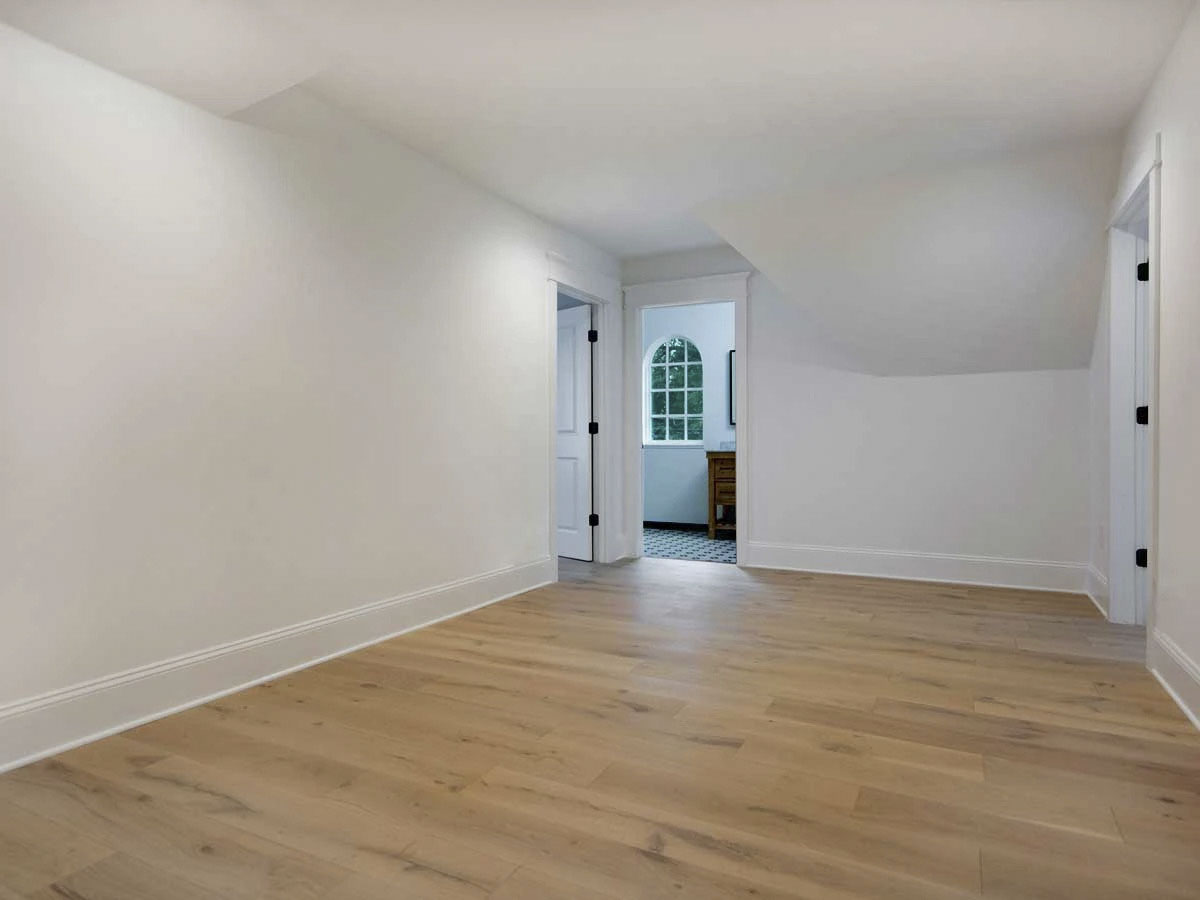

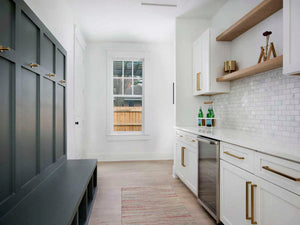

Upstairs, 797 sq ft include a cozy loft and media room, along with two additional bedrooms and a full bath, perfect for children or guests. A mud room and first-floor laundry enhance functionality, while the rear-load two-car garage keeps curb appeal intact. With its classic charm, split-bedroom layout, and practical extras, this plan blends style and livability in a unique and efficient footprint.

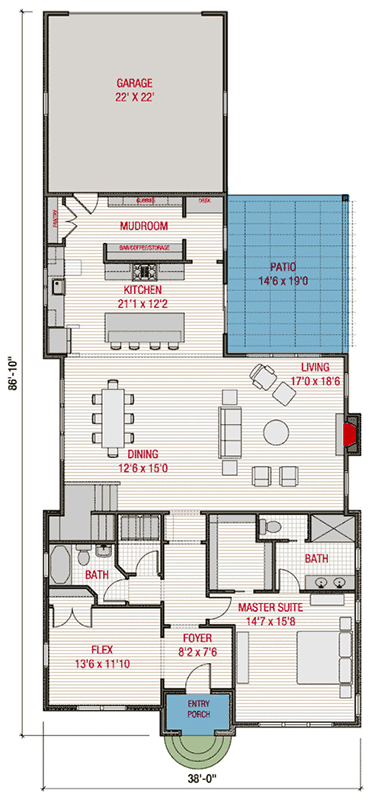

The construction drawings will include detailed, dimensioned floor plans, exterior elevations, roof plan, foundation plan, basic electrical layout, cross-section(s), foundation plan, and other general specifications. Some plans will include interior cabinet layouts.
View Sample Plan
