The Pebble Creek House Plan

Plan Number:

D640-A

Free Cost TO
Build Estimate
Say goodbye to the guesswork of construction costs with our custom cost estimator. Receive a cost to build estimate in two minutes instead of 2 days as many competitors offer.... plus its Free!
INSTANT
ACCURATE
FREE
Cost to build your dream home

The Pebble Creek House Plan

Plan Number:

D640-A

4
Bedrooms
3
Full Baths
2925
SQ FT
2
Stories
LOW PRICE GUARANTEE

House Plan Specifications

  • Total Living:  2925
    1st Floor:  1825
    2nd Floor:  1100
    Bonus Room:  376
    Front Porch:  302
  • Garage:  616
    Garage Bays:   2
    Garage Load:   Side
  • Bedrooms:   4
    Bathrooms:   3
  • Foundation:   Crawl Space
    Wall Framing:
    Roof Framing:   Truss
    Roof Pitch:   12:12
  • Width of House:  73' 10''
    Depth of House:  47' 10''
    Building Height:  32' 9''

Key Features:

  • Bonus Room
  • Covered Back Porch
  • Covered Front Porch
  • Fireplace
  • Kitchen Island
  • Loft
  • Mud Room
  • Second Floor Laundry
  • Walk In Closets
  • Walk-in Pantry
Modify this plan to make it perfect
Our hassle-free process makes it easy to modify your dream home. To receive an estimate please submit your request using the link below.
Submit a Modification Request
Free Cost TO
Build Estimate
Say goodbye to the guesswork of construction costs with our custom cost estimator. Receive a cost to build estimate in two minutes instead of 2 days as many competitors offer.... plus its Free!
INSTANT
ACCURATE
FREE
Cost to build your dream home
Plan Number: D640-A
The Pebble Creek House Plan
4 Bedrooms
3 Full Baths
2925 SQ FT
2 Stories

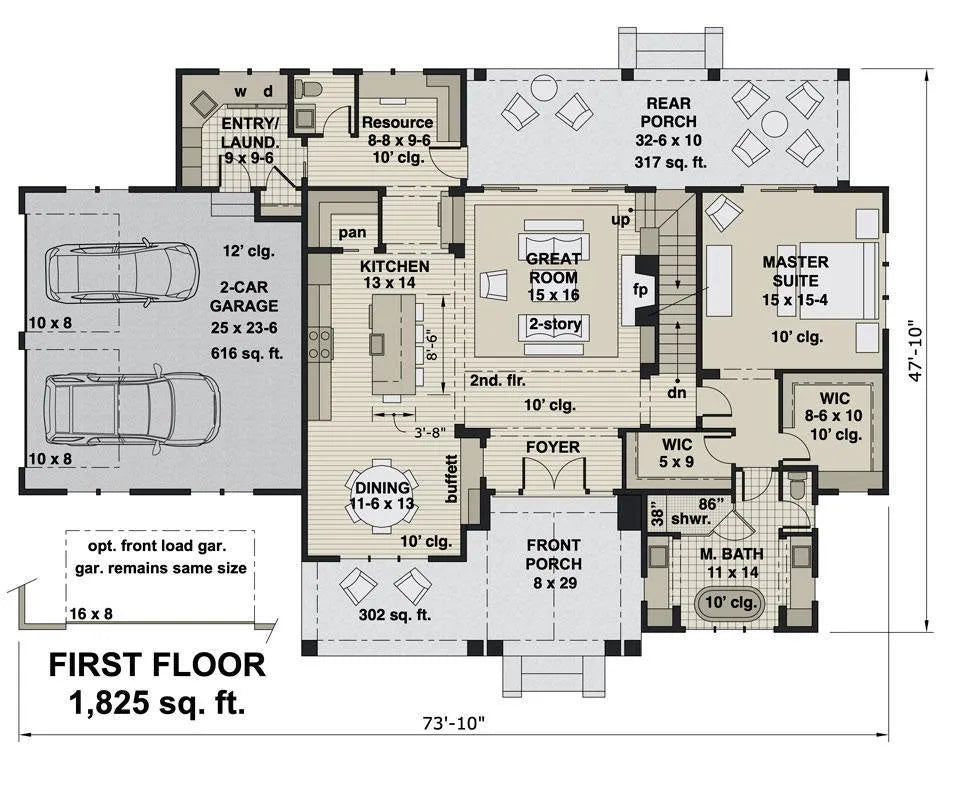

Main Level

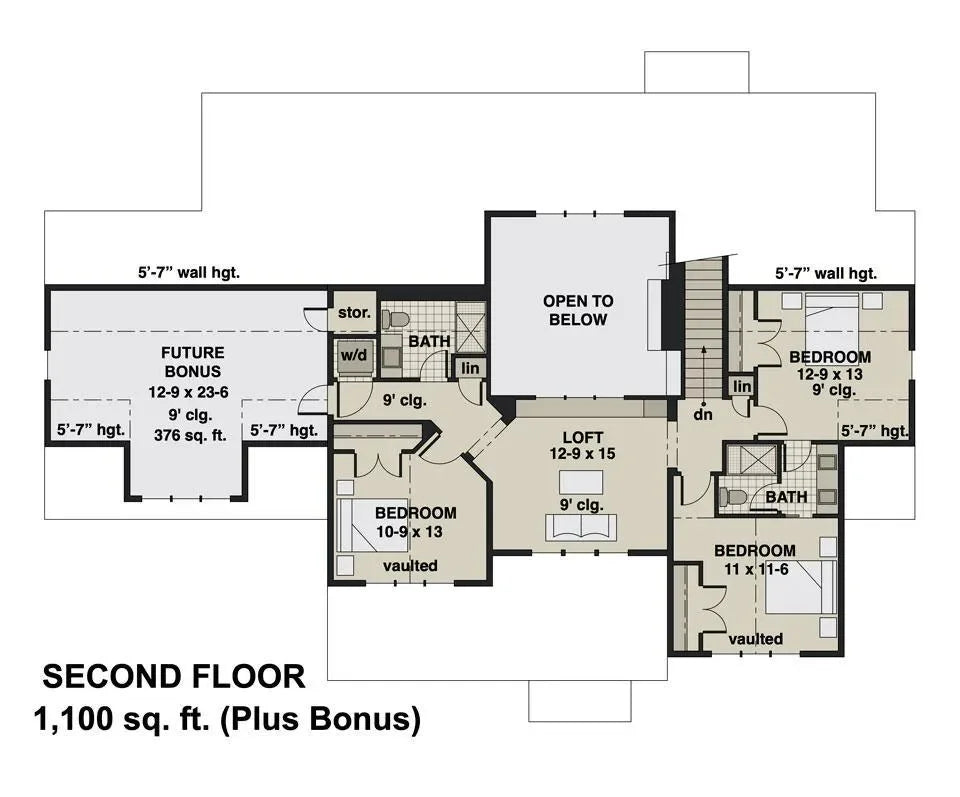

Second Floor
House Plan Formats Explained

PDF (Single Build)

A complete set of working drawings delivered in digital PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

CAD + PDF (Single Build)

A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

5 or 8 Prints (Single Build)

Five or eight printed sets of working drawings shipped to you. This option comes with a license to build ONE home.

5 Prints + PDF (Single Build)

Five printed sets of working drawings shipped to you, plus a digital version in PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

PDF (Multi Build)

A complete set of working drawings delivered in digital PDF format. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.

CAD + PDF (Multi Build)

A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.

Choose a building foundation for your home. The foundation provides stability to a home's structure from the ground up.

Slab - This concrete foundation is reinforced with steel rods and suitable for flat ground.

Crawl Space - This foundation is raised off the ground with low walls resting on footings, providing space for wiring, plumbing, and storage.

Basement - This foundation is entirely or partially below ground and offers storage or living areas.

Walkout Basement - This foundation is typically suited for rear-sloping lots and provides storage or living areas. Walkout basements have doors that provide access to the outside.

0
+
Homes Designed
0
Homes Built
0
Years of Experience
What Makes Us Different
Cost to Build
Free
Vs
$30+
Them
Shipping
Free
on physical blueprints
$20+
Consultation
Free
with Residential design advisor
$100+
Purchase
Direct
from the Architect
Middleman
House Plans
Curated
Collection of Quality
Quantity vs Quality
Low Price Guarantee
By 10%
beat competitor
Only Price Match
Customizations
Affordable
Experienced Drafters
3rd Party Drafting
Questions about this plan?
We're here to help
To make a modification to this plan, please use our Modification Request Form.

FAQ

What is included in the construction drawings?

The construction drawings will include detailed, dimensioned floor plans, exterior elevations, roof plan, foundation plan, basic electrical layout, cross-section(s), foundation plan, and other general specifications. Some plans will include interior cabinet layouts.



View Sample Plan
Why choose Archival Designs?

Archival Designs brings you over 40 years of experience in the house plan design business.  We offer the best value for your money by offering the highest quality home designs.

We offer a 10% military & first responder discount, as well as builder discounts for life!  Archival Designs guarantees the lowest prices anywhere online. Learn more about our Best Price Guarantee.

All house plans sold by Archival Designs have been designed to comply with the International Residential Code (IRC) and to the local codes in the area where the designer resides or where the house was built.



Do your plans meet building codes in my area?

All house plans are designed to meet or exceed the national building standards required by the International Residential Code (IRC). Due to differences in climate and geography throughout North America, every city, local municipality and county has unique building codes and regulations that must be followed to obtain a building permit. Prior to purchasing a set of house plans, we recommend that you meet with your local building officials in order to determine the building requirements for your area.  It is the responsibility of the purchaser(s) and/or builder to ensure that the structure is constructed to meet the codes of their local area.

Important Note:

  • Customers building in CA, OR, SC, WA, and NV: Our house plans do not meet Earthquake Seismic/Wind code requirements.
  • Customers building in GA, SC, FL, and NC Coastal Areas: Plans may have to be engineered to meet local Hurricane/Wind codes.
  • Customers building in AL, AZ, CO, CT, DE, FL, ID, LA, KY, MD, MA, MN, MI, NV, NH, NJ, NY, OH, PA, UT, WY, and VA: Plans may have to be engineered by a local licensed professional to meet local building codes. Please call your local building department before placing order.
  • Customers building in NV: NV law permits an owner or builder to build a house from their own plans. Contact your local building department to verify if our stock house plans will be accepted before placing order.



Will the plans be stamped or signed by an architect or engineer?

House plans do not come stamped or signed by an architect or engineer.  Additionally, house plans typically will not include structural engineering notes/calculations. Please check with your local building officials to determine if a stamp is required. If required, the building department will only accept a stamp from a licensed professional in the state where the home will be built.

Depending on your city, county, and state building requirements, house plans may need to be reviewed by a local licensed architect or engineer for structural details and code standards before construction begins. This is particularly true in coastal areas and those facing seismic events, extreme winds, and heavy snow. If you are building in any of these areas, a licensed structural engineer will likely be needed to provide the necessary calculations and additional drawings. We authorize the use of our plans conditioned on your obligation and agreement to strictly comply with all local building codes, ordinances, regulations, and requirements, including permits and inspections at the time of and during construction. We recommend checking with your local building department for the most current requirements.  The purchaser(s) and/or builder are responsible for additional expenses incurred through meeting municipality requirements or other requirements for construction.



Will the foundation included in the construction drawings work for my site?

Our foundation plans have been designed for universal conditions and may need to be adjusted to fit your specific site conditions. The foundation should be modified by a local structural engineer to comply with soil testing laboratory findings and local building requirements.



Do your plans include electrical, plumbing and mechanical drawings?

Our house plans will include schematic electrical drawings; however, circuiting or wire sizing will not be included.  Your electrical subcontractor will typically provide these drawings.

HVAC and plumbing drawings are not included. Your mechanical and plumbing subcontractors will determine the best layout for your site.  Local HVAC codes, climatic requirements and commonly used systems vary throughout the country.  The direction of how water flow will enter the home vary from case to case. For this reason, it is impossible to provide universal plans.

Recently Viewed Plans

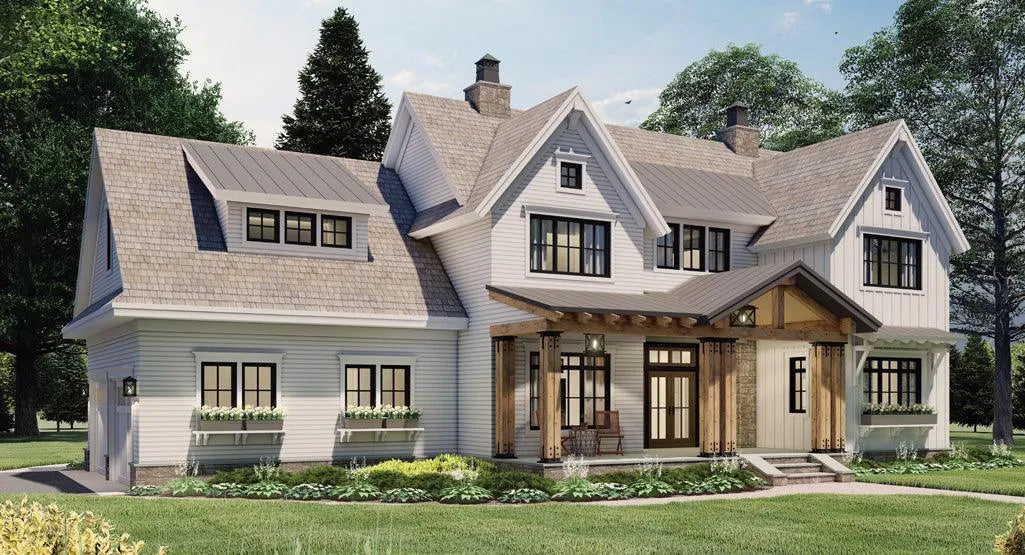

The stunning exterior of this 2925 sq ft 2-story home will be the envy of all your neighbors! This beautiful Modern Farmhouse has everything a growing family will need! It holds 4 bedrooms, 3 ½ bathrooms and optional front or side loading garage. The optional 376 sq ft bonus room over the garage is perfect as a game room or additional storage area.

Step in to your new home from the welcoming covered front porch and you’ll be entering an open family friendly living area that holds the great room, kitchen and dining area.

The 2-story great room boasts a cozy fireplace flanked by beautiful built-ins and access to the covered rear porch through sliding doors.

The kitchen is a budding chef’s dream come true! The generous center island has great views of the fireplace, built-in sink and dishwasher, plus seating for 5, making it the perfect spot to talk with friends while having them try your new recipes! Behind the sliding barn door you’ll find a walk-in pantry with plenty of built-in shelving for all your storage needs. The dining area features a built-in buffet and large airy window, making it an appealing place for family dinner or a quick lunch.

At the end of the day retire to your lower level master suite. The bedroom has plenty of space for a comfortable sitting area and sliding door access to the rear porch. A bathroom with dual vanities, private toilet area and separate soaking tub and shower, plus his and hers walk-in closets complete the suite.

On the second level you’ll find an additional three bedrooms, two of which are separated by a Jack and Jill bathroom. The spacious loft overlooks the great room below, a perfect space for game night or curling up with a good book.

Other key features of this exceptional home include a washer/dryer conveniently located on the second level, a mudroom/laundry off the garage with built-ins and large utility sink, and a resource room with built-in L-shaped desk and access to the rear porch for when you need a break.

All things considered, this home is perfect for the empty nester, the growing family and anything in between!
