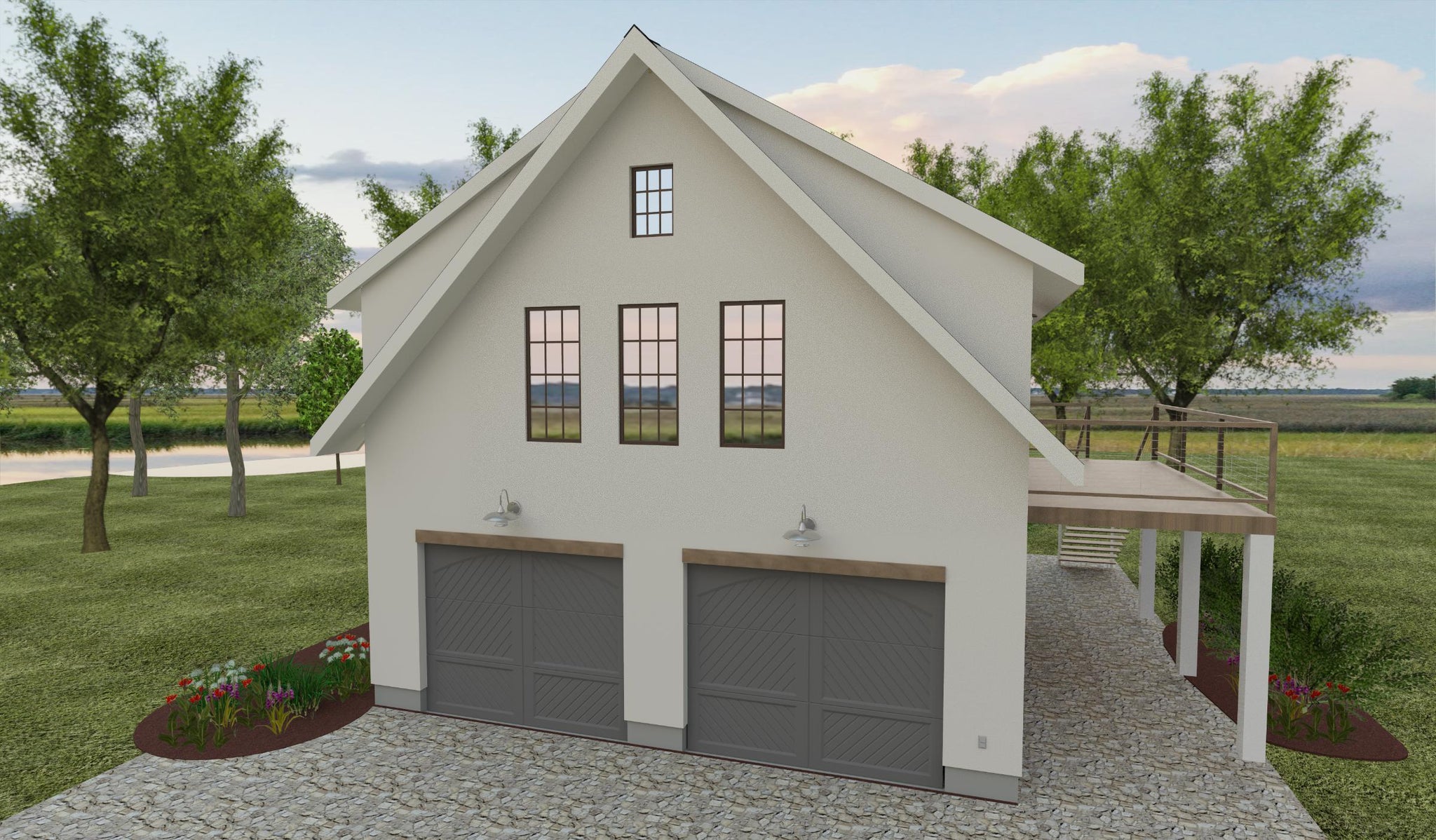

The Meyer Adu is a 782 square foot two-story garage apartment designed for sites requiring a compact footprint of 33 feet in width and 50 feet in depth. This structure effectively integrates a 2-car garage at the ground level with a 650 square foot footprint, providing a vertical separation between vehicular storage and residential living quarters. The design utilizes a 7:12 and 12:12 roof pitch to achieve a maximum building height of 25 feet, establishing a distinct exterior profile.

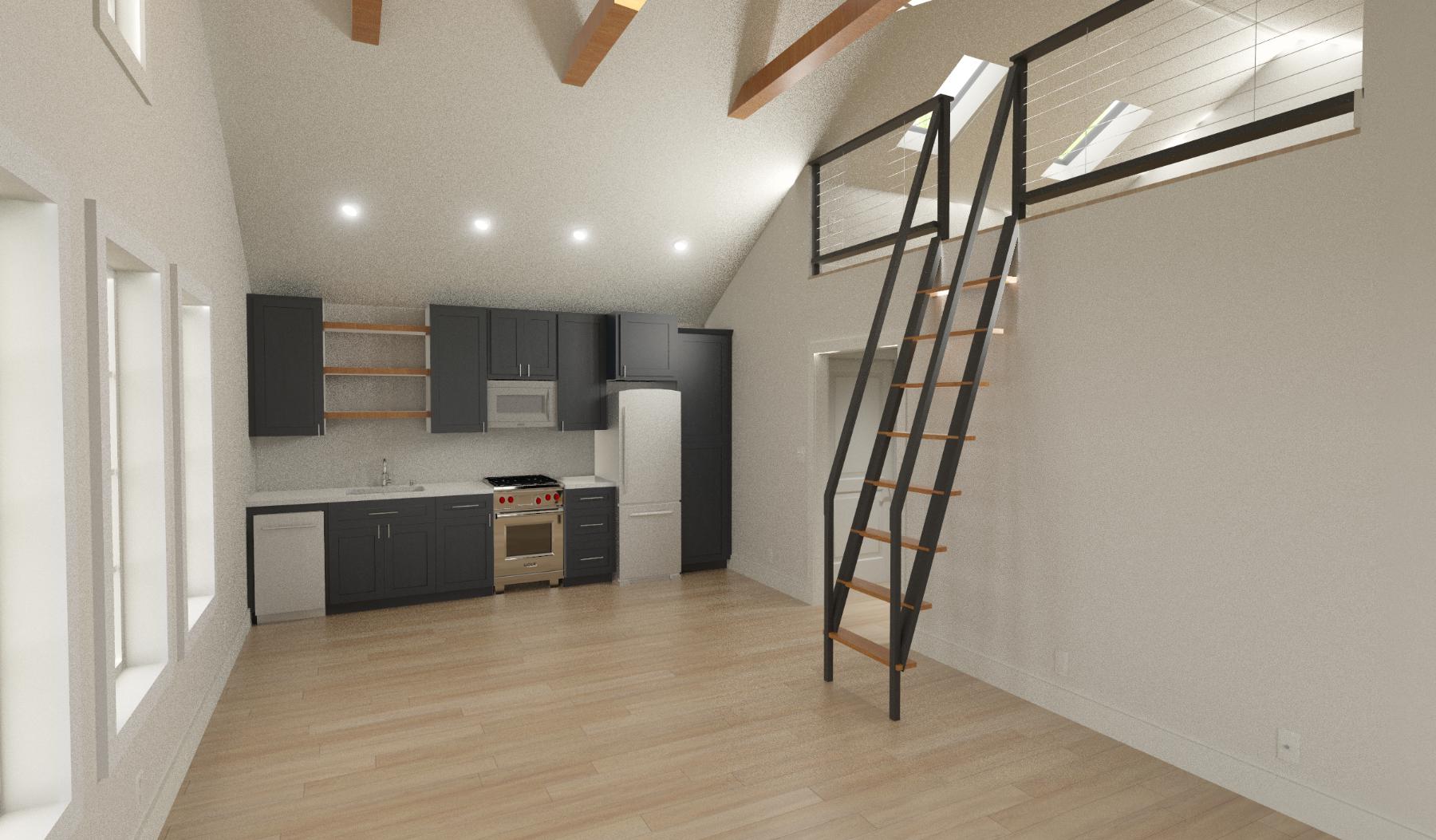

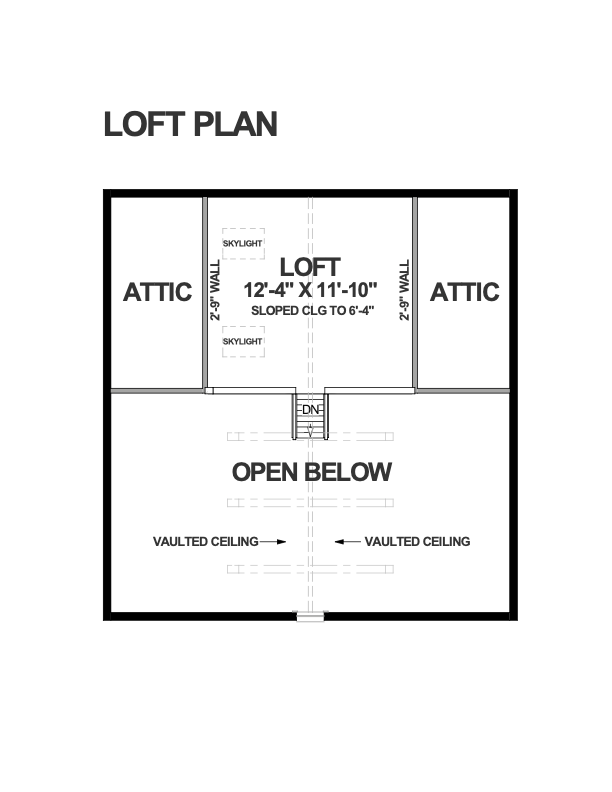

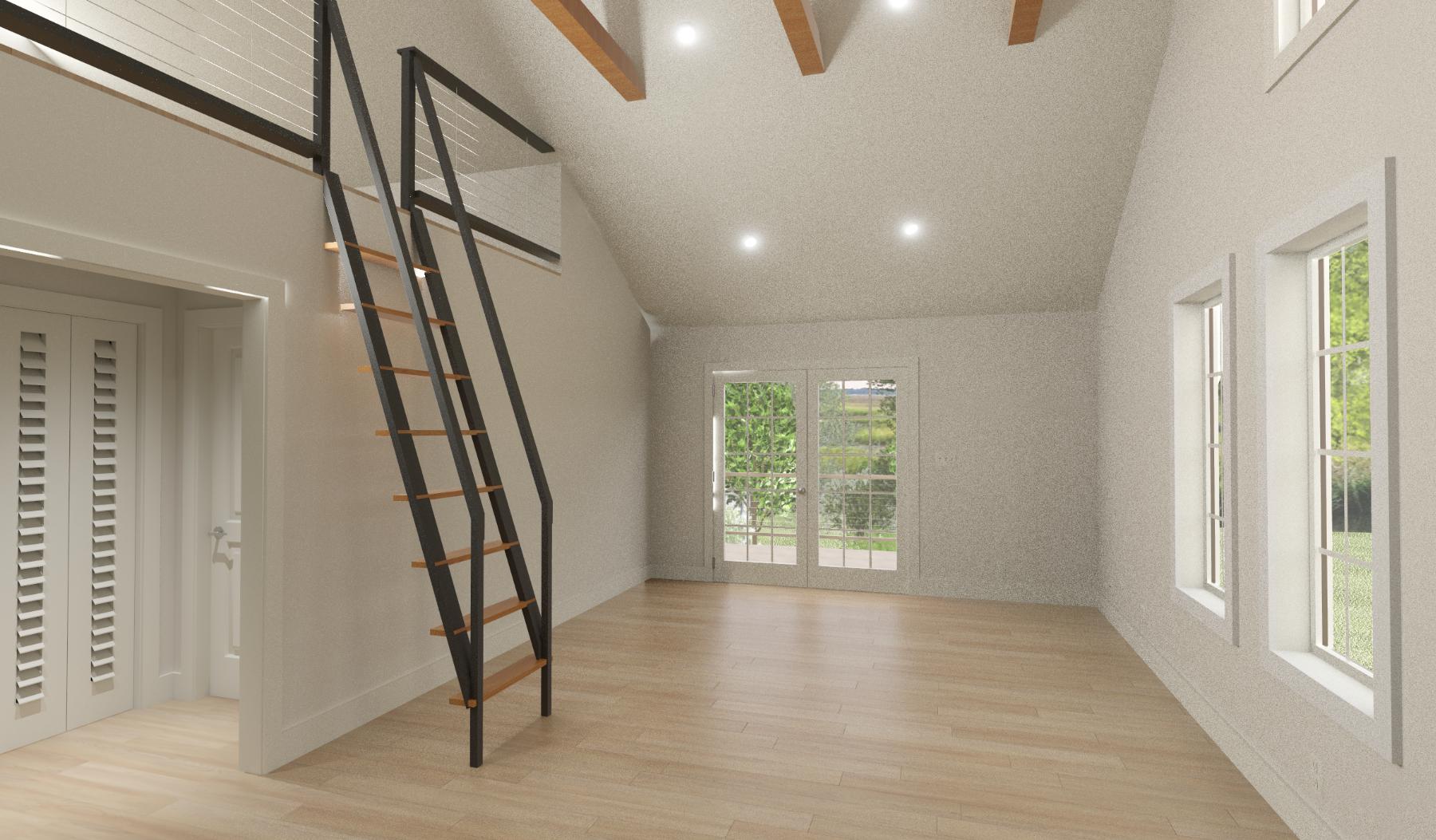

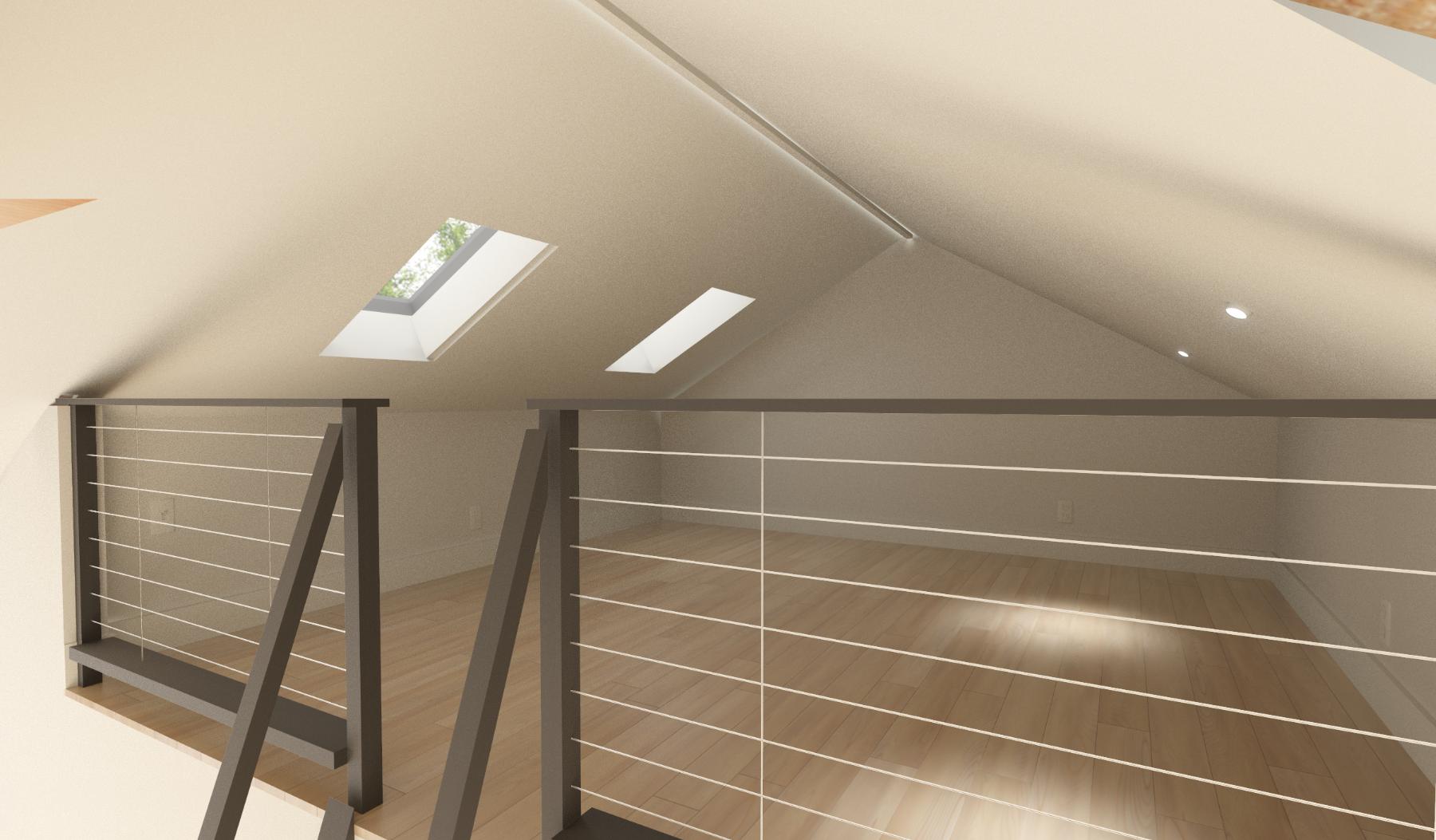

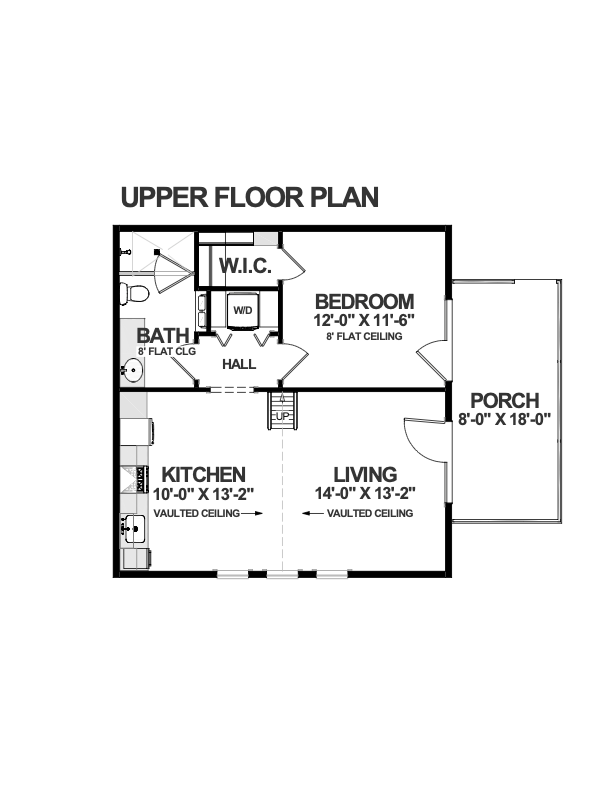

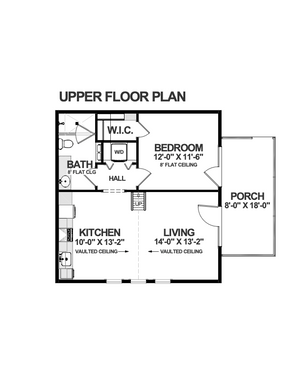

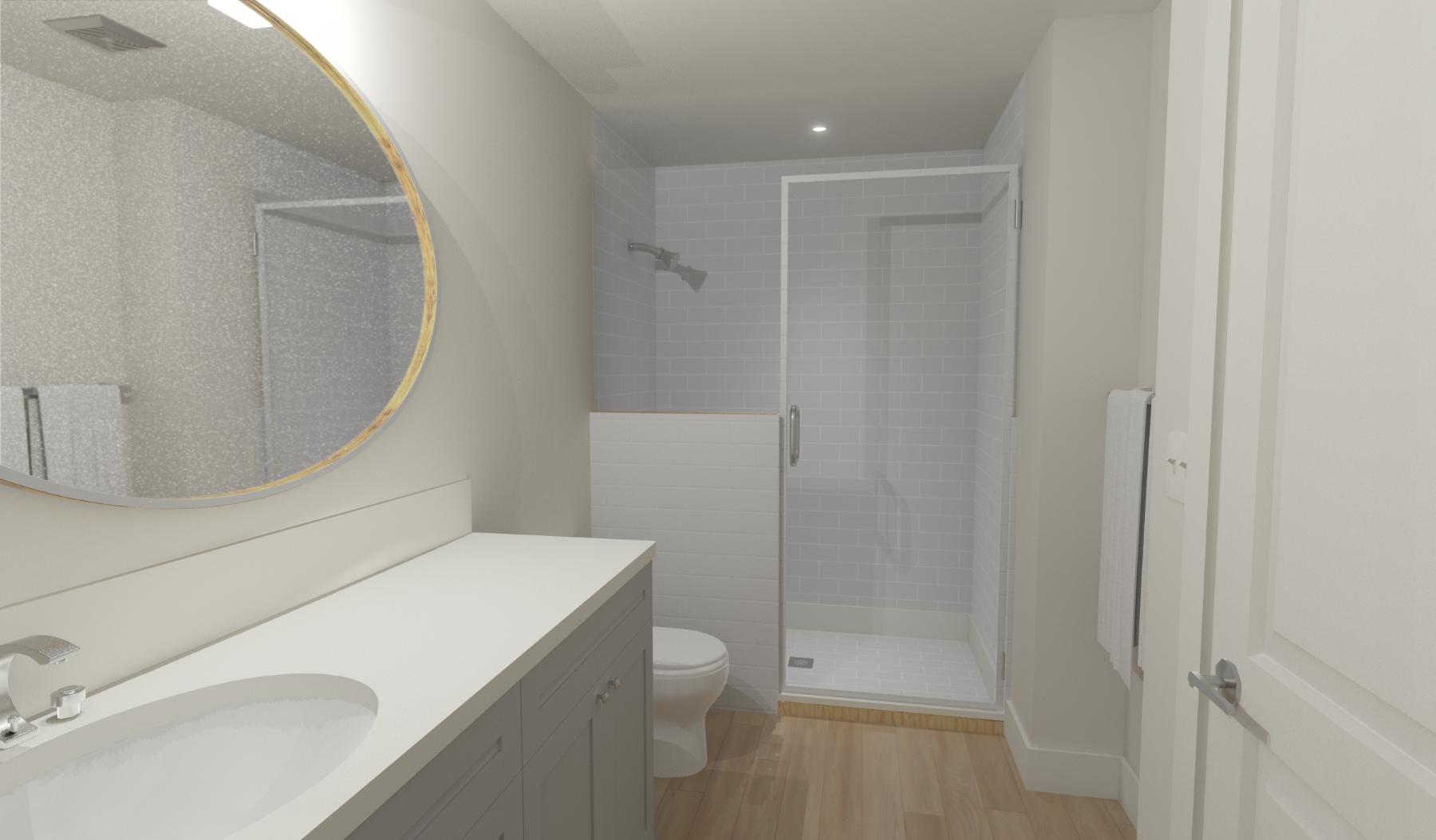

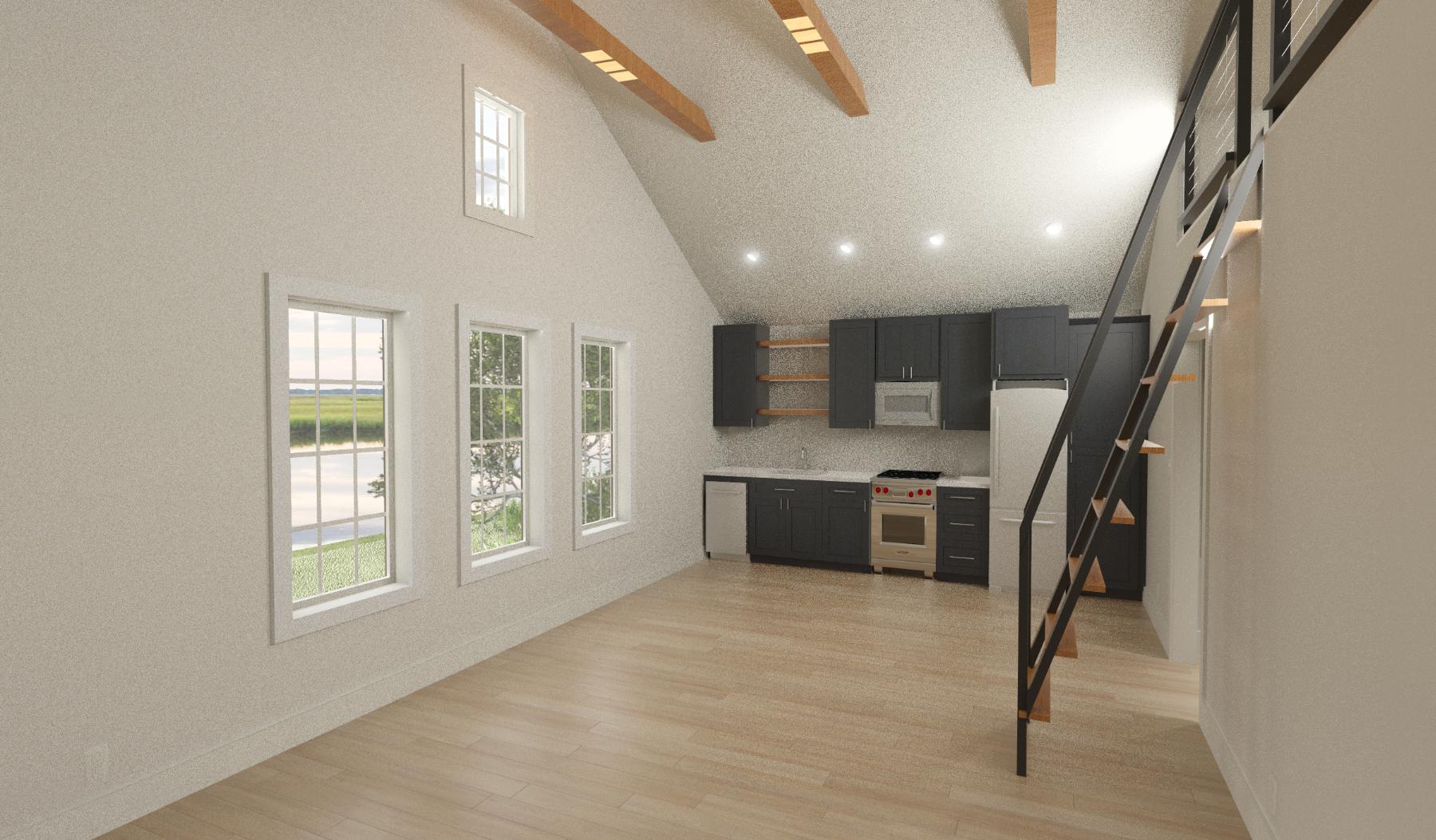

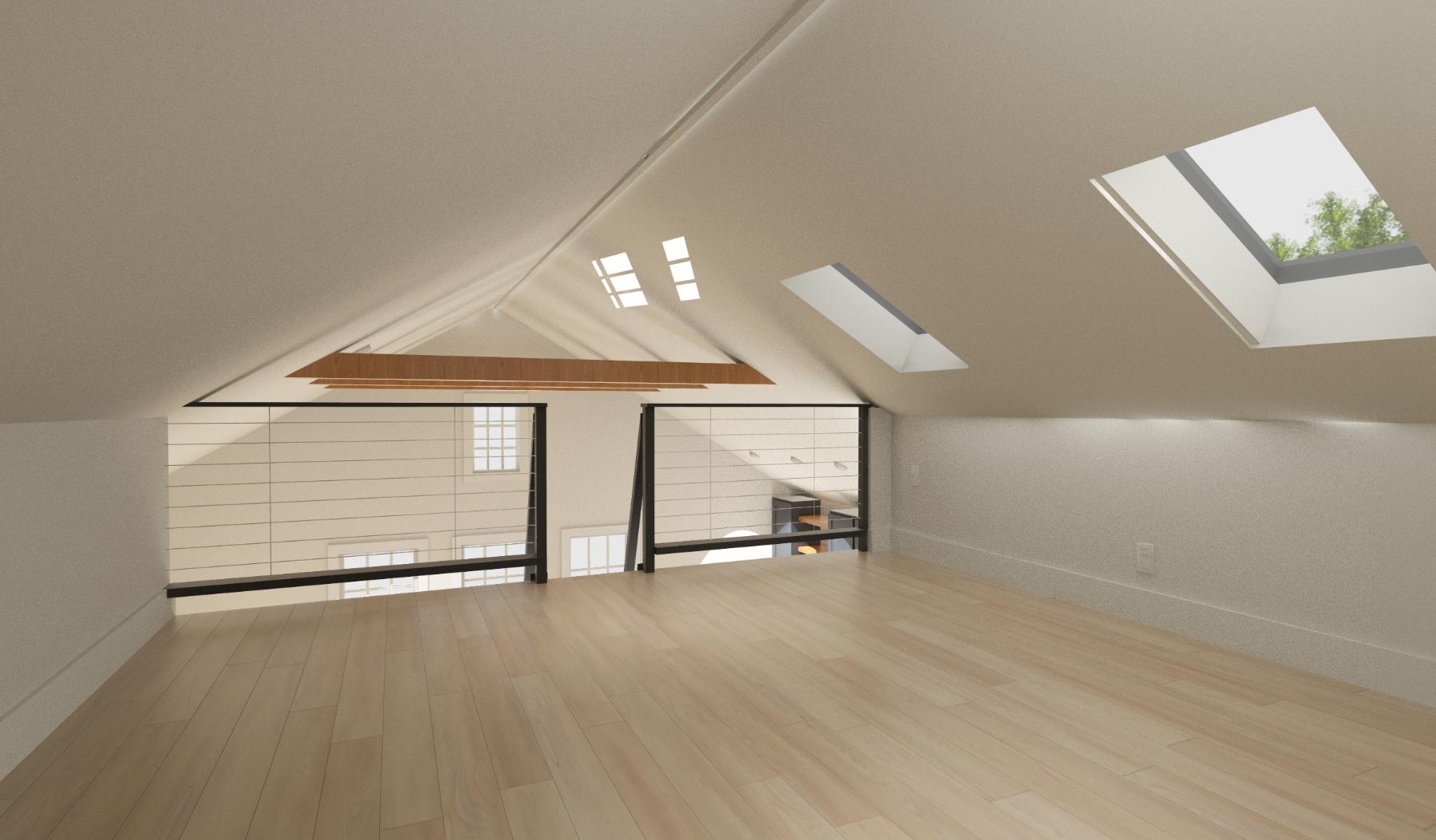

The first floor encompasses 632 square feet of interior space, while the second floor adds an additional 150 square feet. A 10-foot ceiling height on the main level and 9-foot ceilings in the upper area create a sense of vertical volume. The living area is centered around an open-concept kitchen and room configuration, allowing for efficient circulation within the limited square footage. A dedicated bedroom suite includes a private bathroom and a walk-in closet to maintain occupant privacy.

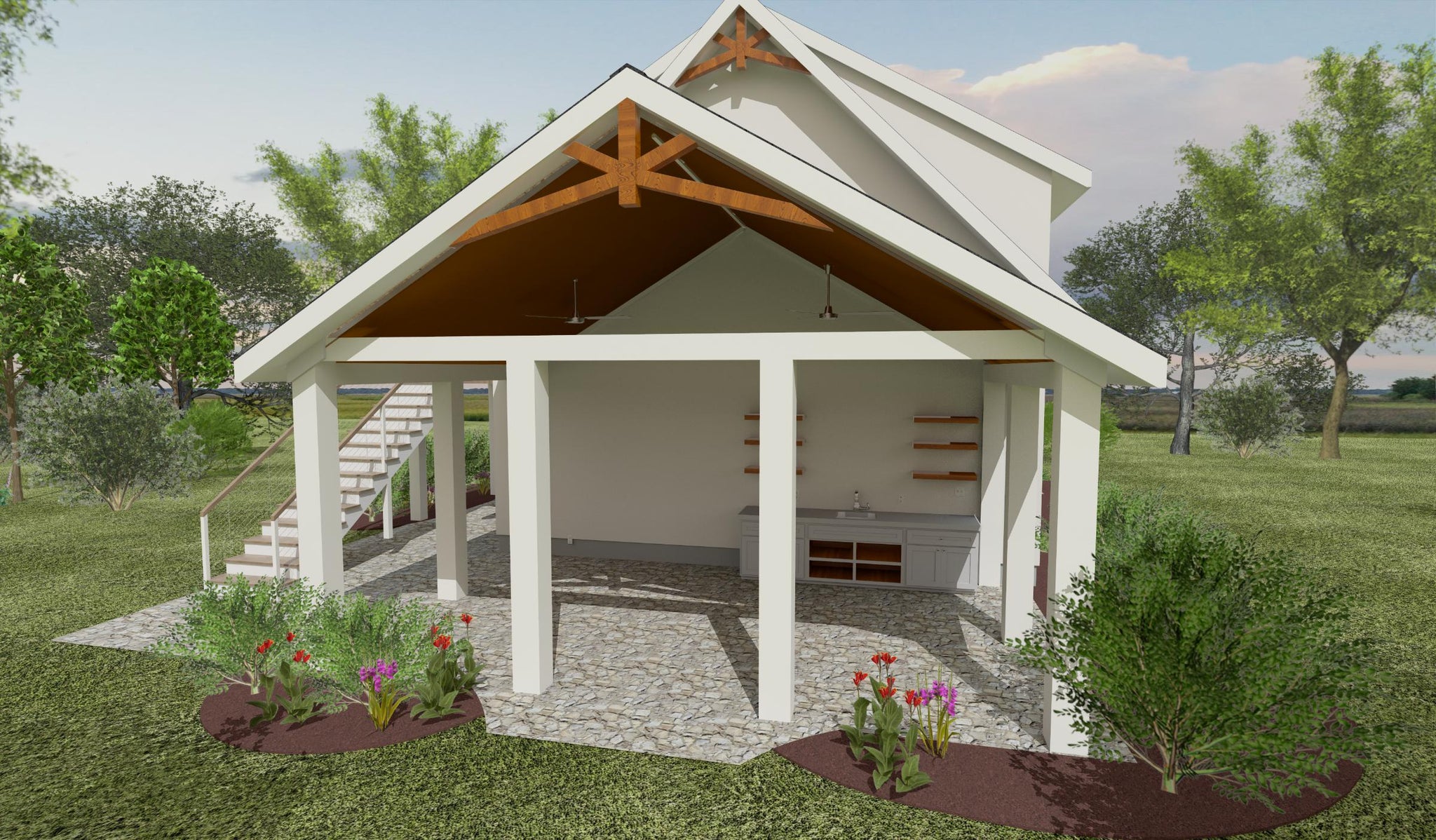

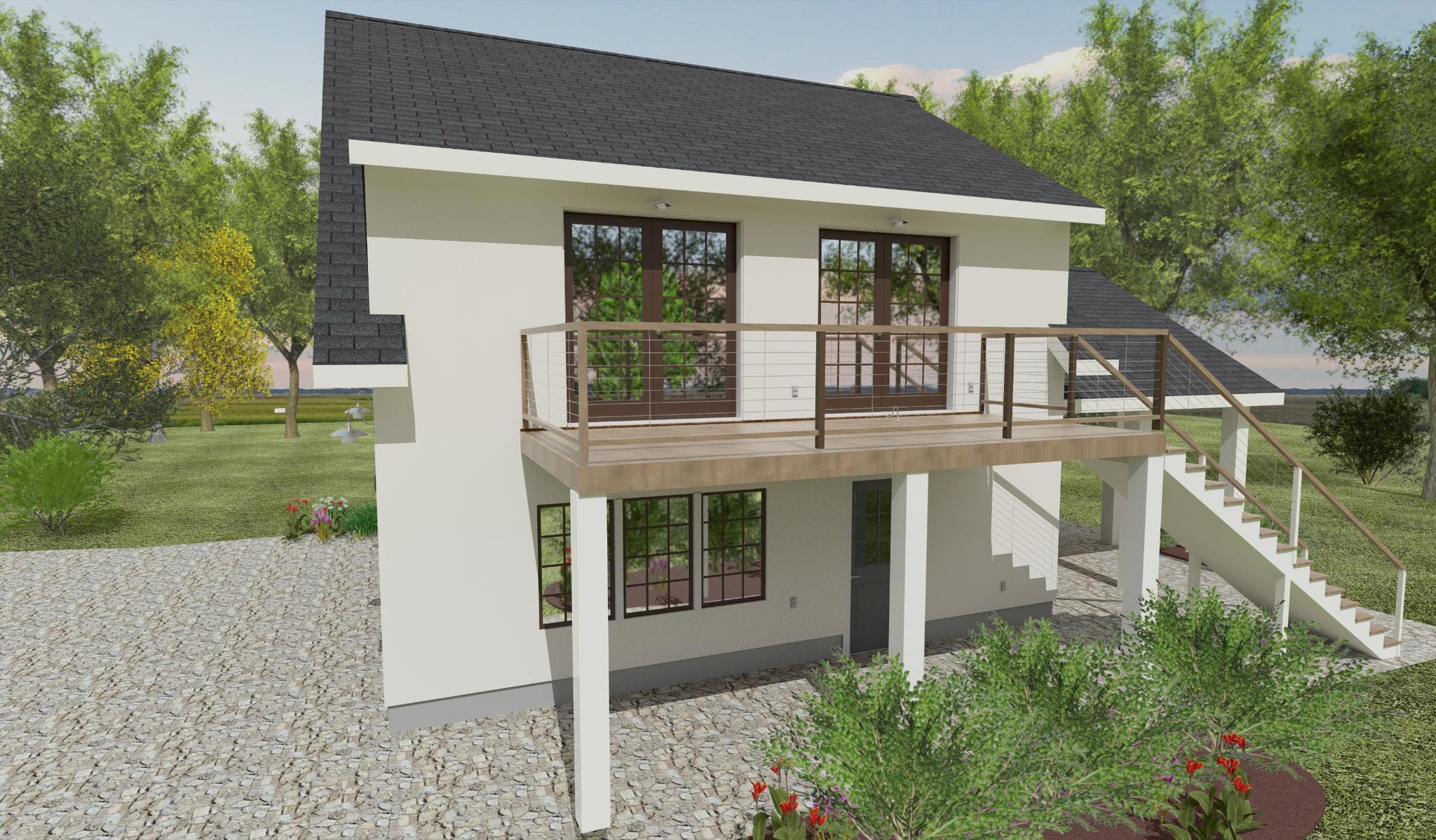

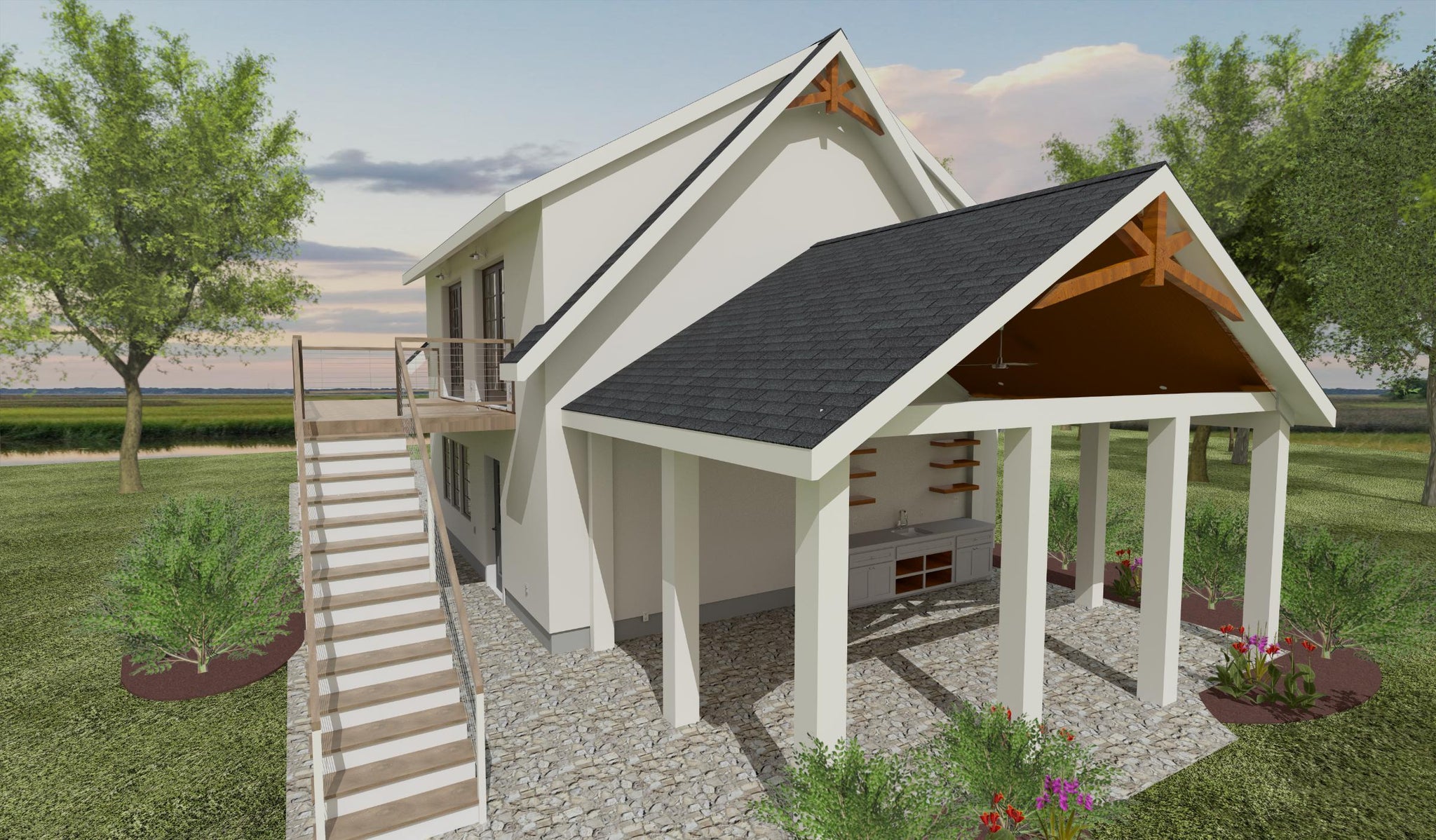

Access to the residential unit is supported by a 144 square foot deck with integrated stairs, providing a transition to the upper living level. The exterior utility is further enhanced by a 308 square foot back patio, which includes an outdoor sink and counter for exterior food preparation. The overall structural design is supported by a slab foundation and 2x6 exterior wall framing, prioritizing build durability for use as a guest residence or rental unit.

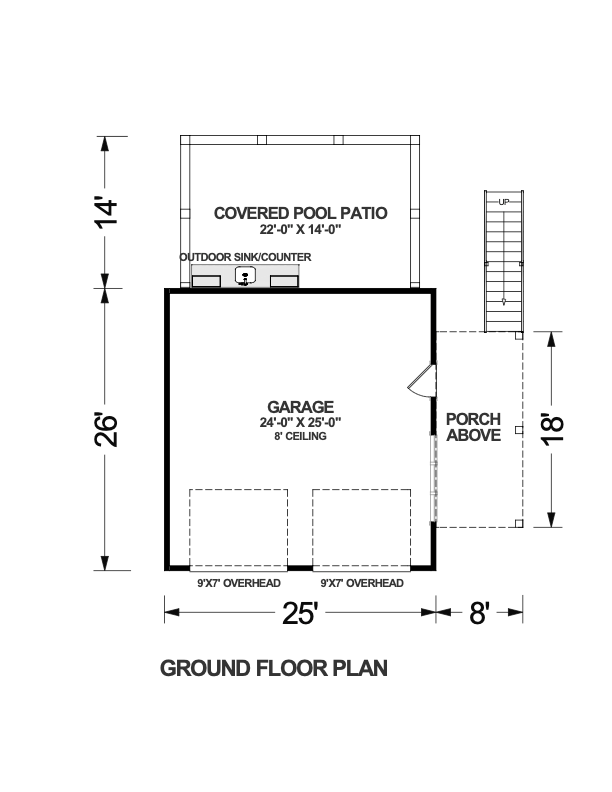

The garage level provides 650 square feet of vehicle and storage capacity with a front-entry configuration. The compact layout is optimized for accessory dwelling unit applications, ensuring that the 1,102 square feet of total area is utilized for maximum utility. By separating the living space from the garage, the design maintains a clear distinction between service-oriented zones and residential areas.
Key Features: two-story garage apartment, 2-car front-entry garage, 1-bedroom suite, open-concept kitchen, 144 sq ft deck, 308 sq ft back patio, slab foundation, 2x6 exterior wall framing, accessory dwelling unit, 782 sq ft heated living area.
