AD6395-A

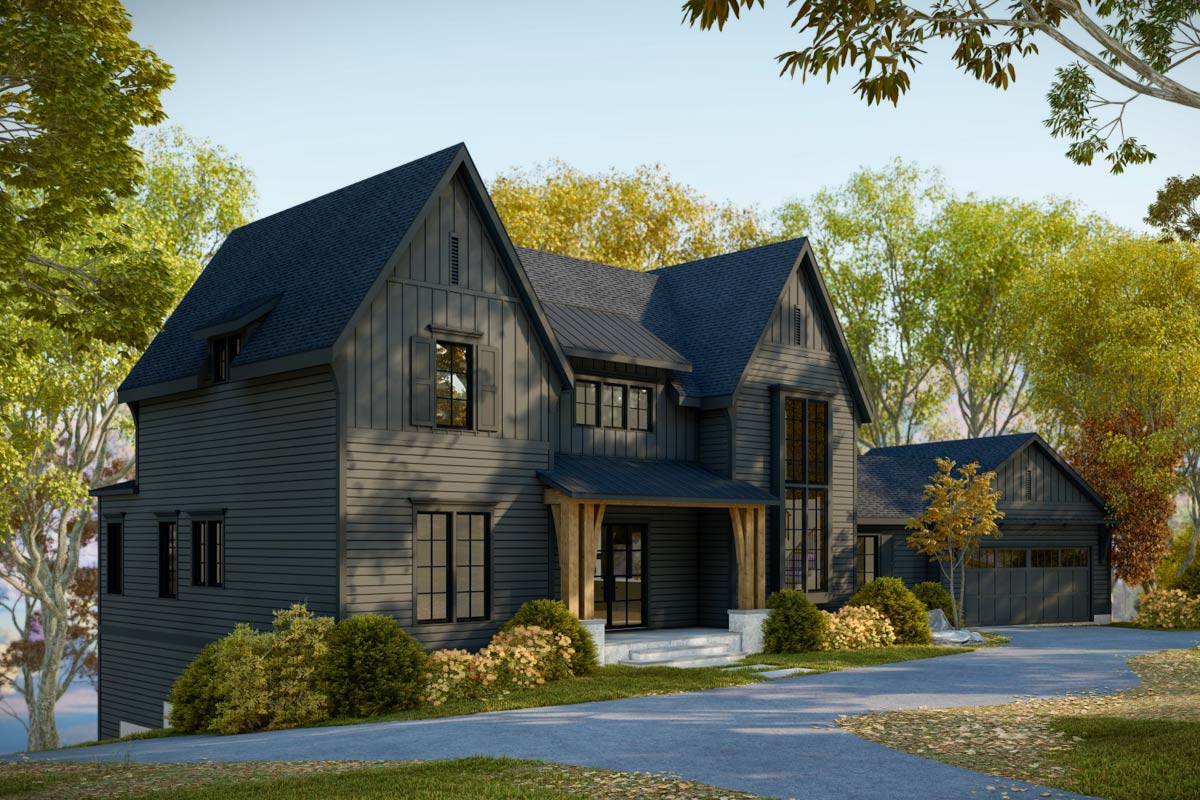

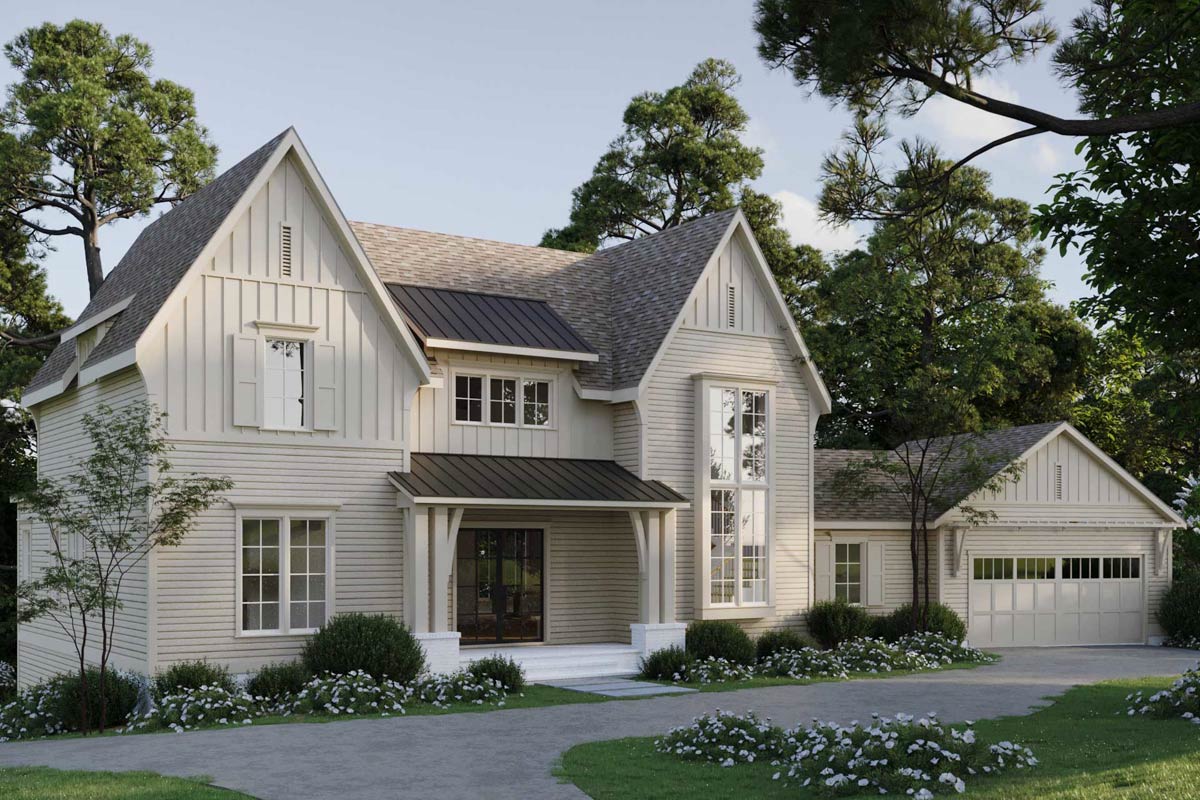

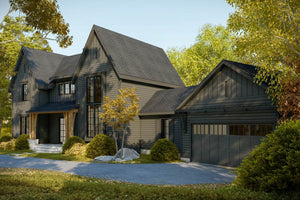

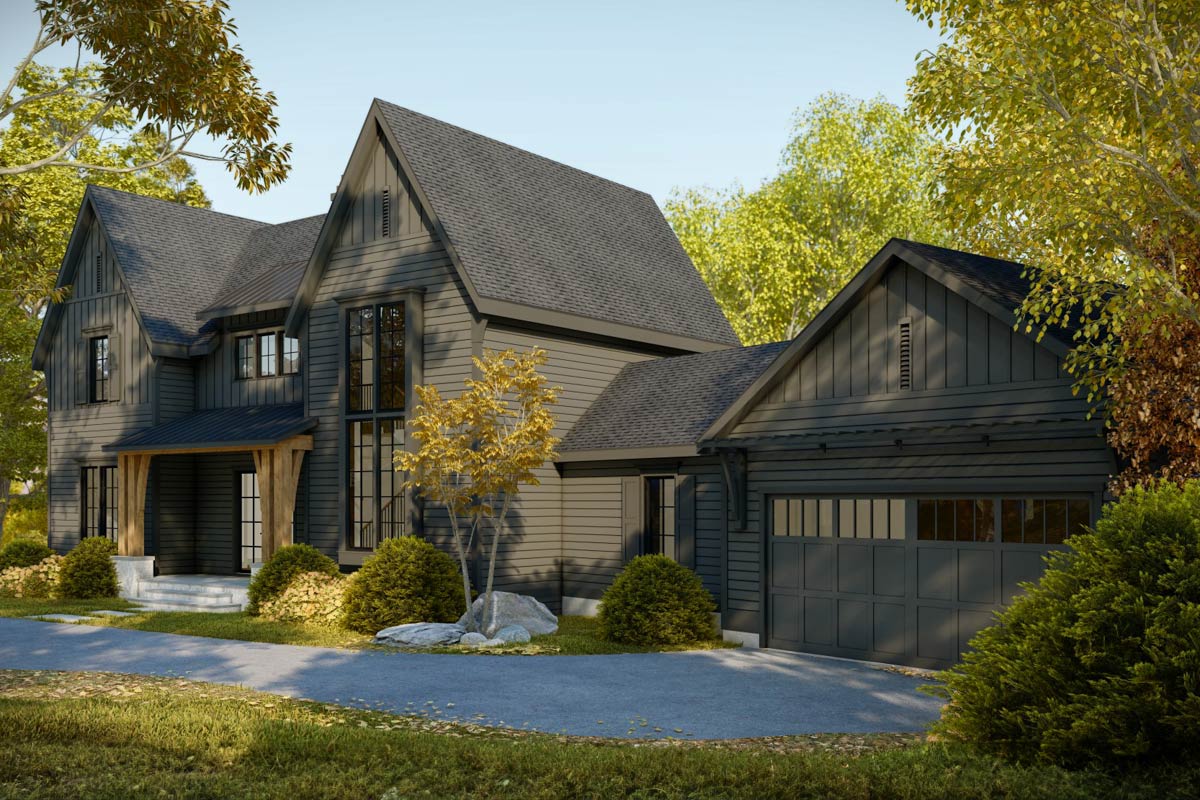

The Bailey is a 2,858 sq ft Modern Farmhouse design characterized by a wide 95'6" frontage and a 46'8" depth. This two-story residence integrates an angled 2-car front-load garage (576 sq ft) that creates a distinct architectural profile while maintaining efficient lot utilization. The structure features a 10-foot ceiling height on the main level and an 8:12 roof pitch, reaching a maximum building height of 31'6".

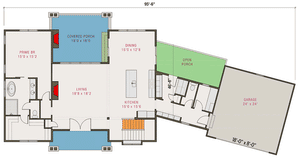

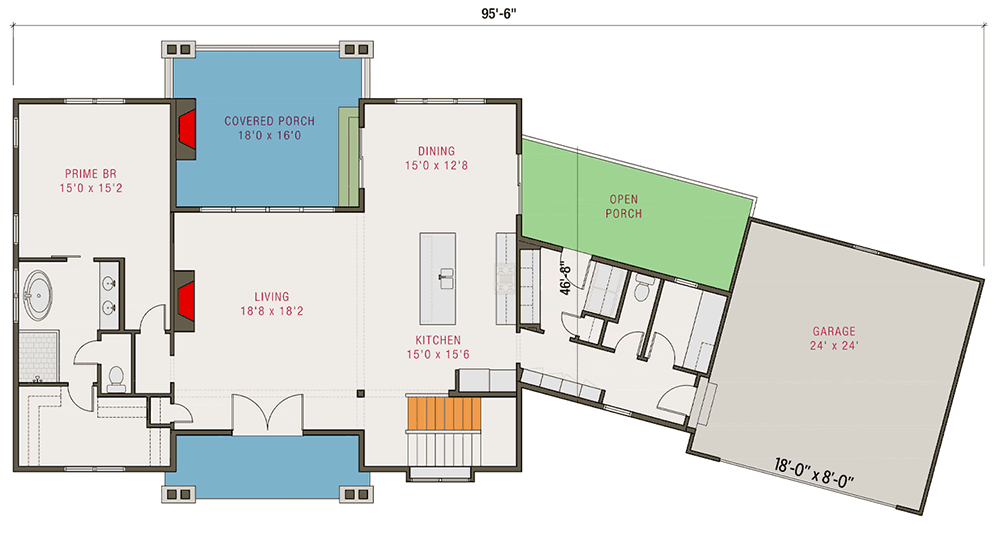

The main level spans 1,852 sq ft and centers on an open-concept core defined by a two-story grand room equipped with a fireplace. This floor incorporates a primary suite for convenient single-level living, alongside a dedicated den, flex room, and home office. A mudroom and separate laundry area provide transition zones that organize daily household circulation, while the breakfast nook maintains direct sightlines into the kitchen and living areas.

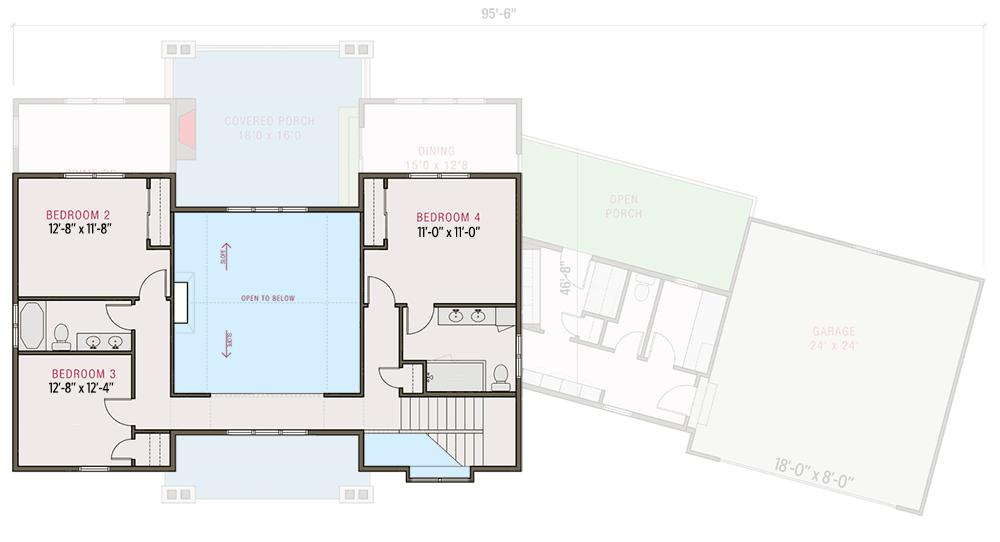

With 1,006 sq ft of living space on the second floor, the layout provides additional bedrooms and a full bathroom, facilitating separation between the primary suite and the secondary sleeping quarters. This split-bedroom configuration enhances privacy, while the 9-foot ceiling height upstairs maintains a consistent sense of volume throughout the upper-level living zones.

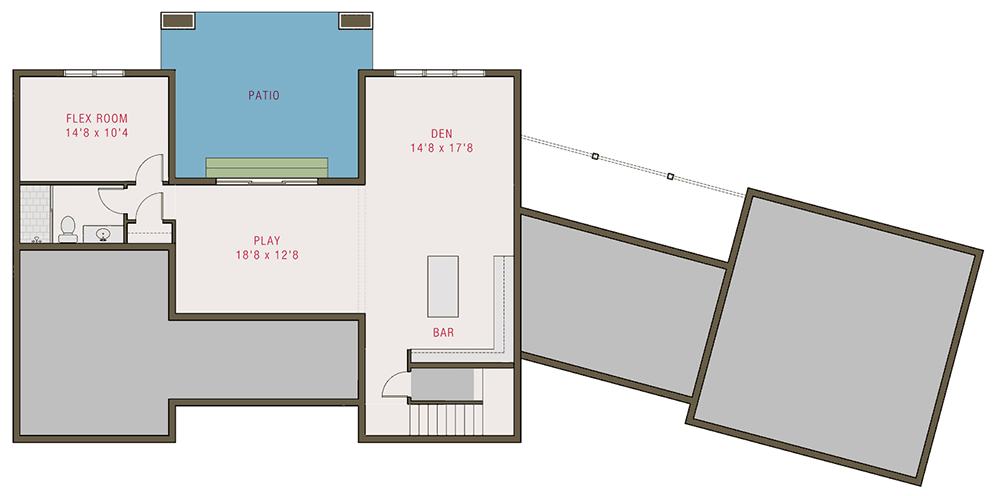

The design includes a 1,000 sq ft walkout basement with 10-foot ceilings, providing a versatile footprint for future expansion. This level is configured to support a game room and wet bar, maximizing the total square footage for entertainment or multi-purpose use. The basement foundation type is engineered to accommodate the walkout condition, allowing for natural light penetration into the lower level.
Key Features: 4 bedrooms, 3 bathrooms, 2,858 sq ft total living area, 1,000 sq ft walkout basement, angled front-load garage, first-floor primary suite, split-bedroom layout, home office, walk-in pantry, 10-foot main level ceilings, 8:12 roof pitch.
Explore floor plans, available formats, and modification options for The Bailey today.





PDF (Single Build)
A complete set of working drawings delivered in digital PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.
CAD + PDF (Single Build)
A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.
5 or 8 Prints (Single Build)
Five or eight printed sets of working drawings shipped to you. This option comes with a license to build ONE home.
5 Prints + PDF (Single Build)
Five printed sets of working drawings shipped to you, plus a digital version in PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.
PDF (Multi Build)
A complete set of working drawings delivered in digital PDF format. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.
CAD + PDF (Multi Build)
A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.
Choose a building foundation for your home. The foundation provides stability to a home's structure from the ground up.
Slab - This concrete foundation is reinforced with steel rods and suitable for flat ground.
Crawl Space - This foundation is raised off the ground with low walls resting on footings, providing space for wiring, plumbing, and storage.
Basement - This foundation is entirely or partially below ground and offers storage or living areas.
Walkout Basement - This foundation is typically suited for rear-sloping lots and provides storage or living areas. Walkout basements have doors that provide access to the outside.
