Versatile 2419 Sq Ft Home with Bonus Room and Side Garage
4.8
Plan Number:

D636-A

Rated 4.8
Plan Number:

D636-A

✔ Best Price Guarantee | ✔ Free Cost to Build Calculator
Or order by phone: (888) 890-2353
Safe and Secure
SafePay icons
LOW PRICE GUARANTEE
Free Cost to Build Calculator
Floor Plan
st. martin house plan - archival designs house plans, floor plan
st. martin house plan - archival designs house plans, floor plan

Versatile 2419 Sq Ft Home with Bonus Room and Side Garage

The St Martin is an elegant 2,419 sq ft modern farmhouse that brings a sense of refined country luxury to a highly functional one-story design. This three-bedroom home features a two-car garage and a solid crawl space foundation, Providing a clean and stately profile from the street. The design centers on architectural volume and light, utilizing an open-concept layout and 11-foot ceilings to create a sense of scale and openness throughout the interior gather zones.

The interior journey begins in an expansive social core where the great room and gourmet kitchen flow naturally into one another for easy hosting. The kitchen is a highlight, equipped with a central island with seating for four and a large walk-in pantry that satisfy the inner chef. The first-floor master suite is an immaculate sanctuary boasting a private sitting area and direct laundry access from the wardrobe, while a dedicated home office off the foyer provides a quiet space for modern productivity.

Outdoor relaxation is centered around a generous covered rear porch, perfect for enjoying the landscape year-round. A versatile 301 sq ft bonus room above the garage offers significant potential for future expansion as a media room or playroom. With its focus on architectural character and daily comfort, the St Martin delivers a perfect balance of style and daily functionality. View floor plans, photos, and pricing to get started today.

View Sample Plan
What's Included in the House Plan:
  • All Four Elevations: Exterior views of all sides of the building (two pages).
  • Main Level Floor Plan: Layout of the main floor, including room dimensions and door/window placements.
  • Second Level Floor Plan: Layout of the second floor, including room dimensions and door/window placements.
  • Foundation Plan: Layout of the foundation, including walls, footings, and slabs.
  • Foundation Details: Specific details for the construction of the foundation.
  • Cross Sections: Vertical sections showing internal structure and materials.
  • Roof Plan: Layout of the roof, including slopes, ridges, and other features.
  • Lighting Layout: Suggested locations for lighting fixtures, switches, and fans.
What's Not Included:
  • Architectural or Engineering Stamp: Handled locally if required.
  • Site Plan: Created locally when needed.
  • Mechanical Drawings: Heating, air equipment, and ductwork to be designed by subcontractors.
  • Plumbing Drawings: Pipe sizes and locations to be determined by subcontractors.
  • Energy Calculations: Handled locally if required.

House Plan Specifications

  • Total Living (heated area):  2419 sq ft
    All Unheated Under-Roof Areas  999 sq ft
    Total Structure  3418 sq ft
    1st Floor:  2419 sq ft
    Bonus Room:  301 sq ft
    Front Porch:  316 sq ft
    Rear Porch:  245 sq ft
  • Garage:  438 sq ft
    Garage Bays:   2
    Garage Load:   Side
  • Bedrooms:   3
    Bathrooms:   2
  • Foundation:   Crawl Space
    Wall Framing:   2x6
    Roof Framing:   Truss
  • Width of House:  73' 6''
    Depth of House:  64' 4''
    Building Height:  27'
  • First Floor Ceiling Height:  10'
    Second Floor Ceiling Height:  8'

Key Features

  • Bonus Room
  • Covered Back Porch
  • Covered Front Porch
  • Fireplace
  • First Floor Laundry
  • First Floor Master Suite
  • Home Office/Study
  • Kitchen Island
  • Laundry 1st Floor
  • Laundry Access from Master
  • Master Sitting Area
  • Mud Room
  • Open Floor Plan
  • Split Bedroom
  • Walk In Closets
  • Walk-in Pantry
Modify this plan to make it perfect
Our hassle-free process makes it easy to modify your dream home. To receive an estimate please submit your request using the link below.
Submit a Modification Request
Cost to build estimate
$0.00
$40.00
100% discount for new customers this month!
Receive a personal estimate in two minutes instead of 2 days as many competitors offer. Just submit your request using the link below.
Get Your Estimate
Plan Number: D636-A
Versatile 2419 Sq Ft Home with Bonus Room and Side Garage
3 Bedrooms
2 Full Baths
2419 SQ FT
1 Stories

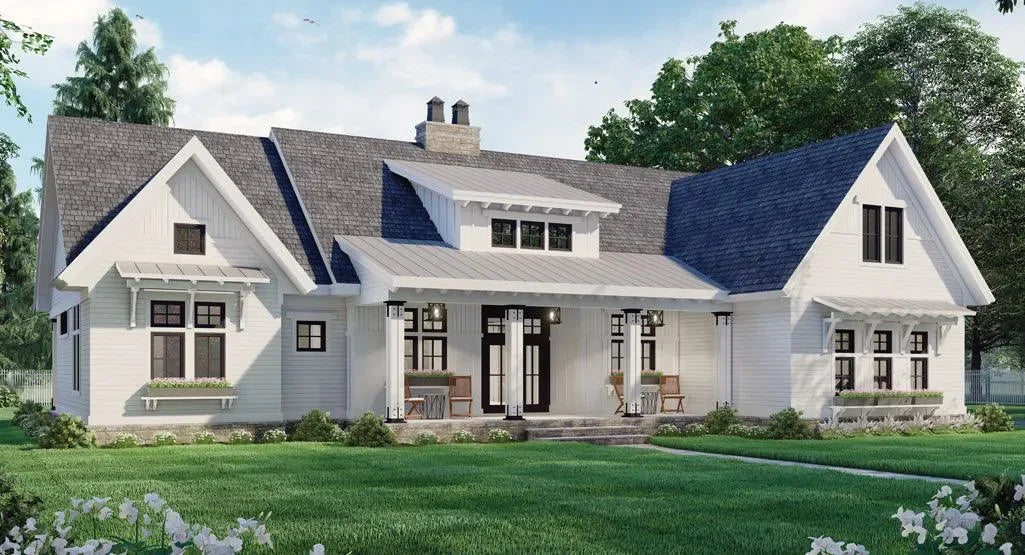

Product print image

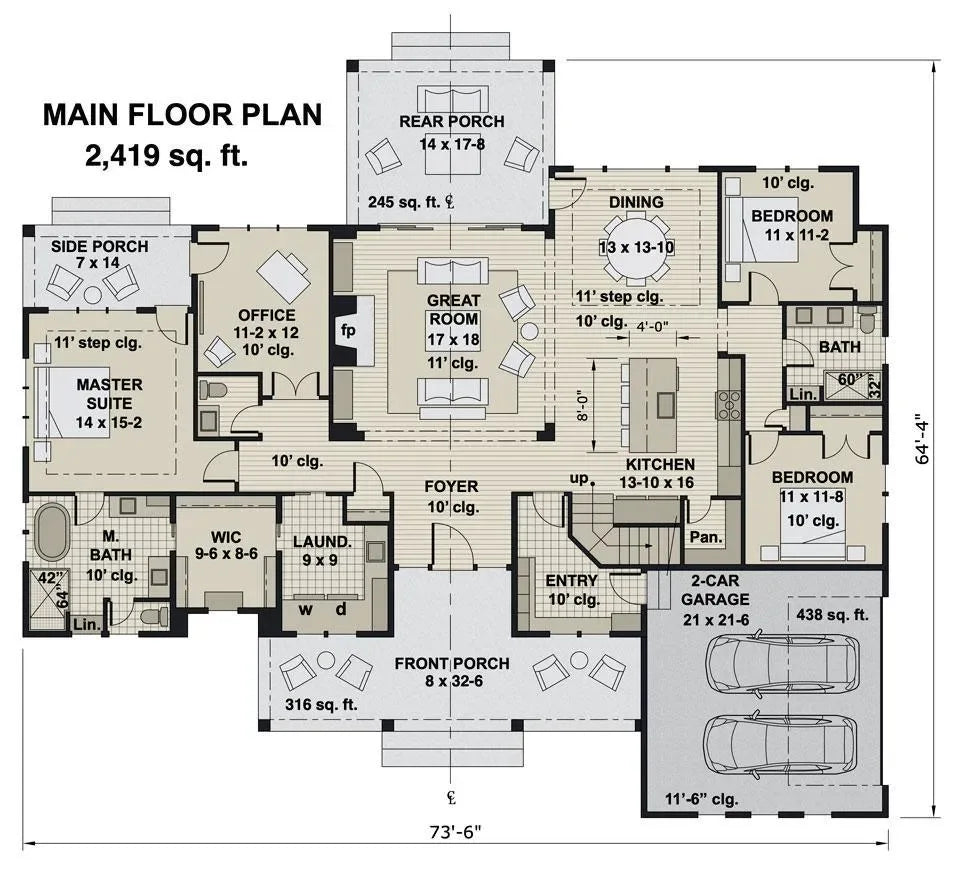

Main Level
St. Martin House Plan - Archival Designs House Plans, floor plan

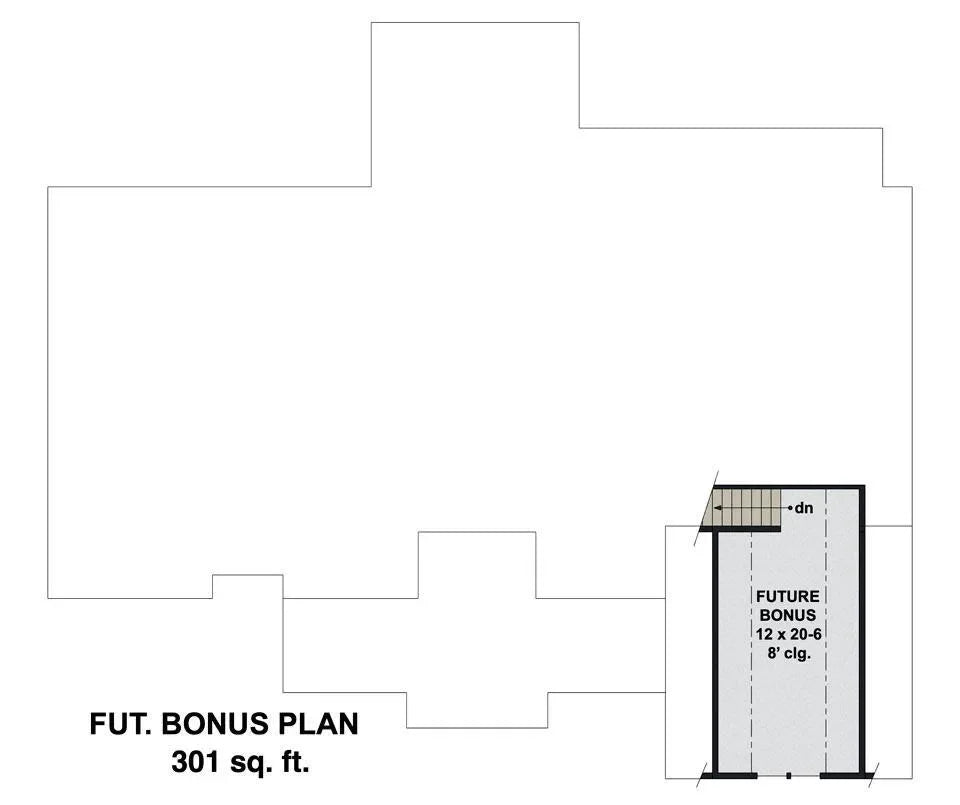

Second Floor
St. Martin House Plan - Archival Designs House Plans, floor plan
House Plan Formats Explained

PDF (Single Build)

A complete set of working drawings delivered in digital PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

CAD + PDF (Single Build)

A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

5 or 8 Prints (Single Build)

Five or eight printed sets of working drawings shipped to you. This option comes with a license to build ONE home.

5 Prints + PDF (Single Build)

Five printed sets of working drawings shipped to you, plus a digital version in PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

PDF (Multi Build)

A complete set of working drawings delivered in digital PDF format. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.

CAD + PDF (Multi Build)

A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.

Choose a building foundation for your home. The foundation provides stability to a home's structure from the ground up.

Slab - This concrete foundation is reinforced with steel rods and suitable for flat ground.

Crawl Space - This foundation is raised off the ground with low walls resting on footings, providing space for wiring, plumbing, and storage.

Basement - This foundation is entirely or partially below ground and offers storage or living areas.

Walkout Basement - This foundation is typically suited for rear-sloping lots and provides storage or living areas. Walkout basements have doors that provide access to the outside.

Readable Reverse
An option to reverse the plan including texts and dimensions to make them readable.
2x4 or 2x6 Conversion
Convert the exterior framing other than the standard framing included in the plan.
Multi Build Licence (CAD required) Gives the buyer the legal right to build the house plan multiple times
What Makes Us Different
Them
Cost to Build
$30+
Shipping
Free
on physical blueprints
$20+
Price Guarantee
By 10%
beat competitor
Only Price Match
Purchase
Direct
from the Architect
Middleman

Recently Viewed Plans

Why Our Clients Trust Us

Our client image
Our client image
Our client image
Our client image
Our client image
Icon
0
+
Homes
Designed
Icon
0
Homes
Built
Icon
0
Years of
Experience

See What Our Happy Customers Are Saying

Review image
JoAnne and the entire staff was extremely helpful and patient with us while we decided between 2 homes. This home has outstanding curb appeal and a great layout perfect for us. I work from home so having the home office off the foyer is fantastic. I converted the wet bar into a storage closet for my office. We also extended the laundry room into the porch and created a multipurpose laundry/mud room. I would buy from archival designs again and again.
Rita Long
Milwaukee, WI
Review image
It took almost a year to pick a plan. Since my husband and I retired a few years ago we wanted this last house had to have everything we wanted and needed. The kitchen is my favorite part of the house. I can see what’s happening in my neighborhood through my kitchen window and watch my husband garden in the back yard. Our children think we made a smart decision when we picked this house for our senior years.
Elaine SmithsonPierre
South Dakotaomer
Review image
We’ve had an amazing experience with our new home and are excited to be moved in. The customer service we received during our modifications was exceptional. We are loving the open layout of the kitchen and family room. It feels spacious and I’m already planning on hosting holiday dinners at home. We recommend Archival Designs to anyone interested in building the home they’ve always wanted!
Sandra Hawkins
Montgomery, AL
Review image
We absolutely adore the Kildare Place house plan. Made some modifications to make this home ours! Our house is the talk of the neighborhood. We host big parties every holiday and still get compliments from our friends and family. We searched for months and looked through hundreds of floor plans and this one had almost everything we wanted, and with the help of the great staff at Archival Designs we got exactly what we wanted!
Nick Lazzari
Bakersfeild, CA
Cost TO Build Estimate
$0.00
$40.00
100% discount for new customers this month! Receive a personal estimate in two minutes instead of 2 days as many competitors offer. Just submit your request using the link below.
Give us zip/postal code INSTANT
Get a FREE Instant quote! ACCURATE
Sent to your email FREE
Request a Cost To Build
Cost to build your dream home

FAQ

Can I modify this Versatile 2419 Sq Ft Home with Bonus Room and Side Garage now or later?

Absolutely. We offer in-house modification services to adjust layouts, room sizes, or expand garages before purchase. If you prefer to make adjustments during the construction phase, purchasing the CAD file package allows your local builder or architect to make on-site changes. Simply click 'Request a Modification' for a free quote.

How much will it cost to build this Versatile 2419 Sq Ft Home with Bonus Room and Side Garage and why aren't exact costs shown?

Construction costs vary significantly ($150–$300+ per sq. ft.) based on your location, material choices, and local labor rates. Because site preparation and regional codes differ, it is hard to provide a universal cost always.

Will this Versatile 2419 Sq Ft Home with Bonus Room and Side Garage fit my lot, and can I add a basement or flip the layout?

You can check the 'Modifications' tab for width and depth requirements. To fit your site's orientation, most plans are available in a 'Right Reading Reverse' (mirrored) format. We also offer slab, crawlspace, and basement foundation adjustments for every design.

Do your plans meet building codes in my area and do I need a professional stamp?

Our plans meet or exceed national IRC (International Residential Code) standards. However, due to varying local requirements regarding seismic, wind (hurricane), or snow loads, house plans do not come with a professional architect’s or engineer’s seal. Most municipalities require a review and stamp by a local licensed professional to obtain a building permit.

Are plumbing, HVAC, and mechanical drawings included?

We provide the architectural and schematic electrical framework, but HVAC and plumbing layouts are not included. Because local codes and climate-specific systems vary significantly across the country, these are best finalized by your local subcontractors to ensure your home’s systems are optimized for your specific site and energy requirements.

Why should I choose Archival Designs and are the plans guaranteed?

With over 40 years of experience, Archival Designs provides high-quality, builder-ready designs that balance aesthetic elegance with structural integrity. We offer a Best Price Guarantee, a 10% discount for military and first responders, as well as builder discounts for life. And loyalty perks for pro builders. All plans are designed to comply with the IRC codes at the time of their creation. Learn more about our Best Price Guarantee.
