AE6848-A

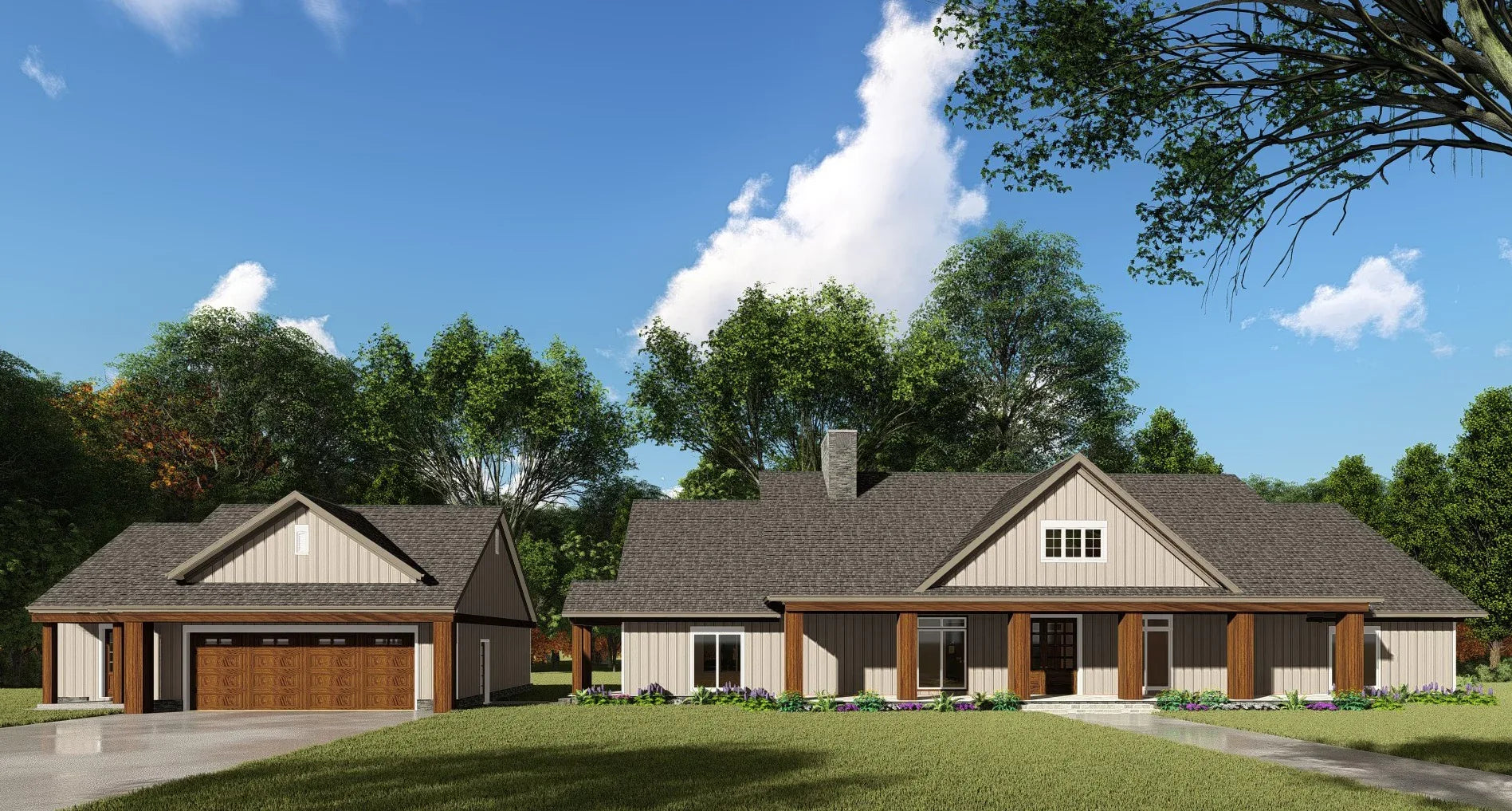

Spacious 2,191 sq ft Ranch with Outdoor Kitchen and Workshop encompasses a 2,191 square foot footprint, delivering a single-story layout optimized for a lot width of 81 ft 4 in and a house depth of 67 ft 8 in. This ranch-style home prioritizes horizontal circulation, featuring a defined split-bedroom configuration that separates the primary suite from the secondary bedrooms for increased acoustic privacy. The exterior profile is defined by an 8:12 roof pitch and a maximum building height of 24 ft, anchored by covered front and rear porch areas totaling 1,290 sq ft.

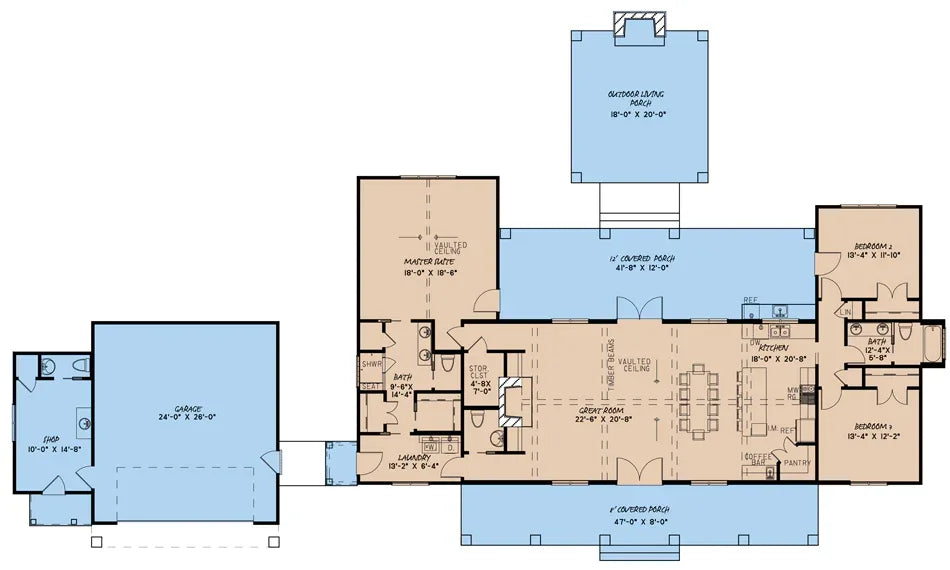

The interior core centers on an open-concept great room that integrates directly with the kitchen and dining zones. The kitchen is equipped with a central island and a walk-in pantry, providing a direct connection to a functional mud room. The primary suite serves as a self-contained wing, featuring a private bathroom and a walk-in closet that offers convenient direct access to the laundry room, streamlining the daily household workflow.
Vertical volume is established by 9-foot ceilings throughout the main level, which work to distribute natural light across the primary living areas. The floor plan includes two full bathrooms and two half bathrooms, ensuring adequate facilities for both residents and guests. A dedicated workshop area is incorporated into the structure, providing a distinct zone for hobbyists and project-based work, separate from the primary living quarters.
The site coverage includes a 658 sq ft 2-car front-load garage, complemented by an additional 193 sq ft of dedicated storage space. The exterior living experience is enhanced by an outdoor kitchen and an outdoor fireplace, creating a year-round connection to the rear porch. This configuration provides a balance of utility and living space for rural or suburban residential settings.
Key Features: 3 bedrooms, 2 full bathrooms, 2 half bathrooms, split-bedroom layout, walk-in pantry, mud room, direct laundry access from master closet, outdoor kitchen, outdoor fireplace, dedicated workshop, 2-car front-load garage, 9-foot ceilings.
Review floor plans, CAD packages, and customization options for this home.



PDF (Single Build)
A complete set of working drawings delivered in digital PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.
CAD + PDF (Single Build)
A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.
5 or 8 Prints (Single Build)
Five or eight printed sets of working drawings shipped to you. This option comes with a license to build ONE home.
5 Prints + PDF (Single Build)
Five printed sets of working drawings shipped to you, plus a digital version in PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.
PDF (Multi Build)
A complete set of working drawings delivered in digital PDF format. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.
CAD + PDF (Multi Build)
A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.
Choose a building foundation for your home. The foundation provides stability to a home's structure from the ground up.
Slab - This concrete foundation is reinforced with steel rods and suitable for flat ground.
Crawl Space - This foundation is raised off the ground with low walls resting on footings, providing space for wiring, plumbing, and storage.
Basement - This foundation is entirely or partially below ground and offers storage or living areas.
Walkout Basement - This foundation is typically suited for rear-sloping lots and provides storage or living areas. Walkout basements have doors that provide access to the outside.
