Sandy Dune is a coastal house plan engineered with 3,464 sq ft of heated living space, optimized for a 42-foot width and 69-foot depth footprint. This two-story design utilizes a pier foundation and 2x6 wall framing to address coastal site requirements, while the 4:12 roof pitch contributes to a lower-profile aesthetic suited for waterfront or beach environments.
The first floor provides 1,933 sq ft of living area, anchored by a central great room that integrates with a kitchen island and walk-in pantry. This level includes a dedicated guest suite, a home office, and a half bathroom. The layout emphasizes transition to exterior spaces, featuring 421 sq ft of covered front porch area and 282 sq ft of rear porch space, complemented by an outdoor fireplace for climate-controlled exterior gatherings.

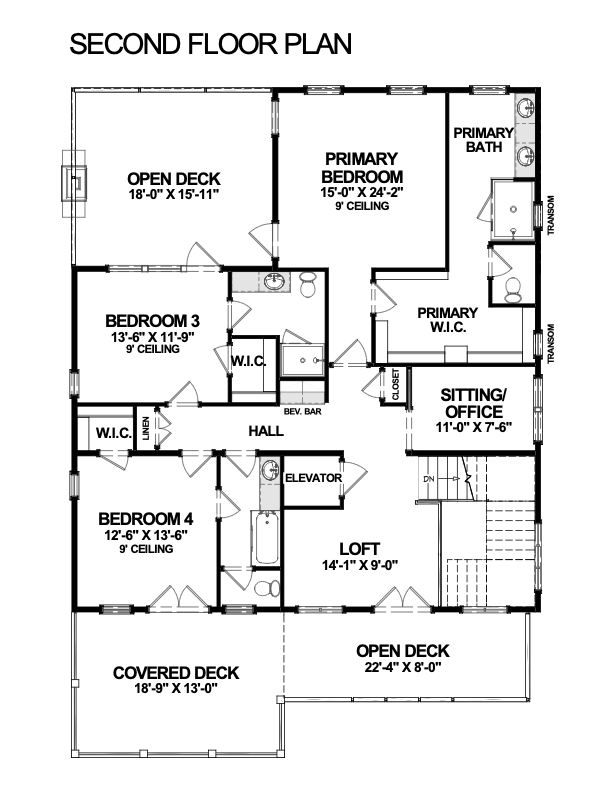

The second floor encompasses 1,531 sq ft, housing the primary master suite complete with an ensuite bathroom and a walk-in closet. This level also incorporates additional bedrooms and a loft area, with access to both covered and open decks totaling 557 sq ft. An internal elevator provides vertical circulation between the levels, enhancing accessibility across the home's 37-foot 8-inch maximum building height.
Ceiling heights are set at 10 feet on the first level and 9 feet on the second level, creating distinct volumetric experiences throughout the interior. The structural design includes a 2-car garage with 1,933 sq ft of area, ensuring significant utility for storage or coastal equipment while maintaining the home's exterior proportions.
Key Features: 4 bedrooms, 4 full bathrooms, 1 half bathroom, pier foundation, 2-car garage, elevator, home office, kitchen island, walk-in pantry, covered front and rear porches, outdoor fireplace, loft area, two-story configuration.
