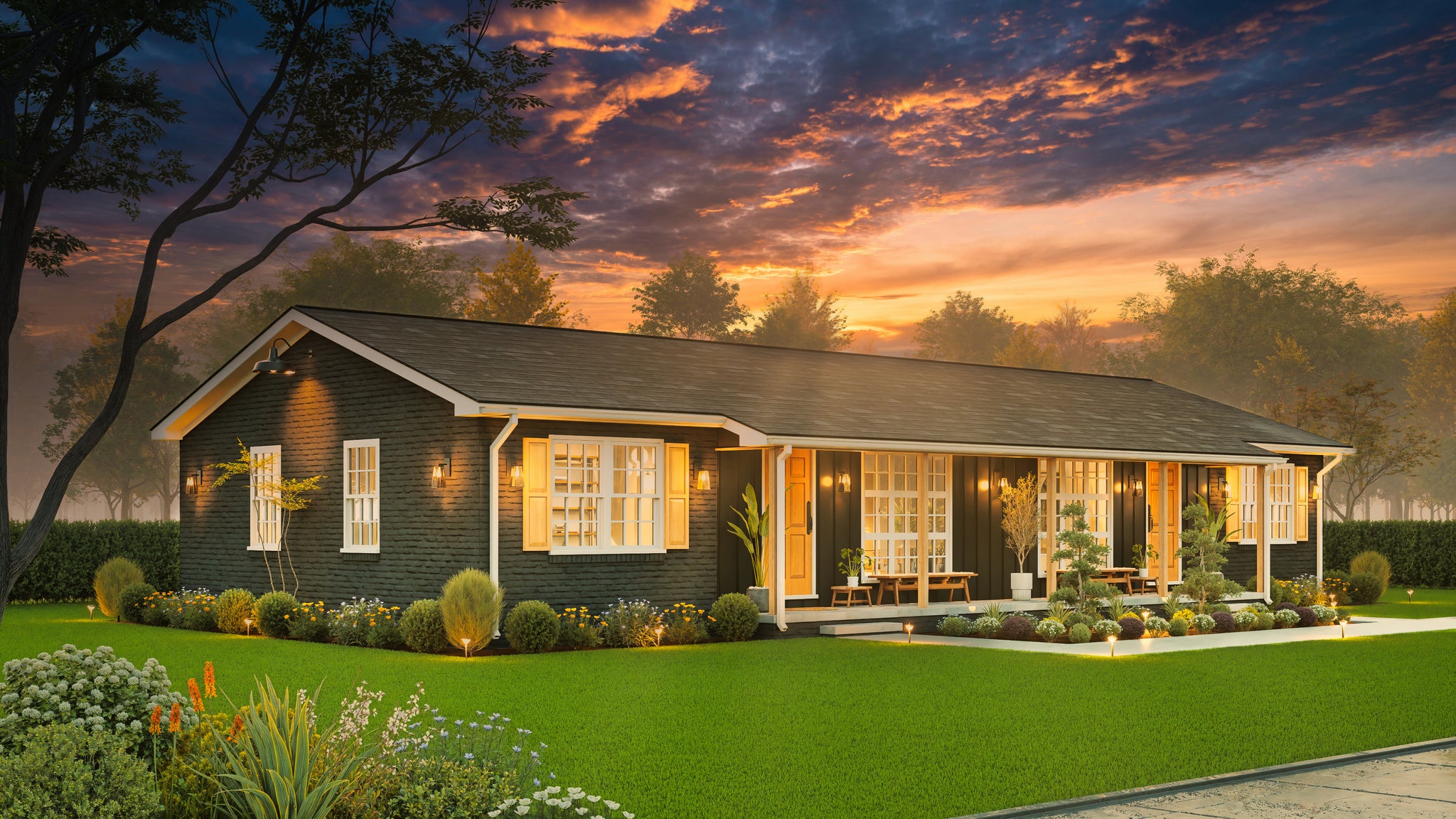

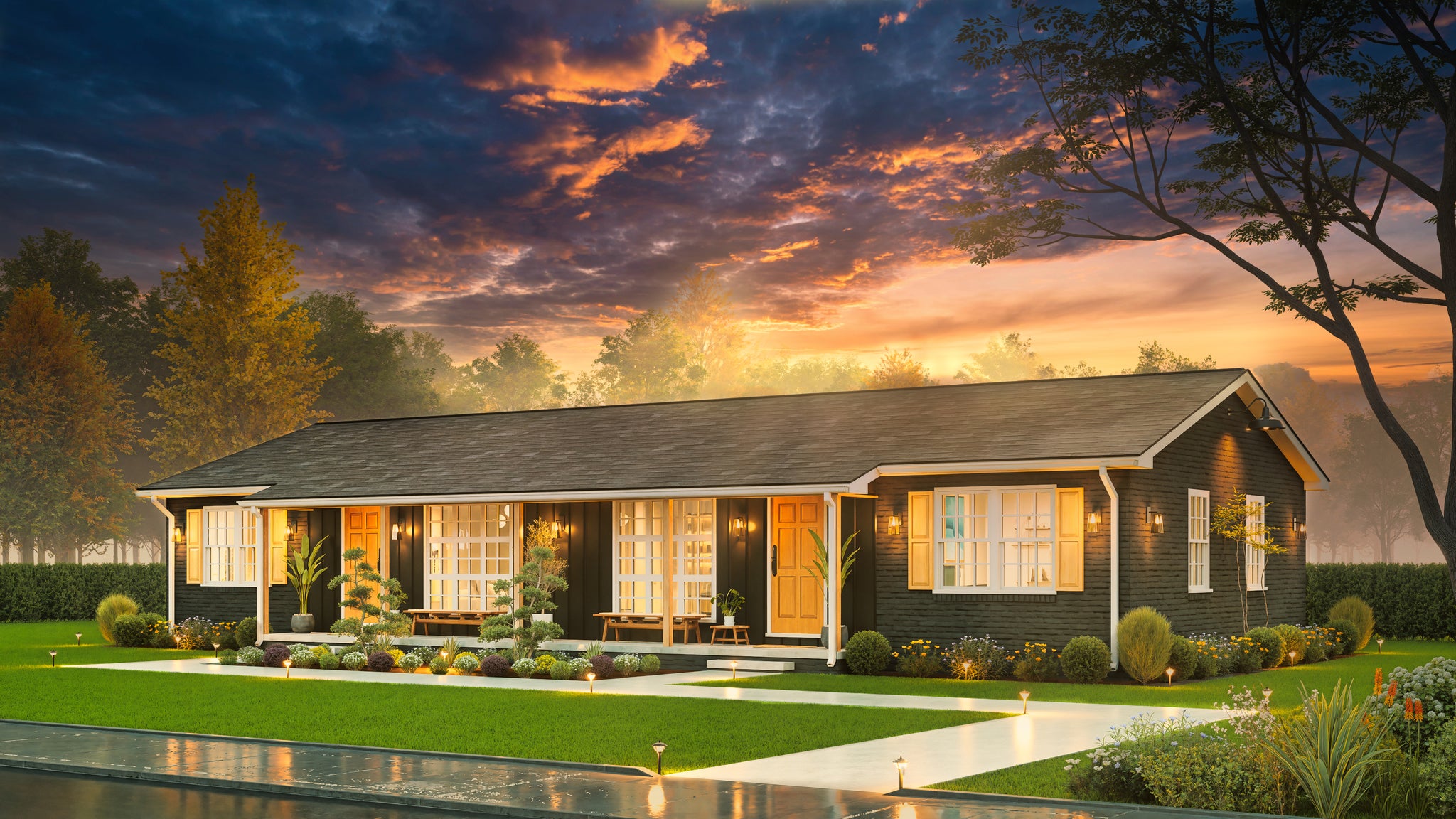

Puckett 22 is a single-story duplex house plan featuring 1,654 square feet of total heated living space, split into two identical units of 827 square feet each. Measuring 62 feet in width and 39 feet 8 inches in depth, this bungalow-style structure is optimized for narrow-to-mid-sized lots while providing a clear separation between residential zones. The compact footprint and 13-foot maximum building height prioritize efficiency for multi-family or income-generating property requirements.

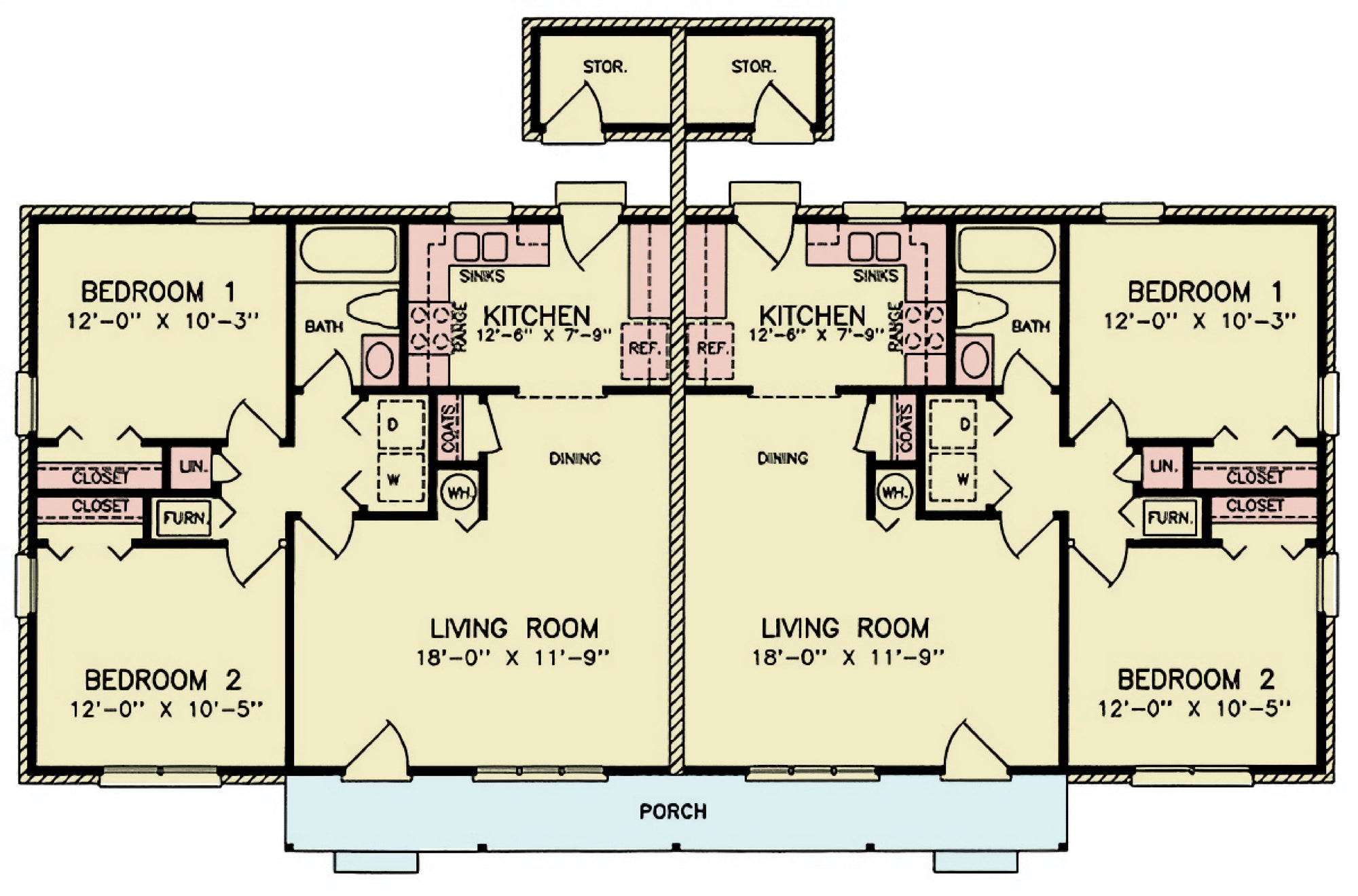

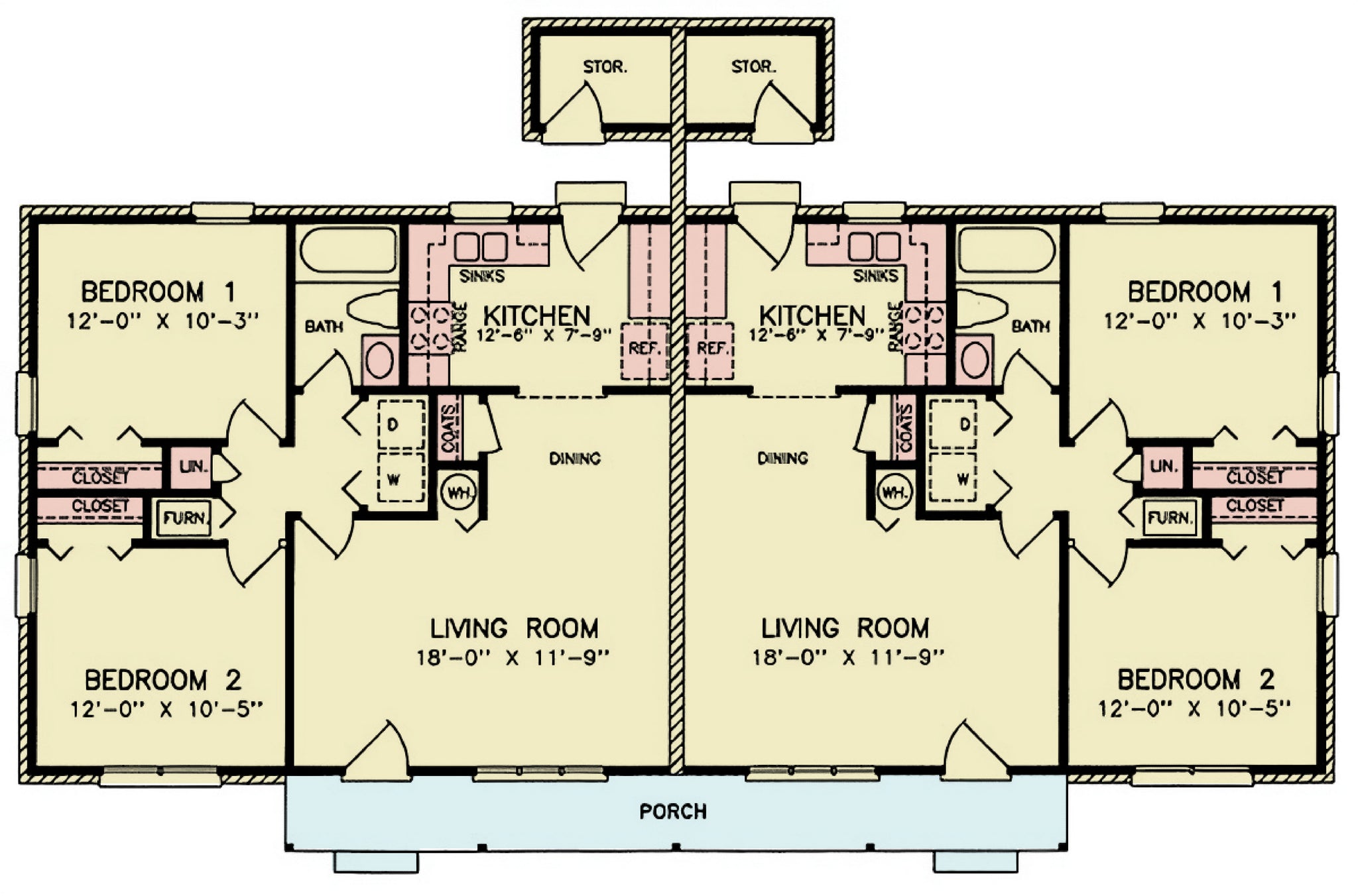

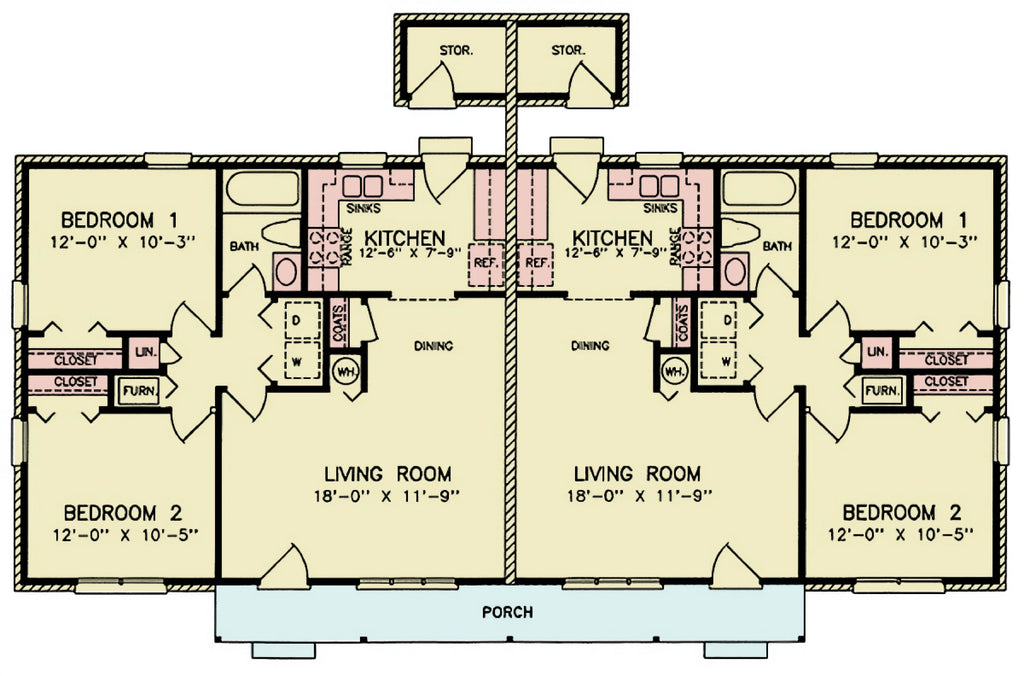

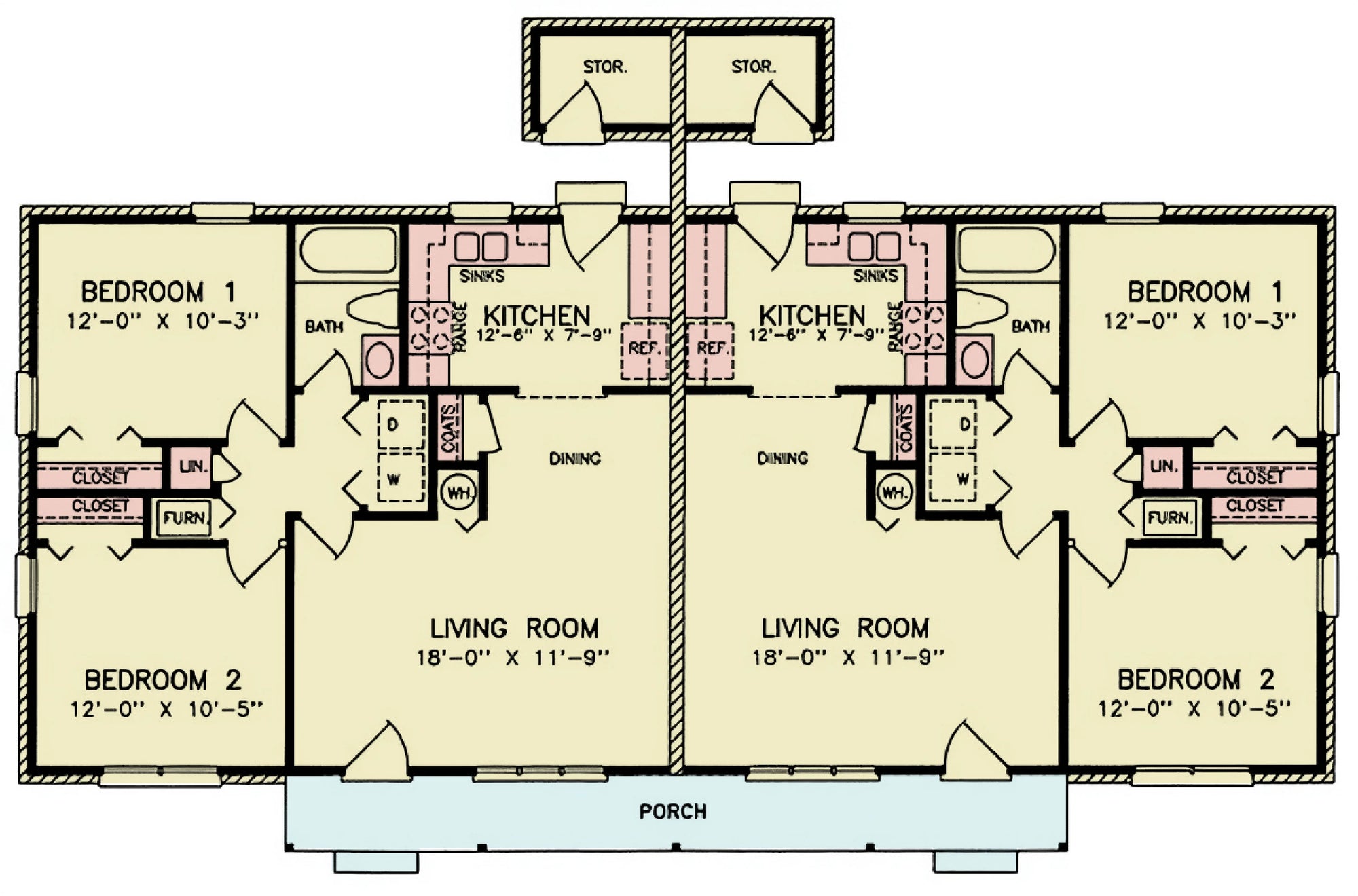

Each unit within this duplex configuration provides 2 bedrooms and 1 full bathroom, centered around a 827-square-foot floor plate. The internal layout includes a central family room that acts as the primary social anchor, with direct access to laundry facilities and walk-in closet storage. The design incorporates a first-floor primary suite in each unit, ensuring accessibility and consistent living standards across both sides of the duplex.

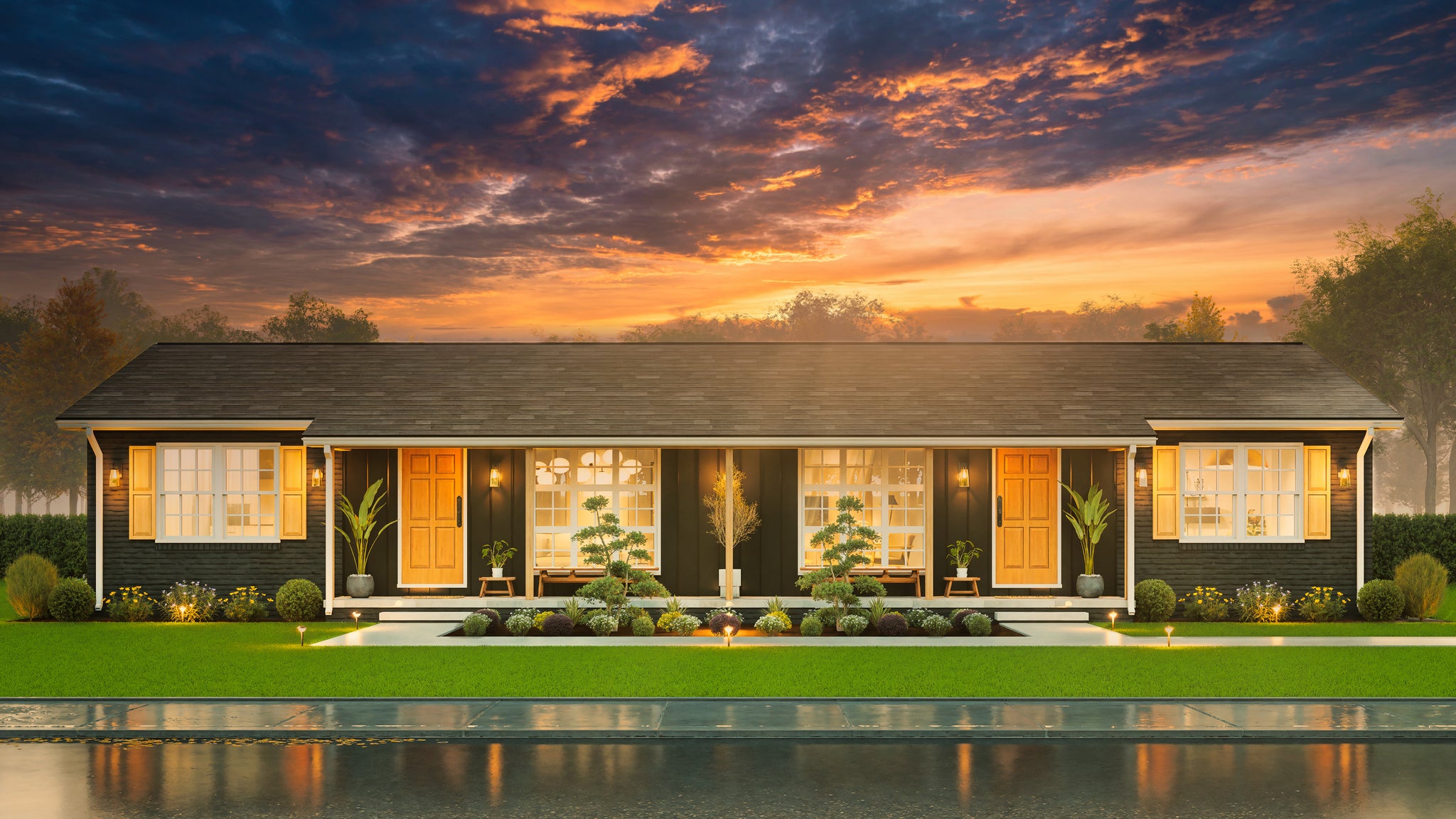

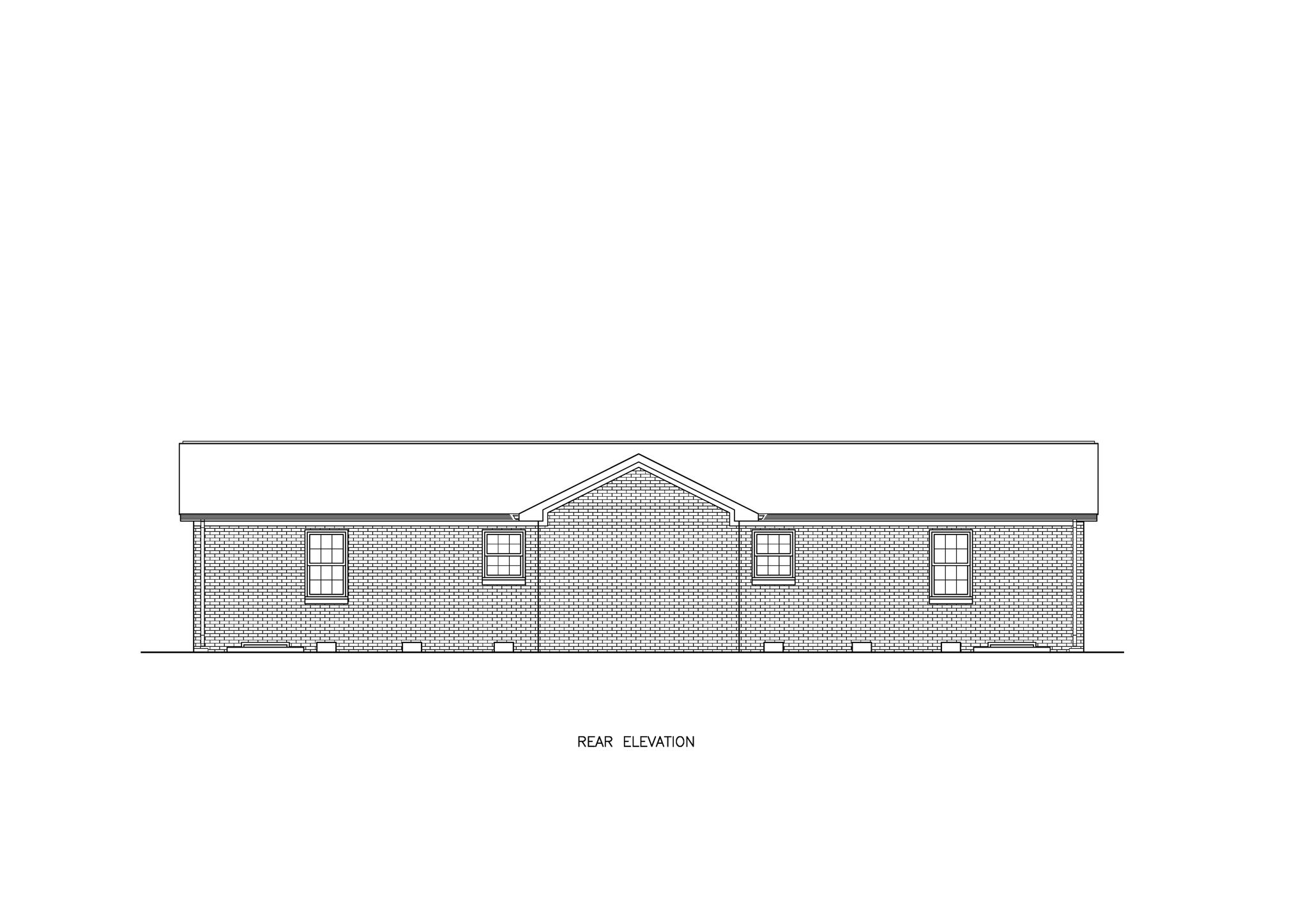

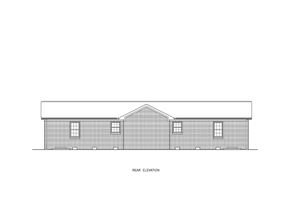

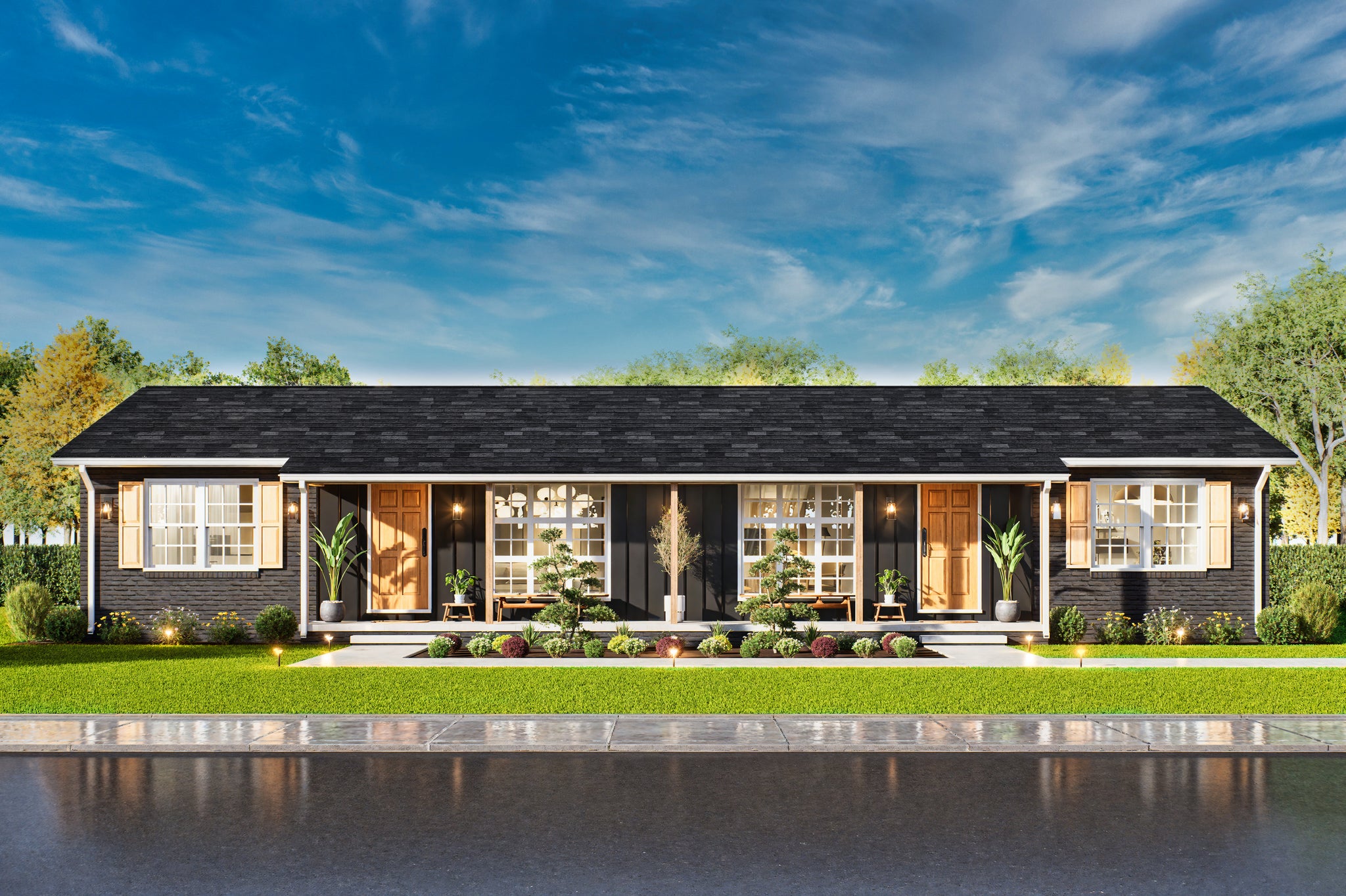

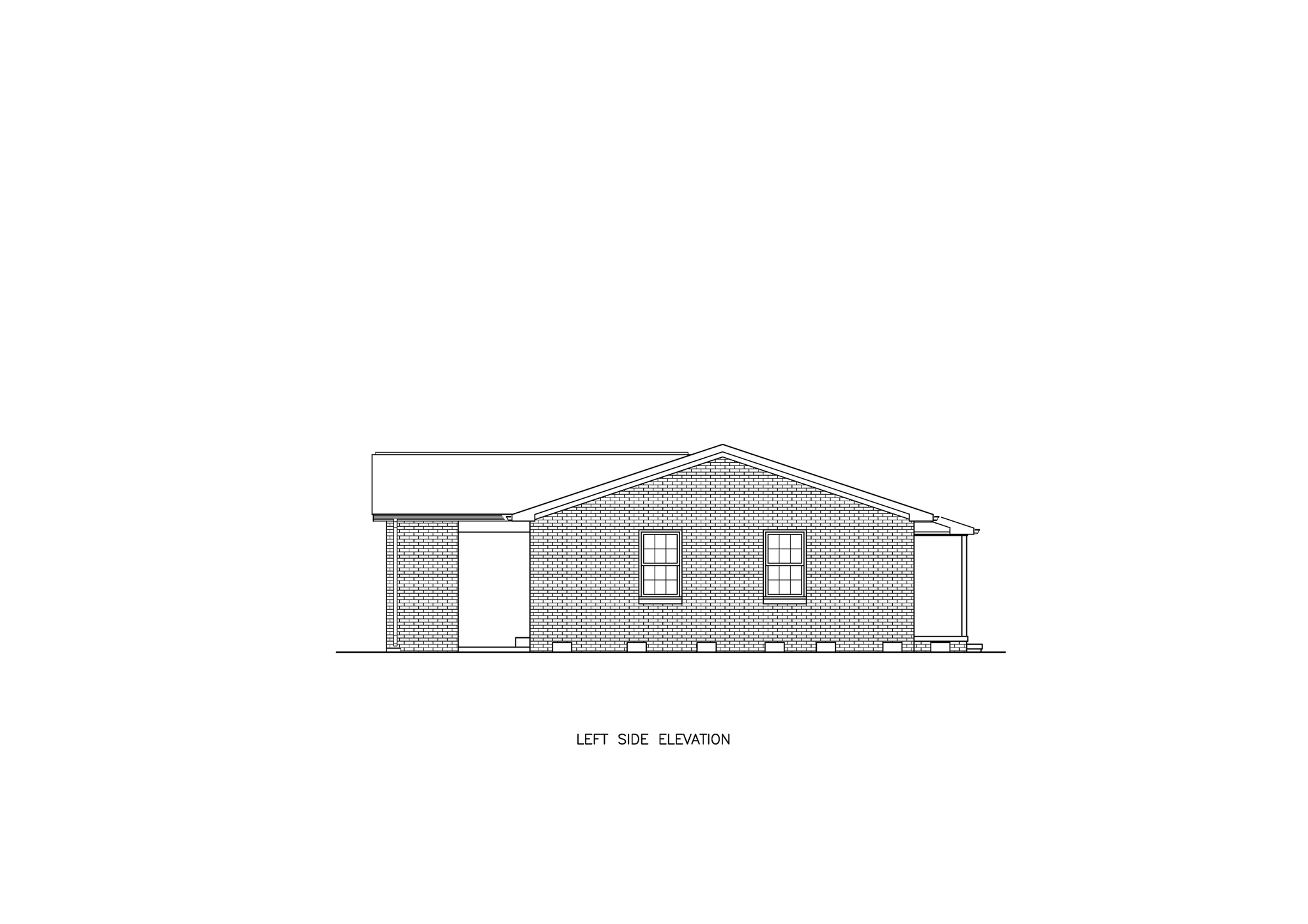

The exterior elevation features a 4:12 roof pitch that contributes to a low-profile aesthetic. The structure is augmented by 150 square feet of covered front porch area, providing distinct entry points for each unit. A 56-square-foot rear porch and an additional 70 square feet of unheated storage area are integrated into the rear elevation, offering practical space for outdoor gear or utility storage without encroaching on the interior living area.
With 8-foot ceiling heights throughout, the interior maintains a consistent vertical scale that simplifies construction and heating efficiency. The layout is engineered to minimize hallway space, maximizing the utility of the 1,654 square feet of heated area. This duplex model serves as a versatile solution for investors or multi-generational households requiring separate but mirrored living quarters.
Key Features: duplex house plan, 1,654 sq ft total, 2 bedrooms per unit, 1 bathroom per unit, 4:12 roof pitch, 8-foot ceiling height, covered front porch, rear porch, private storage area, bungalow style.
