Plan Number:
D522-A
Plan Number:
D522-A
The construction drawings will include detailed, dimensioned floor plans, exterior elevations, roof plan, foundation plan, basic electrical layout, cross-section(s), foundation plan, and other general specifications. Some plans will include interior cabinet layouts.
View Sample Plan
Archival Designs brings you over 40 years of experience in the house plan design business. We offer the best value for your money by offering the highest quality home designs.
We offer a 10% military & first responder discount, as well as builder discounts for life! Archival Designs guarantees the lowest prices anywhere online. Learn more about our Best Price Guarantee.
All house plans sold by Archival Designs have been designed to comply with the International Residential Code (IRC) and to the local codes in the area where the designer resides or where the house was built.
All house plans are designed to meet or exceed the national building standards required by the International Residential Code (IRC). Due to differences in climate and geography throughout North America, every city, local municipality and county has unique building codes and regulations that must be followed to obtain a building permit. Prior to purchasing a set of house plans, we recommend that you meet with your local building officials in order to determine the building requirements for your area. It is the responsibility of the purchaser(s) and/or builder to ensure that the structure is constructed to meet the codes of their local area.
Important Note:
House plans do not come stamped or signed by an architect or engineer. Additionally, house plans typically will not include structural engineering notes/calculations. Please check with your local building officials to determine if a stamp is required. If required, the building department will only accept a stamp from a licensed professional in the state where the home will be built.
Depending on your city, county, and state building requirements, house plans may need to be reviewed by a local licensed architect or engineer for structural details and code standards before construction begins. This is particularly true in coastal areas and those facing seismic events, extreme winds, and heavy snow. If you are building in any of these areas, a licensed structural engineer will likely be needed to provide the necessary calculations and additional drawings. We authorize the use of our plans conditioned on your obligation and agreement to strictly comply with all local building codes, ordinances, regulations, and requirements, including permits and inspections at the time of and during construction. We recommend checking with your local building department for the most current requirements. The purchaser(s) and/or builder are responsible for additional expenses incurred through meeting municipality requirements or other requirements for construction.
Our foundation plans have been designed for universal conditions and may need to be adjusted to fit your specific site conditions. The foundation should be modified by a local structural engineer to comply with soil testing laboratory findings and local building requirements.
Our house plans will include schematic electrical drawings; however, circuiting or wire sizing will not be included. Your electrical subcontractor will typically provide these drawings.
HVAC and plumbing drawings are not included. Your mechanical and plumbing subcontractors will determine the best layout for your site. Local HVAC codes, climatic requirements and commonly used systems vary throughout the country. The direction of how water flow will enter the home vary from case to case. For this reason, it is impossible to provide universal plans.

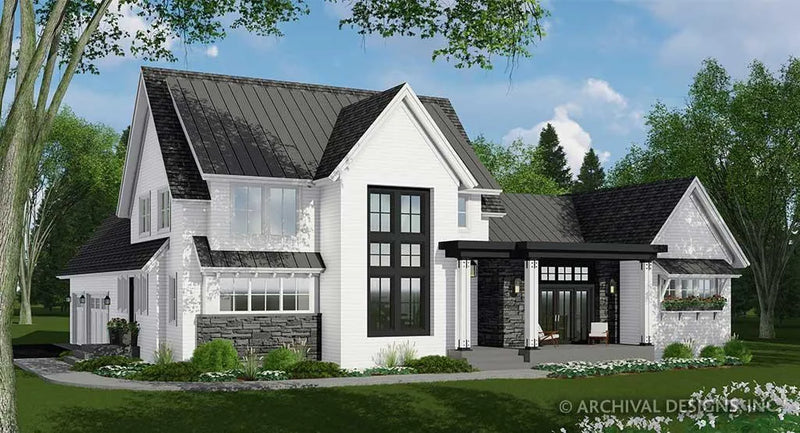

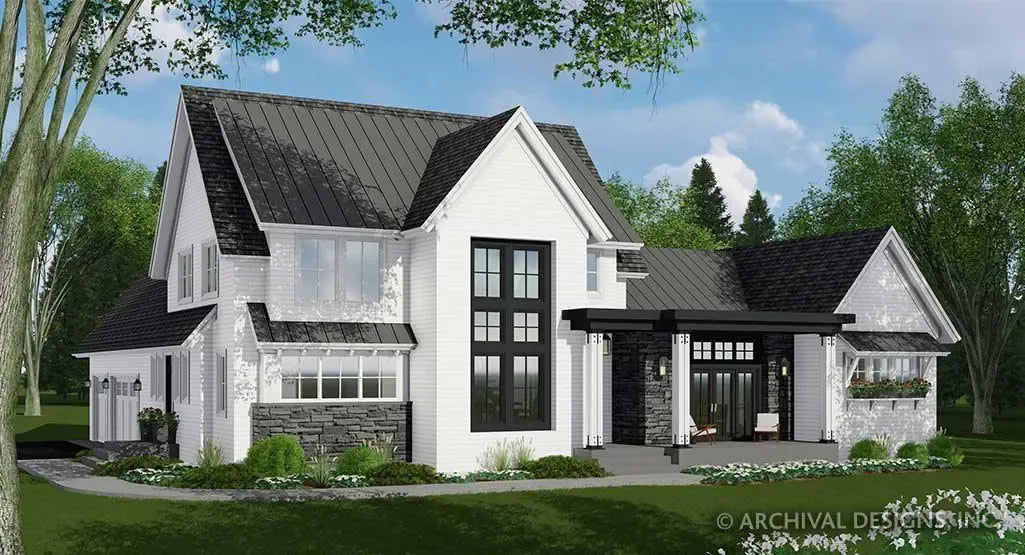

The stunning design and eye-catching details of this 3011 sq ft Modern Farmhouse make this home a real beauty! Inside the stone and siding exterior, you’ll find 4 bedrooms, 3 full baths, a ¾ bath and a 3-car garage.

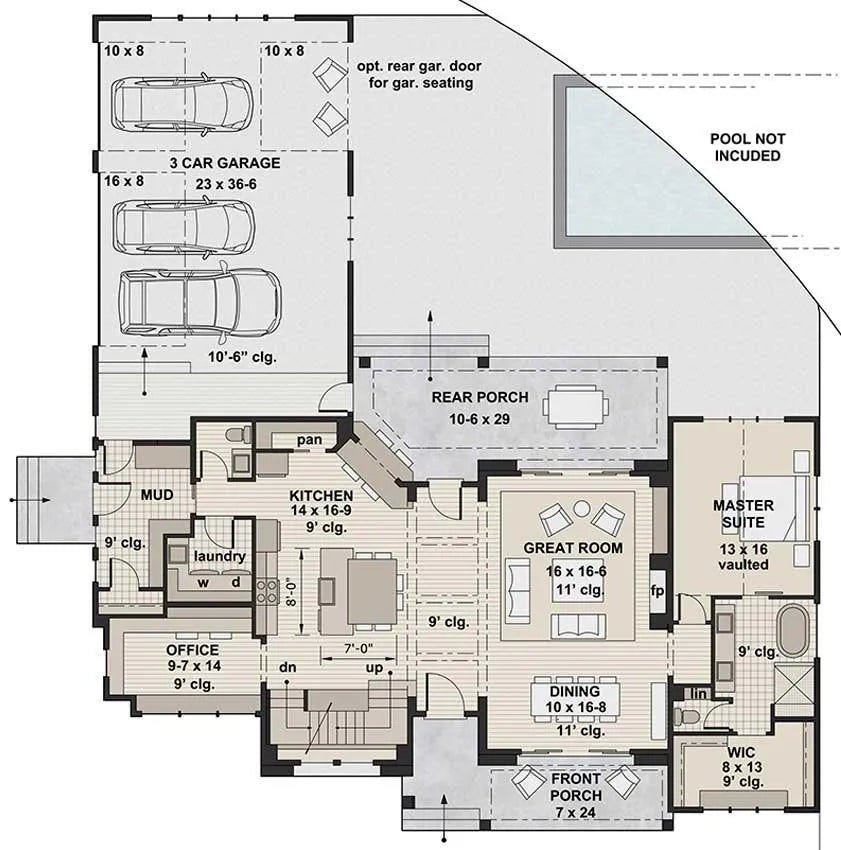

Every cook wants a kitchen like this one! The generously sized island has a built-in sink and dishwasher plus a table section with seating for 6, perfect for food prep and casual meals. You’ll have abundant storage in the numerous cabinets and walk-in pantry.
The spacious great room and dining area are a wonderful place to spend time with family. The sliding doors at the front and rear offer great views and tons of light! The great room boasts a large fireplace, and both areas have expansive 11’ ceilings.
Entertaining is easy in this country house plan! Besides the user-friendly kitchen and expansive great room, there is a convenient kitchen to rear porch pass-through with seating indoors and out. The large front and rear covered porches and optional rear garage door for additional sheltered seating provide plenty of space for all your guests.
After a long day retire to the oasis of your master bedroom. The multiple windows and vaulted ceiling give this space a bright airy feel. The master bath with double sinks and separate bathtub and shower plus a huge walk-in closet truly make this suite sweet!
Off the kitchen you’ll find a well-lit home office with a built-in desk and windows on two sides. There is also a laundry area and mud room with very useful built-ins.

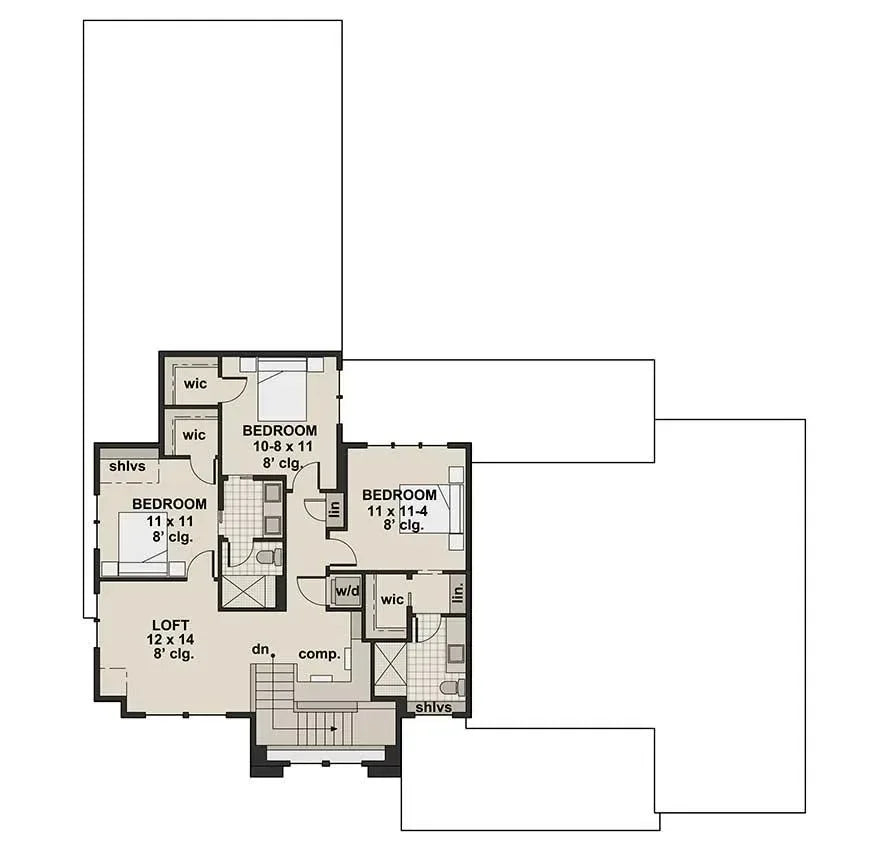

Upstairs there are three bedrooms, all with walk-in closets, and two full bathrooms, one of which is a Jack and Jill bath. There is also a good-sized loft, great as a toy or game room, and a computer area.
Whether spending quiet time with family or entertaining large groups, this exceptional two-story home will meet all your needs!
