Pine Haven 3 7 5 is a two-story Craftsman home providing 1,757 sq ft of heated living space, optimized for a 58-foot wide lot. With a 38-foot depth, this plan utilizes a 12:12 and 5:12 roof pitch to define its exterior profile, reaching a maximum building height of 27 ft 2 in. The inclusion of a 472 sq ft porch area and a screened porch-sunroom provides multiple access points to the exterior environment.

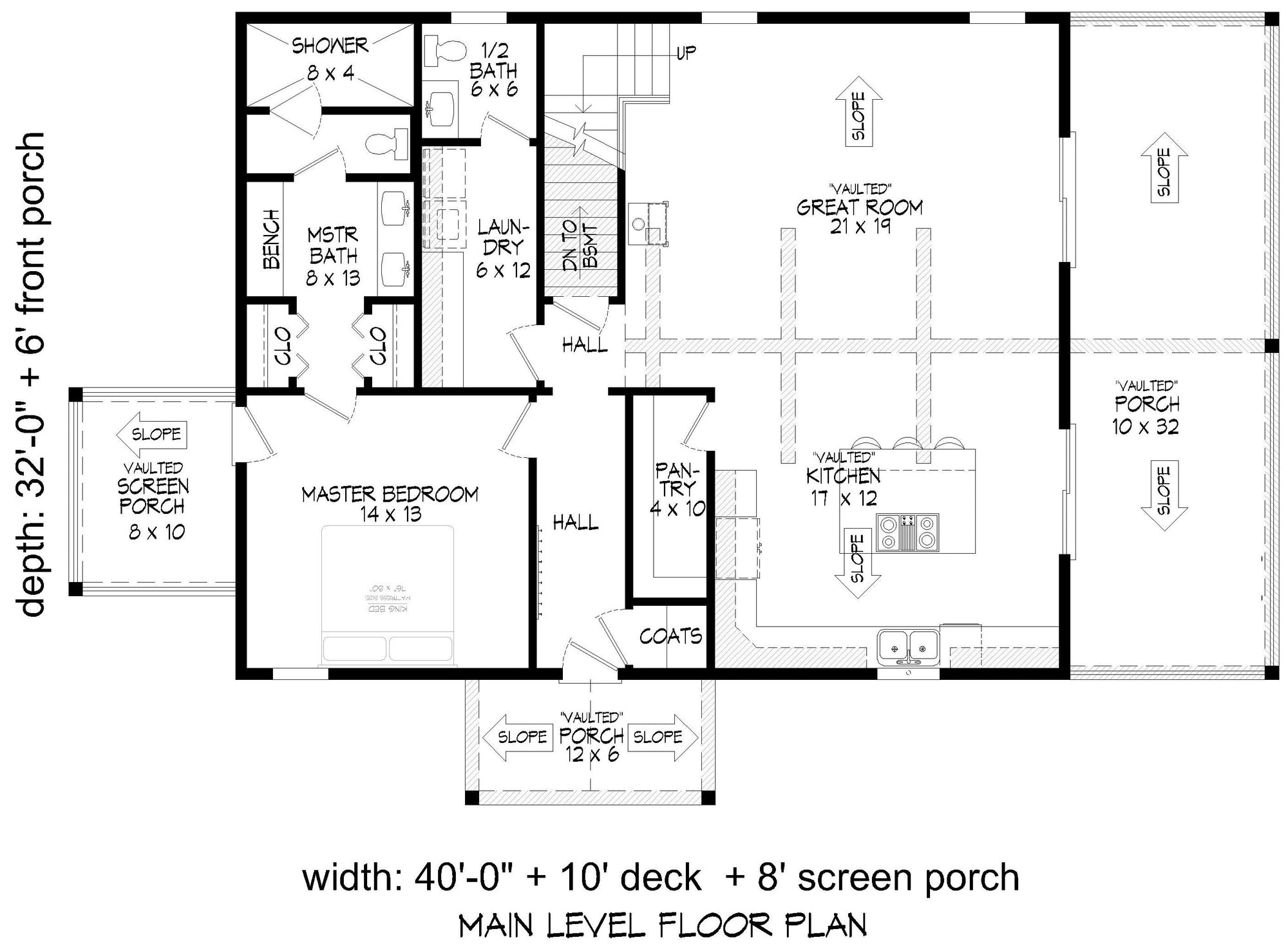

The main level encompasses 1,280 sq ft, anchored by an open-concept great room with vaulted ceilings that create vertical volume and enhance natural light penetration. The kitchen layout centers on a large island and includes a walk-in pantry for organized storage. A first-floor master suite provides a dedicated bedroom area with a double vanity master bath, while a laundry zone is situated on the same floor for direct access to living quarters.

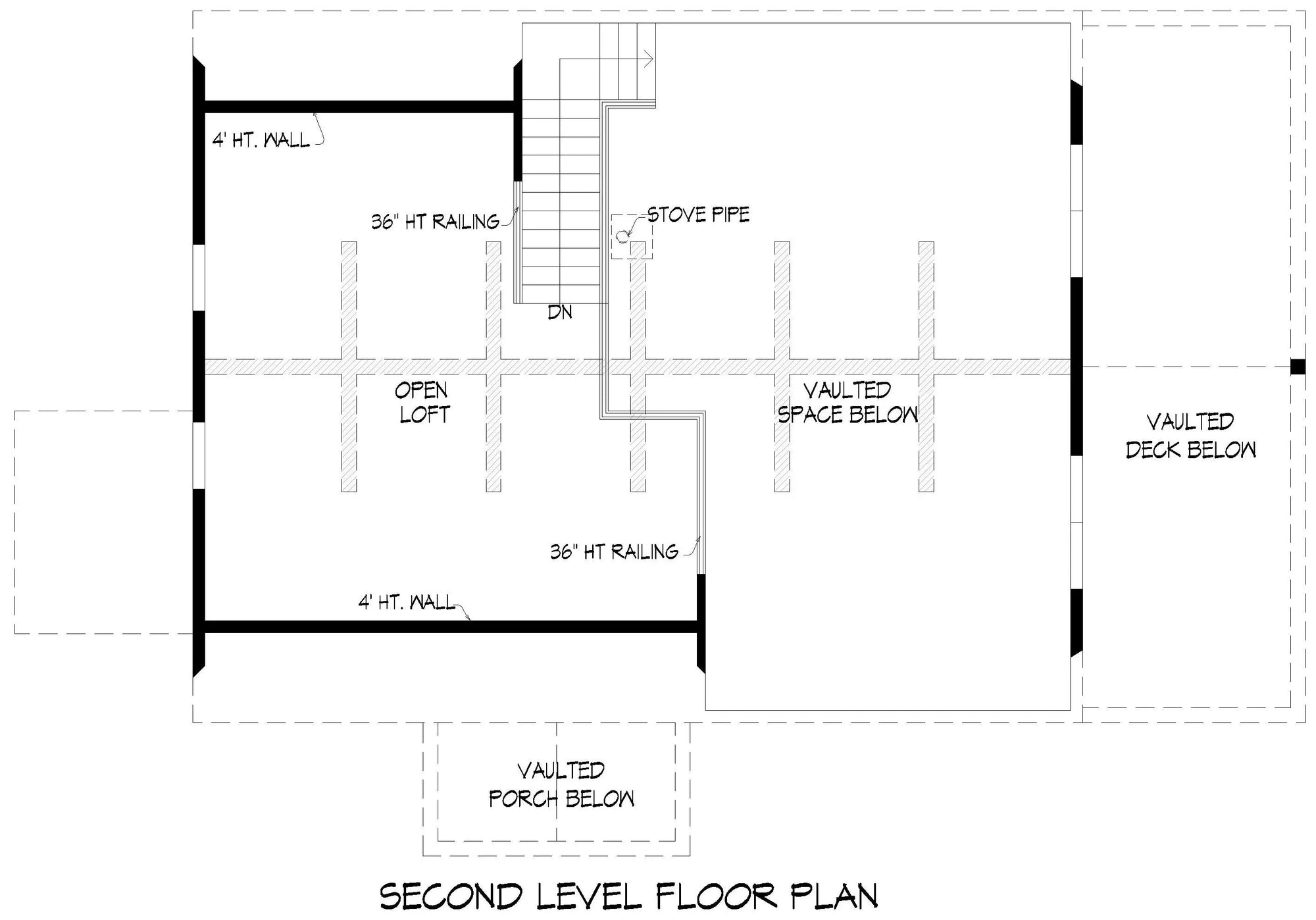

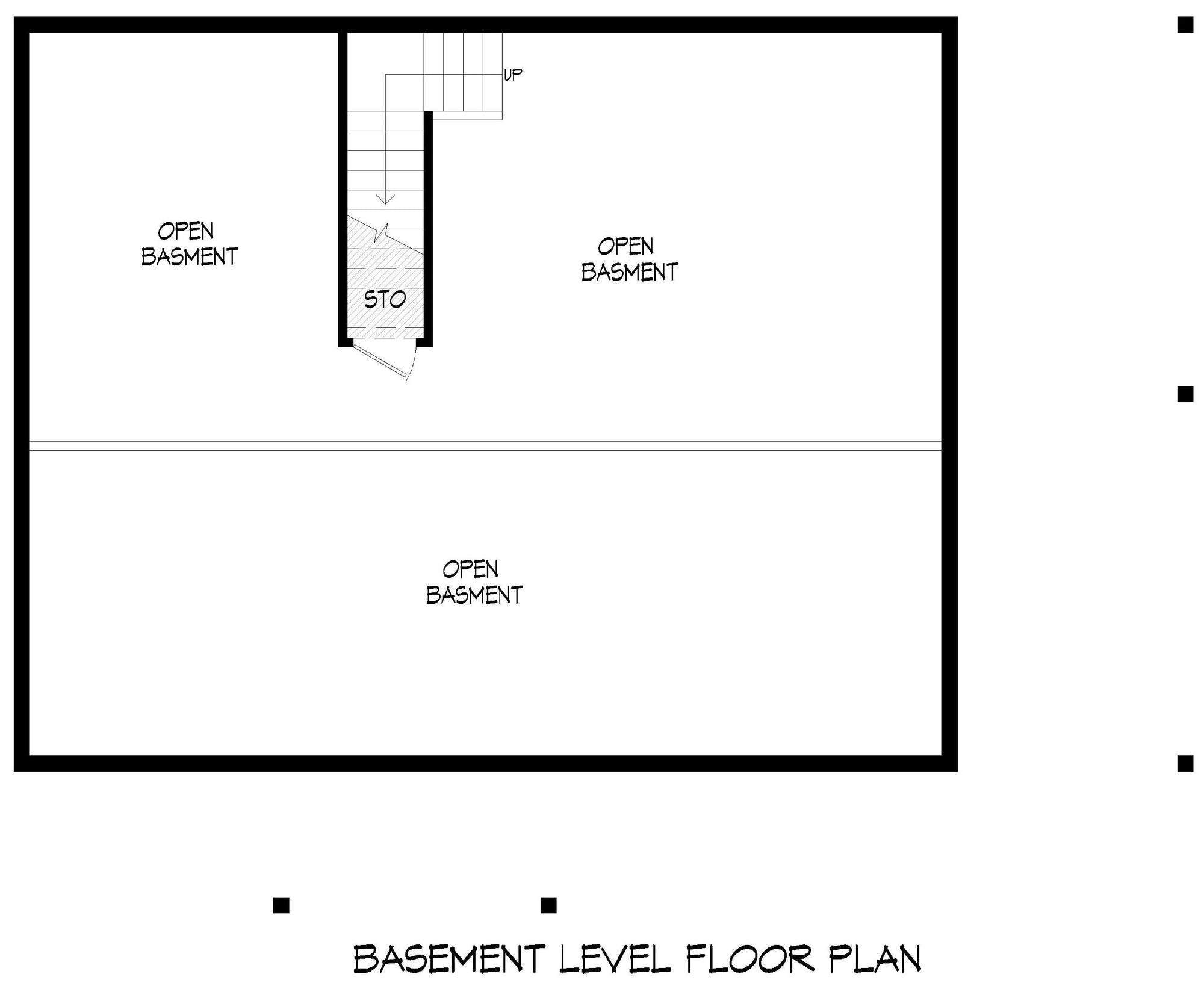

A second floor adds 477 sq ft of flexible space, suitable for a study, guest area, or media retreat. The home also features a 1,280 sq ft basement with 9-foot ceilings, offering significant potential for future expansion or climate-controlled storage. This structural foundation contributes to a total area of 3,509 sq ft, including all levels and the basement footprint.
Construction specifications include 2x6 exterior wall framing and a slab foundation, prioritizing thermal efficiency and structural rigidity. The 9-foot ceiling heights on the first floor maintain consistent proportions throughout the open core. The design integrates a covered front porch to establish a clear entry point while maintaining the distinct aesthetic of the Craftsman style.
Key Features: 1 bedroom, 1 full bathroom, 1 half bathroom, 1,757 sq ft heated living space, vaulted ceilings, 1,280 sq ft basement, screened porch-sunroom, kitchen island, walk-in pantry, first-floor master suite, 2x6 wall framing, slab foundation.
Explore floor plans, available formats, and modification options for this design.
The construction drawings will include detailed, dimensioned floor plans, exterior elevations, roof plan, foundation plan, basic electrical layout, cross-section(s), foundation plan, and other general specifications. Some plans will include interior cabinet layouts.
View Sample Plan
