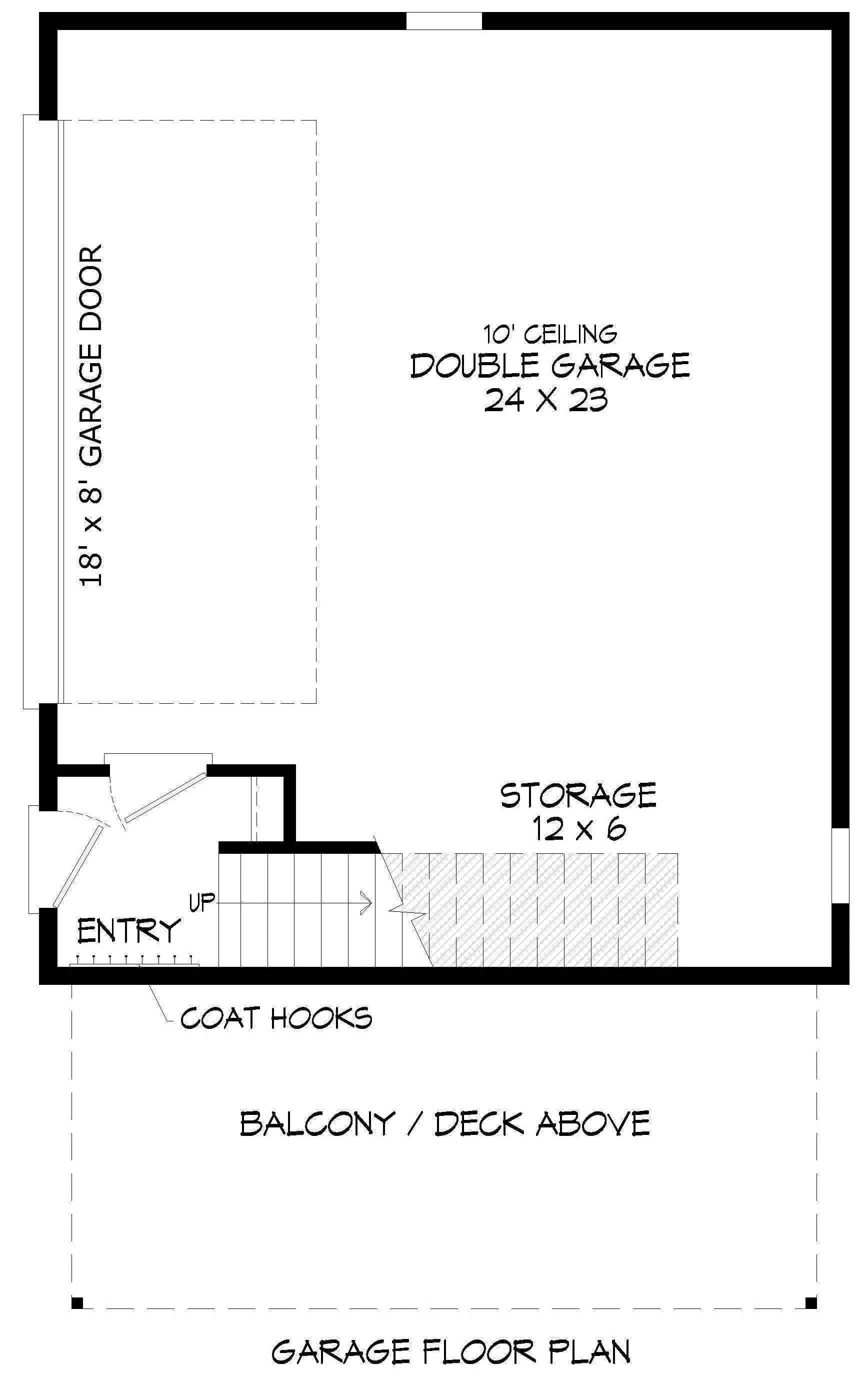

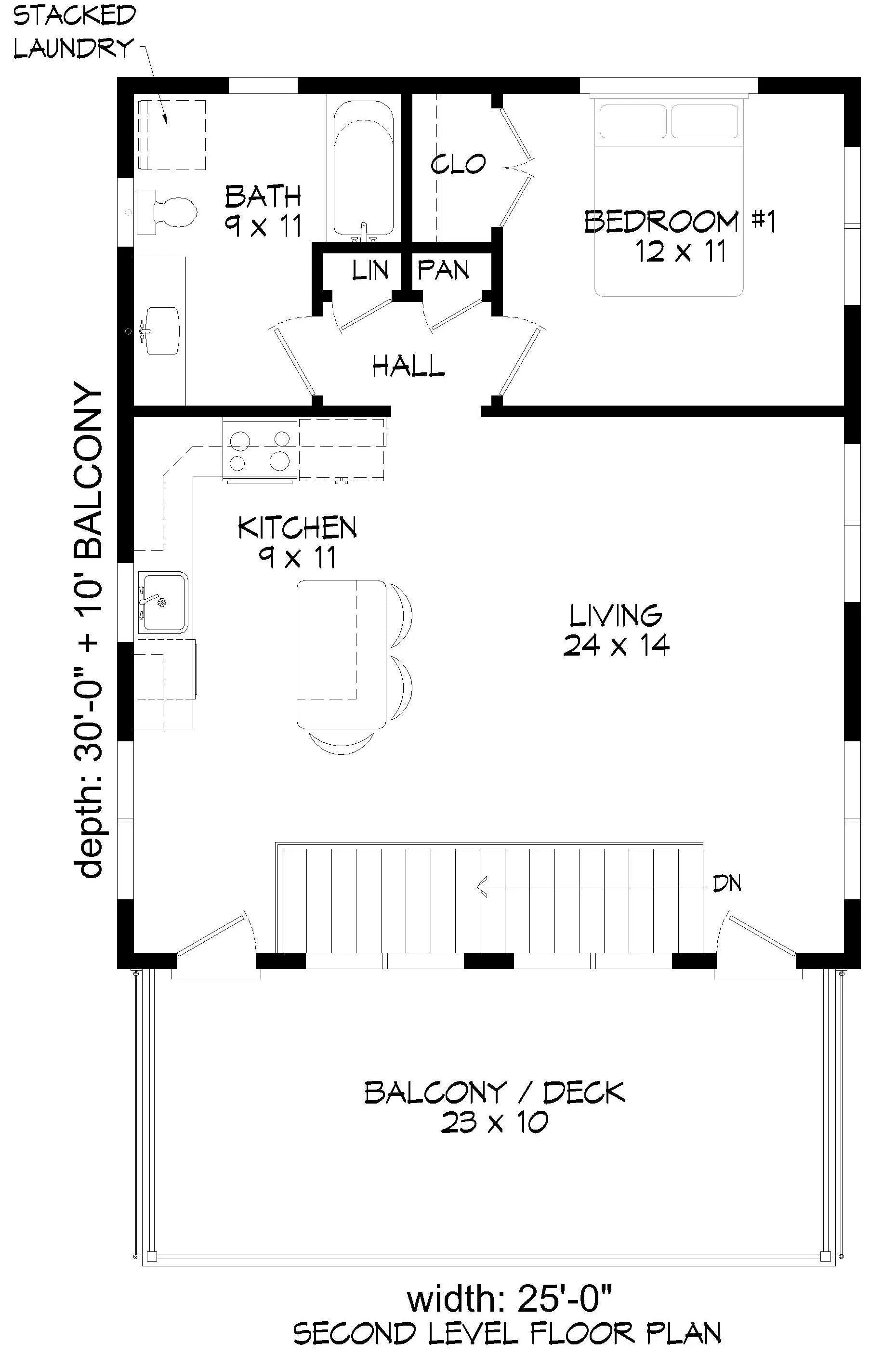

This delightful home features a total living area of 804 sq ft, with the first floor offering 54 sq ft and the second floor encompassing 750 sq ft. A generous balcony of 230 sq ft adds outdoor charm and relaxation space. The front-loading garage provides 696 sq ft and accommodates two bays. With one cozy bedroom and one bathroom, this plan is perfect for individuals or couples seeking simplicity and comfort. Built on a sturdy slab foundation with 2x6 wall framing, the house measures 25 feet in width and 40 feet in depth. The building height reaches 26 feet, with a first floor ceiling height of 10 feet and a garage ceiling height of 10 feet, creating a welcoming and open atmosphere throughout the home. The vault height ranges from 6'8" to 12'8'', adding to the sense of space.
The construction drawings will include detailed, dimensioned floor plans, exterior elevations, roof plan, foundation plan, basic electrical layout, cross-section(s), foundation plan, and other general specifications. Some plans will include interior cabinet layouts.
