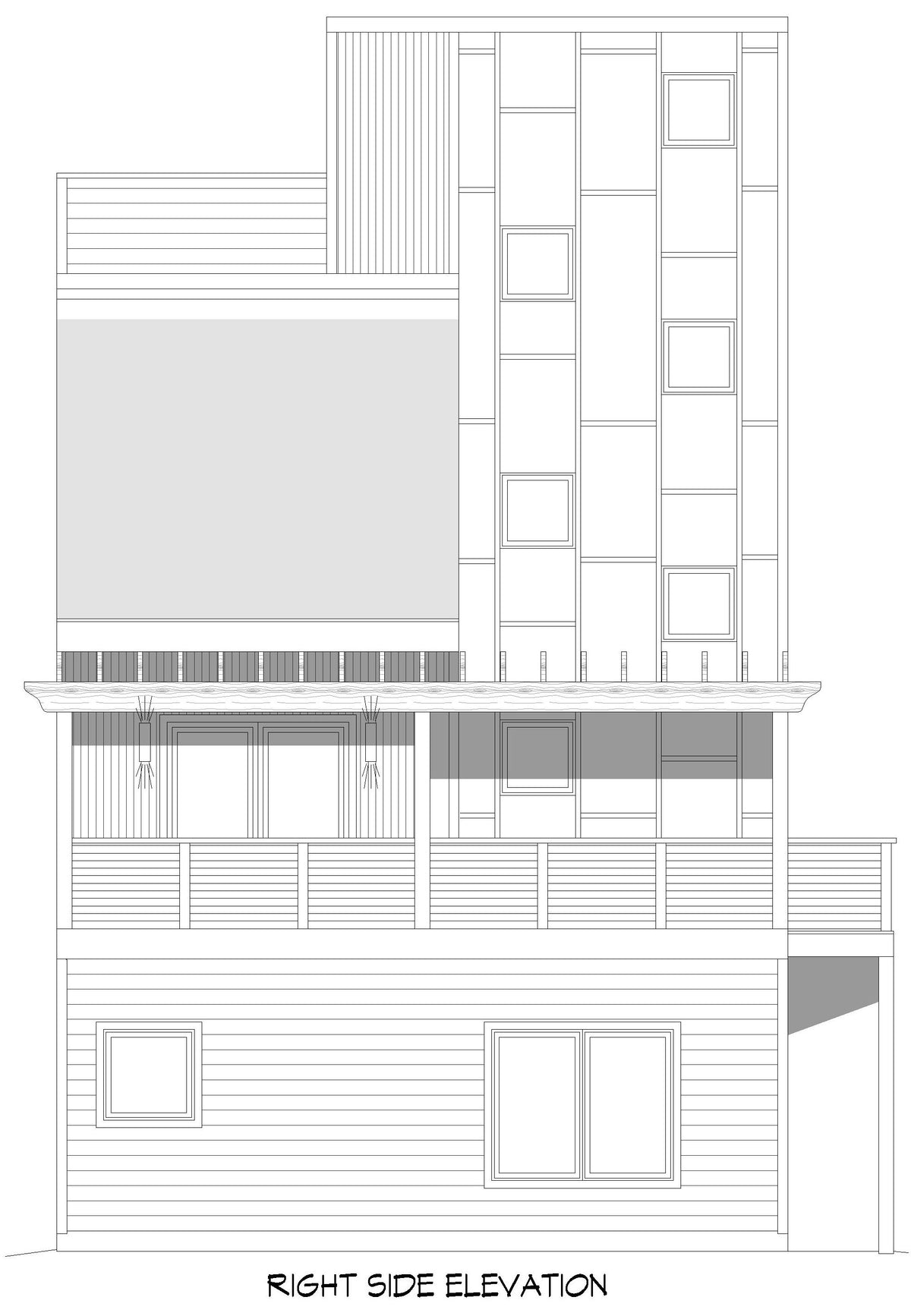

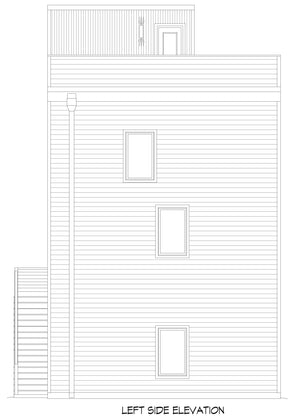

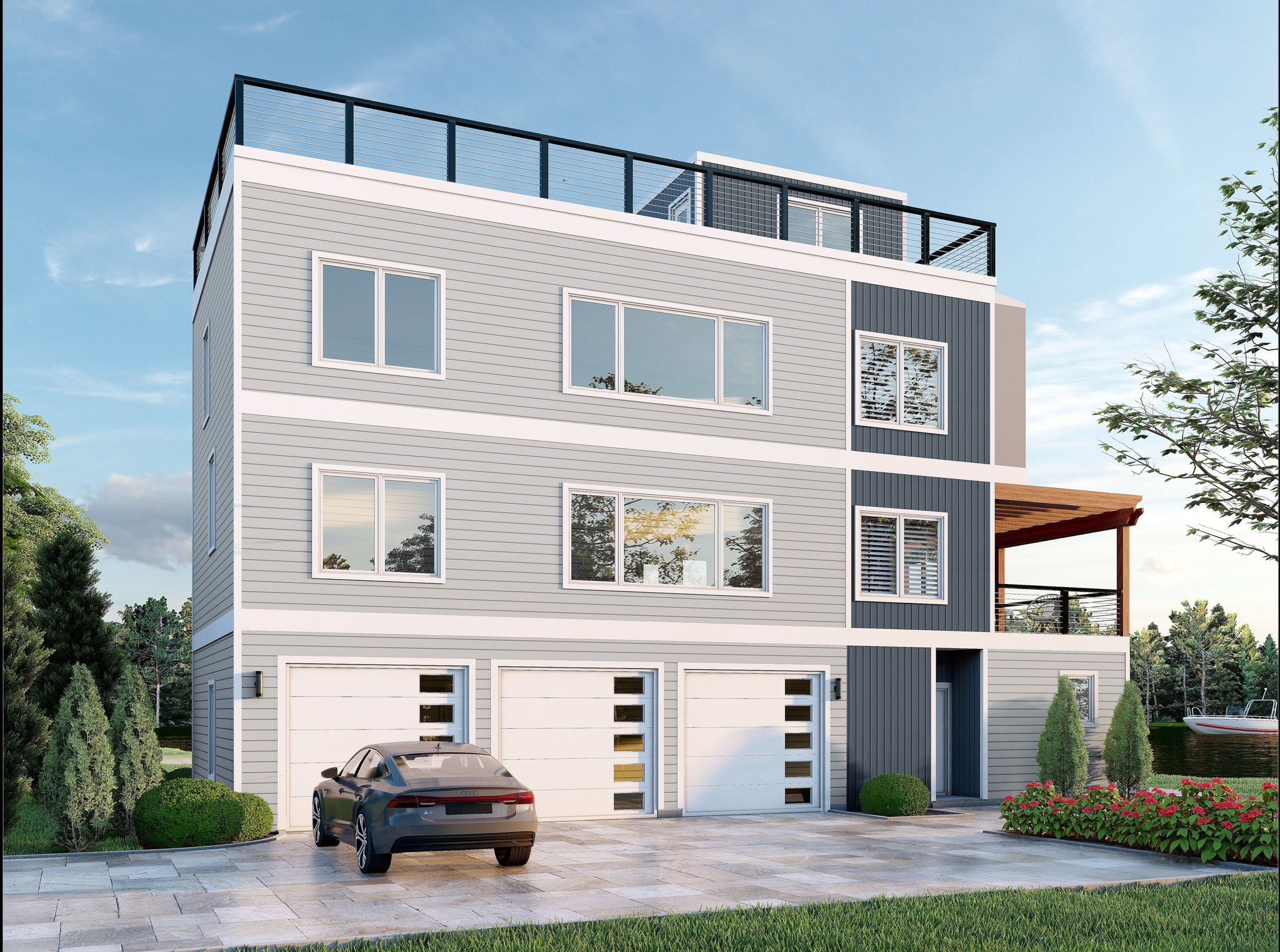

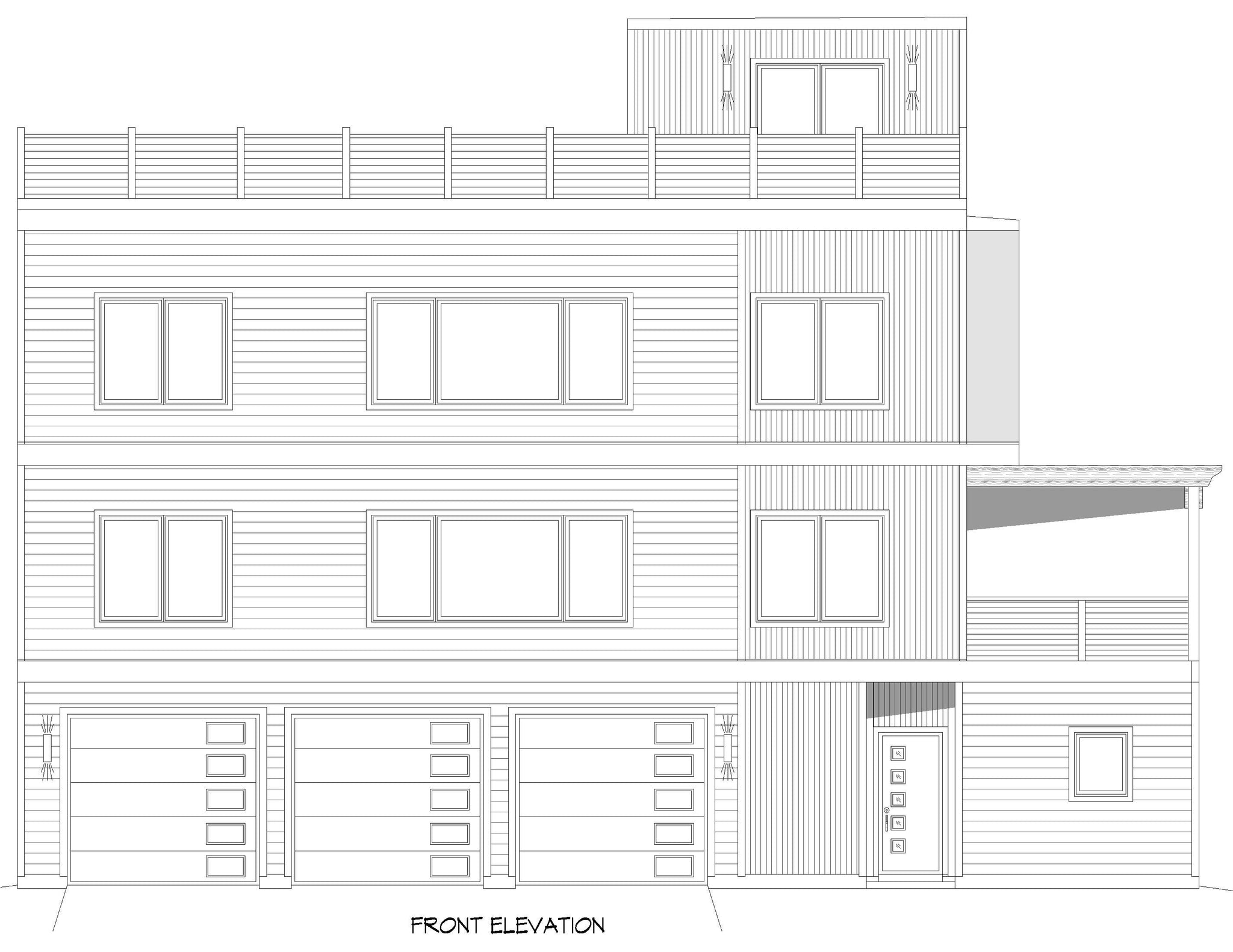

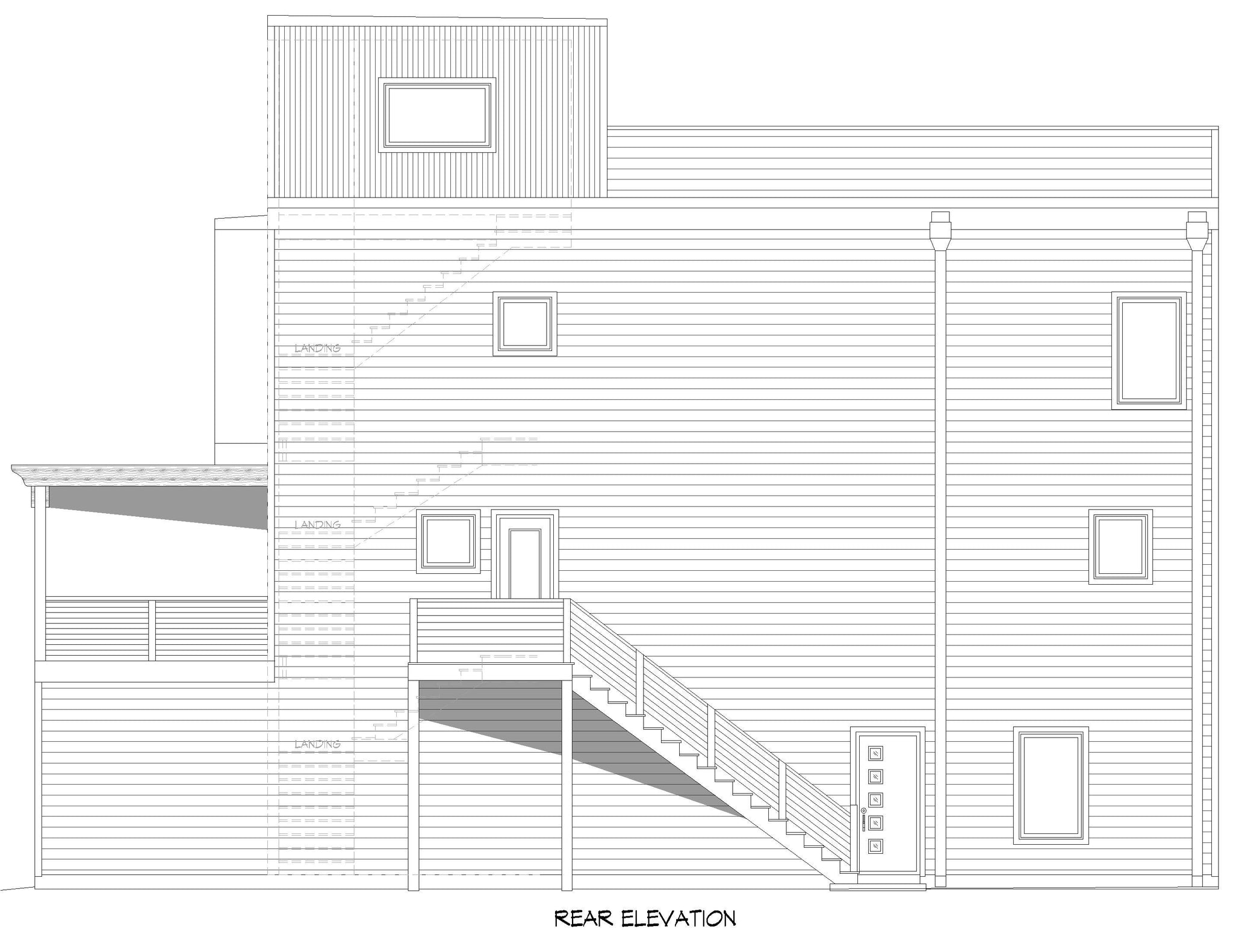

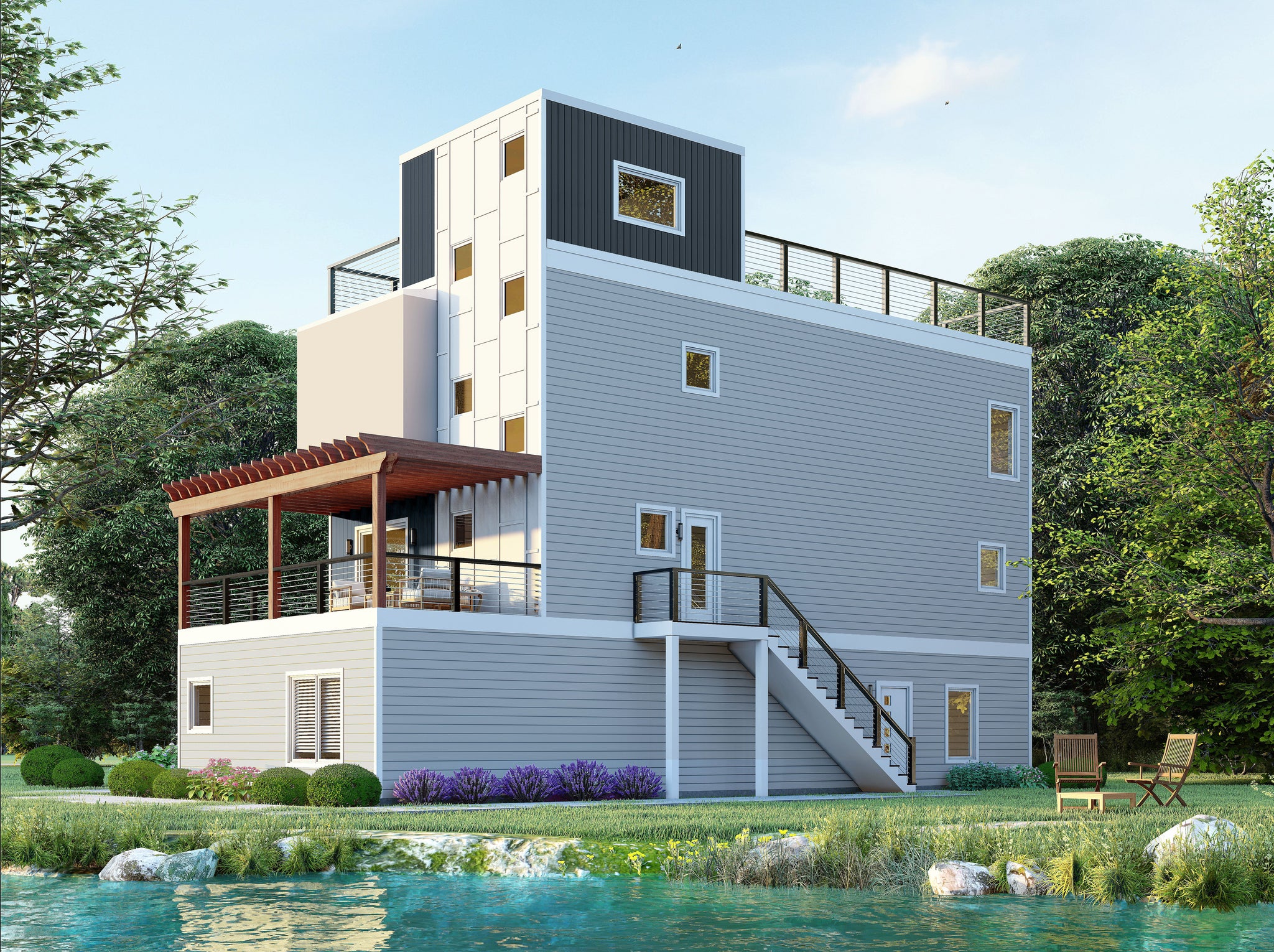

New Plan 0503 1074 1104 2232 Waterfront Park is a three-story residence spanning 2,681 square feet of heated living area, characterized by a vertical architectural profile that reaches a total building height of 40 ft 2 in. Designed for narrow lots with a 55 ft 4 in width and a 26 ft 2 in depth, this home prioritizes efficient land use while maintaining a substantial interior footprint. The structure is supported by a slab foundation and 2x6 exterior wall framing, ensuring structural rigidity across all three levels.

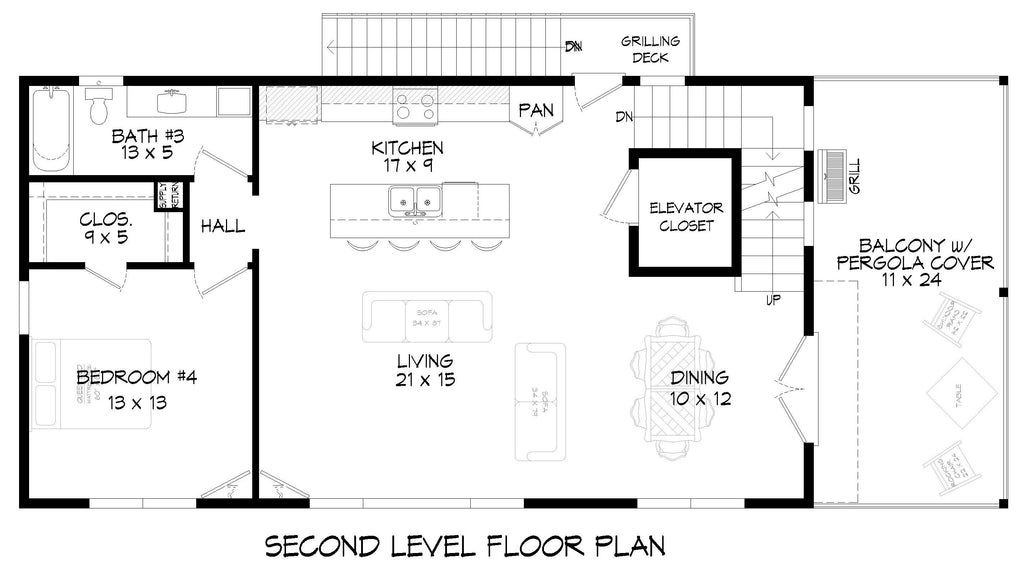

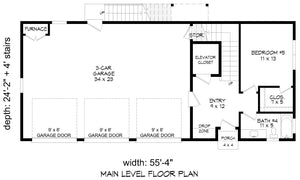

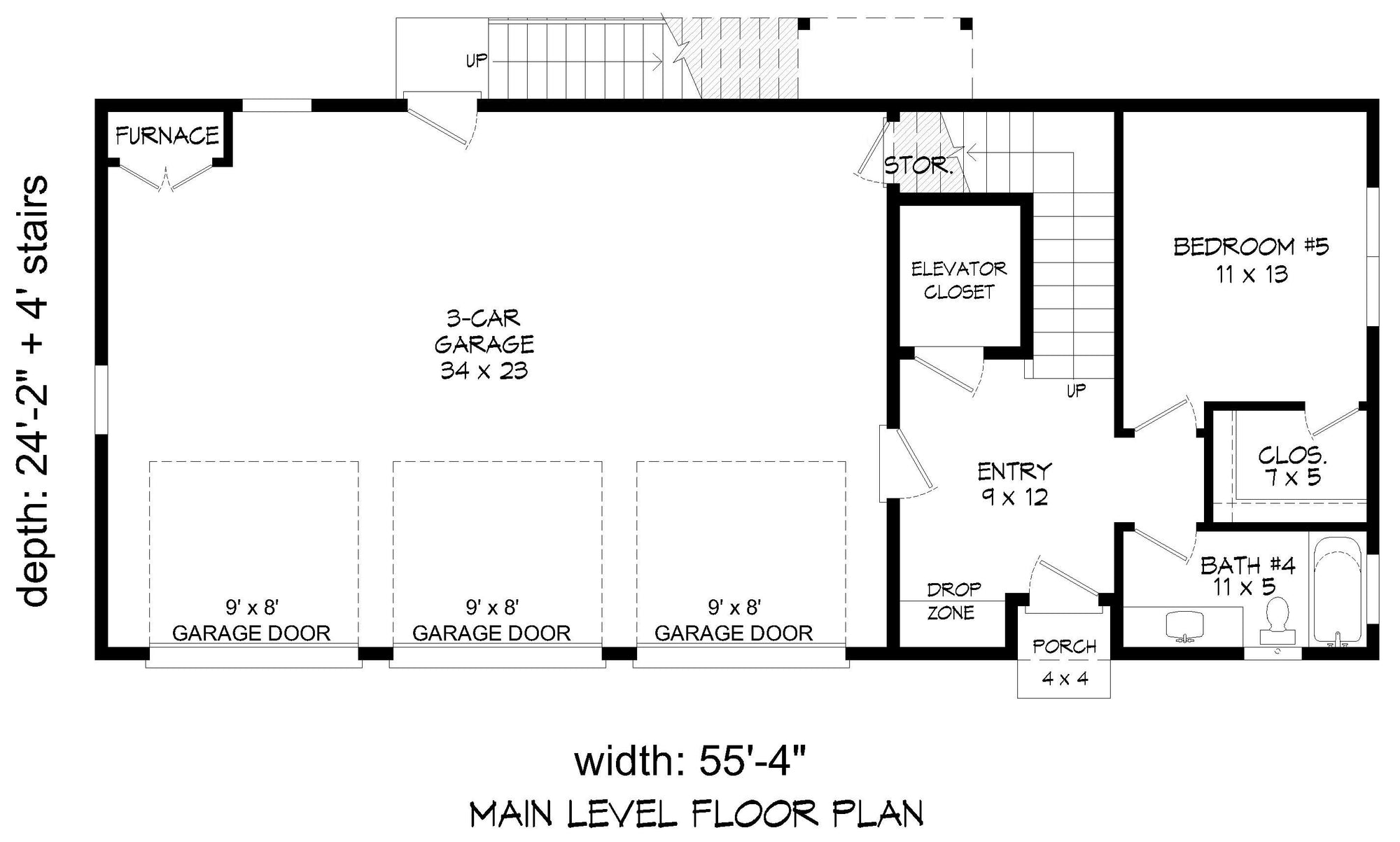

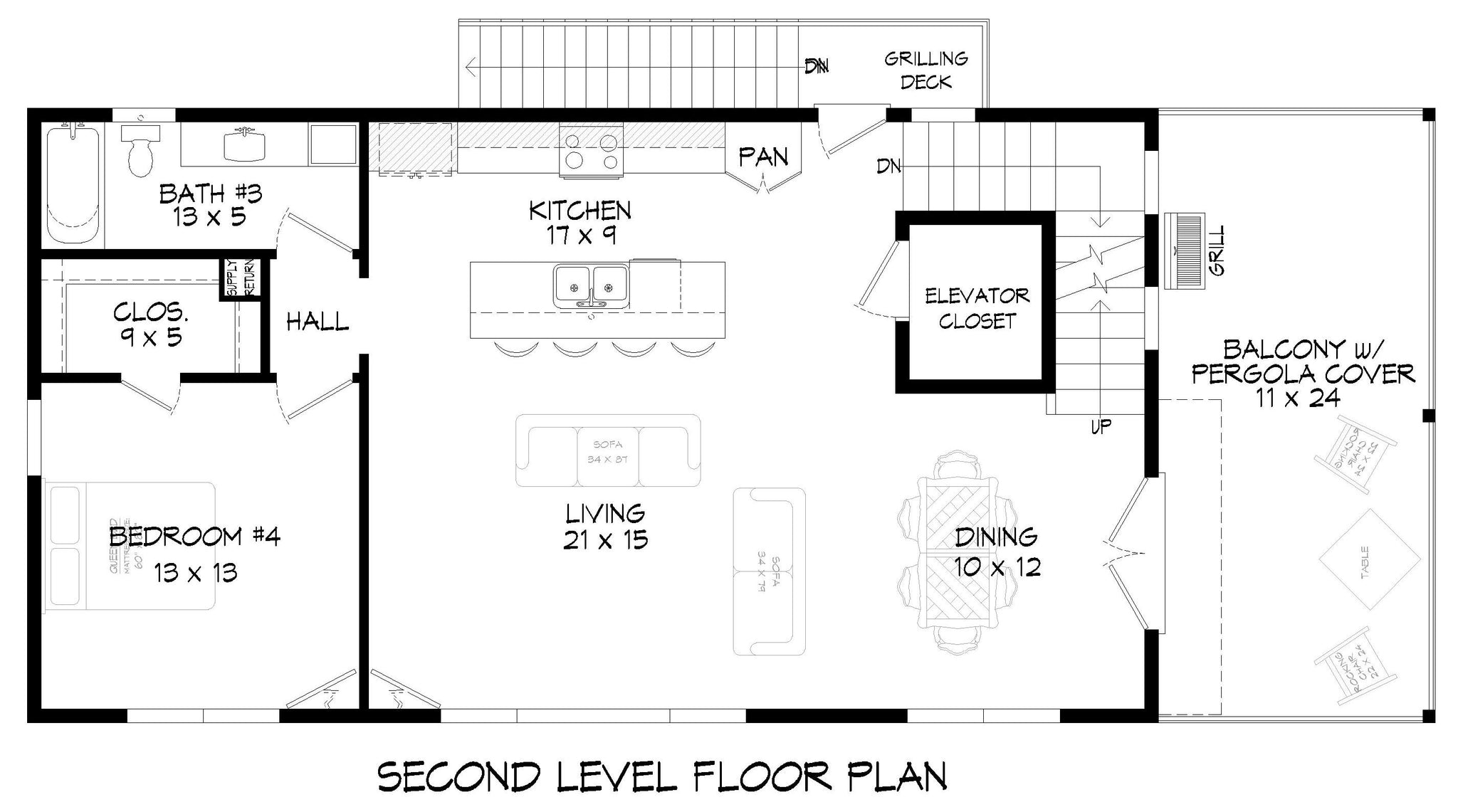

The first floor encompasses 503 square feet, providing a private entry-level zone, while the second floor serves as the primary social core with 1,074 square feet of living space. This level includes an open-concept kitchen equipped with a central island and a walk-in pantry, with direct access to a 10-square-foot grilling terrace. Nine-foot ceiling heights on the first and second levels contribute to consistent volume throughout the main common areas, facilitating clear sightlines between the kitchen and the living zones.

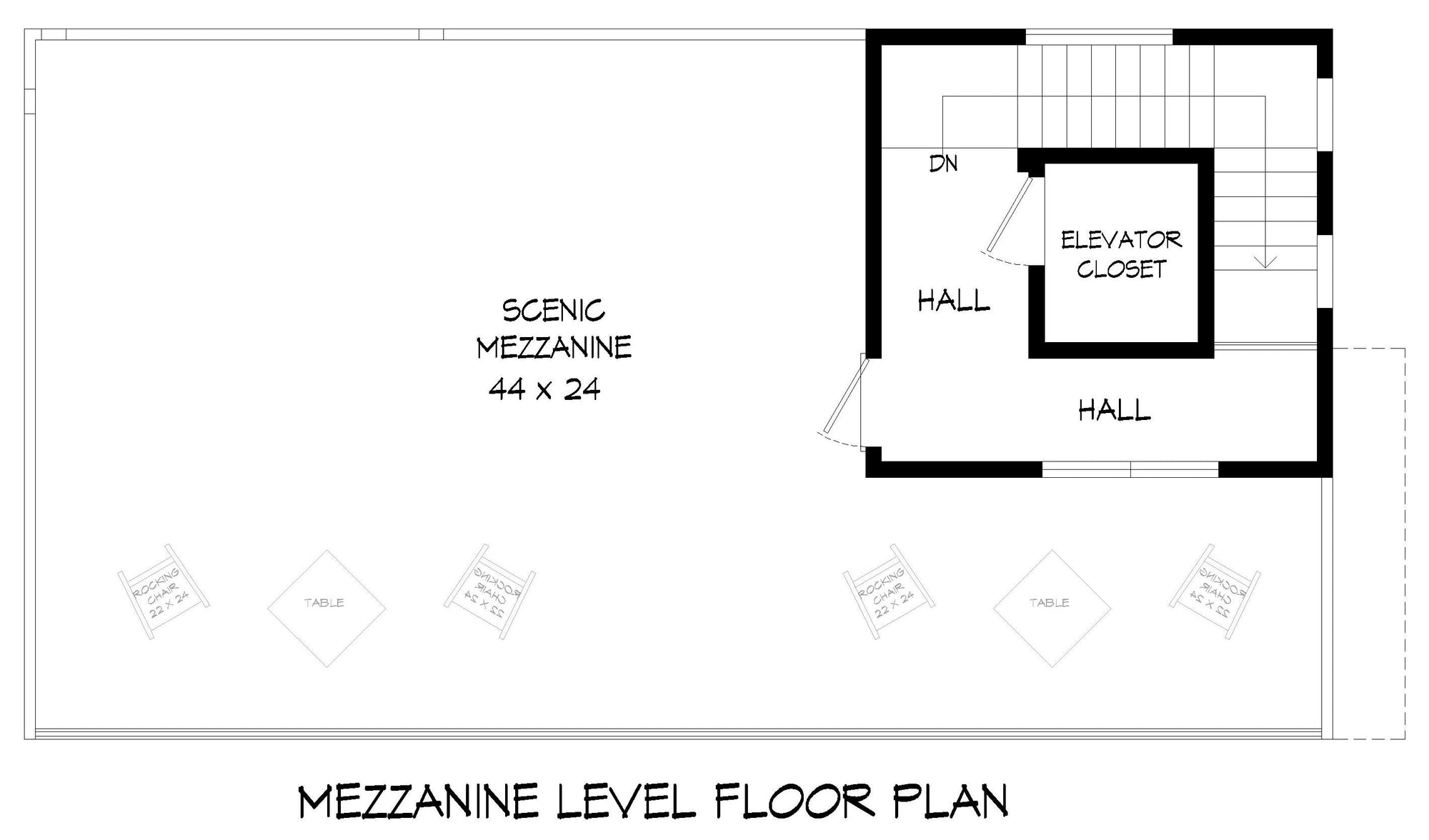

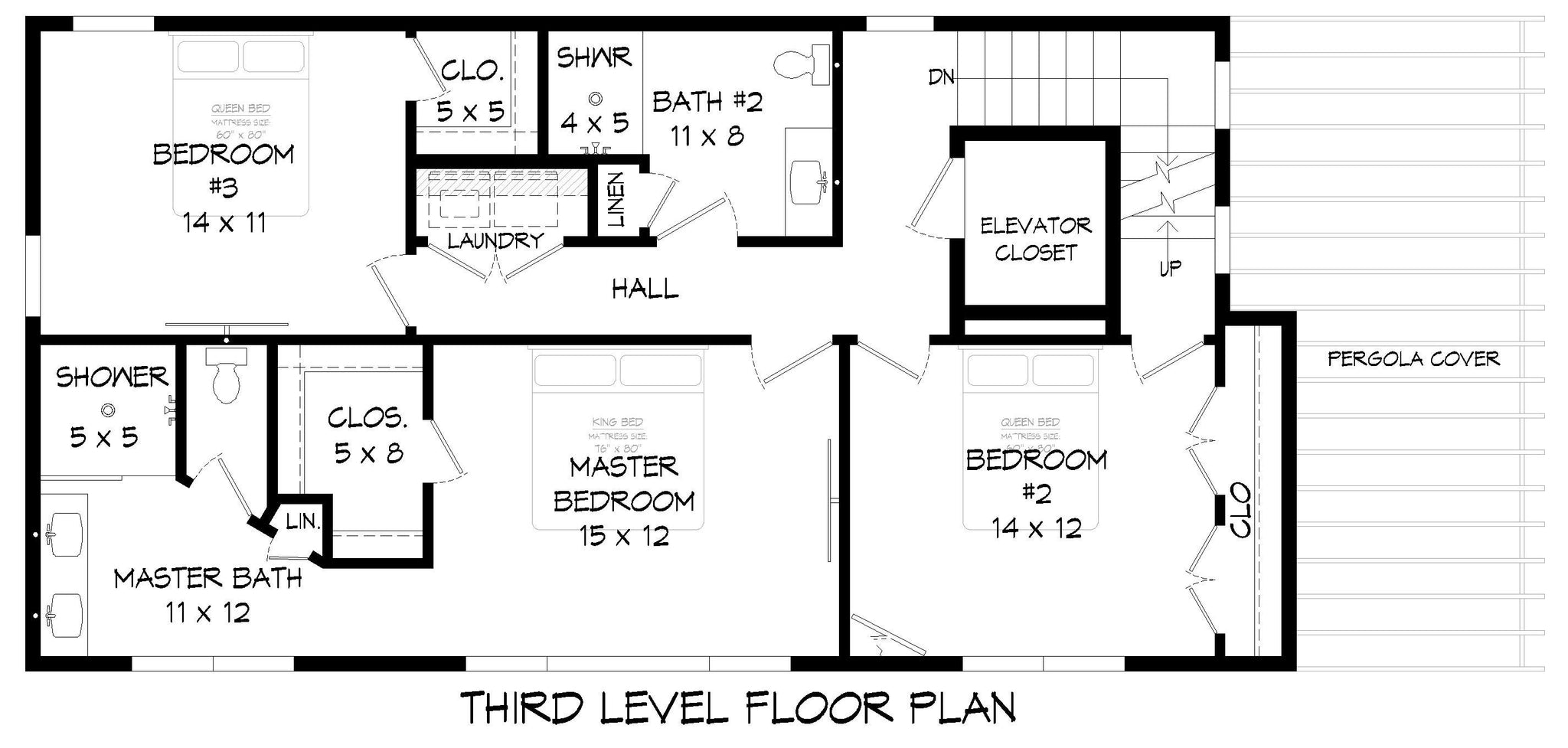

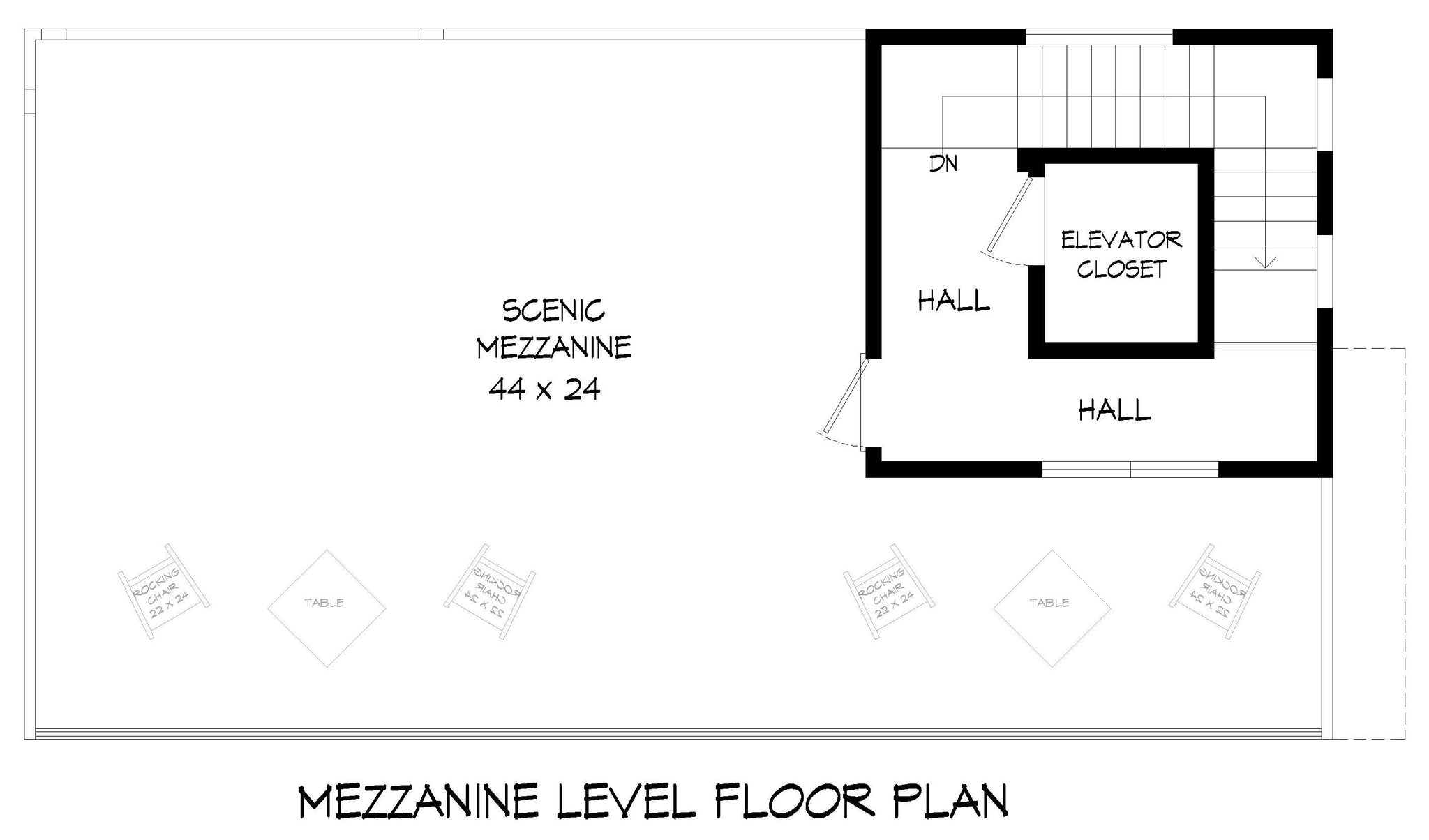

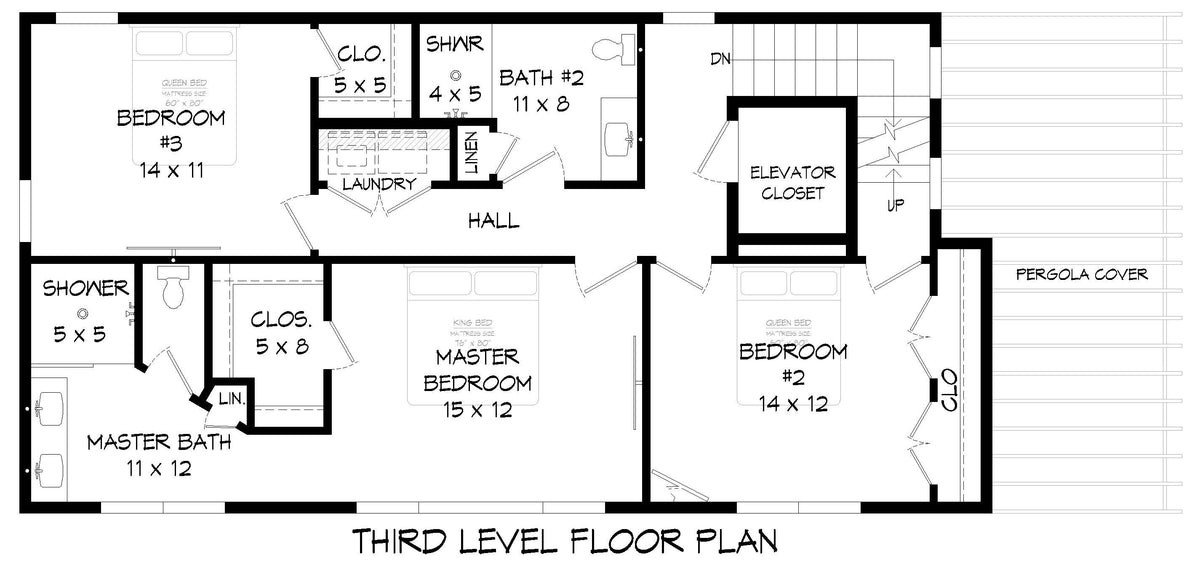

A mezzanine bonus room of 1,134 square feet occupies the upper portion of the home, offering a flexible space suitable for a media studio or specialized retreat. The third floor accommodates the primary suite, which includes a private bath and walk-in closet, alongside a laundry area to ensure operational convenience. With five bedrooms and four full bathrooms, the layout addresses the requirements of multi-occupant households through a vertical distribution of private and shared spaces.
The property includes a front-load 3-car garage covering 825 square feet, integrated into the footprint to maintain accessibility. The roof structure utilizes an 8:12 pitch, contributing to the overall exterior aesthetic. This model incorporates an elevator-ready design, providing a modern solution for multi-level navigation within the home's 4,913 square feet of total area.
Key Features: three-story configuration, 5 bedrooms, 4 full bathrooms, 1,134 sq ft mezzanine bonus room, 3-car front-load garage, 8:12 roof pitch, 2x6 wall framing, slab foundation, elevator-ready design, walk-in pantry, kitchen island.
Review plan layouts, available CAD packages, and customization options for this home.
