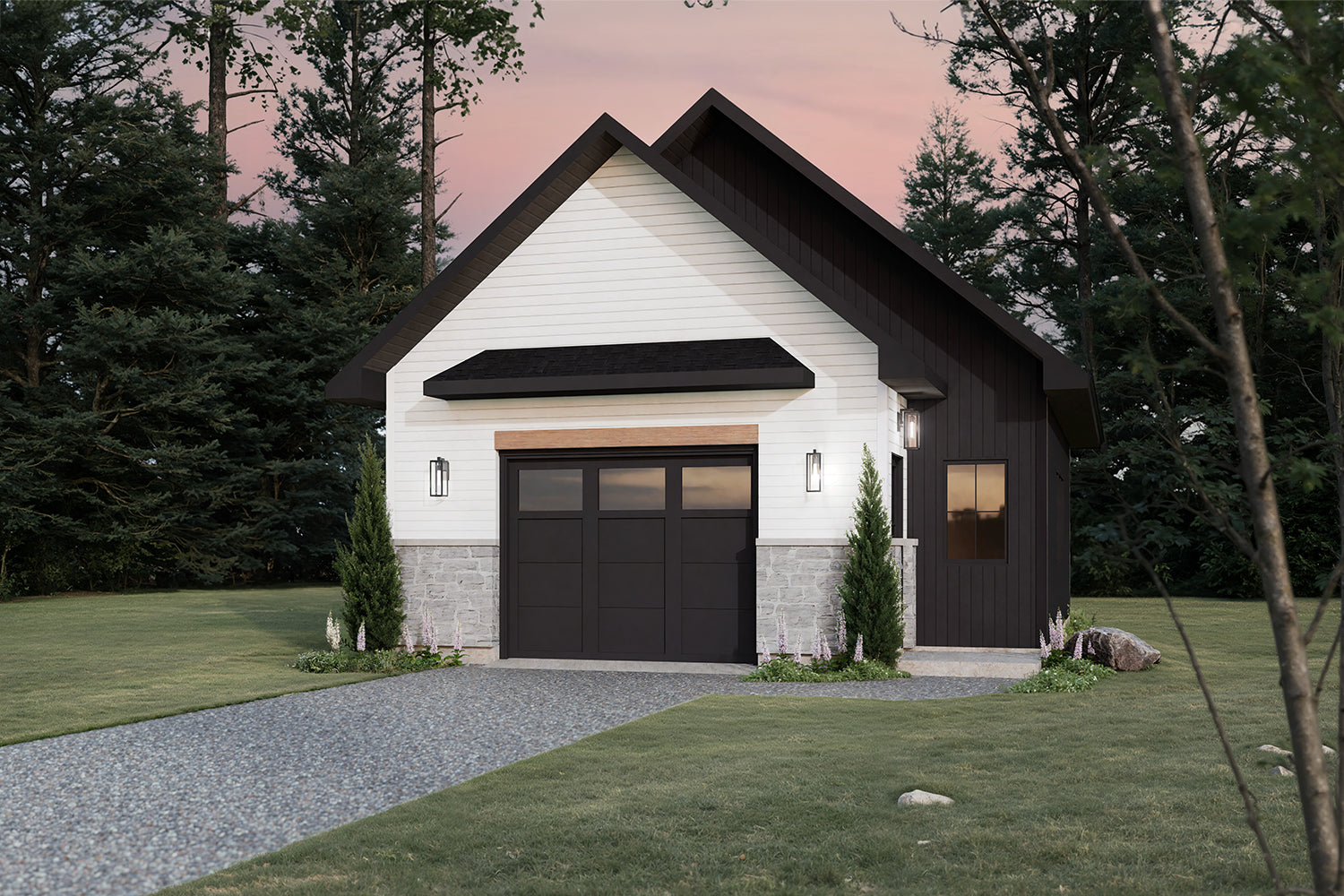

The Oak Haven Garage is a detached, modern farmhouse-style structure providing 1,016 square feet of total area, engineered for property owners requiring a 1-car bay with significant vertical volume. With a footprint measuring 24 feet wide by 34 feet deep, this design is optimized for efficiency on various lot sizes while maintaining a distinct architectural profile.

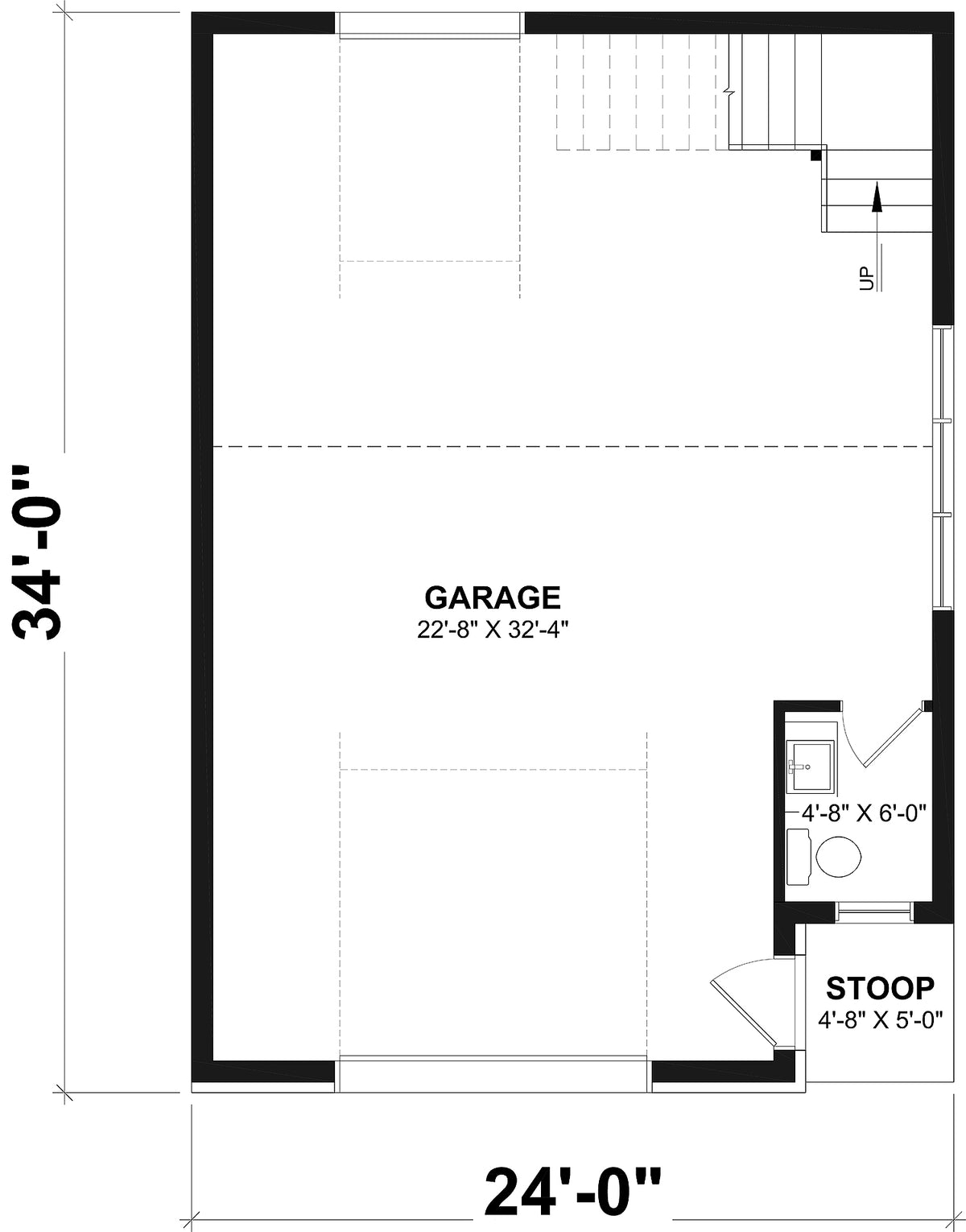

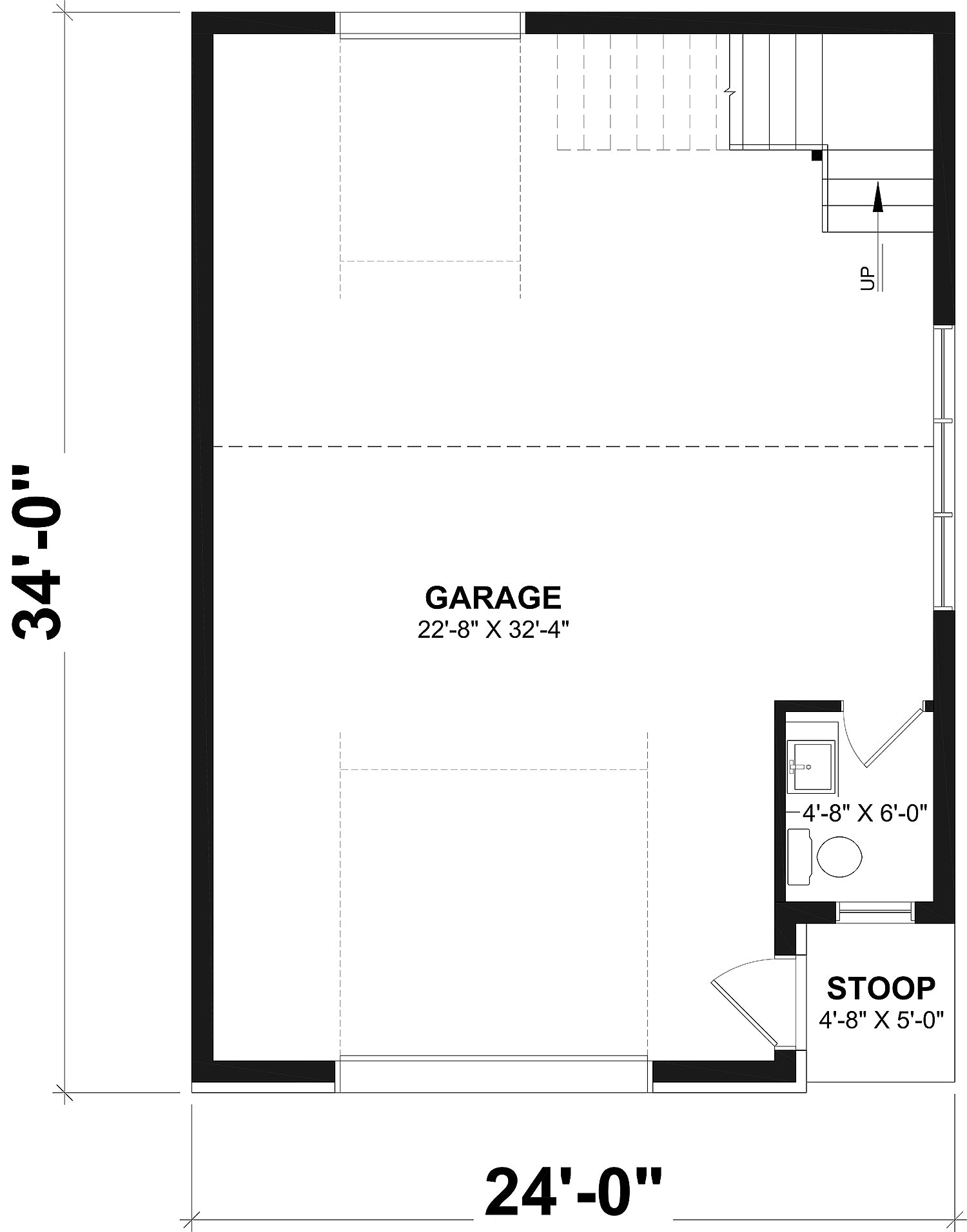

The main level encompasses 791 square feet of garage space, featuring a front-load configuration that ensures straightforward vehicle or equipment access. The core of the design is defined by its 16-foot 6-inch ceiling height, which facilitates the use of heavy-duty storage racks, overhead lifts, or workshop machinery. A 23-square-foot stoop provides a practical, dedicated entry point separate from the main bay.

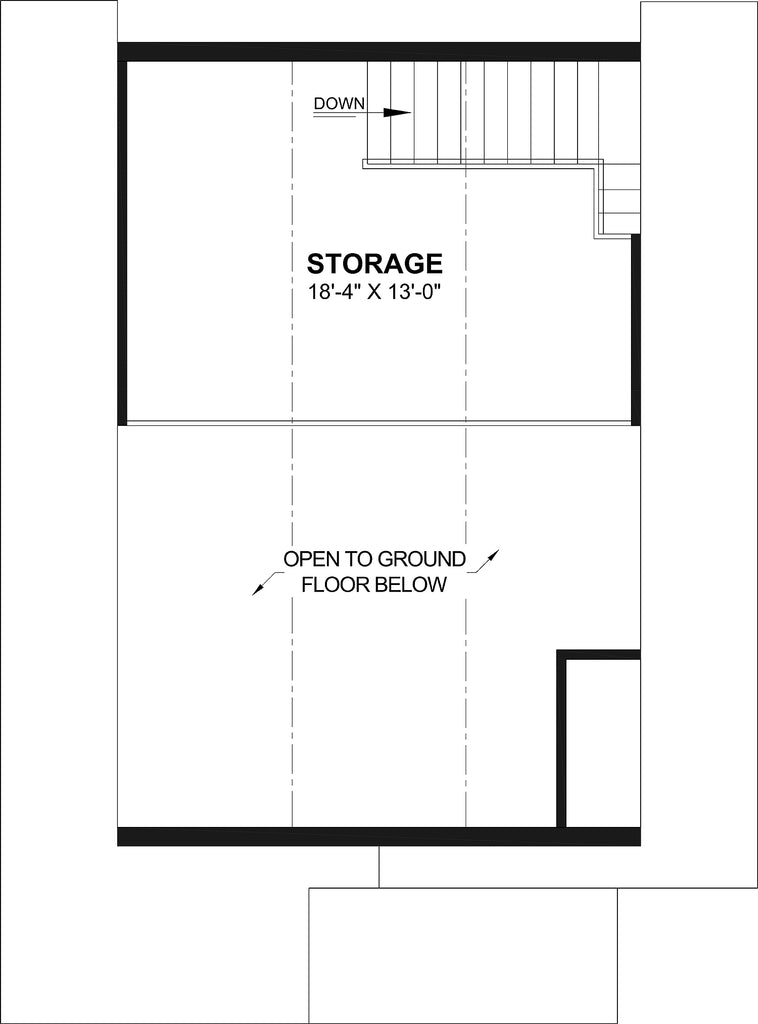

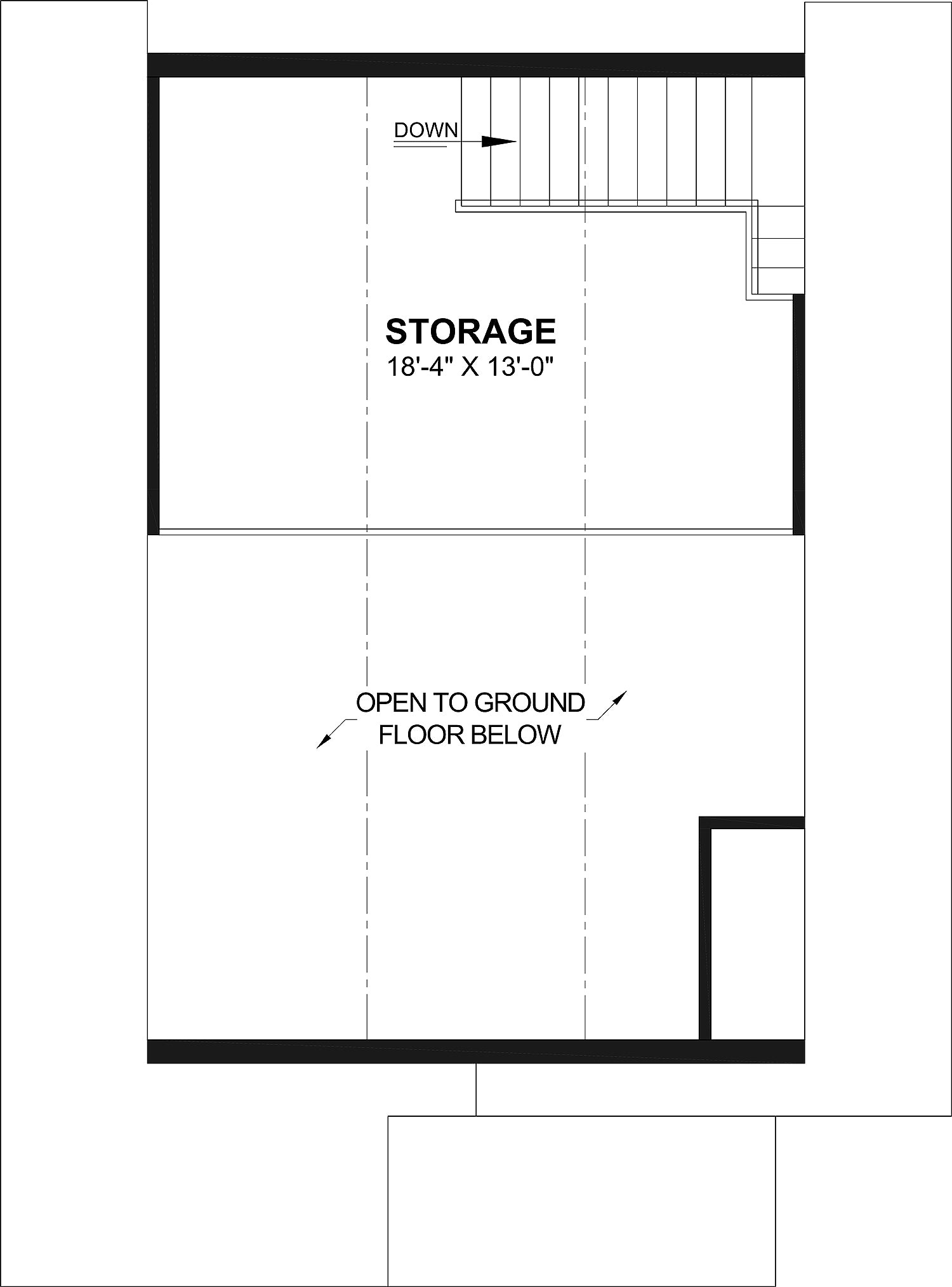

Above the primary level, a 202-square-foot loft adds a secondary, multi-purpose zone with 7-foot ceiling heights. This area is suitable for a home office, hobby space, or climate-controlled storage, effectively separating light-duty activities from the main workshop area below. A half bathroom is conveniently positioned to support the functionality of both levels without requiring access to the primary residence.

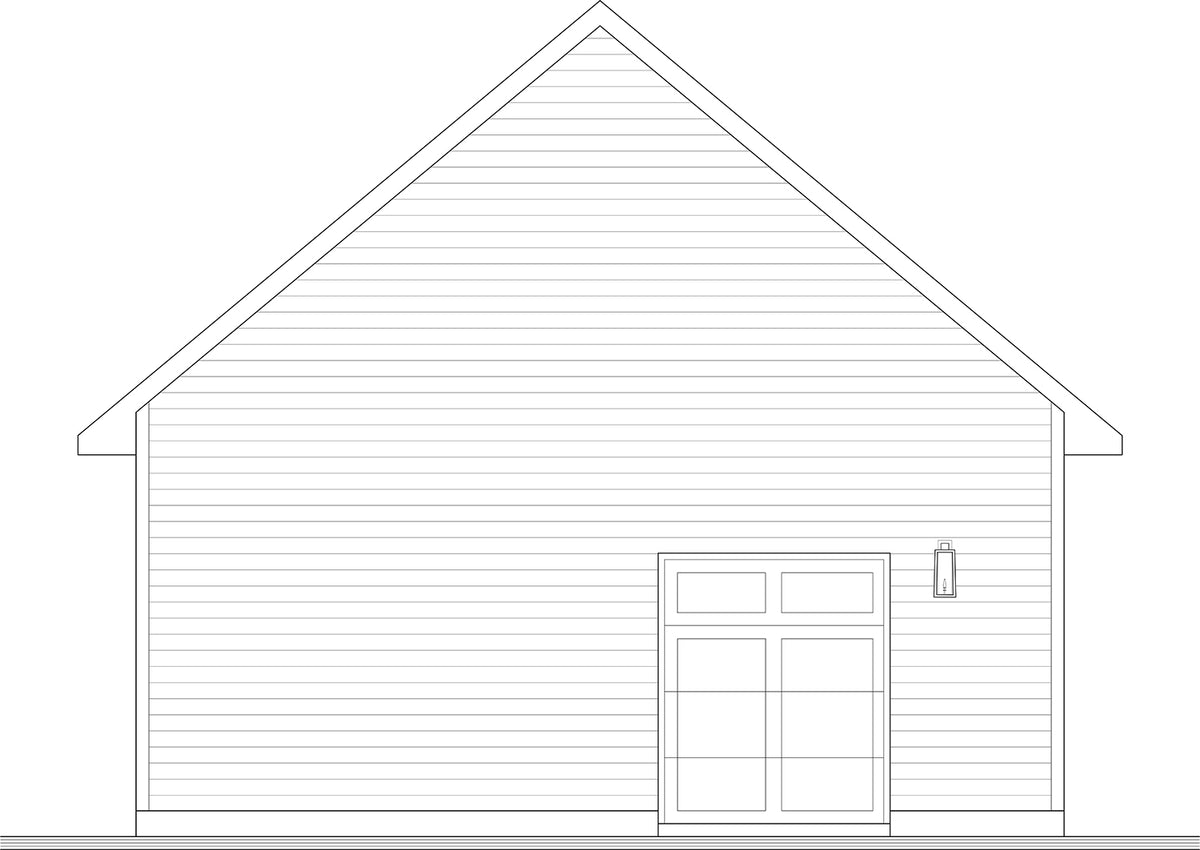

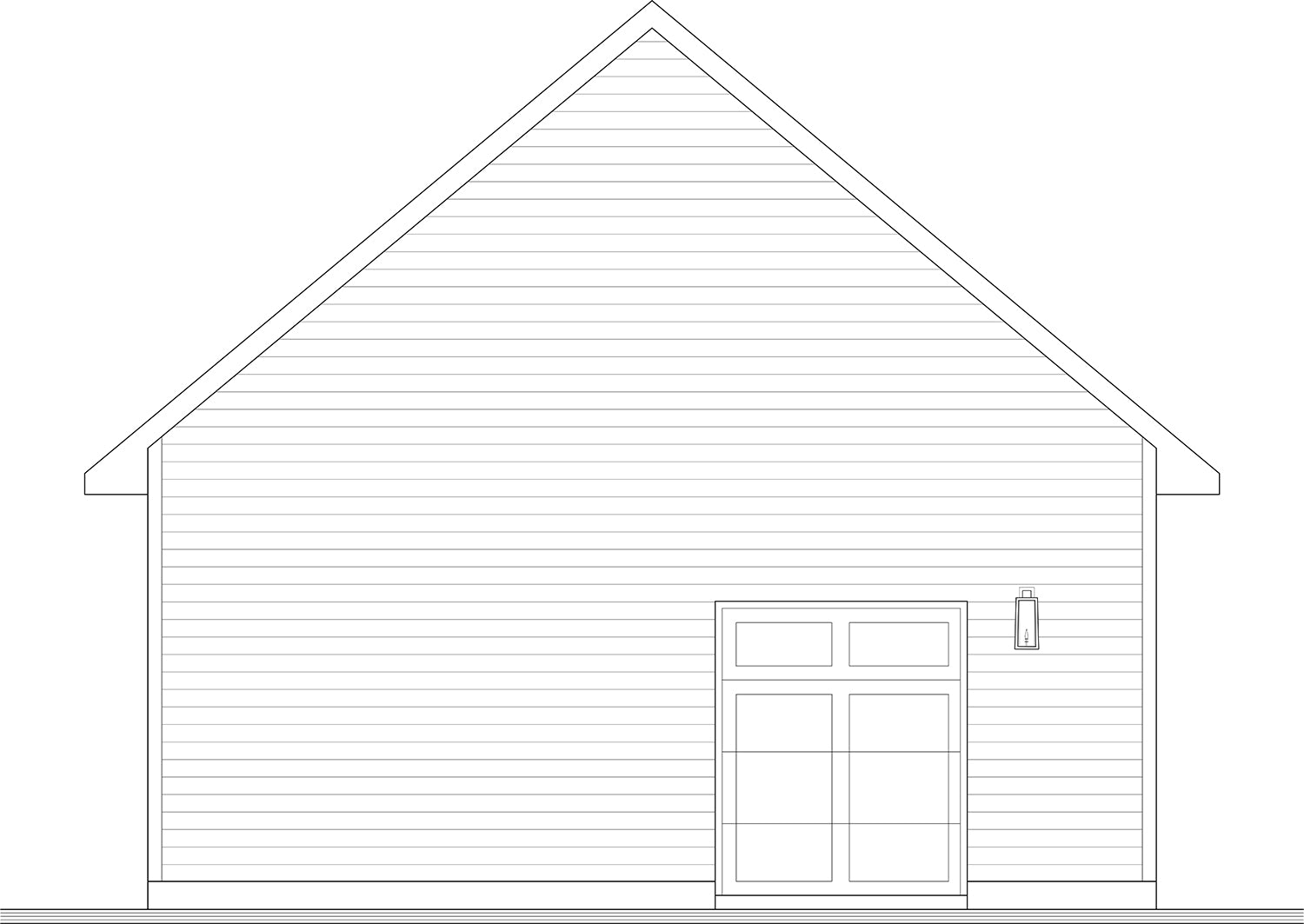

Structural integrity is provided by a slab foundation and 2x6 wall framing, ensuring long-term durability. The building reaches a maximum height of 20 feet 11 inches, supported by a 10:12 roof pitch that contributes to the farmhouse aesthetic while facilitating effective water runoff. This combination of structural height and roof geometry creates a balanced visual presence.
Key Features: 1-car front-load garage, 16' 6" main ceiling height, 202 sq ft loft, half bathroom, 10:12 roof pitch, 2x6 wall framing, slab foundation, detached multi-purpose workspace, and dedicated storage zones.
Review plan layouts, available CAD packages, and customization options for this detached garage design.
