Elegant Modern Farmhouse Plan with Wraparound Porch, Coffee Bar & Luxury Master Suite | 2,306 Sq Ft
4.8
Plan Number:

C8242-A

Rated 4.8
Plan Number:

C8242-A

✔ Best Price Guarantee | ✔ Free Cost to Build Calculator
Or order by phone: (888) 890-2353
Safe and Secure
SafePay icons
LOW PRICE GUARANTEE
Free Cost to Build Calculator

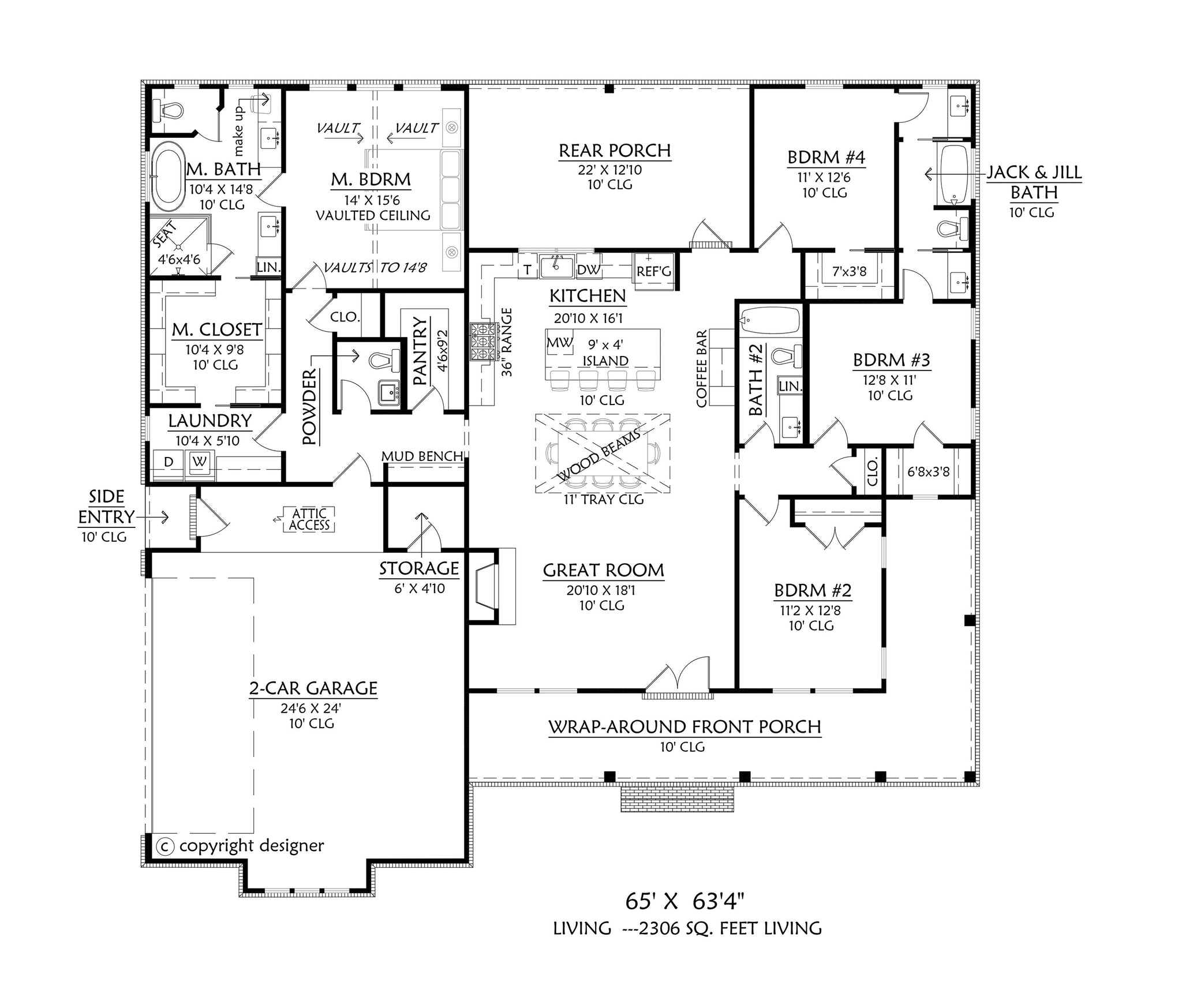

Floor Plan
c8242-a modern farmhouse floor plan, 4 bedrooms, 3.5 bathrooms | mayfield house plan

Elegant Modern Farmhouse Plan with Wraparound Porch, Coffee Bar & Luxury Master Suite | 2,306 Sq Ft

This stunning modern farmhouse plan blends timeless farmhouse charm with luxurious modern functionality, creating a spacious and inviting home designed for comfortable family living and stylish entertaining. Offering 2,306 square feet of heated living space and a total structure size of 3,755 square feet, this beautifully crafted single-story residence delivers the perfect combination of elegance, warmth, and practicality.

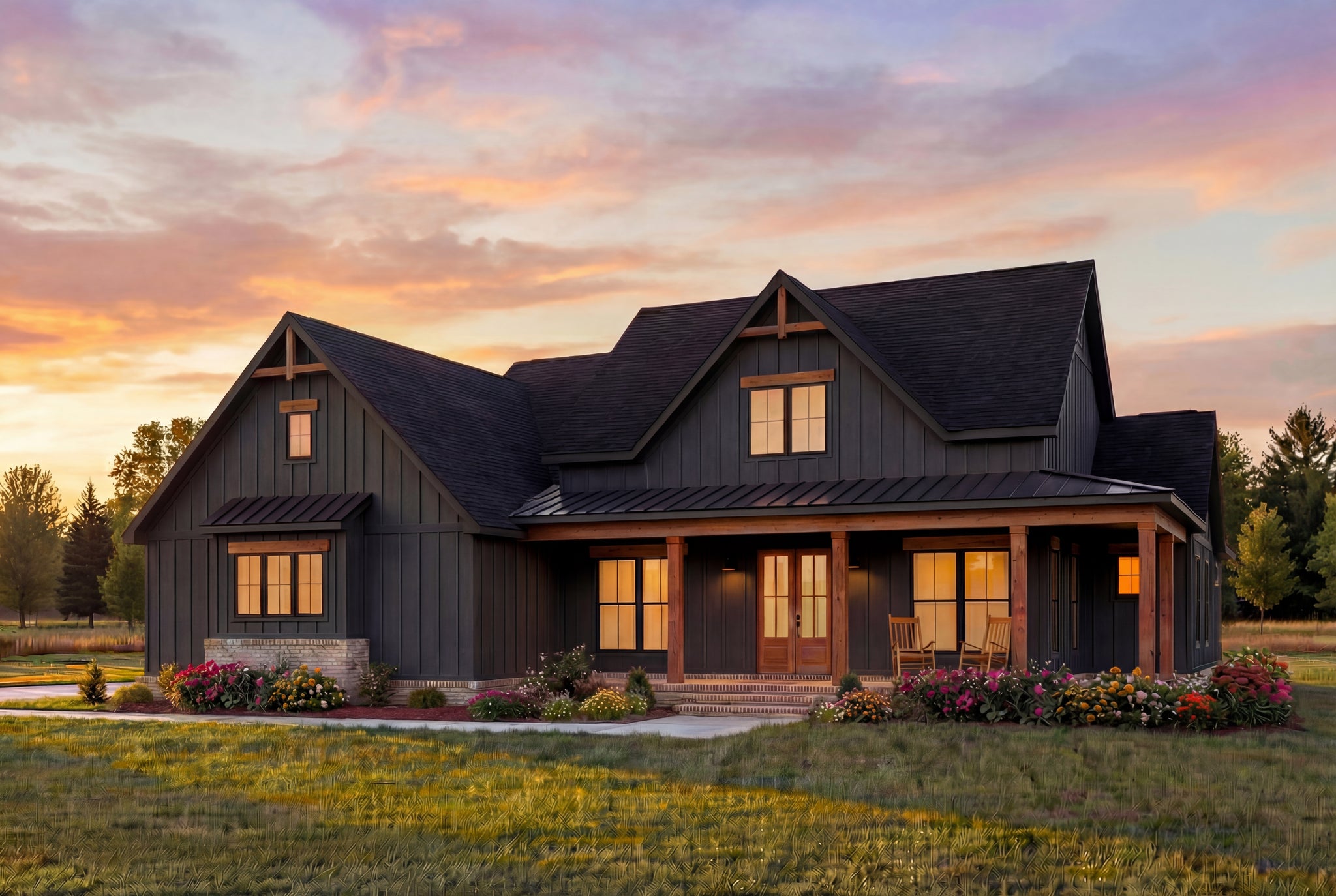

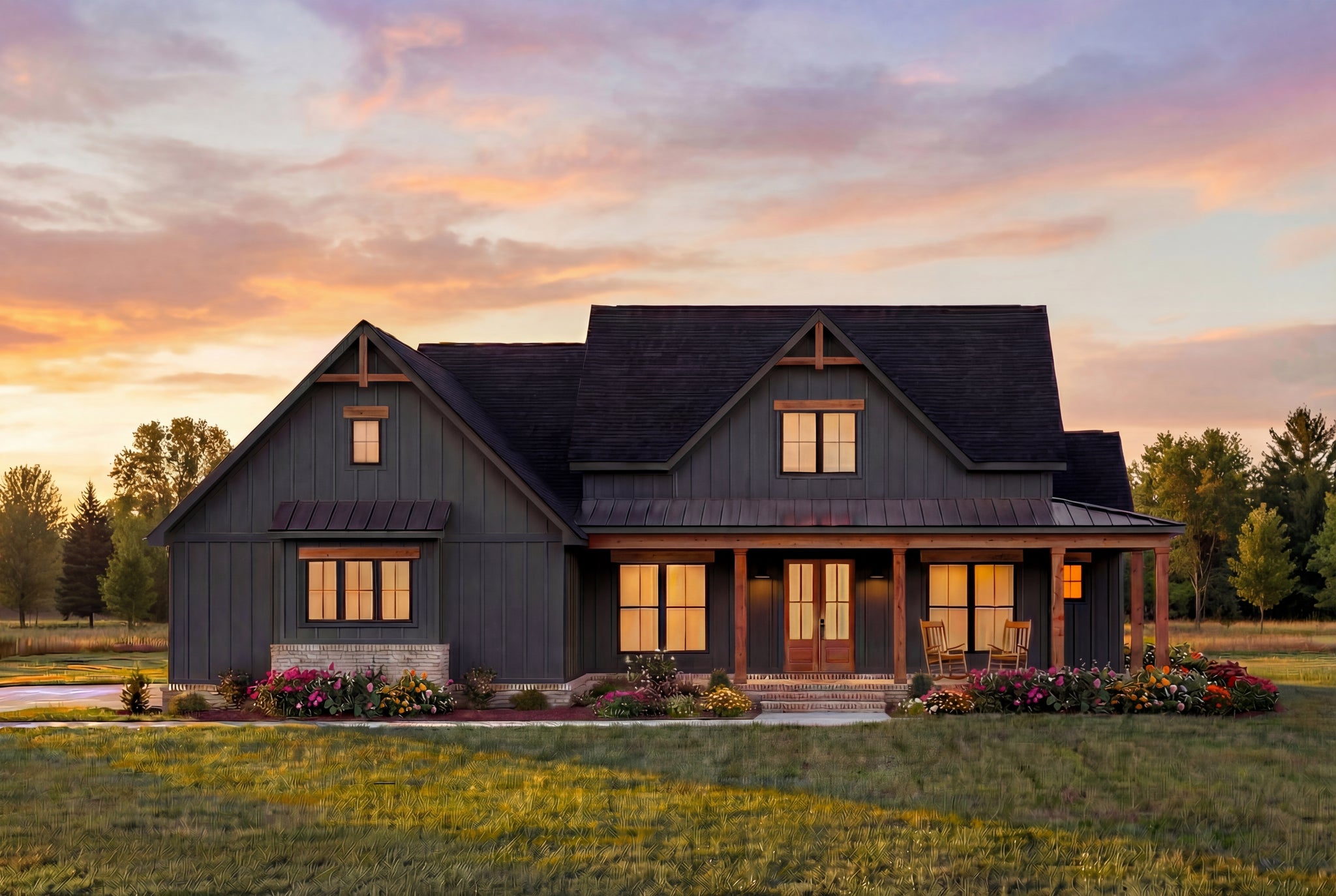

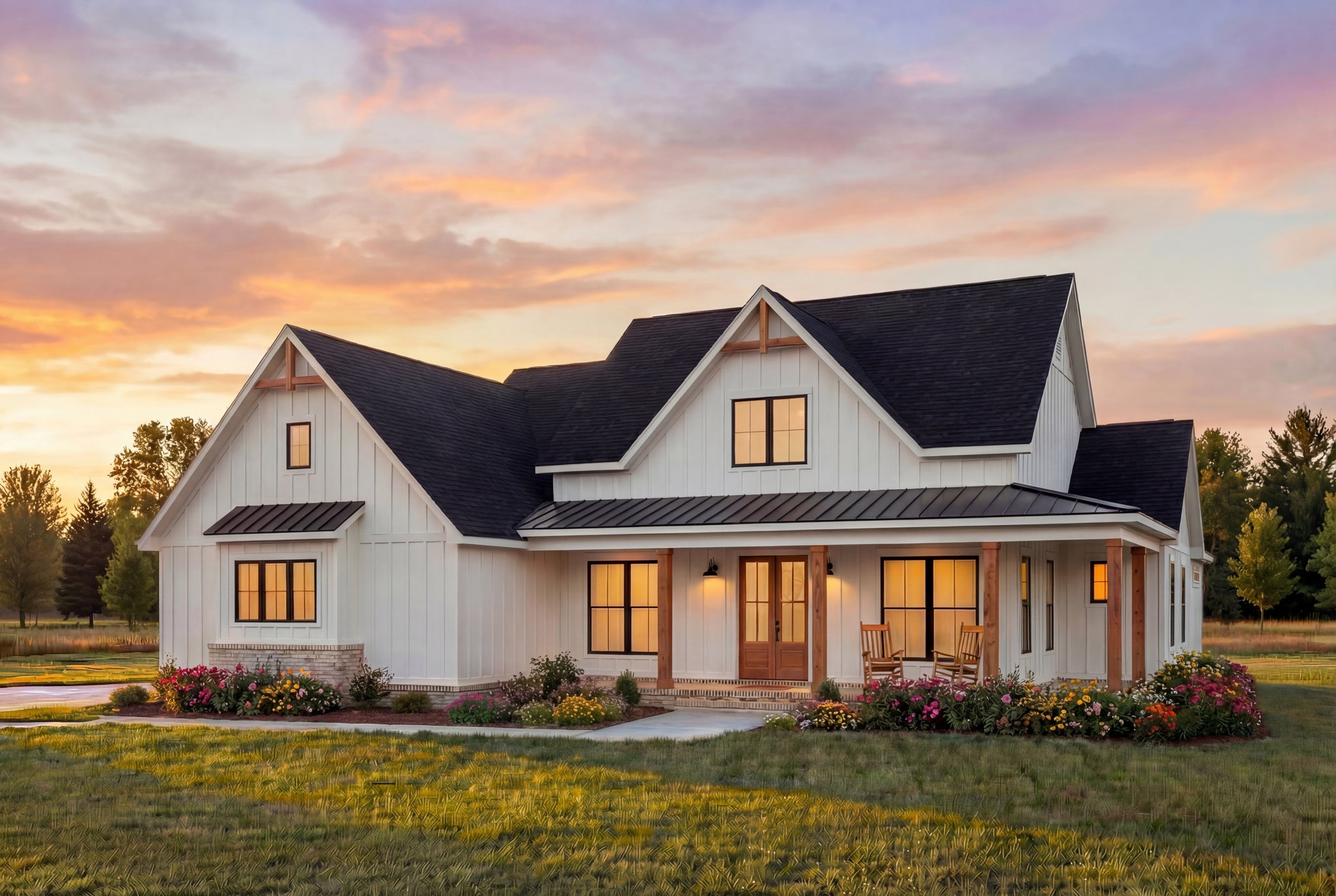

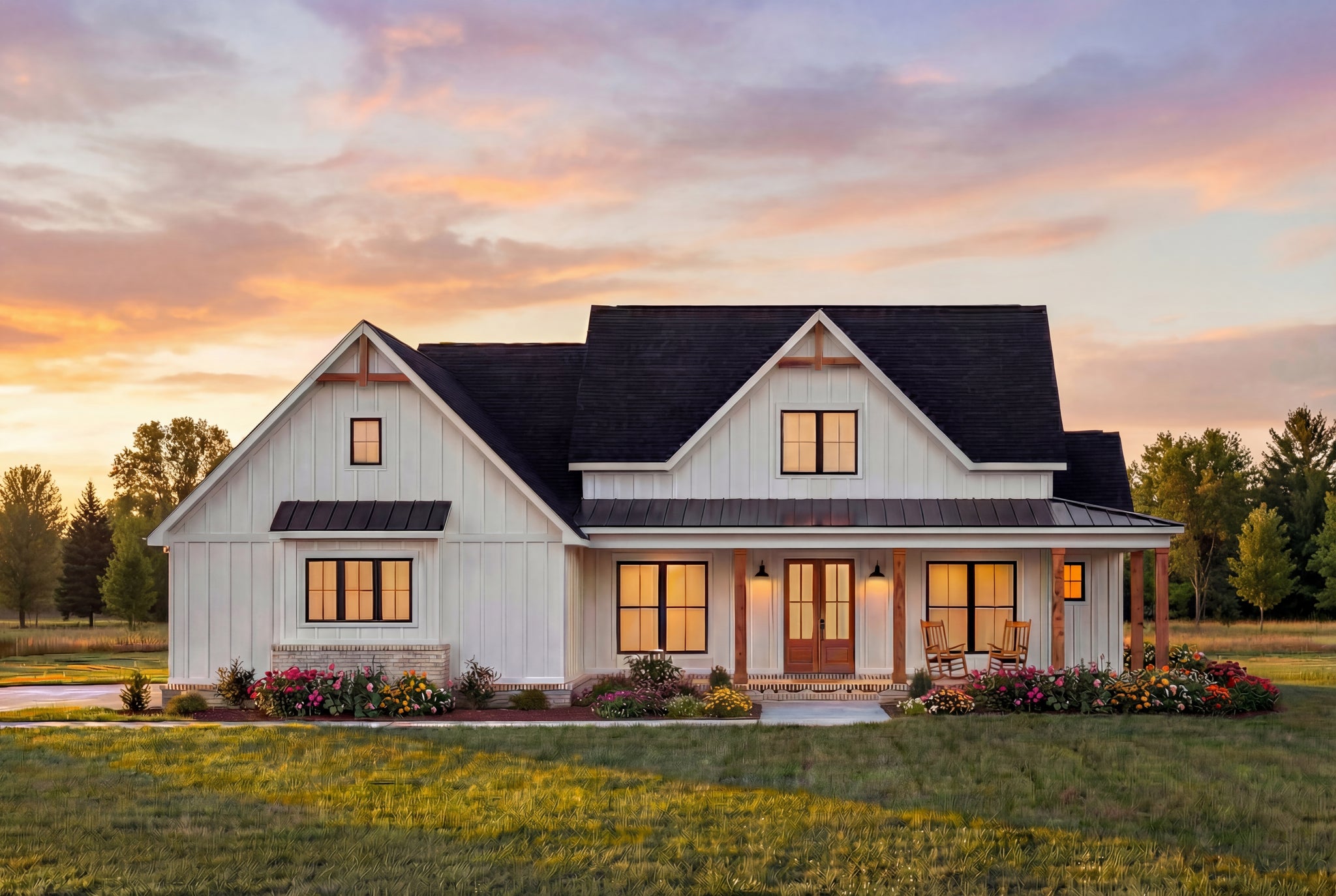

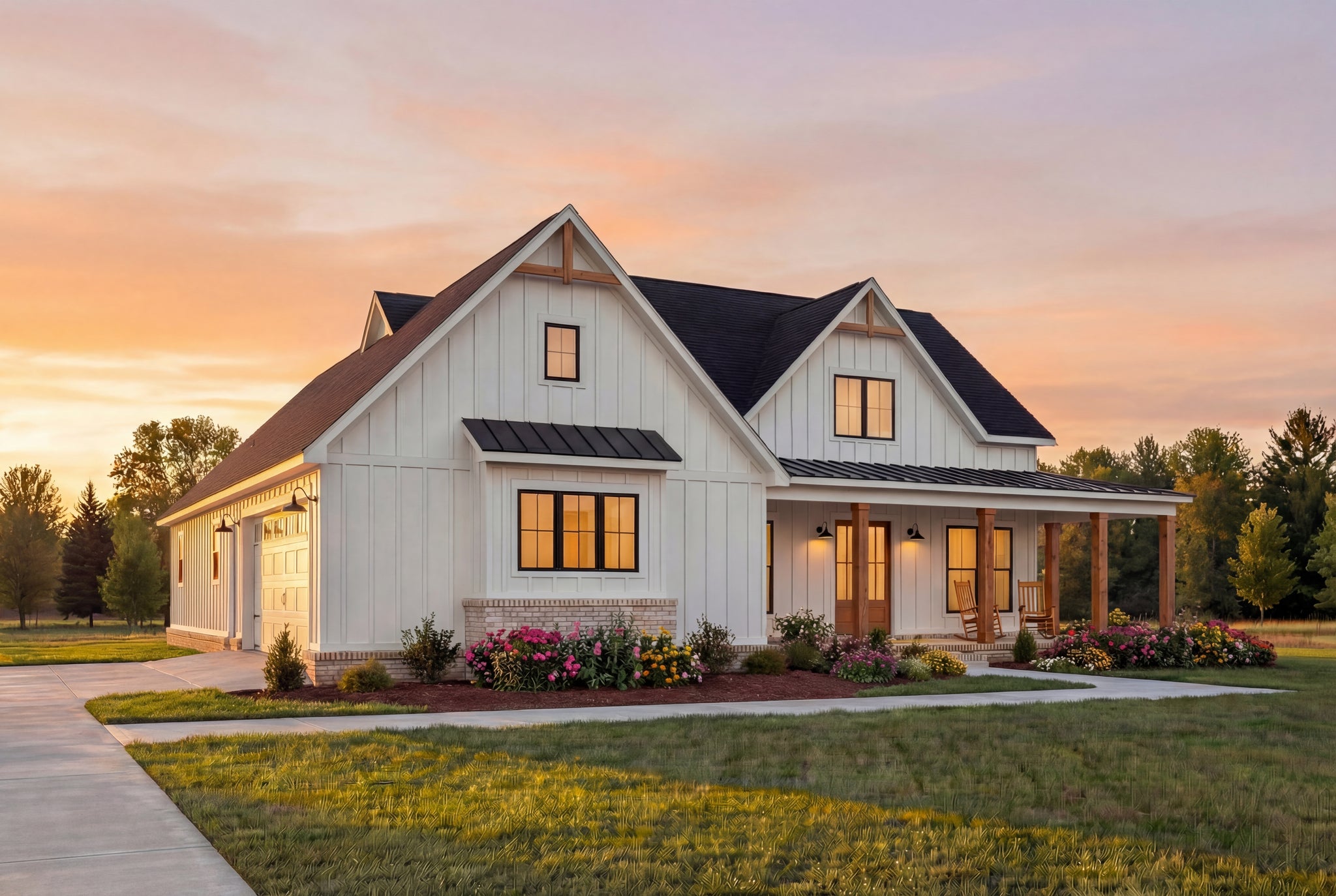

The exterior showcases striking modern farmhouse architecture highlighted by steep 10:12 and 12:12 roof pitches, clean lines, and expansive outdoor living spaces. The charming wraparound porch adds exceptional curb appeal while creating inviting areas for relaxing, entertaining guests, or enjoying scenic outdoor views year-round. The welcoming design captures the warmth and simplicity of farmhouse living while incorporating refined modern details.

Inside, the open-concept floor plan creates a bright and spacious atmosphere enhanced by impressive 10-foot ceilings throughout the main level. The expansive great room serves as the heart of the home, featuring a beautiful fireplace that creates a warm and comfortable gathering space for family and friends. Large windows allow natural light to flow throughout the interior, creating an airy and inviting environment.

The gourmet kitchen is thoughtfully designed for both beauty and functionality. A large center kitchen island provides ample workspace and casual seating, while the convenient eating bar offers additional room for family meals and entertaining. One of the home’s standout features is the dedicated coffee bar, which adds a luxurious and practical touch for homeowners who enjoy creating a café-inspired experience at home. The oversized walk-in pantry provides generous storage space, helping maintain organization and efficiency in the kitchen.

Adjacent to the kitchen, the formal dining room creates an elegant setting for holiday dinners, celebrations, and special occasions while maintaining an open connection to the main living areas. The seamless flow between the kitchen, dining, and great room enhances both daily living and entertaining capabilities.

The luxurious first-floor master suite offers homeowners a peaceful private retreat designed for relaxation and convenience. This spacious suite includes direct laundry access from the master area, adding exceptional practicality to everyday living. The private master bath features double vanity sinks, upscale finishes, and a spacious walk-in closet that provides excellent storage and organization.

This modern farmhouse includes four bedrooms and three-and-a-half bathrooms, making it ideal for families, guests, or flexible multi-purpose living. Secondary bedrooms are thoughtfully arranged for comfort and privacy, while a convenient Jack and Jill bathroom creates functional shared access for family members. Each room is carefully designed to maximize usability, comfort, and natural light.

Practical design features throughout the home improve organization and everyday efficiency. The first-floor laundry room is centrally located for convenience, while additional storage areas provide space for seasonal items, household essentials, and outdoor equipment.

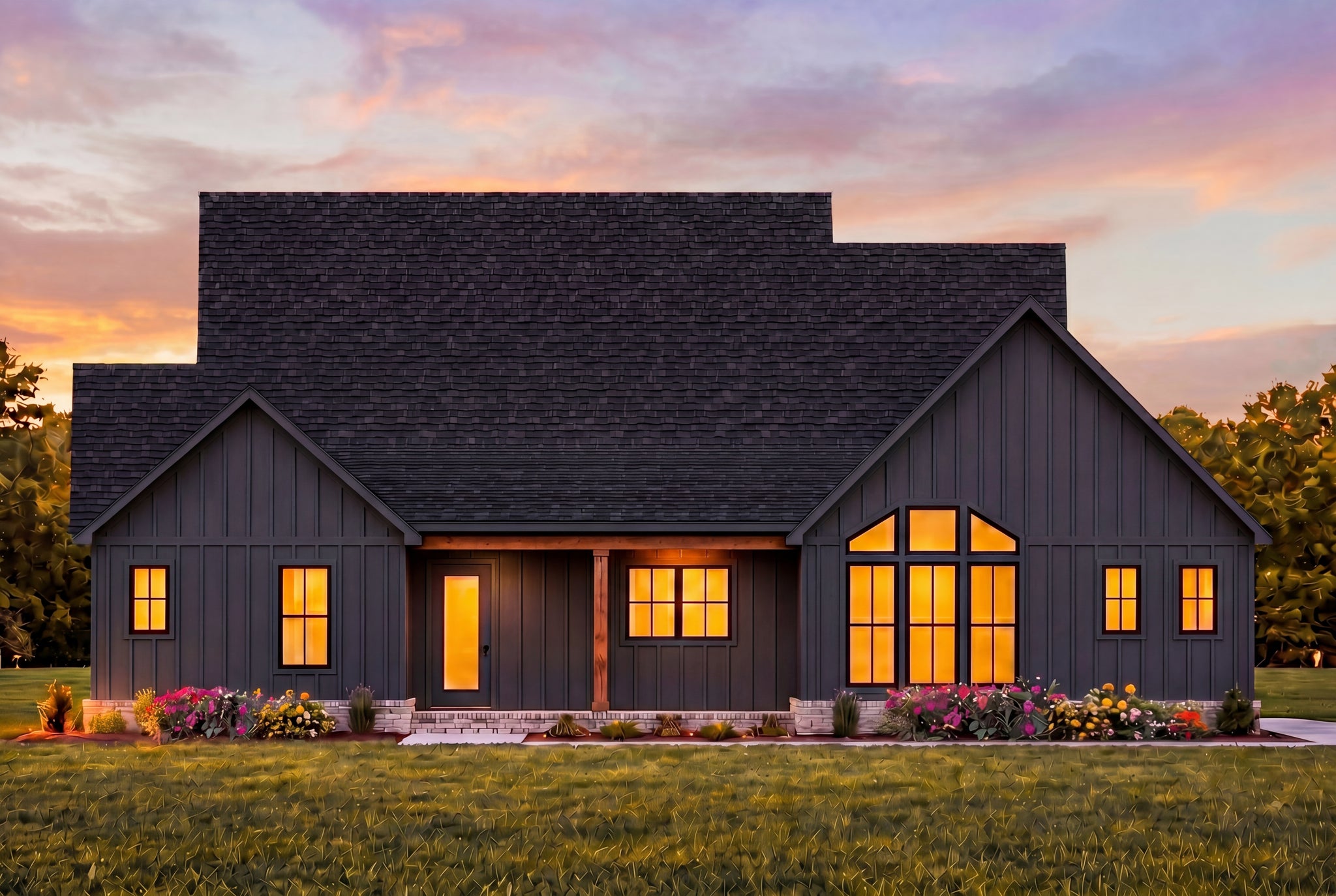

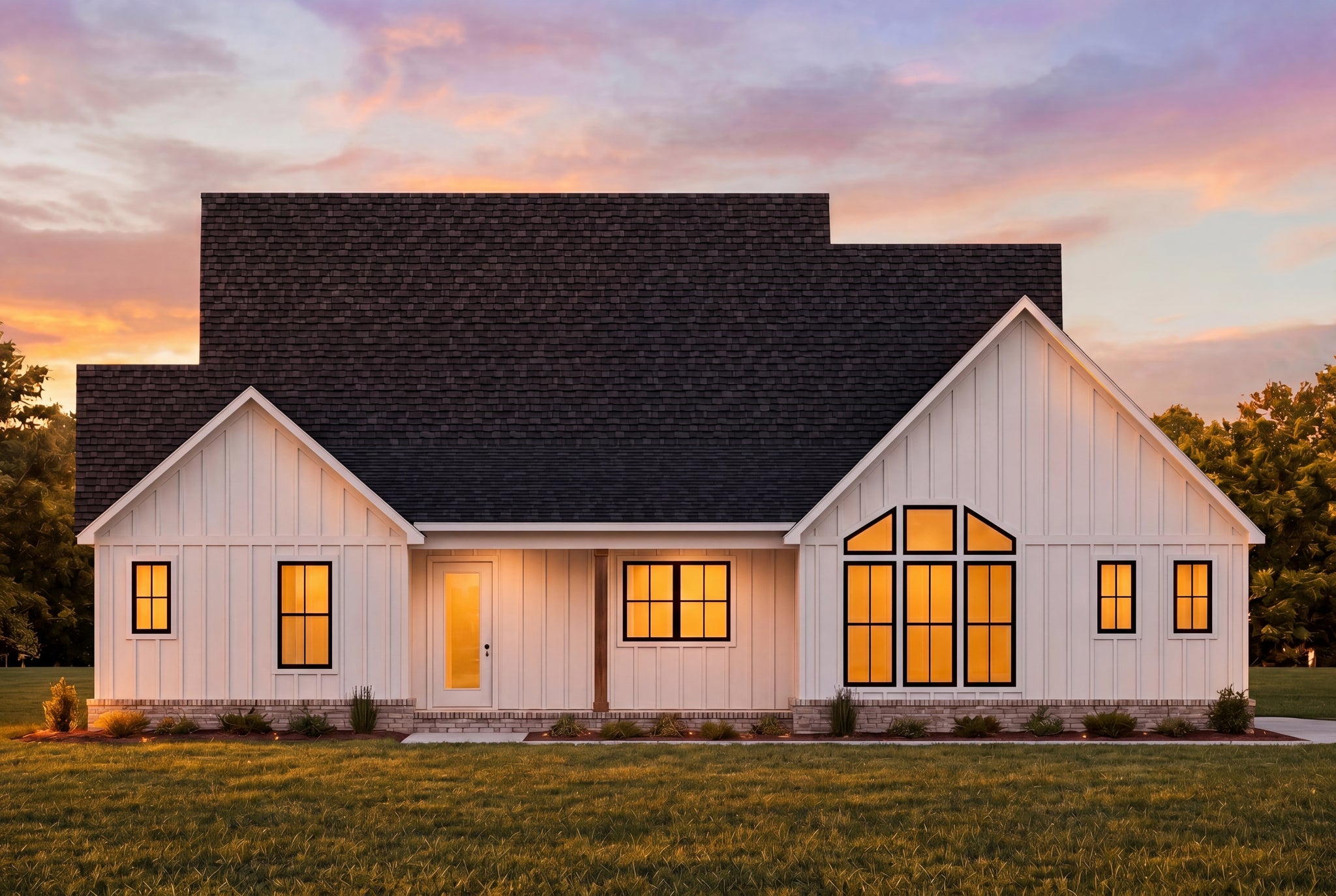

Outdoor living is a major highlight of this home. The expansive wraparound porch and rear porch create multiple areas for relaxing, dining, and entertaining outdoors. Whether hosting gatherings, enjoying peaceful evenings, or spending time with family, the outdoor spaces extend the home’s livability well beyond the interior walls.

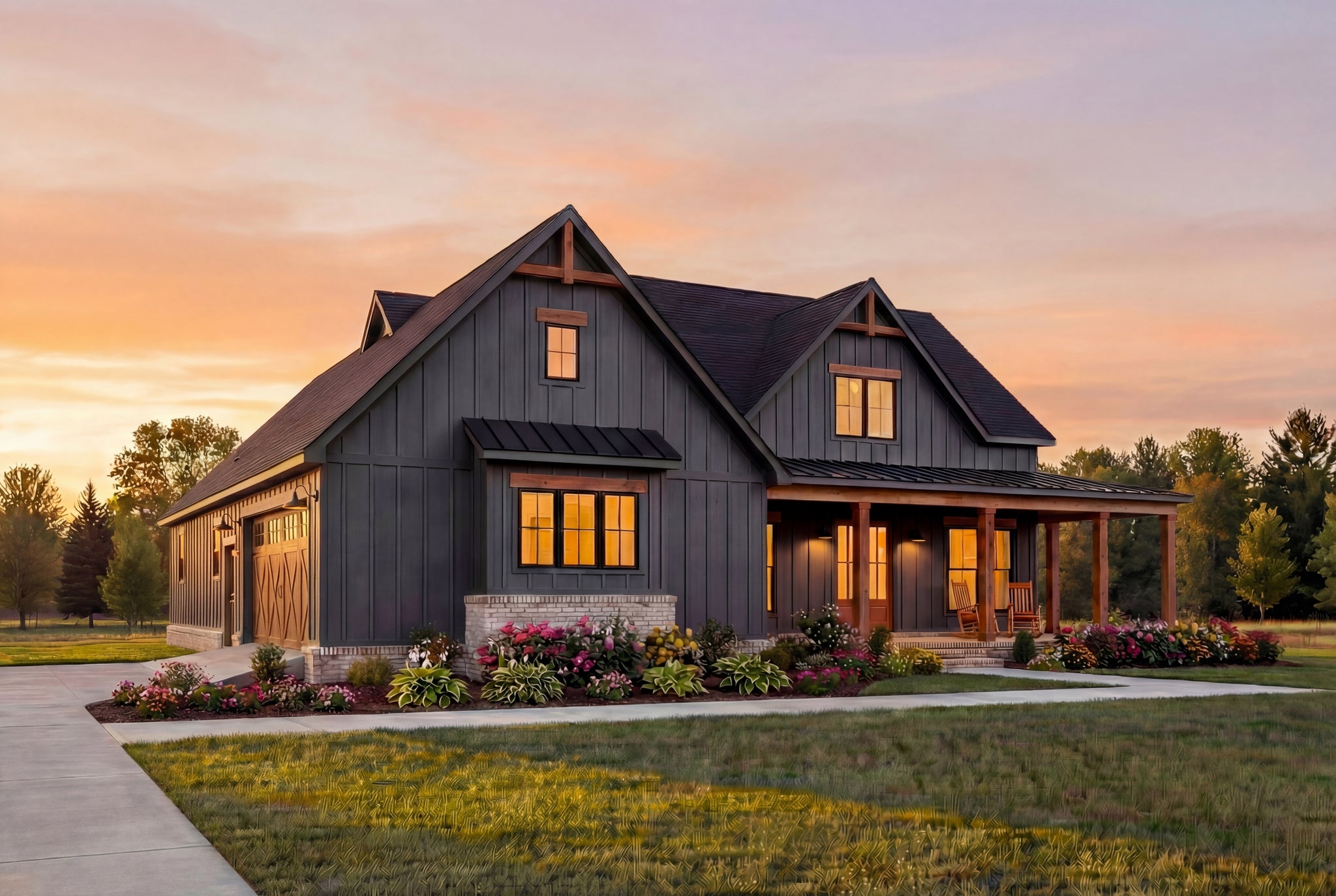

The oversized side-load two-car garage offers 746 square feet of parking and storage space while preserving the home’s attractive front elevation. With 10-foot garage ceilings, the space provides added flexibility for storage, larger vehicles, or workshop needs.

Built on a durable slab foundation with sturdy 2x4 wall framing and stick roof framing, this home is designed for long-lasting structural integrity and dependable performance. Measuring 65 feet wide by 63 feet 4 inches deep, the home offers a balanced footprint that fits comfortably on a variety of lot sizes while maximizing interior space and curb appeal.

With its wraparound porch, luxurious master suite, elegant open floor plan, and thoughtfully designed modern farmhouse features, this home delivers exceptional comfort, timeless beauty, and practical everyday living for modern families.



What's Included in the House Plan:
  • Floor Plan: Dimensions, window/door locations, laminated beams, columns, materials, ceiling heights, and fireplace details.
  • Schedules: Window, door, and finish schedules (flooring, molding, cabinets, countertops).
  • Foundation & Ceiling Joist Layout: Footing, slab, steel reinforcement, ceiling joist sizes, and soil/concrete specs.
  • Electrical Plan: Panel locations, lighting, switches, outlets, smoke detectors, and communication connections.
  • Elevations: Front and rear views with door/window placements, roof pitches, and exterior features.
  • Side Elevations & Framing Details: Side views, roofing, framing details, and wall sections for construction.
What's Not Included:
  • Architectural or Engineering Stamp: Handled locally if required.
  • Site Plan: Created locally when needed.
  • Mechanical Drawings: Heating, air equipment, and ductwork to be designed by subcontractors.
  • Plumbing Drawings: Pipe sizes and locations to be determined by subcontractors.
  • Energy Calculations: Handled locally if required.

House Plan Specifications

  • Total Living (heated area):  2306 sq ft
    All Unheated Under-Roof Areas  1449 sq ft
    Total Structure  3755 sq ft
    1st Floor:  2306 sq ft
    Total Porch:  666 sq ft
    Storage:  37
  • Garage:  746 sq ft
    Garage Bays:   2
    Garage Load:   Side
  • Bedrooms:   4
    Bathrooms:   3
    Half Bathrooms:   1
  • Foundation:   Slab
    Wall Framing:   2x4
    Roof Framing:   Stick
    Roof Pitch:  10:12 and 12:12
  • Width of House:  65'
    Depth of House:  63'4''
    Building Height:  27'6''
  • First Floor Ceiling Height:  10'
    Garage Ceiling Height:  10'

Key Features

  • Coffee Bar
  • Eating Bar
  • Fireplace
  • First Floor Laundry
  • First Floor Master Suite
  • Formal Dining Room
  • Great Room
  • Jack and Jill Bathroom
  • Kitchen Island
  • Laundry Access from Master
  • Master Bath-Double Vanity Sink
  • Open Floor Plan
  • Powder Room
  • Private Master Bath
  • Rear Porch
  • Storage Space
  • Walk-in Closet
  • Walk-in Pantry
  • Wraparound Porch
Modify this plan to make it perfect
Our hassle-free process makes it easy to modify your dream home. To receive an estimate please submit your request using the link below.
Submit a Modification Request
Cost to build estimate
$0.00
$40.00
100% discount for new customers this month!
Receive a personal estimate in two minutes instead of 2 days as many competitors offer. Just submit your request using the link below.
Get Your Estimate
Plan Number: C8242-A
Elegant Modern Farmhouse Plan with Wraparound Porch, Coffee Bar & Luxury Master Suite | 2,306 Sq Ft
4 Bedrooms
3 Full Baths
1 Half Baths
2306 SQ FT
1 Stories
Product print image
C8242-A Modern Farmhouse Floor Plan, 4 Bedrooms, 3.5 Bathrooms | Mayfield House Plan
House Plan Formats Explained

PDF (Single Build)

A complete set of working drawings delivered in digital PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

CAD + PDF (Single Build)

A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

5 or 8 Prints (Single Build)

Five or eight printed sets of working drawings shipped to you. This option comes with a license to build ONE home.

5 Prints + PDF (Single Build)

Five printed sets of working drawings shipped to you, plus a digital version in PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

PDF (Multi Build)

A complete set of working drawings delivered in digital PDF format. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.

CAD + PDF (Multi Build)

A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.

Choose a building foundation for your home. The foundation provides stability to a home's structure from the ground up.

Slab - This concrete foundation is reinforced with steel rods and suitable for flat ground.

Crawl Space - This foundation is raised off the ground with low walls resting on footings, providing space for wiring, plumbing, and storage.

Basement - This foundation is entirely or partially below ground and offers storage or living areas.

Walkout Basement - This foundation is typically suited for rear-sloping lots and provides storage or living areas. Walkout basements have doors that provide access to the outside.

Readable Reverse
An option to reverse the plan including texts and dimensions to make them readable.
2x4 or 2x6 Conversion
Convert the exterior framing other than the standard framing included in the plan.
Multi Build Licence (CAD required) Gives the buyer the legal right to build the house plan multiple times
