The construction drawings will include detailed, dimensioned floor plans, exterior elevations, roof plan, foundation plan, basic electrical layout, cross-section(s), foundation plan, and other general specifications. Some plans will include interior cabinet layouts.
View Sample Plan
Archival Designs brings you over 40 years of experience in the house plan design business. We offer the best value for your money by offering the highest quality home designs.
All house plans sold by Archival Designs have been designed to comply with the International Residential Code (IRC) and to the local codes in the area where the designer resides or where the house was built.
All house plans are designed to meet or exceed the national building standards required by the International Residential Code (IRC). Due to differences in climate and geography throughout North America, every city, local municipality and county has unique building codes and regulations that must be followed to obtain a building permit. Prior to purchasing a set of house plans, we recommend that you meet with your local building officials in order to determine the building requirements for your area. It is the responsibility of the purchaser(s) and/or builder to ensure that the structure is constructed to meet the codes of their local area.
House plans do not come stamped or signed by an architect or engineer. Additionally, house plans typically will not include structural engineering notes/calculations. Please check with your local building officials to determine if a stamp is required. If required, the building department will only accept a stamp from a licensed professional in the state where the home will be built.
Depending on your city, county, and state building requirements, house plans may need to be reviewed by a local licensed architect or engineer for structural details and code standards before construction begins. This is particularly true in coastal areas and those facing seismic events, extreme winds, and heavy snow. If you are building in any of these areas, a licensed structural engineer will likely be needed to provide the necessary calculations and additional drawings. We authorize the use of our plans conditioned on your obligation and agreement to strictly comply with all local building codes, ordinances, regulations, and requirements, including permits and inspections at the time of and during construction. We recommend checking with your local building department for the most current requirements. The purchaser(s) and/or builder are responsible for additional expenses incurred through meeting municipality requirements or other requirements for construction.
Our foundation plans have been designed for universal conditions and may need to be adjusted to fit your specific site conditions. The foundation should be modified by a local structural engineer to comply with soil testing laboratory findings and local building requirements.
Our house plans will include schematic electrical drawings; however, circuiting or wire sizing will not be included. Your electrical subcontractor will typically provide these drawings.
HVAC and plumbing drawings are not included. Your mechanical and plumbing subcontractors will determine the best layout for your site. Local HVAC codes, climatic requirements and commonly used systems vary throughout the country. The direction of how water flow will enter the home vary from case to case. For this reason, it is impossible to provide universal plans.

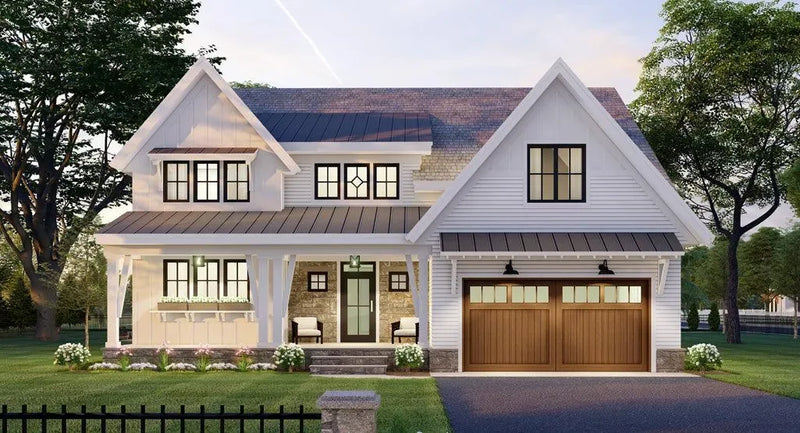

Curb appeal outside, comfortable living inside is what you’ll get with this 2657 sq ft 2-story Modern Farmhouse! This beautiful home has 3 bedrooms, 2 ½ bathrooms and an optional 277 sq ft bonus room over the front or side loading 2-car garage. For even more garage space there are also options for a front or side loading 3-car garage.

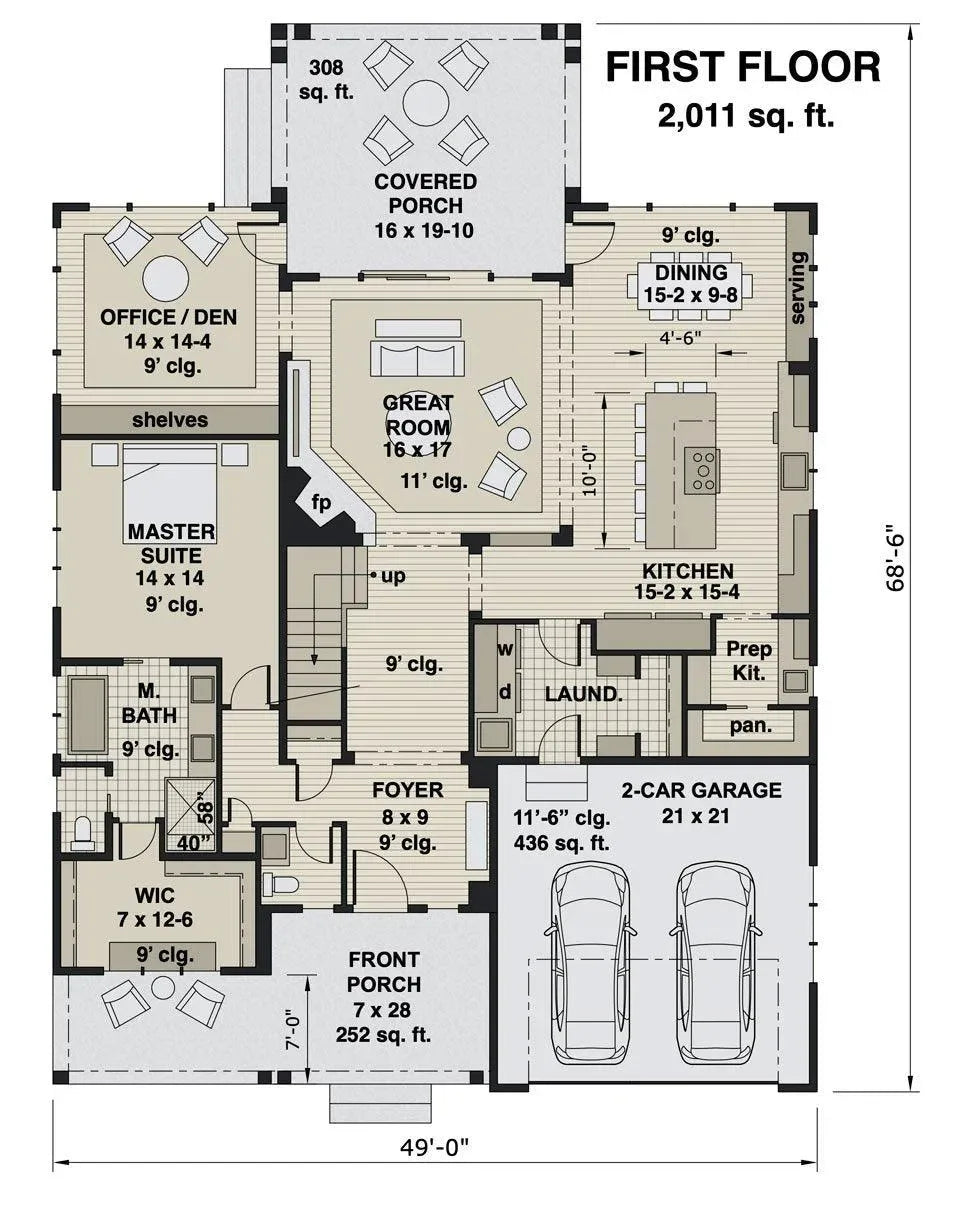

Step through the front door in to an open and family friendly space. This area holds the great room, kitchen and dining room. The great room features a corner fireplace and access to the generous covered rear porch through sliding glass doors.
The kitchen is every budding chef’s dream! This kitchen boasts a huge two level center island with built-in range and seating for 7, meaning you can cook a meal while still having conversation with family or guests. Numerous cabinets, a prep kitchen and large walk-in pantry with built-ins will meet all your storage and organizing needs!
Conveniently located on the lower level is your relaxing master suite. The spacious master bedroom features a 9’ ceiling and a large window allowing for abundant natural light. A huge walk-in closet with built-ins and the master bathroom with dual vanities, private toilet area and separate bathtub and shower complete the suite.

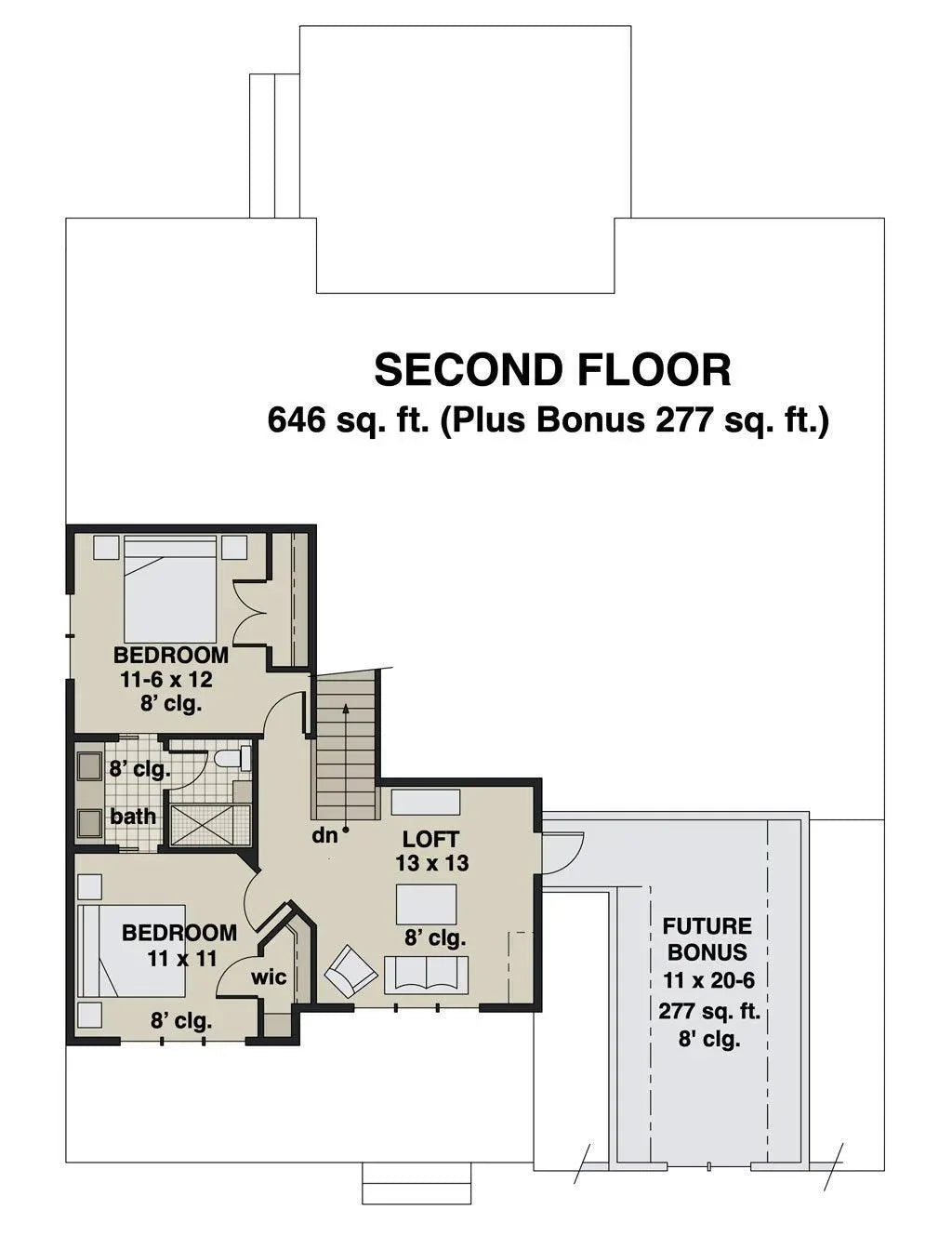

On the upper level you’ll find two additional bedrooms, each with a generous closet and separated by a Jack and Jill bathroom. There is also an expansive loft located on this level, perfect for game/movie night or just quiet time with a good book.
Other key features of this amazing home include an office/den with windows on two sides and access to the rear porch. There is also a laundry/mud room off the garage with multiple built-ins, allowing you to keep shoes and jackets out of sight.
With all the comforts this home offers, you’ll never want to leave!
