Meriden House Plan

Plan Number:

D1016-A

Free Cost TO
Build Estimate
Say goodbye to the guesswork of construction costs with our custom cost estimator. Receive a cost to build estimate in two minutes instead of 2 days as many competitors offer.... plus its Free!
INSTANT
ACCURATE
FREE
Cost to build your dream home

Meriden House Plan

Plan Number:

D1016-A

4
Bedrooms
3
Full Baths
2286
SQ FT
1
Stories
LOW PRICE GUARANTEE

House Plan Specifications

  • Total Living:  2286
    1st Floor:  2286
    Bonus Room:  299
    Total Porch:  468
  • Garage:  495
    Garage Bays:   2
    Garage Load:   Front
  • Bedrooms:   4
    Bathrooms:   3
  • Foundation:   Crawl Space
    Wall Framing:   2x6
    Roof Framing:   Truss
    Exterior Siding:   Stone Exterior
  • Width of House:  65'-4''
    Depth of House:  58'
    Building Height:  27'-4''
  • First Floor Ceiling Height:  10'
    Second Floor Ceiling Height:  8'

Key Features:

  • Bonus Room
  • Covered Back Porch
  • Covered Front Porch
  • Eating Bar
  • Fireplace
  • First Floor Laundry
  • First Floor Master Suite
  • Great Room
  • Kitchen Island
  • Laundry 1st Floor
  • Laundry Access from Master
  • Master Bath-Double Vanity Sink
  • Mud Room
  • Open Floor Plan
  • Rear Porch
  • Walk-in Closet
  • Walk-in Pantry
Modify this plan to make it perfect
Our hassle-free process makes it easy to modify your dream home. To receive an estimate please submit your request using the link below.
Submit a Modification Request
Free Cost TO
Build Estimate
Say goodbye to the guesswork of construction costs with our custom cost estimator. Receive a cost to build estimate in two minutes instead of 2 days as many competitors offer.... plus its Free!
INSTANT
ACCURATE
FREE
Cost to build your dream home
Plan Number: D1016-A
Meriden House Plan
4 Bedrooms
3 Full Baths
2286 SQ FT
1 Stories

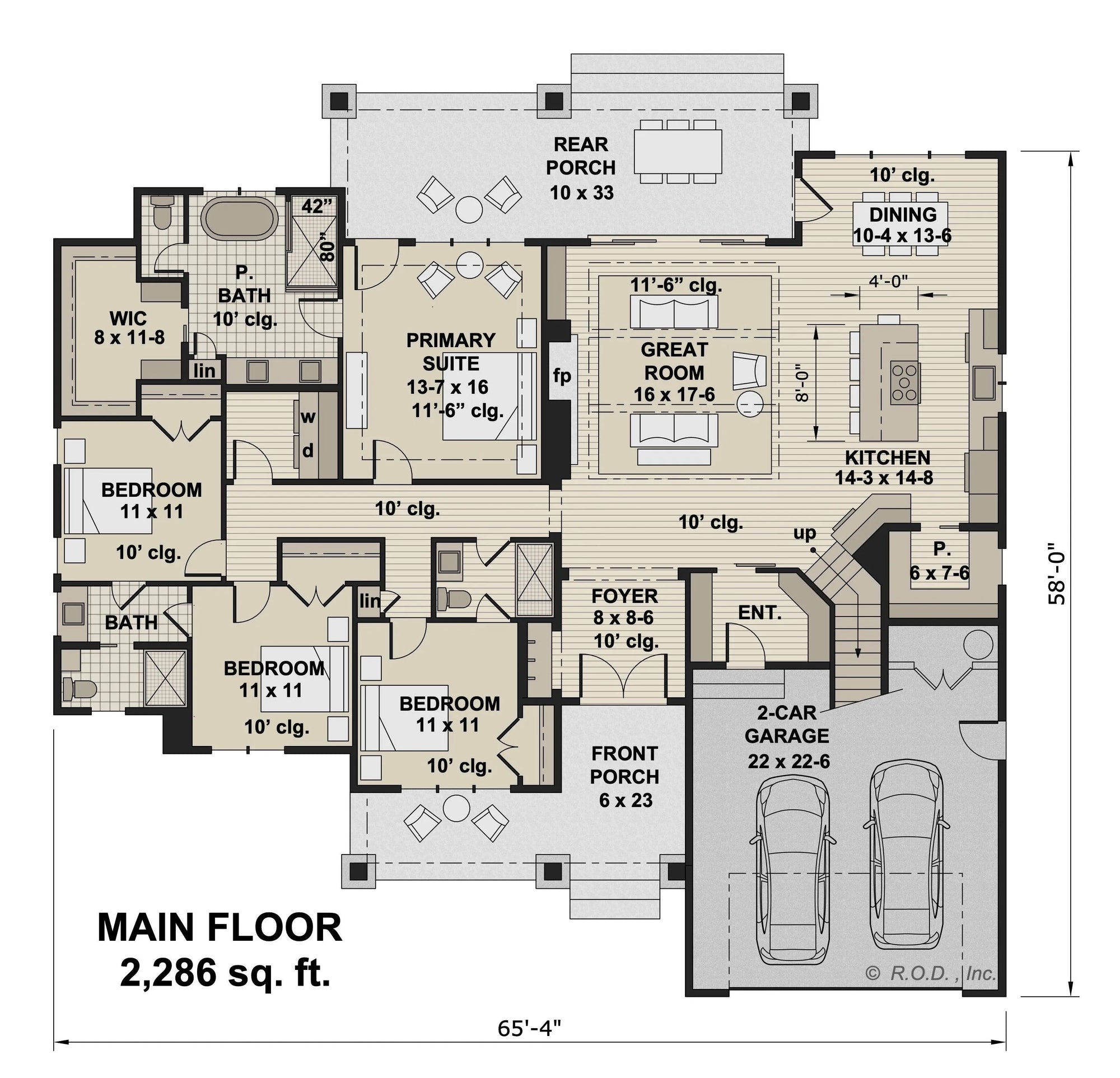

Main Level

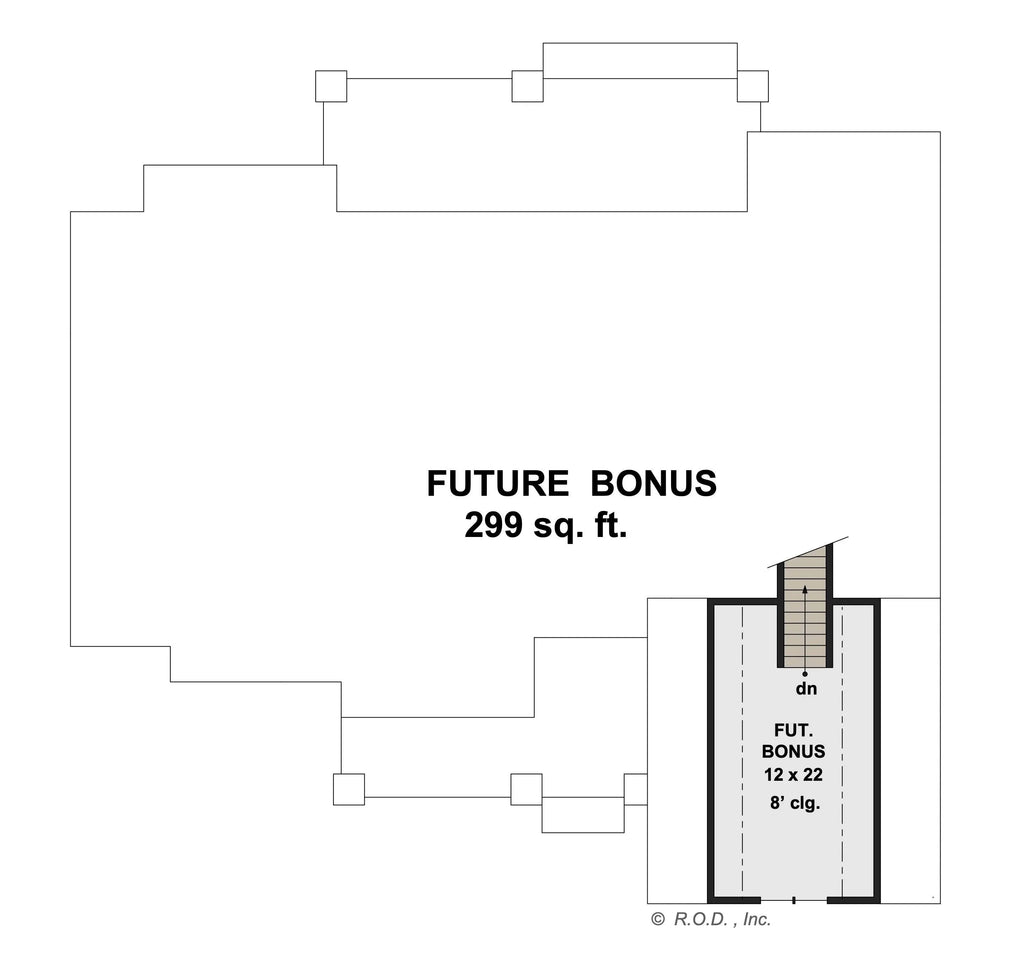

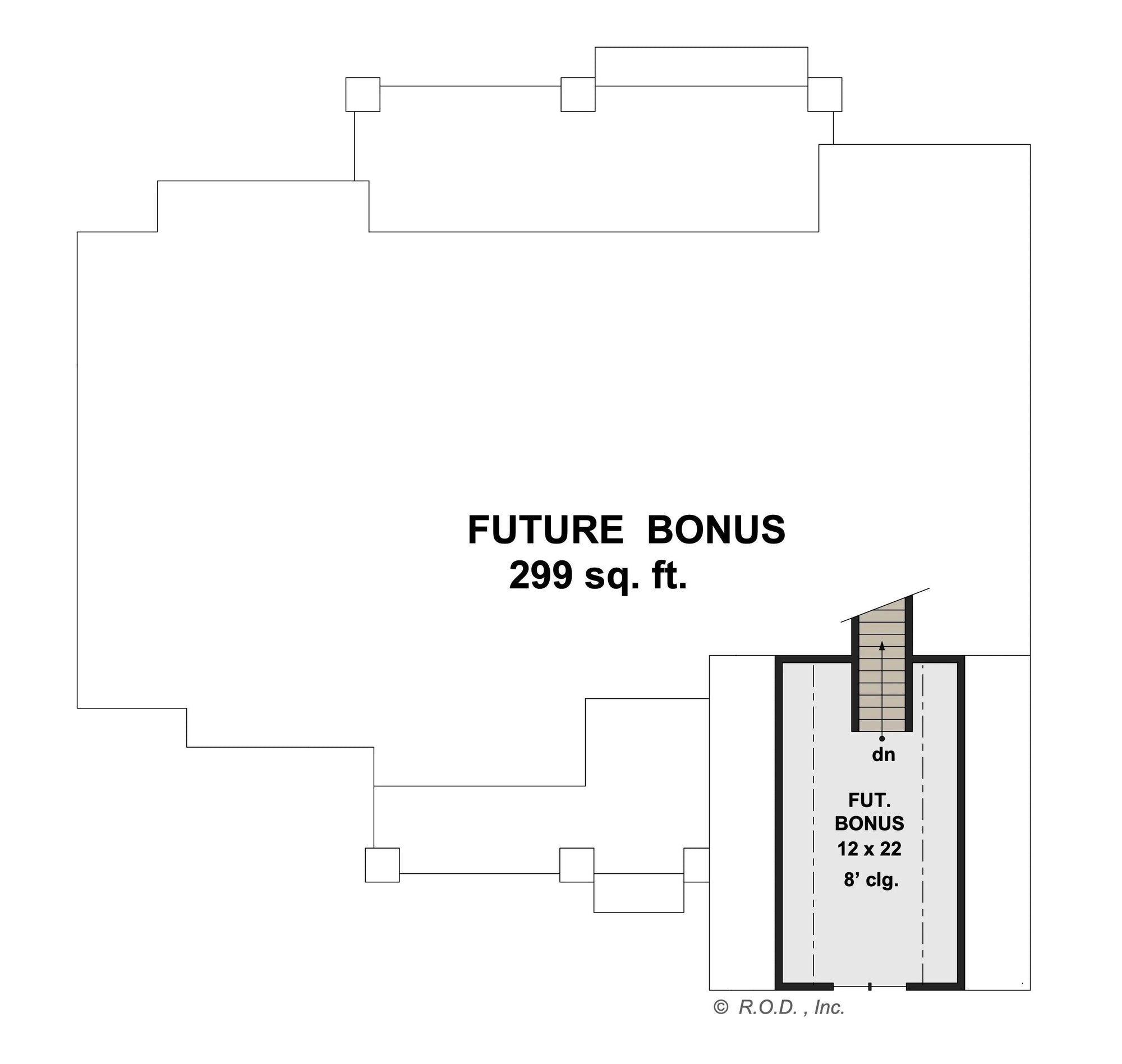

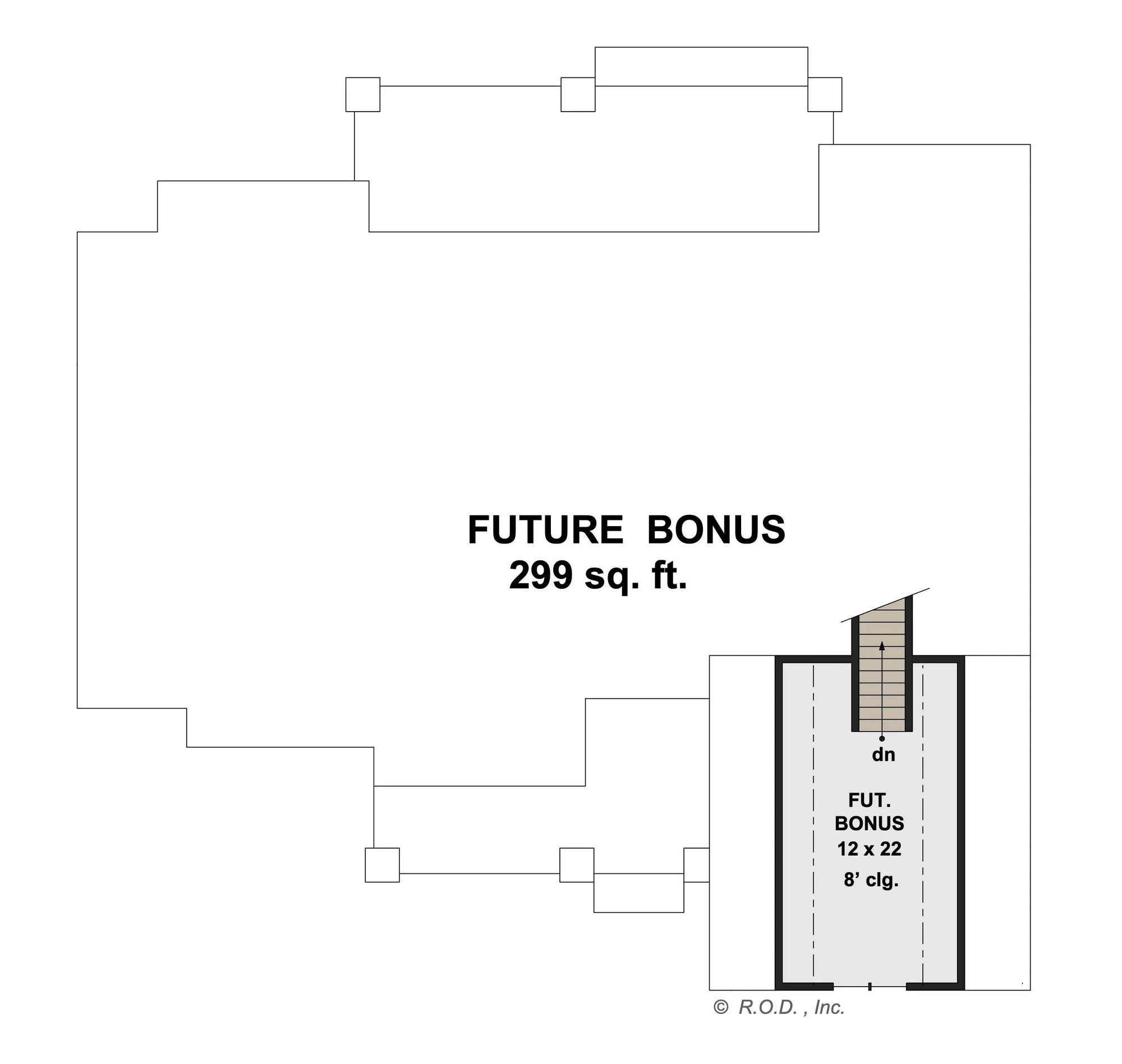

Bonus Room
House Plan Formats Explained

PDF (Single Build)

A complete set of working drawings delivered in digital PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

CAD + PDF (Single Build)

A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

5 or 8 Prints (Single Build)

Five or eight printed sets of working drawings shipped to you. This option comes with a license to build ONE home.

5 Prints + PDF (Single Build)

Five printed sets of working drawings shipped to you, plus a digital version in PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

PDF (Multi Build)

A complete set of working drawings delivered in digital PDF format. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.

CAD + PDF (Multi Build)

A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.

Choose a building foundation for your home. The foundation provides stability to a home's structure from the ground up.

Slab - This concrete foundation is reinforced with steel rods and suitable for flat ground.

Crawl Space - This foundation is raised off the ground with low walls resting on footings, providing space for wiring, plumbing, and storage.

Basement - This foundation is entirely or partially below ground and offers storage or living areas.

Walkout Basement - This foundation is typically suited for rear-sloping lots and provides storage or living areas. Walkout basements have doors that provide access to the outside.

FAQ

Why choose Archival Designs?

Archival Designs brings you over 35 years of experience in the house plan design business. We offer the best value for your money by offering the highest quality home designs.

We offer a 10% military & first responder discount, as well as builder discounts for life! Archival Designs guarantees the lowest prices anywhere online. Learn more about our Best Price Guarantee.

All house plans sold by Archival Designs have been designed to comply with the International Residential Code (IRC) and to the local codes in the area where the designer resides or where the house was built.

Do your plans meet building codes in my area?
Do your plans meet building codes in my area?
What is included in the construction drawings?
What is included in the construction drawings?
Will the plans be stamped or signed by an architect or engineer?
Will the plans be stamped or signed by an architect or engineer?
Will the foundation included in the construction drawings work for my site?
Will the foundation included in the construction drawings work for my site?
Do your plans include electrical, plumbing and mechanical drawings?
Do your plans include electrical, plumbing and mechanical drawings?

This beautiful and spacious home has plenty of great features. It boasts 2286 sq ft of living space with 4 bedrooms and 3 bathrooms.

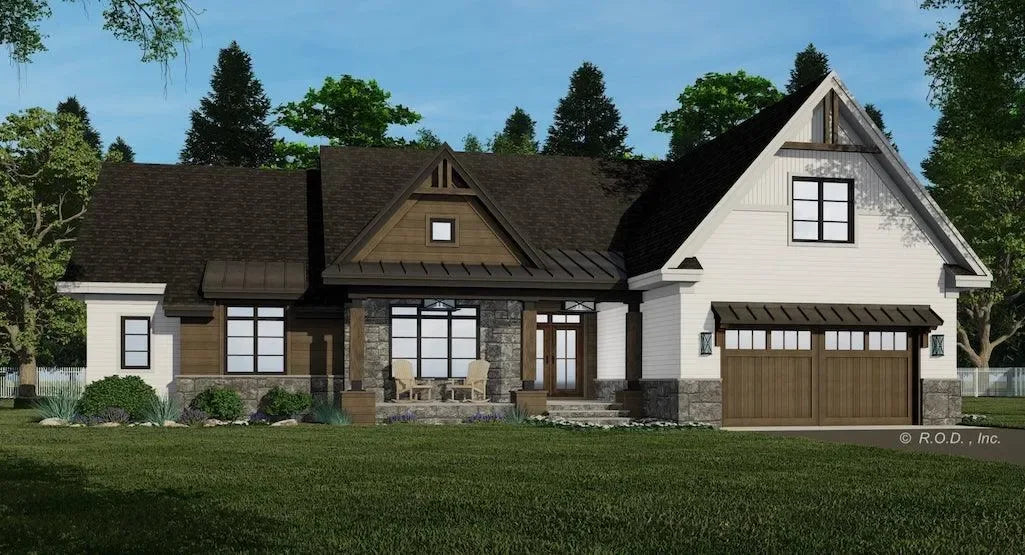

The exterior of the home is visually appealing, with an attractive design that catches the eye. As you enter through the covered front entry, you’re immediately struck by the open and inviting layout, with sight lines that allow you to see all the way to the back of the house.

The main level includes a large great room with a fireplace, providing a cozy and inviting space to relax and unwind. The kitchen is equally as impressive, with a generous island that can seat up to 5 people, as well as a walk-in pantry and multiple cabinets for ample storage. The dining area is also located nearby, making it easy to entertain guests.

The main level also features a spacious master suite, complete with plenty of closet space for all your storage needs. The master bathroom is equally impressive with luxurious fixtures and finishes that make it a true oasis.

Upstairs, you’ll find an additional 299 sq ft of bonus space that can be used for a variety of purposes. This space is versatile and can be customized to suit your needs, whether you want a home office, a playroom or a guest suite.

Throughout the house, there are numerous windows that let in plenty of natural light, creating a warm and welcoming atmosphere. The large covered rear porch is another standout feature, providing the perfect place to relax and enjoy the outdoors in comfort.

Overall, this home offers a perfect blend of style and functionality, with plenty of space for a family to grow and thrive.
