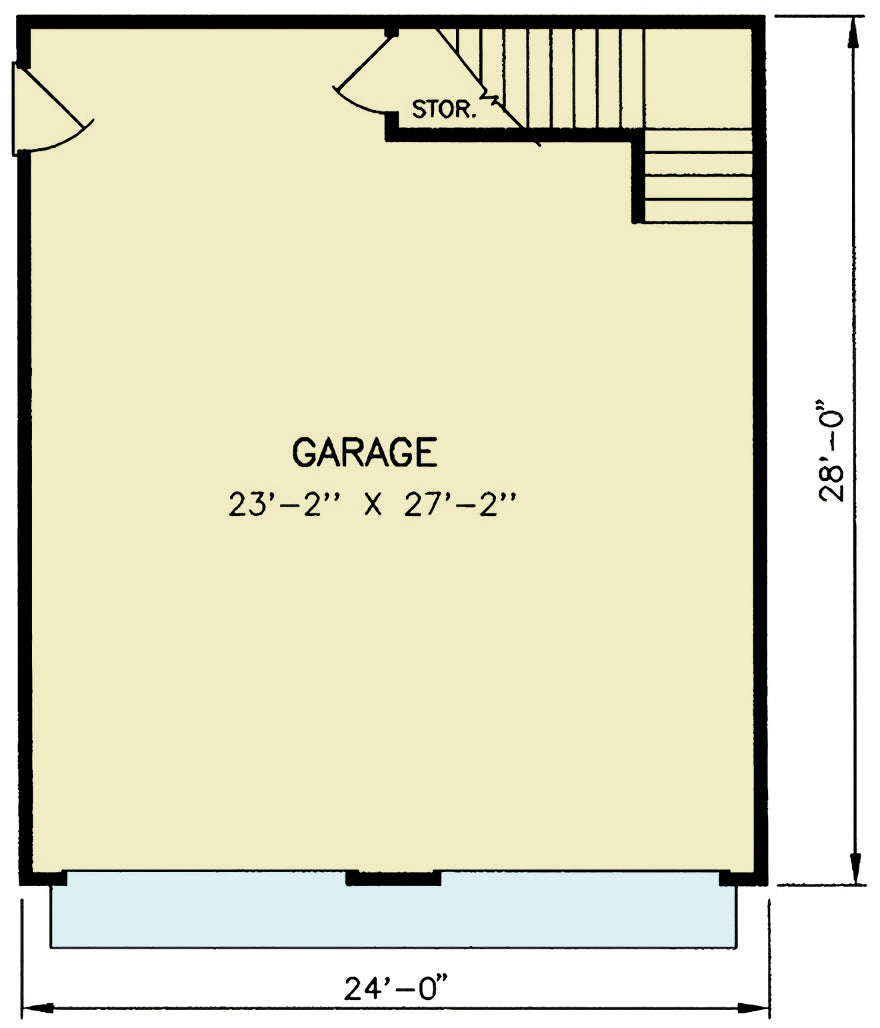

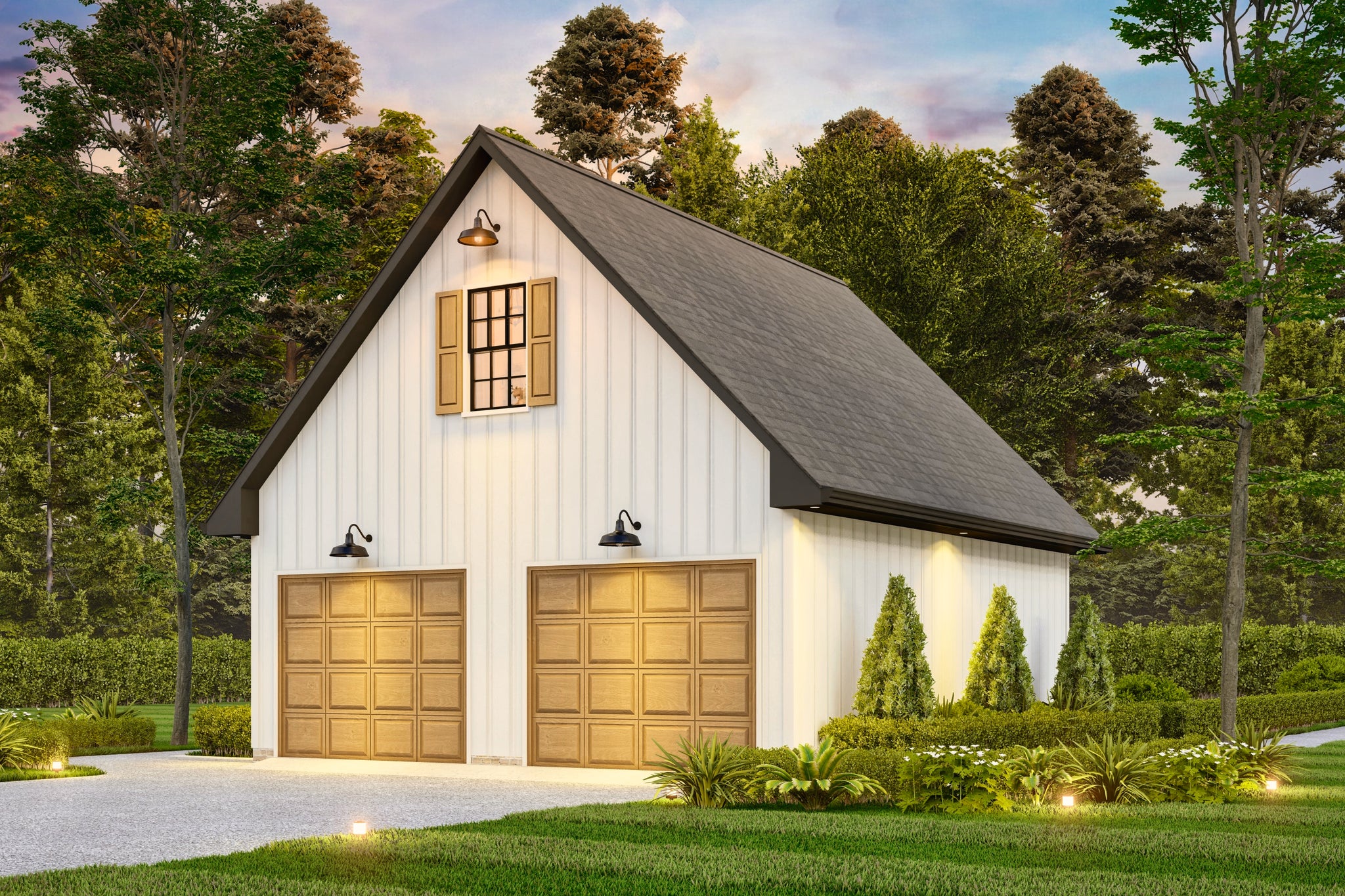

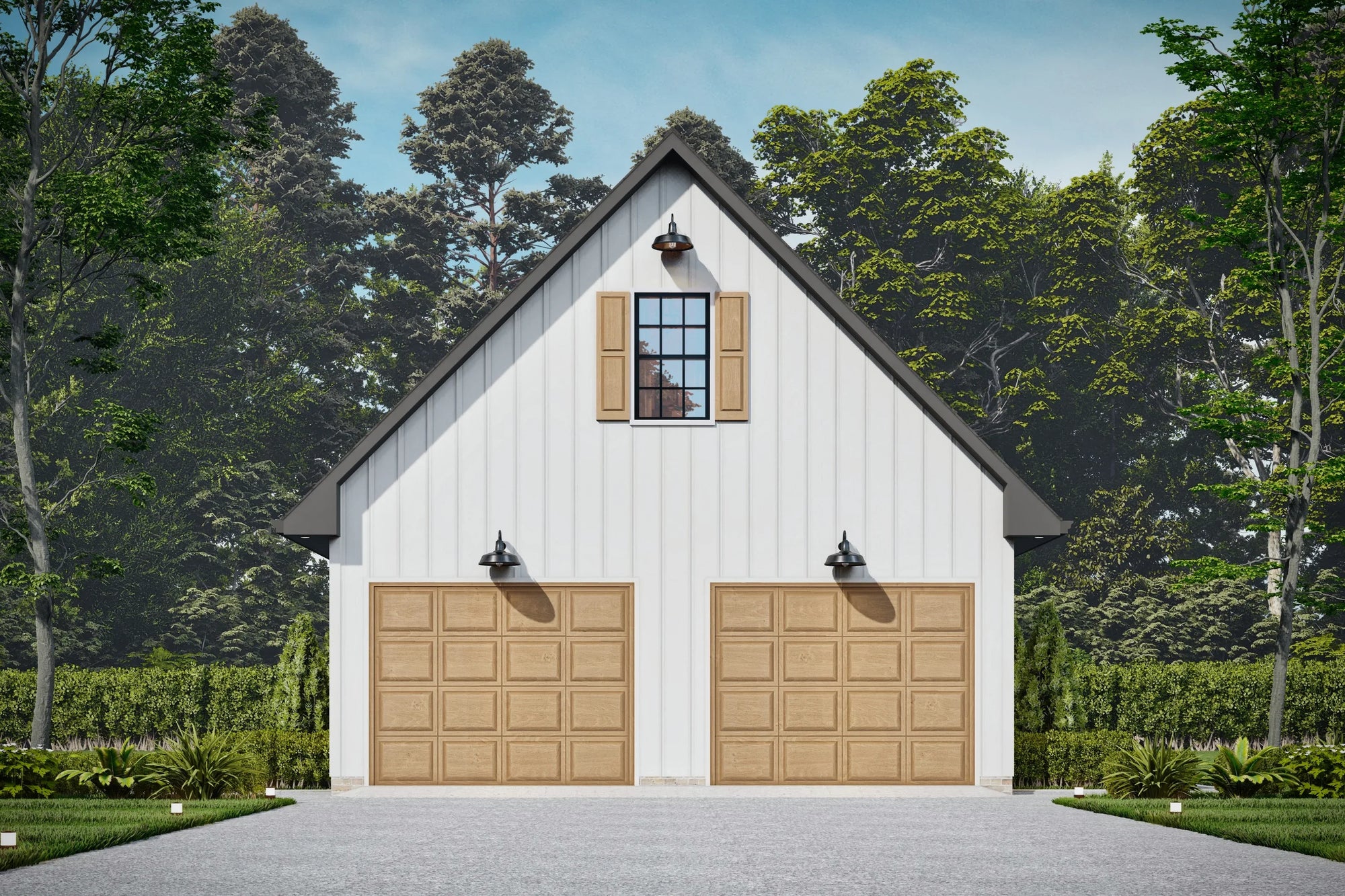

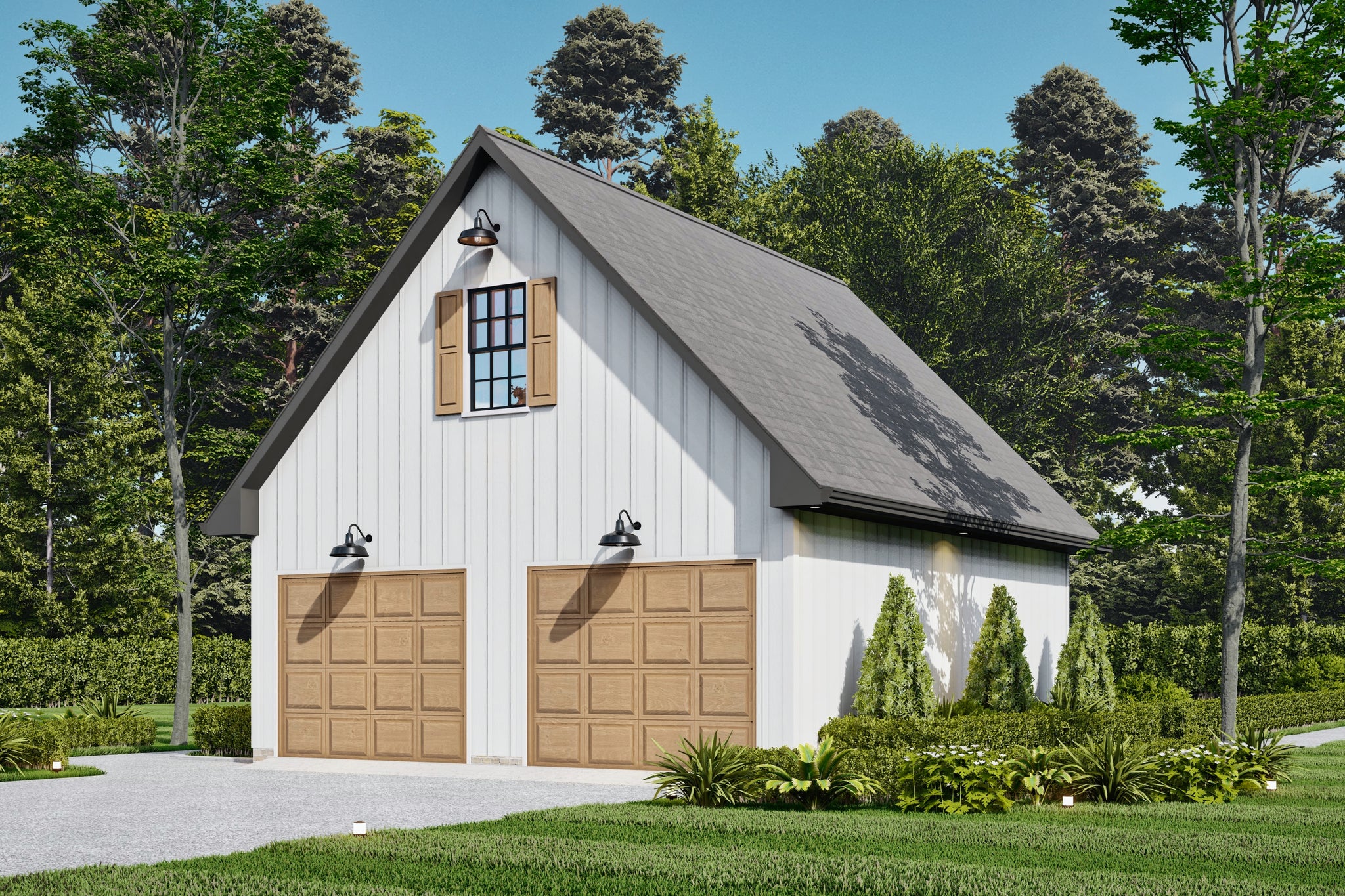

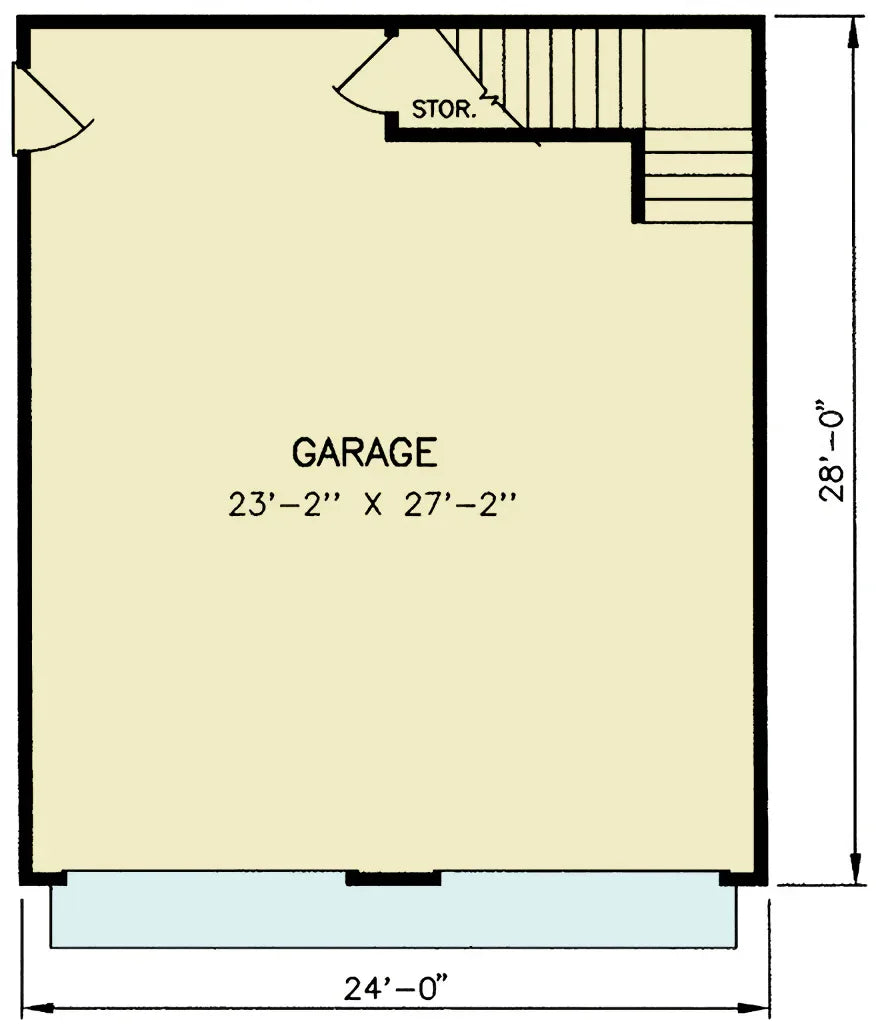

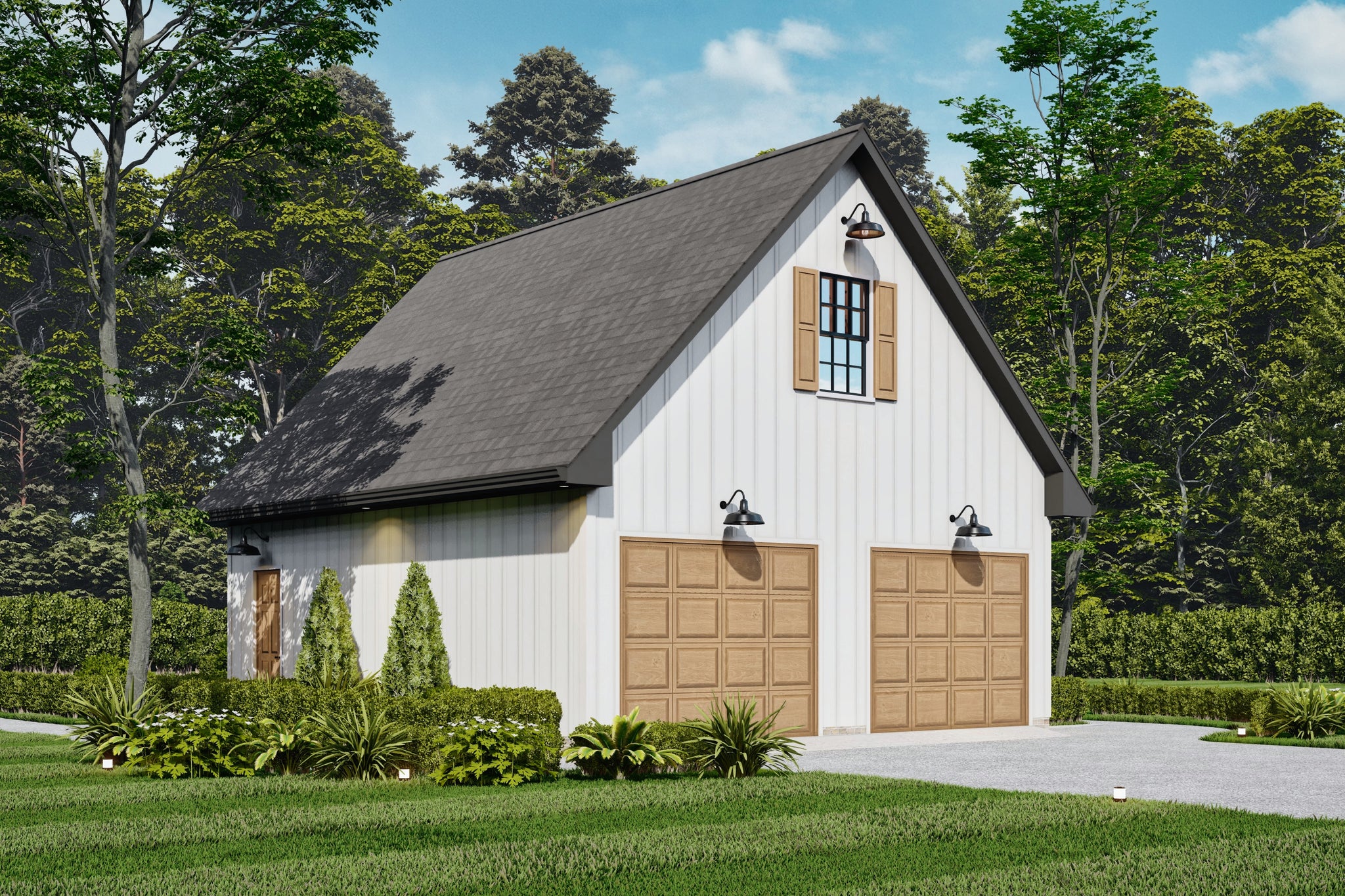

Mercury garage plan provides 672 sq ft of vehicle storage capacity within a compact 24 ft wide by 28 ft deep footprint. Designed as a versatile detached structure, this plan features a two-car front-load garage configuration that keeps main residential areas clear while offering dedicated space for automotive storage or a private workshop.
The interior of the garage area is defined by a 9-foot ceiling height, which provides the vertical clearance necessary for utility storage or overhead organization systems. Above the garage, an unfinished 383 sq ft attic space offers significant potential for future expansion. With an 8 ft 1 in ceiling height, this upper level is suitable for a hobby room, home office, or climate-controlled storage.

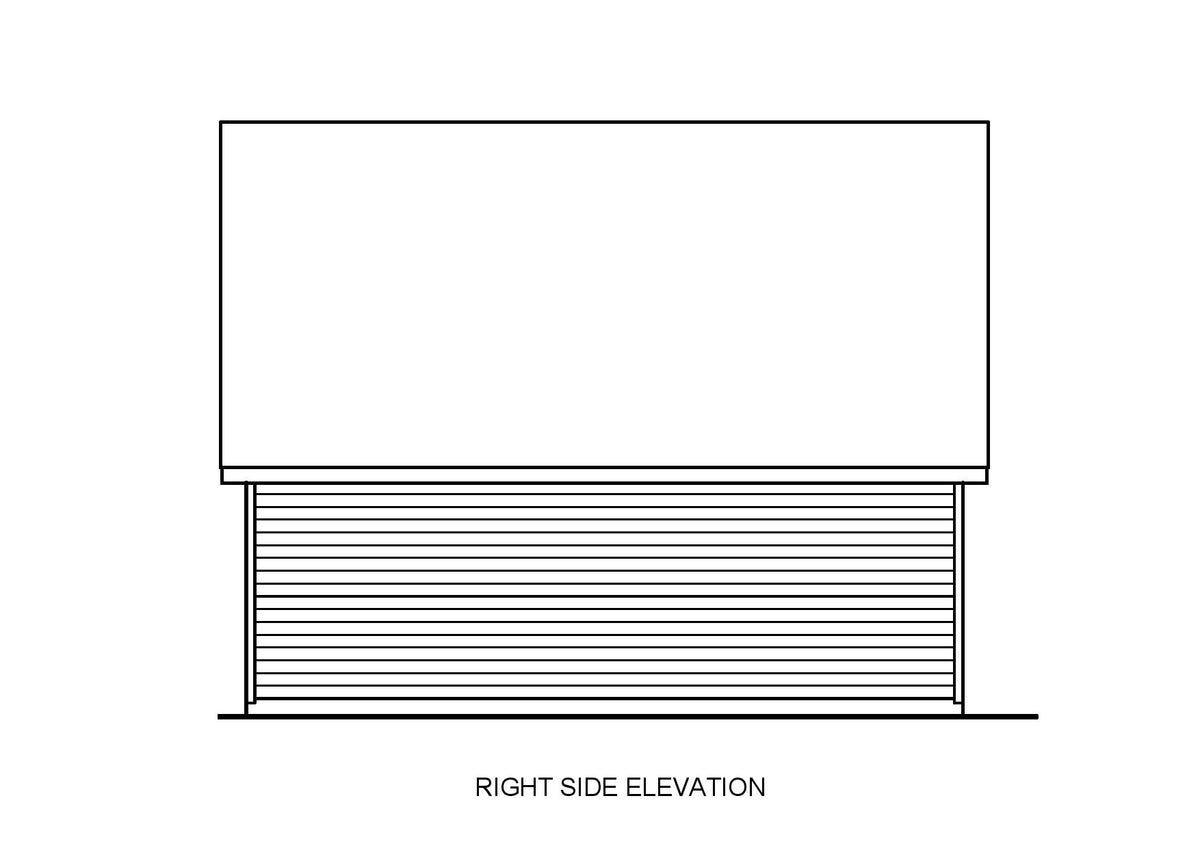

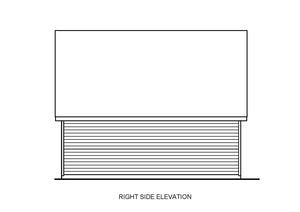

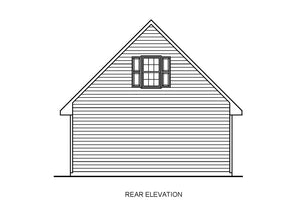

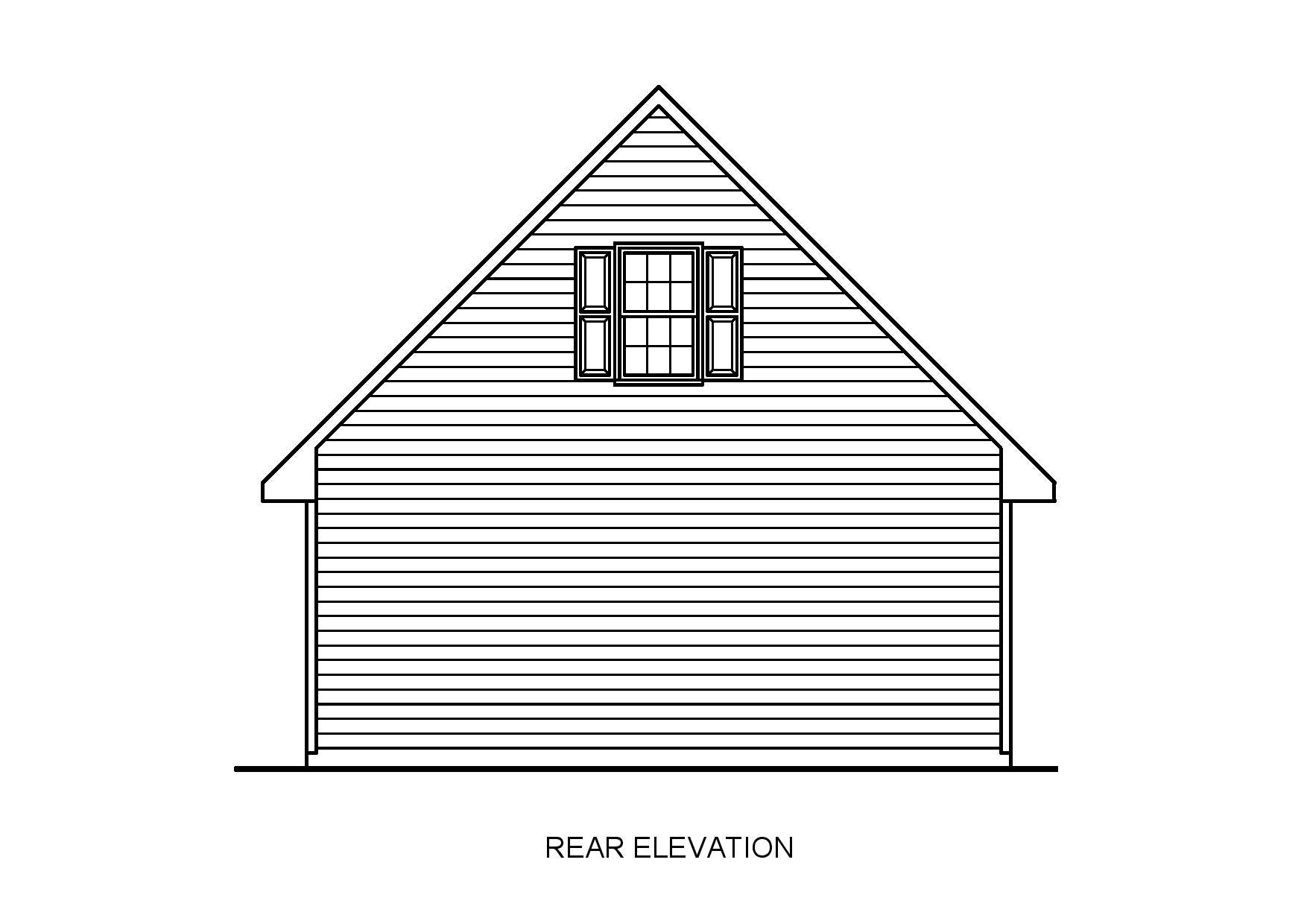

Constructed with 2x4 exterior wall framing and stick-framed roofing, the structure is engineered for long-term durability. The 12:12 roof pitch establishes a steep vertical profile, contributing to a total maximum building height of 22 ft 10 in. This geometry allows the structure to integrate with a variety of architectural styles while providing the necessary slope for efficient water runoff.
The 383 sq ft of heated living area is concentrated in the upper-level loft, creating a distinct separation from the primary garage floor. This layout maximizes the utility of the building envelope, ensuring that both storage and potential living quarters are effectively zoned within a single, manageable footprint.
Key Features: 2-car garage, front-load bays, 672 sq ft garage area, 383 sq ft loft, 12:12 roof pitch, 2x4 exterior wall framing, stick-framed roof, 9 ft main floor ceiling, 8 ft 1 in second floor ceiling, detached outbuilding design, unfinished attic storage.
