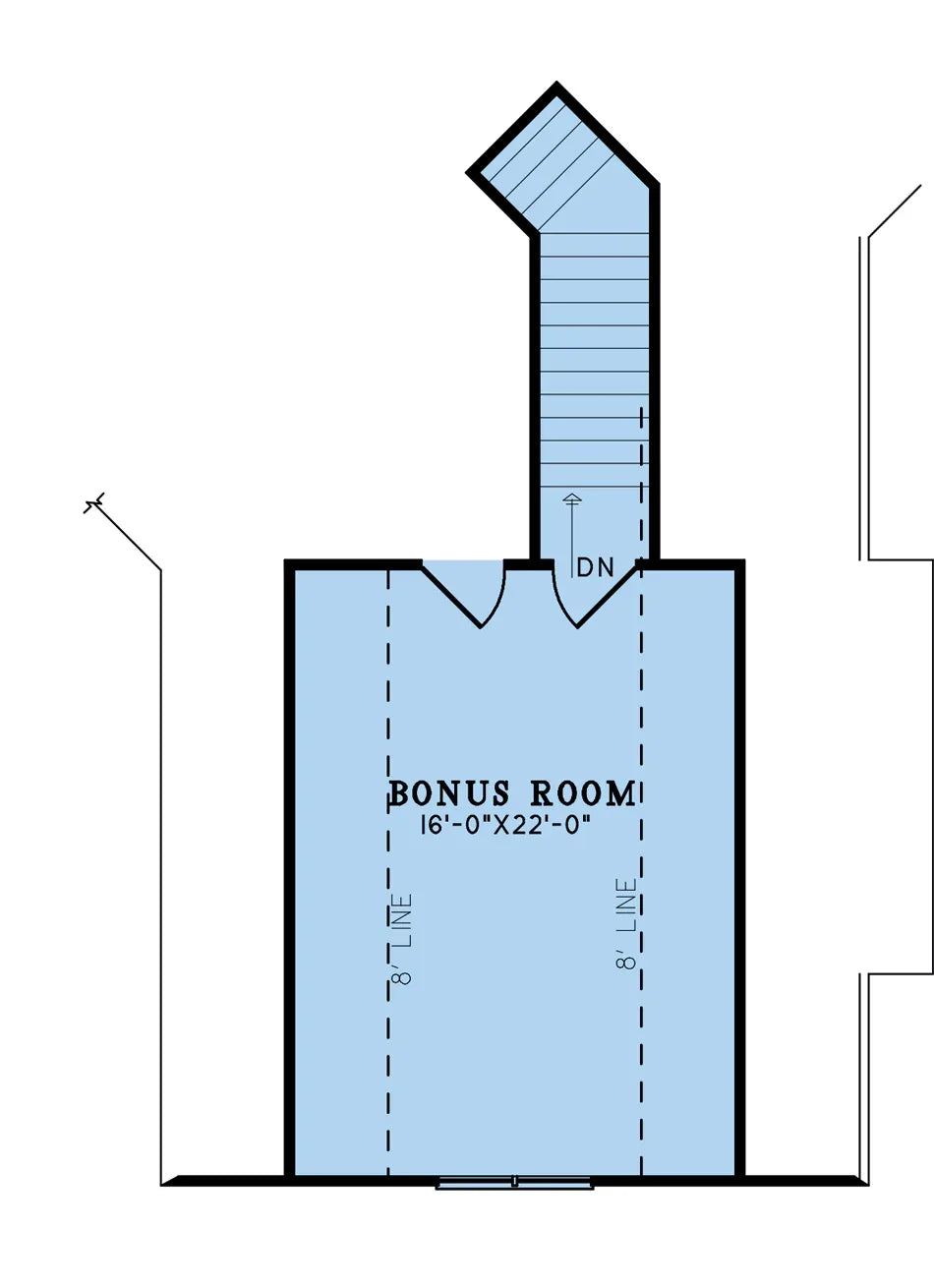

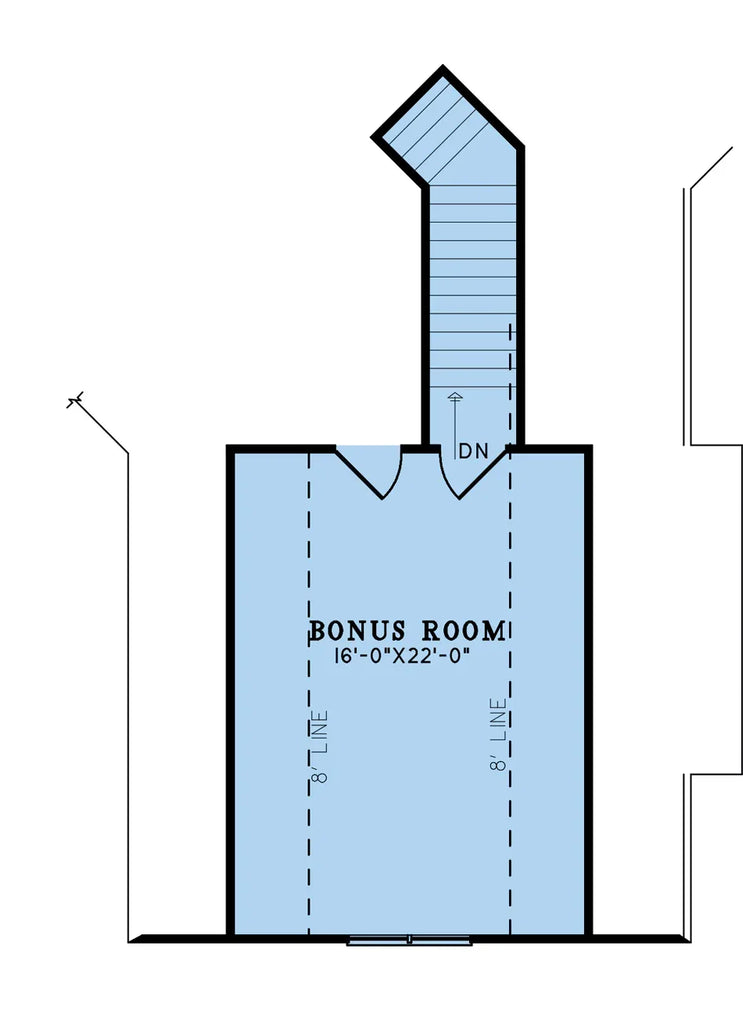

Spacious 3 Bedroom Craftsman Retreat provides 2,085 square feet of heated living space, anchored by an 80-foot 9-inch width that suits substantial lots. This single-story design emphasizes horizontal convenience while incorporating a 378-square-foot bonus room that offers a flexible area for a media center or home gym. The exterior showcases classic Craftsman detailing, including a steep 12:12 roof pitch and 467 square feet of combined covered porch space that defines the front and rear elevations.

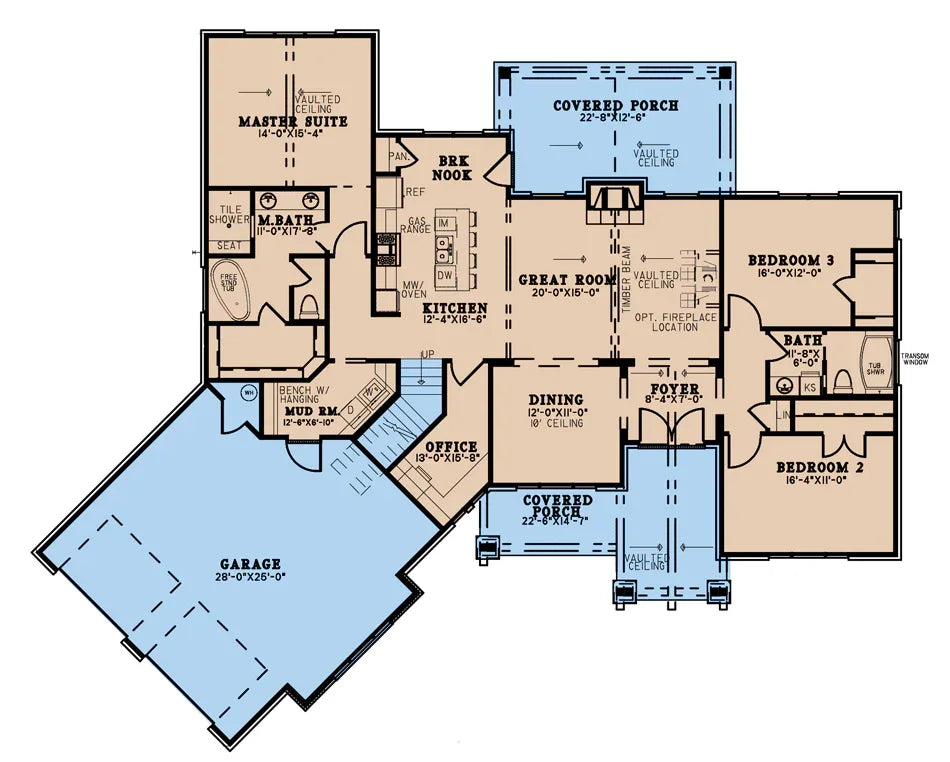

The interior architecture centers on an open-concept core where the great room connects directly to the kitchen and breakfast area. A central kitchen island and integrated eating bar provide utility, while a walk-in pantry supports organizational efficiency. The layout includes a dedicated home office and a mudroom, ensuring distinct zones for daily tasks. The primary suite is positioned on the main level, featuring a private bath and a walk-in closet, while secondary bedrooms utilize a Jack and Jill bathroom configuration to maximize floor area efficiency.
Standing at a maximum height of 26 feet 7 inches, the home utilizes 9-foot ceilings throughout the main level to enhance the sense of volume. The structural design includes 2x4 wall framing and offers both slab or crawl foundation configurations to accommodate varying soil conditions. The 66-foot 9-inch depth of the footprint allows for a well-proportioned layout that separates public living zones from private sleeping quarters.
A front-load, 2-car angled garage covers 714 square feet, providing a functional footprint that minimizes the visual impact of the driveway while maintaining direct access to the interior. The combination of the 2,085-square-foot main level and the additional bonus space results in a total area of 3,644 square feet, providing a comprehensive footprint for those seeking a single-story layout with expandable upper-level potential.
Key Features: 3 bedrooms, 2 bathrooms, single-story configuration, 378 sq ft bonus room, open-concept great room, island kitchen, walk-in pantry, home office, Jack and Jill bathroom, 2-car angled garage, 9-foot ceilings, 12:12 roof pitch.
Review floor plans, CAD packages, and customization options for this home.
The construction drawings will include detailed, dimensioned floor plans, exterior elevations, roof plan, foundation plan, basic electrical layout, cross-section(s), foundation plan, and other general specifications. Some plans will include interior cabinet layouts.
View Sample Plan
Archival Designs brings you over 40 years of experience in the house plan design business. We offer the best value for your money by offering the highest quality home designs.
We offer a 10% military & first responder discount, as well as builder discounts for life! Archival Designs guarantees the lowest prices anywhere online. Learn more about our Best Price Guarantee.
All house plans sold by Archival Designs have been designed to comply with the International Residential Code (IRC) and to the local codes in the area where the designer resides or where the house was built.
All house plans are designed to meet or exceed the national building standards required by the International Residential Code (IRC). Due to differences in climate and geography throughout North America, every city, local municipality and county has unique building codes and regulations that must be followed to obtain a building permit. Prior to purchasing a set of house plans, we recommend that you meet with your local building officials in order to determine the building requirements for your area. It is the responsibility of the purchaser(s) and/or builder to ensure that the structure is constructed to meet the codes of their local area.
Important Note:
House plans do not come stamped or signed by an architect or engineer. Additionally, house plans typically will not include structural engineering notes/calculations. Please check with your local building officials to determine if a stamp is required. If required, the building department will only accept a stamp from a licensed professional in the state where the home will be built.
Depending on your city, county, and state building requirements, house plans may need to be reviewed by a local licensed architect or engineer for structural details and code standards before construction begins. This is particularly true in coastal areas and those facing seismic events, extreme winds, and heavy snow. If you are building in any of these areas, a licensed structural engineer will likely be needed to provide the necessary calculations and additional drawings. We authorize the use of our plans conditioned on your obligation and agreement to strictly comply with all local building codes, ordinances, regulations, and requirements, including permits and inspections at the time of and during construction. We recommend checking with your local building department for the most current requirements. The purchaser(s) and/or builder are responsible for additional expenses incurred through meeting municipality requirements or other requirements for construction.
Our foundation plans have been designed for universal conditions and may need to be adjusted to fit your specific site conditions. The foundation should be modified by a local structural engineer to comply with soil testing laboratory findings and local building requirements.
Our house plans will include schematic electrical drawings; however, circuiting or wire sizing will not be included. Your electrical subcontractor will typically provide these drawings.
HVAC and plumbing drawings are not included. Your mechanical and plumbing subcontractors will determine the best layout for your site. Local HVAC codes, climatic requirements and commonly used systems vary throughout the country. The direction of how water flow will enter the home vary from case to case. For this reason, it is impossible to provide universal plans.
