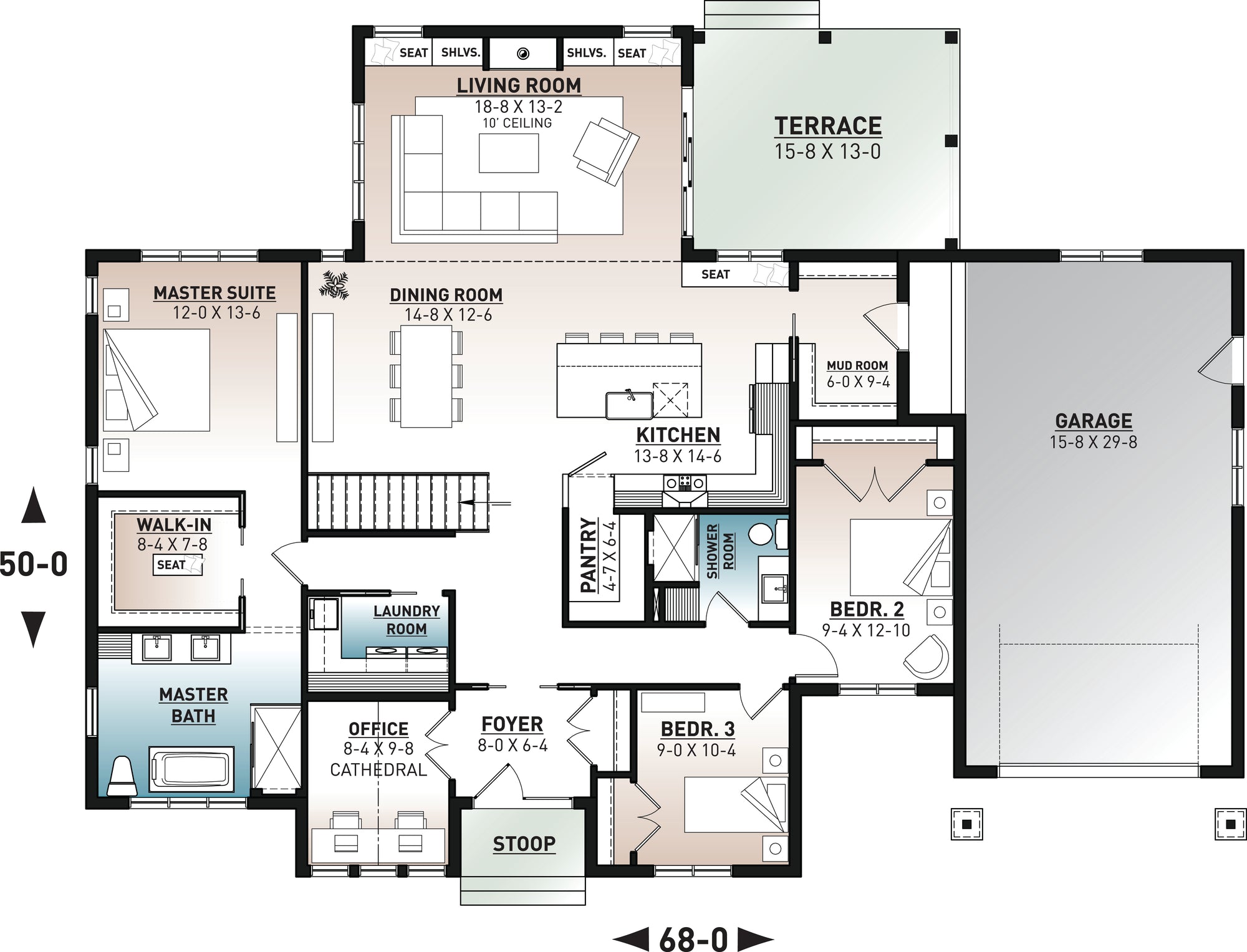

Floor Plan

Spacious Home with First-Floor Master Suite and Loft Area

This 3-bedroom, 2-bathroom home offers 1,953 sq ft of heated living space all on the first floor, with a 542 sq ft garage that includes a front-load design. The layout features a first-floor master suite with a walk-in closet, providing both privacy and convenience.

The home’s open floor plan includes a formal dining room, a kitchen with a spacious island, and a cozy living area. A mudroom adds practicality, while a home office/study offers a dedicated space for work or leisure. The loft/balcony provides additional space for relaxation or entertainment.

The split bedroom design offers added privacy between the master suite and the two additional bedrooms. Built with a basement foundation and durable 2x6 wall framing, this home combines functionality with comfort. The 9' ceiling height on the first floor creates an open and airy feel throughout.

View Sample Plan

What's Included in the House Plan:

Elevations – Exterior views of all sides, showing finishes, heights, and rooflines
Foundation Plan – Detailed layout of the foundation with dimensions and notes
Main Floor Plan – Floor layout with walls, fixtures, and openings clearly marked
Upper Floor Plan(s) (if applicable) – Layout of upper level(s) with room dimensions and notes
Roof Plan – Overhead view showing roof design, pitches, ridges, and valleys
Building Section – Cross-sectional view highlighting structural relationships and ceiling heights
Construction Details – Typical construction notes and sections for key building elements

What's Not Included:

Architectural or Engineering Stamp: Handled locally if required.
Site Plan: Created locally when needed.
Mechanical Drawings: Heating, air equipment, and ductwork to be designed by subcontractors.
Plumbing Drawings: Pipe sizes and locations to be determined by subcontractors.
Energy Calculations: Handled locally if required.

House Plan Specifications

Total Living (heated area): 1953 sq ft

All Unheated Under-Roof Areas 542 sq ft

Total Structure 2495 sq ft

1st Floor: 1953 sq ft
Garage: 542 sq ft

Garage Bays: 1

Garage Load: Front
Bedrooms: 3

Bathrooms: 2
Foundation: Basement

Wall Framing: 2x6
Width of House: 68'

Depth of House: 50'

Building Height: 23'9''
First Floor Ceiling Height: 9'

Basement Ceiling Height: 8'

Key Features

First Floor Master Suite
Formal Dining Room
Home Office/Study
Kitchen Island
Loft/Balcony
Mud Room
Split Bedroom
Walk-in Closet
Walk-in Pantry

Modify this plan to make it perfect
