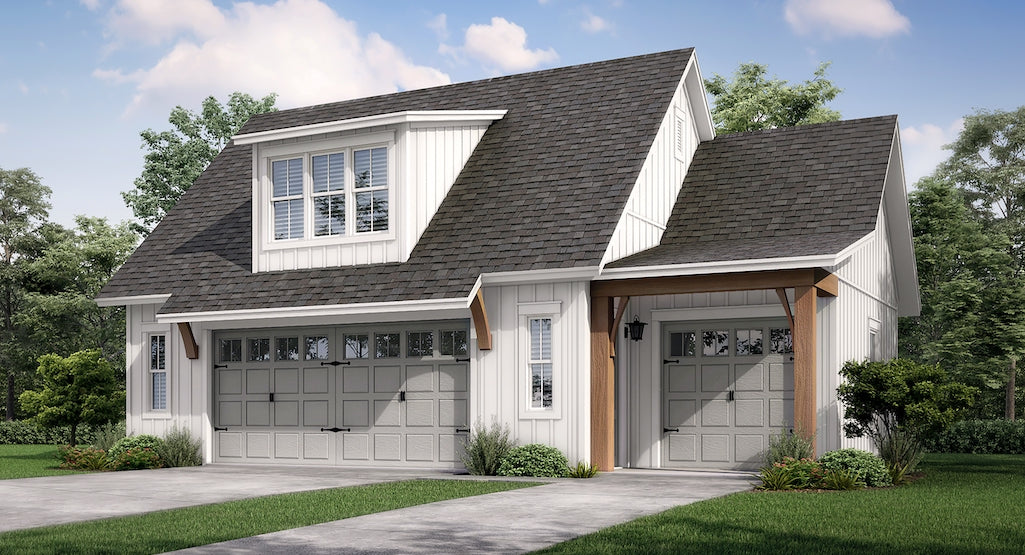

Laura Lane is a carriage house plan encompassing 512 square feet of heated living space situated above a 1,046 square foot garage. This design is optimized for property owners requiring a compact footprint, measuring 42 feet in width and 27 feet in depth. The structure features a 61 square foot front porch that serves as the entry point to the lower-level utility zone, supporting a variety of site configurations.

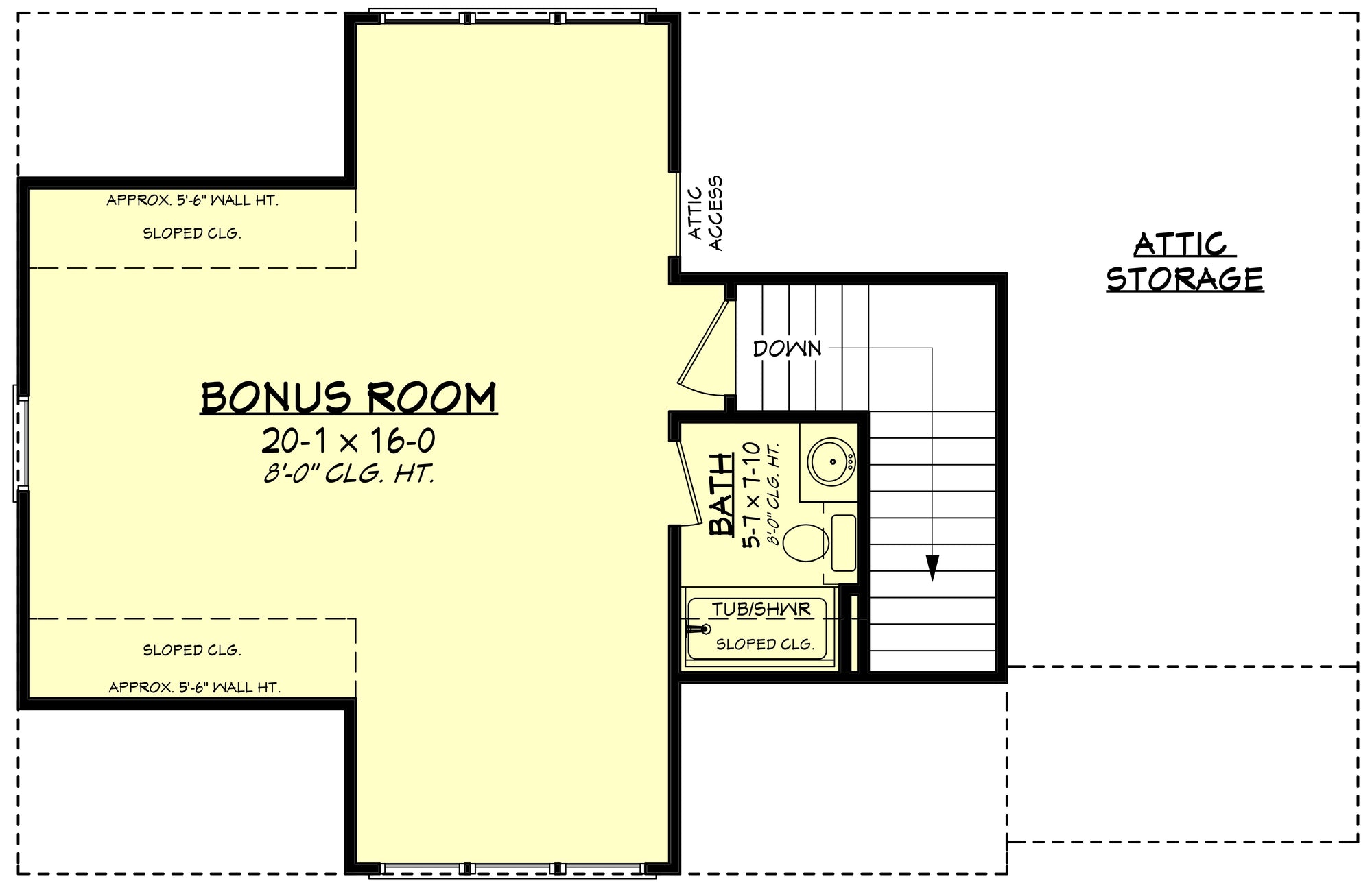

The second-floor living quarters utilize an open-concept layout that integrates a flexible bonus room and a full bathroom. By concentrating the living area on the upper level, the design provides a distinct separation from the primary garage structure, making it a viable configuration for guest accommodations or independent living units. The interior volume is defined by a 9-foot ceiling height on the first floor and an 8-foot ceiling height on the second floor.
Technical specifications include a slab foundation and 2x4 wall framing, ensuring a straightforward construction process. The roof is built with stick-framed construction at an 8:12 roof pitch, contributing to a maximum building height of 25 feet. These structural choices emphasize durability and efficient material utilization, maintaining a consistent building profile.

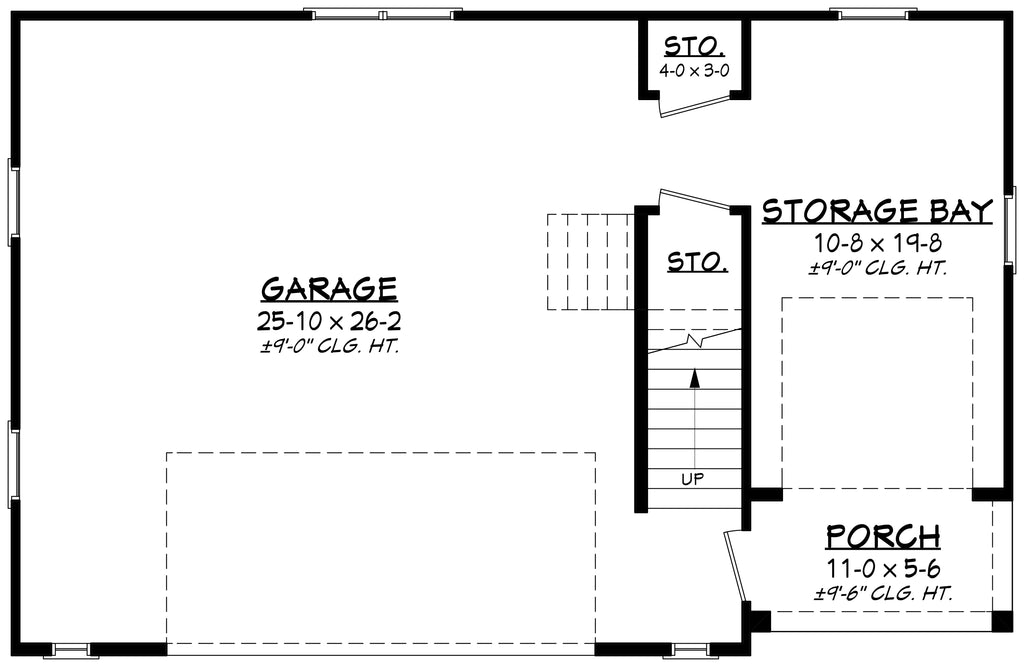

The side-load two-car garage provides substantial square footage for vehicle storage and mechanical needs. This orientation allows for a cleaner exterior aesthetic along the front elevation while maximizing the utility of the ground-level footprint. The integration of the parking zone beneath the living space minimizes the total site coverage, which is particularly beneficial for smaller lots or accessory dwelling unit applications.
Key Features: carriage house plan, 512 sq ft living area, 1,046 sq ft side-load 2-car garage, 8:12 roof pitch, 9-foot first-floor ceilings, 8-foot second-floor ceilings, slab foundation, 2x4 wall framing, open-concept bonus room, accessory dwelling unit.
