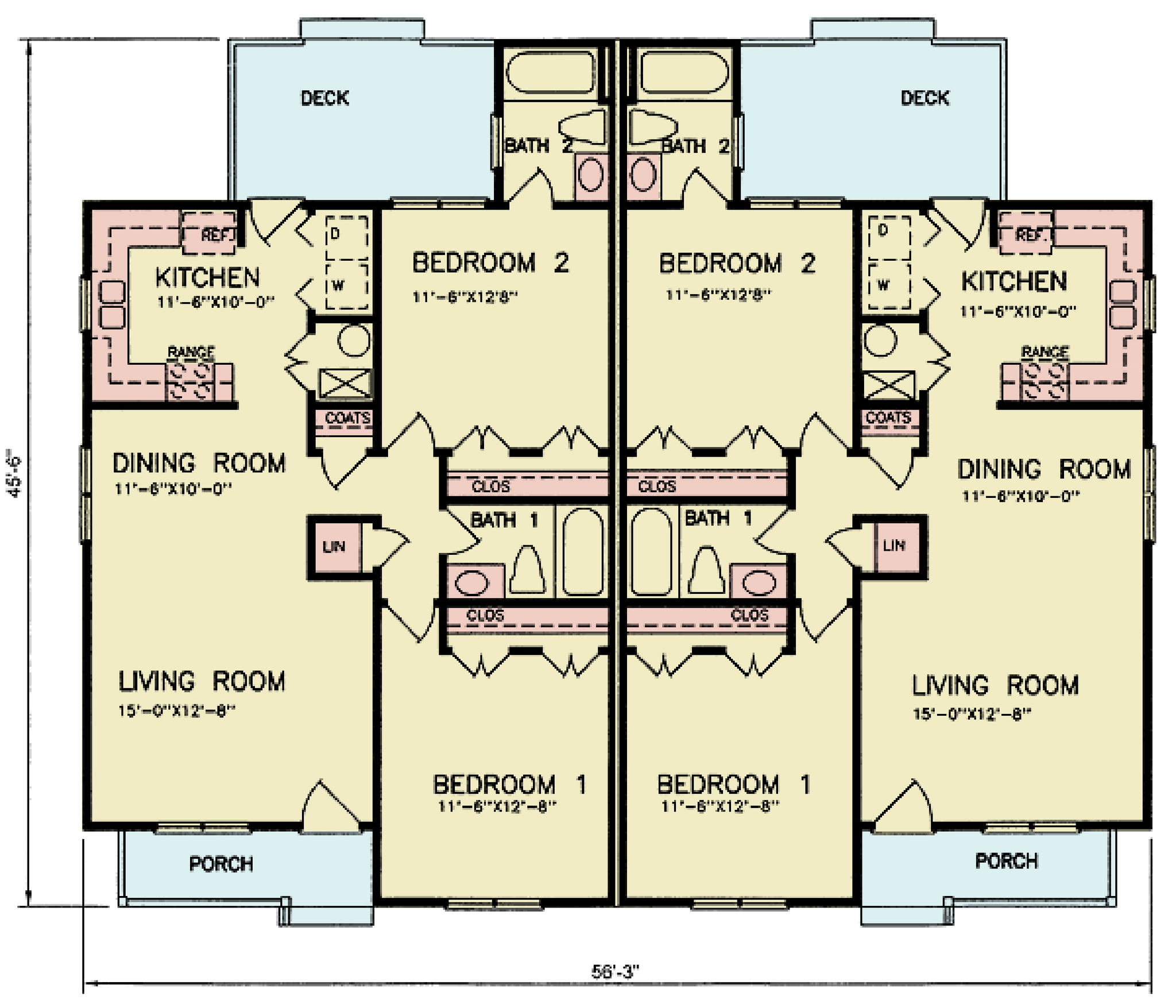

The Henson house plan is a duplex configuration spanning 2,071 sq ft of total heated living area, designed to provide two separate residential units of 1,035 sq ft each. With a footprint measuring 56'3" wide by 45'6" deep, this one-story design is optimized for narrow-to-medium lot profiles. The structure features a 108 sq ft covered front porch and a combined 238 sq ft of rear deck space, facilitating distinct outdoor access for both households.
Each unit within the Henson contains 2 bedrooms and 2 full bathrooms, totaling 4 bedrooms and 4 bathrooms across the entire building. The interior layout prioritizes a first-floor master suite and a dedicated keeping room, which serves as a secondary living area. This distribution of space allows for independent living within a shared structure, making it suitable for multi-generational requirements or rental income property investment.
The building reaches a maximum height of 15'10" and is constructed with 2x4 stick framing, ensuring a conventional and efficient build process. The roof design utilizes a 6:12 roof pitch, which contributes to the traditional architectural profile of the exterior. The 8-foot ceiling height throughout the first floor maintains a consistent scale across the living, dining, and kitchen zones of both units.
Practicality is integrated into the site footprint, with the side-by-side arrangement allowing for clear circulation paths and private entrances. The Henson provides a reliable structural solution for investors or homeowners seeking to maximize density without sacrificing the individual character of a single-family home. Its layout balances the need for communal gathering areas with the privacy required for four distinct bedroom suites.
Key Features: 4 bedroom duplex, 4 bathrooms, 2,071 total sq ft, 1,035 sq ft per unit, first-floor master suite, keeping room, 108 sq ft covered front porch, 238 sq ft rear deck, 6:12 roof pitch, 2x4 stick framing, 15'10" building height.
Review floor plans, dimensions, and available CAD packages to begin your project with the Henson house plan.
