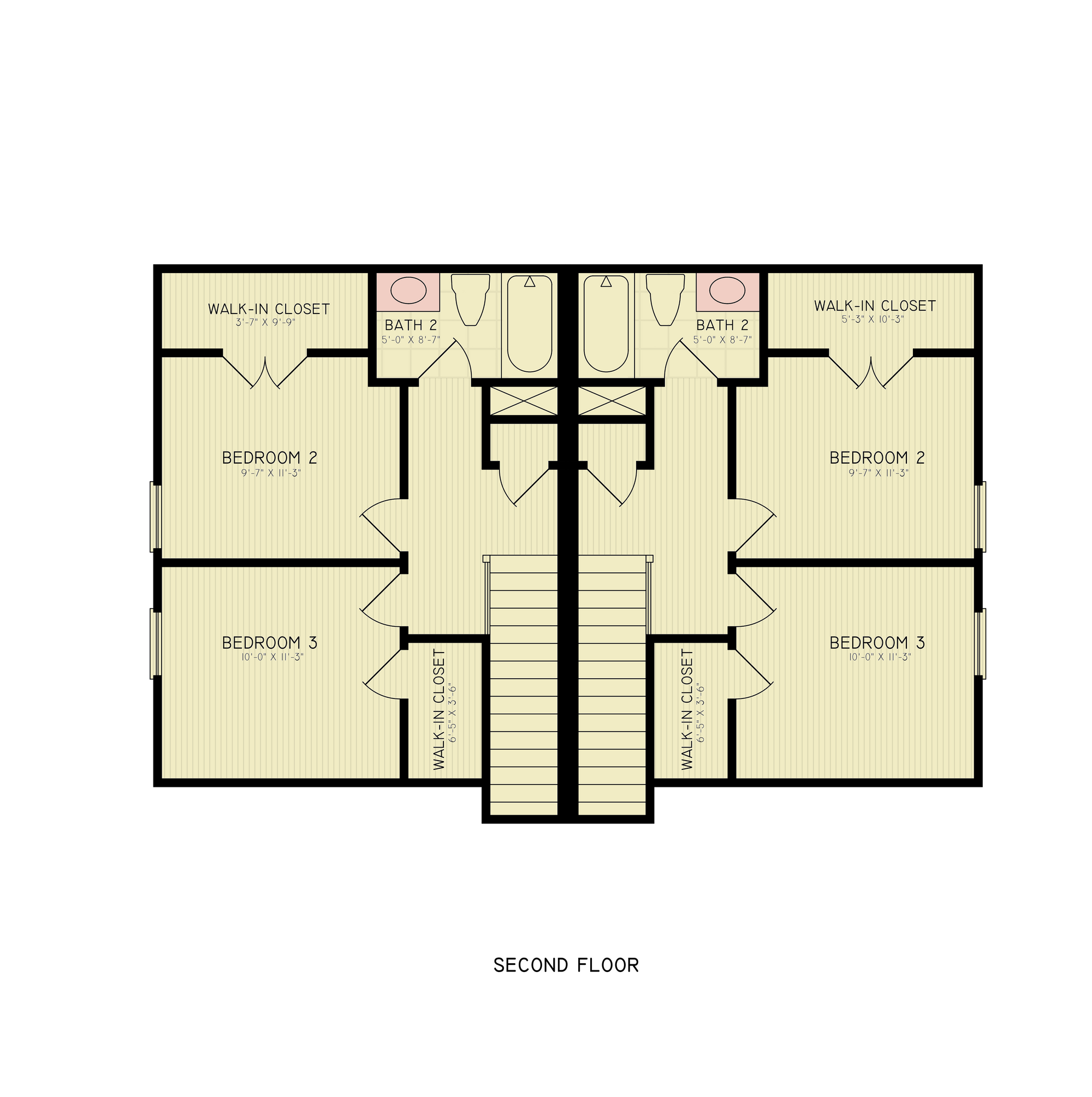

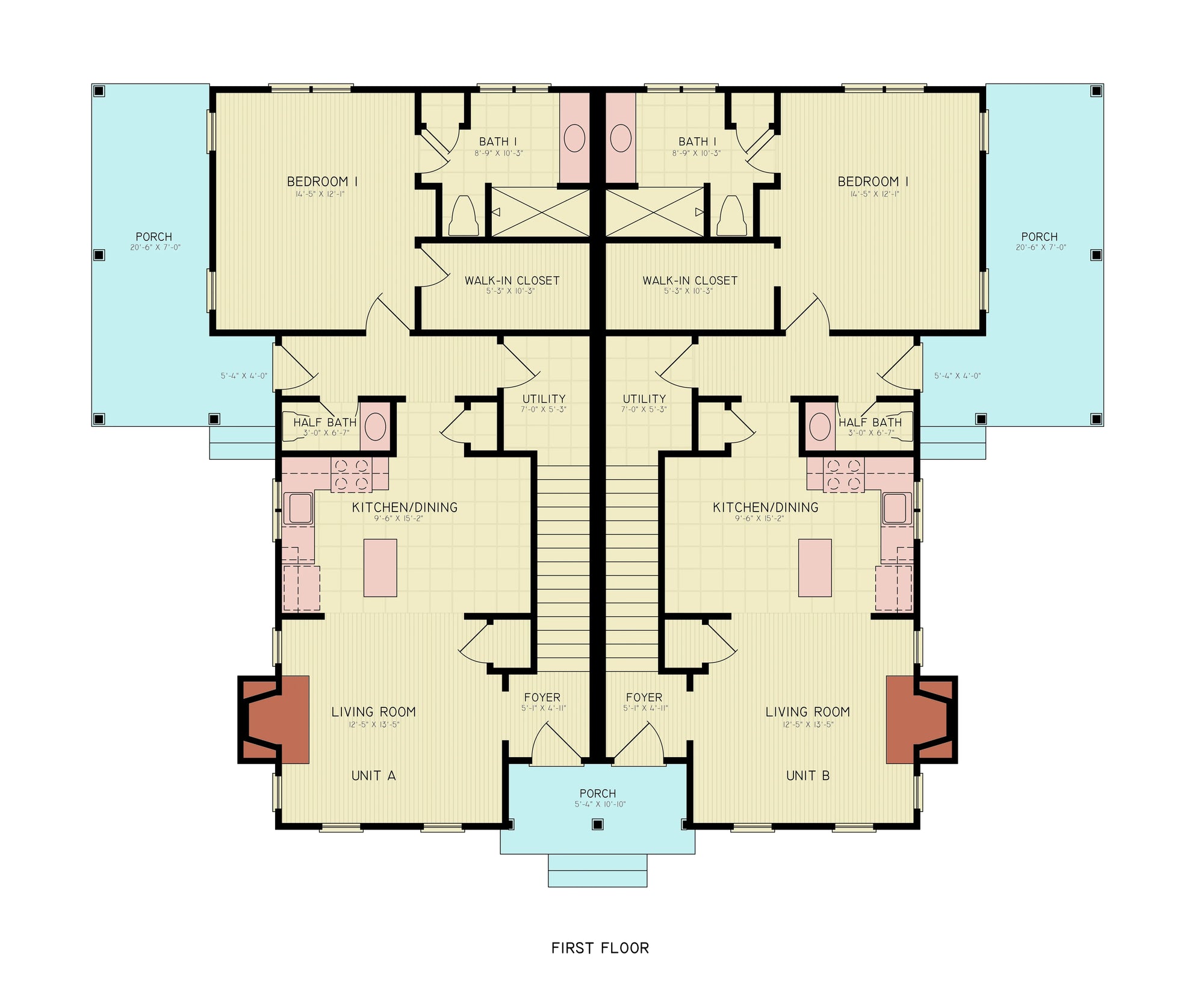

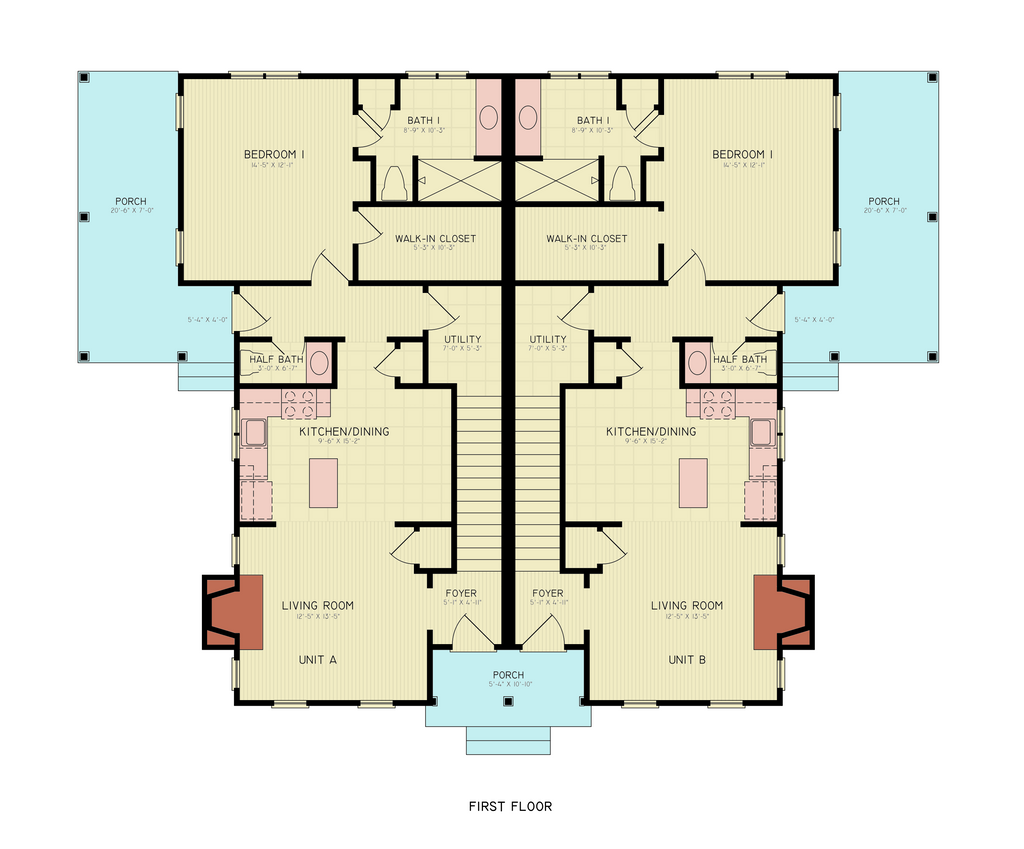

This spacious multifamily duplex house plan offers a total of 2757 sq ft of heated living space, thoughtfully divided between two units. The first floor provides 1871 sq ft, while the second floor adds another 885 sq ft, ensuring ample room for comfortable living. Each unit features 3 bedrooms and 2 bathrooms, along with an additional half bathroom for convenience. The open-concept layout includes a modern kitchen with an island, a walk-in pantry, and generous storage space, perfect for families or tenants seeking functionality and style. The first floor boasts a 9' ceiling height, enhancing the sense of space, while the second floor maintains a cozy 8' ceiling.
The exterior showcases charming architectural details, including a covered front porch and an inviting side porch, ideal for outdoor relaxation and socializing. The house features a 9:12 roof pitch with stick roof framing and durable 2x4 wall framing. Both units benefit from walk-in closets, providing ample storage and organization. A cozy fireplace adds a touch of warmth and elegance to the living areas. Set on a crawl space foundation, this duplex design combines practicality, comfort, and modern amenities, making it an excellent choice for families or investors looking for a versatile multifamily living solution.
