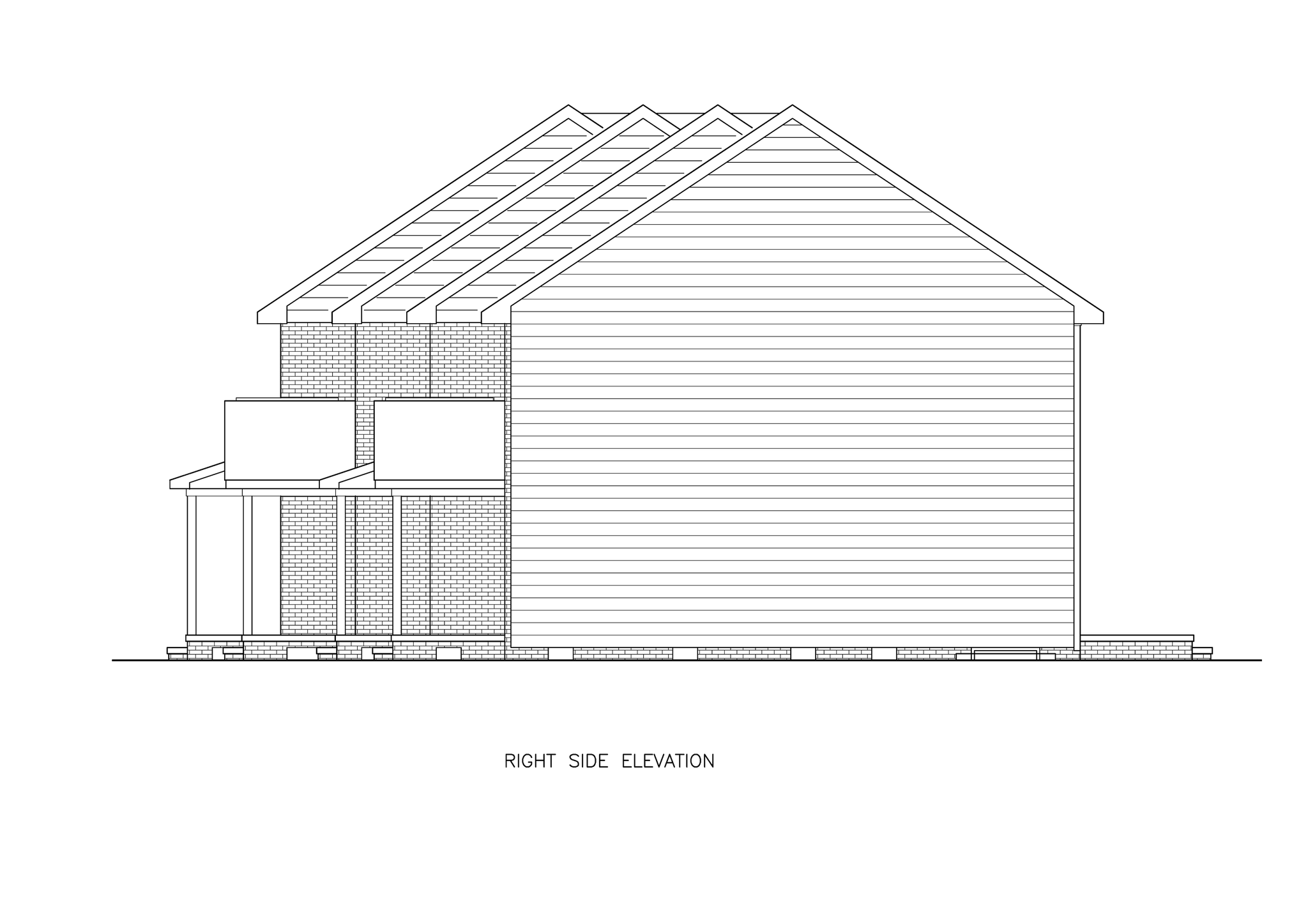

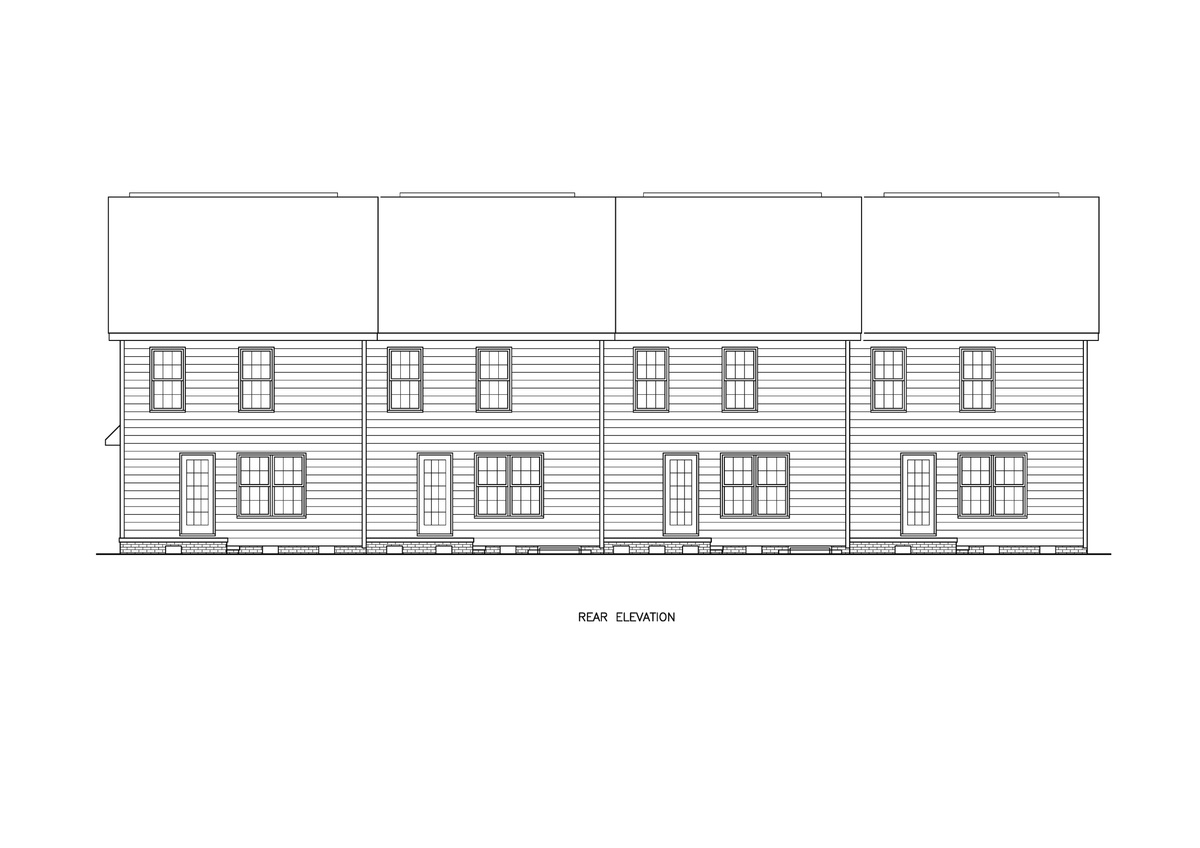

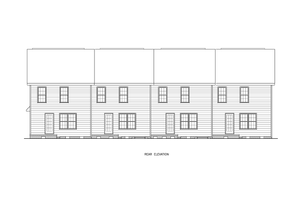

Hartwell House Plan is a two-story quadplex configuration providing 4,764 sq ft of total heated living space, distributed across four individual units. With a building width of 80 ft 1 in and a depth of 53 ft 5 in, this multi-family design is optimized for efficiency and rental income potential. The exterior features a classic profile defined by an 8:12 roof pitch and a maximum building height of 28 ft 7 in.

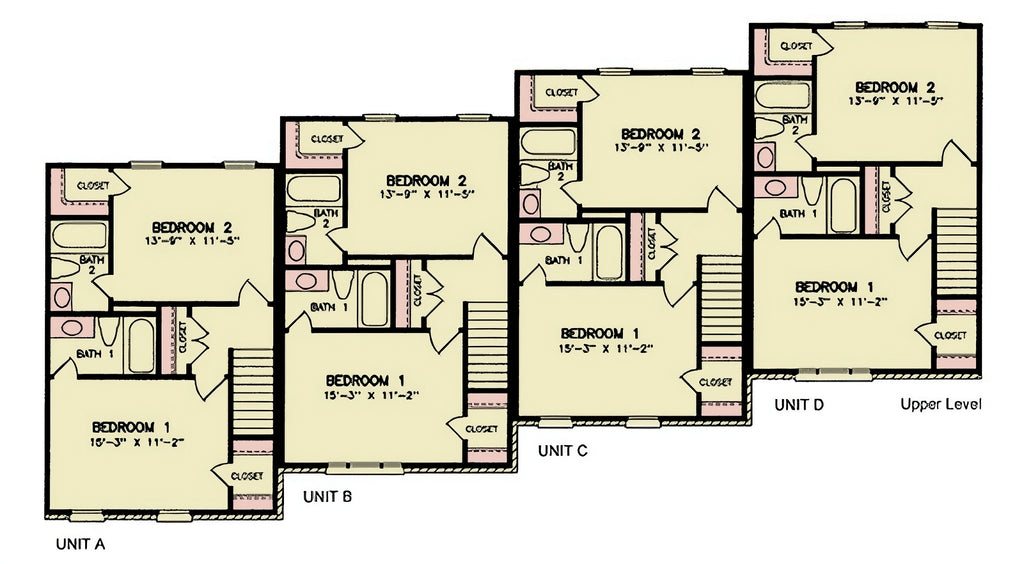

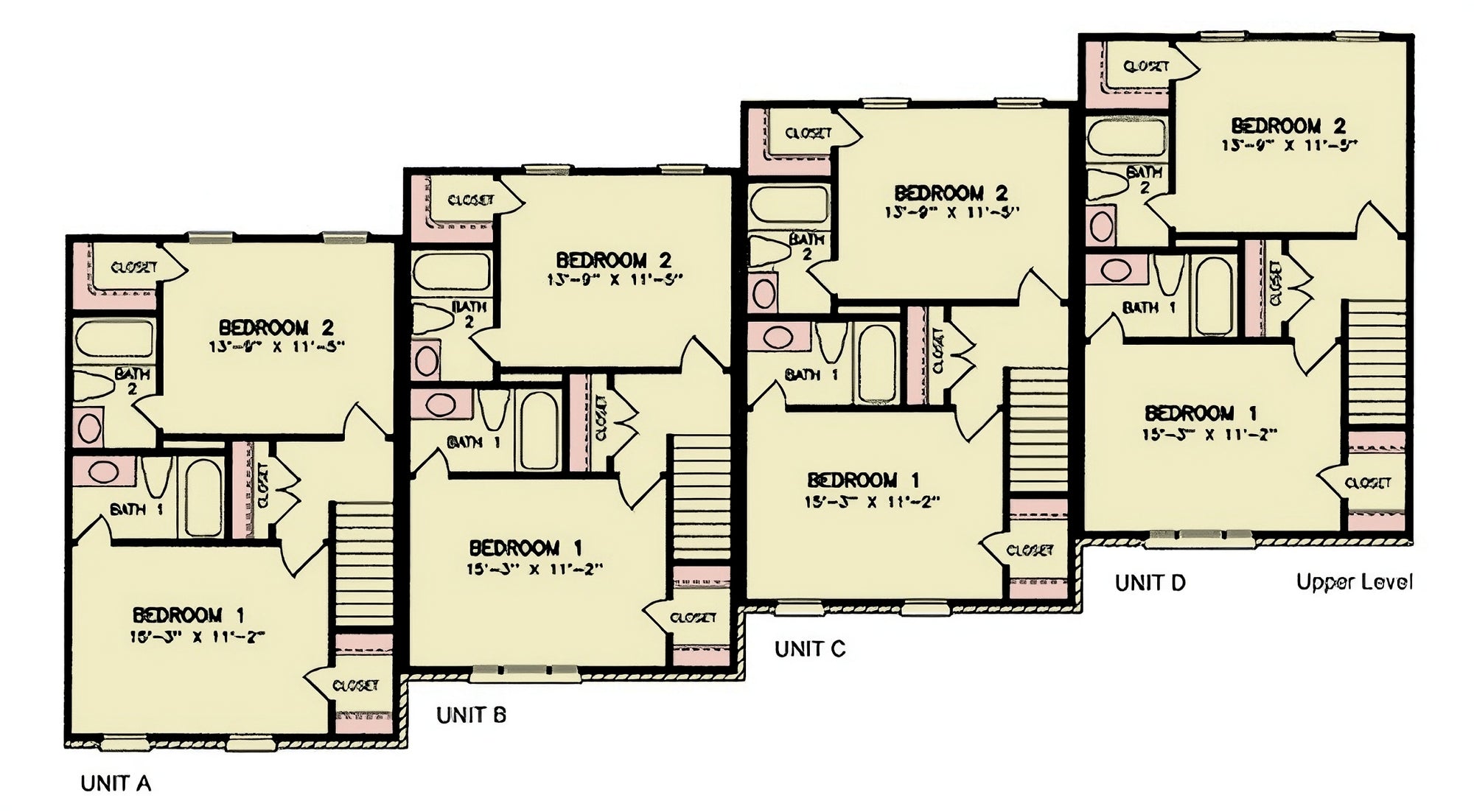

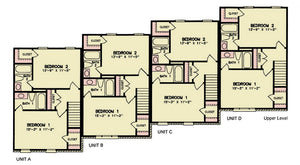

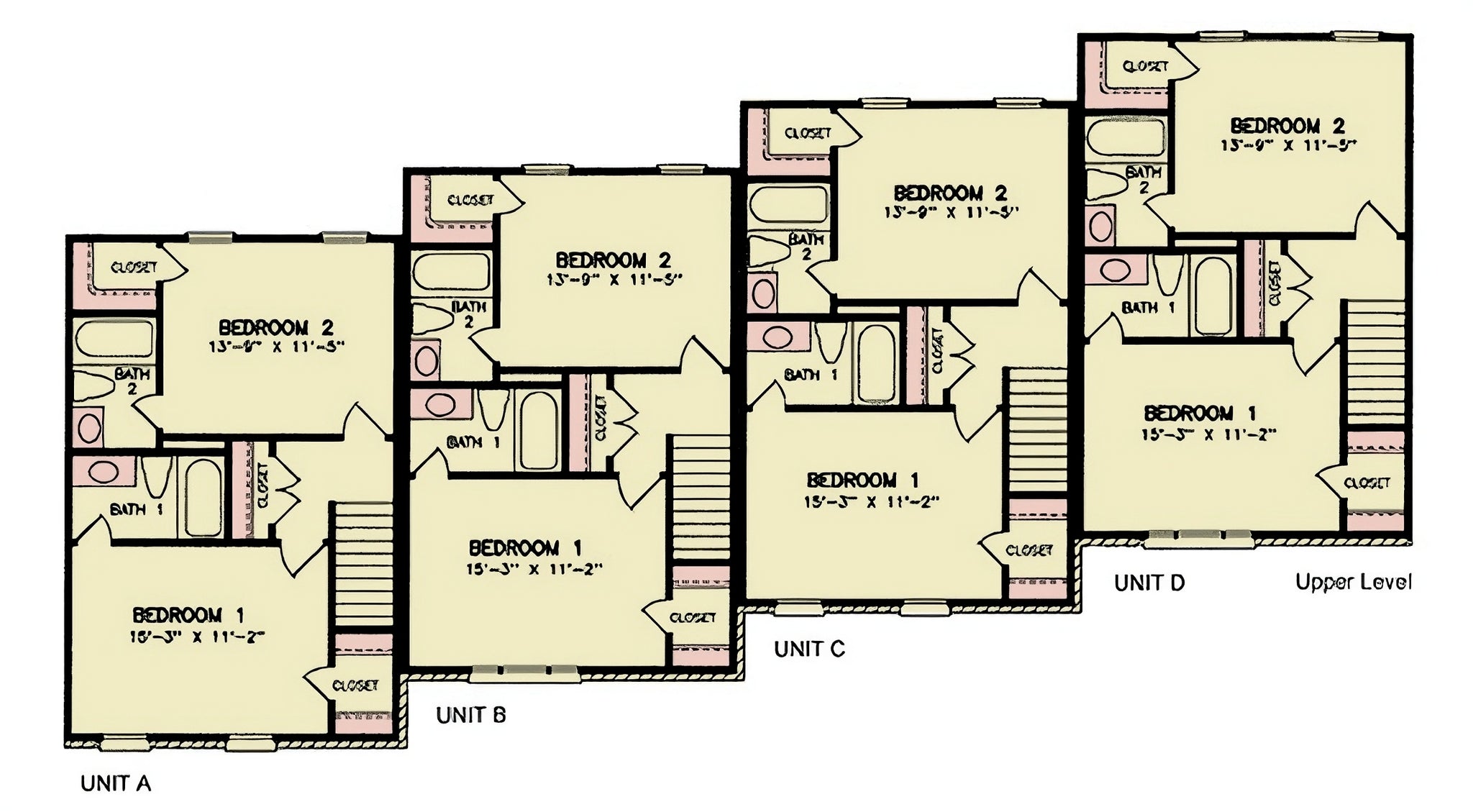

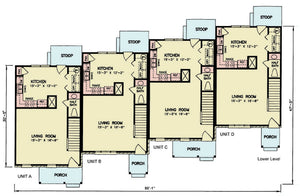

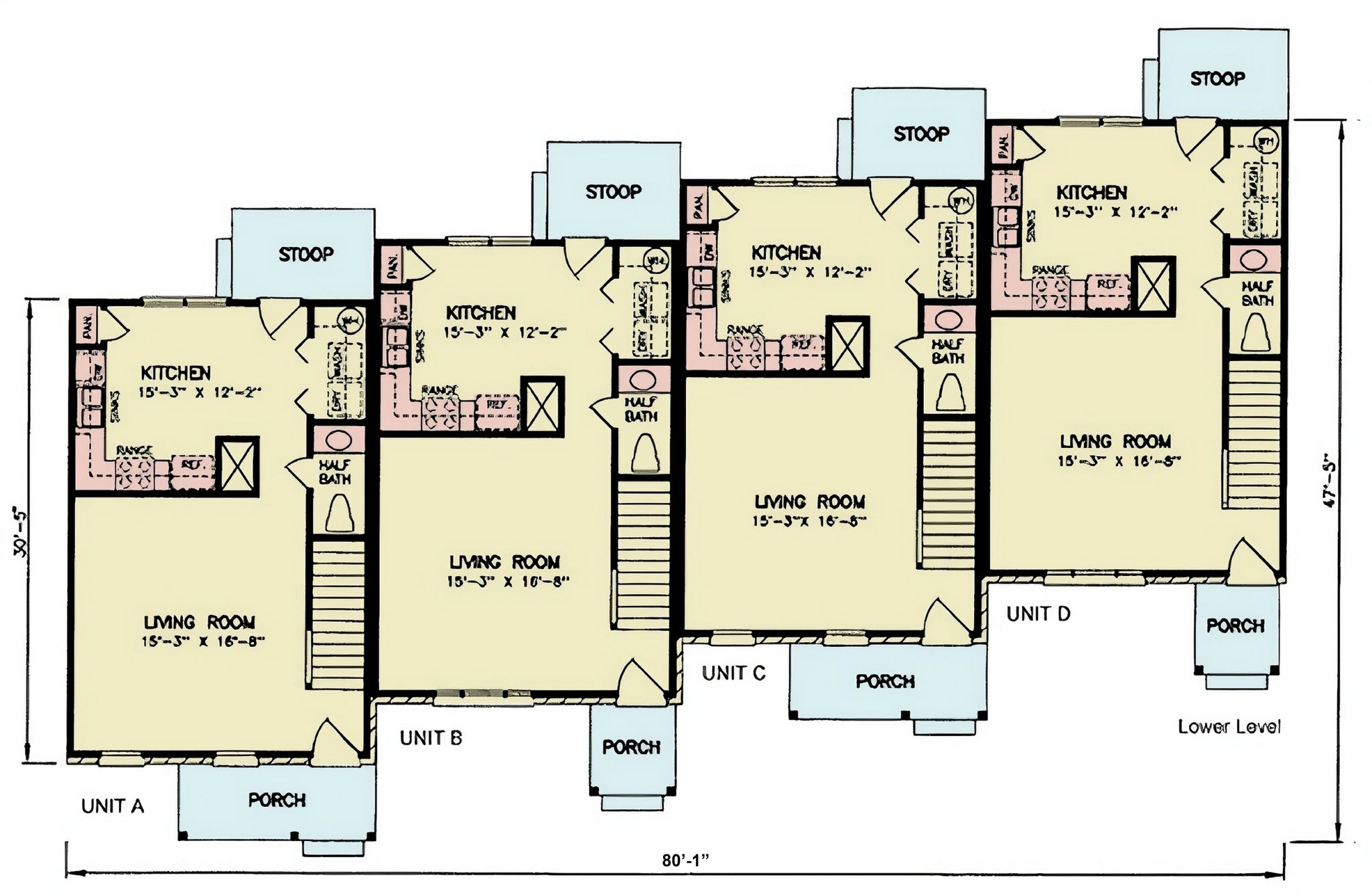

Each of the four residential units contains 2 bedrooms, 2 full bathrooms, and one half bathroom. The first floor of each unit spans 609 sq ft, while the second floor provides 582 sq ft of living area. The layout integrates an open-concept family room, a dedicated first-floor laundry zone, and a private master suite equipped with a walk-in closet and a full bathroom to ensure consistent utility across all units.

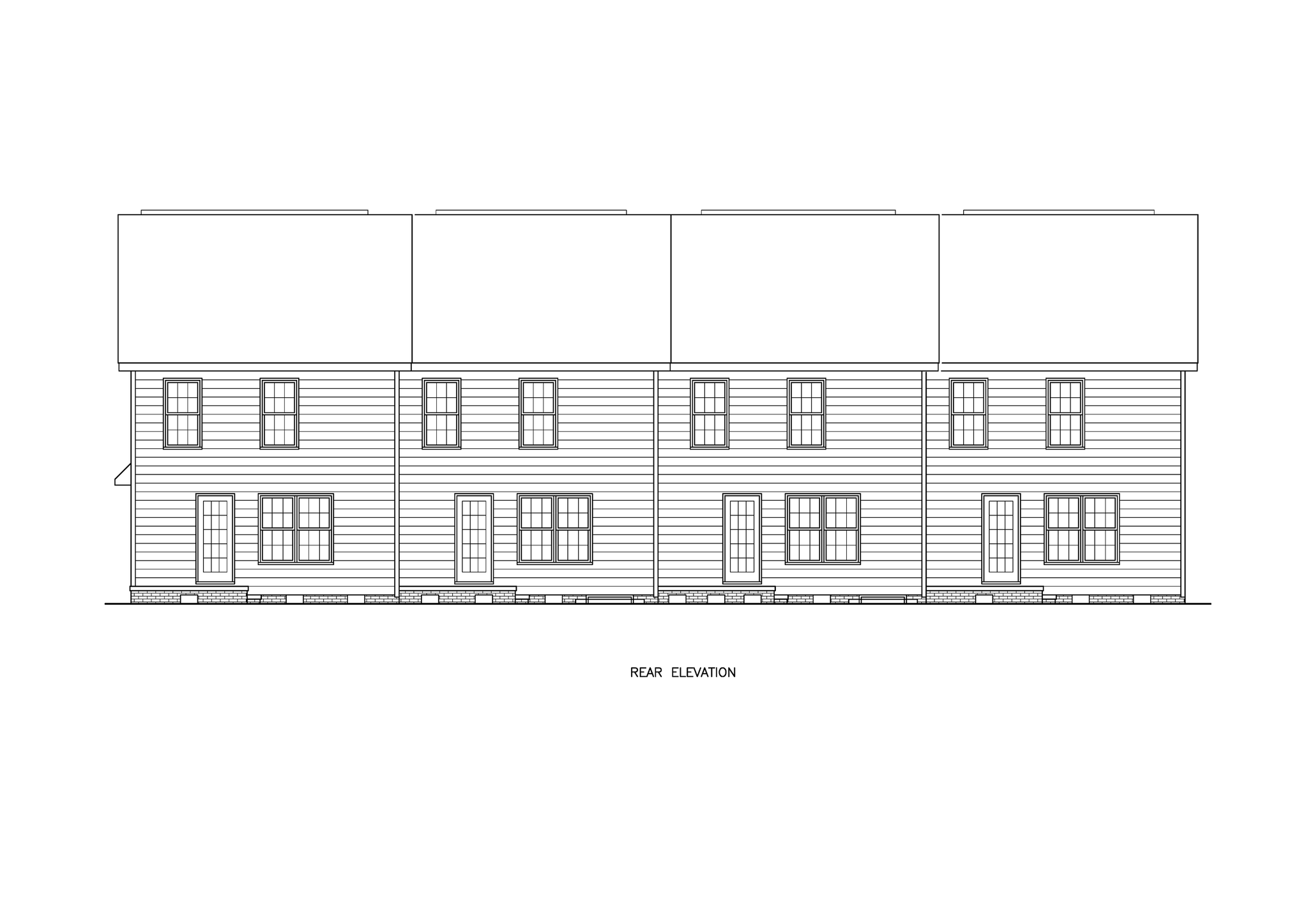

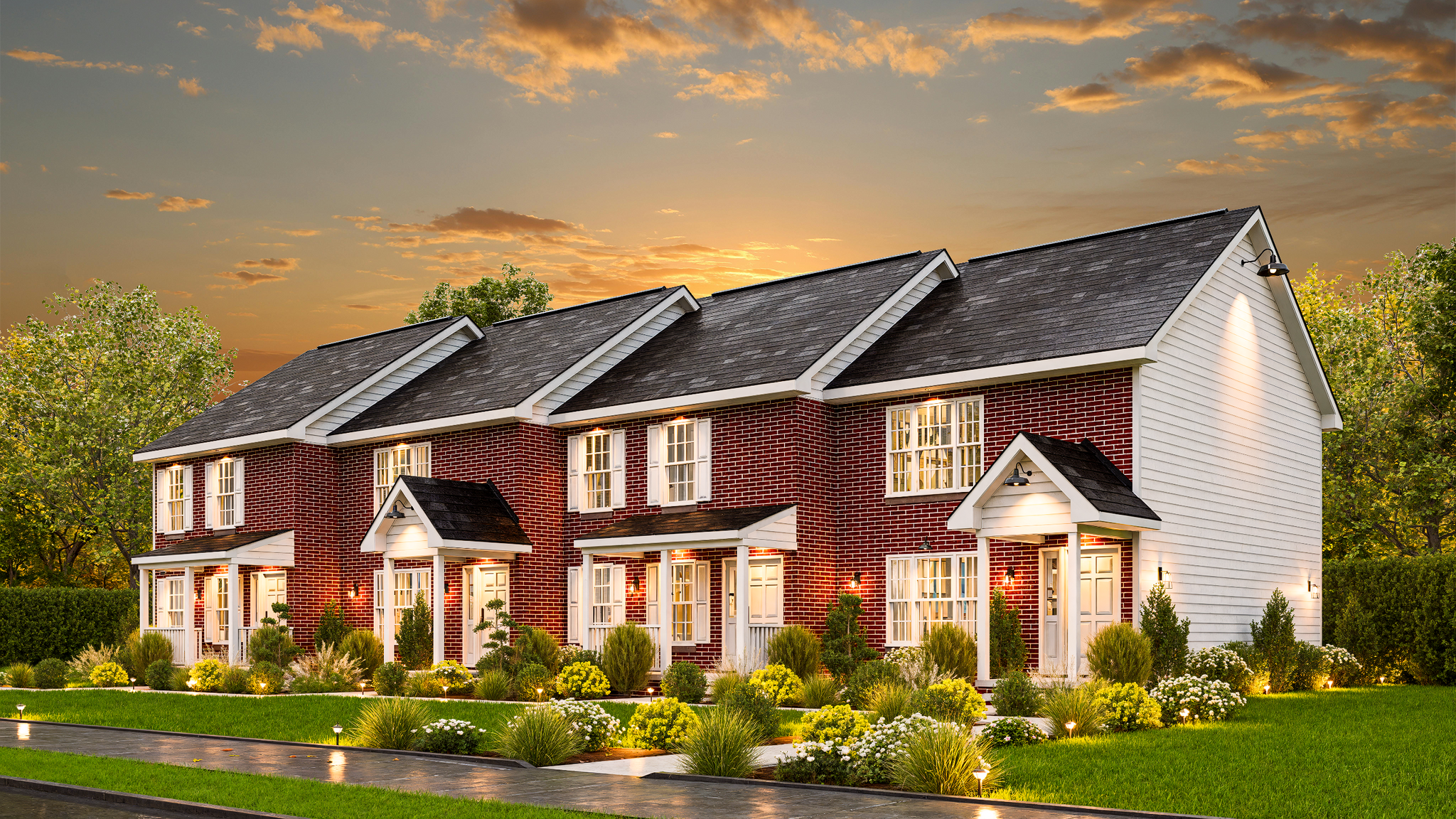

The structural design incorporates 8-foot ceiling heights on both the first and second levels, creating a uniform volume throughout the living spaces. The exterior is finished with a combination of brick veneer and siding, supported by robust truss roof framing. Outdoor access is provided by 202 sq ft of covered front porch area and 216 sq ft of rear stoop space, totaling 418 sq ft of exterior transition zones.
This multi-generational and rental-focused structure utilizes a standardized floor plan to maximize cost efficiency and construction speed. By balancing the 4,764 sq ft total area with efficient room placement, the design provides a practical solution for investors or property owners requiring a consolidated, high-density residential footprint.
Key Features: 4,764 sq ft total area, four-unit quadplex, 2 bedrooms per unit, 8 full bathrooms, 4 half bathrooms, 8:12 roof pitch, 8 ft ceilings, covered front porch, brick and siding exterior, truss roof framing.
Explore floor plans, available formats, and modification options for this design.
