Elegant Two-Story Home occupies a 39'4" wide by 70' deep footprint, totaling 2,268 sq ft of heated living area. This residence utilizes a rear-load 2-car garage configuration to maintain a clean front elevation, emphasizing the covered front porch and the 10:12 roof pitch. The structural profile reaches a maximum height of 29 ft, incorporating 2x4 wall framing and stick-built roofing to ensure durability across the two-story volume.

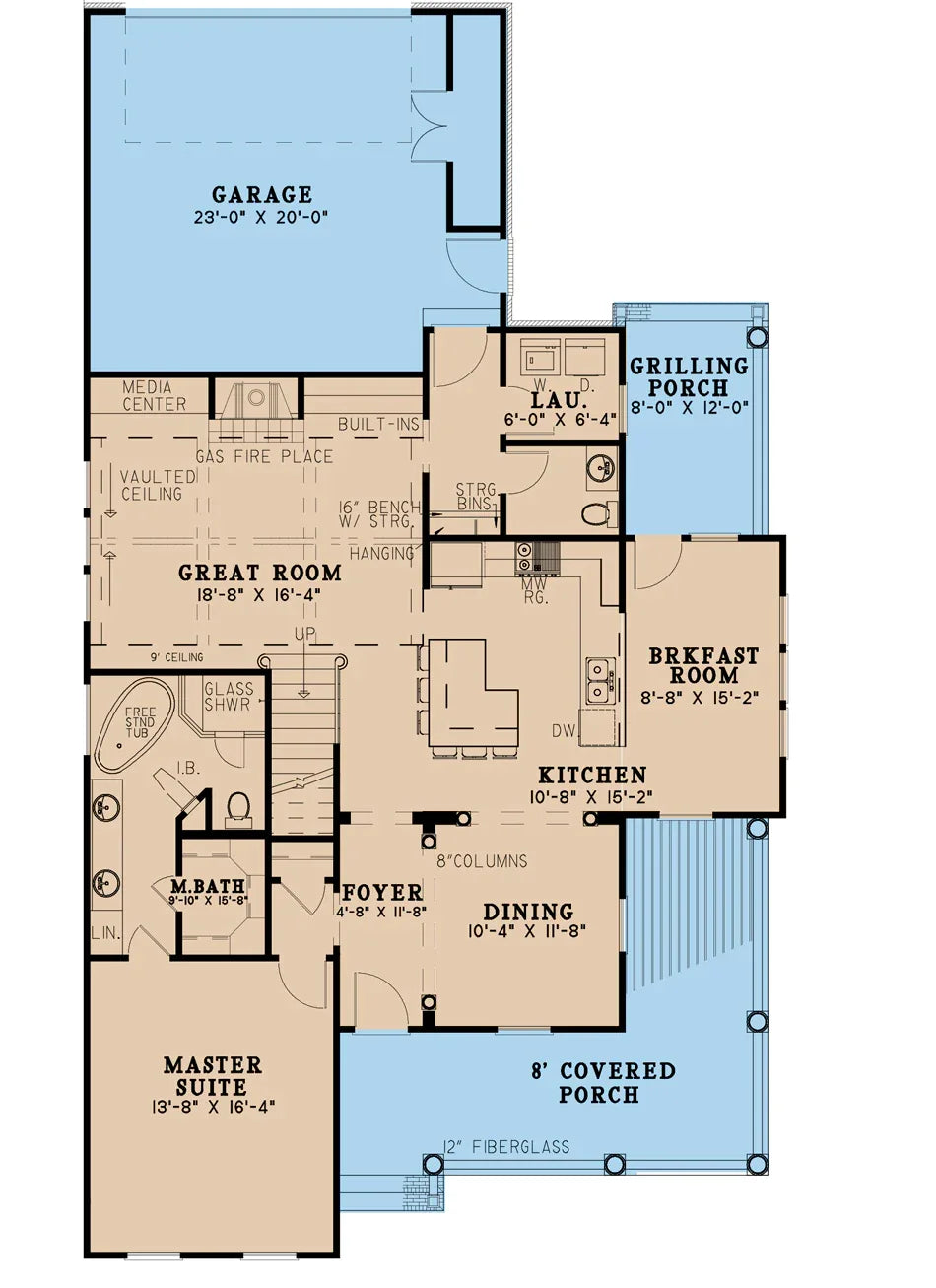

The main level encompasses 1,474 sq ft, defined by a centralized great room with 9-foot ceilings and a fireplace. Direct sightlines connect the great room to the kitchen and breakfast area, creating an efficient circulation path. A dedicated home office sits near the entry, while the primary suite remains sequestered on the first floor for accessibility. A mud room provides a transition zone between the 469 sq ft garage and the interior, supplemented by a dedicated first-floor laundry room.

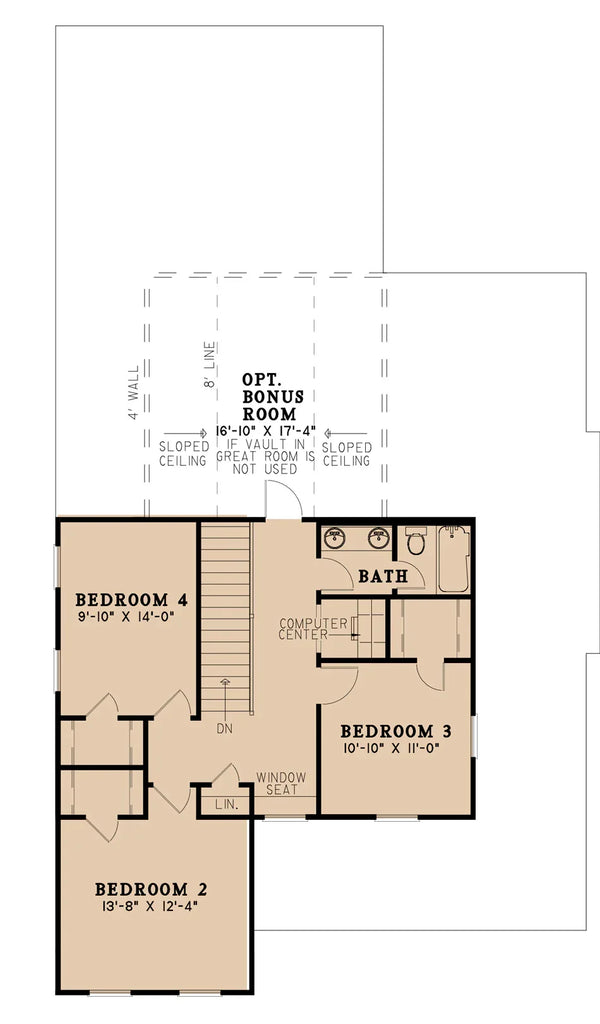

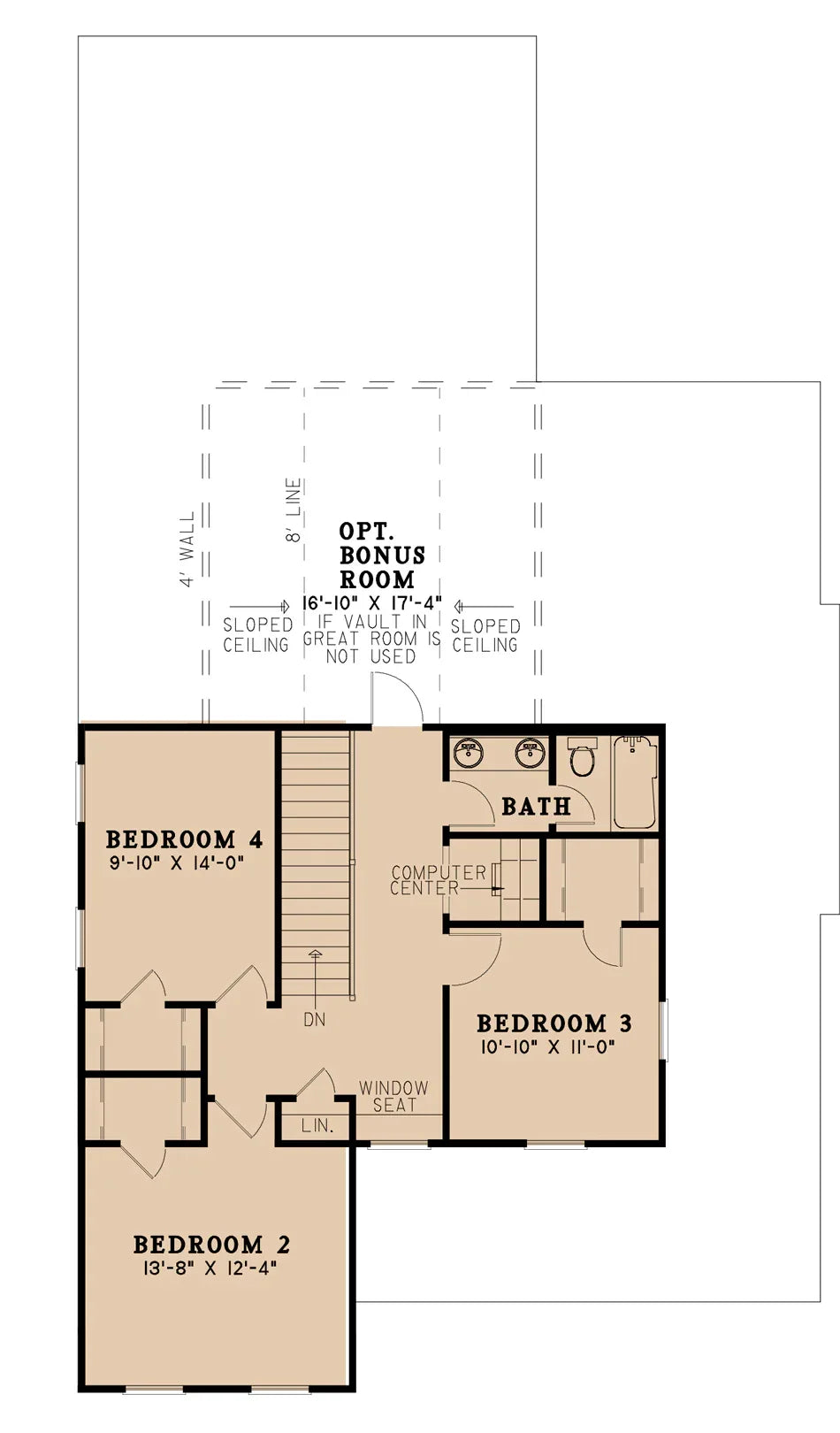

Occupying 794 sq ft, the second floor houses three secondary bedrooms and a flexible bonus room. The 9-foot ceiling heights remain consistent throughout the upper level, providing a sense of vertical volume suitable for a media retreat or hobby space. The landing overlooks the main living area, maintaining visual connectivity while providing separation between the private sleeping quarters and the shared social zones below.
Exterior utility is supported by 381 sq ft of porch and terrace space, facilitating indoor-outdoor transitions for seasonal use. The combination of 10:12 and 2:12 roof pitches provides a distinct architectural character, while the slab or crawlspace foundation options allow for adaptability based on site conditions. This plan prioritizes a rational spatial layout that maximizes the 2,268 sq ft envelope for both family utility and work-from-home requirements.
Key Features: 4 bedrooms, 2 full bathrooms, 1 half bathroom, first-floor primary suite, home office, bonus room, mud room, rear-load 2-car garage, 9-foot ceilings, covered front porch.
Review plan layouts, CAD packages, and customization options for this home.
