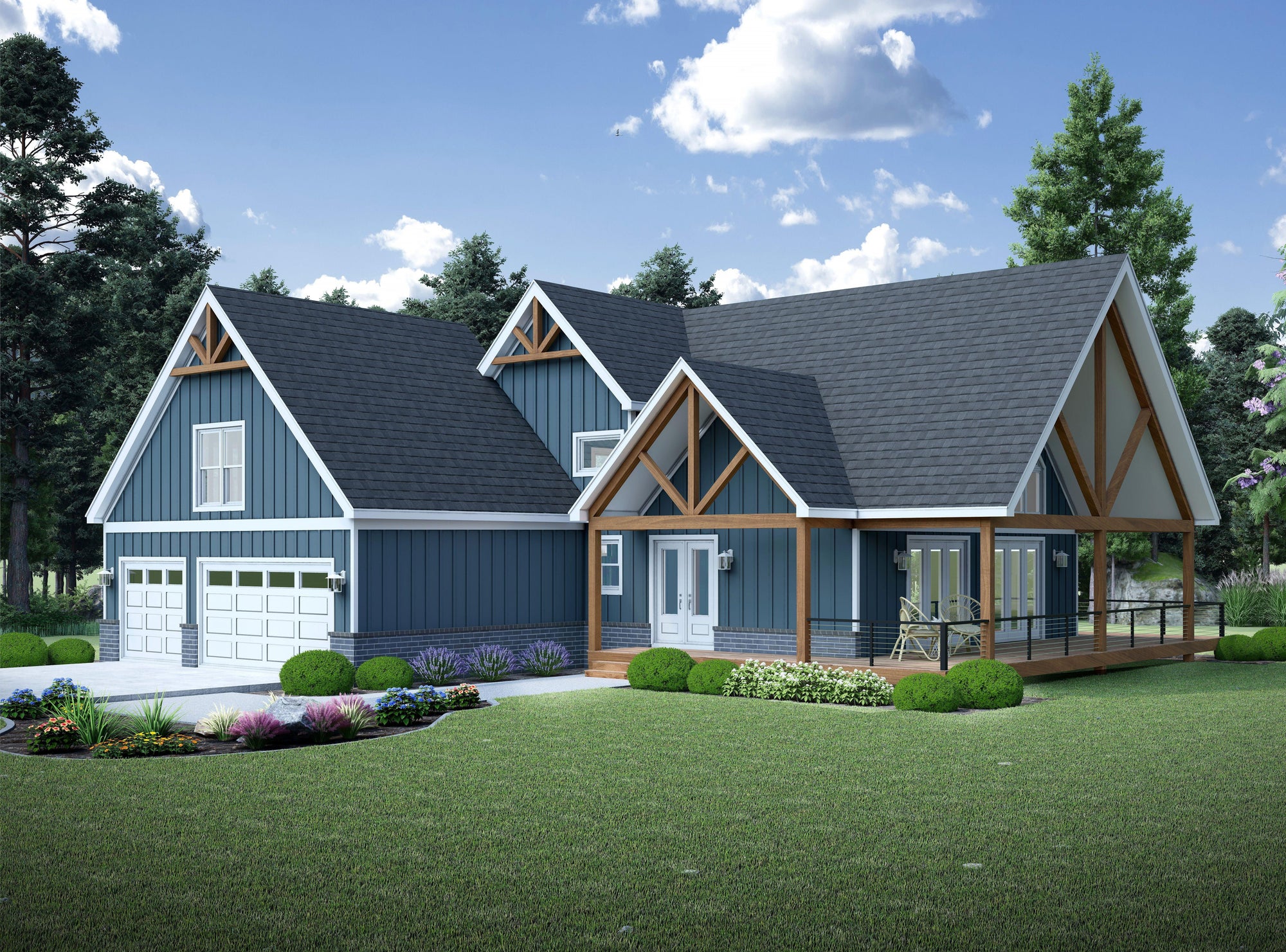

Chinkapin Haven is a two-story New American residence providing 2,714 square feet of heated living area. Designed with a 57'11" width and 59'6" depth, the home integrates a 12:12 and 3:12 roof pitch profile that defines its exterior geometry. The structure reaches a maximum height of 29'5" and includes a 117 sq ft front porch alongside an expansive 577 sq ft of total porch area.

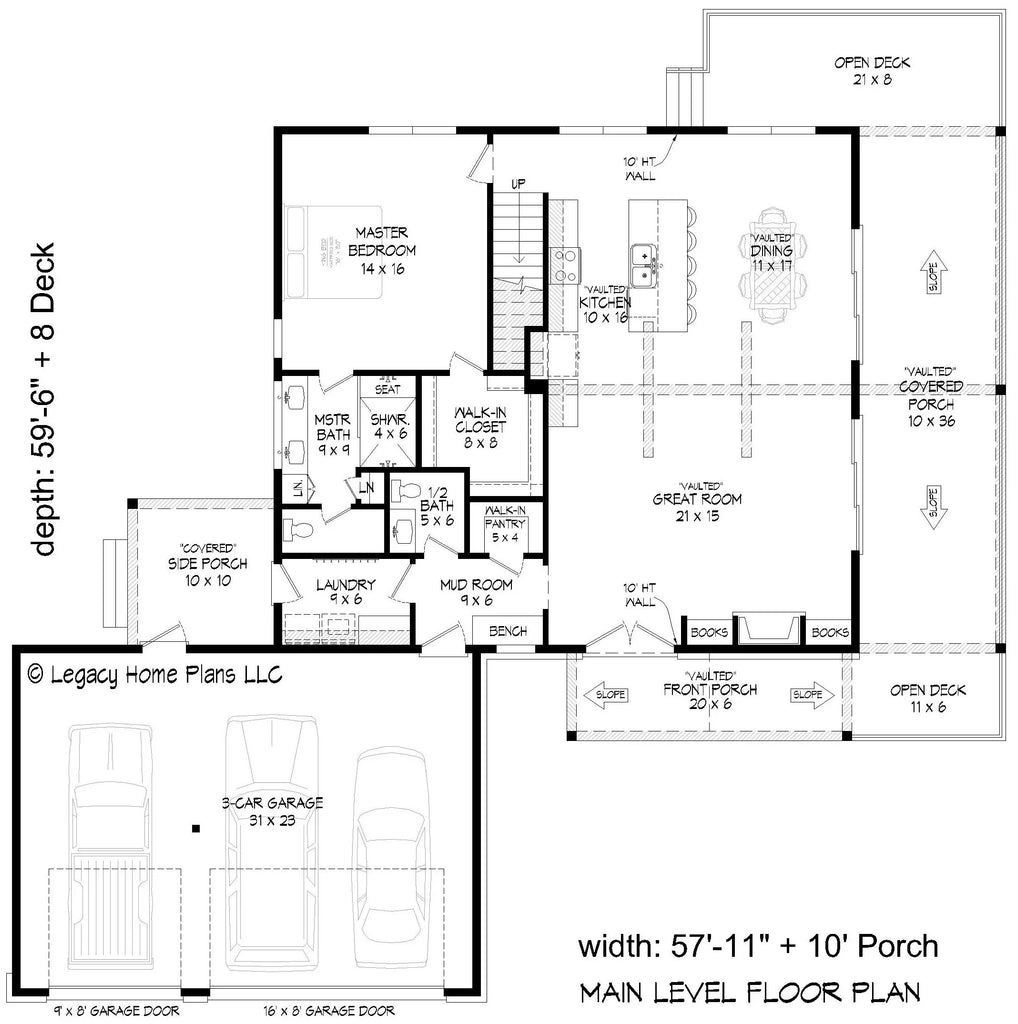

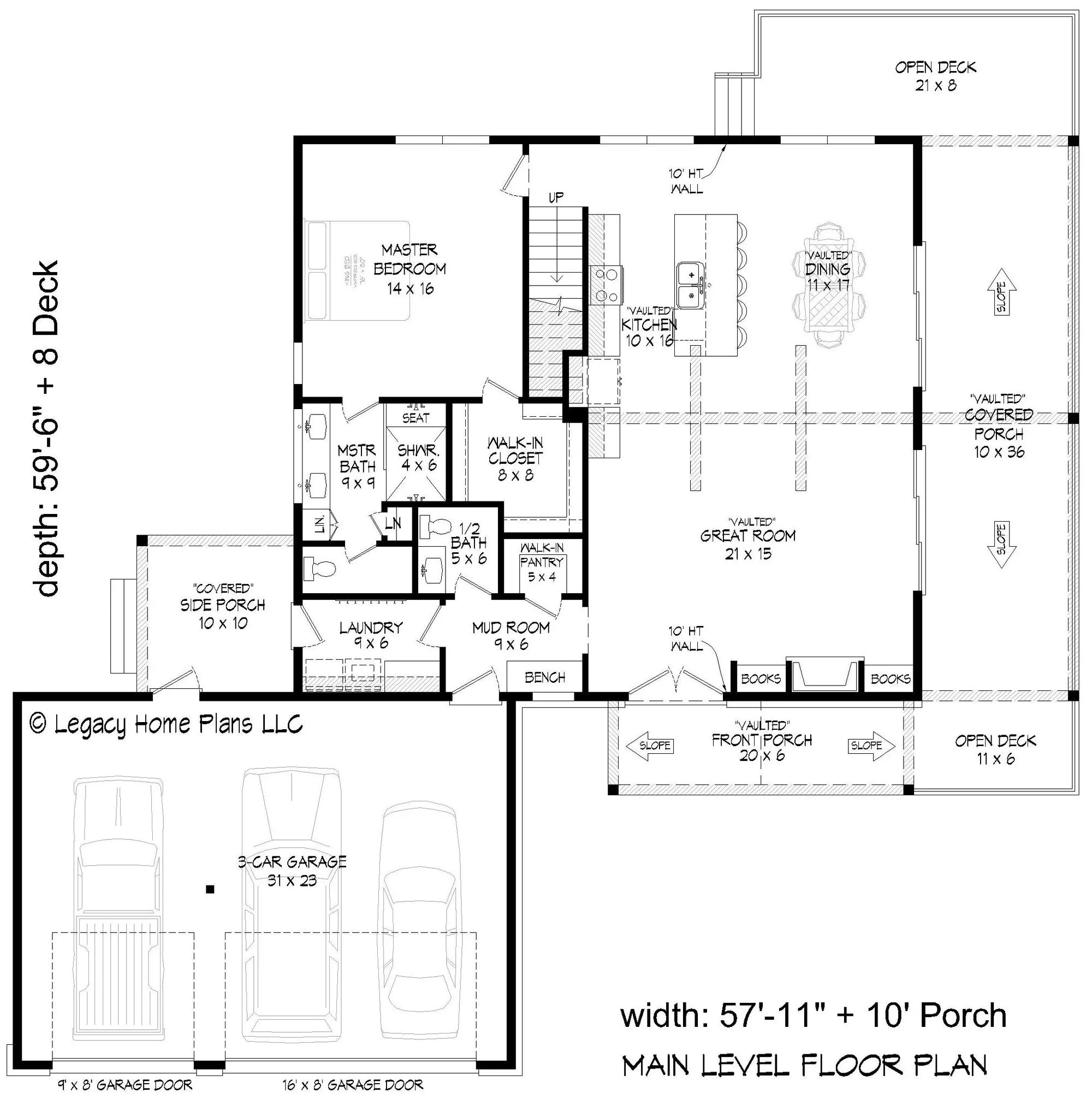

The main floor spans 1,440 square feet and centers on an open-concept great room with vaulted volumes, anchored by a fireplace. The primary suite is located on the first level, offering a split-bedroom layout for increased privacy. A gourmet kitchen with a central island connects to the dining zone, which provides direct access to a 228 sq ft deck, facilitating transitions to outdoor living spaces.

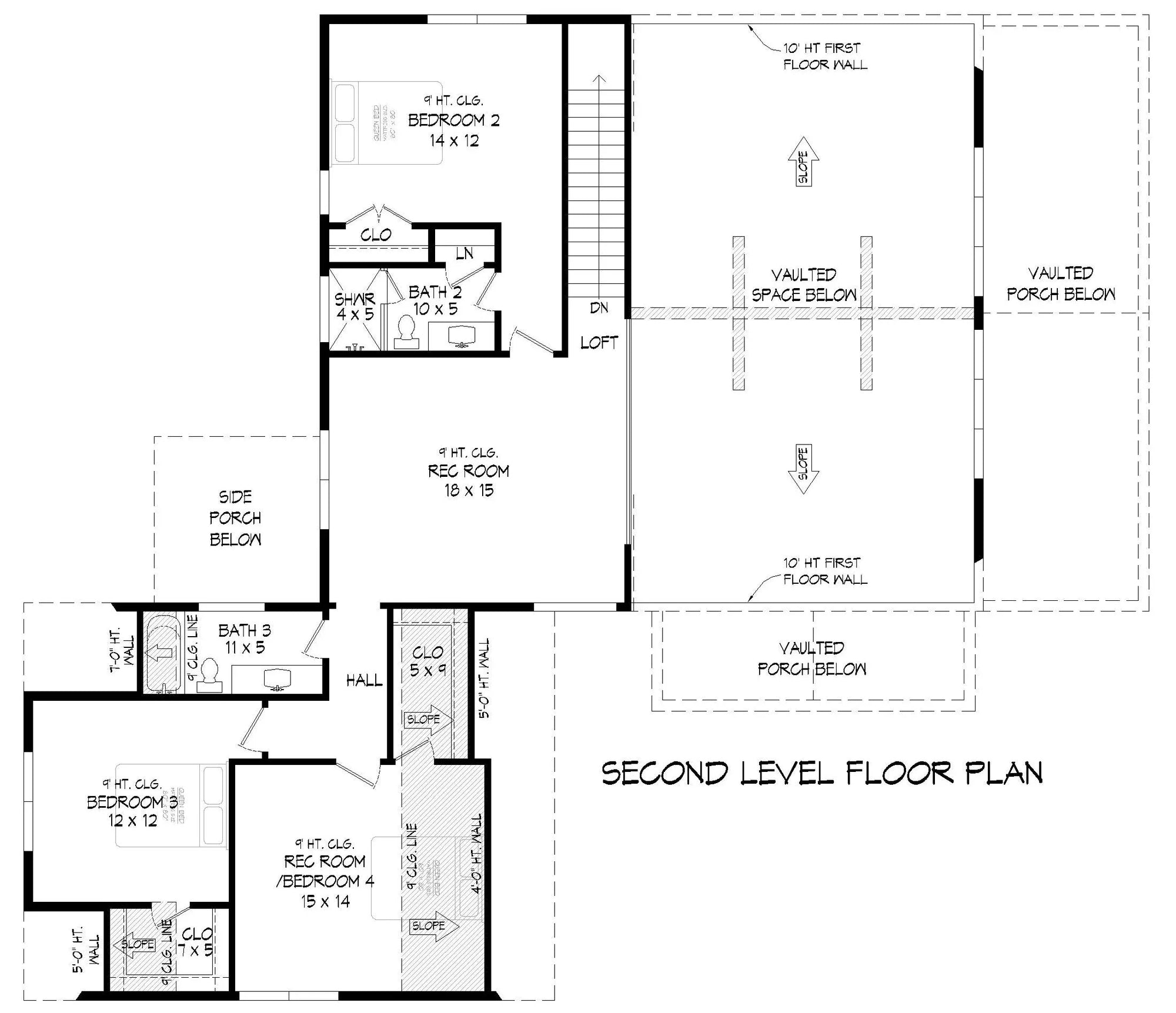

Occupying 1,274 square feet, the second level contains two secondary bedrooms, each with direct bathroom access. A versatile loft area is positioned to serve as a home office or secondary lounge, overlooking the great room below. Both the first and second floors feature 9-foot ceiling heights, ensuring consistent vertical scale throughout the interior living zones.
Construction details include a 760 sq ft 3-car front-load garage, which is connected to the interior via a mudroom. This layout prioritizes organization and circulation efficiency. The inclusion of a half-bathroom on the main level supports guest access, while the overall design utilizes a total area of 4,279 square feet to balance private quarters with communal social zones.
Key Features: 3 bedrooms, 3 full bathrooms, 1 half-bathroom, first-floor master suite, split-bedroom layout, loft area, 3-car front-load garage, great room, kitchen island, mudroom, fireplace, covered porch, deck.
