Contemporary 4,031 Sq Ft Home with Loft, Veranda, and Bonus Room
4.8
Plan Number:

AC6506-A

Rated 4.8
Plan Number:

AC6506-A

✔ Best Price Guarantee | ✔ Free Cost to Build Calculator
Or order by phone: (888) 890-2353
Safe and Secure
SafePay icons
LOW PRICE GUARANTEE
Free Cost to Build Calculator
Floor Plan
floor plan
floor plan
floor plan

Contemporary 4,031 Sq Ft Home with Loft, Veranda, and Bonus Room

Daveydenko Residences provides 4,031 square feet of heated living space across a multi-level footprint measuring 56 feet in width and 40 feet 6 inches in depth. This residence features a 3-car front-load garage spanning 976 square feet and a roof structure characterized by low-slope 0.5:12 and 0.25:12 pitches, reaching a maximum building height of 33 feet 2 inches. The exterior is framed with 2x6 wall construction, ensuring structural rigidity for the expansive three-level layout.

The main level encompasses 1,490 square feet, anchored by an open-concept great room and a kitchen equipped with a large island and walk-in pantry. This level maintains 10-foot ceilings, which allow for consistent natural light penetration throughout the social zones. A dedicated mudroom serves as a transition point between the garage and the interior, while a 126-square-foot front porch provides entry access.

The second floor offers 1,661 square feet of living area, housing a secondary master suite, a central loft, and a private home office study. Each room on this level benefits from 10-foot ceilings, contributing to a sense of vertical volume. The inclusion of a 1,260-square-foot deck facilitates transition between indoor areas and outdoor living spaces.

An 880-square-foot finished basement provides additional utility, also utilizing 10-foot ceilings to maintain consistency with the upper levels. This lower area serves as a flexible zone for recreation or guest accommodation. The overall architectural profile integrates a 3-car garage, which balances the home's footprint while providing significant storage and parking capacity.

Key Features: 4 bedrooms, 4 full bathrooms, 1 half bathroom, 3-car front-load garage, 10-foot ceiling heights, finished basement, second-floor master suite, home office, walk-in pantry, 1,260-square-foot deck.

Review plan layouts, CAD packages, and customization options for this home.

View Sample Plan
What's Included in the House Plan:
  • Cover Sheet – Basic plan information
  • General Notes – Standard codes (excludes state-specific amendments)
  • Detailed Floor Plans – Fully dimensioned layouts
  • Elevations – All exterior views
  • Building Cross Section – Vertical construction details
  • Roof Plan – Layout with notes
  • Construction Details – Key building elements
  • Window Schedule – Sizes and types listed
  • Structural Plan – For reference only (not for construction)
What's Not Included:
  • Architectural/Engineering Stamp – Handled locally when required
  • Site Plan – Handled locally when required
  • Mechanical Drawings – Handled locally when required
  • Plumbing Drawings – Handled locally when required
  • Electrical Drawings – Handled locally when required
  • Energy Calculations – Handled locally when required
  • Foundation & Framing Plans – Handled locally when required

House Plan Specifications

  • Total Living (heated area):  4031 sq ft
    All Unheated Under-Roof Areas  2999 sq ft
    Total Structure With Basement  7910 sq ft
    Total Structure without Basement  7030 sq ft
    1st Floor:  1490 sq ft
    2nd Floor:  1661 sq ft
    Basement:  880 sq ft
    Deck:  1260 sq ft
    Front Porch:  126 sq ft
    Veranda:  637
  • Garage:  976 sq ft
    Garage Bays:   3
    Garage Load:   Front
  • Bedrooms:   4
    Bathrooms:   4
    Half Bathrooms:   1
  • Foundation:   Basement
    Wall Framing:   2x6
    Roof Pitch:  0.5:12 and 0.25:12
  • Width of House:  56'
    Depth of House:  40'6''
    Building Height:  33'2''
  • First Floor Ceiling Height:  10'
    Second Floor Ceiling Height:  10'
    Basement Ceiling Height:  10'

Key Features

  • Bonus Room
  • Fireplace
  • Great Room
  • Home Office/Study
  • Kitchen Island
  • Loft
  • Loft/Balcony
  • Mud Room
  • Second Floor Laundry
  • Second Floor Master Suite
  • Walk-in Pantry
Modify this plan to make it perfect
Our hassle-free process makes it easy to modify your dream home. To receive an estimate please submit your request using the link below.
Submit a Modification Request
Cost to build estimate
$0.00
$40.00
100% discount for new customers this month!
Receive a personal estimate in two minutes instead of 2 days as many competitors offer. Just submit your request using the link below.
Get Your Estimate
Plan Number: AC6506-A
Contemporary 4,031 Sq Ft Home with Loft, Veranda, and Bonus Room
4 Bedrooms
4 Full Baths
1 Half Baths
4031 SQ FT
2 Stories
Product print image

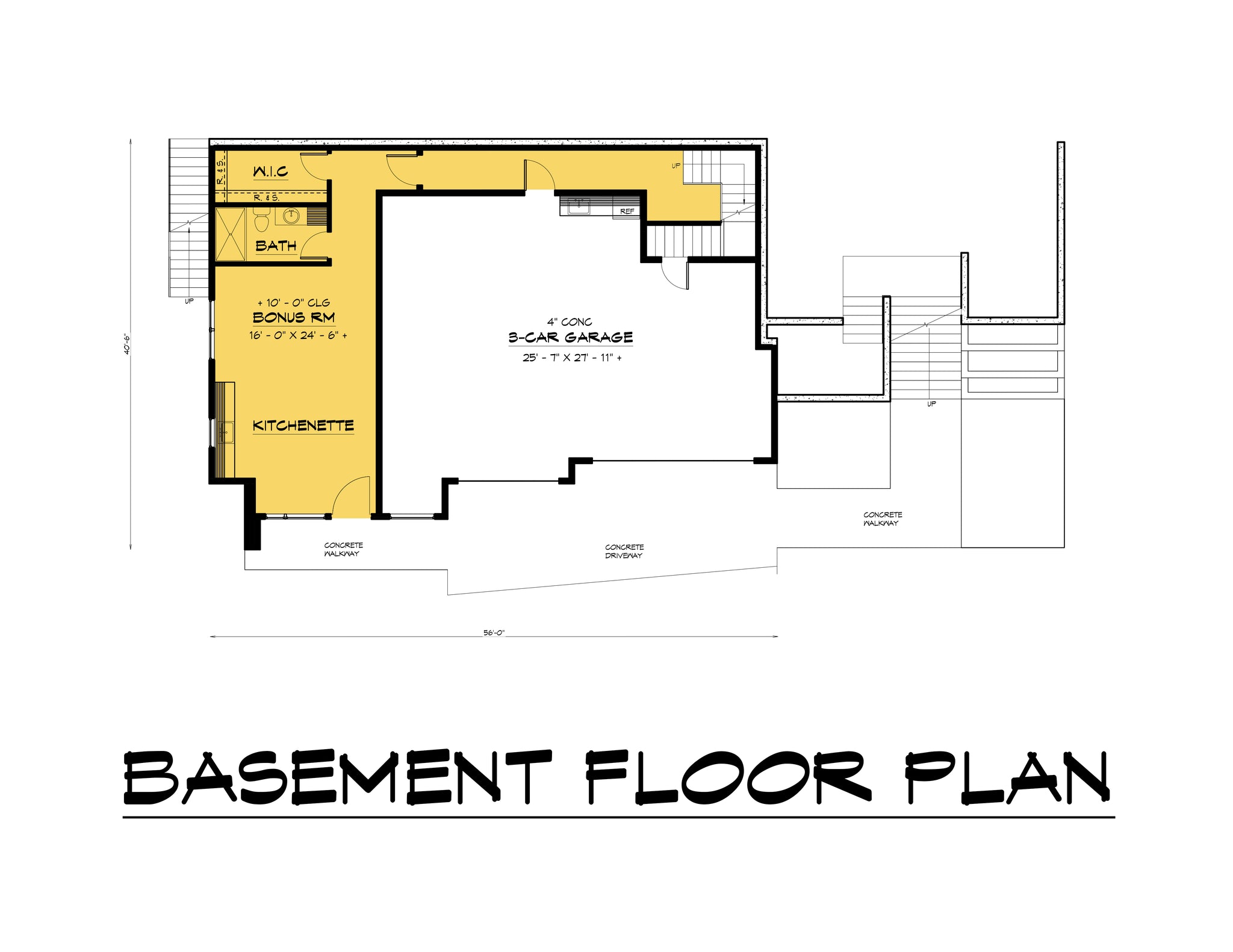

Basement
floor plan

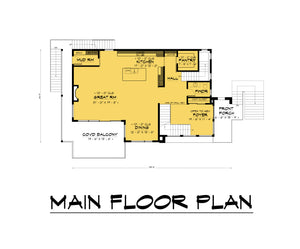

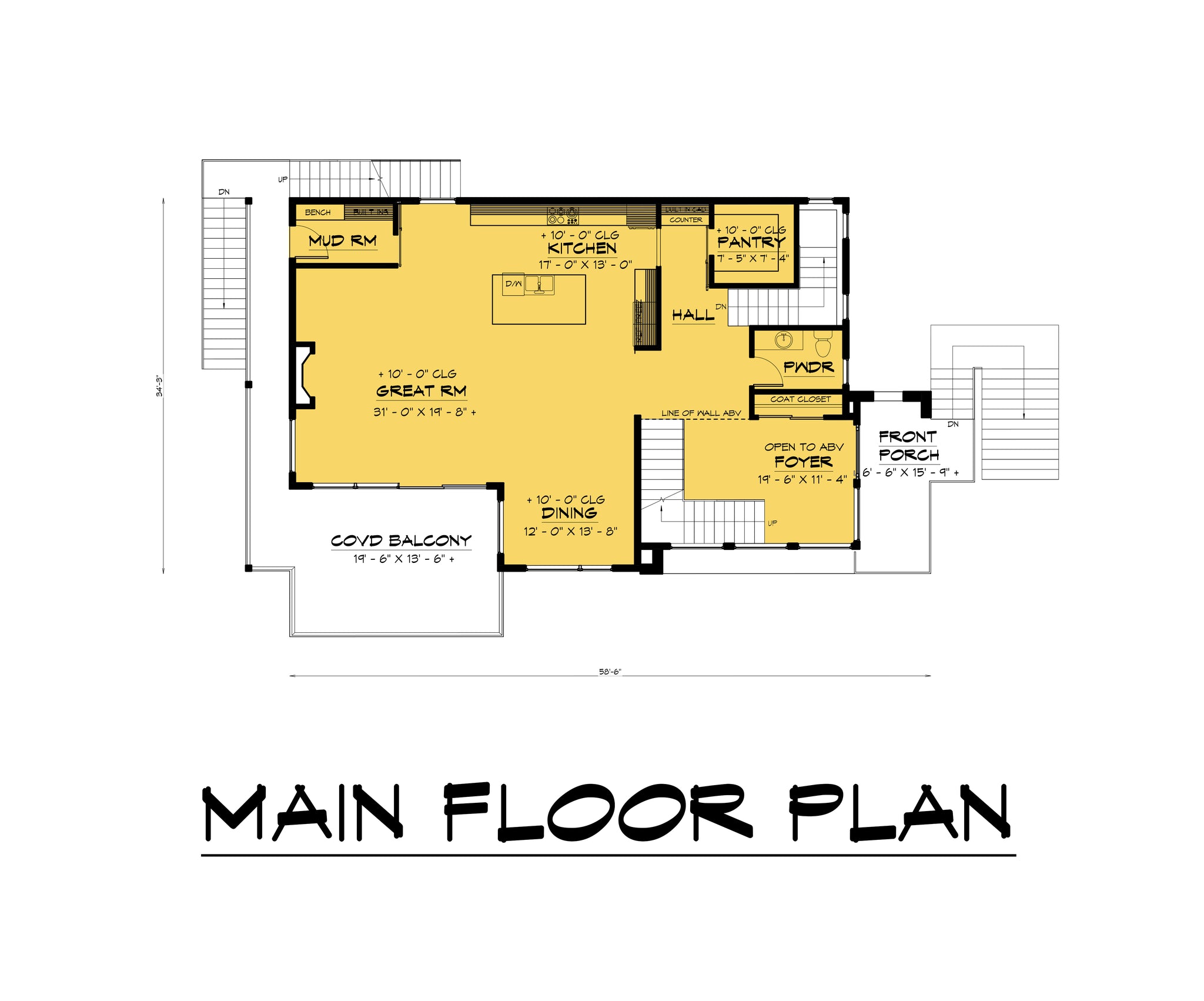

Main Level
floor plan

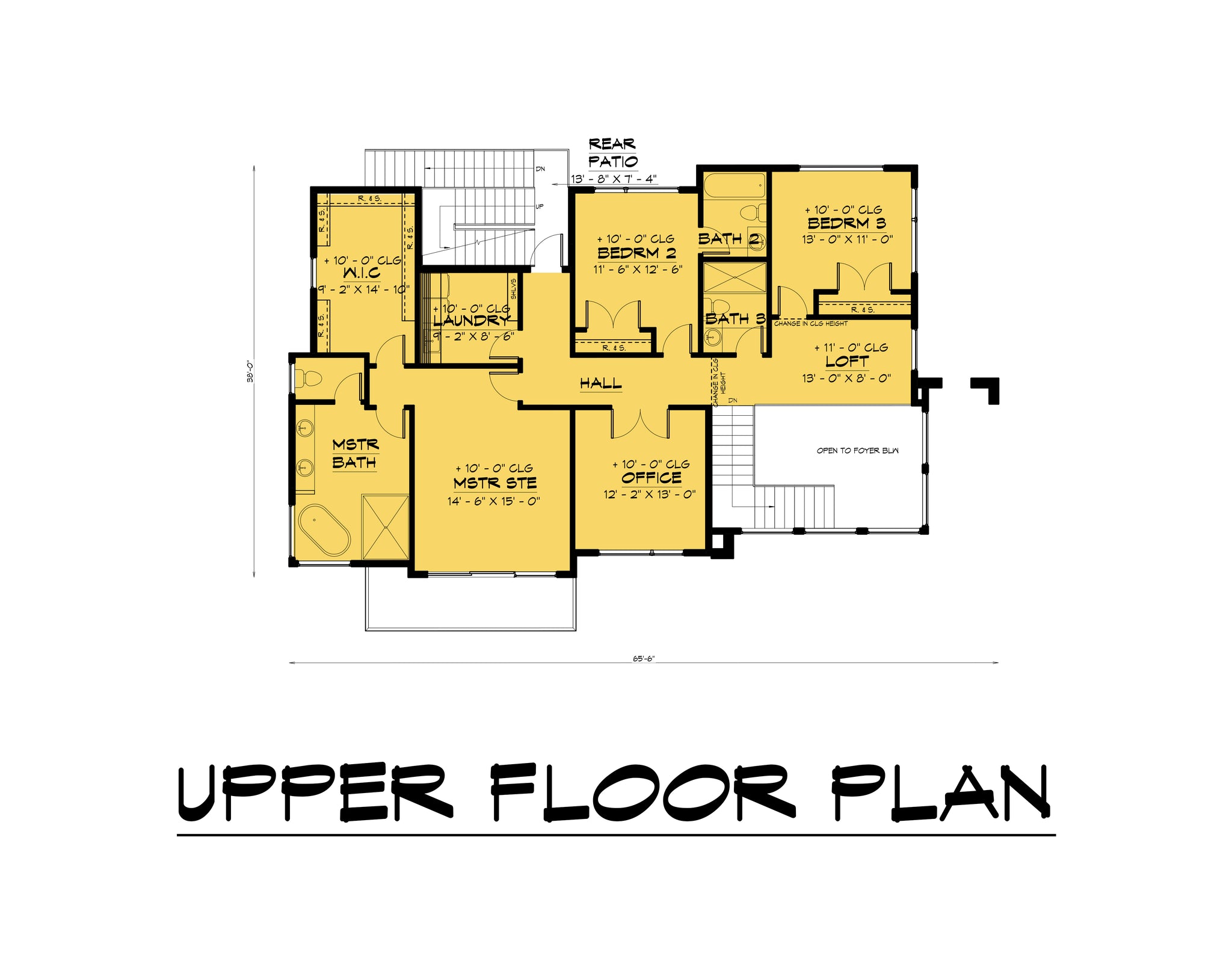

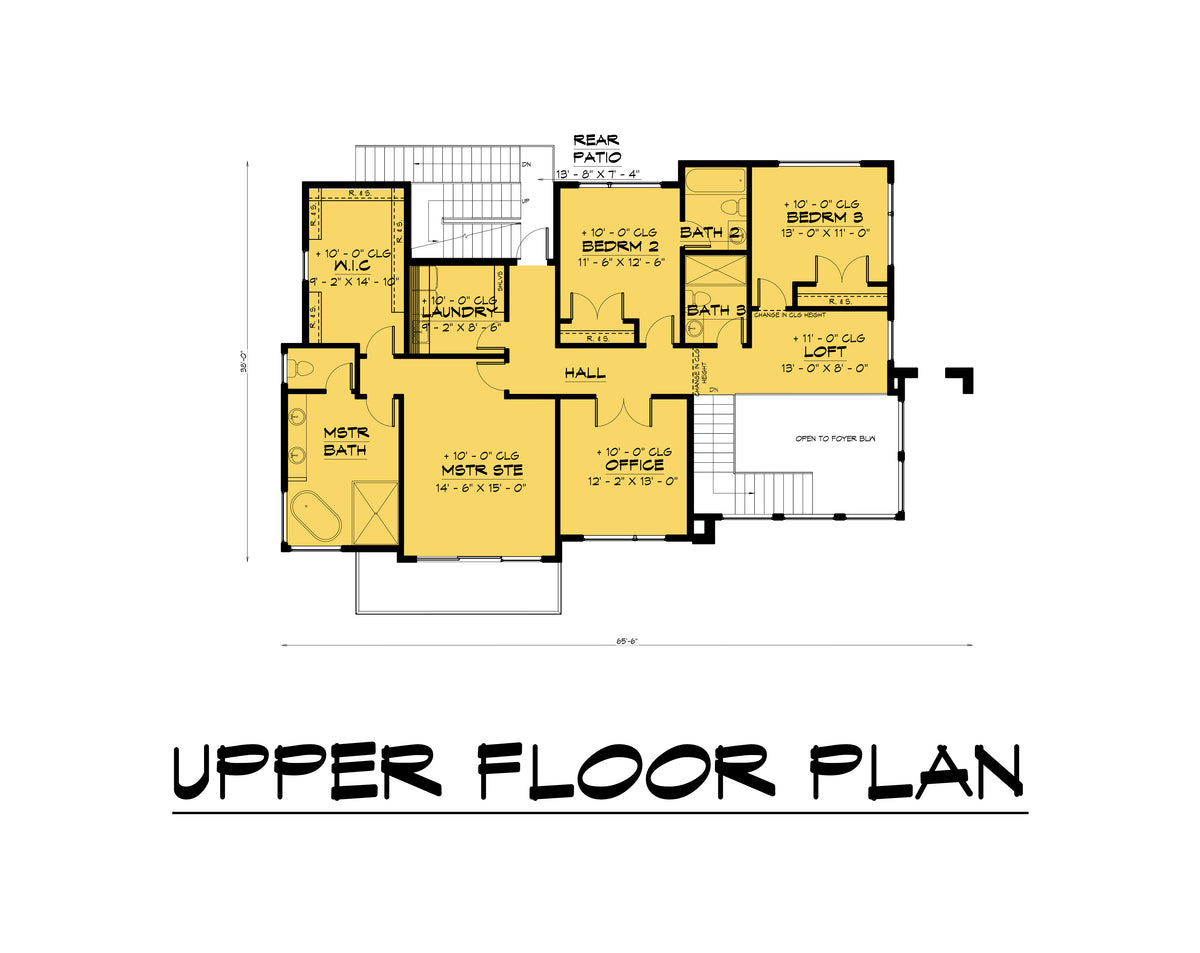

Second Floor
floor plan
House Plan Formats Explained

PDF (Single Build)

A complete set of working drawings delivered in digital PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

CAD + PDF (Single Build)

A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

5 or 8 Prints (Single Build)

Five or eight printed sets of working drawings shipped to you. This option comes with a license to build ONE home.

5 Prints + PDF (Single Build)

Five printed sets of working drawings shipped to you, plus a digital version in PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

PDF (Multi Build)

A complete set of working drawings delivered in digital PDF format. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.

CAD + PDF (Multi Build)

A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.

Choose a building foundation for your home. The foundation provides stability to a home's structure from the ground up.

Slab - This concrete foundation is reinforced with steel rods and suitable for flat ground.

Crawl Space - This foundation is raised off the ground with low walls resting on footings, providing space for wiring, plumbing, and storage.

Basement - This foundation is entirely or partially below ground and offers storage or living areas.

Walkout Basement - This foundation is typically suited for rear-sloping lots and provides storage or living areas. Walkout basements have doors that provide access to the outside.

Readable Reverse
An option to reverse the plan including texts and dimensions to make them readable.
2x4 or 2x6 Conversion
Convert the exterior framing other than the standard framing included in the plan.
Multi Build Licence (CAD required) Gives the buyer the legal right to build the house plan multiple times
