Luxury Contemporary House Plan with 5 Bedrooms, Loft & Outdoor Living – 5,080 Sq Ft
4.8
Plan Number:

AC8169-A

Rated 4.8
Plan Number:

AC8169-A

✔ Best Price Guarantee | ✔ Free Cost to Build Calculator
Or order by phone: (888) 890-2353
Safe and Secure
SafePay icons
LOW PRICE GUARANTEE
Free Cost to Build Calculator
Floor Plan
ac8169-a contemporary house first floor plan, 5 bedrooms, 5.5 bathrooms | mohjeet tuscan house plan
ac8169-a contemporary house second floor plan, 5 bedrooms, 5.5 bathrooms | mohjeet tuscan house plan

Luxury Contemporary House Plan with 5 Bedrooms, Loft & Outdoor Living – 5,080 Sq Ft

This luxury contemporary house plan presents a refined interpretation of modern residential architecture, combining expansive interior living spaces with clean architectural lines and sophisticated functionality. Offering 5,080 square feet of heated living space and nearly 6,000 square feet of total structure area, the home is thoughtfully designed for upscale family living, entertaining, and long-term adaptability.

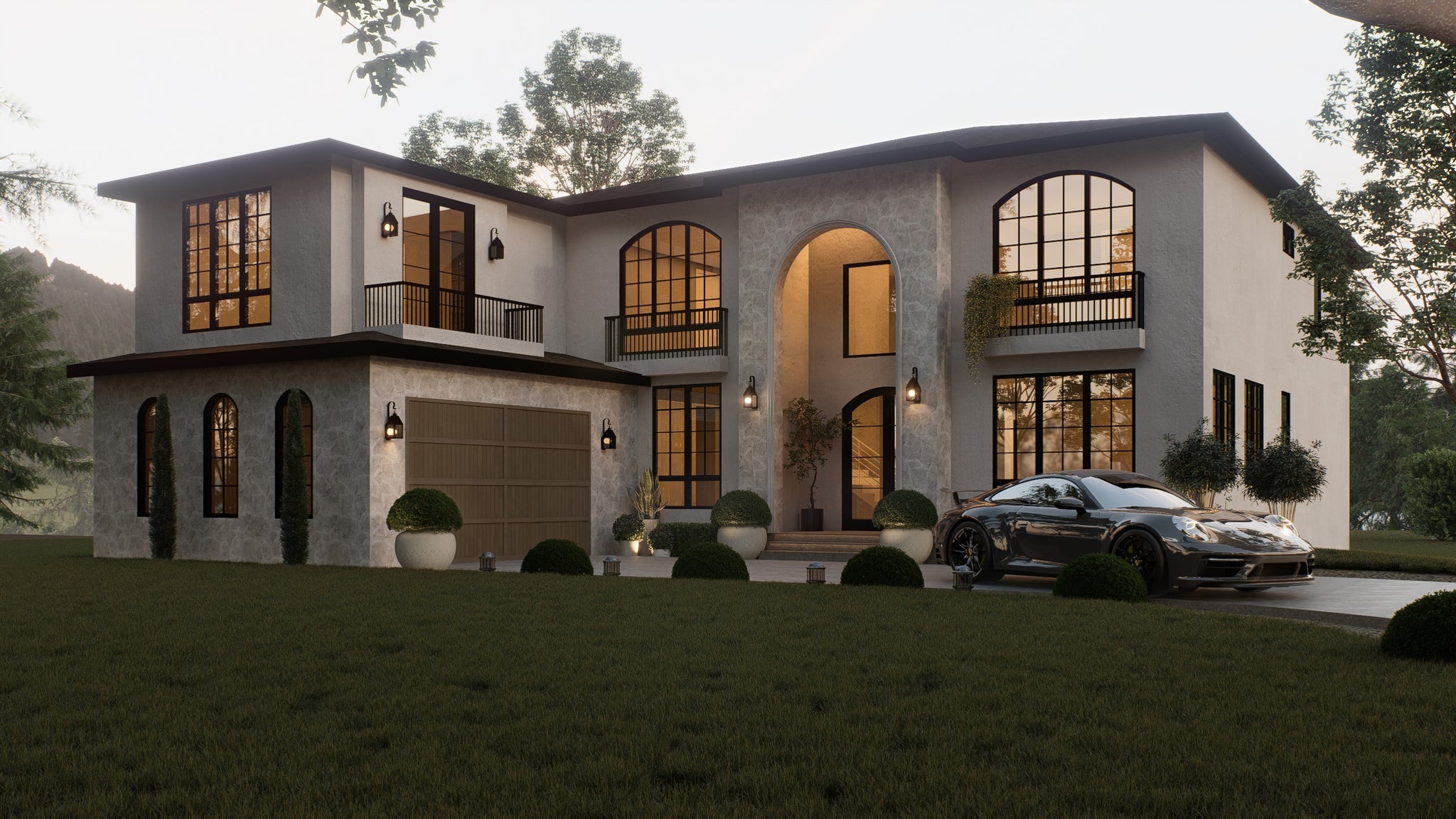

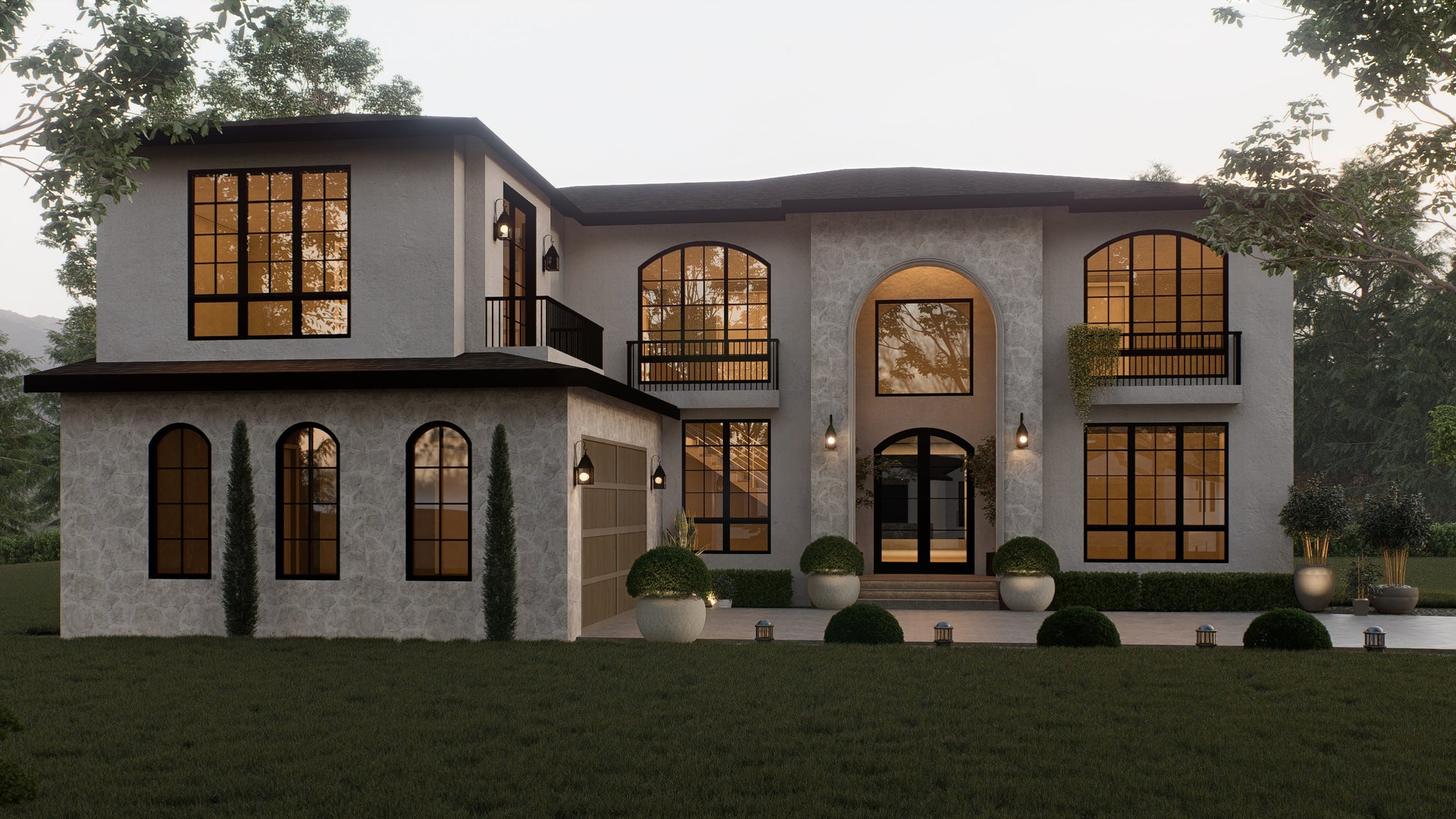

The exterior composition reflects the defining qualities of contemporary design through its streamlined roofline, geometric massing, and restrained architectural detailing. Measuring 59 feet 6 inches wide by 75 feet deep, the residence establishes a strong visual presence while maintaining balanced proportions and modern elegance. The low 4:12 roof pitch reinforces the home’s sleek horizontal profile, contributing to its sophisticated contemporary character.

A covered front porch introduces the home with understated refinement and creates a welcoming transition into the interior. At the rear, expansive outdoor living areas and a large deck significantly extend the home’s functional gathering spaces beyond the interior walls. The inclusion of an outdoor fireplace enhances the exterior environment, creating a comfortable and visually striking destination for entertaining, relaxation, and year-round enjoyment.

Inside, the floor plan is organized around dramatic open-concept spaces designed to maximize natural light, connectivity, and architectural openness. Ten-foot ceilings on both the first and second floors create a consistently spacious atmosphere throughout the residence, while the two-story foyer introduces the home with impressive vertical scale and visual impact.

The great room functions as the central gathering space within the home, anchored by a fireplace that introduces warmth and architectural focus to the expansive interior. Seamless transitions between the great room, kitchen, dining spaces, and outdoor living areas reinforce the home’s emphasis on fluid movement and modern social living.

The kitchen serves as both a culinary workspace and a sophisticated social centerpiece. A large kitchen island provides generous preparation space and informal seating opportunities, while the adjacent eating bar and breakfast area support casual dining and daily interaction. A spacious walk-in pantry enhances kitchen organization and functionality, supporting the needs of larger households and entertaining-focused lifestyles.

The formal dining room introduces a more refined entertaining environment while preserving visual continuity with the surrounding open-concept spaces. This balance between openness and structured living areas contributes to the home’s elegant contemporary atmosphere.

A secondary keeping or family room provides additional flexibility for informal gatherings, media use, or quiet relaxation, allowing the home to accommodate multiple activities simultaneously without sacrificing comfort or openness.

The residence includes five bedrooms and five full bathrooms thoughtfully arranged to maximize privacy and convenience. A guest suite on the main level offers comfortable accommodations for visitors or multigenerational living arrangements. The luxurious second-floor master suite is designed as a private retreat featuring dual walk-in closets, including dedicated his-and-hers closet spaces, and a spa-inspired private bathroom with dual vanity sinks. The suite’s upper-level location enhances privacy while maintaining convenient access to the home’s secondary bedrooms and shared family spaces.

A spacious loft and loft balcony introduce additional flexible living areas suitable for recreation, study, media use, or casual gathering space. These elevated spaces contribute to the home’s dynamic interior composition while enhancing the openness created by the two-story foyer.

Practical utility features are integrated throughout the design to support efficient everyday living. A second-floor laundry room improves household functionality by positioning laundry access near the primary bedroom areas.

The attached side-load two-car garage provides secure parking and additional storage while preserving the clean architectural presentation of the front elevation. Constructed on a basement foundation with durable 2x6 wall framing and truss roof framing, the home emphasizes structural integrity, energy efficiency, and long-term durability.

This contemporary house plan successfully combines expansive luxury living with modern architectural simplicity. Through its dramatic interior volumes, seamless indoor-outdoor connections, sophisticated private suites, and carefully integrated functional spaces, the design delivers a refined and highly livable contemporary residence tailored for modern upscale lifestyles.

View Sample Plan
What's Included in the House Plan:
  • Cover Sheet – Basic plan information
  • General Notes – Standard codes (excludes state-specific amendments)
  • Detailed Floor Plans – Fully dimensioned layouts

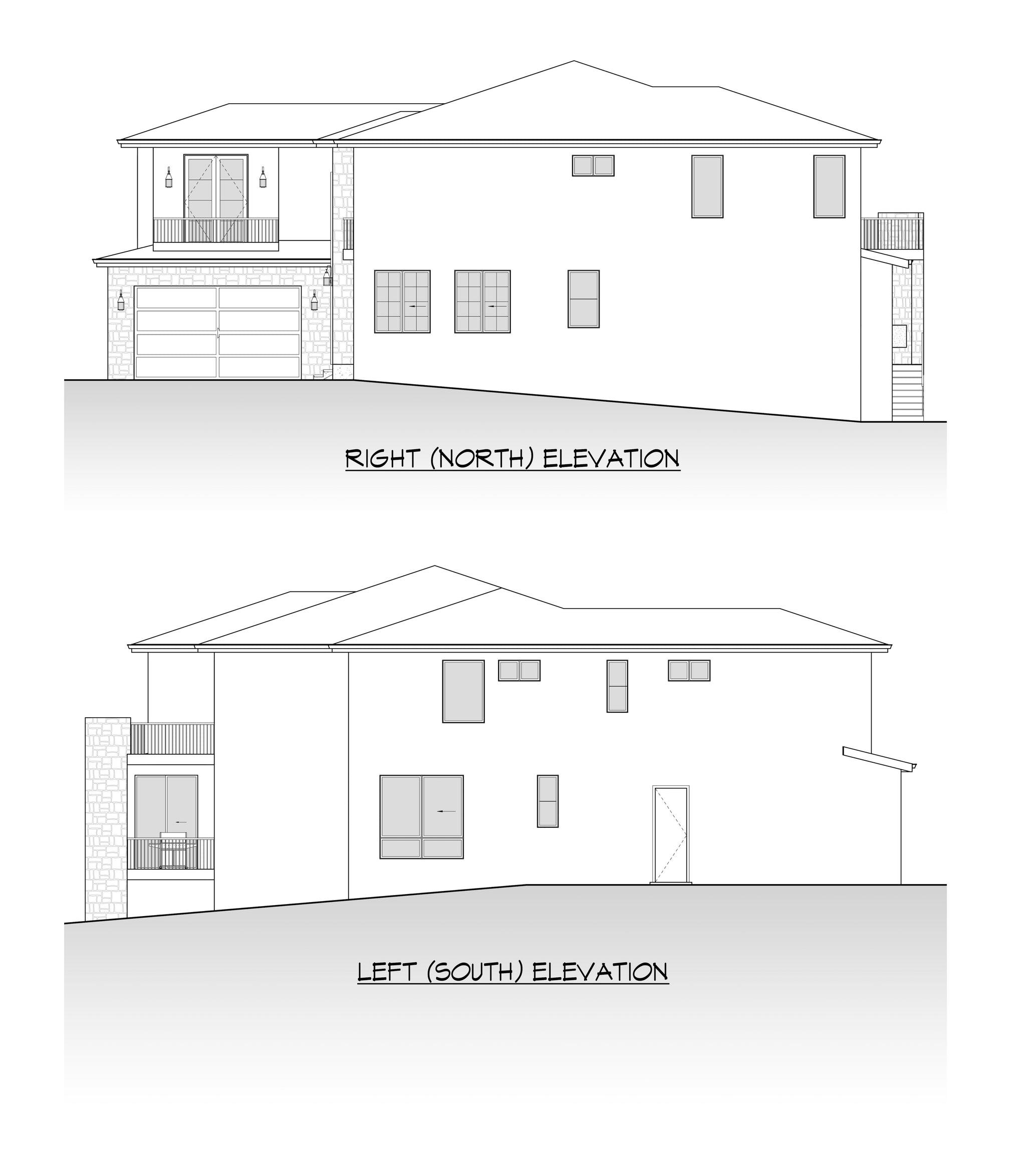

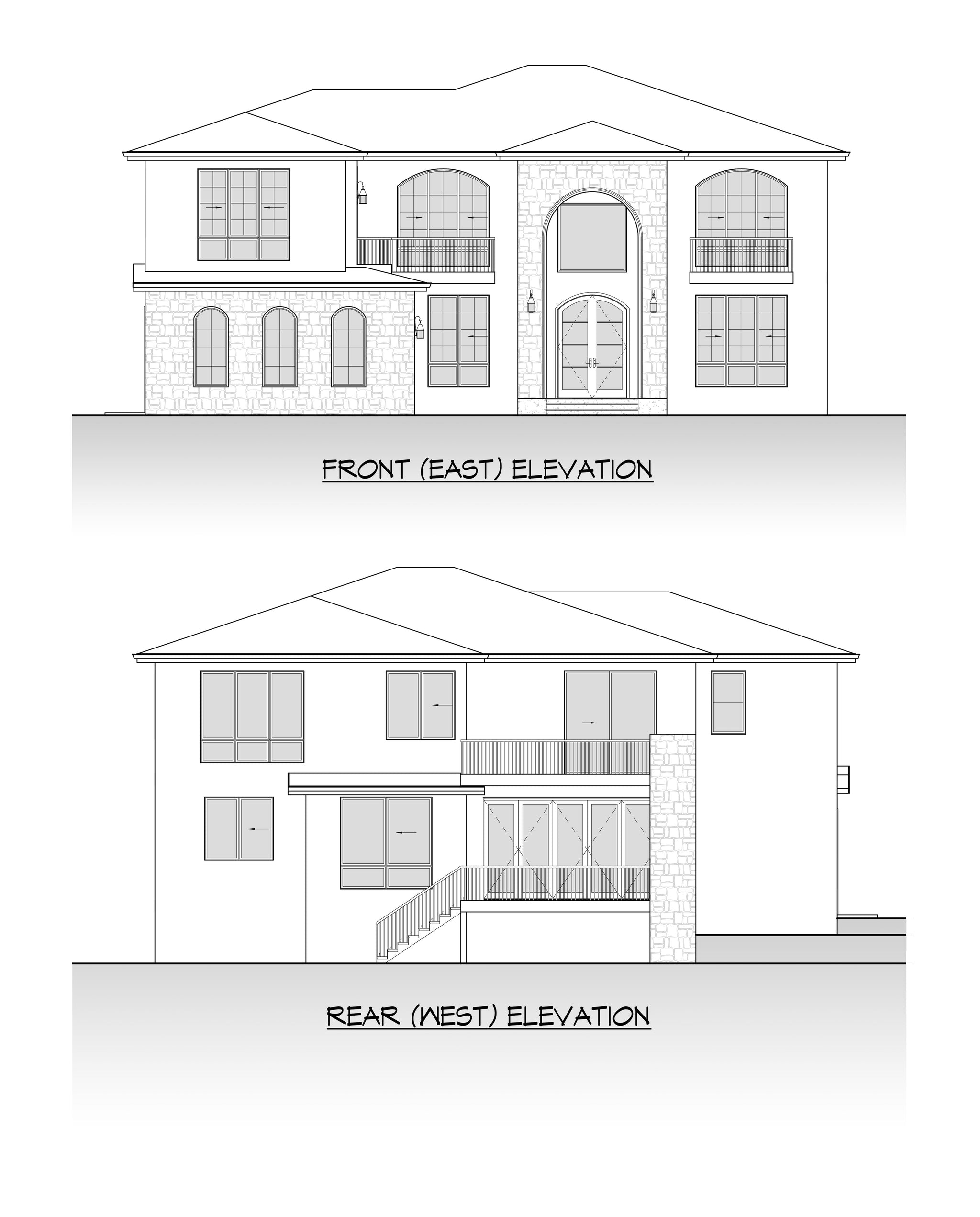

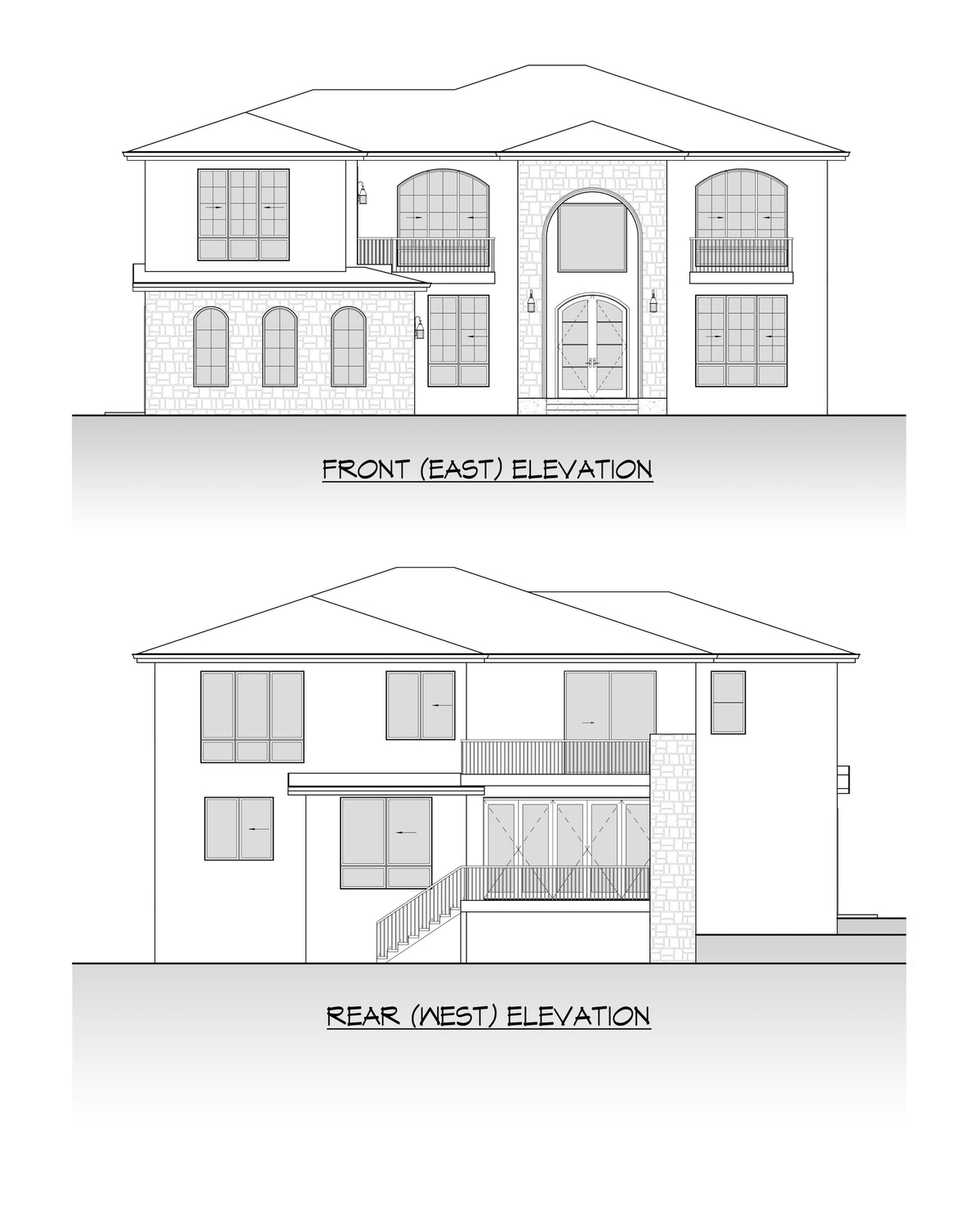

  • Elevations – All exterior views
  • Building Cross Section – Vertical construction details
  • Roof Plan – Layout with notes
  • Construction Details – Key building elements
  • Window Schedule – Sizes and types listed
  • Structural Plan – For reference only (not for construction)
What's Not Included:
  • Architectural/Engineering Stamp – Handled locally when required
  • Site Plan – Handled locally when required
  • Mechanical Drawings – Handled locally when required
  • Plumbing Drawings – Handled locally when required
  • Electrical Drawings – Handled locally when required
  • Energy Calculations – Handled locally when required
  • Foundation & Framing Plans – Handled locally when required

House Plan Specifications

  • Total Living (heated area):  5080 sq ft
    All Unheated Under-Roof Areas  919 sq ft
    Total Structure  5999 sq ft
    1st Floor:  2472 sq ft
    2nd Floor:  2608 sq ft
    Deck:  248 sq ft
    Front Porch:  81 sq ft
  • Garage:  590 sq ft
    Garage Bays:   2
    Garage Load:   Side
  • Bedrooms:   5
    Bathrooms:   5
    Half Bathrooms:   1
  • Foundation:   Basement
    Wall Framing:   2x6
    Roof Framing:   Truss
    Roof Pitch:  4:12
  • Width of House:  59'6''
    Depth of House:  75'
    Building Height:  30'6.5''
  • First Floor Ceiling Height:  10'
    Second Floor Ceiling Height:  10'

Key Features

  • Breakfast Area
  • Covered Front Porch
  • Deck
  • Eating Bar
  • Fireplace
  • Formal Dining Room
  • Great Room
  • Guest Suite
  • His & Hers Closets
  • Keeping/Family Room
  • Kitchen Island
  • Loft
  • Loft/Balcony
  • Master Bath-Double Vanity Sink
  • Open Floor Plan
  • Outdoor Fireplace
  • Outdoor Living Space
  • Powder Room
  • Private Master Bath
  • Second Floor Laundry
  • Second Floor Master Suite
  • Two-Story Foyer
  • Walk-in Closet
  • Walk-in Pantry
Modify this plan to make it perfect
Our hassle-free process makes it easy to modify your dream home. To receive an estimate please submit your request using the link below.
Submit a Modification Request
Cost to build estimate
$0.00
$40.00
100% discount for new customers this month!
Receive a personal estimate in two minutes instead of 2 days as many competitors offer. Just submit your request using the link below.
Get Your Estimate
Plan Number: AC8169-A
Luxury Contemporary House Plan with 5 Bedrooms, Loft & Outdoor Living – 5,080 Sq Ft
5 Bedrooms
5 Full Baths
1 Half Baths
5080 SQ FT
Product print image

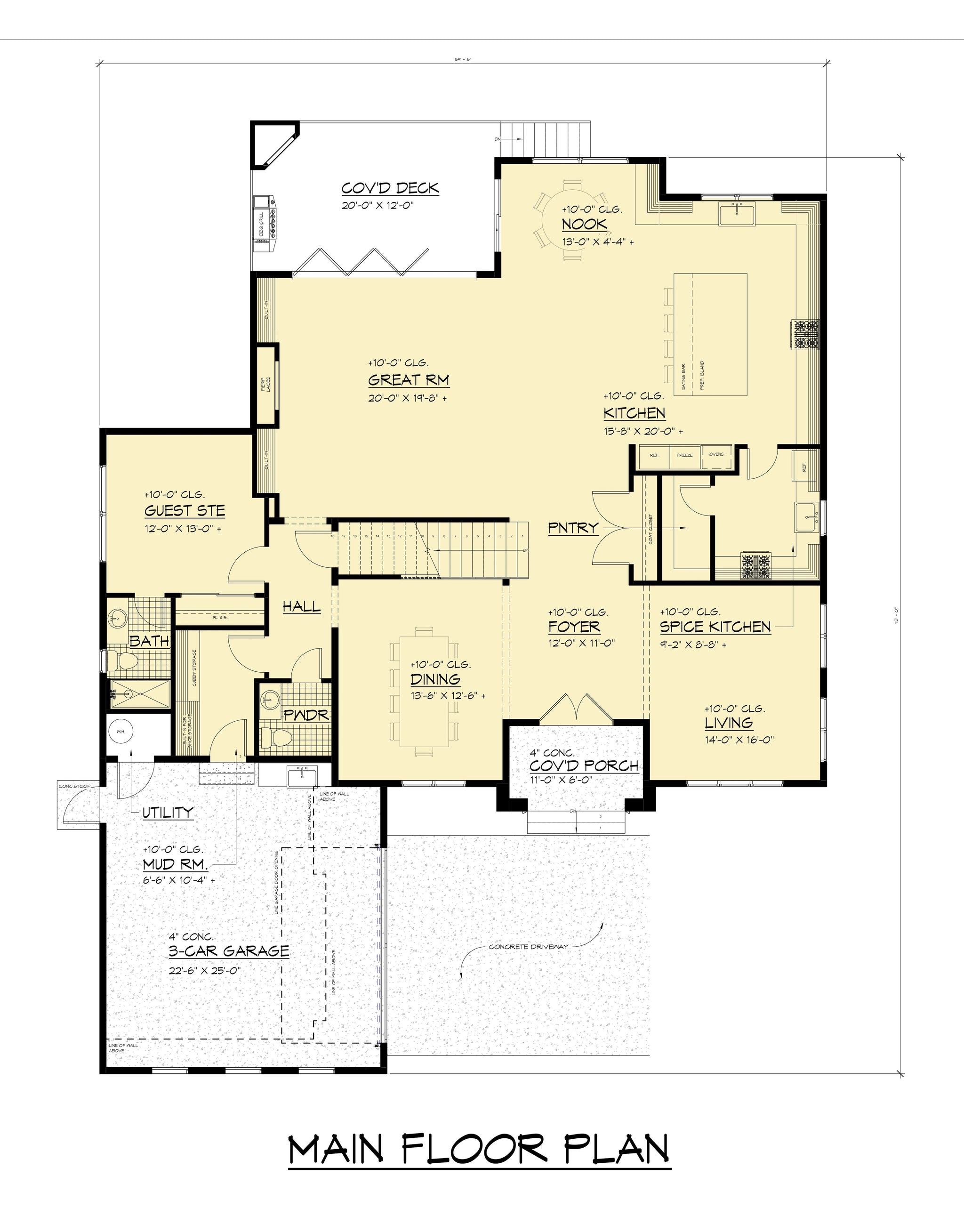

Main Level
AC8169-A Contemporary House First Floor Plan, 5 Bedrooms, 5.5 Bathrooms | Mohjeet Tuscan House Plan

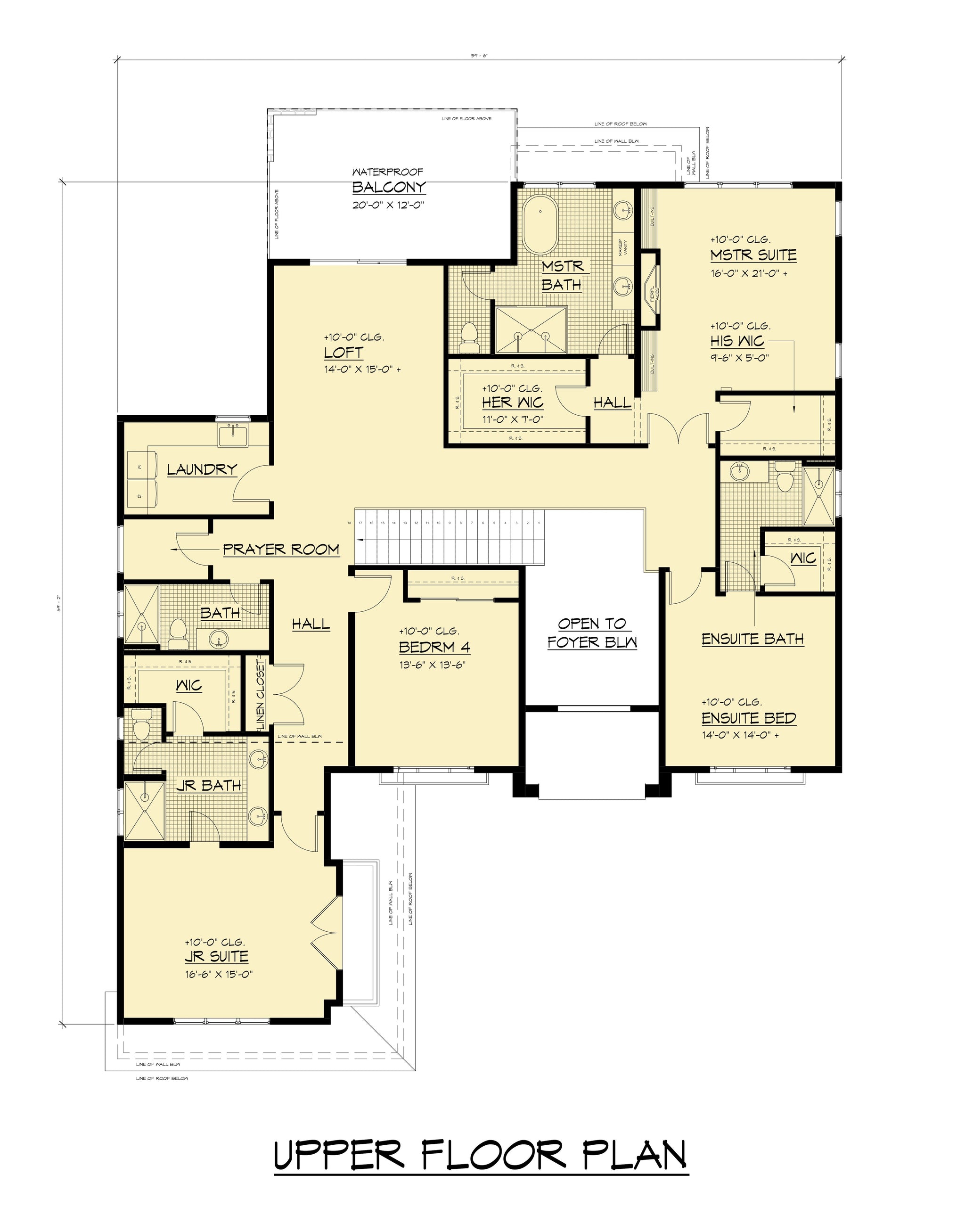

Second Floor
AC8169-A Contemporary House Second Floor Plan, 5 Bedrooms, 5.5 Bathrooms | Mohjeet Tuscan House Plan
House Plan Formats Explained

PDF (Single Build)

A complete set of working drawings delivered in digital PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

CAD + PDF (Single Build)

A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

5 or 8 Prints (Single Build)

Five or eight printed sets of working drawings shipped to you. This option comes with a license to build ONE home.

5 Prints + PDF (Single Build)

Five printed sets of working drawings shipped to you, plus a digital version in PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

PDF (Multi Build)

A complete set of working drawings delivered in digital PDF format. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.

CAD + PDF (Multi Build)

A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.

Choose a building foundation for your home. The foundation provides stability to a home's structure from the ground up.

Slab - This concrete foundation is reinforced with steel rods and suitable for flat ground.

Crawl Space - This foundation is raised off the ground with low walls resting on footings, providing space for wiring, plumbing, and storage.

Basement - This foundation is entirely or partially below ground and offers storage or living areas.

Walkout Basement - This foundation is typically suited for rear-sloping lots and provides storage or living areas. Walkout basements have doors that provide access to the outside.

Readable Reverse
An option to reverse the plan including texts and dimensions to make them readable.
2x4 or 2x6 Conversion
Convert the exterior framing other than the standard framing included in the plan.
Multi Build Licence (CAD required) Gives the buyer the legal right to build the house plan multiple times
