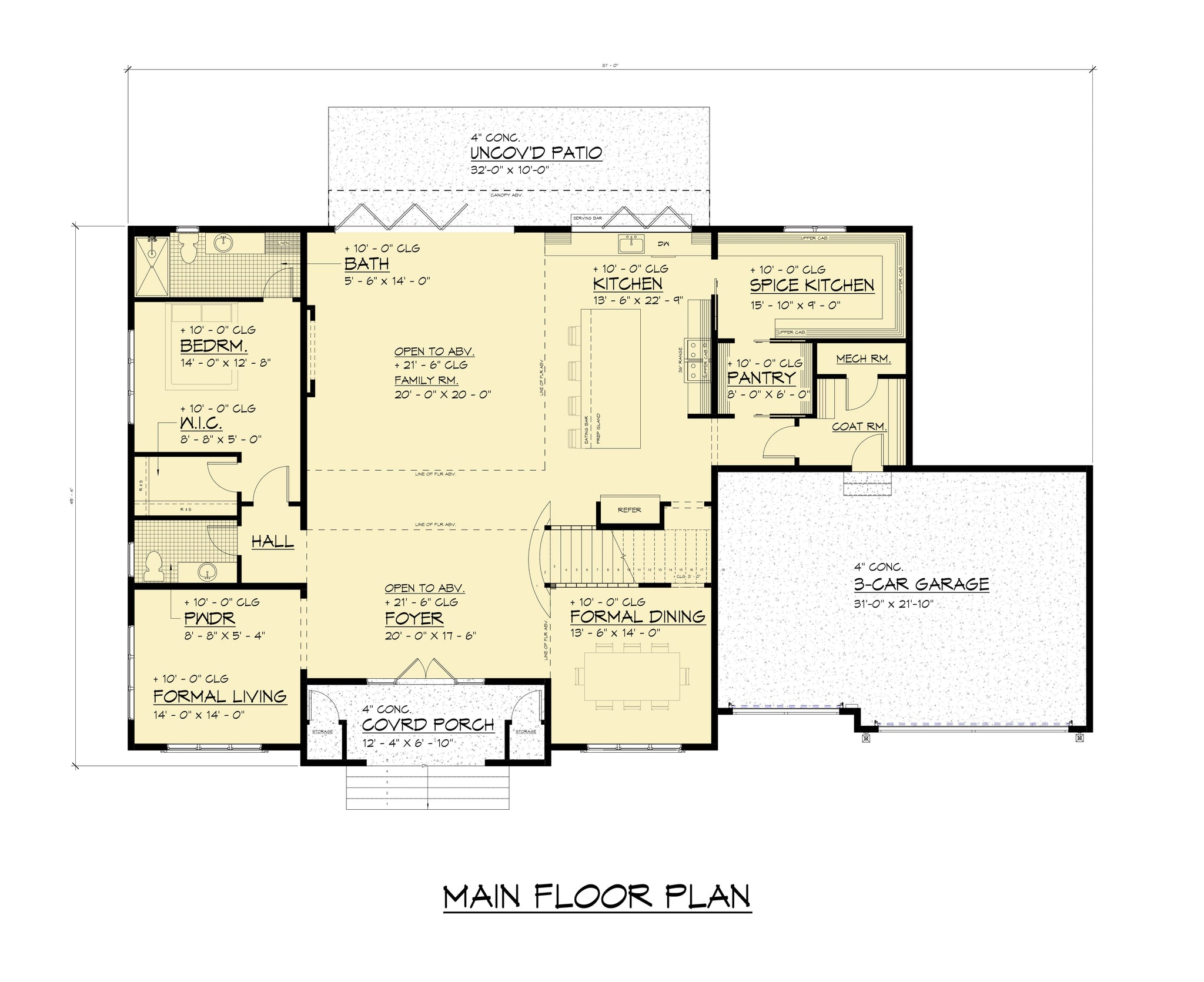

ac8175-a contemporary house first floor plan, 5 bedrooms, 5.5 bathrooms | manjot singh house plan

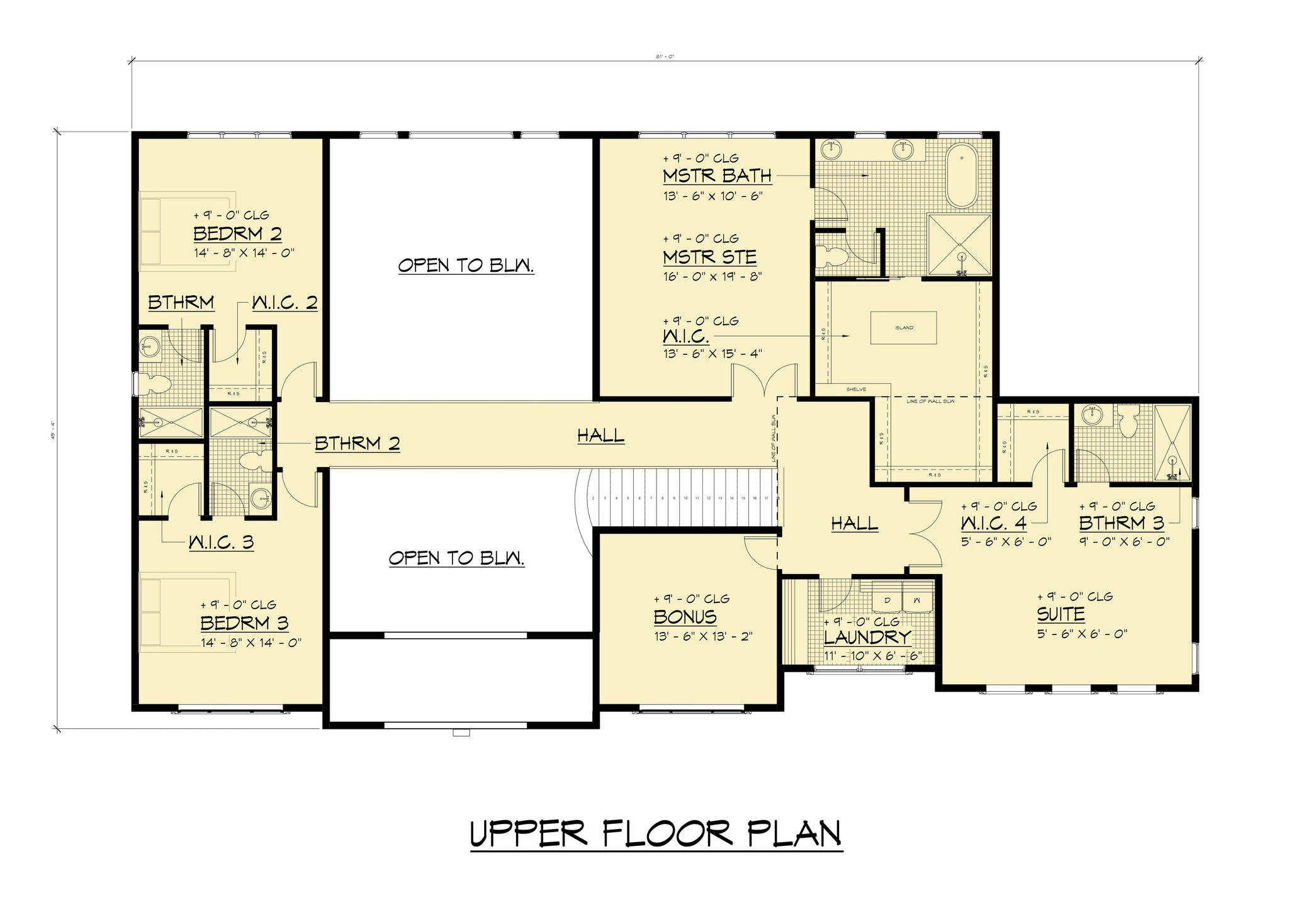

ac8175-a contemporary house second floor plan, 5 bedrooms, 5.5 bathrooms | manjot singh house plan

Luxury Contemporary House Plan with 5 Bedrooms & Two-Story Grand Room – 4,788 Sq Ft

This luxury contemporary house plan delivers a refined blend of modern architectural elegance and expansive family living. Offering 4,788 square feet of heated living space and a total structure size of 5,621 square feet, the design emphasizes openness, comfort, and functionality while maintaining the clean lines and sophisticated simplicity associated with contemporary residential architecture.

The exterior composition reflects a sleek modern aesthetic through balanced geometric massing, restrained detailing, and low-profile rooflines. Measuring 81 feet wide by 45 feet 4 inches deep, the residence presents a broad and visually striking appearance suited for upscale suburban developments or spacious residential properties. The low 4:12 roof pitch reinforces the home’s streamlined horizontal character and contributes to its distinctly contemporary identity.

A covered front porch introduces the home with understated elegance while providing a welcoming transition into the interior. At the rear, an expansive patio extends the living environment outdoors, creating generous space for entertaining, outdoor dining, and relaxation. The integration of indoor and outdoor gathering areas reflects the modern emphasis on connected lifestyle-oriented living.

Inside, the floor plan is organized around dramatic open-concept spaces designed to maximize natural light, visual flow, and architectural openness. Ten-foot ceilings throughout the first floor create a spacious and luxurious atmosphere, while nine-foot ceilings on the second level maintain comfort and proportion throughout the upper living areas.

The two-story foyer establishes an impressive sense of arrival and immediately introduces the home’s expansive vertical scale. Beyond the entry, the dramatic two-story grand room serves as the architectural centerpiece of the residence. Anchored by a fireplace, the grand room creates a warm and sophisticated gathering environment ideal for both everyday living and formal entertaining. Large open sightlines connect the grand room seamlessly to the surrounding kitchen and dining spaces, reinforcing the home’s emphasis on openness and interaction.

The kitchen is designed as both a practical workspace and a social centerpiece. A large central kitchen island provides generous preparation space and casual seating opportunities, while the adjacent eating bar enhances functionality for informal meals and conversation. The spacious walk-in pantry contributes substantial storage and organizational efficiency, supporting both daily household activity and larger entertaining occasions.

A dedicated formal dining room introduces a refined setting for gatherings and special occasions while preserving visual harmony with the surrounding open-concept layout. The nearby keeping or family room provides additional flexible living space suited for casual relaxation, media use, or secondary entertaining needs.

The home includes five bedrooms and five full bathrooms thoughtfully distributed to maximize privacy and comfort. The second-floor master suite serves as a luxurious private retreat featuring expansive walk-in closet accommodations and a sophisticated private bathroom with dual vanity sinks. Its upper-level placement enhances privacy while maintaining convenient access to additional bedrooms and shared family spaces.

Additional bedrooms are generously sized and positioned to support larger households, multigenerational living, or guest accommodations. A centrally located bonus room further expands the home’s versatility, providing flexible space for recreation, fitness, gaming, media use, or a secondary family lounge depending on household needs.

Practical utility features are integrated throughout the design to support efficient modern living. A second-floor laundry room improves convenience by positioning laundry facilities near the primary bedroom areas, reducing unnecessary movement between levels and enhancing daily functionality.

The attached front-load three-car garage provides generous parking and storage capacity while integrating naturally into the home’s contemporary façade. Constructed on a crawl space foundation with durable 2x6 wall framing and truss roof framing, the residence emphasizes energy efficiency, structural durability, and long-term reliability.

Architecturally, this contemporary house plan succeeds through its balance of dramatic interior spaces, modern simplicity, and highly functional family-oriented design. The soaring two-story living areas, expansive open layout, luxurious private suites, and adaptable bonus spaces combine to create a sophisticated and enduring modern residence tailored for upscale contemporary lifestyles.



View Sample Plan
What's Included in the House Plan:
  • Cover Sheet – Basic plan information
  • General Notes – Standard codes (excludes state-specific amendments)
  • Detailed Floor Plans – Fully dimensioned layouts

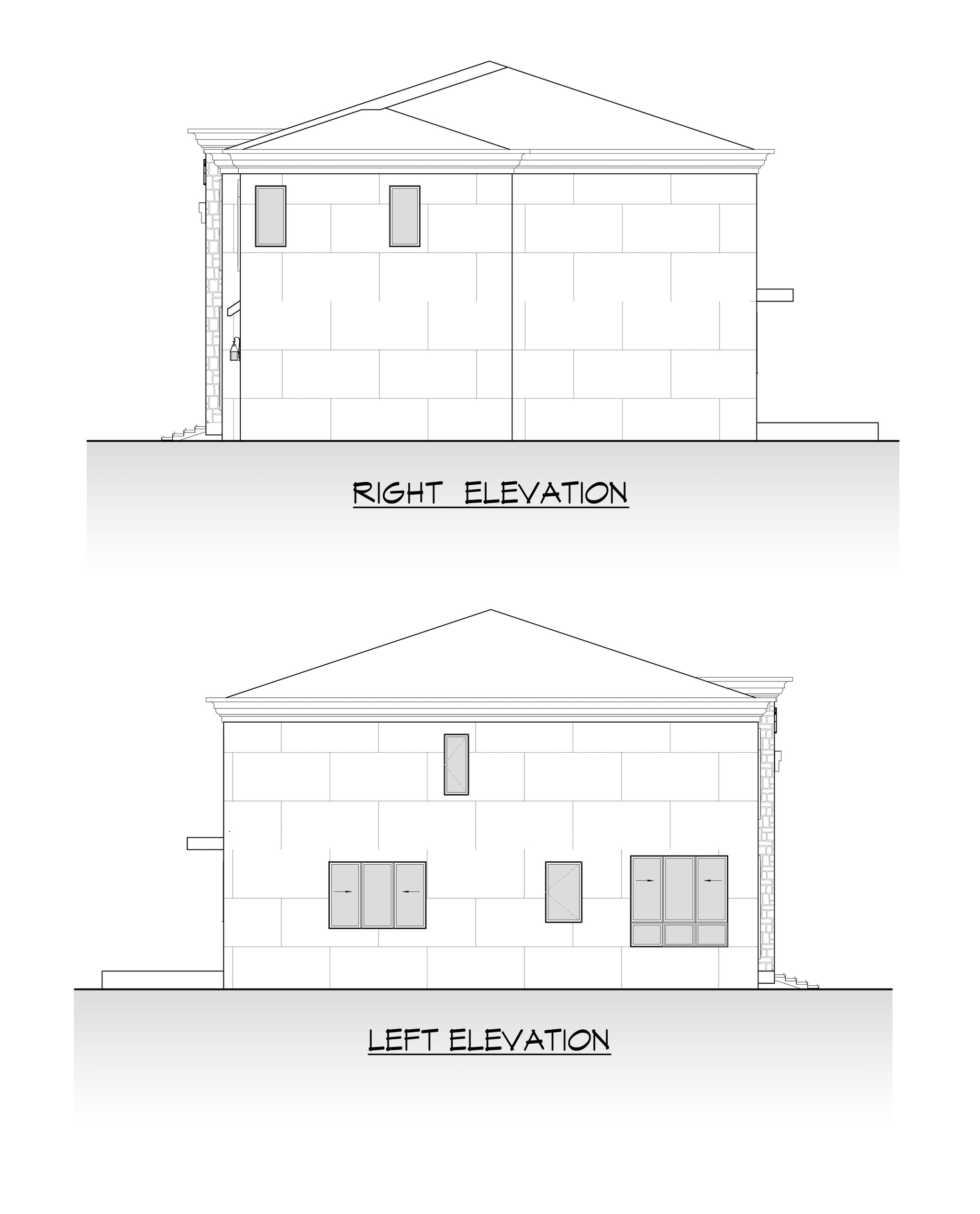

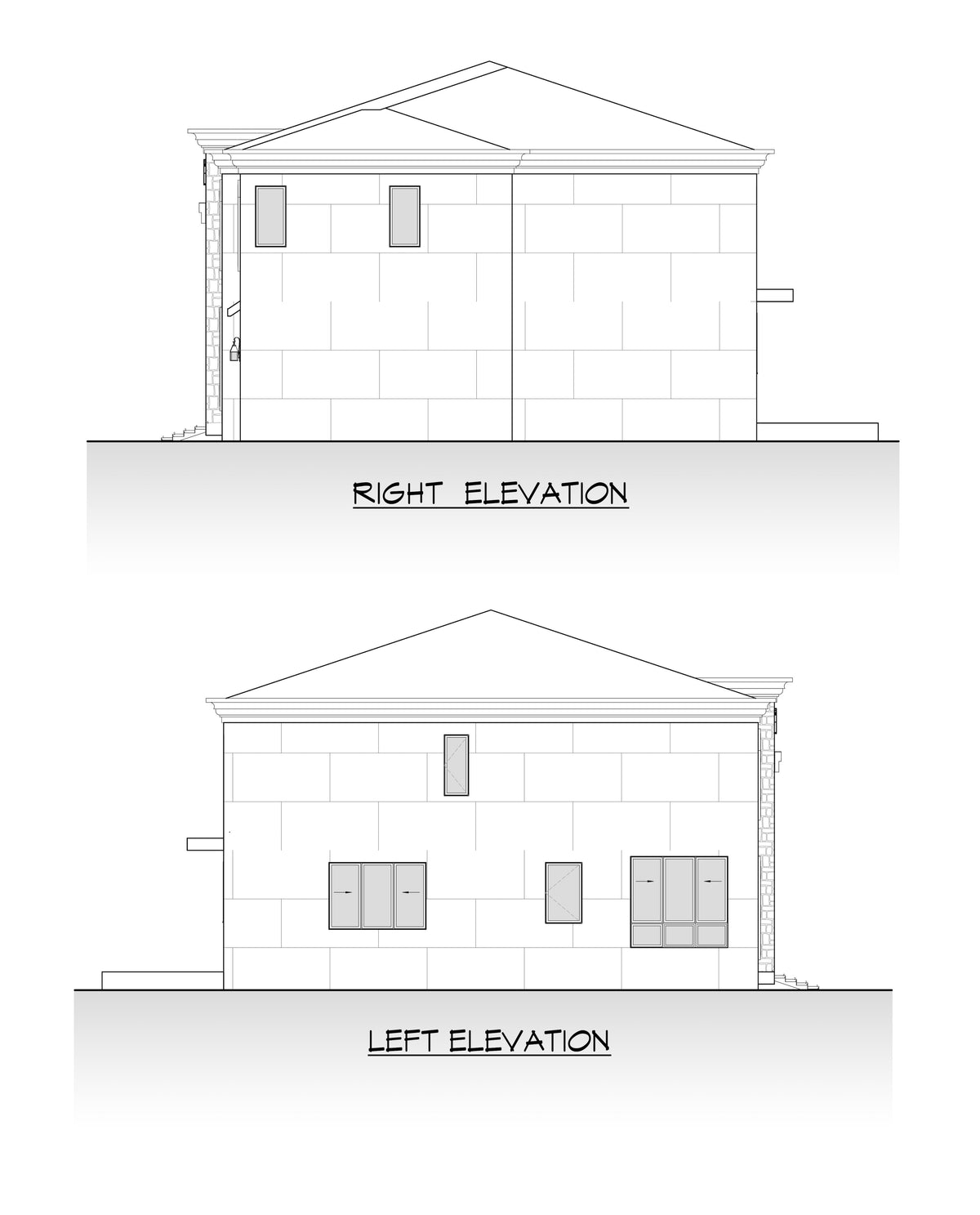

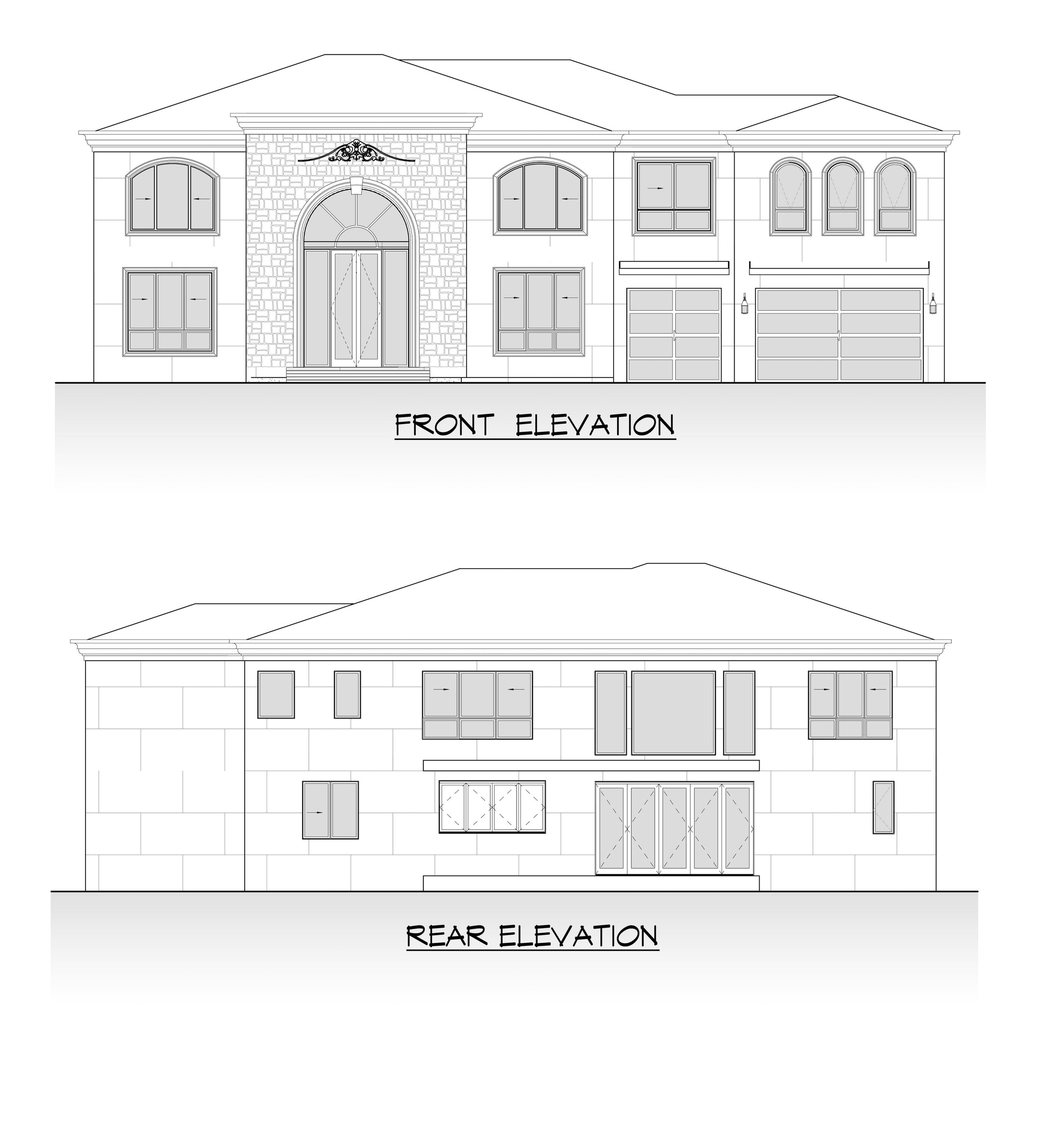

  • Elevations – All exterior views
  • Building Cross Section – Vertical construction details
  • Roof Plan – Layout with notes
  • Construction Details – Key building elements
  • Window Schedule – Sizes and types listed
  • Structural Plan – For reference only (not for construction)
What's Not Included:
  • Architectural/Engineering Stamp – Handled locally when required
  • Site Plan – Handled locally when required
  • Mechanical Drawings – Handled locally when required
  • Plumbing Drawings – Handled locally when required
  • Electrical Drawings – Handled locally when required
  • Energy Calculations – Handled locally when required
  • Foundation & Framing Plans – Handled locally when required

House Plan Specifications

  • Total Living (heated area):  4788 sq ft
    All Unheated Under-Roof Areas  833 sq ft
    Total Structure  5621 sq ft
    1st Floor:  2407 sq ft
    2nd Floor:  2381 sq ft
    Front Porch:  154 sq ft
    Rear Porch:  (Patio) 320 sq ft
  • Garage:  679 sq ft
    Garage Bays:   3
    Garage Load:   Front
  • Bedrooms:   5
    Bathrooms:   5
    Half Bathrooms:   1
  • Foundation:   Crawl Space
    Wall Framing:   2x6
    Roof Framing:   Truss
    Roof Pitch:  4:12
  • Width of House:  81'
    Depth of House:  45'4''
    Building Height:  30'9''
  • First Floor Ceiling Height:  10'
    Second Floor Ceiling Height:  9'

Key Features

  • Bonus Room
  • Covered Front Porch
  • Eating Bar
  • Fireplace
  • Formal Dining Room
  • Keeping/Family Room
  • Kitchen Island
  • Master Bath-Double Vanity Sink
  • Open Floor Plan
  • Patio
  • Powder Room
  • Private Master Bath
  • Second Floor Laundry
  • Second Floor Master Suite
  • Two-Story Foyer
  • Two-Story Grand Room
  • Walk-in Closet
  • Walk-in Pantry
