Sleek Contemporary House Plan with 5 Bedrooms, Loft Balcony & Open Living – 3,010 Sq Ft
4.8
Plan Number:

AC8166-A

Rated 4.8
Plan Number:

AC8166-A

✔ Best Price Guarantee | ✔ Free Cost to Build Calculator
Or order by phone: (888) 890-2353
Safe and Secure
SafePay icons
LOW PRICE GUARANTEE
Free Cost to Build Calculator
Floor Plan

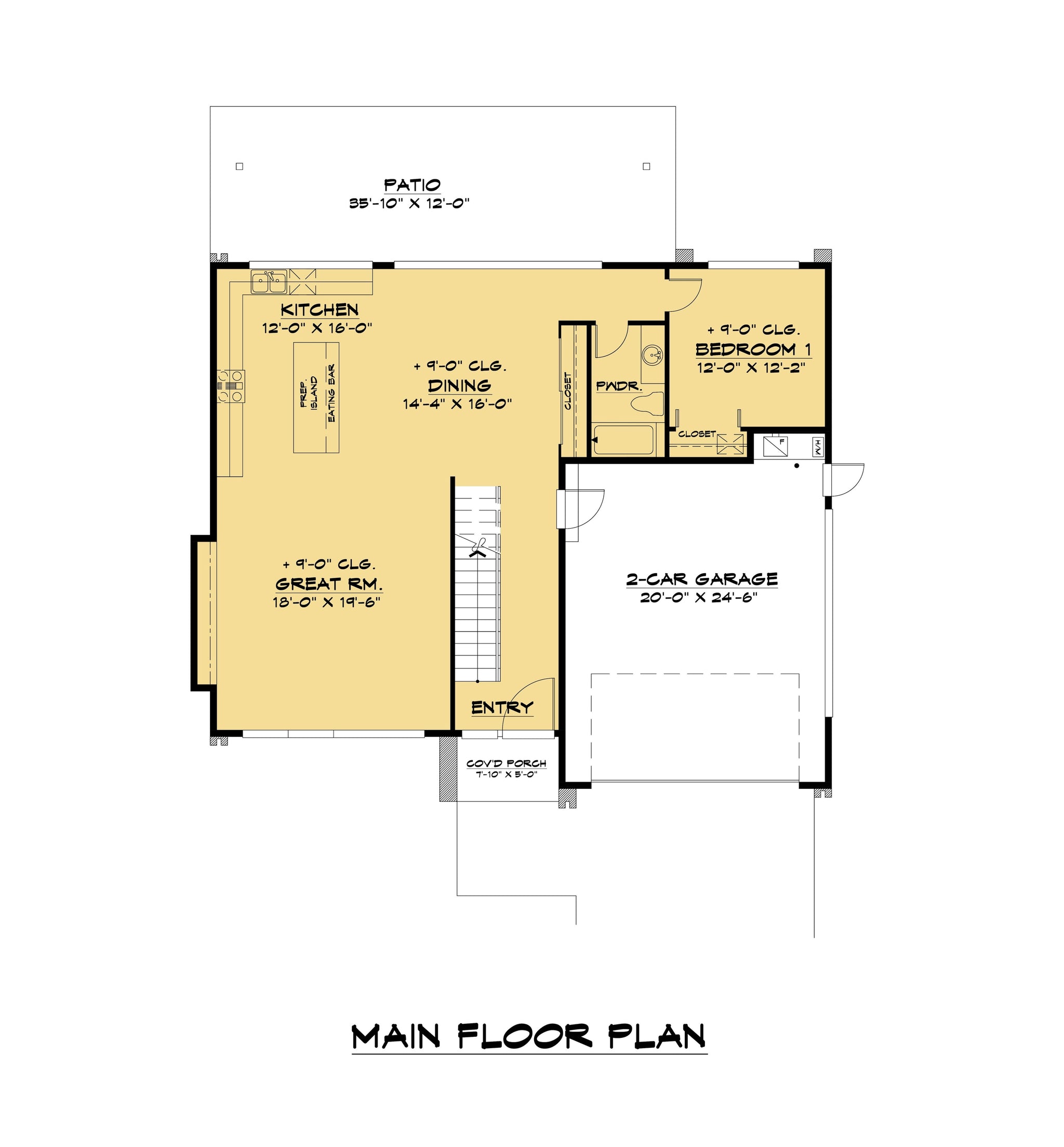

ac8166-a contemporary house first floor plan, 5 bedrooms, 4 bathrooms | tigran house plan

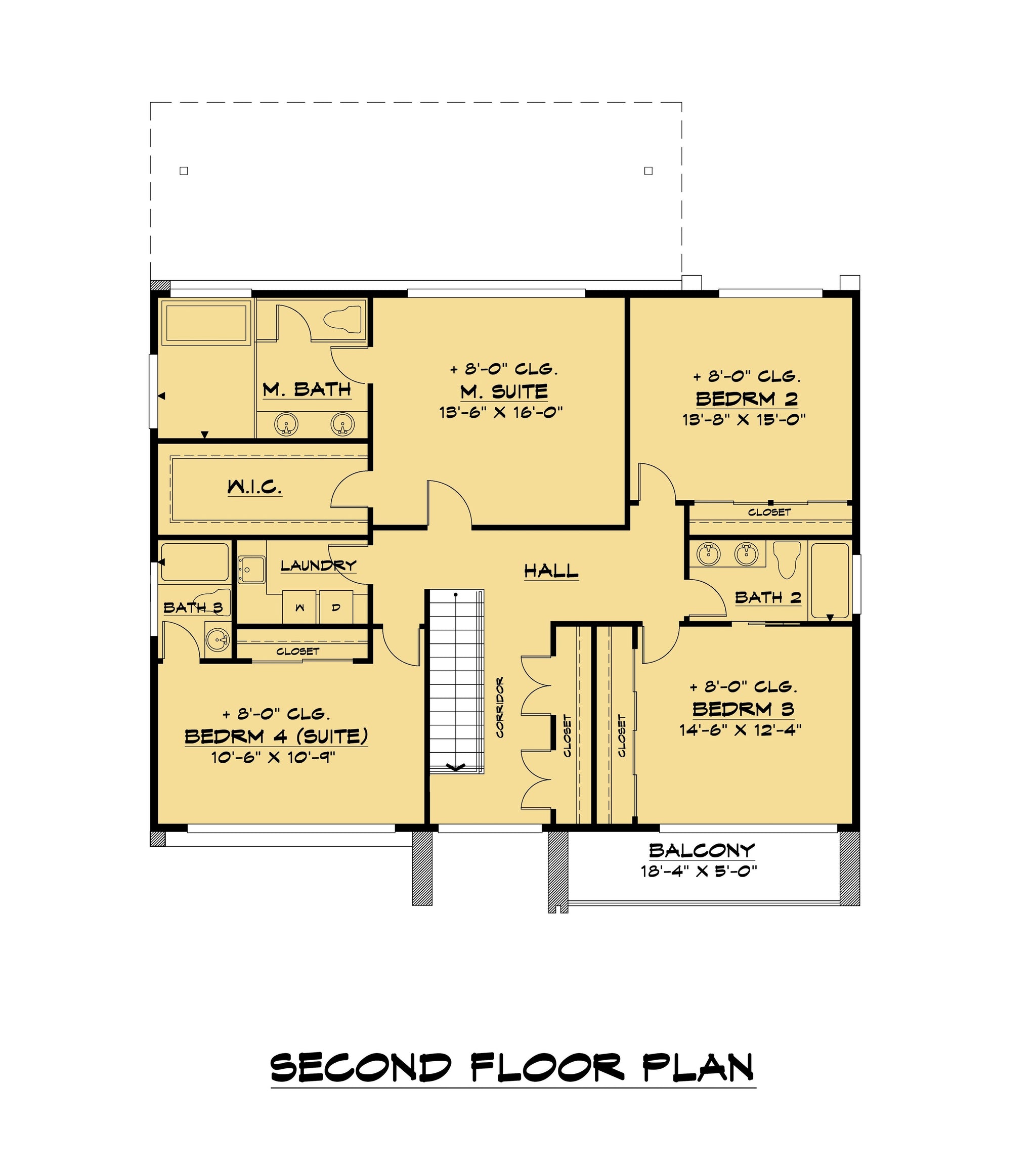

ac8166-a contemporary house second floor plan, 5 bedrooms, 4 bathrooms | tigran house plan

Sleek Contemporary House Plan with 5 Bedrooms, Loft Balcony & Open Living – 3,010 Sq Ft

This sleek contemporary house plan delivers a bold modern interpretation of family living through clean architectural lines, expansive open spaces, and highly functional multi-level design. Offering 3,010 square feet of heated living space and a total structure size of 3,597 square feet, the residence blends minimalist exterior styling with spacious interior planning, creating a home tailored for modern lifestyles and evolving household needs.

The exterior composition reflects the defining characteristics of contemporary architecture through its low-profile roofline, geometric massing, and restrained visual detailing. Measuring 49 feet 4 inches wide by 40 feet 6 inches deep, the home maintains a compact yet visually substantial footprint ideal for urban, suburban, or modern infill developments. The dramatic 0.25:12 roof pitch reinforces the sleek horizontal character of the design while contributing to its distinctly modern appearance.

A covered front porch introduces the residence with understated sophistication and provides a welcoming transition into the interior. At the rear, a spacious 300-square-foot patio significantly expands the home’s outdoor living potential, creating an ideal environment for entertaining, dining, or relaxing in a private exterior setting. An upper-level balcony further enhances the home’s connection to outdoor space while adding architectural depth and contemporary visual interest.

Inside, the floor plan is organized around an open-concept arrangement designed to maximize natural light, circulation, and spatial continuity. Nine-foot ceilings on the first floor establish an expansive atmosphere throughout the primary living spaces, while the second-floor layout maintains comfortable proportions with efficient eight-foot ceiling heights.

The great room functions as the architectural and social center of the residence. Anchored by a fireplace, the living area creates a warm yet modern environment suited for both everyday living and entertaining. Large open sightlines connect the great room seamlessly to the kitchen and dining areas, reinforcing the home’s emphasis on openness and interaction.

The kitchen is designed as a modern gathering space balancing aesthetics with functionality. A large central kitchen island provides generous workspace and informal seating opportunities, while the adjacent eating bar supports casual dining and conversation. The open arrangement allows the kitchen to remain visually integrated with the surrounding living spaces, a defining element of contemporary residential design.

The formal dining room introduces additional flexibility for entertaining and family gatherings while maintaining visual connection to the central living environment. This balance between openness and defined functional zones contributes to the home’s practical yet sophisticated layout.

The residence includes five bedrooms and four full bathrooms arranged to support both privacy and adaptability. The second-floor master suite is designed as a luxurious private retreat featuring a spacious walk-in closet and an elegant private bathroom with dual vanity sinks. Its upper-level location enhances separation from the primary living areas while preserving convenient access to secondary bedrooms and shared family spaces.

Additional bedrooms provide comfortable accommodations for family members, guests, or flexible uses such as hobby rooms, fitness areas, or secondary office spaces. A loft balcony area introduces another versatile gathering zone that can function as a casual lounge, media area, or study space depending on household needs.

Practical utility features are carefully integrated throughout the design to support efficient everyday living. A second-floor laundry room enhances convenience by positioning laundry access near the primary bedroom areas, reducing unnecessary movement between levels.

The attached front-load two-car garage contributes secure parking and additional storage while integrating cleanly into the contemporary façade. Built on a crawl space foundation with durable 2x6 wall framing and truss roof framing, the home emphasizes structural efficiency, long-term durability, and energy-conscious construction.

Architecturally, this contemporary house plan succeeds through its careful balance of minimalist exterior styling and spacious, highly livable interiors. The clean roofline, open-concept layout, loft spaces, and seamless indoor-outdoor connections create a residence that feels modern, functional, and visually refined.

Ideal for growing families or homeowners seeking a sophisticated contemporary lifestyle, this design offers flexibility, comfort, and enduring architectural appeal within a sleek and thoughtfully organized modern framework.



View Sample Plan
What's Included in the House Plan:
  • Cover Sheet – Basic plan information
  • General Notes – Standard codes (excludes state-specific amendments)
  • Detailed Floor Plans – Fully dimensioned layouts

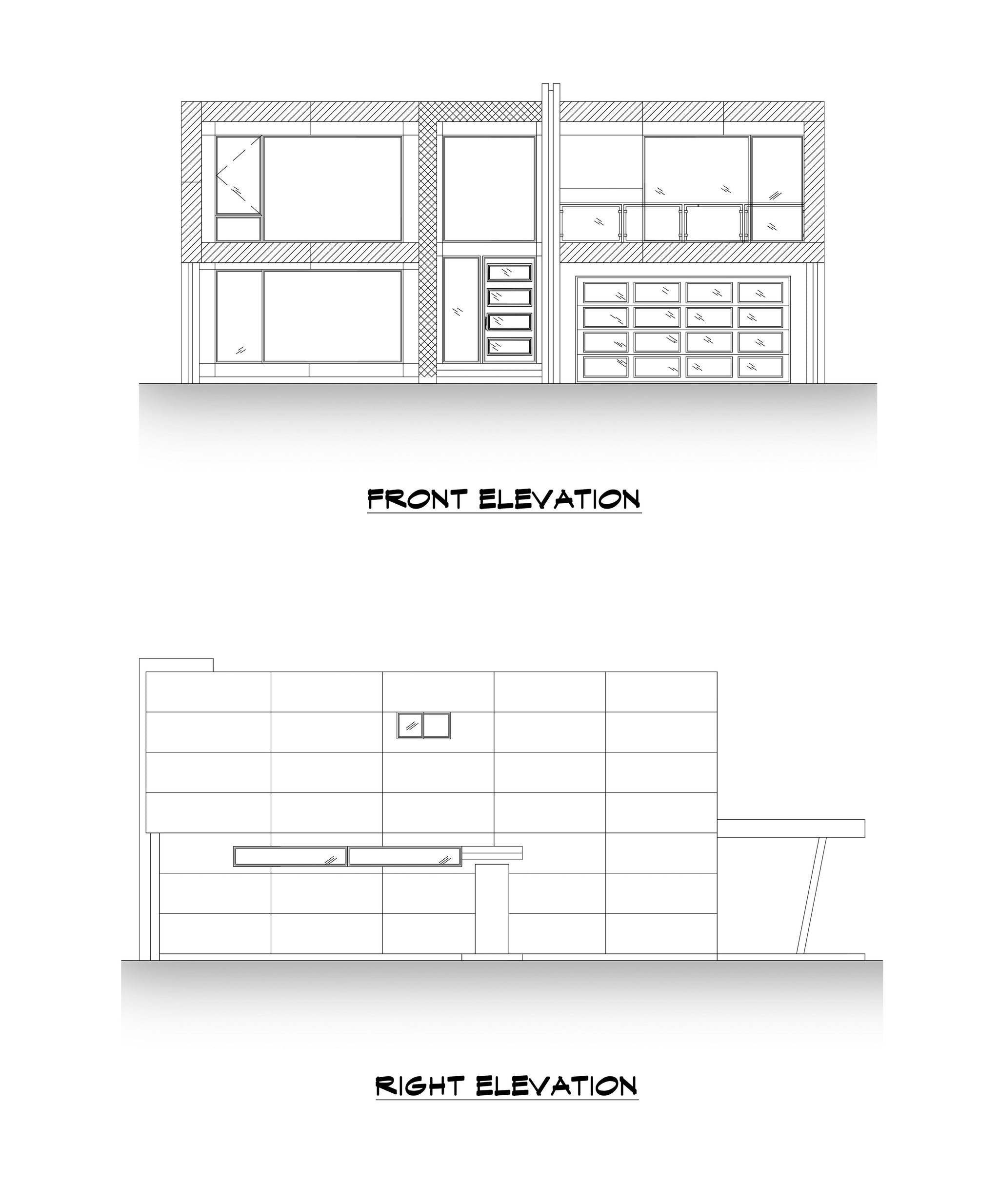

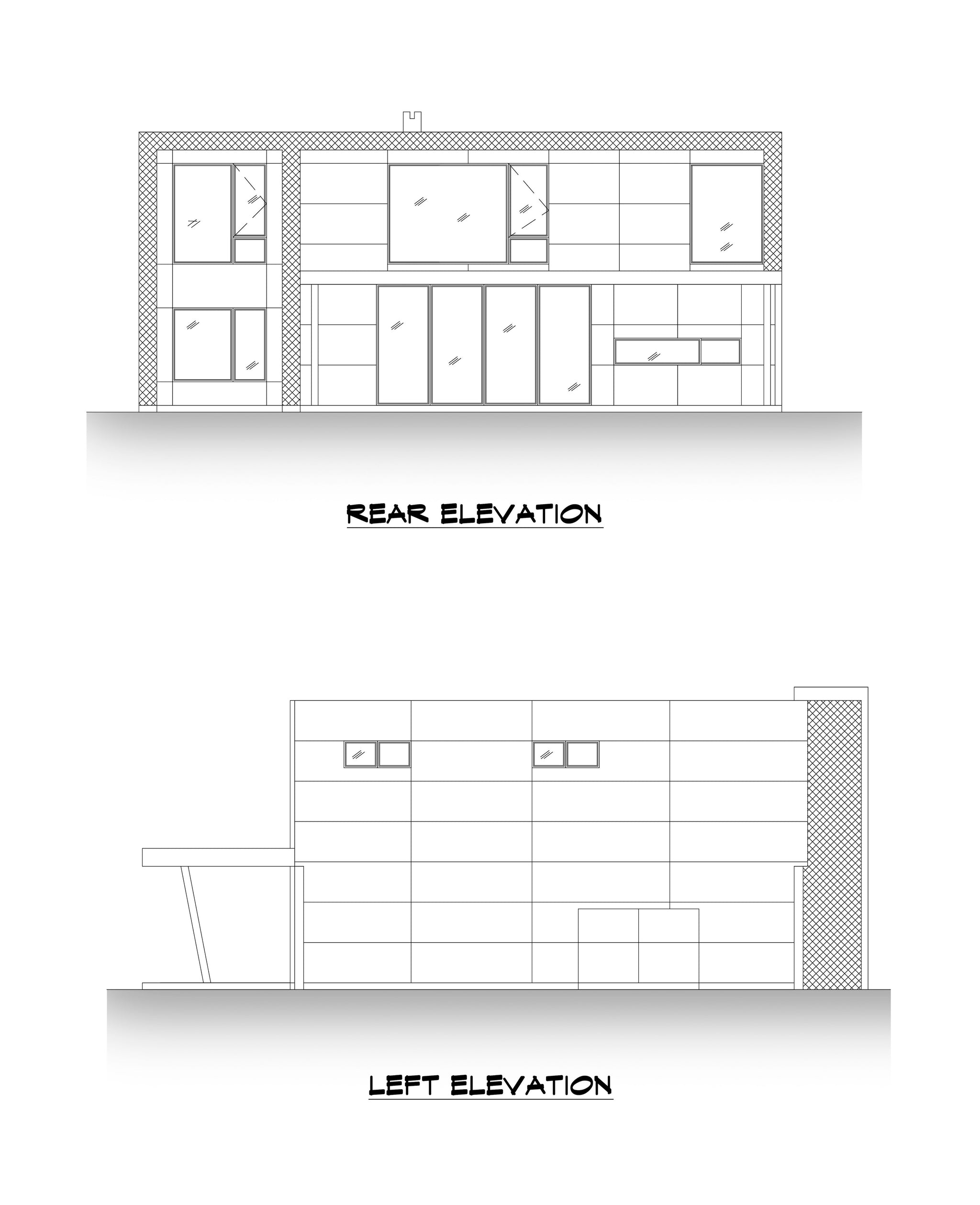

  • Elevations – All exterior views
  • Building Cross Section – Vertical construction details
  • Roof Plan – Layout with notes
  • Construction Details – Key building elements
  • Window Schedule – Sizes and types listed
  • Structural Plan – For reference only (not for construction)
What's Not Included:
  • Architectural/Engineering Stamp – Handled locally when required
  • Site Plan – Handled locally when required
  • Mechanical Drawings – Handled locally when required
  • Plumbing Drawings – Handled locally when required
  • Electrical Drawings – Handled locally when required
  • Energy Calculations – Handled locally when required
  • Foundation & Framing Plans – Handled locally when required

House Plan Specifications

  • Total Living (heated area):  3010 sq ft
    All Unheated Under-Roof Areas  587 sq ft
    Total Structure  3597 sq ft
    1st Floor:  1302 sq ft
    2nd Floor:  1708 sq ft
    Rear Porch:  (Patio) 300 sq ft
    Balcony:  84
  • Garage:  503 sq ft
    Garage Bays:   2
    Garage Load:   Front
  • Bedrooms:   5
    Bathrooms:   4
  • Foundation:   Crawl Space
    Wall Framing:   2x6
    Roof Framing:   Truss
    Roof Pitch:  0.25:12
  • Width of House:  49'4''
    Depth of House:  40'6''
    Building Height:  21'
  • First Floor Ceiling Height:  9'
    Second Floor Ceiling Height:  8'

Key Features

  • Covered Front Porch
  • Eating Bar
  • Fireplace
  • Formal Dining Room
  • Great Room
  • Kitchen Island
  • Loft/Balcony
  • Master Bath-Double Vanity Sink
  • Open Floor Plan
  • Patio
  • Private Master Bath
  • Second Floor Laundry
  • Second Floor Master Suite
  • Walk-in Closet
Modify this plan to make it perfect
Our hassle-free process makes it easy to modify your dream home. To receive an estimate please submit your request using the link below.
Submit a Modification Request
Cost to build estimate
$0.00
$40.00
100% discount for new customers this month!
Receive a personal estimate in two minutes instead of 2 days as many competitors offer. Just submit your request using the link below.
Get Your Estimate
Plan Number: AC8166-A
Sleek Contemporary House Plan with 5 Bedrooms, Loft Balcony & Open Living – 3,010 Sq Ft
5 Bedrooms
4 Full Baths
3010 SQ FT
2 Stories
Product print image
Main Level
AC8166-A Contemporary House First Floor Plan, 5 Bedrooms, 4 Bathrooms | Tigran house Plan
Second Floor
AC8166-A Contemporary House Second Floor Plan, 5 Bedrooms, 4 Bathrooms | Tigran house Plan
House Plan Formats Explained

PDF (Single Build)

A complete set of working drawings delivered in digital PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

CAD + PDF (Single Build)

A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

5 or 8 Prints (Single Build)

Five or eight printed sets of working drawings shipped to you. This option comes with a license to build ONE home.

5 Prints + PDF (Single Build)

Five printed sets of working drawings shipped to you, plus a digital version in PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

PDF (Multi Build)

A complete set of working drawings delivered in digital PDF format. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.

CAD + PDF (Multi Build)

A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.

Choose a building foundation for your home. The foundation provides stability to a home's structure from the ground up.

Slab - This concrete foundation is reinforced with steel rods and suitable for flat ground.

Crawl Space - This foundation is raised off the ground with low walls resting on footings, providing space for wiring, plumbing, and storage.

Basement - This foundation is entirely or partially below ground and offers storage or living areas.

Walkout Basement - This foundation is typically suited for rear-sloping lots and provides storage or living areas. Walkout basements have doors that provide access to the outside.

Readable Reverse
An option to reverse the plan including texts and dimensions to make them readable.
2x4 or 2x6 Conversion
Convert the exterior framing other than the standard framing included in the plan.
Multi Build Licence (CAD required) Gives the buyer the legal right to build the house plan multiple times
